This 464-page Takeuchi TL130 parts manual PDF is the factory parts catalog and (OEM #BT8Z012) covers the complete TL130 Compact Track Loader, from crawler belt to cab roof. Exploded views carry numbered callouts for every assembly: track rollers, travel devices, control valves, arm and bucket cylinders, hydraulic and gear pumps. Listings are split by serial number range, so you order the correct travel device or valve block for your exact machine instead of guessing between revisions. Even the small stuff is spec'd: travel motor retaining rings at 4.00 to 4.05 mm thick, rear lamp bulbs at 12V, 55W. No more squinting at a worn casting hoping the number matches. Bookmarked by system and keyword-searchable; jump to the diagram, read the part number, place the order.

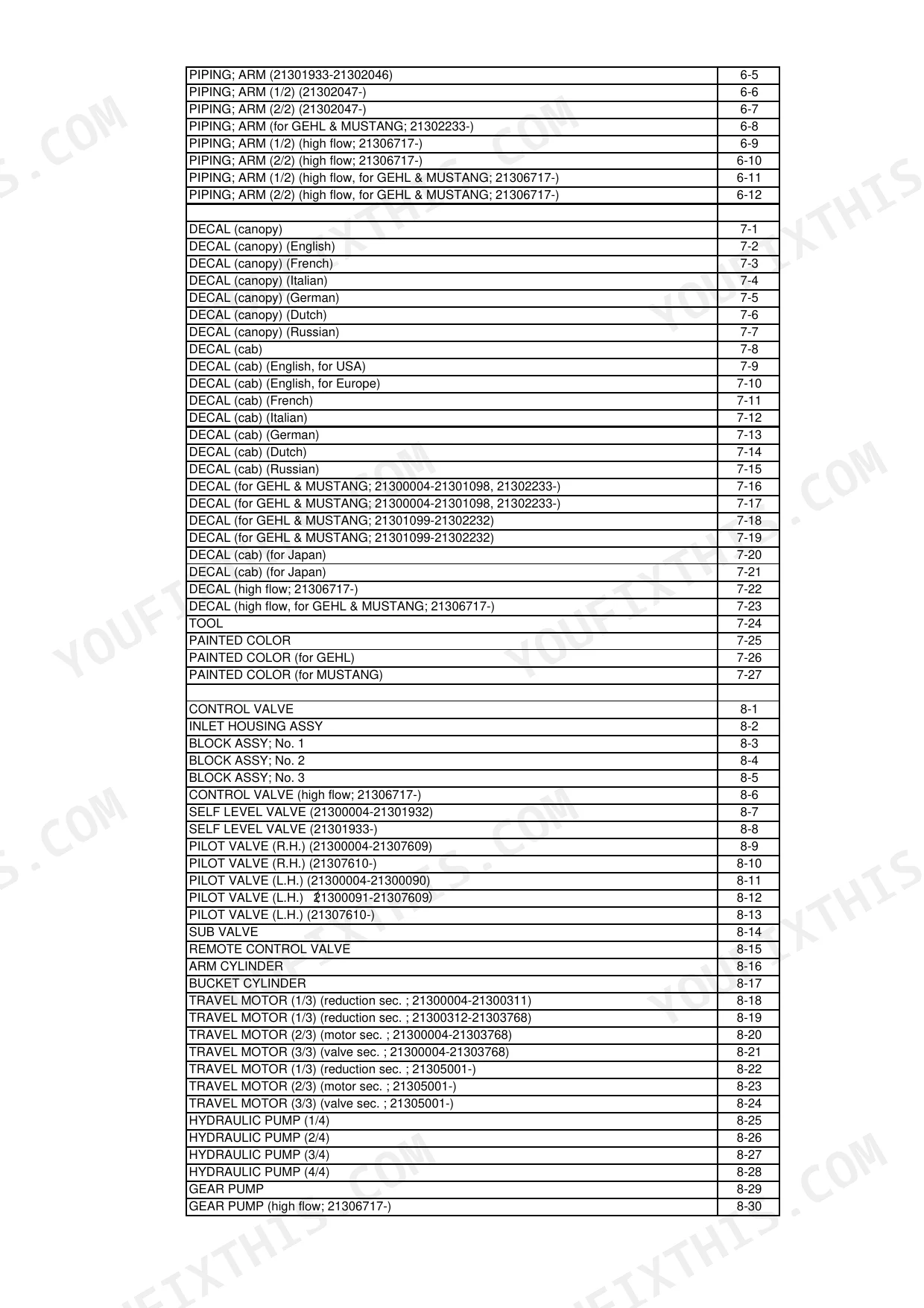

What's Inside This Takeuchi TL130 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Undercarriage | 16-29 | Track Roller a, Track Roller B, Front Idler, Track Adjuster, Travel Device (21300004-21303768), Travel Device (21305001-) |
| Main Frame & Control Lever | 30-49 | Frame, Arm Stopper, Hook, Operation Lever & Stand, Piping; Operation Lever (21300004-21303768) |
| Engine & Electrical System | 50-123 | Engine & Accessories, Precleaner, Drain Plug, Control Box, Engine Control, Electrical, Battery, Rear Lamp |

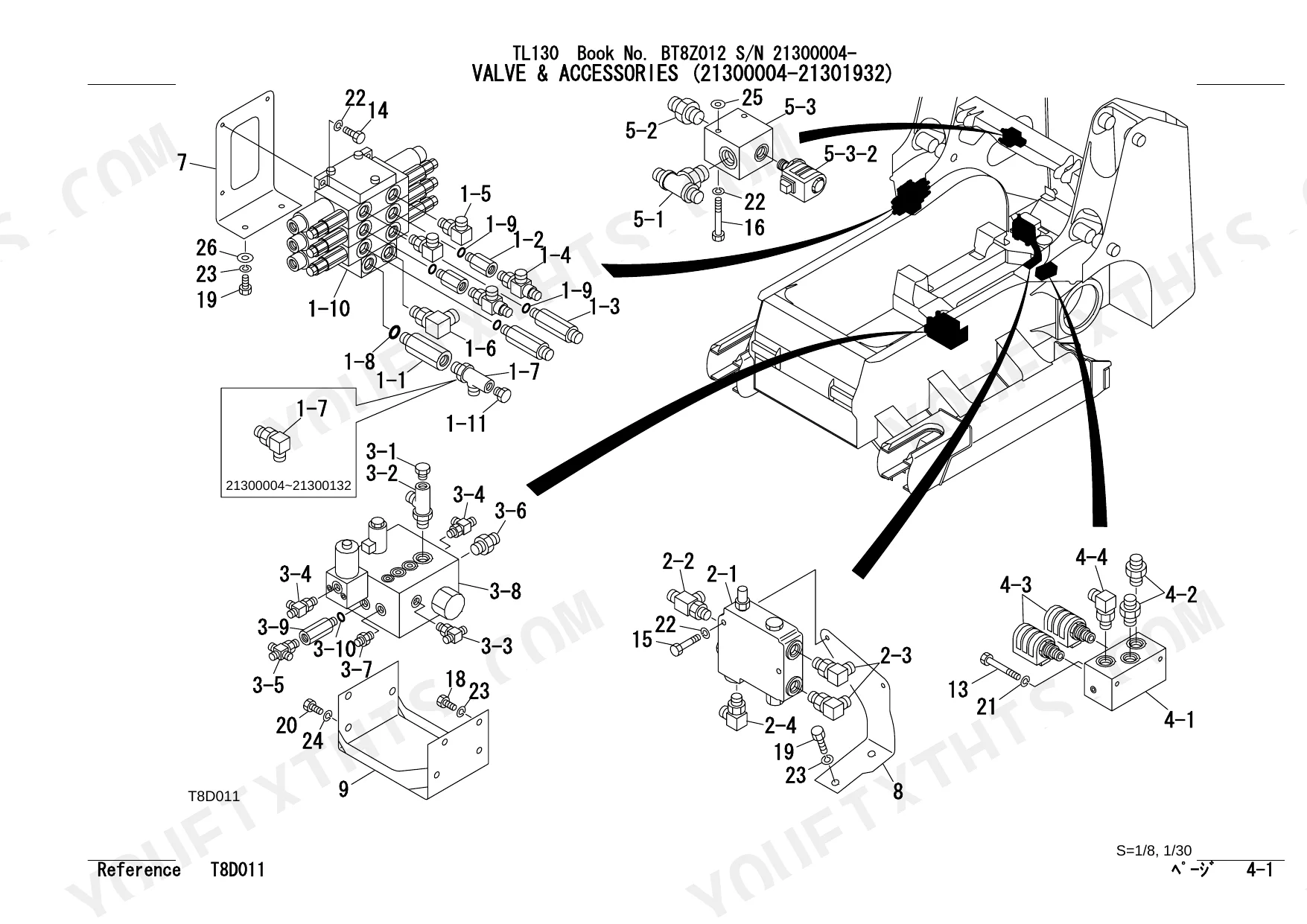

| Hydraulic Piping & Tank | 124-177 | Valve & Accessories (21300004-21301932), Valve & Accessories (21301933-), Valve & Accessories (for Eu; 21308295-), Piping (21300004-21300168) |

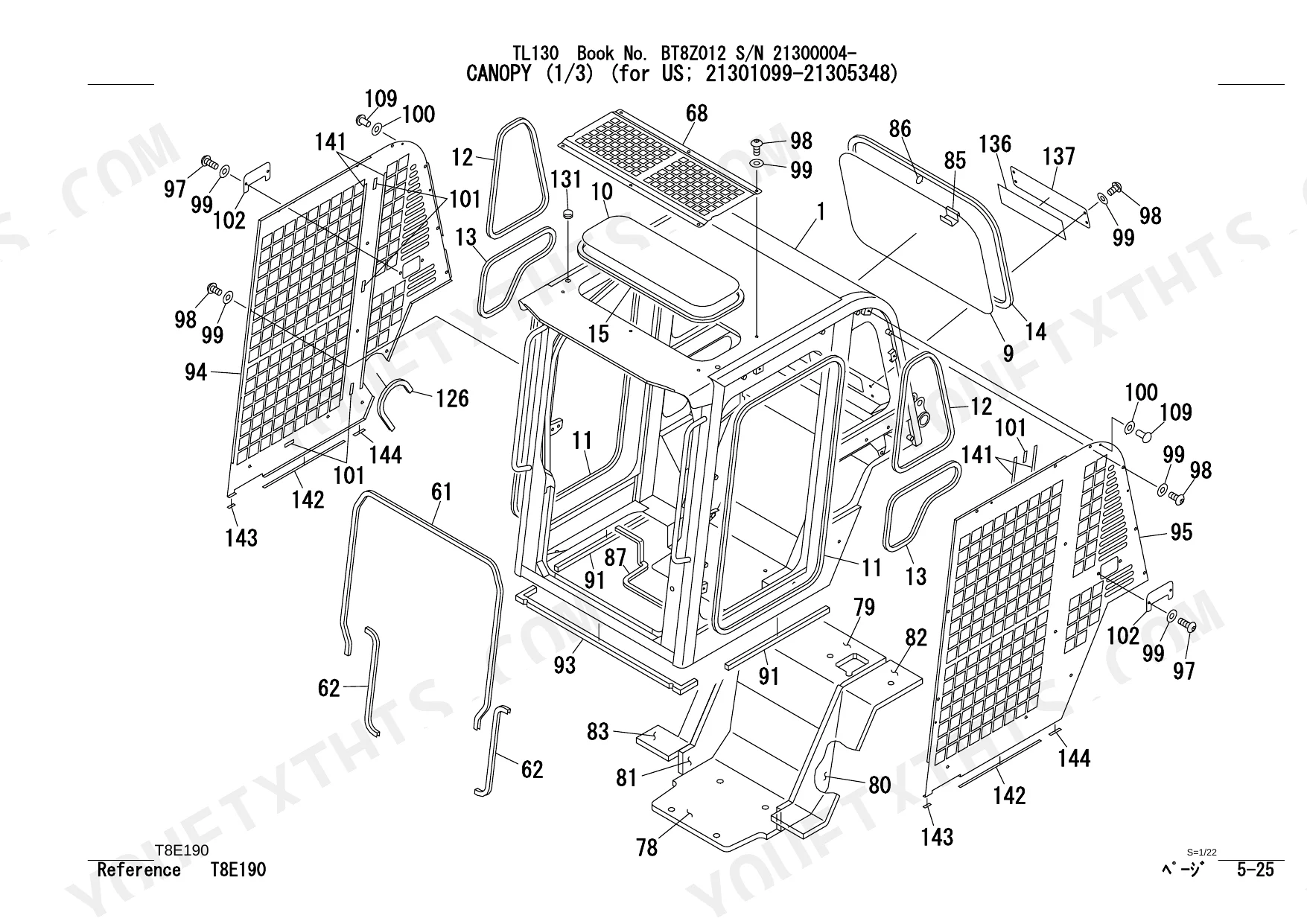

| Cover & Cab | 178-307 | Cover, Floor Frame, Seat, Seat Switch, Safety Bar, Canopy, Canopy Mount, Cab Mount |
| Attachment | 308-333 | Arm, Quick Attachment, Bucket, Piping; Arm (21300004-21301932), Piping; Arm (21301933-21302046), Piping; Arm (21302047-) |
| Decal & Tool | 334-377 | Decal (Canopy), Decal (Cab), Decal (for Gehl & Mustang; 21300004-21301098, 21302233-), Decal (for Gehl & Mustang; 21301099-21302232), Decal (Cab) (for Japan) |
| Hydraulic Device | 378-437 | Control Valve, Inlet Housing Assy, Block Assy, Self Level Valve, Pilot Valve, Sub Valve, Remote Control Valve, Arm Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Travel motor retaining ring thickness | 4.00mm to 4.05mm | p. 413 |
| Bulb Rating (Rear Lamp) | 12V, 55W | p. 117 |
| Bulb Rating (Room Lamp) | 12V, 55W | p. 223 |
| Bulb Rating (Canopy Lamp) | 12V, 55W | p. 245 |
Takeuchi TL130 Common Problems This Manual Covers
Takeuchi TL130 loses drive on one side, need the wheel motor and travel motor section part numbers
Check the Hydraulic Device section starting on page 378 for the travel motor breakdown, split into reduction, motor, and valve sections. Verify your serial number against the parts list columns before ordering a motor section. Measure the retaining rings, items 7 and 9 on page 413: spec is 4.00mm to 4.05mm thick, so replace any that mic under 4.00mm.
Manual Section: Hydraulic Device p. 413Tracks keep coming off, can't identify the correct front idler, track adjuster, and roller part numbers
Pull the chassis parts diagram on page 16 and match worn idler, rollers, and adjuster against the exploded view, then take part numbers from the list on page 17. Watch the roller callouts: the manual lists Track Roller A and Track Roller B separately, and Travel Device parts split at serial 21303768, with 21305001 and up on their own pages.
Manual Section: Undercarriage p. 16Intermittent electrical faults, need part numbers for fuses, wiring harness, and battery cables

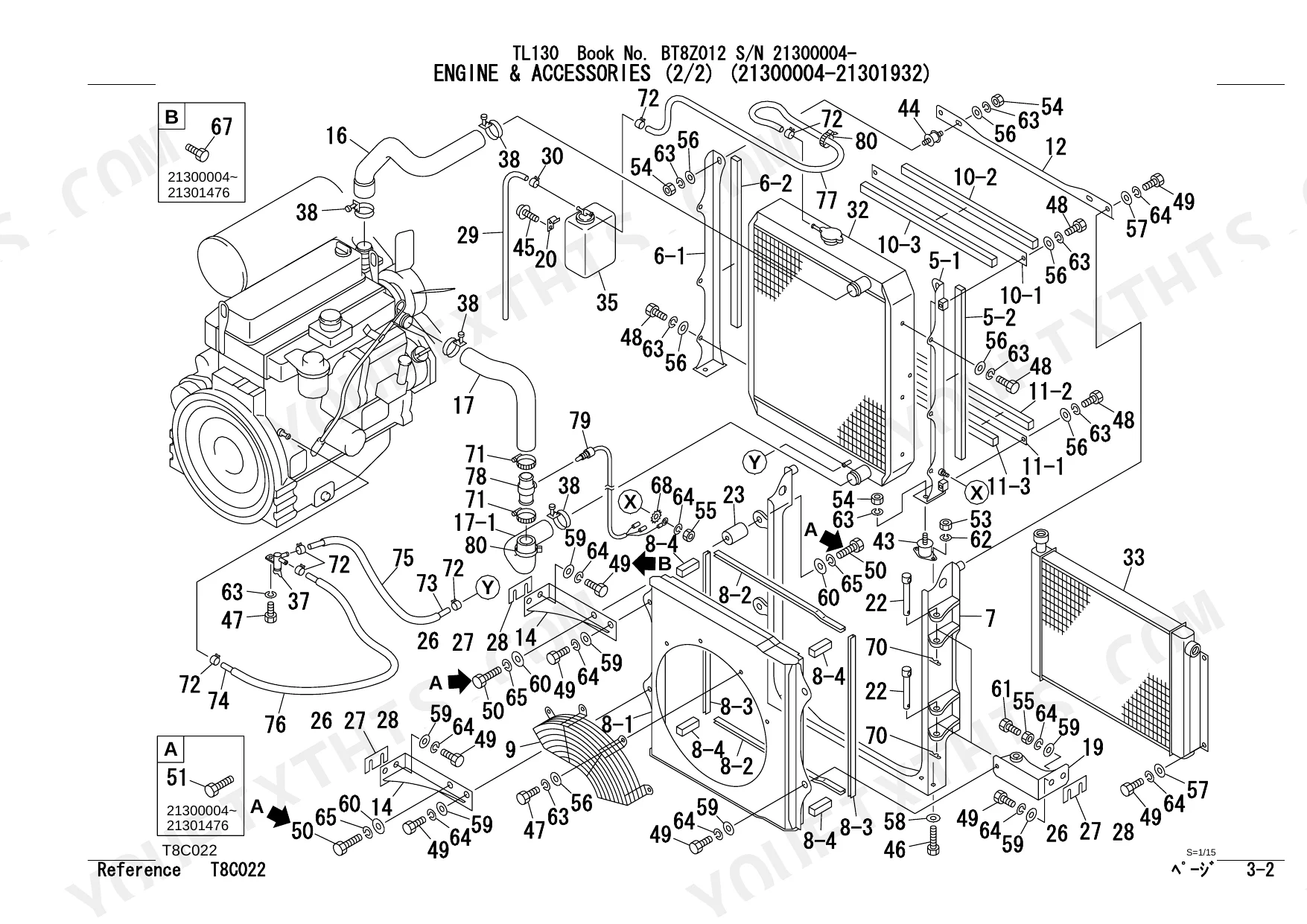

Trace the fault to a specific component first, then match it in the Engine & Electrical System section; the engine parts diagram starts on page 50, and the electrical listings cover wiring harnesses, fuses, relays, and battery connections. Verify bulb ratings before ordering: the rear lamp takes a 12V, 55W bulb, listed on page 117.
Manual Section: Engine & Electrical System p. 50Air conditioner blowing warm, unsure which compressor, condenser, and control panel parts to order
Match your components against the air conditioner listings in the Cover & Cab section, which cover the compressor, condenser, air conditioner unit, and control panel. Check the coolant capacity of 100g on page 297 before ordering recharge supplies, and cross-reference part numbers with your serial number range before placing the order.
Manual Section: Cover & Cab p. 297Frequently Asked Questions
What are the replacement specifications for rubber tracks?
The rubber tracks for the TL130 are available in two versions based on the machine serial number. For serial numbers 21300004 to 21303402, use part number 1914061410. For serial numbers 21303403 and later, use part number 1914061430. p. 29
What is the thickness specification for the arm stopper shims?
The arm stopper assembly uses shims of two different thicknesses for adjustment. Part number 08806-04950 is 1.0mm thick, and part number 08806-06950 is 0.5mm thick. p. 33
What is the thickness specification for the engine hood cover shims?
The engine hood cover assembly uses shims of three different thicknesses for adjustment. Part number 08804-06610 is 1.6mm thick, 08804-06620 is 3.2mm thick, and 08804-06630 is 4.5mm thick. p. 53
What is the bulb specification for the rear lamp?
The rear lamp assembly uses a bulb with the specification 12V, 55W, identified by part number 17030-06902. p. 117
What is the thickness specification for the rear door cover shims?
The rear door cover assembly uses shims of two different thicknesses for adjustment. Part number 00039-00037 is 4.5mm thick, and part number 00039-00038 is 1.6mm thick. p. 185
Is this Takeuchi TL130 Parts Manual a digital download?
A 464-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Takeuchi TL130 Parts Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
