Within the hour you could be setting brake clearance and topping up hydraulic oil on your UT15RS or UT15RSS, working from the 59-page Utilev UT15RS, UT15RSS operator manual PDF (OEM ID 76507615) for this electric platform truck. A hydraulic principle diagram traces the lift circuit from pump to lifting cylinder, while the electrical system drawings show how the controller, main contactor and drive motor tie together. Fault signal tables decode controller warnings like motor overcurrent, throttle wiper errors and overheating, and the pre-shift inspection list plus periodic maintenance schedule walk through brakes, steering, contactors, motor and battery charging. Hold the electromagnetic brake gap between 0.2 mm and 0.8 mm, and swap a wheel once its diameter has worn down 5%; a healthy charger puts out 24V at 30A. Bookmarks and a live text layer drop you on the right fault code in seconds.
What's Inside This Utilev UT15RS, UT15RSS Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Configuration Diagram | 5-8 | UT15RS Configuration Diagram, UT15RSS Configuration Diagram |
| Brief Introduction of Structure | 9-14 | Safety Operation Specification |
| Initial Operation | 15 | |

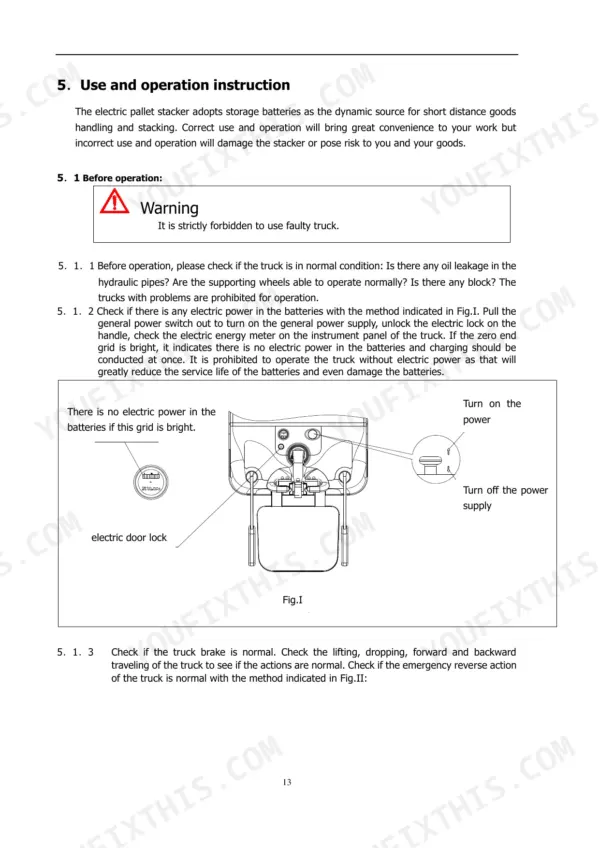

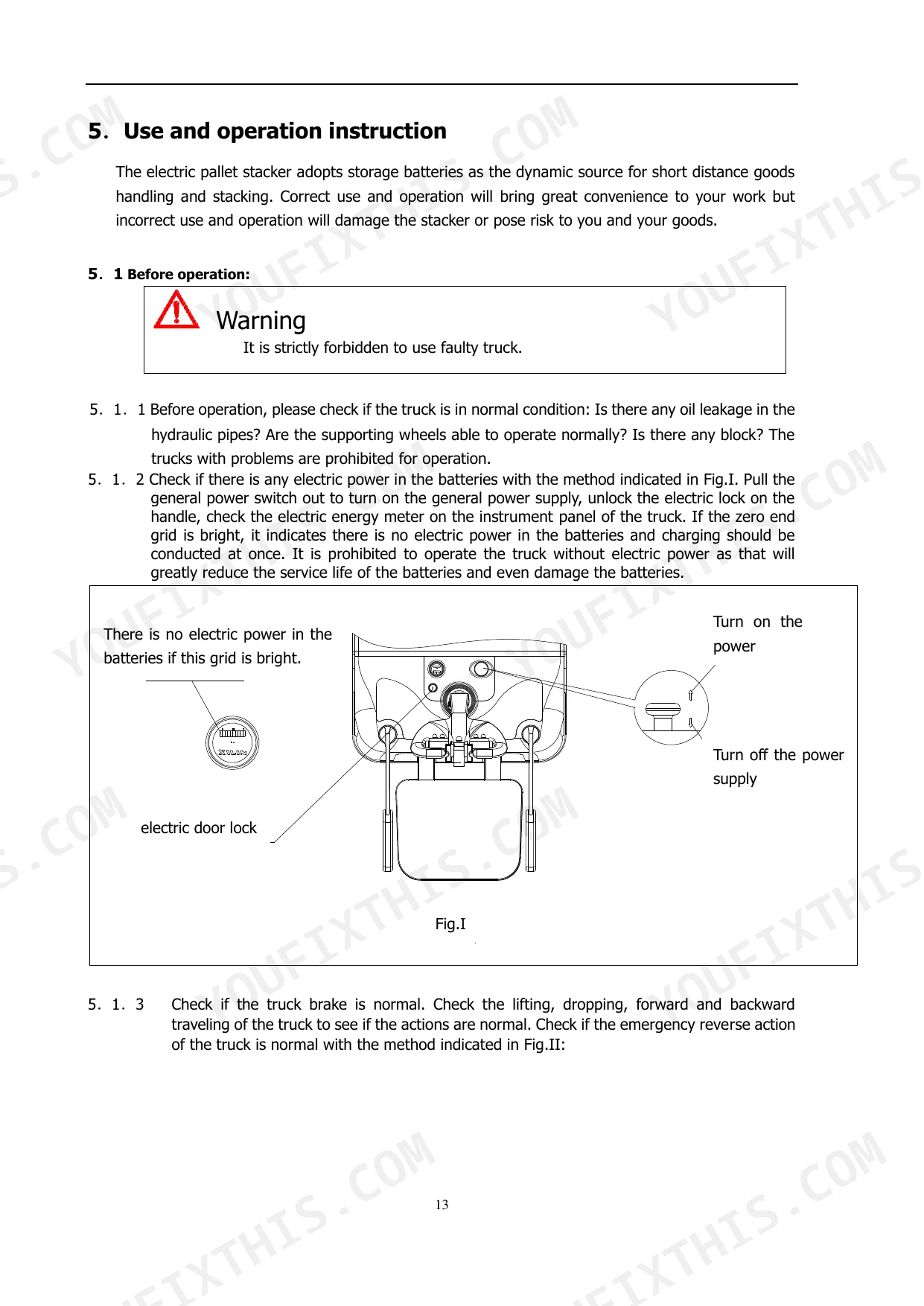

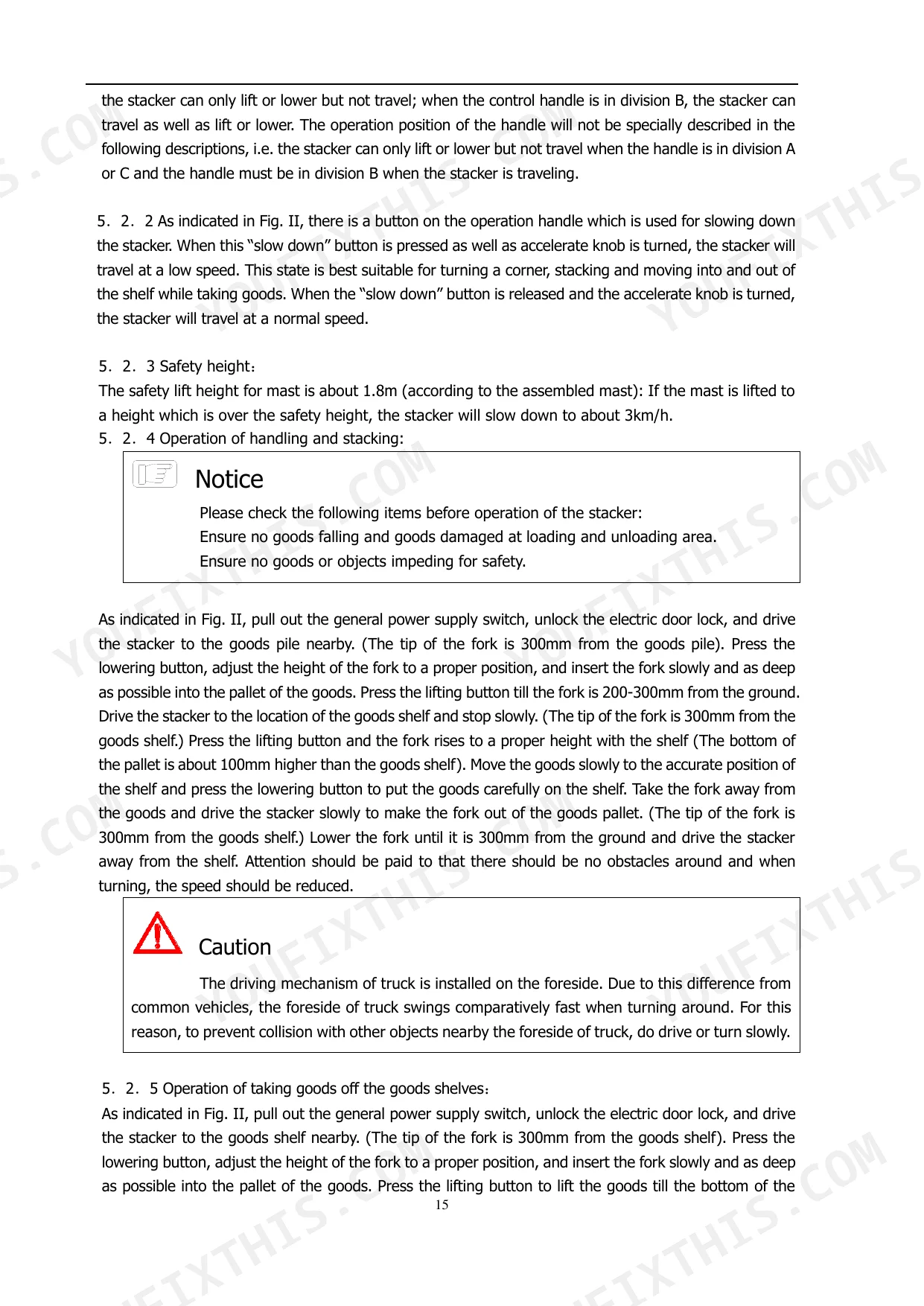

| Use and Operation Instruction | 16-18 | Electric Power Check, Accelerator Knob, Safety Height, Handling and Stacking, Taking Goods Off Shelves |
| Use, Maintenance and Charge of the Storage Batteries | 19-22 | Emergency Treatment |
| Inspection Before Operation | 23 | Hydraulic Oil, Lifting Oil Cylinder, Horn |

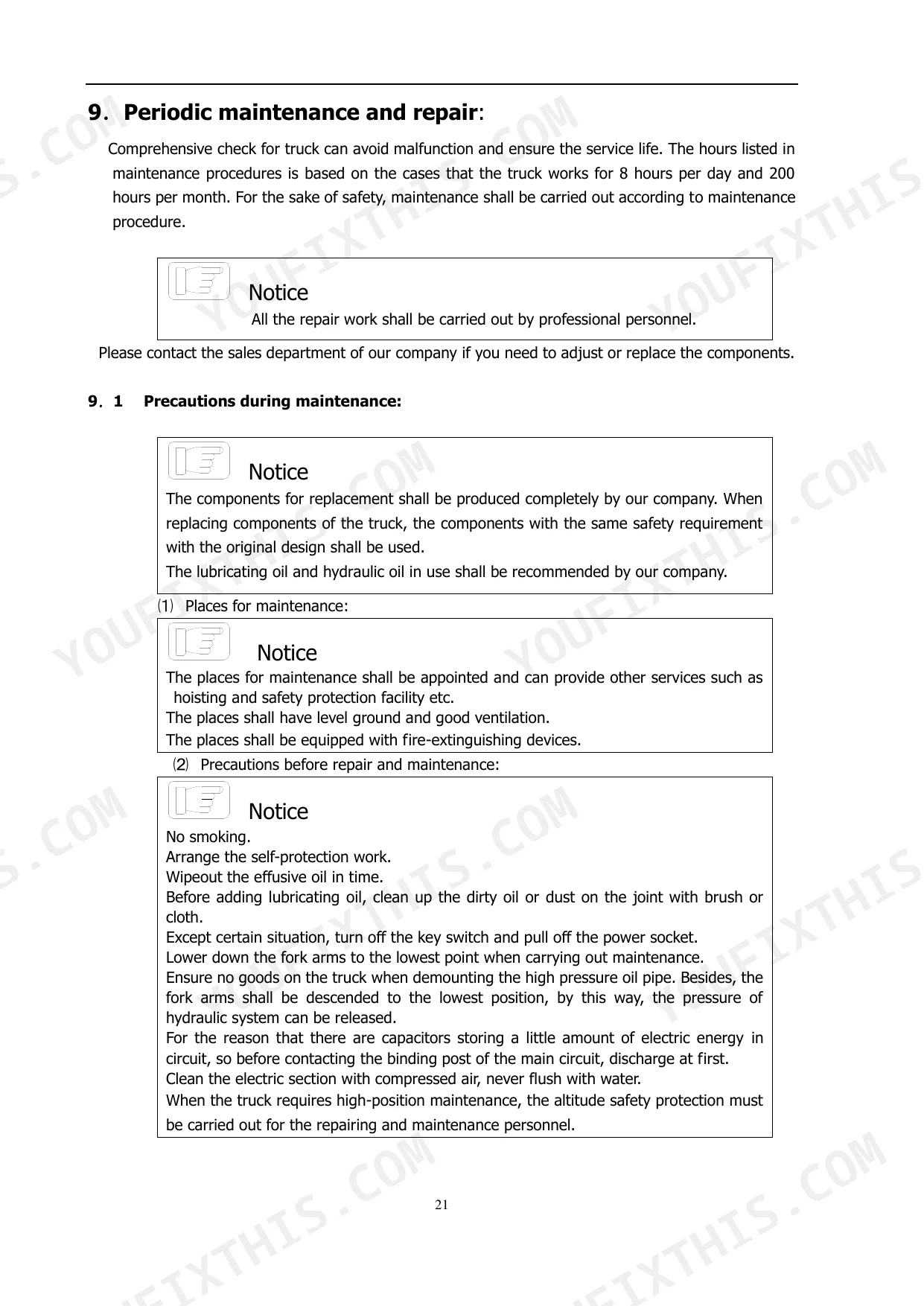

| Periodic Maintenance and Repair | 24-28 | Brake Clearance Adjustment, Contactor Maintenance, Motor Maintenance, Hydraulic System, Fork Wheel and Bearings |
| The Store, Transportation and Loading of Truck | 29 | Truck Storage, Truck Transportation, Loading and Unloading |

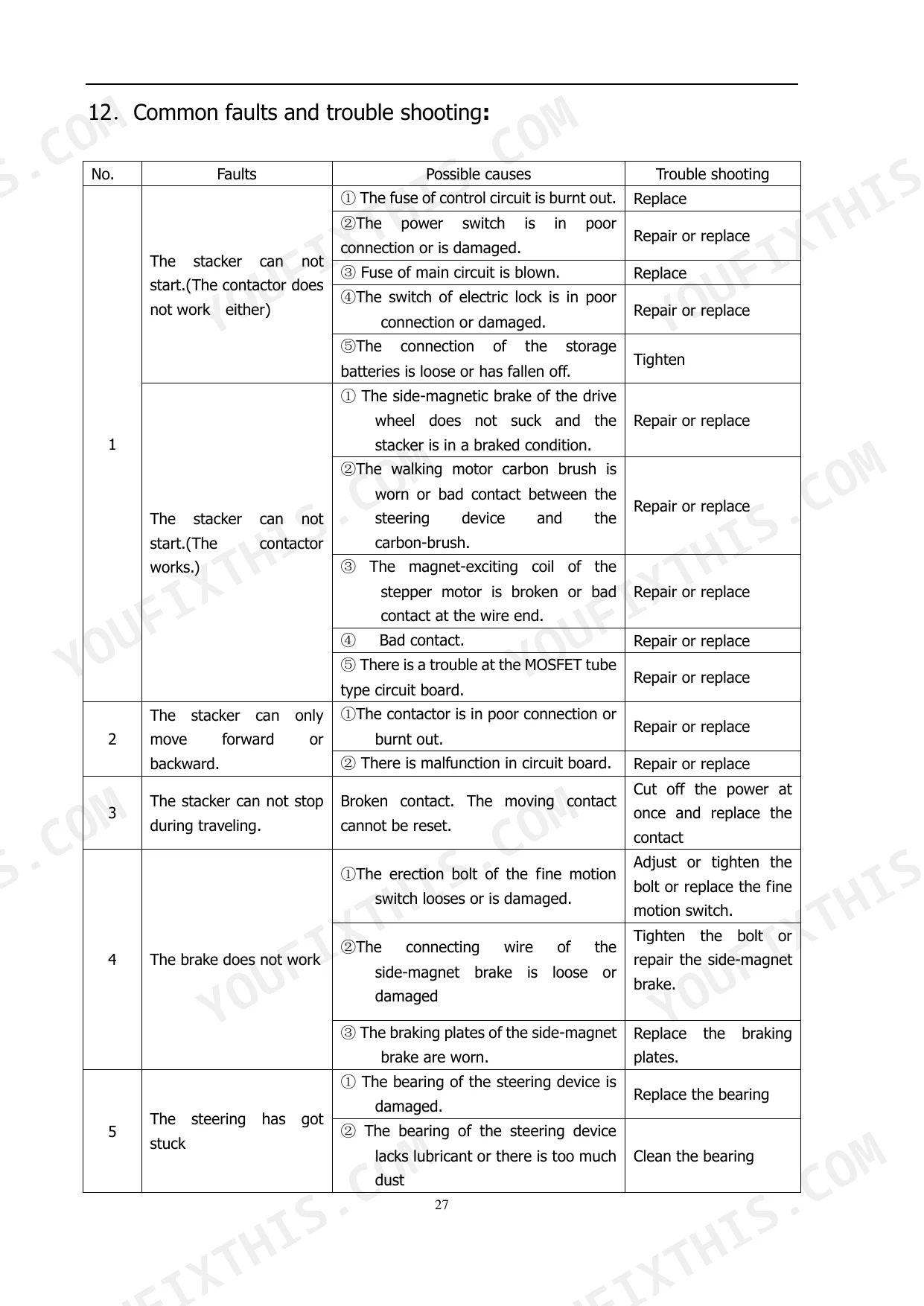

| Common Faults and Trouble Shooting | 30-32 | Stacker Start Failure, Forward or Backward Movement, Stopping Failure, Brake Failure, Steering Failure |
| Common Fault Signal and Troubleshooting | 33-39 | Motor Speed Encoder, Motor Overcurrent, Static Return to Off, Throttle Wiper, Main Contactor, Controller Temperature |
| Lists of Accessories, Spare Parts and Vulnerable Parts | 40 | Key to the Electric Lock, Fuse, Sealing Ring, O Type Sealing Ring, Composite Ring, Dustproof Ring |

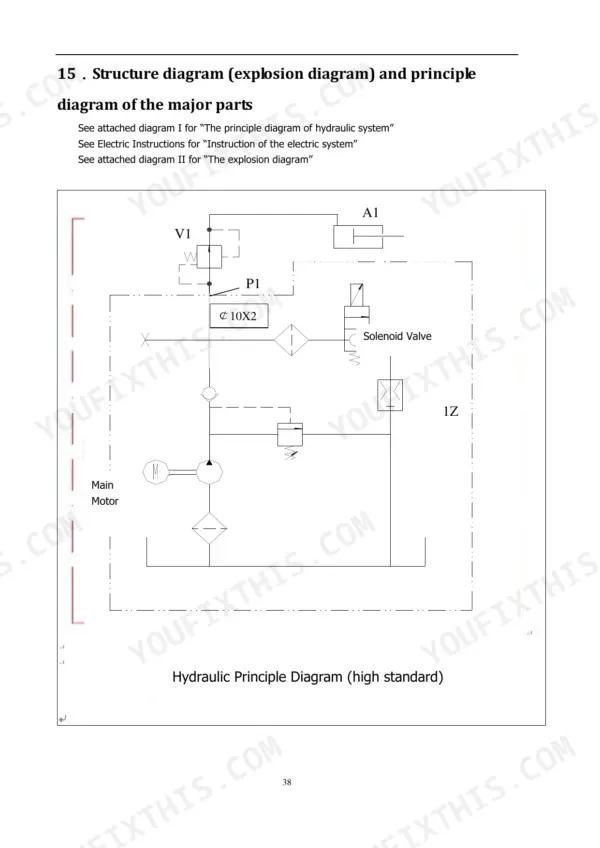

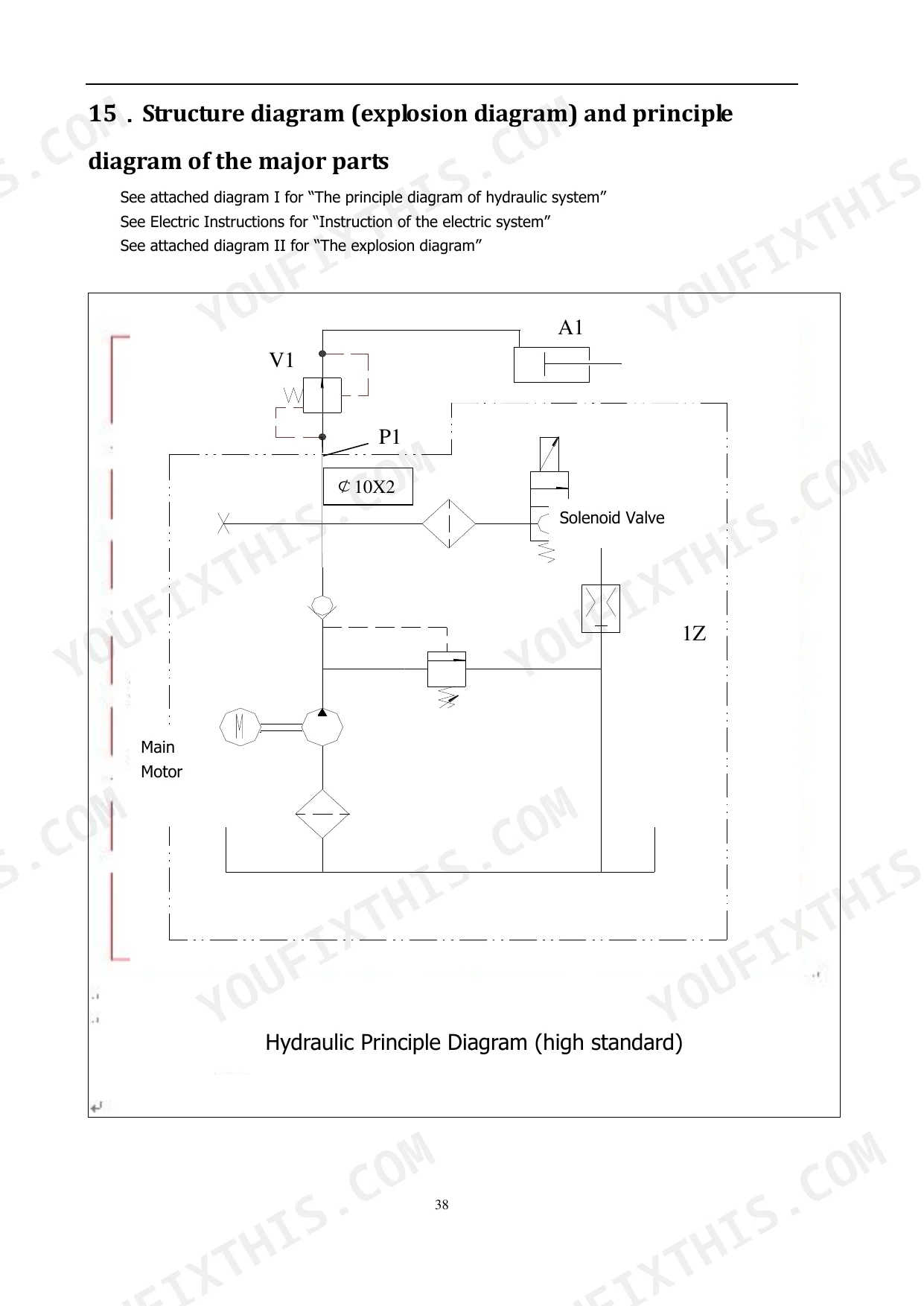

| Structure Diagram (Explosion Diagram) and Principle Diagram of the Major Parts | 41-43 | Hydraulic Principle Diagram, Explosion Diagram, Electric System Instruction |
| Packing List | 44-45 | Ut15rs Electric Pallet Stacker, Accessory Box, Operation Manual, Qualification Certificate |
| Appendix 1 | 46-59 | Safety Rules for the User and Driver, Operating Conditions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Driving motor power | 1.2 kW | p. 6 |
| Brake clearance | 0.2mm to 0.8mm | p. 23 |
| Wheel replacement diameter reduction | 5% | p. 23 |
| Charger output voltage | 24V | p. 22 |
| Charger output current | 30A | p. 22 |
| Rated load | 1500 kg | p. 6 |
| Load center distance | 600 mm | p. 6 |
| Service weight (with battery) | 1510 kg | p. 6 |
| Hydraulic oil charge | 12 L | p. 25 |
| System pressure (1500KG rated load) | 16 Mpa | p. 32 |
| System pressure (2000KG rated load) | 16.5 Mpa | p. 32 |
| Battery voltage | 24 V | p. 6 |
Utilev UT15RS, UT15RSS Common Problems This Manual Covers
Utilev UT15RS/UT15RSS stacker will not start after switching on power and the contactor does not work
Check the control circuit fuse and the main circuit fuse first, and replace any that are burnt out, following page 30. Inspect the power switch and electric lock switch for poor connection, then repair or replace them. Tighten any loose or fallen off storage battery connection, and keep tools and other metal objects off the lidless battery (page 47).
Manual Section: Common faults and trouble shooting p. 30Stacker will not start even though the contactor works and the drive wheel stays braked
Check whether the side magnetic brake of the drive wheel pulls in. If it does not, the truck stays braked and the brake needs repair or replacement (page 30). Inspect the walking motor carbon brushes for wear or bad contact, and check the motor coil wire ends. A MOSFET circuit board fault also stops the truck. Tag it OUT OF ORDER, DO NOT USE and report it (page 11).
Manual Section: Common faults and trouble shooting p. 30Stacker only moves forward or only moves backward and will not travel the other direction
Inspect the contactor for poor connection or burnt contacts, as page 30 lists. Burnish coarse contact surfaces with sand paper, and replace the contactor when it no longer works properly, following the periodic maintenance on page 27. If the contactor checks out, suspect a circuit board malfunction and have the board repaired or replaced.
Manual Section: Common faults and trouble shooting p. 30Fork keeps rising after the lifting button is released, lift out of control
Turn off the general power supply switch at once to cut power, as page 19 directs. Drive the stacker to a safe position, then lower the fork manually. Keep every part of your body out from under the load and forks (page 9). Repair the lift circuit before the truck goes back into service.
Manual Section: Use and Operation Instruction p. 19Worn brake plate on the electromagnetic brake, braking performance declining after a period of use
Stop operating at once if the brake fails during travel, per page 19. Clean dirt and dust off the friction plate. Measure the gap between the brake plate and the magnetic steel with an insert ruler, following page 27. Adjust the gap when it exceeds 0.5 mm, setting the three screws evenly. Energize the brake with 24 V DC and listen for a clear sound.
Manual Section: Brake clearance adjustment p. 27Battery voltage drops low during the shift and electrolyte density falls toward 1.17 (stop discharging)
Stop discharging and charge immediately once total voltage reaches 20.4 V or density hits 1.17, per page 20. Run a common charge at 30 A, switching to 15 A at 28.8 V, for about 12 hours. Verify the charger delivers 24 V and 30 A (page 22). Charge only in a well ventilated area with no open flame, since hydrogen builds up in the battery case (page 19).
Manual Section: Use, Maintenance and Charge of the Storage Batteries p. 20Frequently Asked Questions
What are the possible causes and troubleshooting steps for a UT15RS that will not start and the contactor does not work?
If the stacker will not start and the contactor does not work, check if the control circuit fuse is burnt out, the power switch is in poor connection or damaged, the main circuit fuse is blown, the electric lock switch is in poor connection, or if the storage battery connection is loose. Depending on the cause, you should replace the fuse, repair or replace the switch, or tighten the battery connections. p. 30
What are the replacement specifications for the traction battery on the Utilev UT15RS, UT15RSS?
The stacker uses a 24V storage battery. For the UT15RS, the battery capacity is 240Ah or 300Ah, with weights of 220kg or 260kg respectively, and dimensions of 675x254x500mm or 675x254x540mm. p. 6
What is the procedure for adjusting the brake clearance on the Utilev UT15RS, UT15RSS electric platform truck?
First, use an insert ruler to check the clearance between the brake plate and magnetic steel. If the clearance is over 0.5mm, loosen the fitting screw, then adjust the length of the adjustment screws until the clearance is between 0.2mm and 0.3mm. Ensure the three tightening screws are adjusted evenly. p. 27
What is the recommended hydraulic oil for normal loading conditions?
For normal loading conditions, use hydraulic oil LHPISOVG46 in accordance with standard DIN51524T.2, maintaining an average sustained temperature between 40 and 60 degrees. p. 28
What is the stipulated system pressure for the Utilev UT15RS, UT15RSS truck with a 1500kg rated load?
The stipulated system pressure for a truck with a rated load of 1500kg is 16Mpa. p. 32
Will this Utilev UT15RS Operator Manual download right away?
Immediate download of the complete 59-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print a copy of this Utilev UT15RS Operator Manual for the shop?
You can. Print the sections you want for your own use and keep the file as your backup.
