With the head off and valve lash to set in the next hour, you want the Utilev A490BPG operation and maintenance manual PDF on the bench: 40 pages, OEM ID 76502232, covering the 490B diesel engine and its 2.54 L A490BPG variant. Sketch maps trace the fuel, lubricating, cooling, gear train and electrical systems, and the adjustment chapter walks through the cylinder head bolt tightening sequence, valve clearances, injection timing and injection pump setup. Troubleshooting entries cover no-start, black, blue or white smoke, abnormal oil pressure, runaway speed and a rising oil level. Set injector pop pressure to 20.3 to 20.8 MPa, and tension the drive belt to 10 to 15 mm of deflection under 29 to 49 N at mid-span. Bookmarks and a searchable text layer take you to the head bolt sequence, and quoting 76502232 when you order gets you the right book the first time.
What's Inside This Utilev A490BPG Diesel Engine Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Description of Diesel Engine | 1-5 | Engine Model Types and Serial Numbers, Engine Performance Curves, Engine Technical Performance Data, Main Characteristic Data, Overall Dimensions of Diesel Engine |
| Operation of the Diesel Engine | 6-10 | Preparation, Starting, Operation, Shutting Down, Working Media |

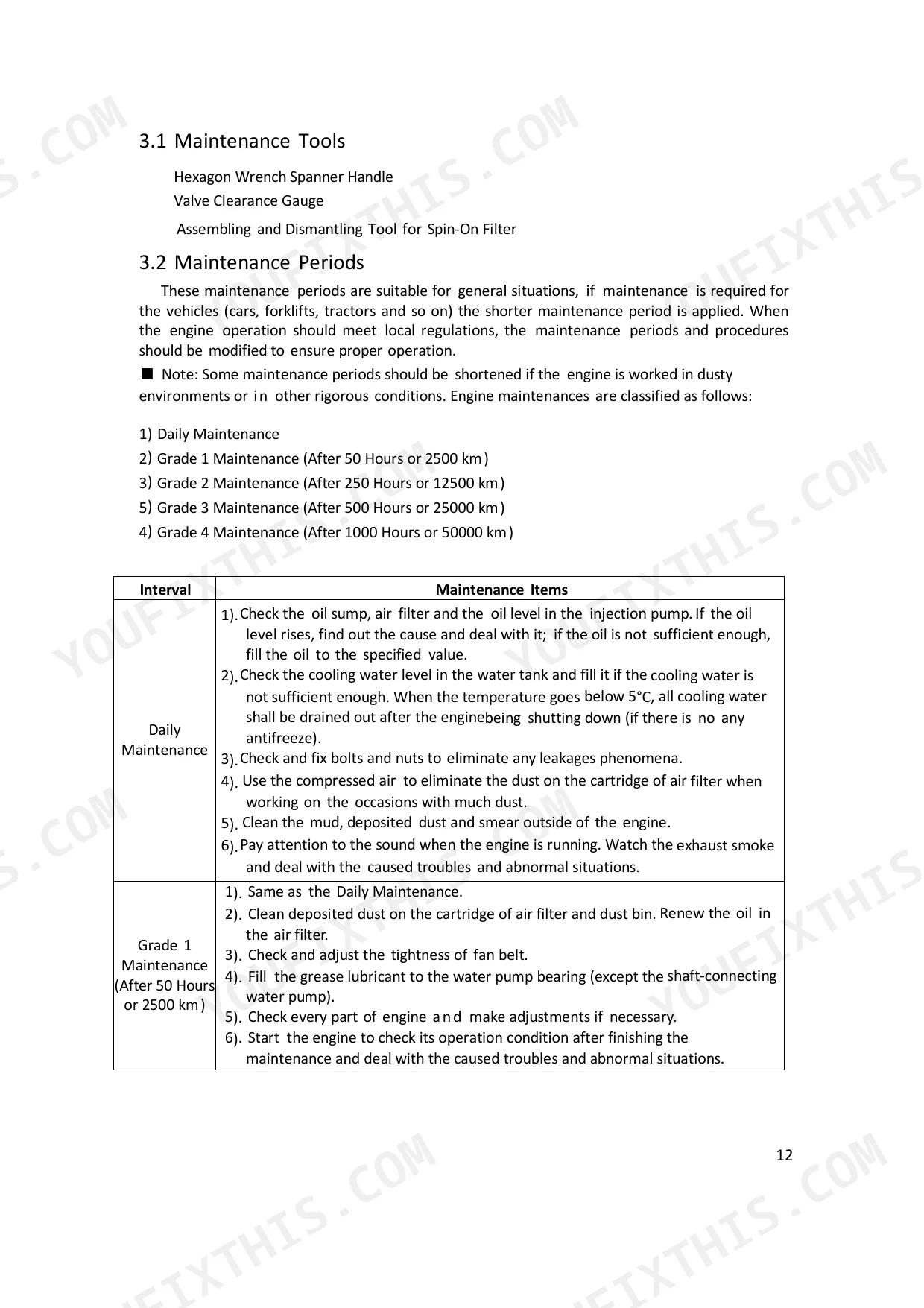

| Technical Maintenance of the Diesel Engine | 11-14 | Maintenance Tools, Maintenance Periods, Technical Maintenance in Winter, Storage for the Engine |
| Adjustment of the Diesel Engine | 15-20 | Tightening Sequence of Cylinder Head Bolts, Checking and Adjustment of Driving Belt, Notes About Thermostat, Starter, Generator, Expelling Air From Fuel System |

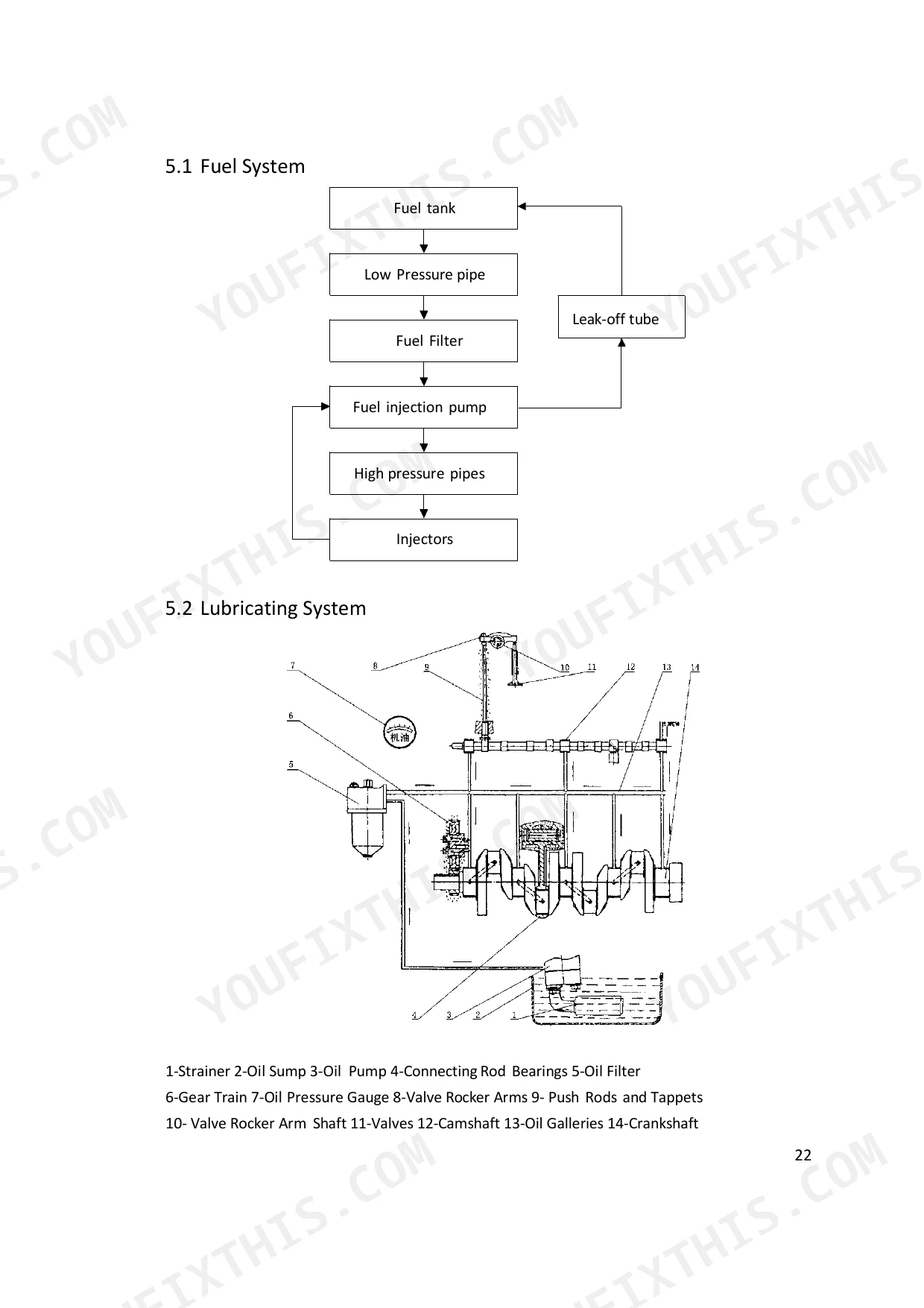

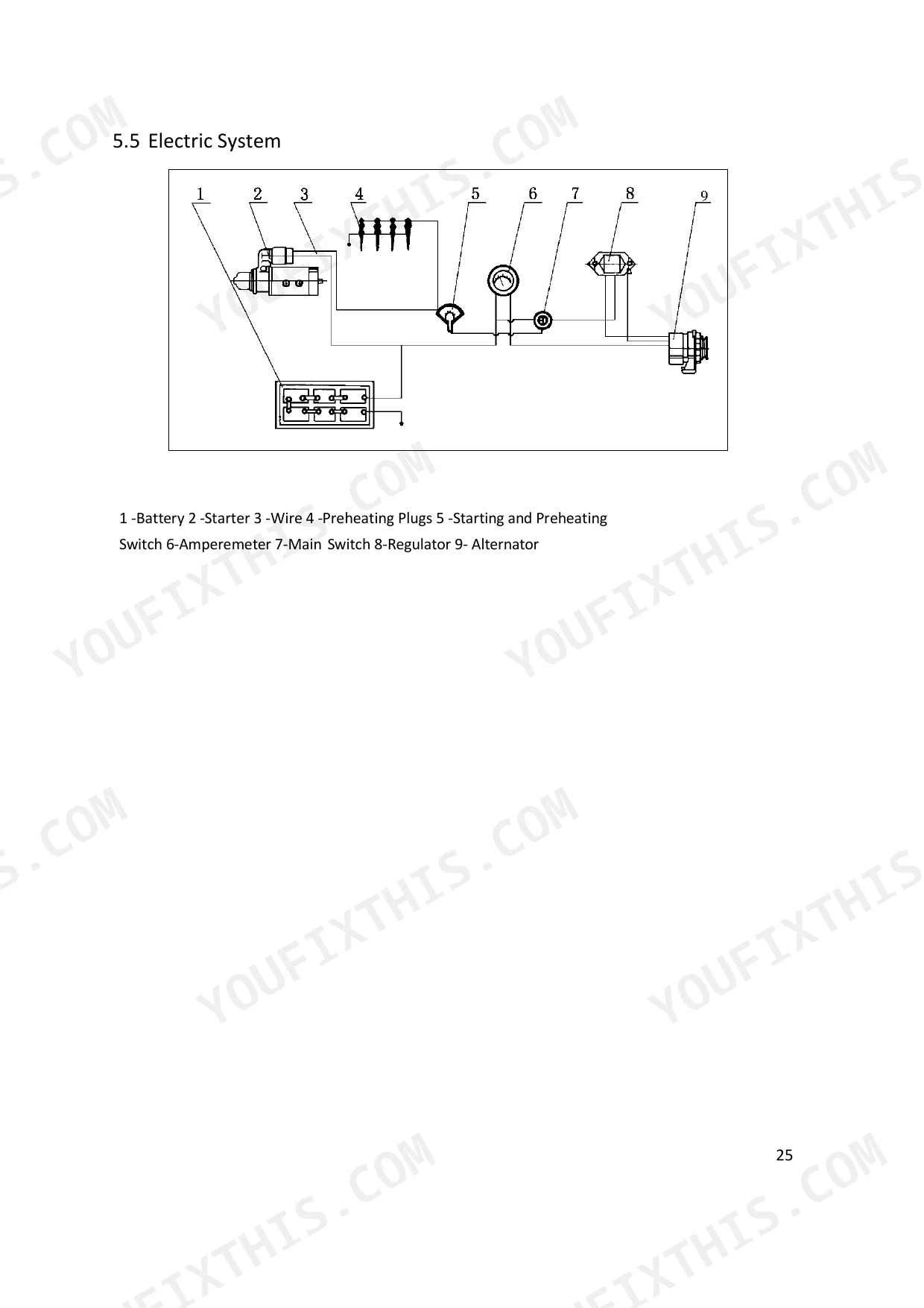

| Sketch Maps for Five Main Systems of the Diesel Engine | 21-25 | Fuel System, Lubricating System, Cooling System, Gear Train System, Electrical System |
| Engine Trouble Shooting | 26-40 | Engine Fails to Start, Abnormal Oil Pressure, High Black Exhaust Smoke, Blue Exhaust Smoke, High White Exhaust Smoke, Insufficient Power, Abnormal Noise, Severe Vibration |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Starter voltage | 12V | p. 17 |
| Starter power | 2.5kW | p. 17 |

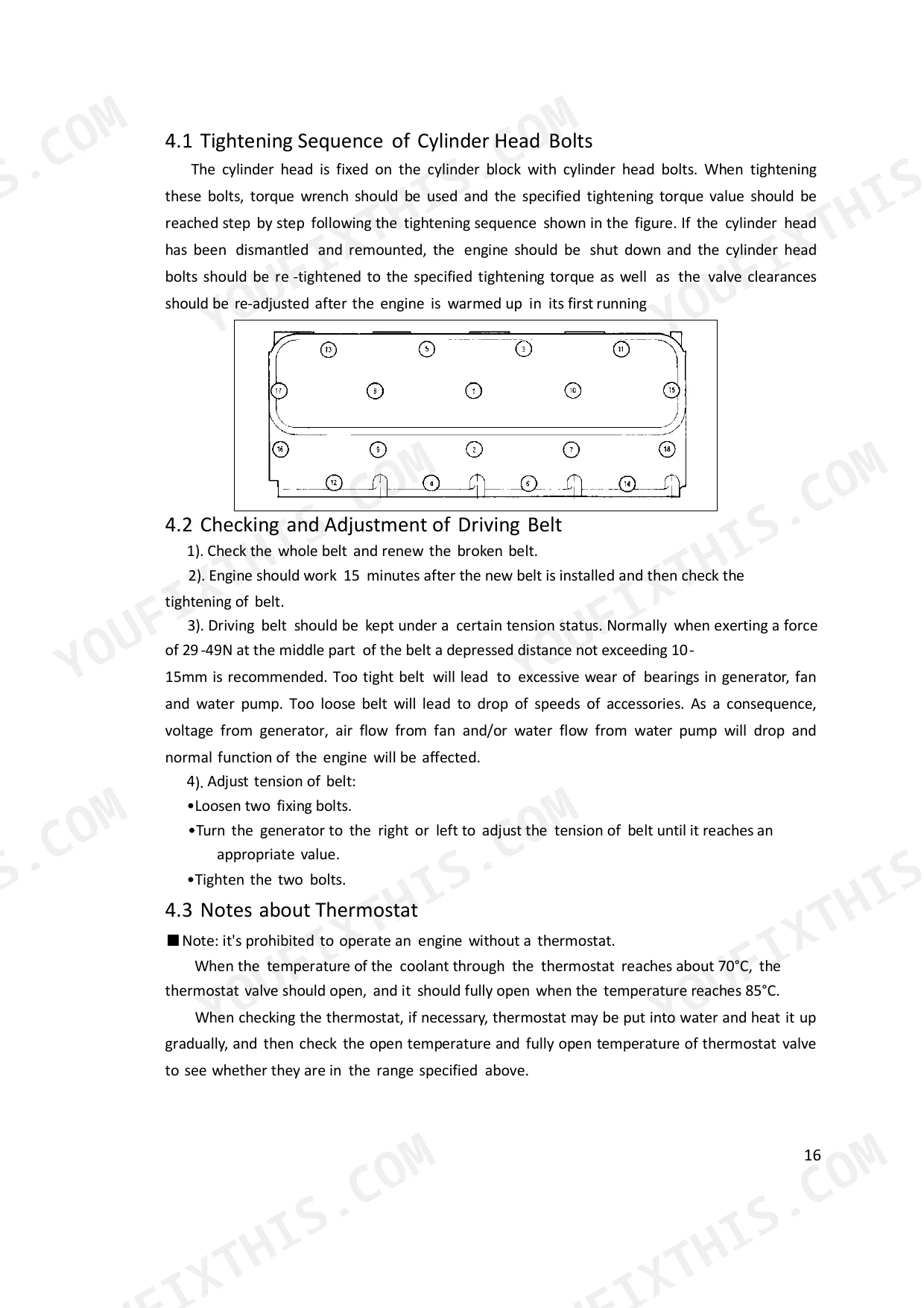

| Driving belt tension | 10-15mm deflection at 29-49N force | p. 16 |
| Injector pressure | 20.3-20.8MPa | p. 20 |

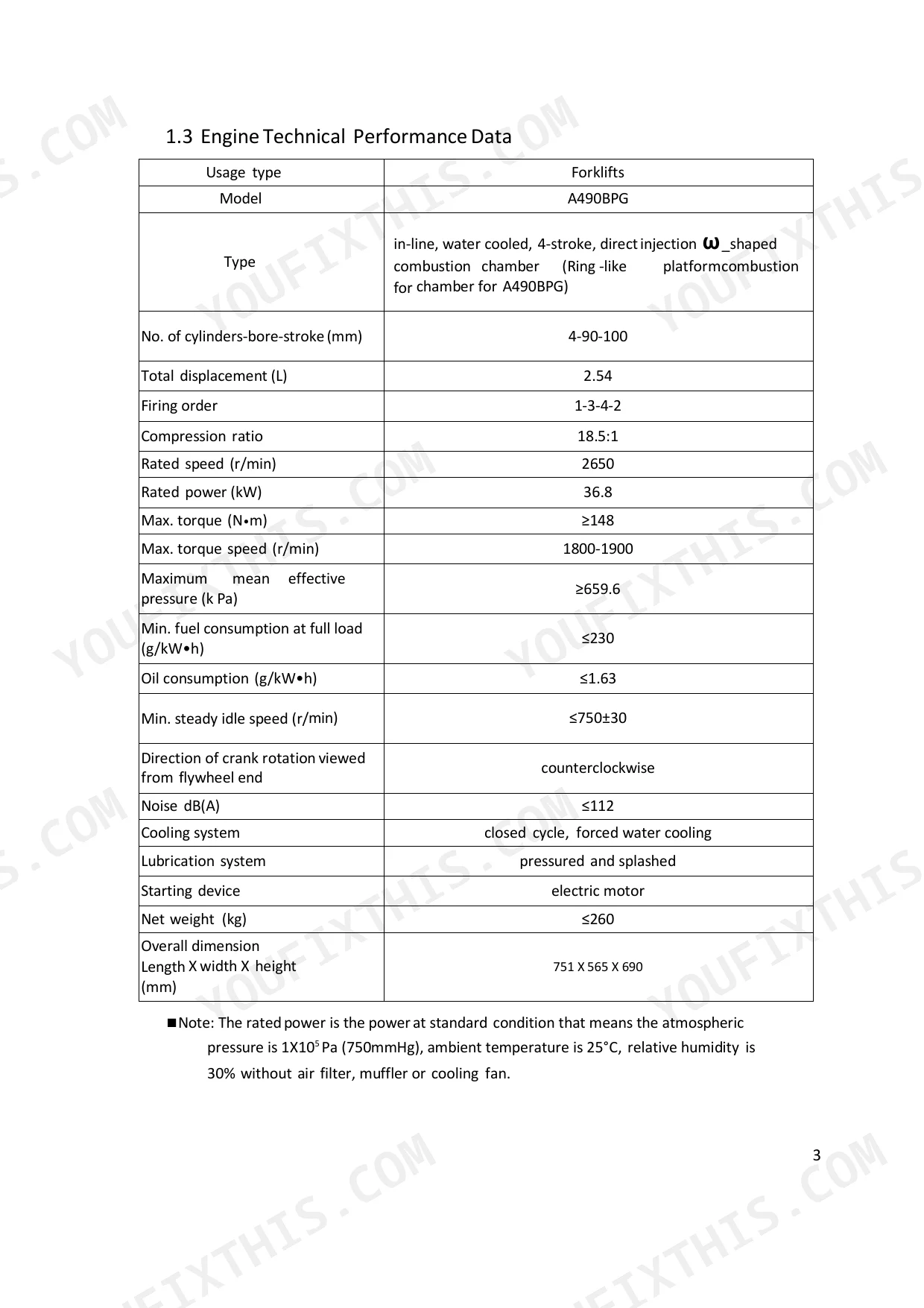

| Total displacement | 2.54L | p. 3 |
| Rated power | 36.8kW | p. 3 |
| Oil capacity in the oil sump | 6L | p. 4 |
| Cold valve clearance (intake) | 0.35mm | p. 4 |
| Cold valve clearance (exhaust) | 0.45mm | p. 4 |
| Cylinder head bolt tightening torque | 117.6-137.2 N·m | p. 4 |
| Main bearing bolt tightening torque | 137.2-156.8 N·m | p. 4 |
| Connecting rod bolt tightening torque | 98.1-117.6 N·m | p. 4 |
Utilev A490BPG Diesel Engine Common Problems This Manual Covers

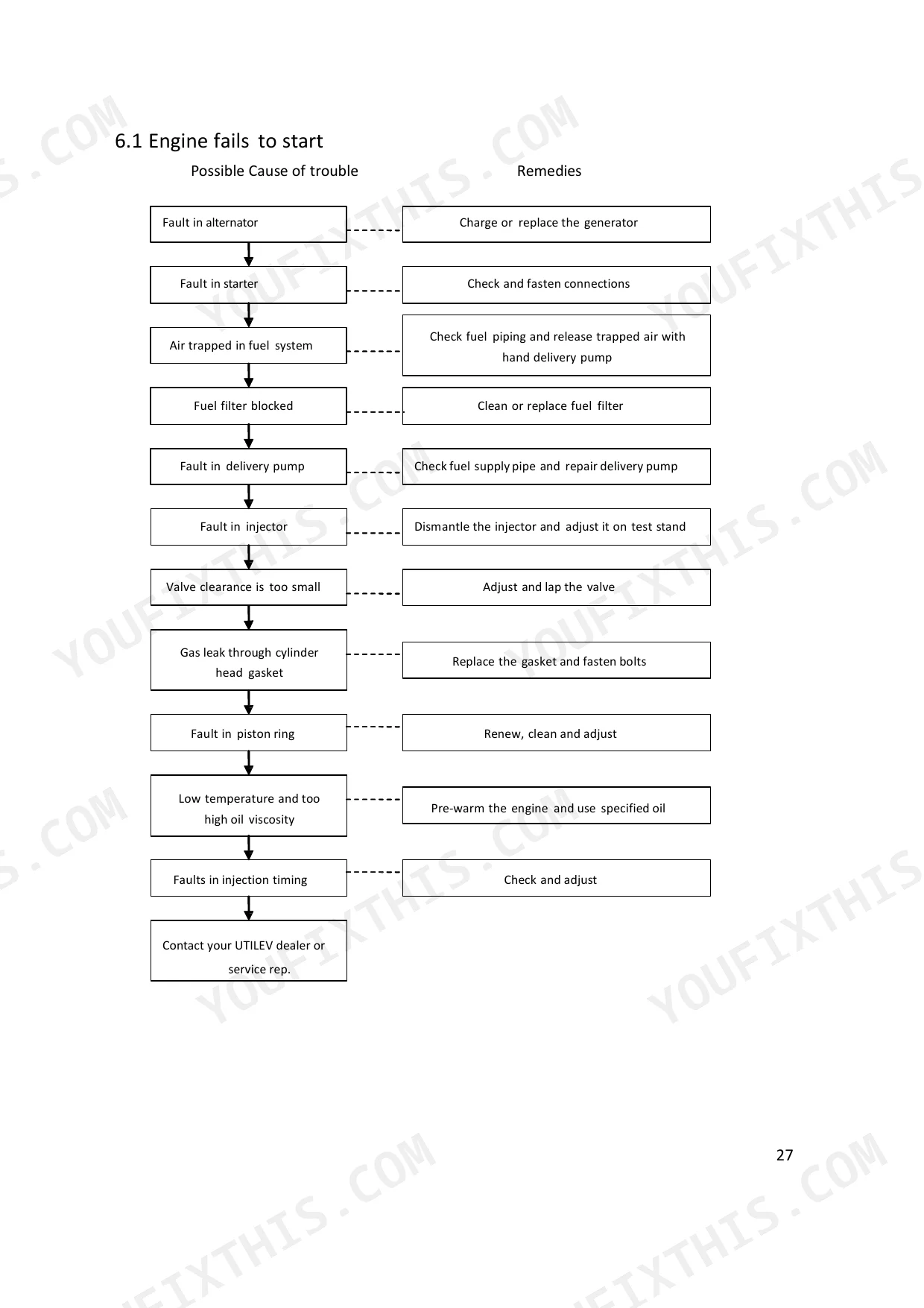

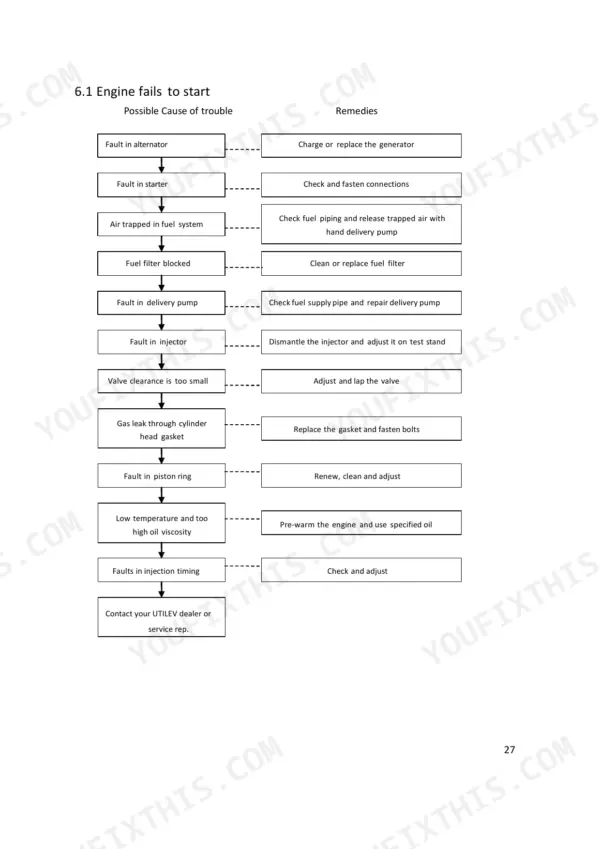

Utilev A490BPG 490B diesel engine cranks on the starter but fails to start
Check fuel piping and release trapped air with the hand delivery pump, then clean or replace the fuel filter and check starter connections following page 27. Set injectors on a test stand to 20.3-20.8MPa per page 20, and confirm cold valve clearance at 0.35mm intake and 0.45mm exhaust (page 4). If several start attempts fail, stop cranking until the fault is fixed, as page 17 warns.
Manual Section: Engine Fails to Start p. 27Engine lubricating system shows an abnormal oil pressure reading on the oil pressure gauge
Check the sump level first; capacity is 6L of specified oil (page 4). Inspect the oil pipeline and connections for leaks, tighten any loose screw plug, and replace a broken pressure regulating spring following page 28. Clean blocked oil passages in the cylinder head and rocker arm bracket, then check bearing clearance and repair it if it is too big.
Manual Section: Abnormal Oil Pressure p. 28Worn or stuck piston rings with the engine blowing heavy blue exhaust smoke
Check the oil level first and drain out excess oil if it is too high. Clean or change worn or stuck piston rings following page 30. When refitting, install every ring with the side marked 'up' facing upward, because a ring fitted the wrong way is its own source of blue smoke.
Manual Section: Blue Exhaust Smoke p. 30Heavy knocking from the connecting rod bearing heard when engine speed drops suddenly
Replace the connecting rod bearing following page 34. While the bottom end is open, check the crankshaft thrust bearing too, since an axial to and fro impinging sound points there, and change the rod bushing if it gives a light sharp knock at idle. Torque connecting rod bolts to 98.1-117.6 N·m per page 4 before buttoning it up.
Manual Section: Abnormal Noise p. 34Engine oil level rising in the sump with water leaking into the oil
Inspect the cylinder liner water seals and replace any broken seal following page 38. Change a faulty cylinder head gasket, check the block and head for water leaks, and check for a seized injector. Torque head bolts to 117.6-137.2 N·m (page 4) using the cylinder head bolt tightening sequence in the Adjustment of the Diesel Engine section.
Manual Section: Rising Oil Level p. 38Insufficient engine power with the governor unable to bring the engine to rated speed
Clean or change the air filter, clean or replace the fuel filter and supply pump screen, and eliminate air from the fuel system following page 31. Adjust or replace a distorted governor spring and set injection timing as specified. Where gas leaks at the injector hole, change the copper washer, clean the injector sleeve and tighten the fixing nuts evenly per page 32.
Manual Section: Insufficient Power p. 31Frequently Asked Questions

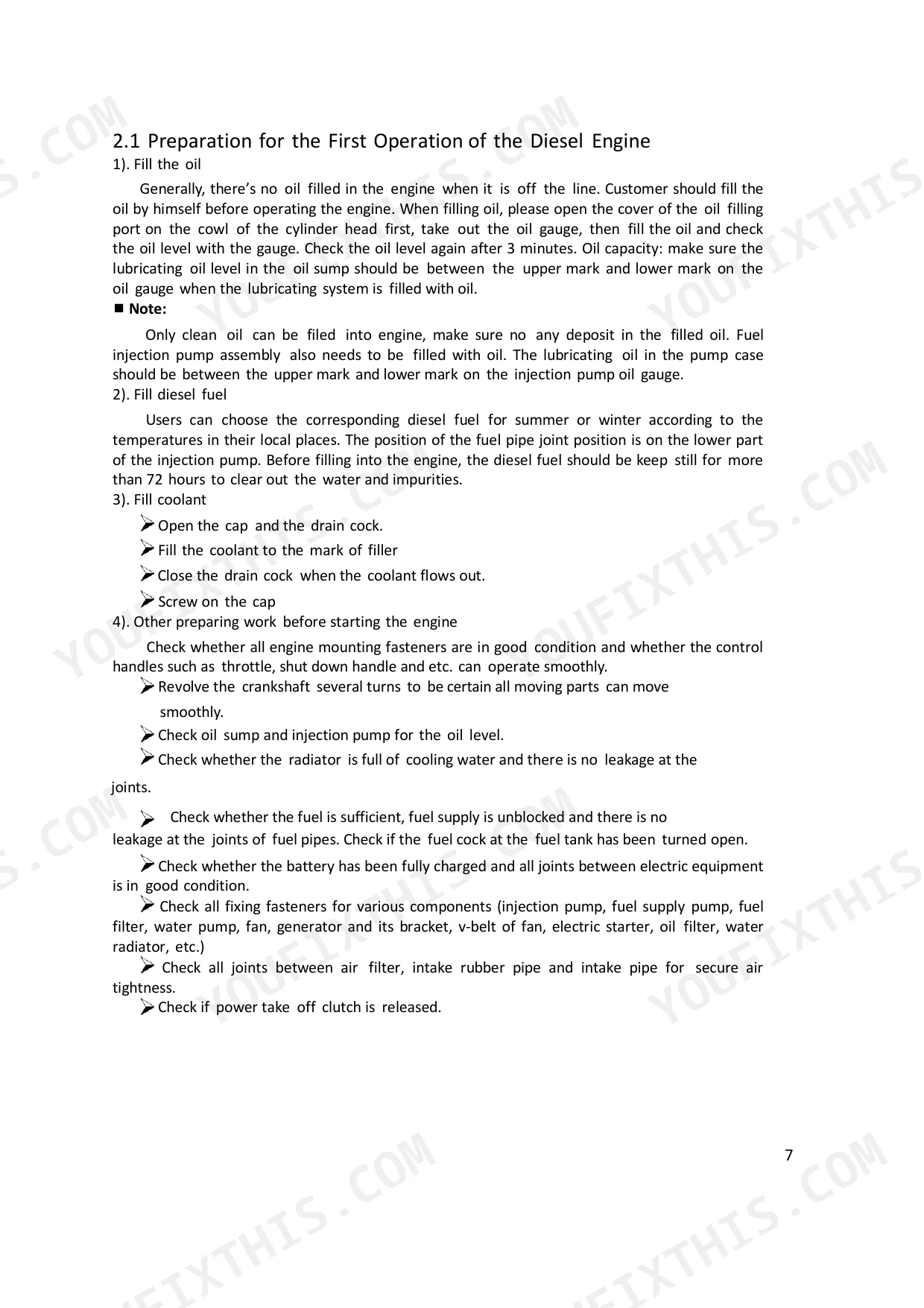

How do you bring a diesel Utilev forklift to operational status?
Before the first operation, you must fill the engine with oil, diesel fuel, and coolant. Ensure the oil level is between the upper and lower marks on the gauge, check that all mounting fasteners are secure, and verify that the battery is fully charged and the fuel supply is unblocked. p. 7
What is the startup procedure for a diesel Utilev forklift?
Place the speed control lever in the middle position, then press the start button. If it fails to start, release the button and wait two to three minutes before trying again. Once started, run the engine at 600-850 rpm idle speed to check for normal operation, then gradually increase to 1800-2000 rpm to warm it up. p. 8
How do you troubleshoot a Utilev forklift that will not crank or start?
Check for faults in the alternator, starter, or delivery pump, and ensure the fuel filter is not blocked. Additionally, verify that there is no air trapped in the fuel system, the valve clearance is not too small, and the injection timing is correct. p. 27
How do you prime the fuel system on a Utilev A490BPG?
To expel air, open the vent plug on the fuel filter and operate the hand delivery pump until no air remains in the fuel flowing out. Repeat this process for the injection pump vent plug, then tighten both plugs securely. p. 17
What is the tightening torque for the cylinder head bolts on the Utilev A490BPG Diesel Engine?
The tightening torque for the cylinder head bolts is 117.6-137.2 N•m. These should be tightened step by step following the specified sequence. p. 4
Is this Utilev A490BPG manual a PDF I download?
Instant PDF download. You get the full 40-page searchable Operation & Maintenance Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print just the pages I need from this Utilev A490BPG manual?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
