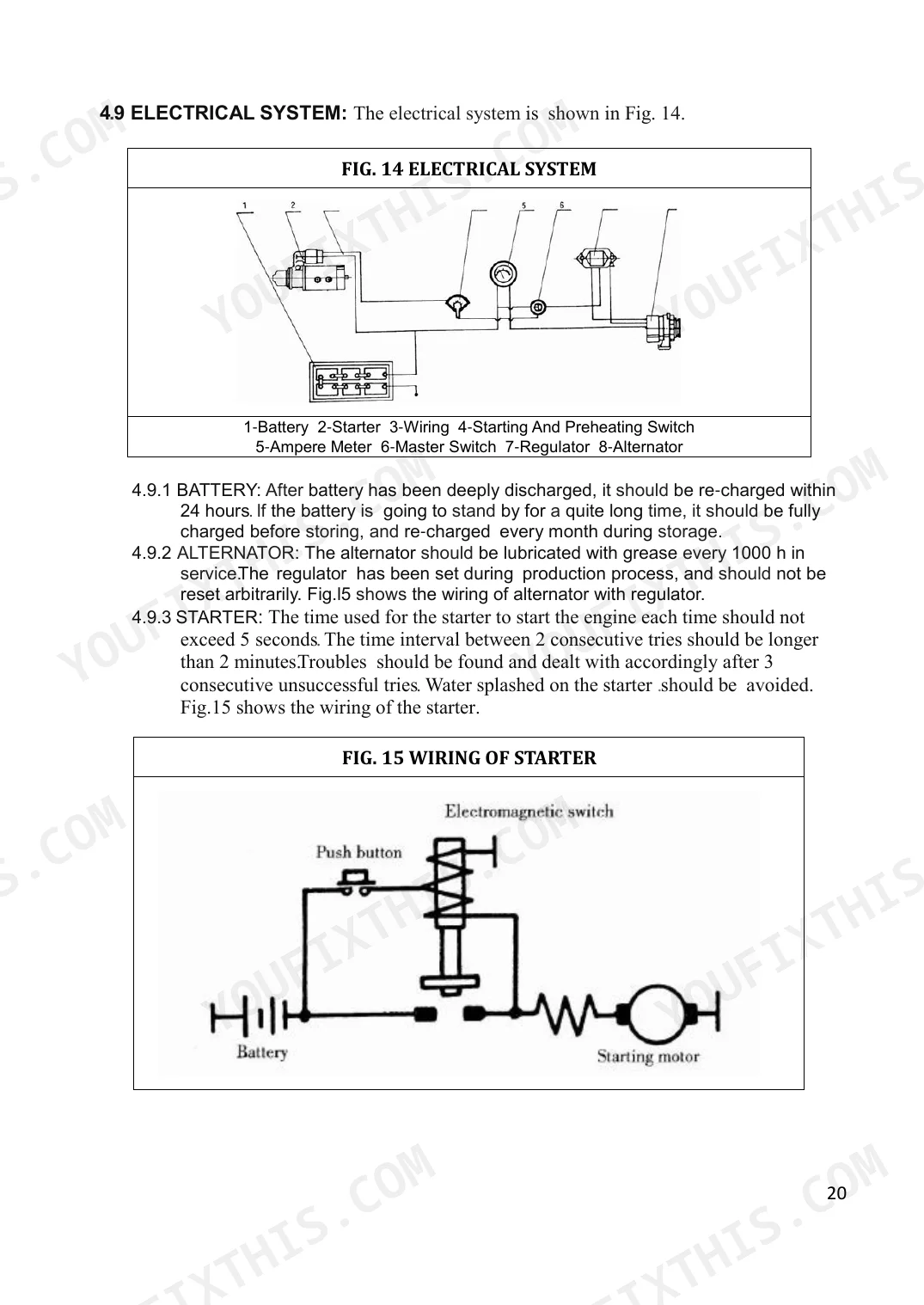

Getting a rebuilt diesel back together inside factory tolerances comes down to 32 pages in this Utilev NB485BPG operation and maintenance manual PDF (OEM ID 76502233), written for the NB485BPG engine alone. Construction chapters break down the head, block, piston and rod assembly, crankshaft, gear train, and the fuel, lubricating and cooling systems, plus wiring diagrams for the electrical system. The adjustment pages set valve lash, injection timing, the injector and the injection pump. Troubleshooting charts run from a no-start and heavy exhaust smoke to runaway speed, rising oil level and a dead alternator. Set injector pop pressure at 20.3 to 20.8 MPa, and look for 196 to 441 kPa of running oil pressure, never under 49 kPa at idle.
What's Inside This Utilev NB485BPG Diesel Engine Operator Manual
| System | Pages | Key Topics |
|---|---|---|

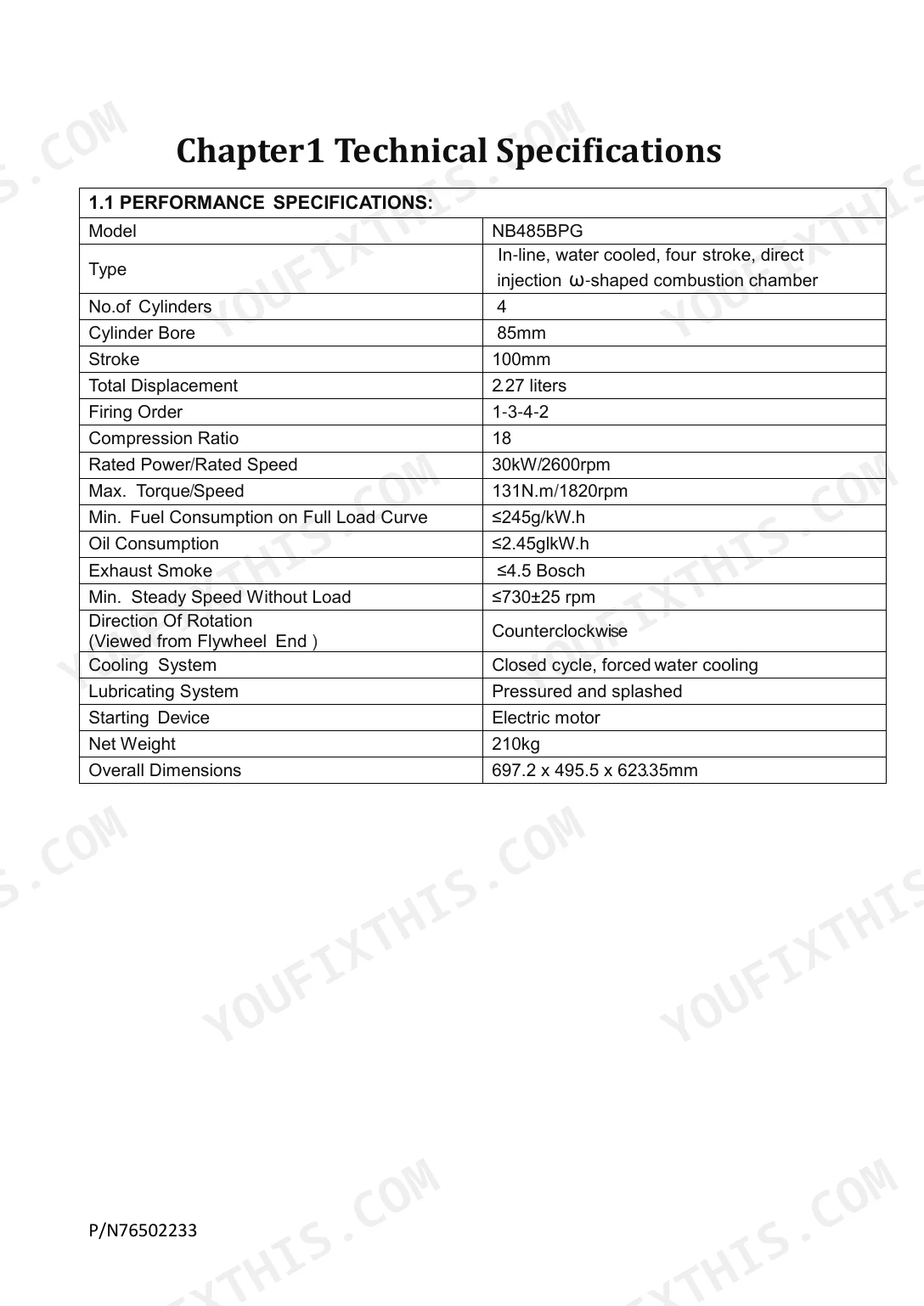

| Technical Specifications | 3-8 | Performance Specifications, Technical Data, Full Load Characteristic Curve |
| Operation | 9-10 | Items to Be Taken Care of, Starting of the Engine |

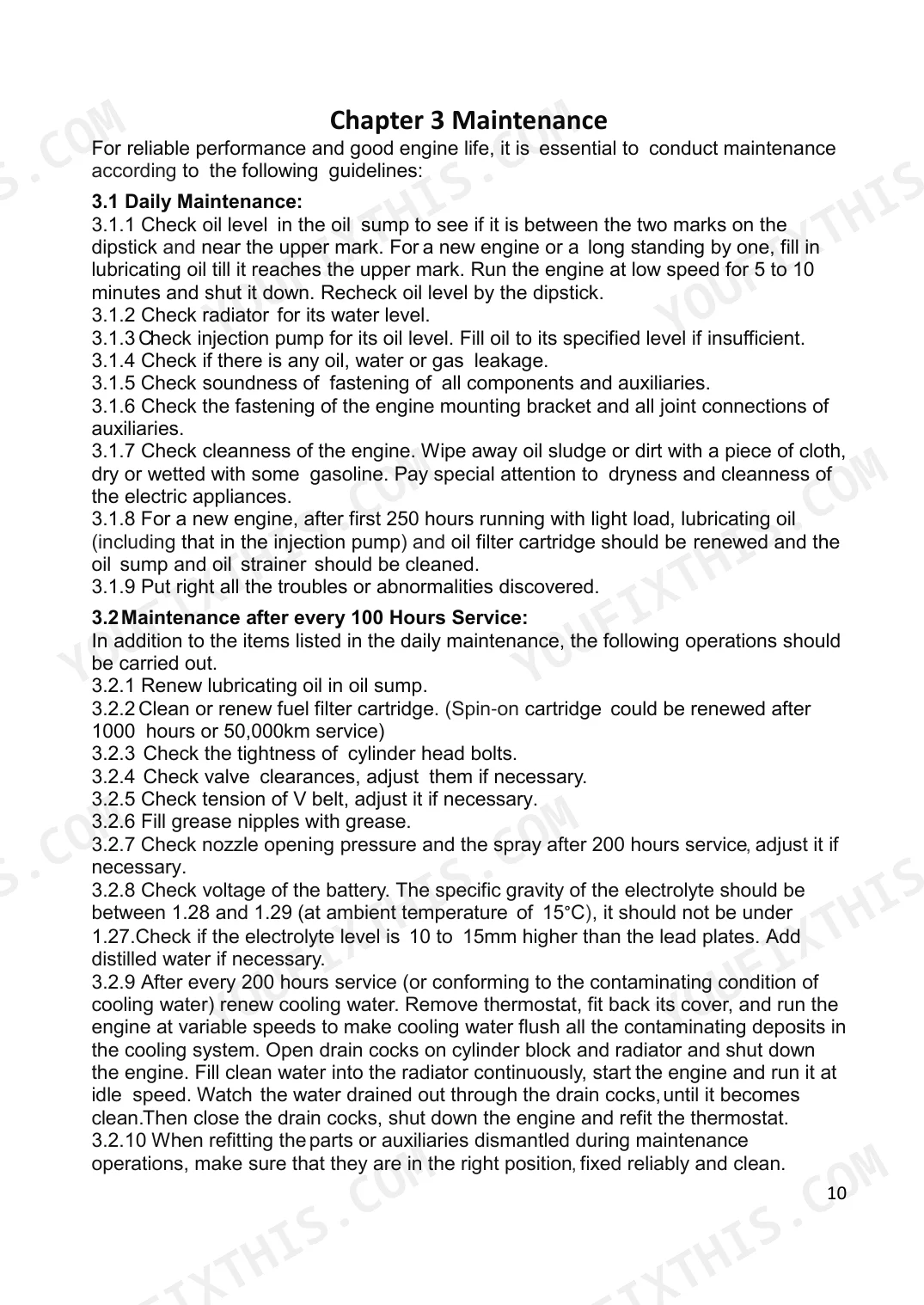

| Maintenance | 11-12 | Daily Maintenance, Maintenance After Every 100 Hours Service, Maintenance After Every 500 Hours Service, Storage of the Engine |

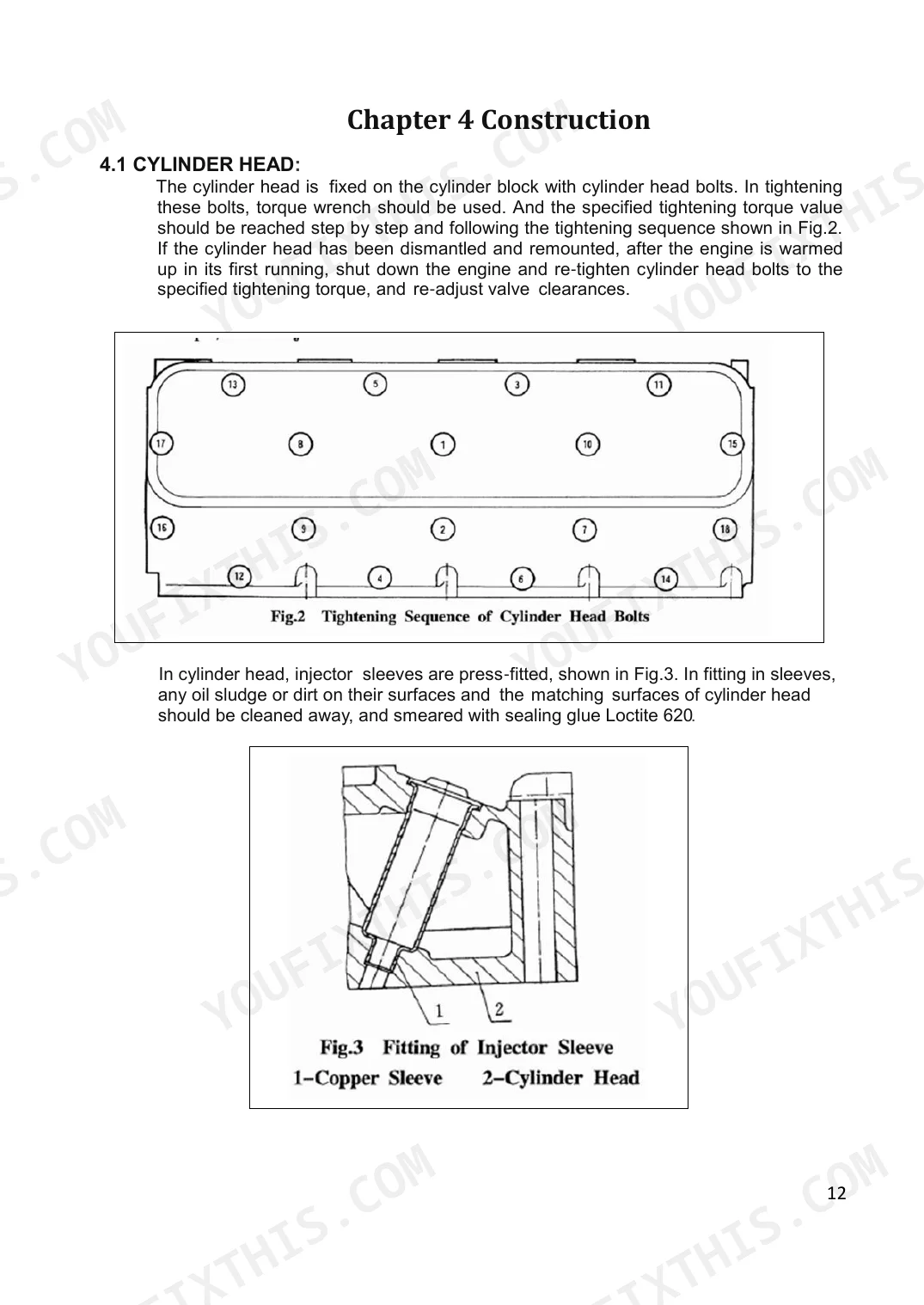

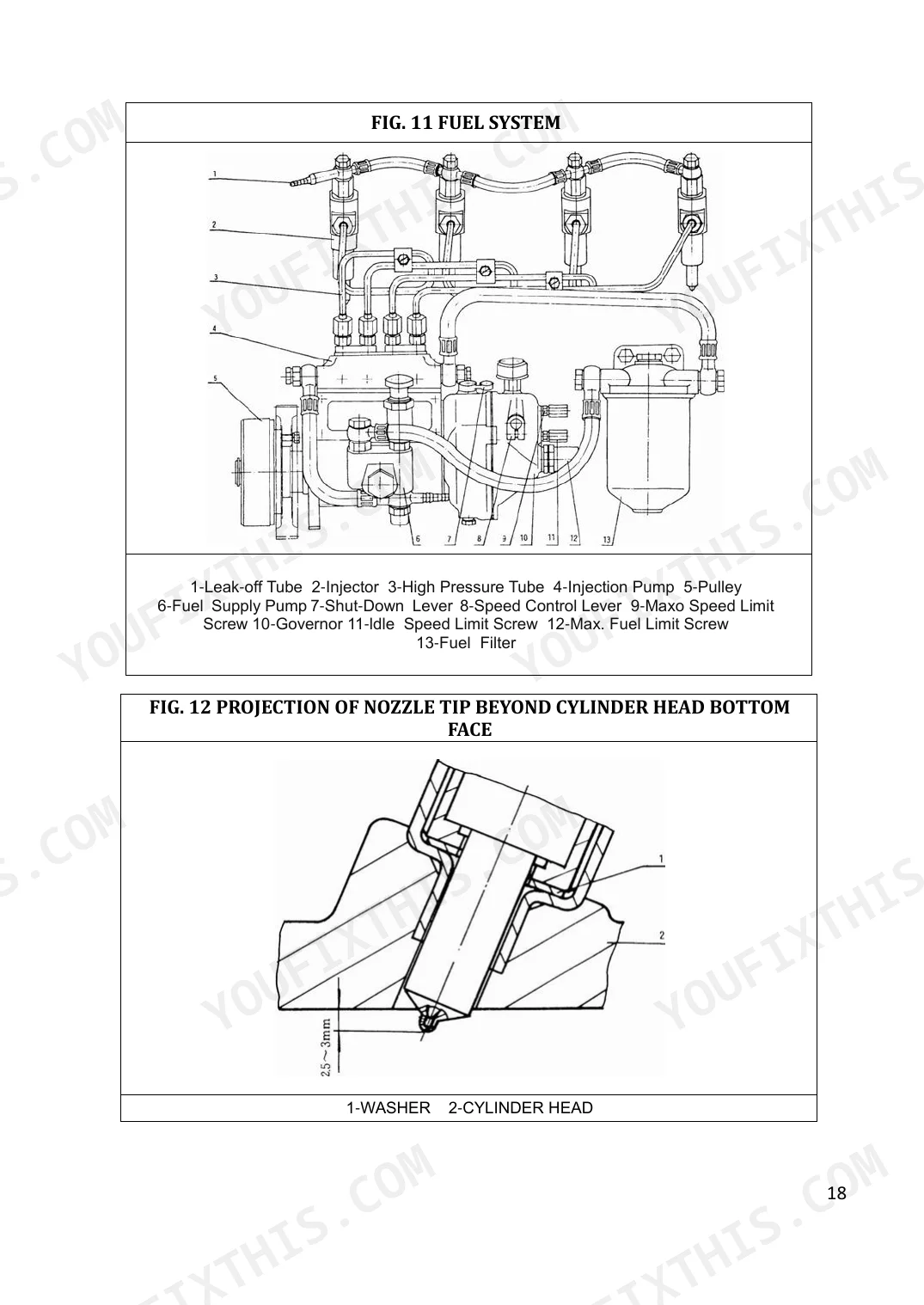

| Construction | 13-21 | Cylinder Head, Cylinder Block, Piston-Connecting Rod Assembly, Crankshaft and Flywheel, Gear Train, Fuel System, Lubricating System, Cooling System |
| Adjustment | 22 | Valve Clearances, Injection Timing, Injector, Injection Pump |

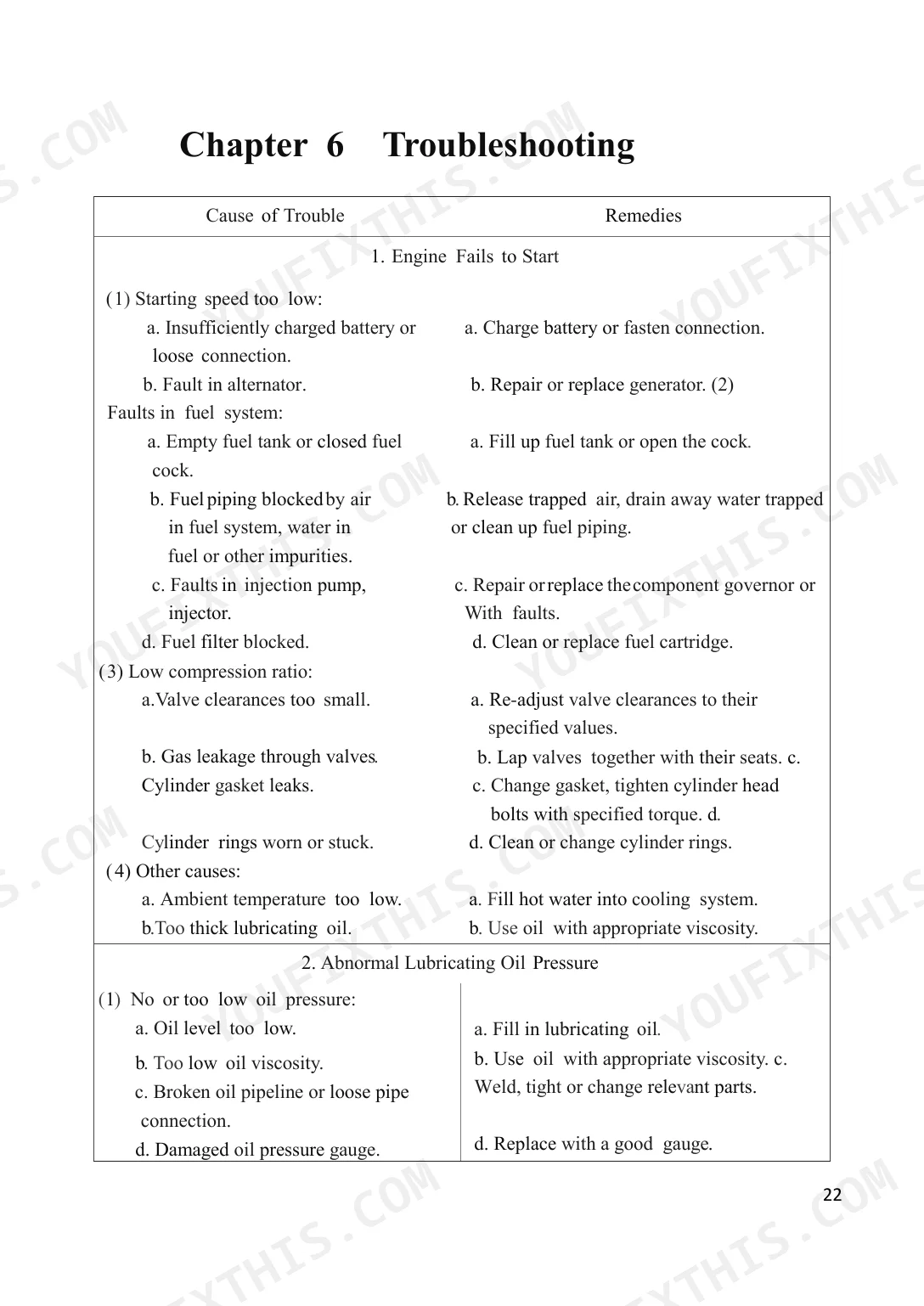

| Trouble Shooting | 23-29 | Engine Fails to Start, Abnormal Lubricating Oil Pressure, High Exhaust Smoke, Insufficient Power, Abnormal Noise, Severe Vibration, Engine Over-Heated, High Oil Consumption |

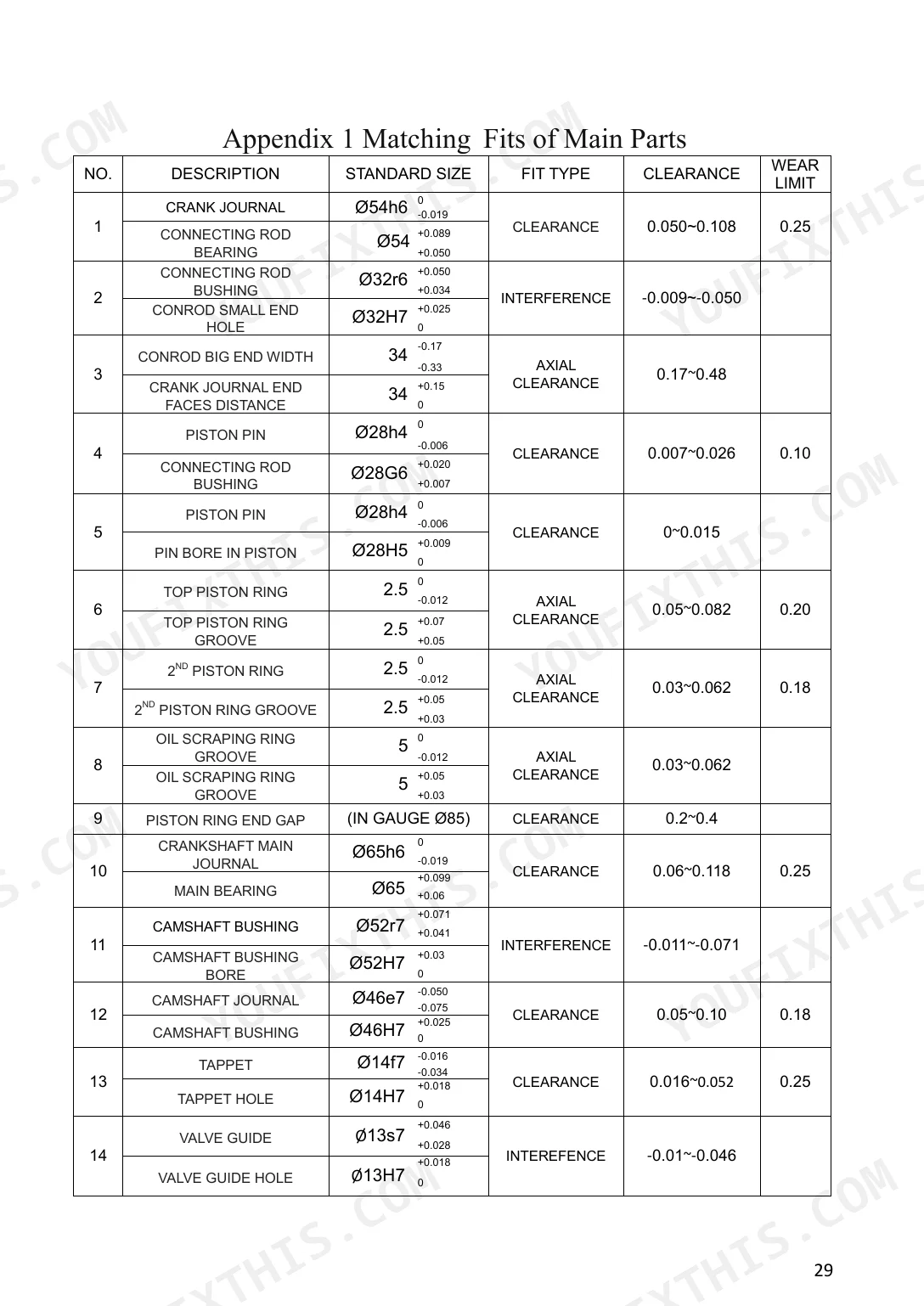

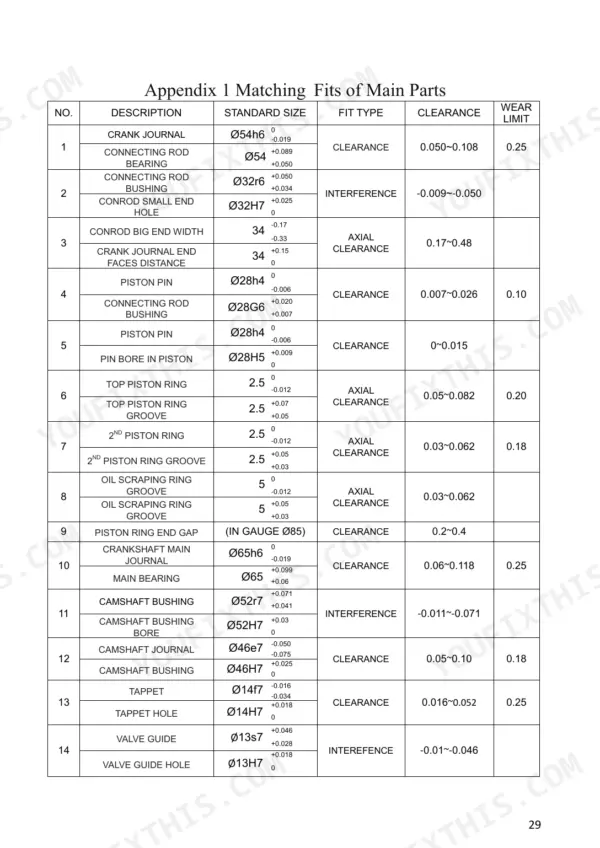

| Matching Fits of Main Parts | 30-31 | Crank Journal, Connecting Rod Bearing, Piston Pin, Piston Ring, Camshaft Bushing, Valve Guide |
| Specifications of Main Auxiliaries | 32 | Lubricating Oil Pump, Injection Pump, Injector, Water Pump, Starter, Alternator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Oil pressure | 196-441kPa | p. 4 |
| Oil pressure at idle speed | ≥49kPa | p. 4 |
| Opening pressure of the injector | 20.3-20.8 MPa | p. 4 |
| Fuel filter cartridge replacement interval | 1000 hours or 50,000km | p. 11 |
| Nozzle opening pressure and spray check interval | 200 hours | p. 11 |
| Thermostat check interval | 500 hours | p. 12 |
| Fuel filter replacement interval | 1000 hours | p. 18 |
| Cylinder Bore | 85mm | p. 3 |
| Stroke | 100mm | p. 3 |
| Intake and Exhaust Valve Clearances (Cooled State) | 0.28-0.33mm | p. 4 |
| Oil Sump Capacity | ≈7 liters | p. 4 |
Utilev NB485BPG Diesel Engine Common Problems This Manual Covers
Utilev NB485BPG diesel engine cranks slowly or will not start with air trapped in the fuel system
Charge the battery and tighten loose connections first. Then open the fuel cock, release trapped air, drain water from the fuel system and clean or replace the blocked fuel filter cartridge per the page 23 chart. If fuel delivery is good, check compression: reset valve clearances to 0.28-0.33mm cold (page 4) and inspect the cylinder gasket and rings.
Manual Section: Engine Fails to Start p. 23Engine oil pressure gauge reads low or zero at idle and medium speed
Check oil level and viscosity, inspect oil lines for breaks or loose connections and confirm the gauge itself reads true. Compare against 196-441kPa and at least 49kPa at idle (page 4). If pressure is still low, check oil pump rotor end clearance and bearing clearances, and replace a broken pressure regulating spring per page 24.
Manual Section: Abnormal Lubricating Oil Pressure p. 24Heavy white exhaust smoke with poor atomization or a dripping injector nozzle
Pull the injectors and bench test opening pressure against 20.3-20.8 MPa (page 4), checking spray pattern and tip dripping. Adjust, repair or change any faulty nozzle, setting it only to that specified value; page 18 warns not to reset adjustments arbitrarily. Check water temperature, and if water is entering the combustion chamber, inspect the cylinder gasket.
Manual Section: High Exhaust Smoke p. 24Engine lacks power under load and will not reach rated speed with clean fuel
Clean or change the fuel filter and supply pump filter screen, release trapped air and clean the air filter cartridge. Reset injection timing as specified. Check for gas leaking at the injector hole: change the copper washer, clean the injector sleeve and evenly tighten the fixing nuts. Tighten loose cylinder head bolts to specified torque per page 25.
Manual Section: Insufficient Power p. 25Rhythmic metallic knocking from the engine that changes with speed or fades as it warms up
Check valve lash first and reset it to 0.28-0.33mm cold (page 4); excess clearance gives a clear rhythmic knock. Re-adjust injection timing if the knock is sharp and metallic. With the engine apart, check connecting rod bearing, piston pin bushing and crankshaft thrust bearing clearances against the matching fits on page 30, replacing worn parts.
Manual Section: Abnormal Noise p. 26Blue exhaust smoke and high oil consumption with oil level dropping between services
Check oil level and drain out any excess, then confirm the oil viscosity suits the ambient temperature. Inspect the front and rear crankshaft seals, oil sump seal and cylinder head rear cover gasket for leaks. On teardown, change worn rings and liners, and fit compression rings with the marked side facing upward, per page 27.
Manual Section: High Oil Consumption p. 27Frequently Asked Questions
Why does the NB485BPG engine crank but not start?
If the engine fails to start, check for an empty fuel tank, air trapped in the fuel system, or a blocked fuel filter. Ensure the battery is sufficiently charged and connections are tight. If the engine fails to start after three consecutive attempts, the cause of the trouble must be identified before further attempts. p. 23
How do I bleed air from the NB485BPG fuel system?
Loosen the vent screw on the fuel filter and press the hand fuel supply pump several times to release trapped air. For a new engine or one that has been idle for a long period, it may also be necessary to loosen the vent screw on the injection pump and press the fuel supply pump repeatedly until all air is released. p. 10
What are the fuel filter replacement specifications for the Utilev NB485BPG Diesel Engine?
The spin-on fuel filter cartridge should be changed after every 1000 hours of service. p. 18
What are the replacement specifications for the oil filter on the Utilev NB485BPG Diesel Engine?
The oil filter cartridge should be renewed after the first 250 hours of running for a new engine, and subsequently as part of maintenance schedules. The model of the oil filter is JX0810. p. 11
What is the correct tightening torque for the cylinder head bolts on the Utilev NB485BPG Diesel Engine?
The cylinder head bolts must be tightened to a torque value of 120-140 N.m. p. 4
Do I get instant access to this Utilev NB485BPG Operation & Maintenance Manual?
You download the Operation & Maintenance Manual yourself: 32 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is this Utilev NB485BPG manual print-friendly?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
