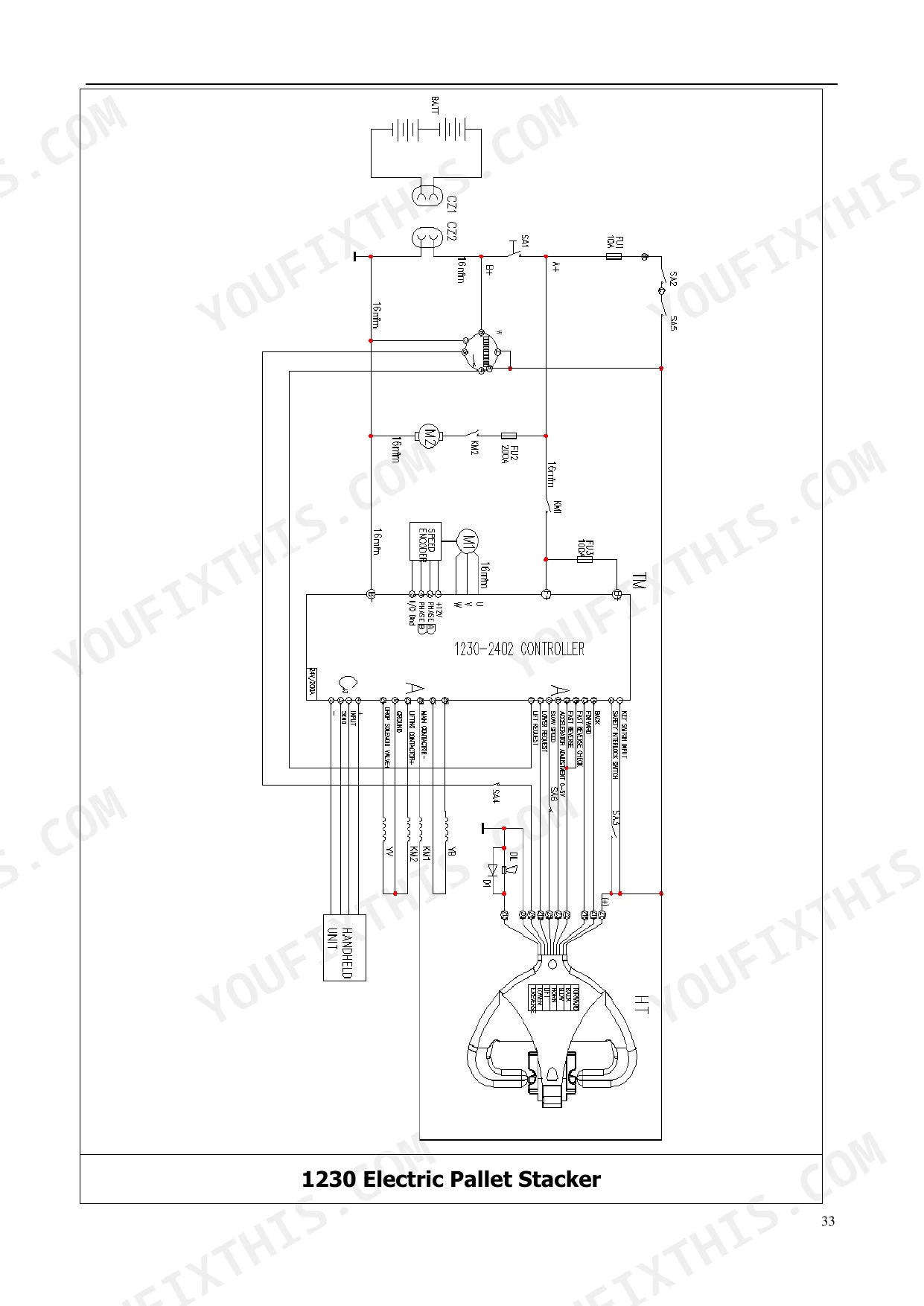

Knowing a Utilev UT15WSL, UT15WSS or UT15WS pedestrian straddle truck well enough to run a full shift without surprises is the one job this 51-page operator manual PDF (OEM ID 66306337) is built to do. The controller section decodes 1230 and 1207A fault codes read off the LED display, wiring diagrams trace the electrical circuits, and a hydraulic schematic shows the oil path feeding the lifting cylinder. Battery care gets proper attention too: initial, common and equalizing charges, electrolyte handling and emergency treatment, followed by pre-shift and after-shift checks on brakes, steering, hydraulic oil, wheels and horn. Hold electromagnetic brake clearance between 0.2 mm and 0.8 mm, keep spare 10A fuses in the kit, and stay within the 1500 kg rated load. The bookmarked, text-searchable file prints clean.
What's Inside This Utilev UT15WSL, UT15WSS, UT15WS Operator Manual

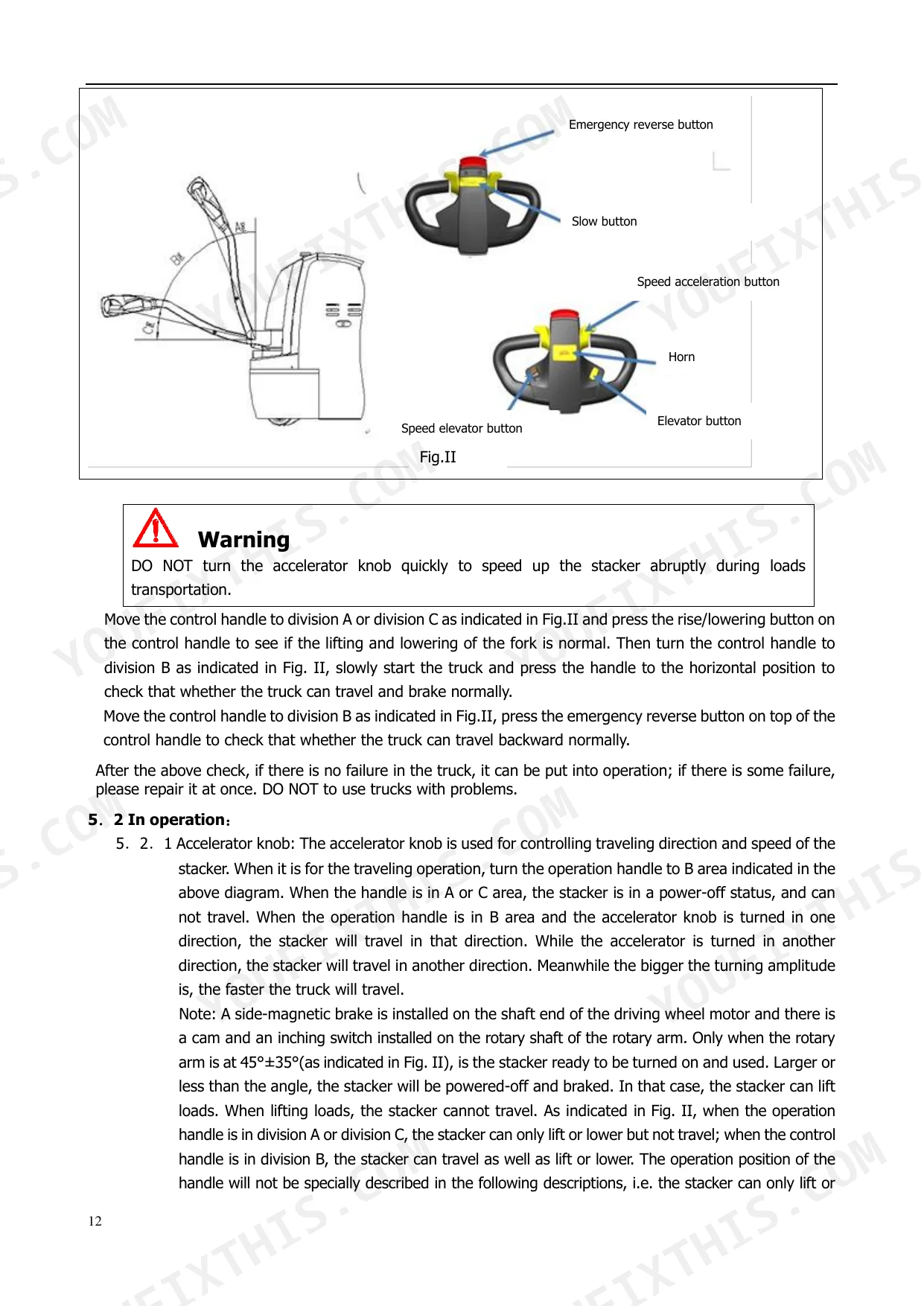

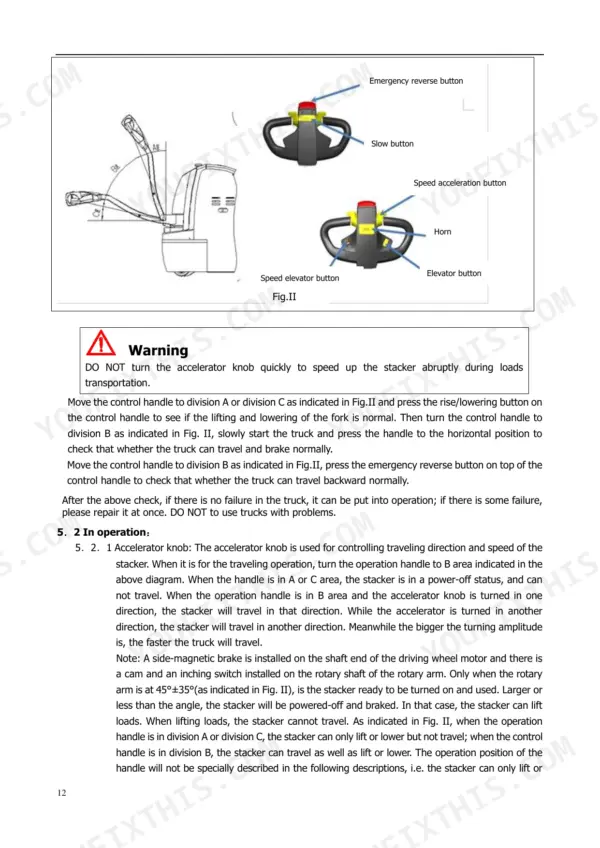

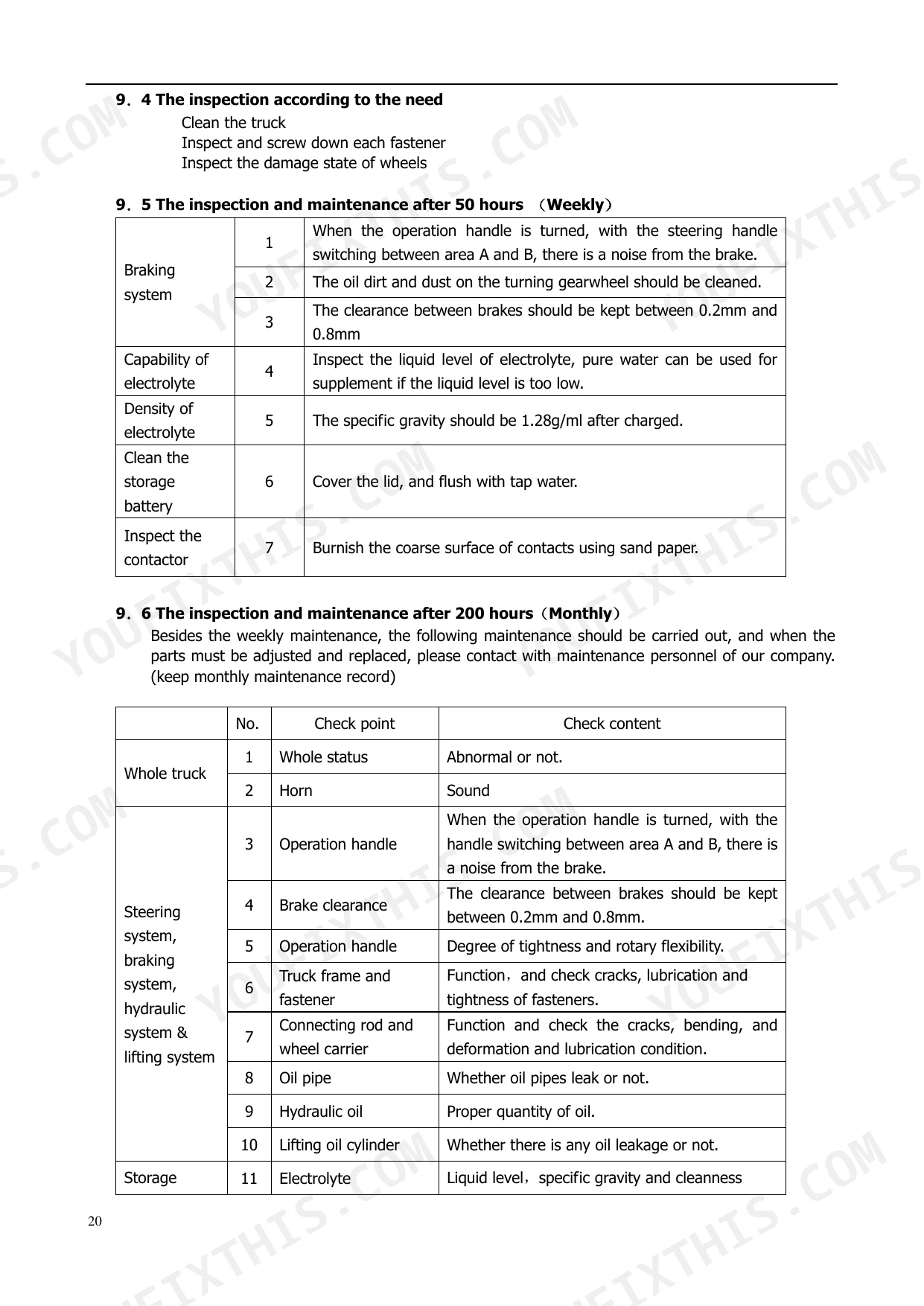

| System | Pages | Key Topics |
|---|---|---|
| Configuration Diagram and Main Technical Parameter | 6-7 | Configuration Diagram, Main Technical Parameters, Characteristics, Weight, Wheel Chassis, Dimension, Performance Data, Motor |
| Brief Introduction of Structure | 8-13 | Frame, Mast, Fork, Lifting Oil Cylinder, Operation Handle, Steering Device, Driving Wheel, Storage Battery Pack |
| Initial Operation | 14 | Initial Operation Checks |
| Use and Operation Instruction | 15-17 | Before Operation, Electric Power Check, Brake Check, Accelerator Knob, Slow Down Button, Safety Height, Handling and Stacking, Taking Loads Off Shelves |
| Use, Maintenance and Charging of Storage Battery | 18-20 | Charging Operation Methods, Initial Charge, Sulfuric Acid Electrolytic Solution, Common Charge, Equalizing Charge, Storage, Electrolyte Operation, Emergency Treatment |
| Inspection Before Operation | 21 | Hydraulic Oil, Lifting Oil Cylinder, Wheels, Horn |
| Inspection After Operation | 22-26 | Smudge Removal, Graphics Context Marks, Deformation, Lubrication, Faulty Components |
| Storage, Transportation, and Loading & Unloading | 27 | Store of Truck, Transportation of Truck, Loading and Unloading of Truck |
| Replacement of Storage Battery | 28-30 | Side Door, Socket Connector, Battery Case Pin, Hoisting Method |
| Common Faults Signal and Trouble Shooting | 31-33 | 1230 Controller Fault Code, 1207A Controller Fault Diagnosis, LED Display, Diagnosis List |
| Lists of Accessories, Spare Parts and Vulnerable Parts | 34 | Electric Lock Key, Fuse, Sealing Ring, O Type Sealing Ring, Composite Ring, Dustproof Ring |
| Packing List | 35-38 | Electric Pallet Stacker, Accessory Box, Operation Manual, Qualification Certificate |
| Appendix I Safety Specifications of Motor Industrial Vehicles | 39-51 | Driver Qualification, Flammable and Explosive Circumstance, Passenger Safety, Load Capacity, Stability, Charging Station |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Stipulated system pressure (2000KG rated load) | 11.5Mpa | p. 30 |
| Stipulated system pressure (2500KG rated load) | 13.5Mpa | p. 30 |
| Fuse rating | 10A | p. 34 |
| Brake clearance | 0.2mm - 0.8mm | p. 21 |
| Rated load | 1500kg | p. 7 |
| Load center distance | 600mm | p. 7 |
| Service weight (with battery) | 830/840/850kg | p. 7 |
| Hydraulic oil charge | 12L | p. 23 |
| Battery voltage/rated capacity | 24/200V/Ah | p. 7 |
| Driving motor power | 1.2kW | p. 7 |
| Max. gradeability (laden) | 6% | p. 7 |
| Max. gradeability (unladen) | 15% | p. 7 |
Utilev UT15WSL, UT15WSS, UT15WS Common Problems This Manual Covers

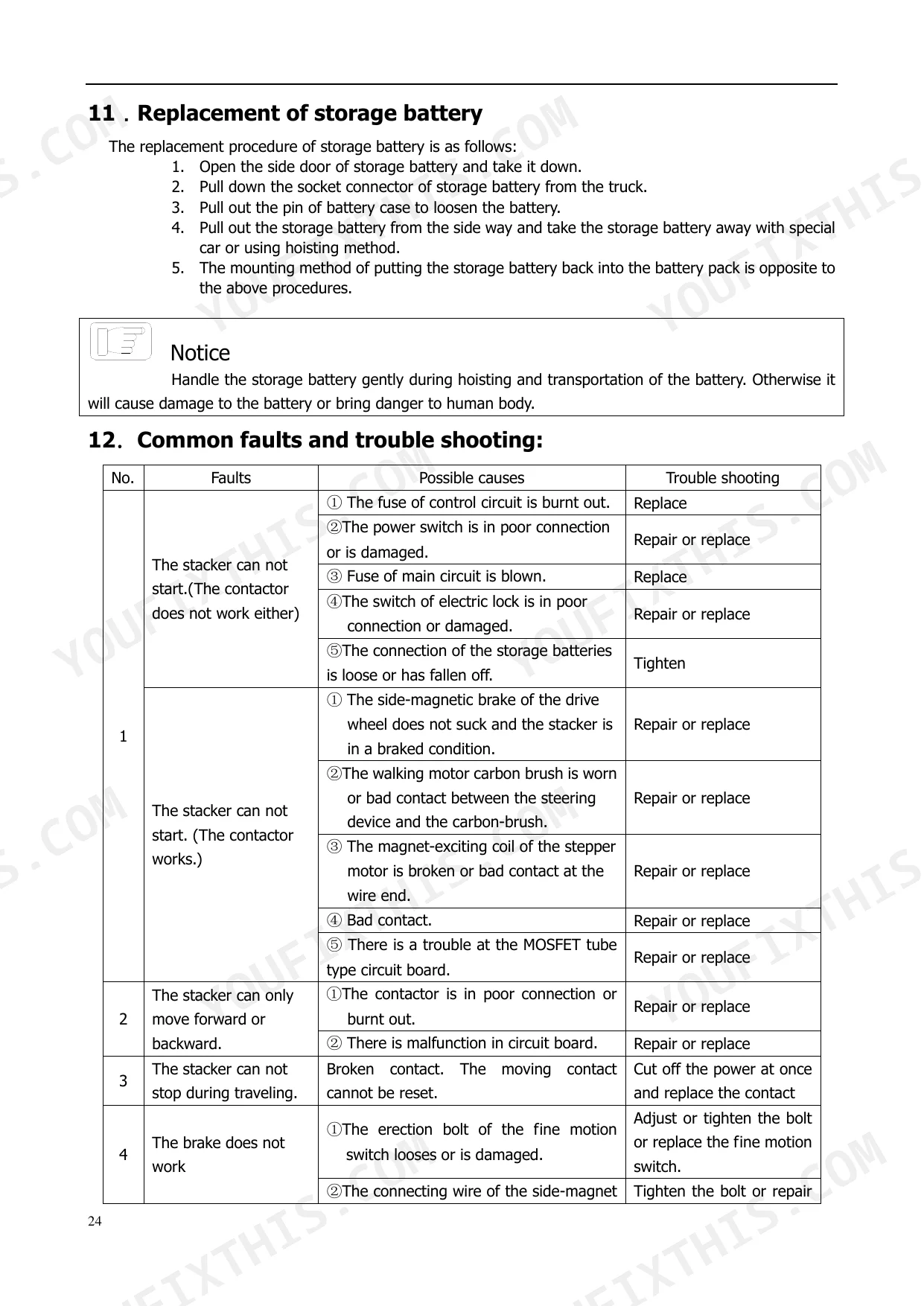

Utilev UT15WS pedestrian straddle truck will not start and the contactor does not work at key on
Check the control circuit fuse and the main circuit fuse first and replace any that are burnt out, following the fault chart on page 28. The parts list on page 34 shows the 10A fuse. Inspect the power switch and electric lock switch for poor connection, then tighten loose or fallen-off battery connections. Keep tools and metal objects off the lidless battery (page 41).
Manual Section: Common faults and troubleshooting p. 28Forks will not lift when the lifting button is pressed on the control handle
Reduce the load first. Then check that the control handle is horizontal or vertical so the oil pump motor turns on, as the chart on page 29 lists. Confirm the electric lock is unlocked, charge the battery if voltage is low, and top up with filtered hydraulic oil (12L charge, page 23). Do not adjust overflow valve pressure yourself. Page 30 says to have professional personnel set it.
Manual Section: Common faults and troubleshooting p. 29Forks will not come down after being lifted and stay raised on the mast
Keep hands, arms and head out from under the forks and away from moving parts (page 8). Inspect the inner and outer mast for overload deformation, a dead mast roller or a curved guiding rod, following the chart on page 29. Clean a blocked oil return hole. If the mast checks out, have the electromagnetic valve control fault traced before putting the truck back to work.
Manual Section: Common faults and troubleshooting p. 29Side-magnet brake does not work and braking fails while the stacker is operating
Stop operation at once and repair the stacker before further use, as page 18 requires. Check the fine motion switch erection bolt and the side-magnet brake connecting wire for looseness per page 28. Measure brake clearance with an insert ruler against 0.2mm-0.8mm (page 21). If it is over 0.5mm, clean the friction plate and adjust following page 25, or replace worn braking plates.
Manual Section: Common faults and troubleshooting p. 28Stacker cannot stop during traveling and keeps moving as if the drive contact is stuck
Cut off the power at once, as the chart on page 28 directs, then replace the broken contact whose moving contact cannot reset. If the stacker is about to pin you against a wall, press the emergency reverse button on top of the operation handle (page 18). Display an OUT OF ORDER sign and remove the truck from service until repaired (page 10).
Manual Section: Common faults and troubleshooting p. 28Storage battery end voltage stays low even after the charging cycle has been completed
Charge only in a well ventilated area with no open flame, since hydrogen gas builds up in the battery case (page 18). Check electrolyte level and add electrolytic solution if it is low, following page 29. Replace electrolyte containing foreign matter, and repair or replace any damaged individual battery. Never use industrial sulfuric acid or running water (page 19).
Manual Section: Common faults and troubleshooting p. 29Frequently Asked Questions

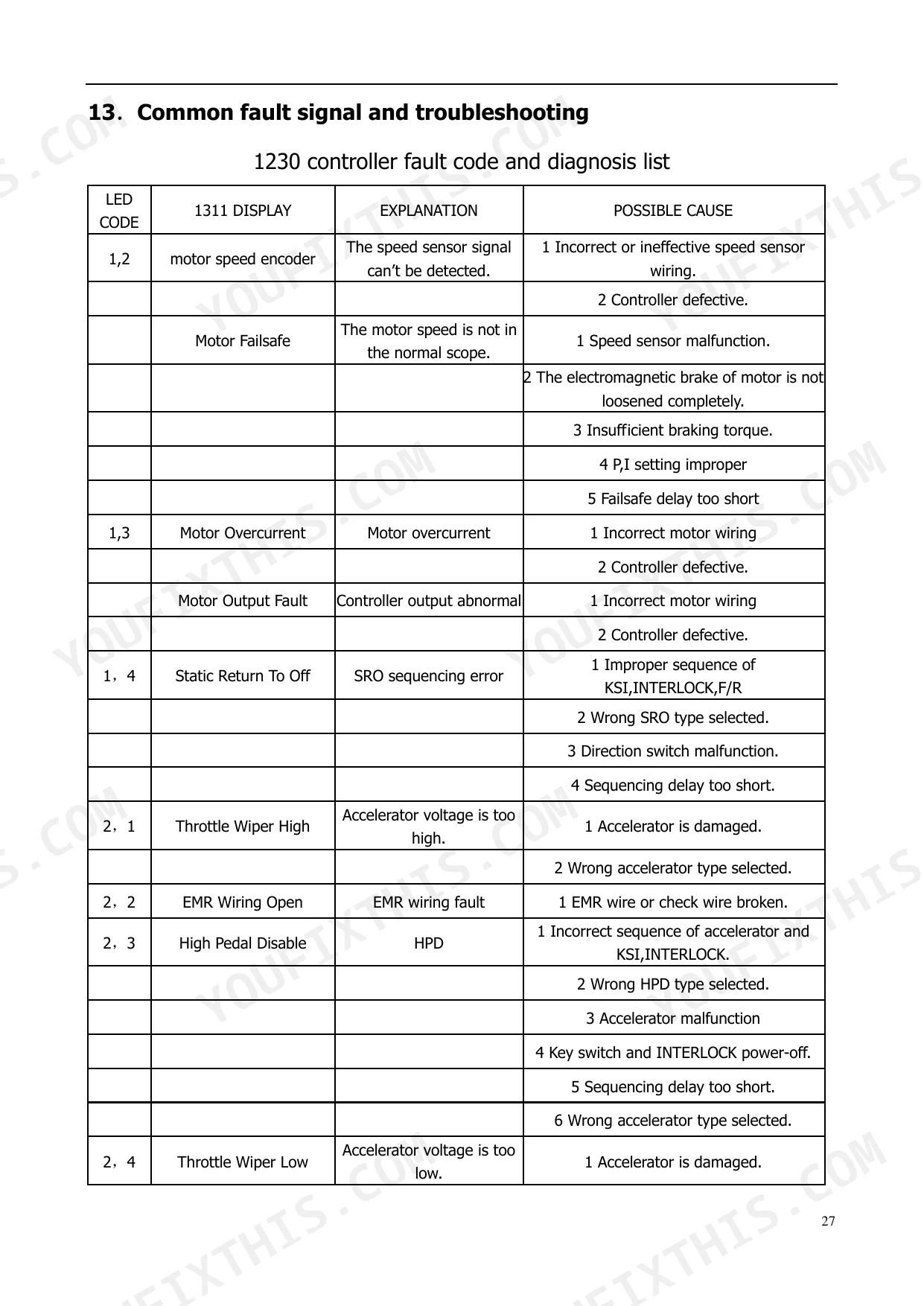

What do UT15WS controller LED error codes 1,2 mean?
LED code 1,2 indicates a motor speed encoder fault, meaning the speed sensor signal cannot be detected. Possible causes include incorrect or ineffective speed sensor wiring or a defective controller. p. 31
How to troubleshoot UT15WS throttle, governor, or accelerator faults?
For throttle faults (LED code 2,1 or 2,4), check if the accelerator is damaged or if the wrong accelerator type is selected. For 1207A controllers, throttle fault 1 indicates an open circuit of the governor input line or a short circuit with B+ or ground. p. 31
How to fix UT15WS electromagnetic brake and brake-driver faults?
If the brake does not work, first check the erection bolt of the fine motion switch. The clearance between the brake plate and magnetic steel must be kept between 0.2mm and 0.8mm; if it exceeds 0.5mm, it must be adjusted. p. 25
What are the replacement specifications for control and main-circuit fuses on the Utilev UT15WSL, UT15WSS, UT15WS?
The truck uses a 10A fuse for electric equipment, a 100A standard fuse for electric equipment, and a 180A fuse for electric equipment. p. 34
What is the required hydraulic oil capacity for the UT15WS stacker?
When performing a daily inspection of the hydraulic oil level, the total oil charge required is 12L. Ensure the fork is lowered to the lowest position before checking. p. 23
What format is this Utilev UT15WSL manual in?
A single searchable PDF file of 51 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I free to print this Utilev UT15WSL Operator Manual?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
