Within the hour you could be resetting the brake gap or topping up battery electrolyte with the Utilev UT20KWE operator manual PDF open beside the truck: 28 pages on this pedestrian pallet truck, OEM ID 76507616. Its structure diagrams trace the hydraulic station, lifting oil cylinder and overflow valve, while the electrical diagram lays out the controller, speed encoder and drive motor. A fault table links symptoms to causes like a blown control circuit fuse, worn walking motor carbon brushes or a failed MOSFET board, and the Level I and Level II schedules sit beside the battery charging procedures. Hold the clearance between brake block and electromagnet at 0.2 to 0.3 mm, and match any replacement battery to the 24V, 210Ah rating. The bookmarked, searchable file also names the seals, fuses and dustproof rings on the spare parts list.
What's Inside This Utilev UT20KWE Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Outside View | 4-5 | Fork, Control Handle, Drive Wheel, Balance Wheel, Steering Assembly |
| Structure | 6-7 | Electric Drive Wheel, Steering Assembly, Lifting Oil Cylinder, Hydraulic Station, Electric Control System |
| Maintenance | 8-9 | Routine Maintenance, Level I Maintenance, Level II Maintenance, Mechanical System, Hydraulic System, Electric Equipment |

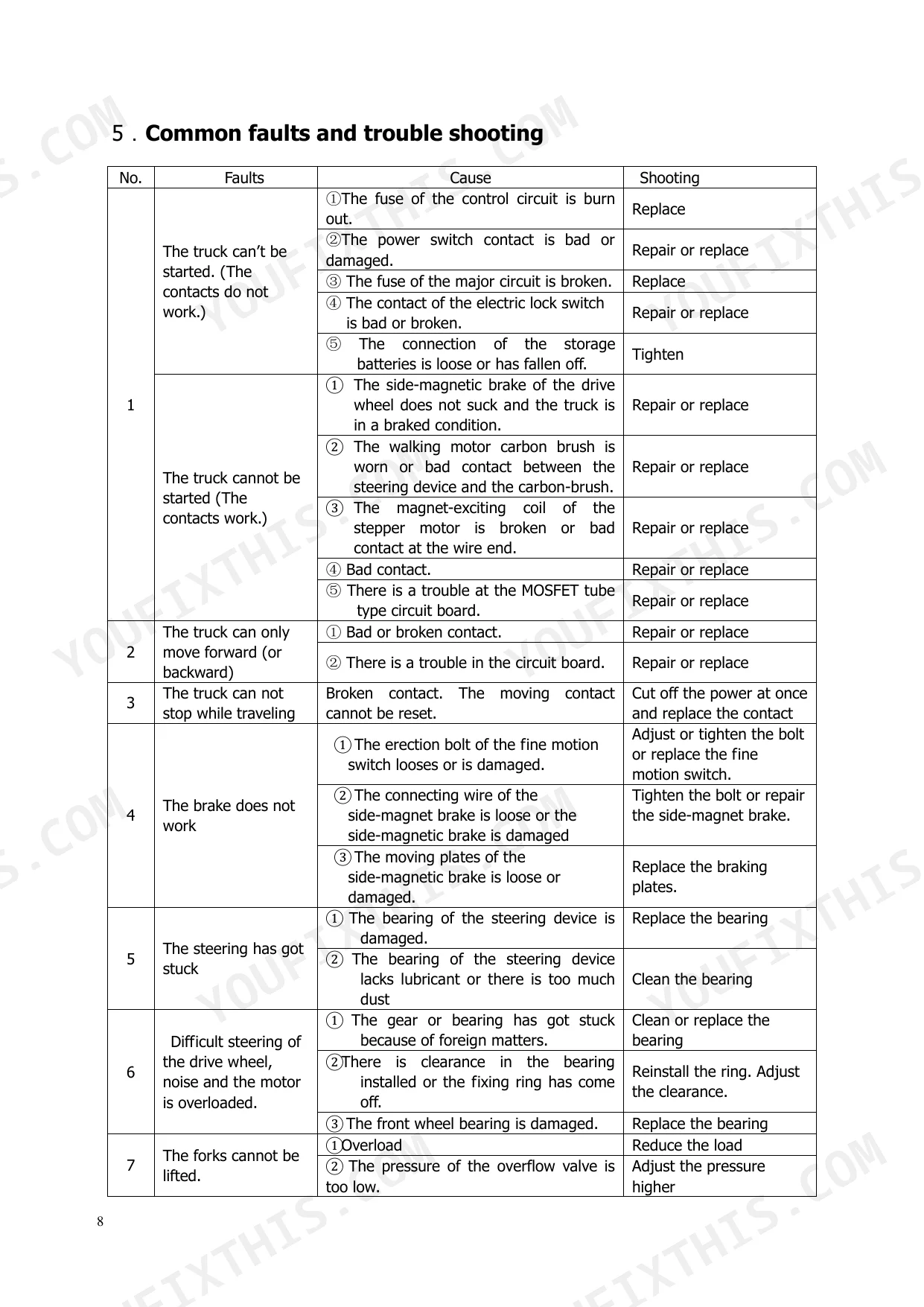

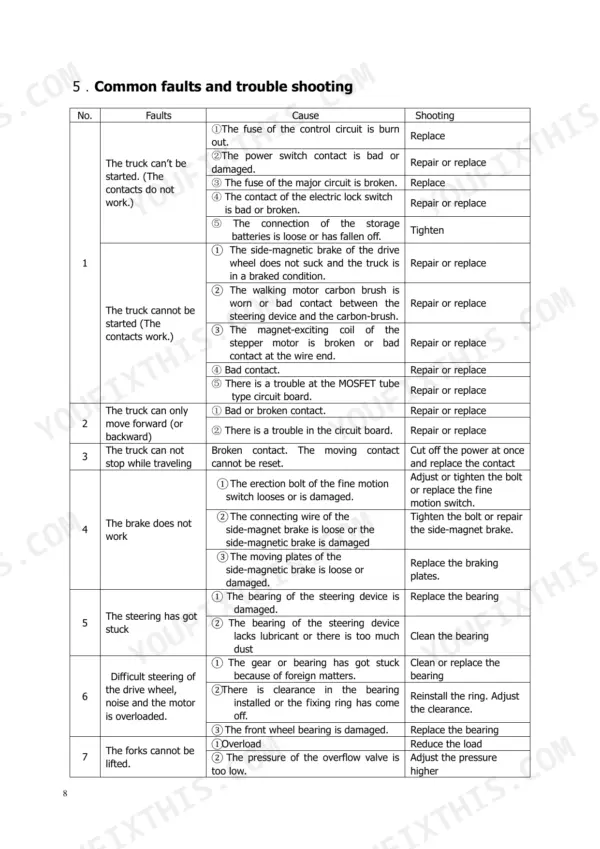

| Common Faults and Trouble Shooting | 10 | Control Circuit Fuse, Power Switch, Walking Motor Carbon Brush, Mosfet Circuit Board, Overflow Valve |
| Maintenance and Charge of the Storage Battery | 11-12 | Initial Charge, Common Charge, Equalizing Charge, Electrolytic Solution, Battery Storage |
| List of Accessories, Spare Parts and Vulnerable Parts | 13 | Electric Lock Key, Fuse, Sealing Ring, O Type Sealing Ring, Dustproof Ring |
| Packing and Transportation | 14 | Package |

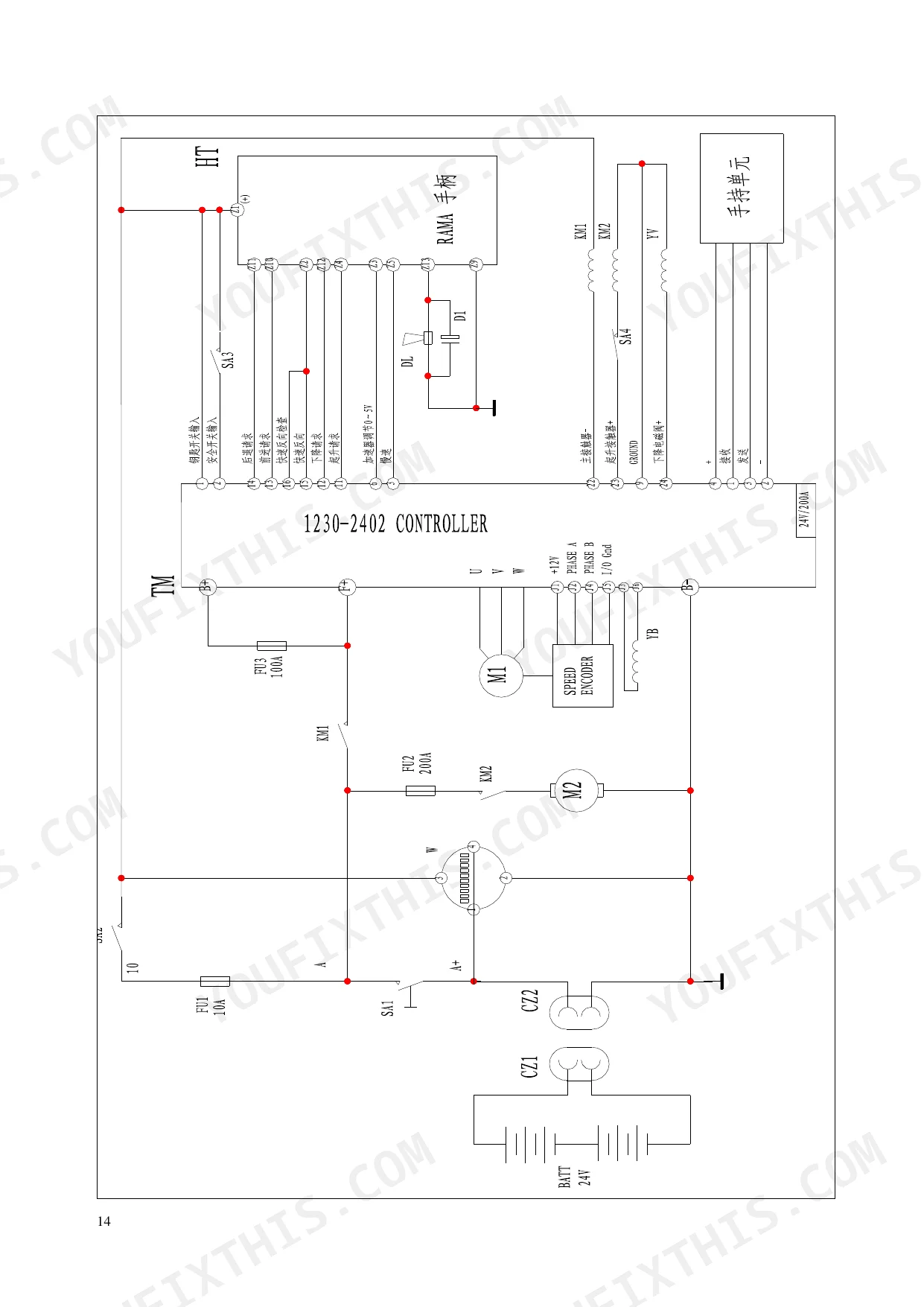

| Structure Diagram of the Major Parts | 15-16 | Hydraulic System, Electrical System, Controller, Speed Encoder, Motor |
| Packing List | 17 | Electric Pallet Truck, Accessory Box, Operation Manual, Qualification Certificate, Key to Electric Lock, Sealing Ring |
| Appendix 1 | 18-28 | Safety Rules for User and Driver, Qualification of Driver, Passenger, Stability, Protection Requirement, Charging and Changing of Battery, Operating Conditions |
Quick Reference Specifications

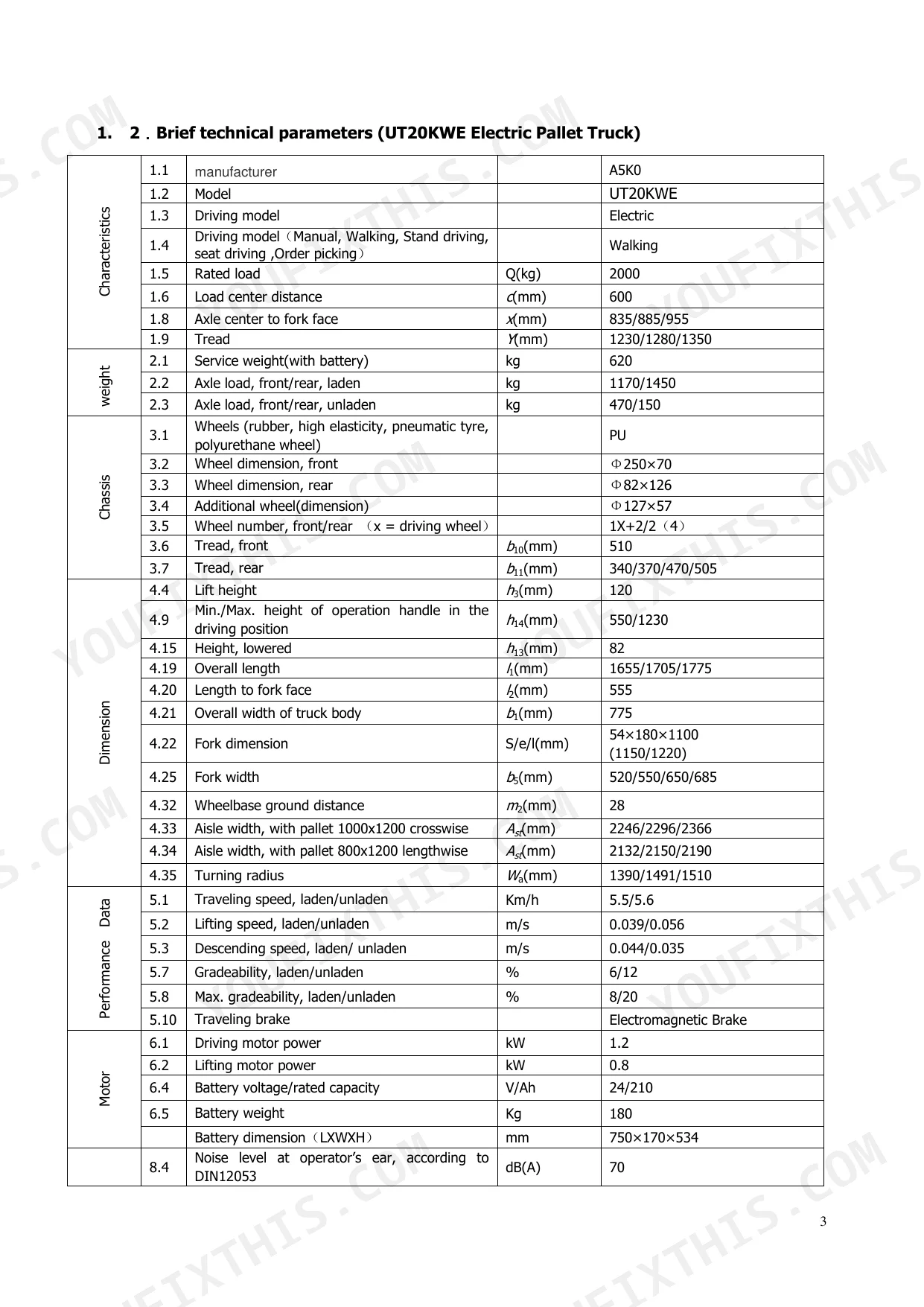

| Specification | Value | Page |
|---|---|---|
| Brake clearance | 0.2-0.3mm | p. 8 |
| Battery voltage | 24V | p. 5 |
| Battery rated capacity | 210Ah | p. 5 |
| Wheel dimension, front | 250x70mm | p. 5 |
| Wheel dimension, rear | 82x126mm | p. 5 |
| Lifting motor power | 0.8kW | p. 5 |
| Rated load | 2000 kg | p. 5 |
| Service weight (with battery) | 620 kg | p. 5 |
| Lift height | 120 mm | p. 5 |
| Traveling speed (laden/unladen) | 5.5/5.6 Km/h | p. 5 |
| Driving motor power | 1.2 kW | p. 5 |
| Battery voltage/rated capacity | 24/210 V/Ah | p. 5 |
Utilev UT20KWE Common Problems This Manual Covers
Utilev UT20KWE pallet truck will not start when the key is turned and the contacts do not work
Check the control circuit fuse and the major circuit fuse first, replacing any that are burned out, following the fault chart on page 10. Inspect the power switch and electric lock switch contacts; repair or replace them if bad. Tighten any loose or fallen-off storage battery connections, keeping tools and metal off the open battery top as page 19 warns.
Manual Section: Common Faults and Trouble Shooting p. 10Truck still will not move or start even though the contacts engage normally
Check whether the side-magnetic brake of the drive wheel pulls in. If it stays applied, the truck sits braked; repair or replace it per page 10. Inspect the walking motor carbon brush for wear or bad contact, then check the stepper motor magnet-exciting coil and its wire ends. If those pass, repair or replace the MOSFET circuit board.
Manual Section: Common Faults and Trouble Shooting p. 10Side-magnetic brake does not work or braking performance declines after a period of use

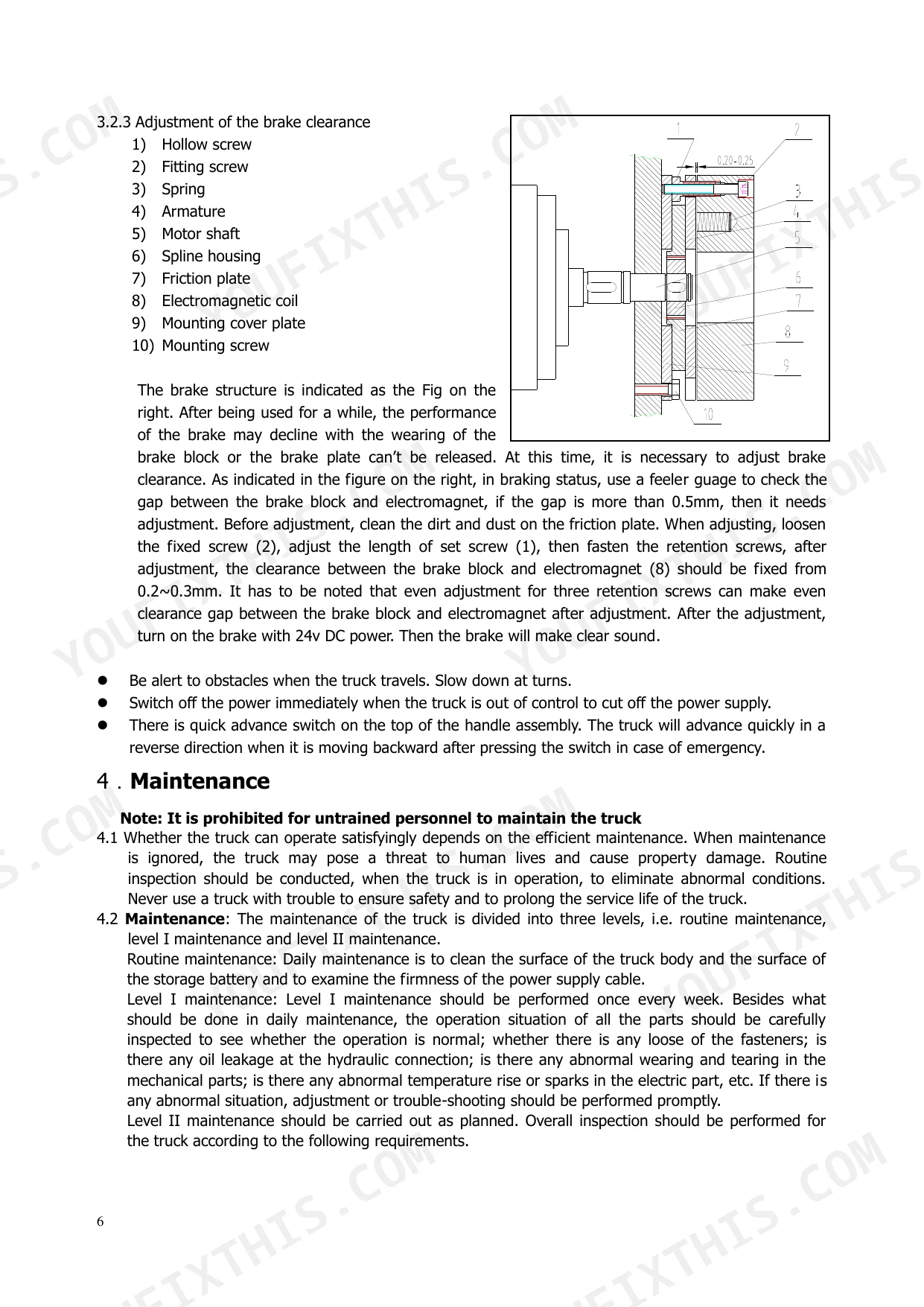

Stop using the truck; page 8 says never run a truck with trouble. Tighten or replace the fine motion switch and check the brake connecting wire per page 10. In braking status, measure the brake block to electromagnet gap with a feeler gauge. If over 0.5 mm, clean the friction plate and reset it to 0.2 to 0.3 mm, adjusting all three retention screws evenly.
Manual Section: Adjustment of the brake clearance p. 8Pallet truck runs on and cannot be stopped while traveling under drive power
Switch off the power immediately to cut the supply, as page 8 instructs whenever the truck is out of control. The fault chart on page 10 traces this to a broken moving contact that cannot reset, so replace the contact before the truck goes back to work. Keep it parked until repaired; page 8 forbids using a truck with trouble.

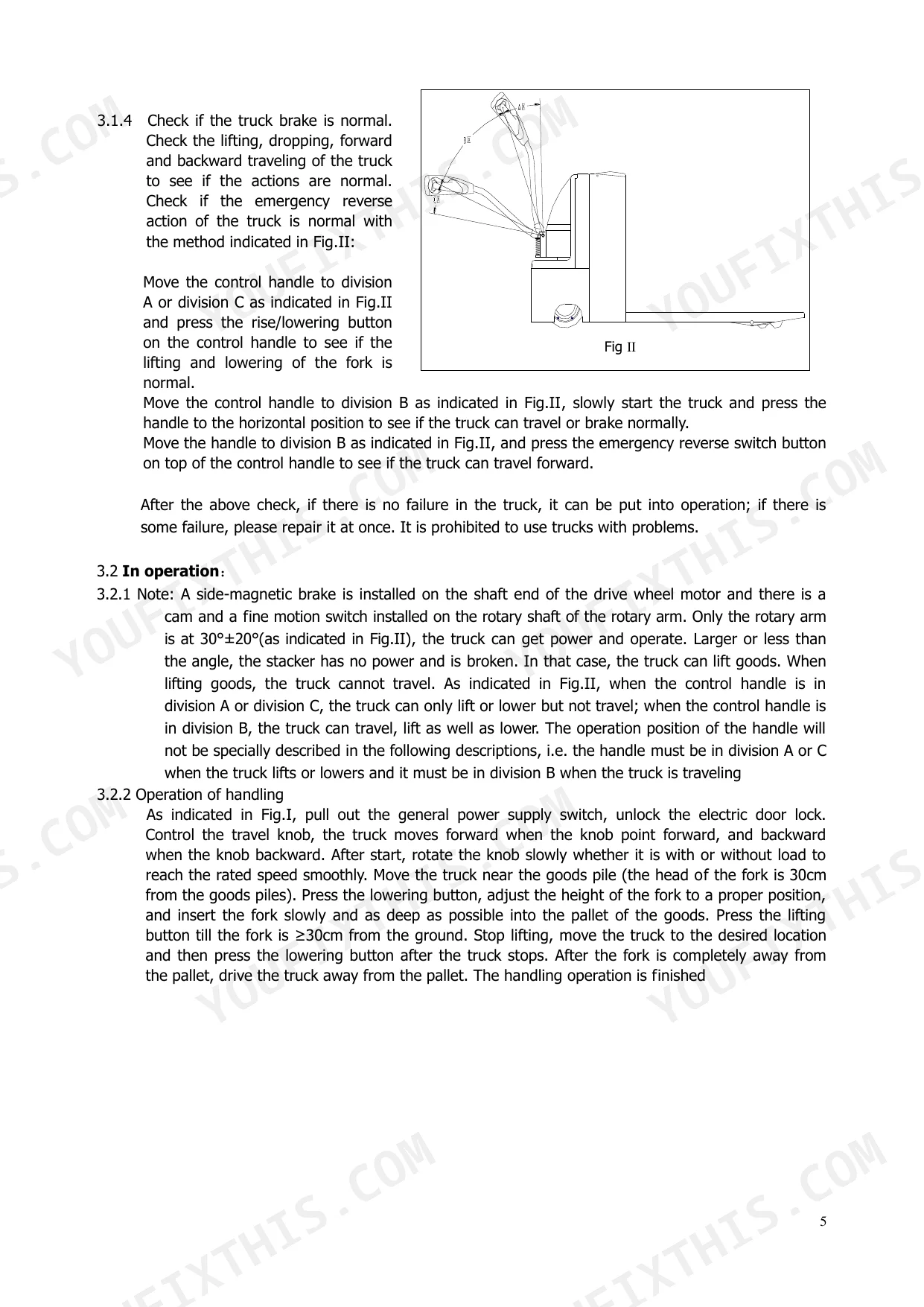

Manual Section: Common Faults and Trouble Shooting p. 10Forks cannot be lifted when the lifting button is pressed on the control handle
Reduce the load to the 2000 kg rating on page 5 and hold the handle horizontal or vertical so the pump motor starts. Top up with filtered HL-N46 or HL-N68 (ambient -5 to 40 °C) per page 9 and charge a low battery. If forks won't rise, check the electric lock, lifting button, overflow valve pressure and lifting cylinder seals.
Manual Section: Common Faults and Trouble Shooting p. 10Storage battery voltage drops quickly and runtime falls short even after a full charge
Charge only with good ventilation and no open flame, as page 11 warns of explosion. Check electrolyte level and specific gravity (1.26 at 25 °C, 1.24 in tropical areas) per page 9. Add electrolyte if low and replace it if contaminated, never using industrial sulfuric acid or running water (page 12). Repair or replace any damaged individual battery and stop discharging at 20.4 V.
Manual Section: Maintenance and Charge of the Storage Battery p. 11Frequently Asked Questions
What are the recommended service intervals for the Utilev UT20KWE pallet truck?
Maintenance is divided into three levels: routine (daily), Level I (weekly), and Level II (planned). Mechanical and hydraulic system maintenance should be performed once every half year, while electric equipment maintenance is required every three months. p. 8
How can I troubleshoot the truck if it cannot be started but the contacts work?
If the contacts work but the truck won't start, check if the side-magnetic brake is stuck, the walking motor carbon brush is worn, or if there is a fault in the MOSFET circuit board. Repair or replace the faulty component as needed. p. 10
What hydraulic oil should be used for the truck?
The hydraulic oil should be replaced every 12 months. Use HL-N46 or HL-N68 when the ambient temperature is between -5°C and 40°C, and use HV-N46 or HV-N68 when the temperature is between -35°C and -5°C. p. 9
What is the correct brake clearance for the Utilev UT20KWE pallet truck?
The clearance between the brake block and the electromagnet should be adjusted to 0.2-0.3mm. If the gap exceeds 0.5mm, adjustment is required by loosening the fixed screw and adjusting the set screw. p. 8
What is the procedure for equalizing charge of the batteries?
Equalizing charge should be performed every 2-3 months or for 'lag-behind' batteries. Charge with a 4A current until the voltage reaches 31.2V, then reduce current by 50% (2A), and continue charging until fully charged. p. 13
How will I receive this Utilev UT20KWE Operator Manual?
Immediate download of the complete 28-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Utilev UT20KWE manual?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
