Work through the daily checks with the 15-page Utilev UT20WE operator manual PDF (OEM ID 76507614) open beside your electric pallet truck. Its electrical schematic traces the battery, key switch, emergency stop switch and controller out to the traction and hydraulic motors, which gives a dead tiller a starting point. Fault charts match hydraulic oil leaks, forks that refuse to lift or lower, motor failures and charger faults to their causes, while the operating pages cover lifting, lowering, low-speed travel, braking and emergency reversing, plus daily, level one and level two maintenance and the battery charging routine. Order a replacement pack at 24 V/80 Ah, 260/169/215 mm and 49 kg, and match the front tyre at Φ195 mm. The PDF is bookmarked and text-searchable.
What's Inside This Utilev UT20WE Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Regulations | 3-5 | Proper Shoes, Safety Goggles, Environmental Restrictions, Load Bearing Capacity, Slope Operation, Elevator Safety |
| Truck Description | 6-7 | Running System, Lifting System, Unsuitable Applications, Technical Parameters |

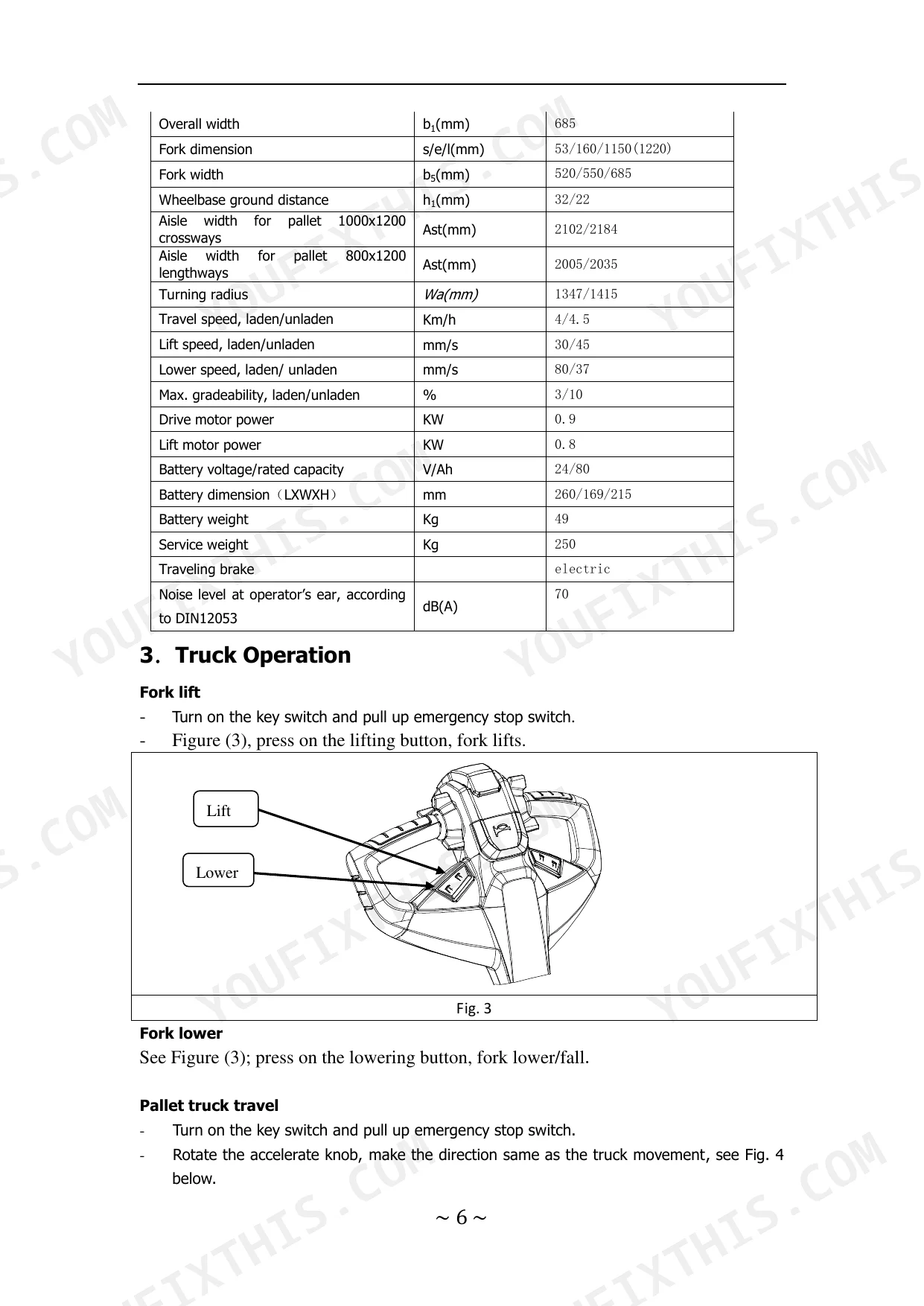

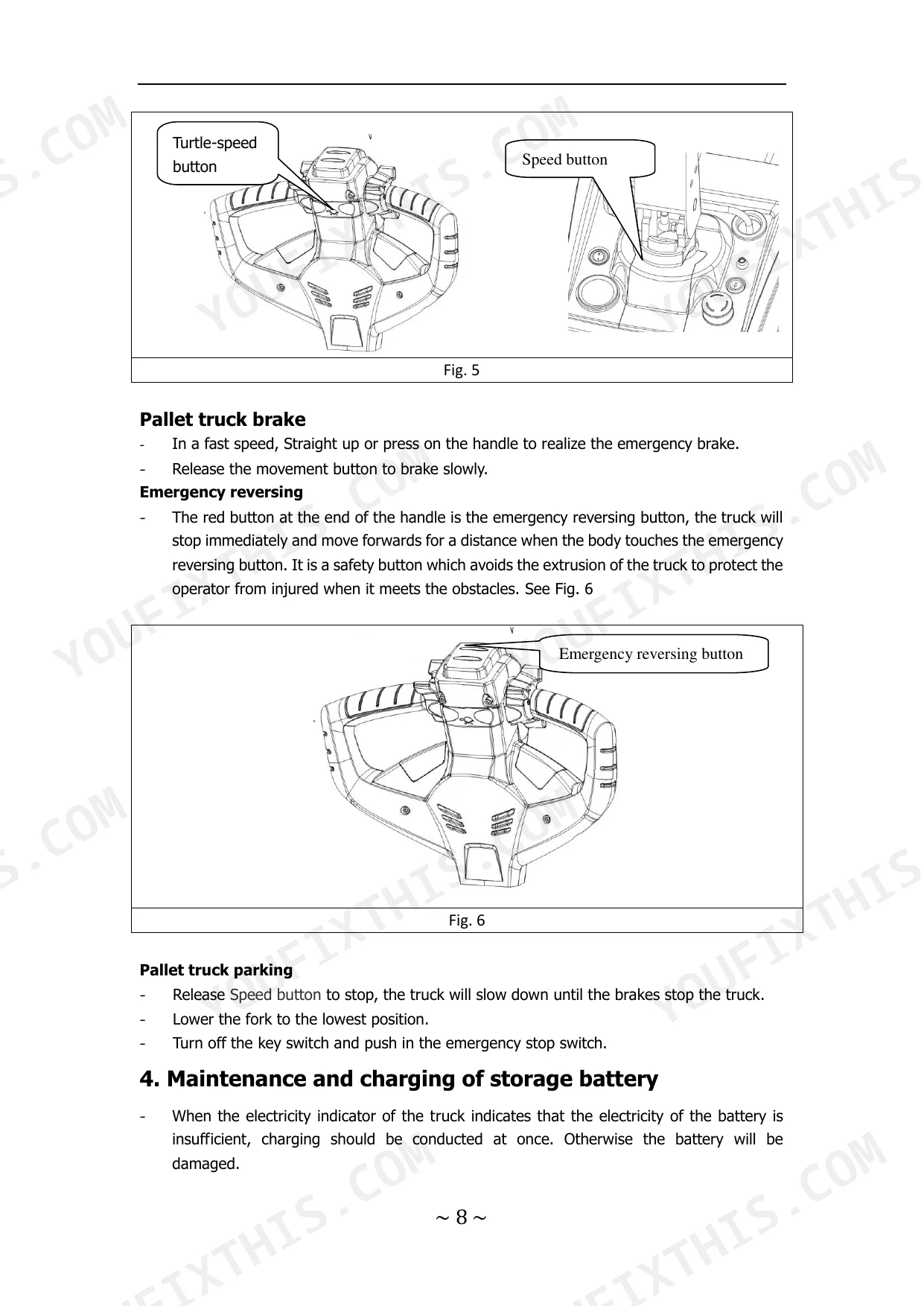

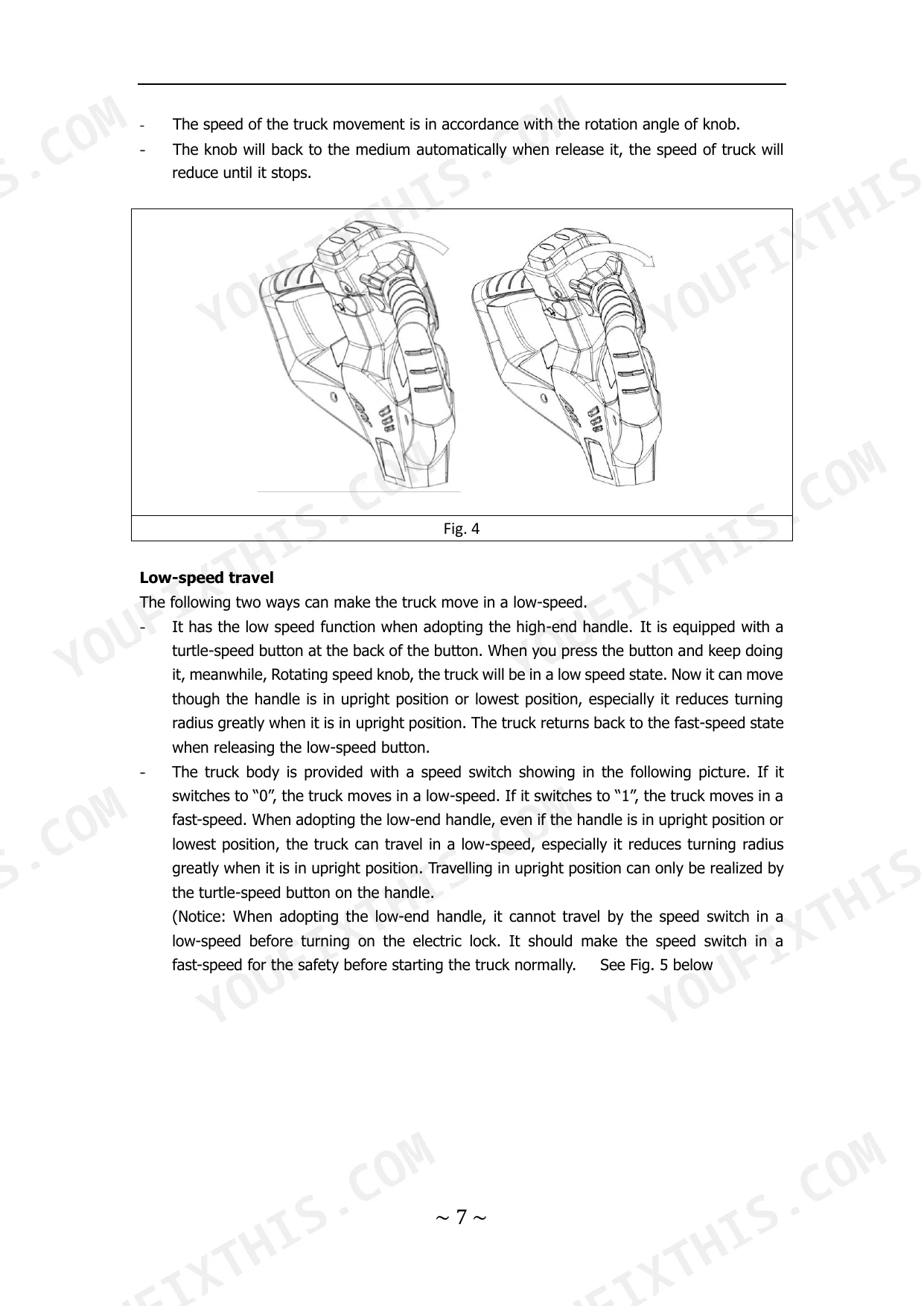

| Truck Operation | 8-9 | Fork Lift, Fork Lower, Pallet Truck Travel, Low-Speed Travel, Pallet Truck Brake, Emergency Reversing |

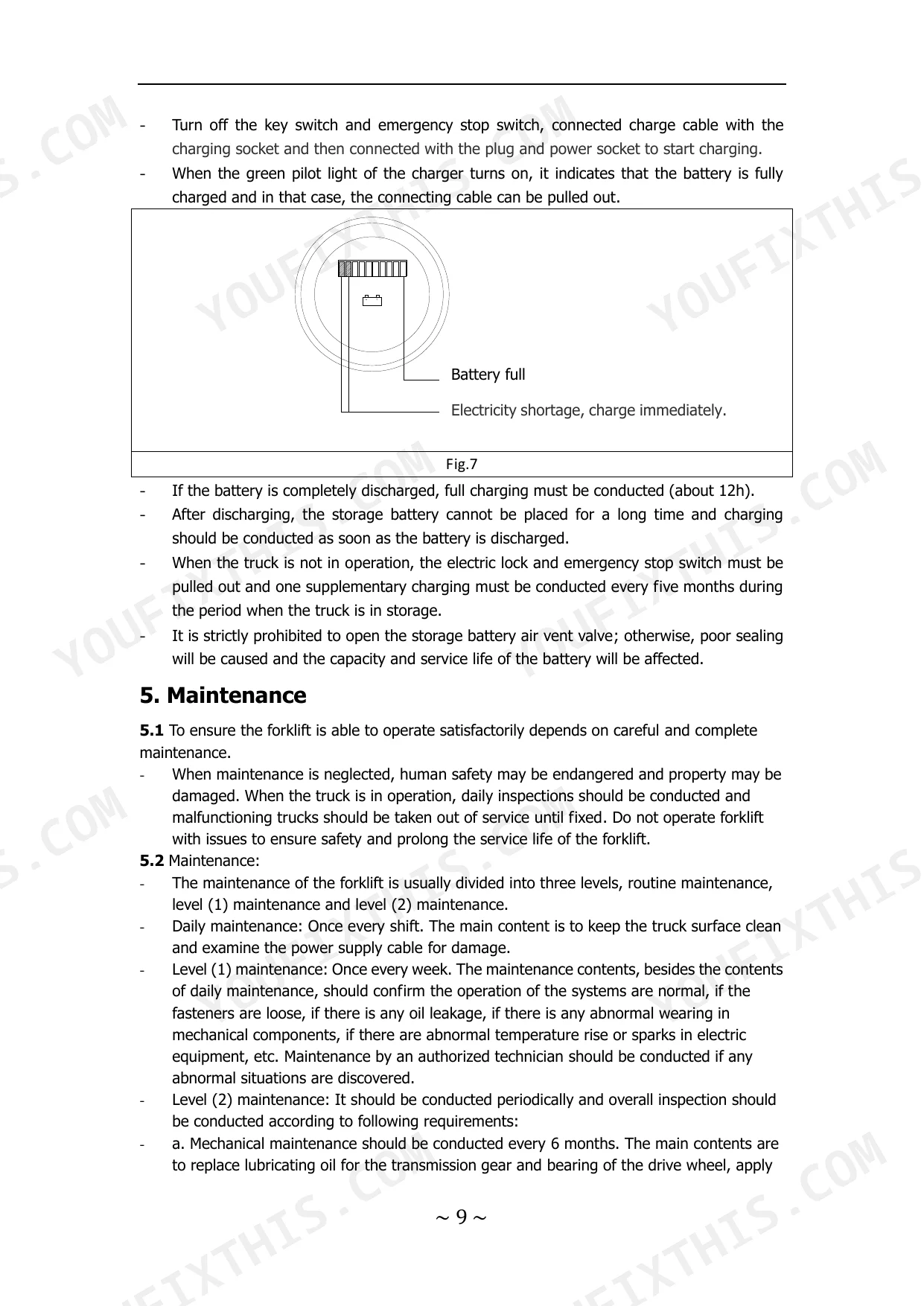

| Maintenance and Charging of Battery | 10-11 | Electricity Indicator, Charging Procedure, Battery Discharge, Storage Charging, Air Vent Valve |
| Maintenance | 11-12 | Daily Maintenance, Level One Maintenance, Level Two Maintenance, Mechanical Maintenance, Hydraulic System Maintenance, Electric Equipment Maintenance |
| Common Faults and Trouble Shooting | 13 | Hydraulic Oil Leakage, Fork Lift Failure, Fork Lower Failure |
| Electrical Schematic Diagram | 14 | |
| Packing List | 15 | Electric Pallet Truck, Accessory Box, Operation Manual, Parts Catalogue, Qualification Certificate |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery voltage/rated capacity | 24 V/80 Ah | p. 8 |
| Battery voltage/rated capacity | 24/80 V/Ah | p. 8 |
| Battery dimension (Lxwxh) | 260/169/215 mm | p. 8 |
| Tyre size, front | Φ195 mm | p. 7 |
| Tyre size, rear | Φ80/Φ74 mm | p. 7 |
| Lift motor power | 0.8 KW | p. 8 |
| Lift motor power | 0.8 KW | p. 8 |
| Rated capacity | 2000 kg | p. 7 |
| Load centre distance | 600 mm | p. 7 |
| Lift height | 190/180 mm | p. 7 |
| Travel speed, laden/unladen | 4/4.5 Km/h | p. 8 |
| Drive motor power | 0.9 KW | p. 8 |
Utilev UT20WE Common Problems This Manual Covers
Utilev UT20WE traction motor unable to operate, truck does not respond when the key is turned
Check that the key is inserted and the power supply switch is turned on. If the battery has completely discharged, charge it following the charging procedure on page 10. Replace a burned out fuse with the correct rating (10A and 125A spares are listed on page 13), and replace the contactor if it cannot work.
Manual Section: Common Faults and Trouble Shooting p. 13Pallet truck motor will not run after a collision, brake appears not released
Examine the stroke switch on the lever and check whether it is still pressed in from the collision, per the fault table on page 13. Verify the braking switch has been reset before trying to drive again. If both switches check out, move on to the battery, contactor and fuse checks listed in the same table.
Manual Section: Common Faults and Trouble Shooting p. 13Forks will not rise at all when operating the fork lift control
Check whether hydraulic oil has been filled and whether its viscosity is too great; replace the hydraulic oil if so, per page 13. Inspect the oil for foreign matter and remove it or replace the oil. If the oil is clean and correct, replace the hydraulic power unit. Dispose of used oil according to local regulations.
Manual Section: Common Faults and Trouble Shooting p. 13Forks stay raised and will not lower when operating the fork lower control
Inspect the solenoid valve coil on the hydraulic power unit and replace the coil if it is damaged, following the fault table on page 13. If the coil is good, the solenoid valve is likely blocked, so clean the oil line of the solenoid valve. Review the hydraulic system maintenance items on page 11 to keep it from recurring.
Manual Section: Common Faults and Trouble Shooting p. 13Hydraulic oil leakage visible around oil seals and connections on the pallet truck
Re-tighten any loose connection first, per the fault table on page 13. Replace a failed oil seal and replace any component showing surface damage or wear. Do not operate the truck until it is repaired (page 3). Collect leaked and drained oil and dispose of it according to local regulations.
Manual Section: Common Faults and Trouble Shooting p. 13Battery charger unable to charge the 24 V traction battery when plugged in
Follow the charging procedure on page 10 and check the electricity indicator to confirm the battery state. Verify the battery is the 24 V/80 Ah unit listed on page 8. If the procedure is followed correctly and the battery still will not take a charge, replace the charger, as the fault table on page 13 directs.
Manual Section: Common Faults and Trouble Shooting p. 13Frequently Asked Questions
Why will my Utilev UT20WE not start or move?
If the motor is unable to operate, check if the power supply switch is turned on, the battery is charged, the brake is released, the contactor is working, or if a fuse has burned out. For a non-starting truck, insert the key and turn on the power supply, or replace the fuse if necessary (see page 13). p. 13
How do I troubleshoot charging problems on a Utilev UT20WE?
If the charger is unable to charge, the unit is likely damaged and must be replaced. Ensure the battery is charged as soon as it is discharged to avoid damage, and note that a full charge takes about 12 hours. p. 11
What is the recommended maintenance interval for mechanical components on the Utilev UT20WE electric pallet truck?
Mechanical maintenance, including replacing lubricating oil for the transmission gear and bearing of the drive wheel, should be conducted every 6 months. p. 11

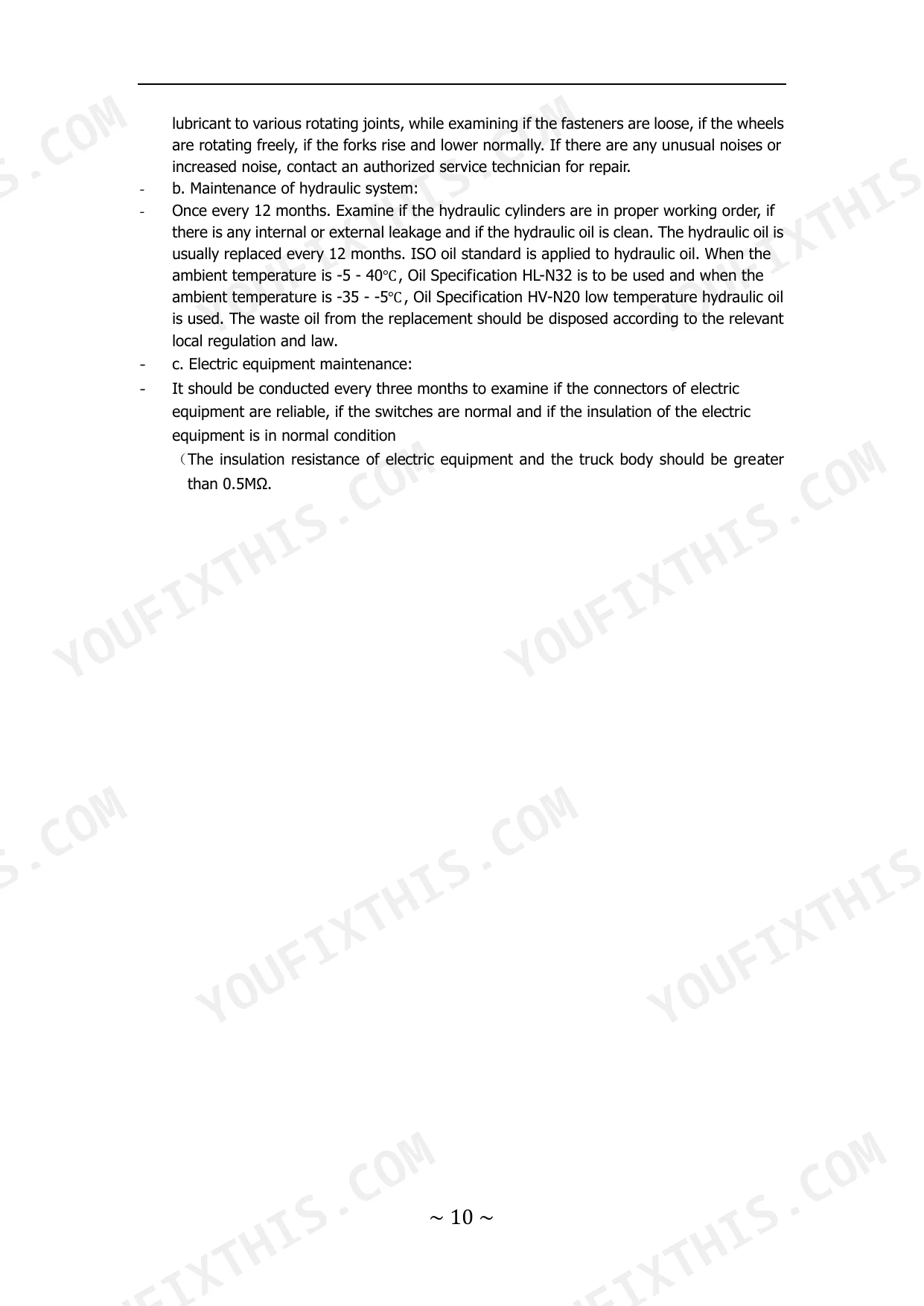

How often should the hydraulic system be maintained?
The hydraulic system should be examined every 12 months to check for leaks and ensure the oil is clean. The hydraulic oil is typically replaced every 12 months. p. 12
What is the required insulation resistance for the truck's electric equipment?
The insulation resistance of the electric equipment and the truck body must be greater than 0.5MΩ. This should be verified during electric equipment maintenance, which is conducted every three months. p. 12
Is this Utilev UT20WE manual a PDF I download?
Instant PDF download. You get the full 15-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Utilev UT20WE manual?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
