Straight out of the factory documentation set, this Weidemann 1370 CX50 parts catalog PDF is the original identification book for the loader: 138 pages of exploded views and part numbers covering every assembly Weidemann bolted to it. Exploded drawings break both loading rockers, 915 and 920, down to lifting arms, drawbars and clamping blocks, and the ZF axles get a full run of views: drives, differentials, axle bridges, distributor gearbox. Hydraulics are just as complete: variable delivery pump, drive circuit, steering, and both MV and HV valve systems, with the pallet fork, earth shovel and crocodile teeth at the back. Order a steering cylinder seal or a brake shoe by its factory number instead of measuring a worn part and guessing. A loader parked over one wrong bushing burns a day of loading. Bookmarked, with a text layer you can search by part name, the PDF gets you to the right drawing fast and the 1370 back to moving material.
What's Inside This Weidemann 1370 CX50 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

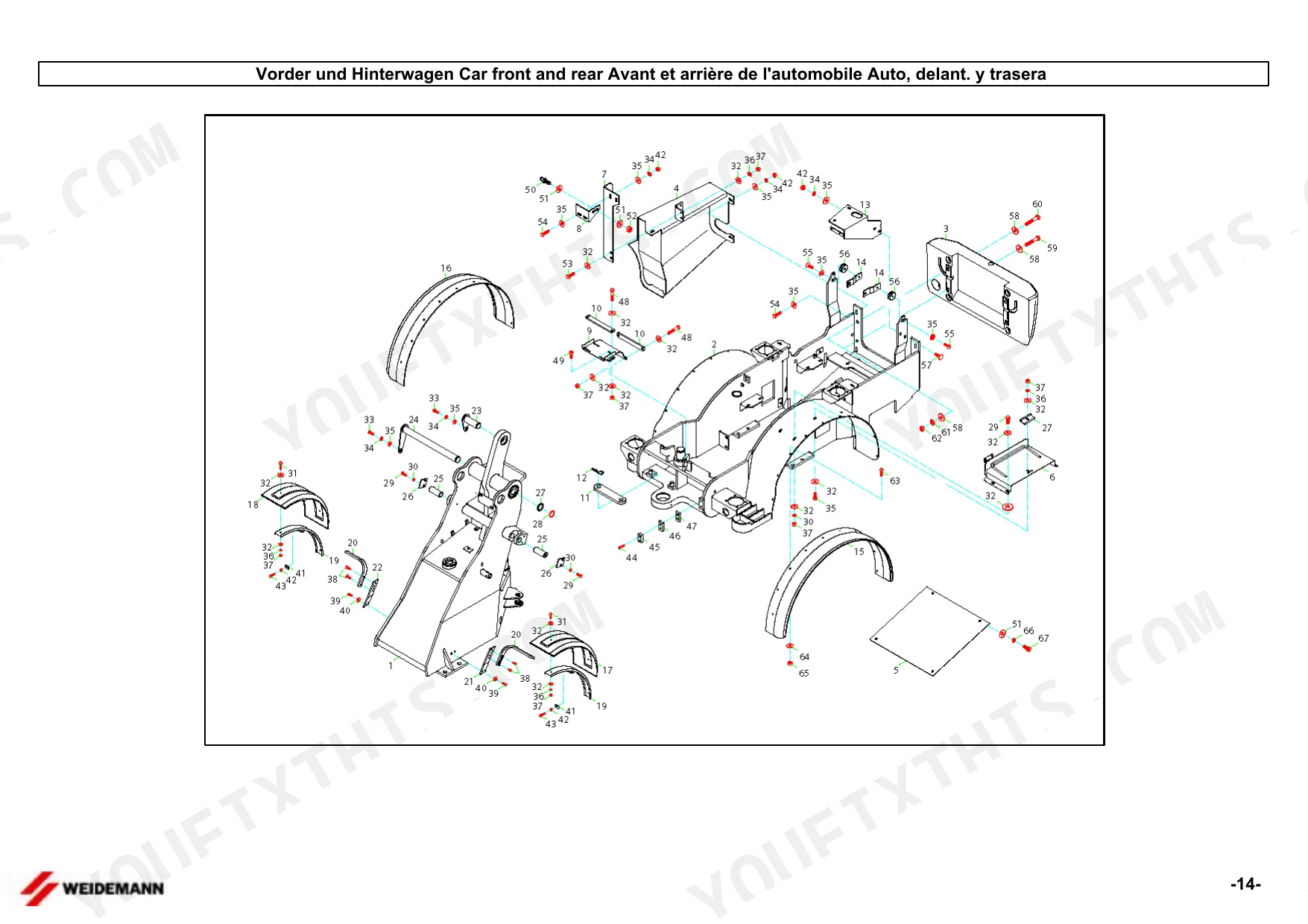

| Service Kit and Chassis | 10-17 | Filter, Gasket, Components, Housing, Bearing, Set of Washers, Shaft, Grease Nipple |
| Cab, Roof and Bodywork | 18-29 | Tipping Device, Suspension, Seat, Safety Belt, Control Valve Stand, Switch, Roll Bar, Pane |
| Loading Rockers | 30-37 | Lifting Arm, Insert Frame, Lever, Drawbar, Bearing, Clamping Block, Bolt |
| Engine, Exhaust and Fuel System | 38-49 | Diesel Engine, Oil Pump, Pump, Cooler, Watercooler, Oil Cooler, Silencer, Exhaust Pipe |
| Electrical System | 50-57 | Steering Column, Starter, Dynamo, Battery, Control Unit, Horn, Headlight, Light |
| Instrument Panels | 58-65 | Instrument Console, Lining, Ignition Switch, Working Hours Counter, Fuel Level Indicator, Fuse Box, Steering Column, Temperature Gauge |
| Hydraulic System | 66-87 | Motor, Variable Pump, Steering Cylinder, Control Valve, Steering Unit, Hydraulic Motor, Oil Pump, Pump |
| Brake System | 88-95 | Lever, Cylinder, Tank, Pedal, Oil Pump, Axle, Brake, Brake Anchoring Plate |

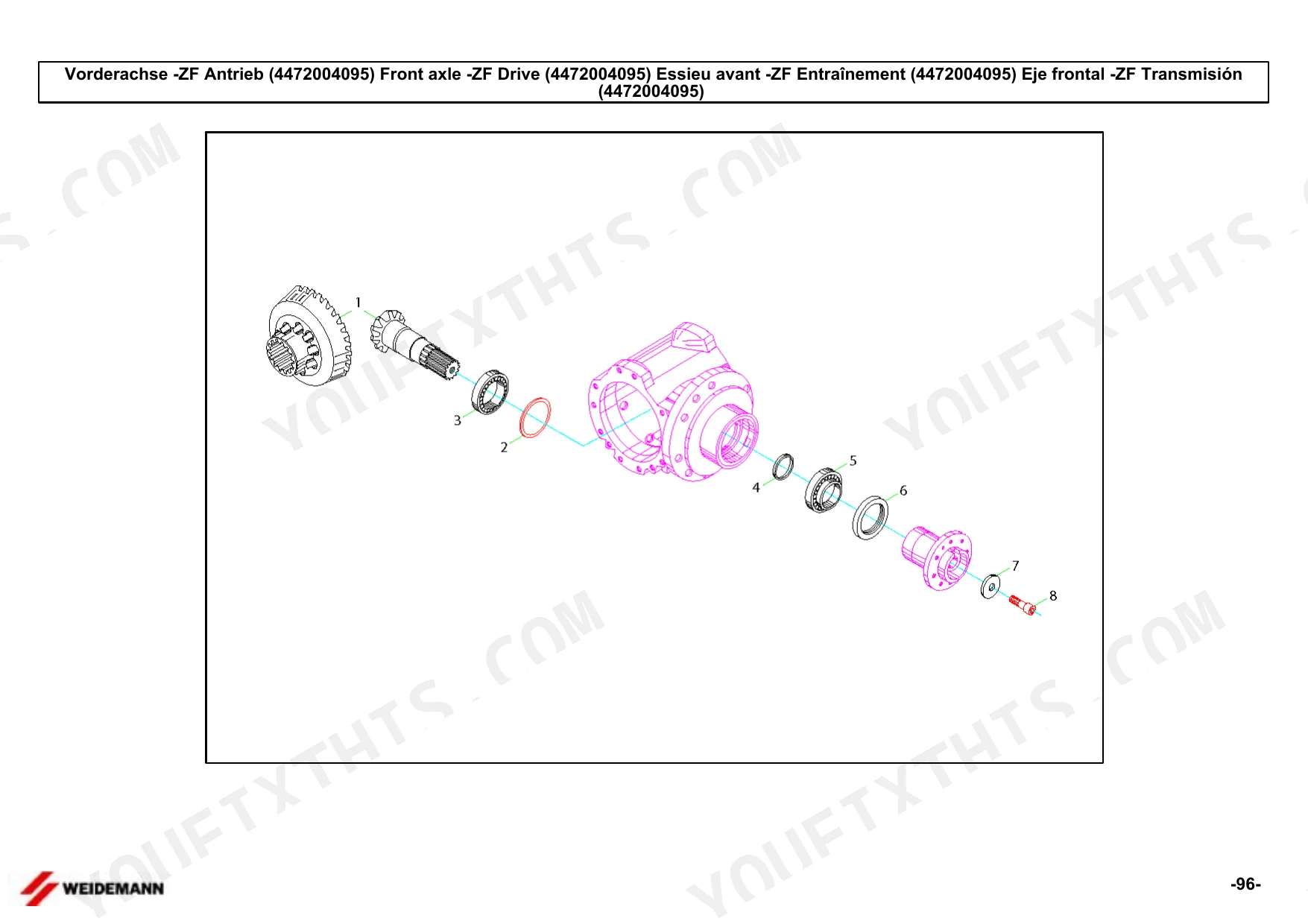

| Front Axle (ZF) | 96-111 | Driving Mechanism, Washer, Bearing, Sealing Ring, Bolt, Compensation, Bevel Gear, Balancing Basket |
| Rear Axle (ZF) | 112-131 | Driving Mechanism, Washer, Bearing, Bolt, Compensation, Bevel Gear, Balancing Basket, Sleeve |
| Attachments | 132-138 | Adapter Plate, Tine, Locking Pin, Hook, Bolt, Washer, Scraper Slab, Side Panel |
Weidemann 1370 CX50 Common Problems This Manual Covers
Weidemann 1370 CX50 starter part number differs between lighting and non-lighting electrical systems, unsure which diagram applies
Check the Electrical System Without Lighting diagram on page 50 first; machines fitted with headlights use the lighting version on page 54 instead. Match the starter callout to its parts list entry, then measure your old starter's mounting bolt spacing in millimeters and compare the terminal layout before ordering.
Manual Section: Electrical System Without Lighting p. 50Can't tell which hydraulic filter fits the drive circuit versus the loader valve circuit

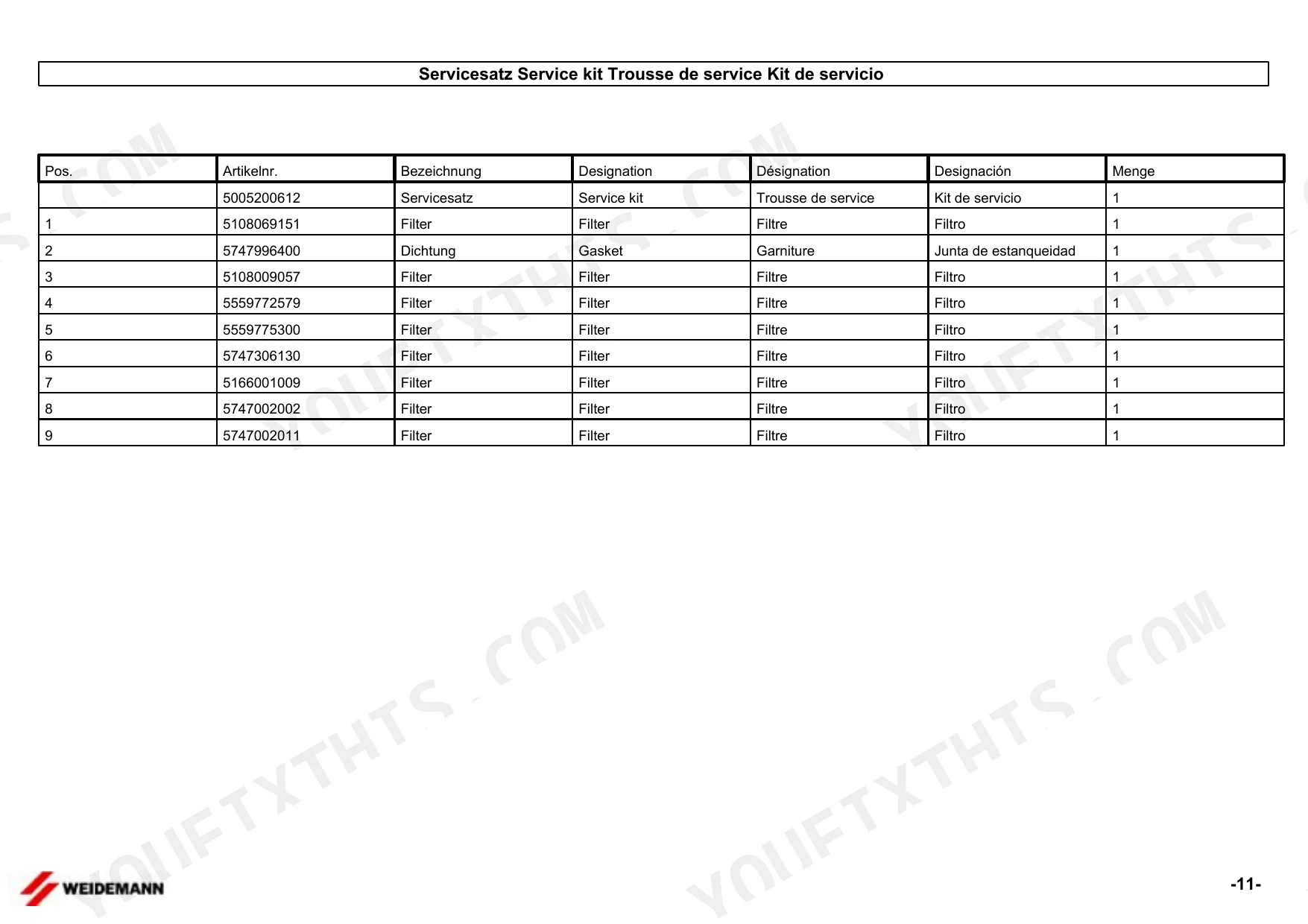

Check the Drive Hydraulics exploded view on page 70, where the tank and filter assembly is broken out with individual callouts. Cross-reference that callout against the Service Kit parts number list on page 11 to confirm the correct element. Measure the old filter's length and thread size in millimeters before ordering.
Manual Section: Drive Hydraulics p. 70Lifting arm pivot bushings worn, two loading rocker versions listed, wrong bearing kit arrived twice
Identify your rocker type before ordering: the 915 arm is diagrammed on page 30 and the 920 on page 34. Compare your lifting arm and drawbar layout against both exploded views, then measure the pivot pin diameter in millimeters with calipers and match it to the bearing callouts in the parts list.
Manual Section: Loading Rocker 915 p. 30Radiator leaking and need the correct water cooler with matching hoses and mounts

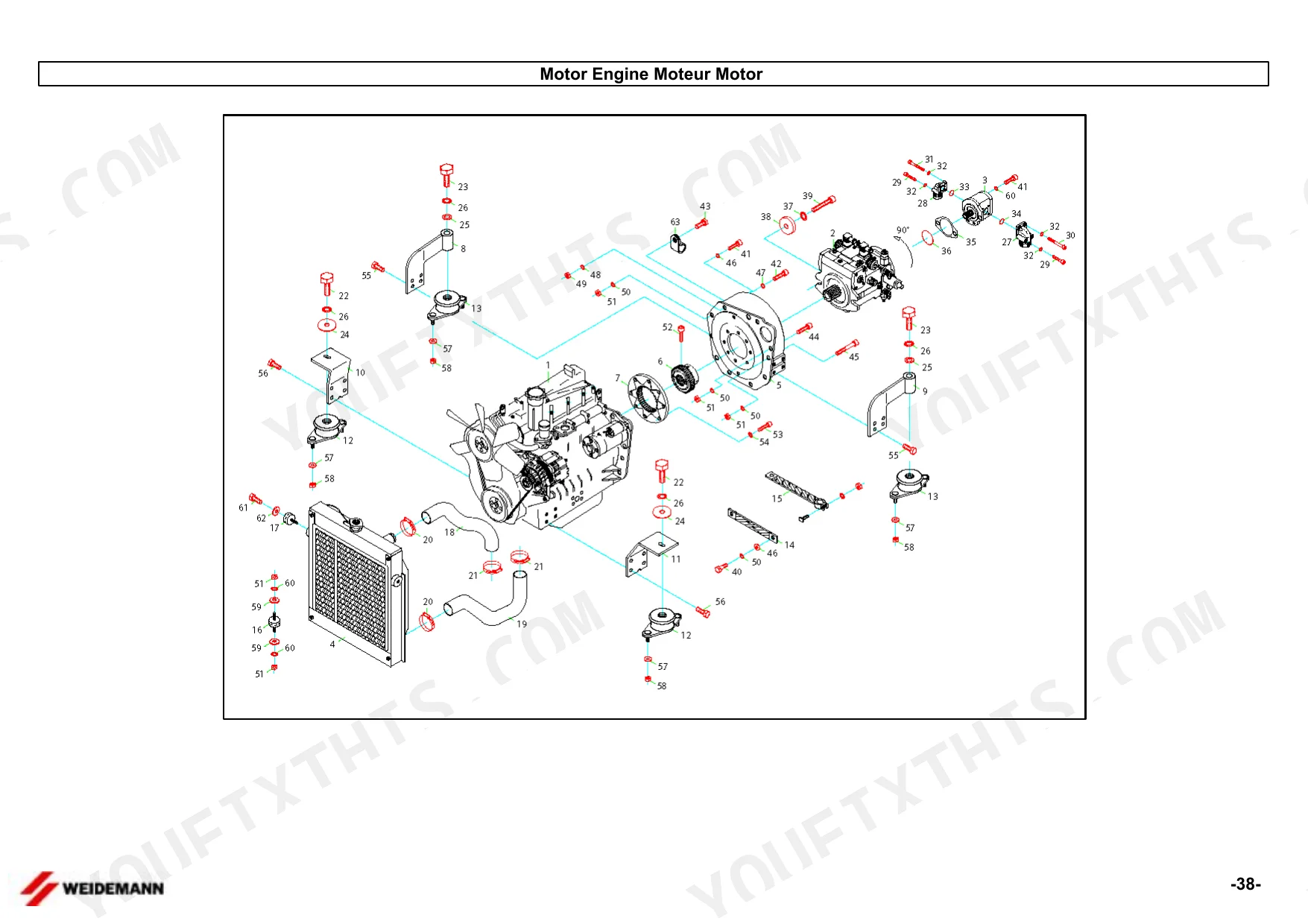

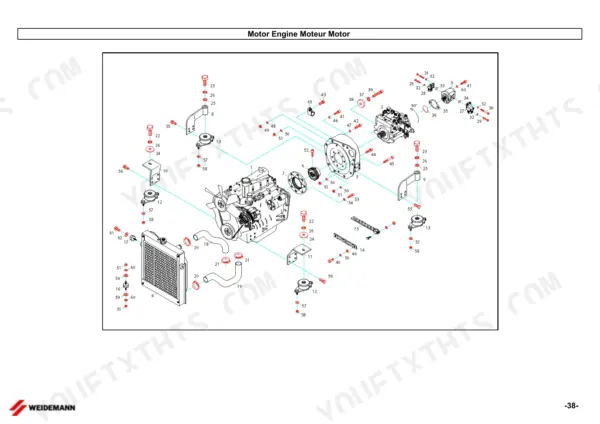

Check the engine parts diagram on page 38, which breaks out the watercooler, oil cooler, and mounting hardware as separate callouts. Verify both cooler callout numbers since they are listed individually. Measure your core width in millimeters and count the hose connections before you order replacements.
Manual Section: Motor p. 38Fuel filter and water separator inserts look alike from aftermarket sellers, need factory part numbers
Check the Fuel System exploded view on page 46; the water separator, pump, and filter insert each carry their own callout. Pull the old insert and measure its outer diameter and height in millimeters, then match those dimensions against the correct callout in the parts list before ordering from any seller.
Manual Section: Fuel System p. 46Frequently Asked Questions
What are the replacement specifications for the starter on a Weidemann 1370 CX50 loader?
The starter for the Weidemann 1370 CX50 is identified by part number 5747086600. For the WÜ version, the part number is 5747086601. p. 51
What are the replacement specifications for the Weidemann 1370 CX50 ignition key?
The ignition key for the Weidemann 1370 CX50 is identified by part number 5747210060. p. 60
What is the part number for the fuel filter in the fuel system?
The fuel filter for the fuel system is identified by part number 5747306130. p. 47
What is the part number for the hydraulic oil filter?
The hydraulic oil filter is identified by part number 5108084179. p. 71
What is the part number for the engine oil pump?
The engine oil pump is identified by part number 5011079691/0411. p. 39
Is this Weidemann 1370 CX50 manual a download or a disc?
Straight to your device: 138 pages of searchable Parts Catalog, downloadable the moment payment goes through.
Am I able to print pages from this Weidemann 1370 CX50 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
