Clutch housing and gearbox breakdowns take up the largest share of this 386-page catalog for the Zetor Proxima Power tractor series (four variants, Power 90 through Power 120), and it widens from there to the engine, Carraro front axle bracket, bodywork, electrics and hydraulics. Each exploded view in this Zetor Proxima Power 90 parts catalog PDF ties every callout to a part number and quantity, with descriptions in Czech, German, English and French so you can identify a component without translating. Remote hydraulic controls and the lift linkage close the book, followed by approved adhesives and sealants and an index for working back from a part number. Before ordering, match the overload relief valve to its 5 bar rating and the oil pressure switch to 2 bar. No dealer, nobody to ask, just you and the tractor. Bookmarked and text-searchable, the PDF is bought once and stays yours for every season this Zetor works the field.
What's Inside This Zetor Proxima Power 90-120 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Uvod | 15-27 | Vysvetlivky |

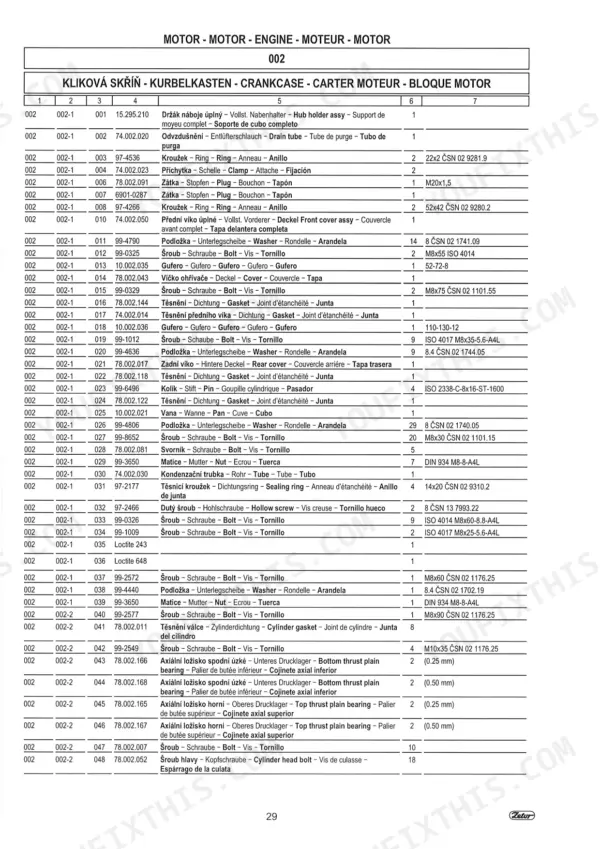

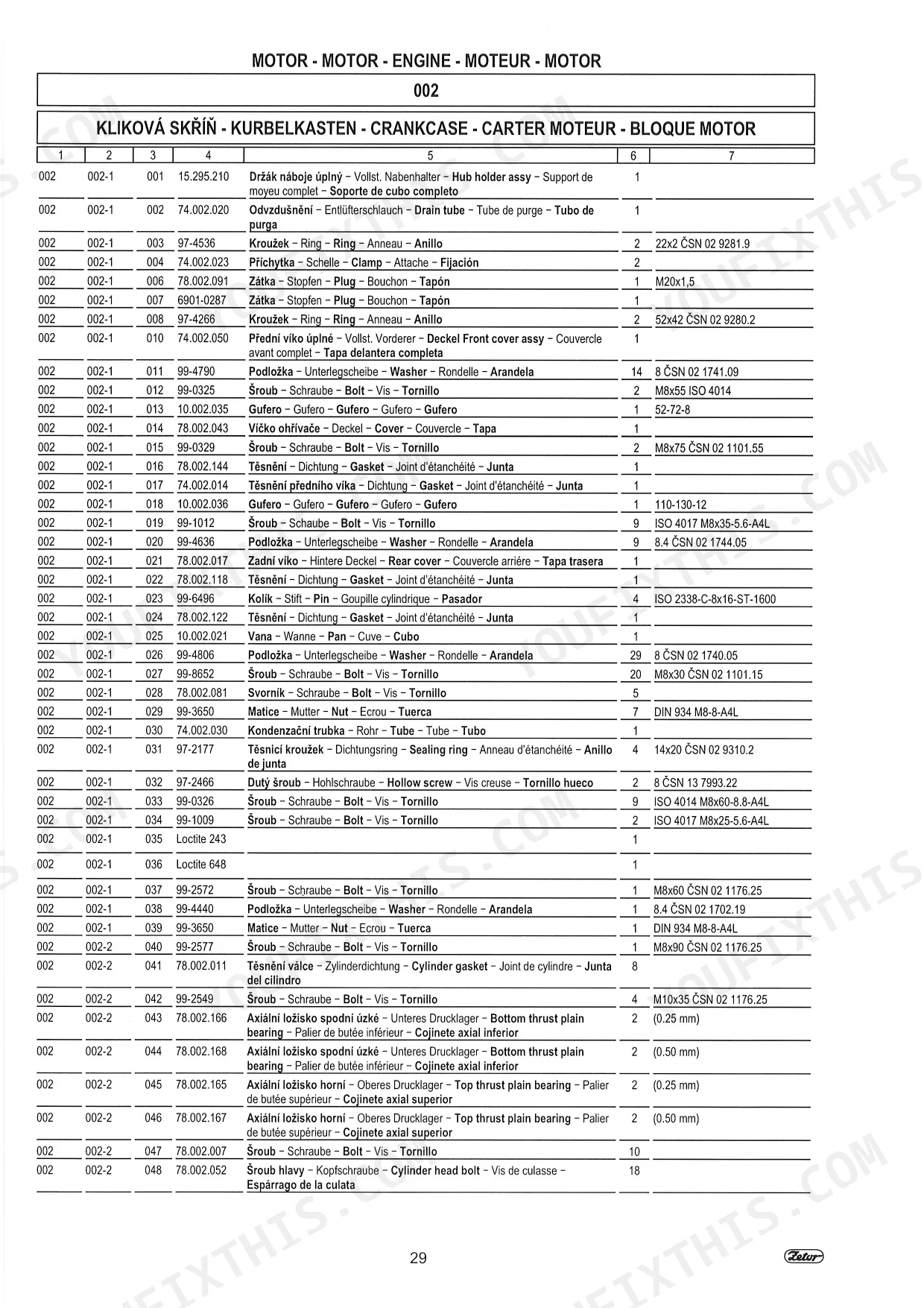

| Motor | 28-89 | Klikova Skrin, Klikove Ustroji, Rozvod, Hlava Valcu, Mazaci System, Privod Paliva |

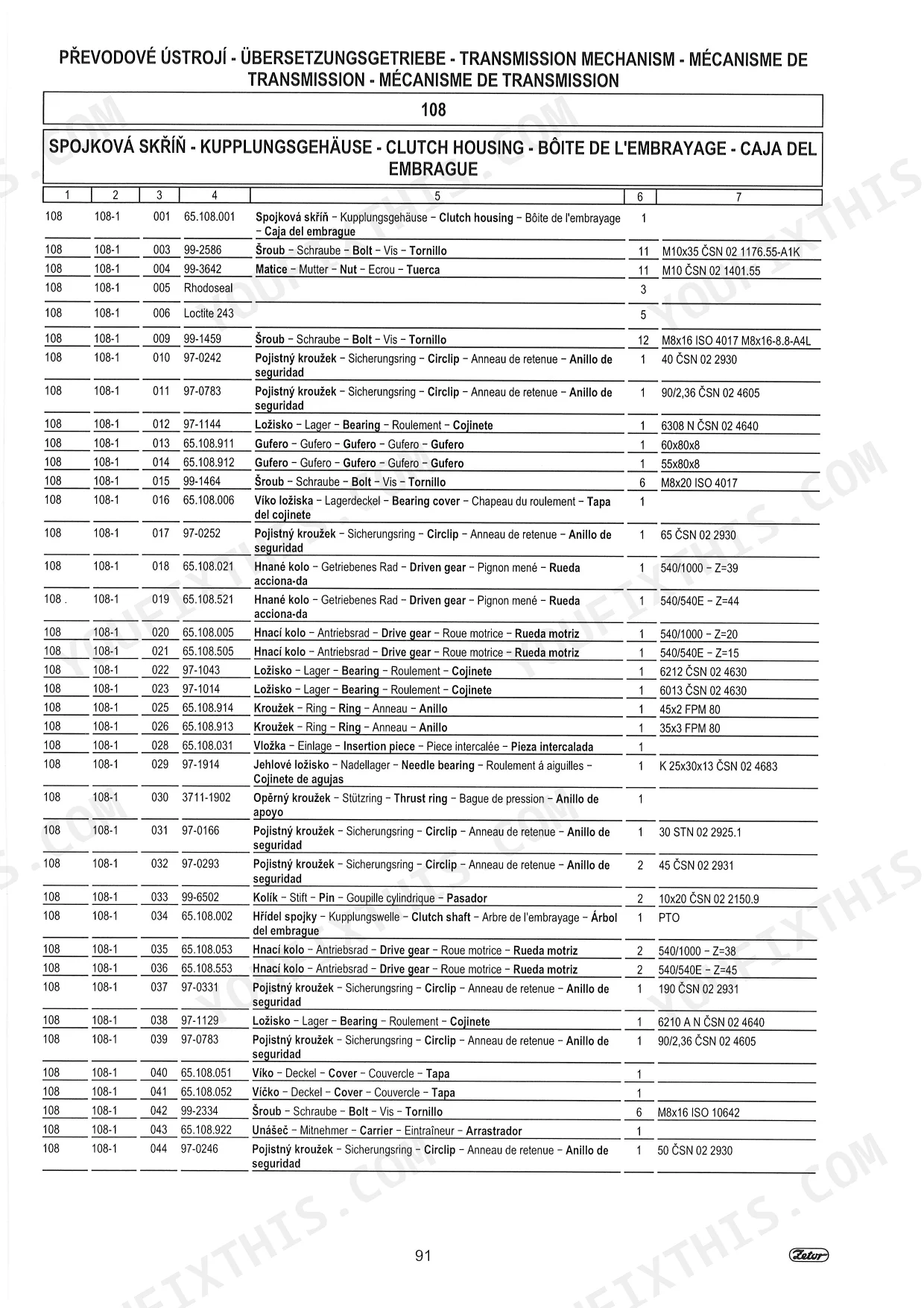

| Prevodove Ustroji | 90-163 | Spojkova Skrin, Prevodovka |

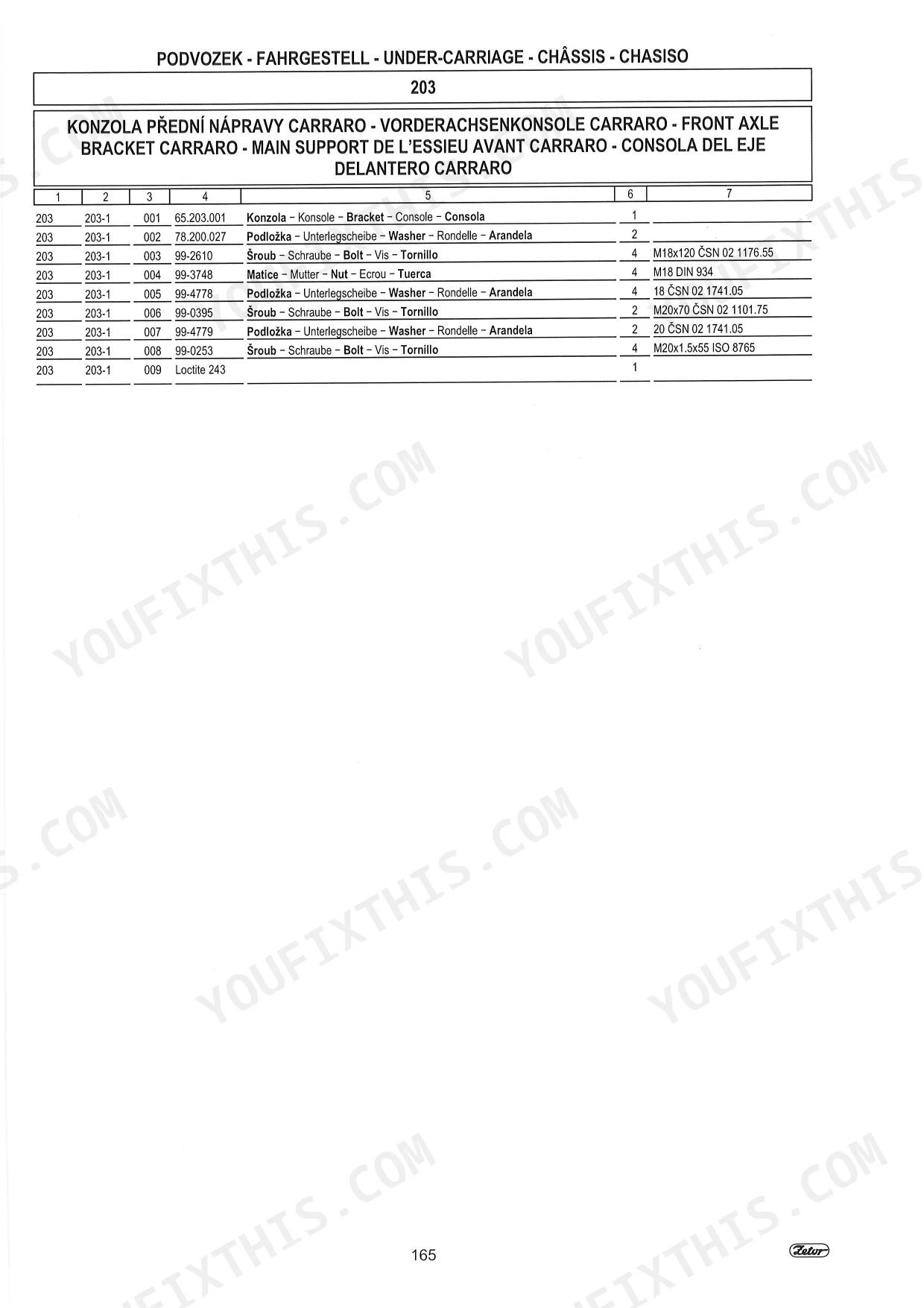

| Podvozek | 164-227 | Konzola Predni Napravy Carraro, Zadni Kola |

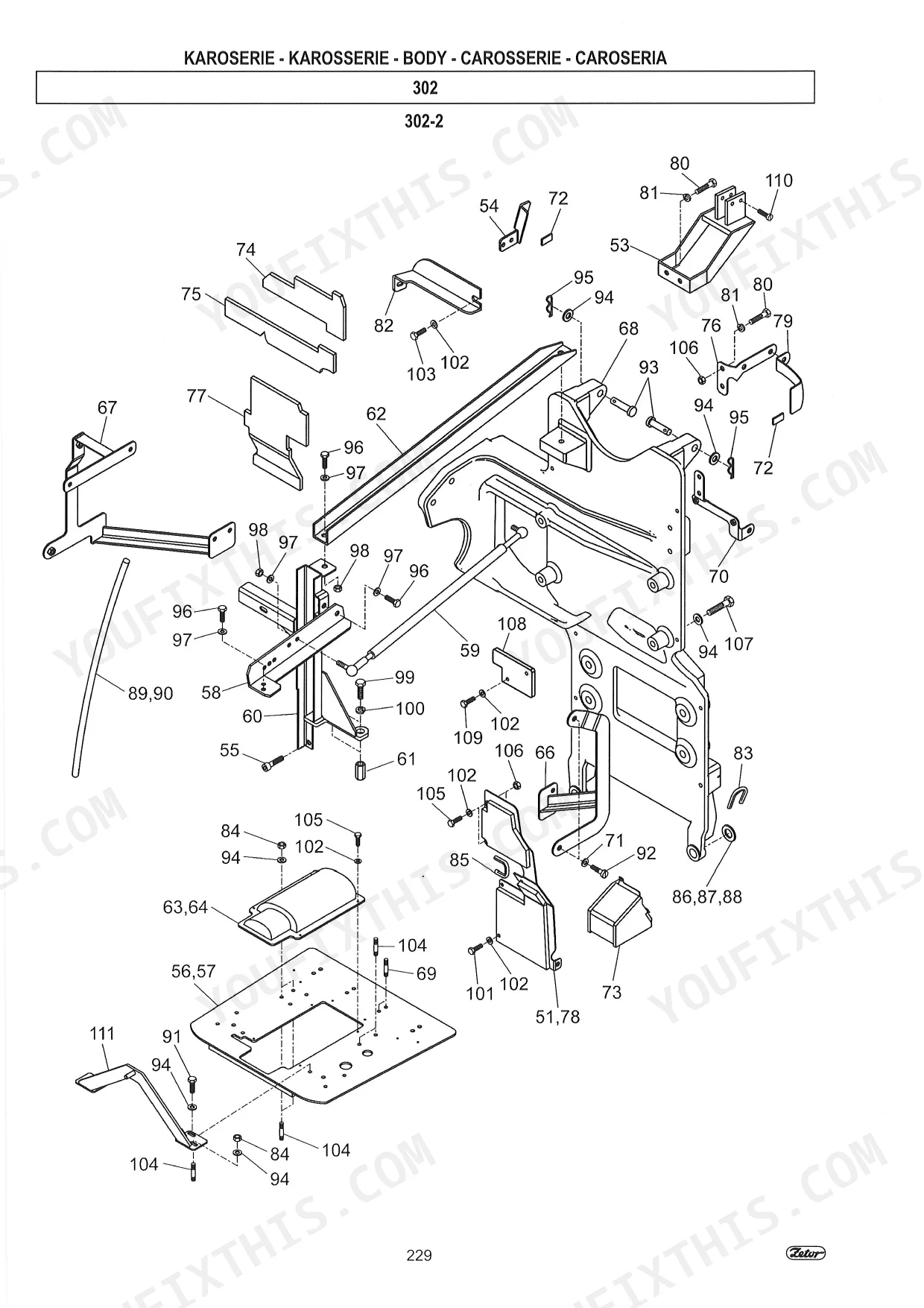

| Karoserie | 228-281 | Kapotovani, Konzola Rizeni |
| Elektricka Instalace | 282-309 | Zakladni Elektroinstalace |

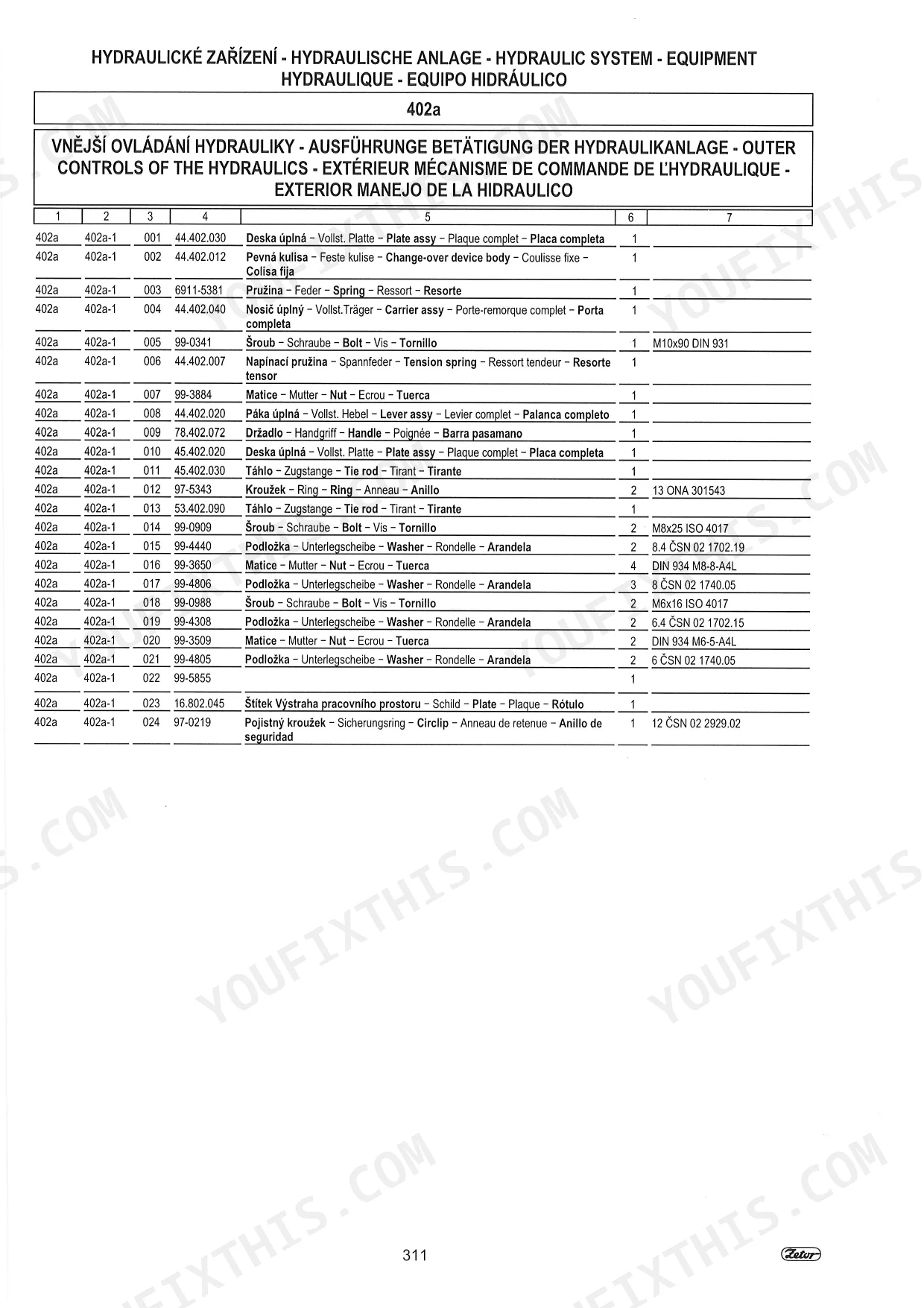

| Hydraulicke Zarizeni | 310-367 | Vnejsi Ovladani Hydrauliky, Zvedaci Mechanismus |
| Lepidla a Tesnici Tmely | 368-370 | Lepidla, Tesnici Tmely |
| Rejstrik | 371-386 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Overload relief valve pressure | 5 bar | p. 159 |
| Oil pressure switch pressure | 2 bar | p. 158 |
| Thermostat Opening Temperature | 82°C | p. 40 |
| Battery Capacity | 12V/165Ah | p. 282 |
| Alternator Output | 14V/100A | p. 284 |
| Trailer Brake Pressure | 6 bar | p. 184 |
| Pressure Relief Valve Setting | 5 bar | p. 158 |
| Oil Pressure Switch Setting | 2 bar | p. 158 |
Zetor Proxima Power 90-120 Common Problems This Manual Covers
Zetor Proxima Power 90 through 120 thermostat part number hard to confirm when ordering a cooling system replacement
Check the engine parts listing on page 40 for the thermostat. It is cataloged as part 78.005.077 with an 82°C opening temperature. Match that number and temperature rating against the thermostat you pulled before you order, so the right part is on the bench when the field is waiting.
Manual Section: Motor p. 40Replacement battery part number unclear, with two different capacity batteries listed in the electrical parts section
Check the basic electrical installation listing on page 282. It shows two batteries: part 16.359.901 rated 12V/165Ah (AKUMA) and part 16.359.004 rated 12V/155Ah (Tornado). Read the rating on the battery you are pulling, then order the matching part number so a dead battery does not cost you a planting day.
Manual Section: Elektricka Instalace p. 282Alternator replacement part number and output rating hard to find in the electrical parts listing
Check the electrical installation listing on page 284 for the alternator. It is cataloged as part 16.359.118, an ISKRA unit rated 14V/100A. Compare that output rating against the tag on the alternator you removed before ordering, so the charging circuit gets the correct replacement and the tractor goes back to hauling.
Manual Section: Elektricka Instalace p. 284Single hose trailer control valve part number unclear when sourcing trailer brake parts
Check the chassis parts listing on page 184 for the single hose trailer control valve. It is cataloged as part 53.236.908, a GRAU unit rated at 6 bar. Verify the hose type and pressure rating on the valve you removed before ordering, so the trailer brakes are working when harvest starts.
Manual Section: Podvozek p. 184Drivetrain overload relief valve part number hard to pick out from the nearby pressure switches in the listing
Check the drivetrain parts listing on page 158 for the overload relief valve. It is cataloged as part 93-4042 with a 5 bar setting. Confirm the 5 bar rating against the valve you pulled, because the same group also lists oil pressure switches, then order the matching number before the field window closes.
Manual Section: Prevodove Ustroji p. 158Two oil pressure switches with different settings in the drivetrain parts group, unclear which one to order
Check the drivetrain parts listing on page 158. Part 93-4040 is the 2 bar oil pressure switch (quantity 2), and part 93-4064 is the 10 bar oil pressure switch. Read the pressure rating on the switch you removed and order by that part number, so the wrong switch does not keep the tractor parked during haying.
Manual Section: Prevodove Ustroji p. 158Frequently Asked Questions
What is the part number for the cylinder head bolts on the Zetor Proxima Power engine?
The cylinder head bolt for the Zetor Proxima Power engine is part number 78.002.052; the catalog lists 18 per engine in group 002. p. 28
What is the correct replacement part number for the engine oil cleaner on a Zetor Proxima Power 90-120?
The engine oil cleaner (Olfilter) for the Zetor Proxima Power is identified by part number 68.016.093. p. 74
What is the correct replacement part number for the primary air filter element on a Zetor Proxima Power 90-120?
The primary air filter element for the Zetor Proxima Power is part number 93-1781, which is a MANN EUROPICLON type filter. p. 64
What is the correct replacement fuel filter element part number for the Zetor Proxima Power 90-120?
The fuel filter element for the one-stage fuel filter system is part number 93-1260. p. 58
What is the correct replacement engine thermostat part number for the Zetor Proxima Power 90-120?
The engine thermostat, which is rated for 82°C, is identified by part number 78.005.077. p. 40
Will this Zetor Proxima Power 90 Parts Catalog download right away?
One searchable PDF covering 386 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print a copy of this Zetor Proxima Power 90 Parts Catalog for the shop?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
