Deutz diesel engine, hydrostatic travel drive, vibration circuit, steering and electrics: this Bomag BW 211 D-40, BW 212 D-40, BW 213 D-40 Service Training PDF walks every one of those systems end to end across 150 pages, factory document 008 097 26 for all three single drum rollers. Hydraulic schematics trace the travel pump, charge pressure relief valve and drum drive motor, while wiring diagrams for the electrics come backed by a full component listing. Each drive section closes with test and adjustment points and its own troubleshooting table, so you measure before you condemn a pump. Verify fuel pre-pressure at 10 bar, then torque the cylinder head covers to 9 Nm, give or take 1. A roller parked on a half-finished lift for want of one pressure figure holds the whole crew. Bookmarked and text-layered, this file lives wherever you and the machine happen to be.
What's Inside This Bomag BW 211 D-40, BW 212 D-40, BW 213 D-40 Manual
| System | Pages | Key Topics |
|---|---|---|
| Documentation | 5 | Index of Related Bomag Publications (Each Sold Separately) |
| General | 6-7 | Compaction Power, Traction, Hydrostatic Drives, Cabin, Monitoring Display, ROPS/FOPS |
| Novelties | 8 | Instrument Cluster, Warnings, Control Data |
| Technical Data and Adjustment Values | 9-11 | Engine, Travel Pump, Travel Motor, Drum Drive, Vibration Pump, Steering and Charge Pump |

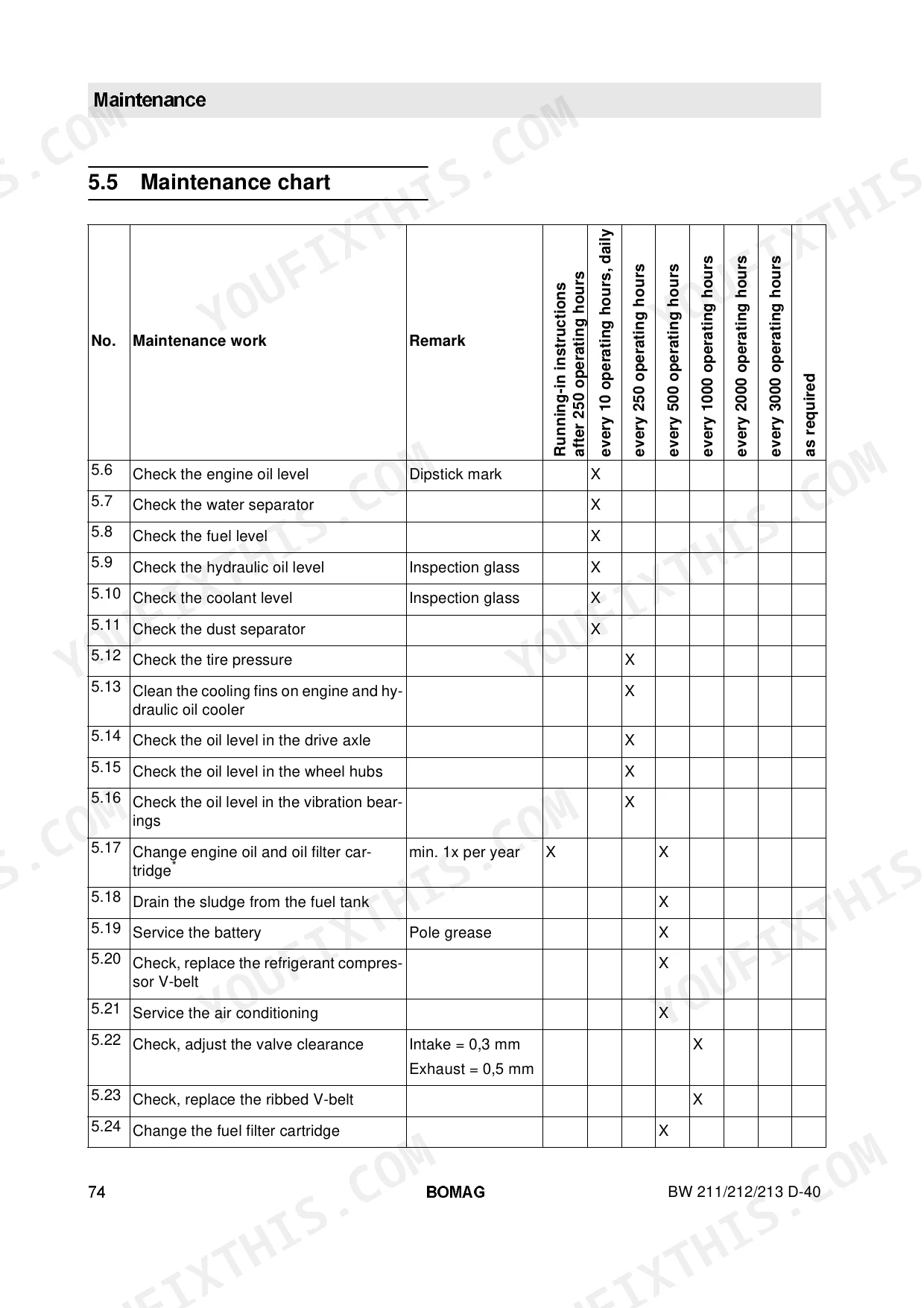

| Maintenance | 12-17 | Maintenance Chart |
| Deutz Diesel Engine | 18-50 | Operating Side, Exhaust Side, Lubrication Oil Circuit, Fuel Circuit, Checking and Adjusting the Valve Clearance, Assembly of Plug-Type Injection Pump, Test and Adjustment Points |

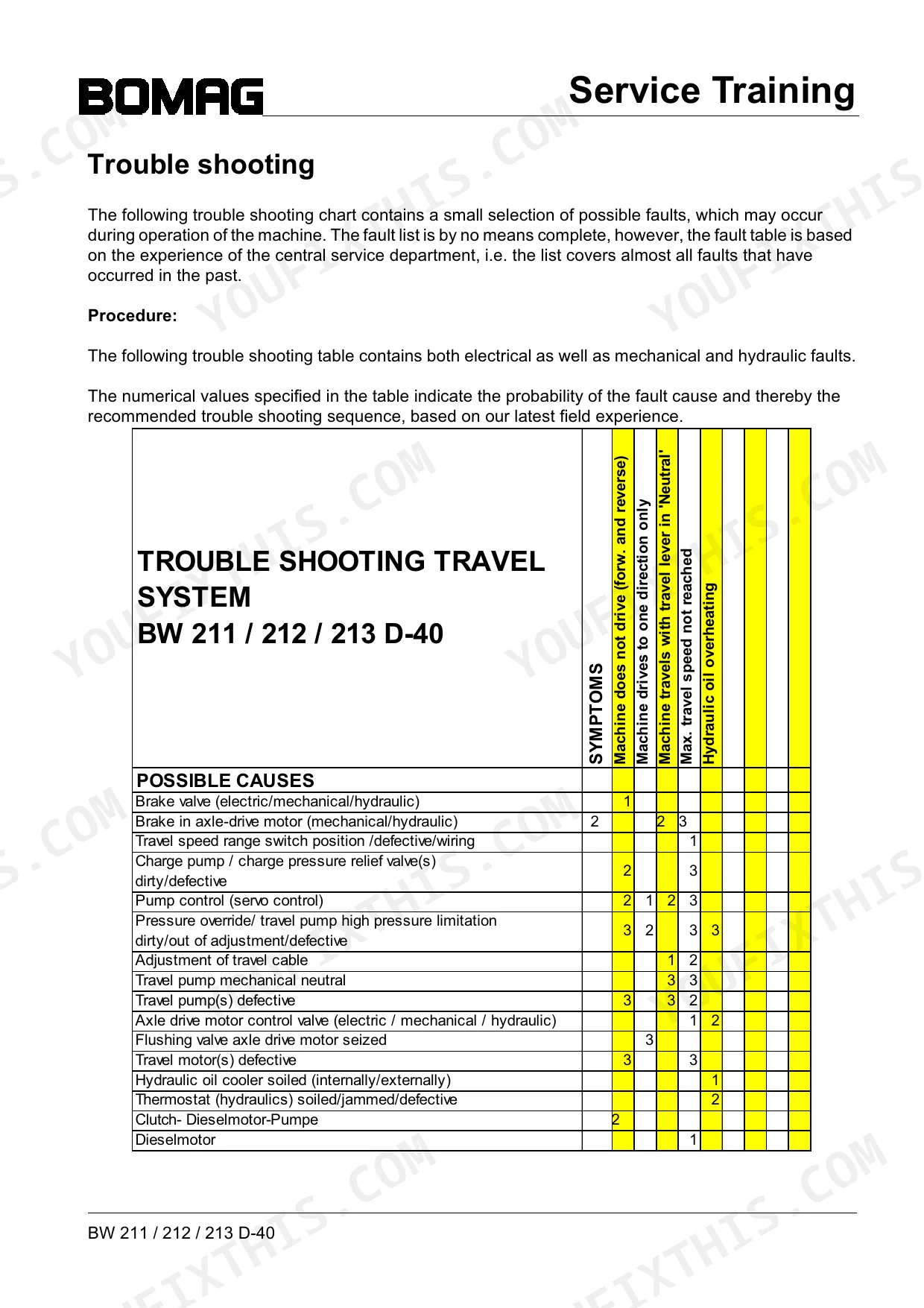

| Travel System | 51-83 | Travel Pump, Control, Charge Pressure Relief Valve, High Pressure Relief Valve, Pressure Override, Axle Drive Motor, Drum Drive Motor, Test and Adjustment Points, Trouble Shooting in Travel System |
| Vibration | 84-98 | Vibration Pump, High Pressure Relief Valves, Control, Charge Pump, Vibration Motor, Drum, Test and Adjustment Points, Trouble Shooting in Vibration System |
| Steering | 99-109 | Steering Pump, Steering Valve, Articulated Joint, Measuring and Adjustment Points, Trouble Shooting Steering System |

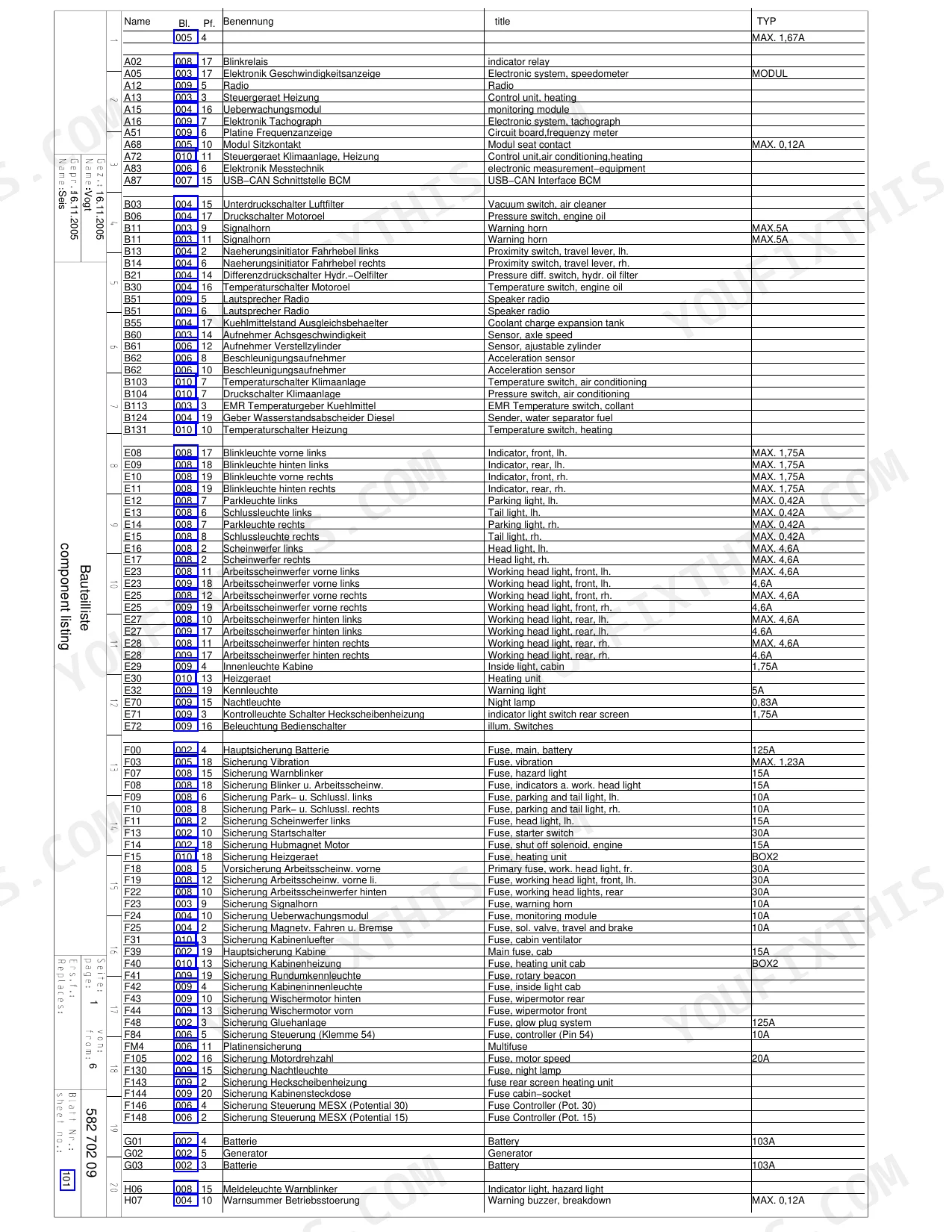

| Electrics | 110-150 | Instrument Cluster, Component Listing, Wiring Diagram, Hydraulic Diagram |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Power (ISO 9249) | 98 kW | p. 10 |
| Engine Valve Clearance (Inlet) | 0.3 mm | p. 10 |
| Engine Valve Clearance (Outlet) | 0.5 mm | p. 10 |
| Engine Oil Capacity | 10 L | p. 11 |
| Hydraulic Oil Capacity | 60 L | p. 11 |
| Engine Coolant Capacity | 16 L | p. 11 |
| Rear Axle Oil Capacity | 11 L | p. 11 |
| Rear Axle Wheel Hubs Oil Capacity | 2.9 L | p. 11 |
| AC Refrigerant Capacity | 1300 g | p. 11 |
| Tire ballast water capacity | 295 L | p. 13 |
| Change hydraulic oil and breather filter | at least every 2 years | p. 16 |
| Pressure retaining valve | 5 bar | p. 24 |
| Fuel pre-pressure | 10 bar | p. 26 |
| Cylinder head cover tightening torque | 9 +/- 1 Nm | p. 44 |
| Multi-function valve tightening torque | 89 Nm | p. 65 |
Bomag BW 211 D-40, BW 212 D-40, BW 213 D-40 Common Problems This Manual Covers
Bomag BW 211 D-40 oil pressure warning buzzer at idle, engine shuts down under load
Stop the engine immediately. Check the oil level and top up to the full 10 L capacity given on page 11. Inspect the filter, oil cooler, and fittings for leaks in the lubrication circuit covered in the Deutz engine section starting on page 18. If pressure stays low with a correct level, test the pressure switch first.
Manual Section: Deutz Diesel Engine p. 18Engine cranks but won't start, dies again after running out of fuel in cold weather
Check for an empty tank or waxed winter fuel first, then bleed the fuel system. Test fuel pre-pressure at the pump; the spec on page 26 is 10 bar. Replace a clogged fuel filter and drain the pre-filter. If the starter pinion will not engage, load-test the battery and clean the starter connections before condemning the pump.
Manual Section: Deutz Diesel Engine p. 26Engine overheats and temperature warning lamp comes on during long vibration passes
Shut down and let the engine cool, then blow the radiator fins clean with compressed air, working from the fan side out. Check coolant level and refill; the system holds 16 L per the specs on page 11. Clean the hydraulic oil cooler at the same time, and verify fan drive and shrouding before putting it back in the pass.
Manual Section: Deutz Diesel Engine p. 18Machine starts and runs but will not drive, or travel is weak in one direction
Start at the travel system troubleshooting chart on page 83; it covers no-drive, single-direction, and neutral-creep faults. Verify charge pressure at the travel pump test points and confirm the brakes release. If the hydraulic oil overheated, drain and refill the full 60 L capacity listed on page 11 and change the filter before running the drum again.
Manual Section: Trouble shooting in travel system p. 83Drum vibration won't start, or the exciter only runs on one amplitude setting
Work through the vibration troubleshooting chart on page 98 for no-vibration and single-amplitude faults. Test the high pressure relief valves and pump control at the test points in the vibration section. Inspect the exciter shaft drive, and if the oil is contaminated, change the hydraulic oil and breather filter, due at least every 2 years per the schedule on page 16.
Manual Section: Trouble shooting in vibration system p. 98Engine down on power, runs rough with tappet noise at full throttle
Check and adjust valve clearance with the engine cold, following the procedure on page 27: 0.3 mm intake, 0.5 mm exhaust. Torque the cylinder head cover back down to 9 Nm per page 44. If it still lags, check throttle cable play and fuel supply before blaming the injectors.
Manual Section: Checking and adjusting the valve clearance p. 27Frequently Asked Questions
What are the torque specifications for the multi-function valves?
The multi-function valves must be tightened with a torque of 89 Nm. p. 65
What are the valve clearance specifications for the Deutz engine?
The intake valve clearance is 0.3 mm and the exhaust valve clearance is 0.5 mm. These must be checked and adjusted when the engine is cold. p. 27
What is the engine oil capacity for the Deutz engine?
The engine oil capacity is 10 liters, using SAE 15W-40, API CG-4 oil. p. 11
What is the hydraulic oil capacity for the machine?
The hydraulic oil capacity is 60 liters, using HVLP 46 VI 150 oil. p. 11
What is the tightening torque for the cylinder head cover?
The cylinder head cover must be reinstalled with a tightening torque of 9 +/- 1 Nm. p. 44
Will this Bomag BW 211 D-40 Service Training download right away?
Delivery is instant: a 150-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print a copy of this Bomag BW 211 D-40 Service Training for the shop?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
