Part of the Case Operator Manuals.
Within the hour you could be up in the cab, 256 pages open on the seat beside you, working through the rear three-point linkage setup exactly the way Case wrote it in operator manual Sva 6-28490, the edition printed from product identification no. DBD0076282, covering the CS100, CS110, CS120, CS130 and CS150 tractors. This Case CS110 operator manual PDF walks the digital electronic lifting gear control from first switch to working depth, and the daily inspection routine stands as one of the longest runs in the book, with lubrication points, filling levels and engine service intervals laid out in order. Ballast tables, tyre combinations and axle track settings sit together where you need them. Fill the CS120 sump to 20.0 litres, the CS100 and CS110 to 14.0, and expect 497 Nm peak torque on the CS130. Nobody answers the phone at planting time. Print the chapter you are on, let it get dirty, and keep the tractor in the field.
Complete the set for your CS100–CS150 Series
- Operator Manual: Case CS110, CS120, CS130, CS150 Operator Manual
- Repair Manual: Case CS100–CS150 Series Repair Manual — Wiring Diagrams
- Repair Manual: Case CS110 CS120 CS130 CS150 & Steyr 9105A 9115A 9125A 9145A Repair Manual [Tractor]
What's Inside This Case CS100–CS150 Series Operator Manual

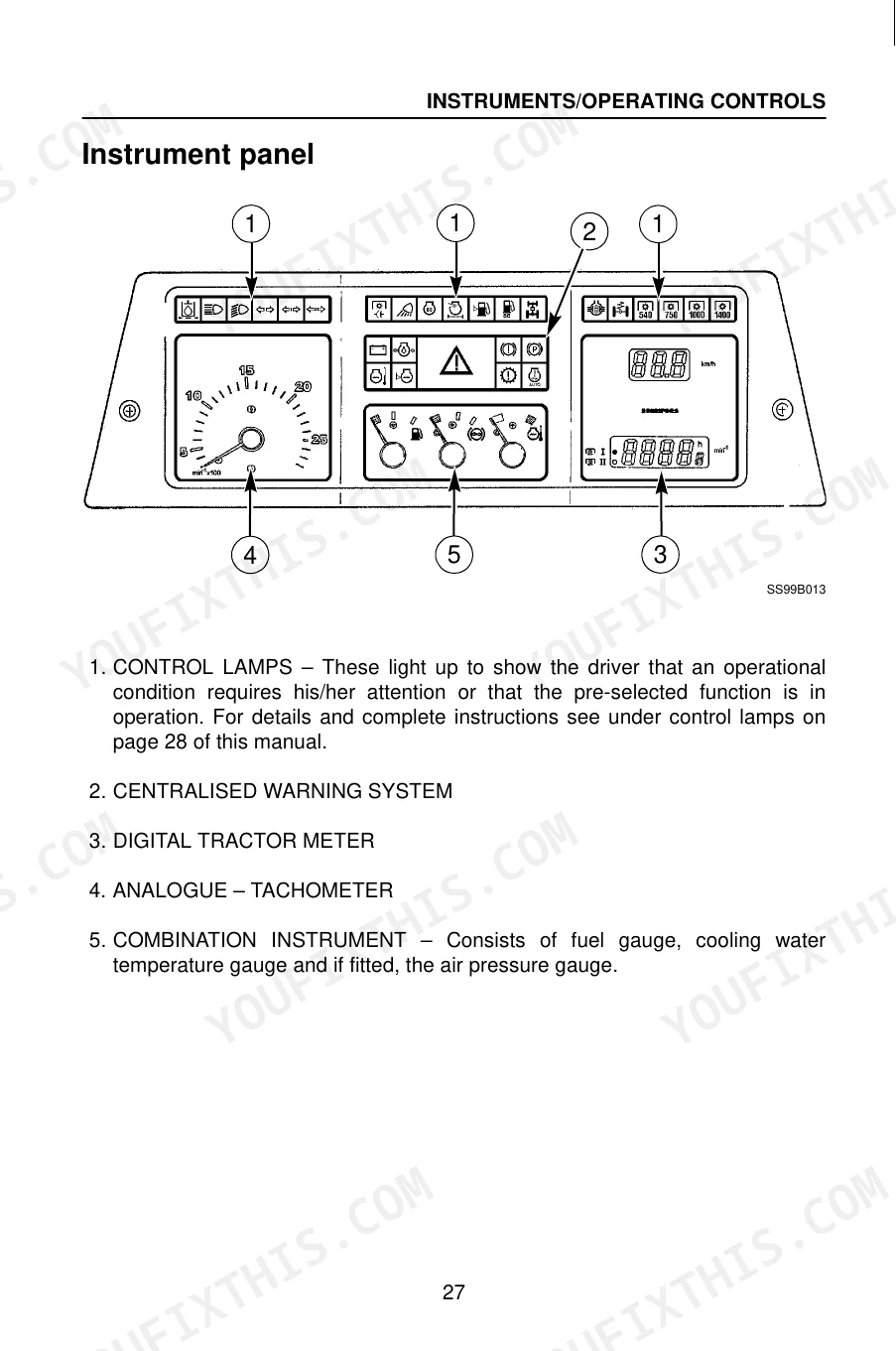

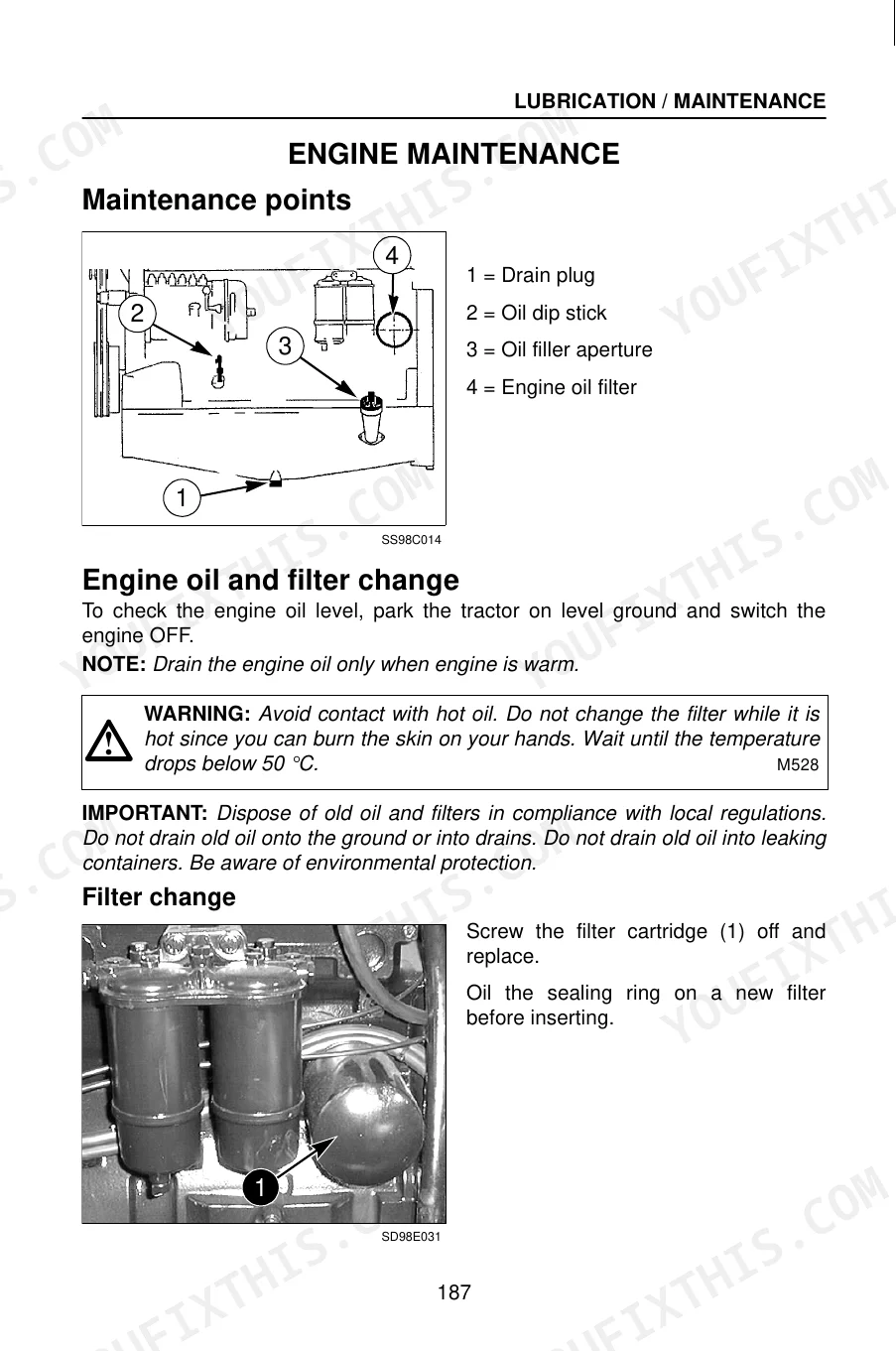

| System | Pages | Key Topics |
|---|---|---|
| To the User | 1-10 | How to Use This Manual, Keeping Your Manual Safe |
| Aggregate/Serial Numbers | 11-12 | Product Identification and Serial Number |
| Safety/Safety Plates | 13-21 | Safety, Correct Usage, Carriage of Passengers, Leaving the Tractor, Attachments, PTO Shaft Operation, Maintenance and Other Work, Dangerous Chemicals |
| Instruments/Operating Controls | 22-61 | Climbing Onto the Tractor, Driver's Seat, Operating Controls |
| Driving | 62-104 | Before Starting the Engine, Battery Master Switch, Safety Switch, Indicator Lamps and Combination Instrument for Operating Status, Standard Starting Procedure |
| Operational Use | 105-164 | Crawler Gear Mode, Rear Power Take Off Shaft, Operating the Case Front PTO, Preparing the Rear Three-Point Linkage, Operating the Digital Electronic Lifting Gear Control |
| Tyres/Wheels/Track Width/Ballast | 165-177 | Front Axle and the Front Axle Track, Front Axle Track, Rear Axle Track Width, Wheel Drive - Tyre Combinations, Front Wheel Mudguard - 4-Wheel Drive Tractor, Tractor Ballast |
| Lubrication / Maintenance | 178-215 | Environment, Plastic and Fibre-Glass Re-Inforced Parts, Tool Box, Operating Hours Counter, Engine Hood, Lubrication and Filling Levels, Daily Inspections, Engine Maintenance |
| Electrical System | 216-233 | Batteries, Replacing Bulbs and Lamps |
| Technical Data | 234-245 | Engine, Driving Speeds, Vehicle Weights, Vehicle Diminsions |
| Forestry Version | 246-250 | Forestry Specific Covers |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CS130 | ||

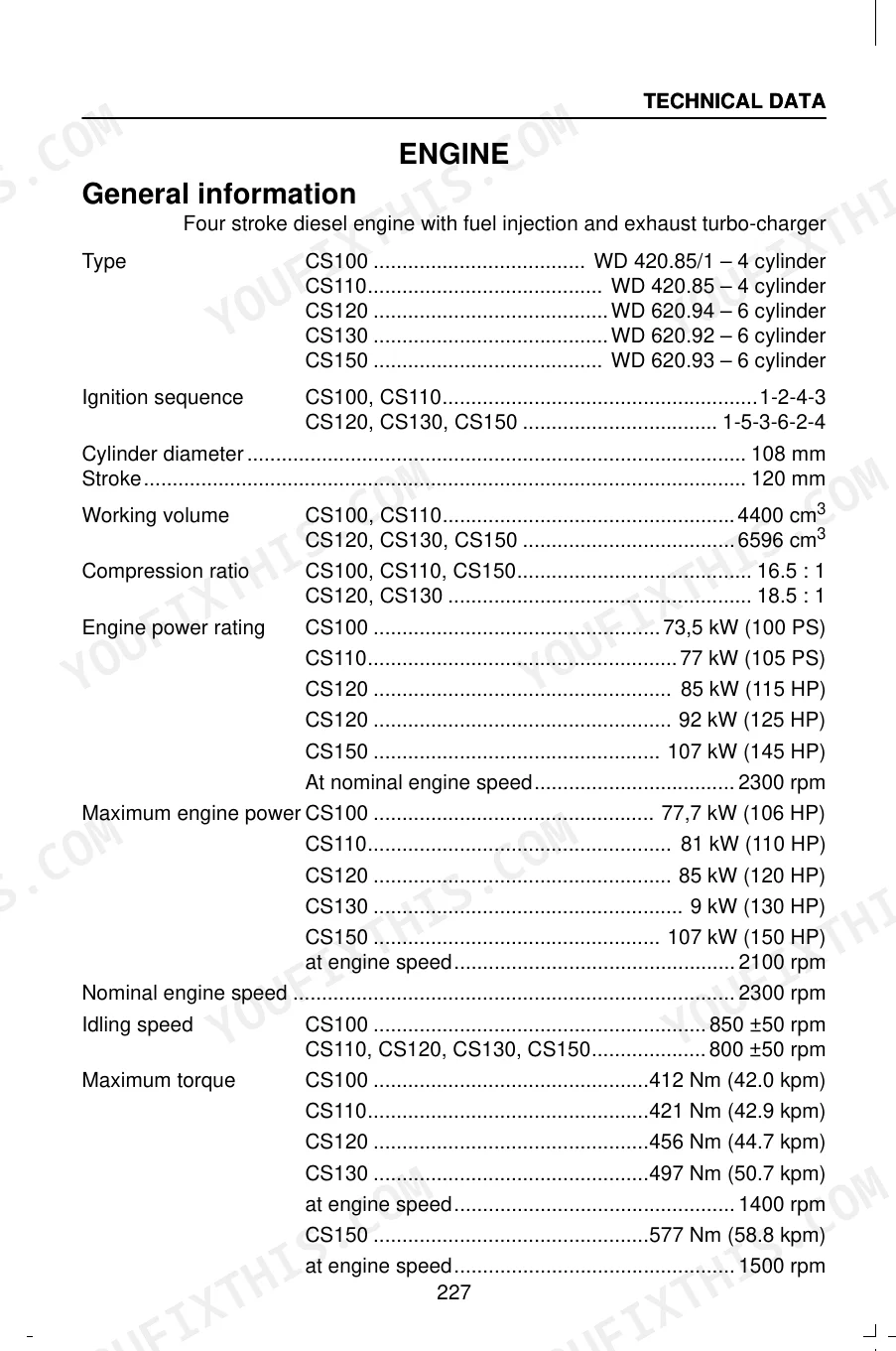

| Maximum torque | 497 Nm (50.7 kpm) | p. 234 |
| CS100, CS110 | ||
| Engine Oil Capacity (CS100, CS110) | 14.0 litres | p. 181 |
| Coolant fill quantity (CS100, CS110) | 21 litres | p. 181 |
| CS120, CS130, CS150 | ||
| Engine Oil Capacity (CS120, CS130, CS150) | 20.0 litres | p. 181 |
| Coolant fill quantity (CS120, CS130, CS150) | 25 litres | p. 181 |
| All Models | ||
| Fuel tank capacity | 220 litres | p. 181 |
| Transmission/Hydraulic system oil fill level | 72 litres | p. 181 |
| Rear axle planetary gear oil fill quantity | 10 litres | p. 181 |
| Brake fluid fill level | 0.75 litres | p. 182 |
| Front wheel securing nut tightening torque | 280 (+ or -30) Nm | p. 171 |
| CS100, CS110, CS120, CS130 | ||
| Front axle differential fill quantity (CS100, CS110, CS120, CS130) | 6.2 litres | p. 182 |
| CS150 | ||
| Front axle differential fill quantity (CS150) | 8.0 litres | p. 182 |
Case CS100–CS150 Series Common Problems This Manual Covers
Case CS130 fault code shows on the combi-instrument with an acoustic warning after startup
Check the fault code and acoustic warning tables in the error code section on pages 72 through 74, then note whether the emergency driving programme has engaged. Cycle the ignition OFF and ON to clear a transient code. Verify battery terminals are clean and tight before chasing wiring, and confirm transmission oil sits at the 72 litre fill level.
Manual Section: Error code - General p. 72Three-point hitch lifts slowly or drops erratically with the digital electronic lifting gear control
Check the lifting gear control operating instructions around and confirm the drop rate and draft control settings match the implement. Verify the transmission and hydraulic oil is at the full 72 litre level listed on page 181, since a low or aerated charge makes the hitch hunt. Let the oil warm before judging lift speed.
Manual Section: Operational UseForward and reverse shuttle engages roughly or slips under load in the field
Verify the operator is seated and the safety switch circuit is satisfied before shifting, following the driving instructions on page 65. Check transmission oil level against the 72 litre fill quantity on page 181 and top up with the specified grade. Warm the tractor at low idle for several minutes, then retest shuttle engagement at reduced engine speed.

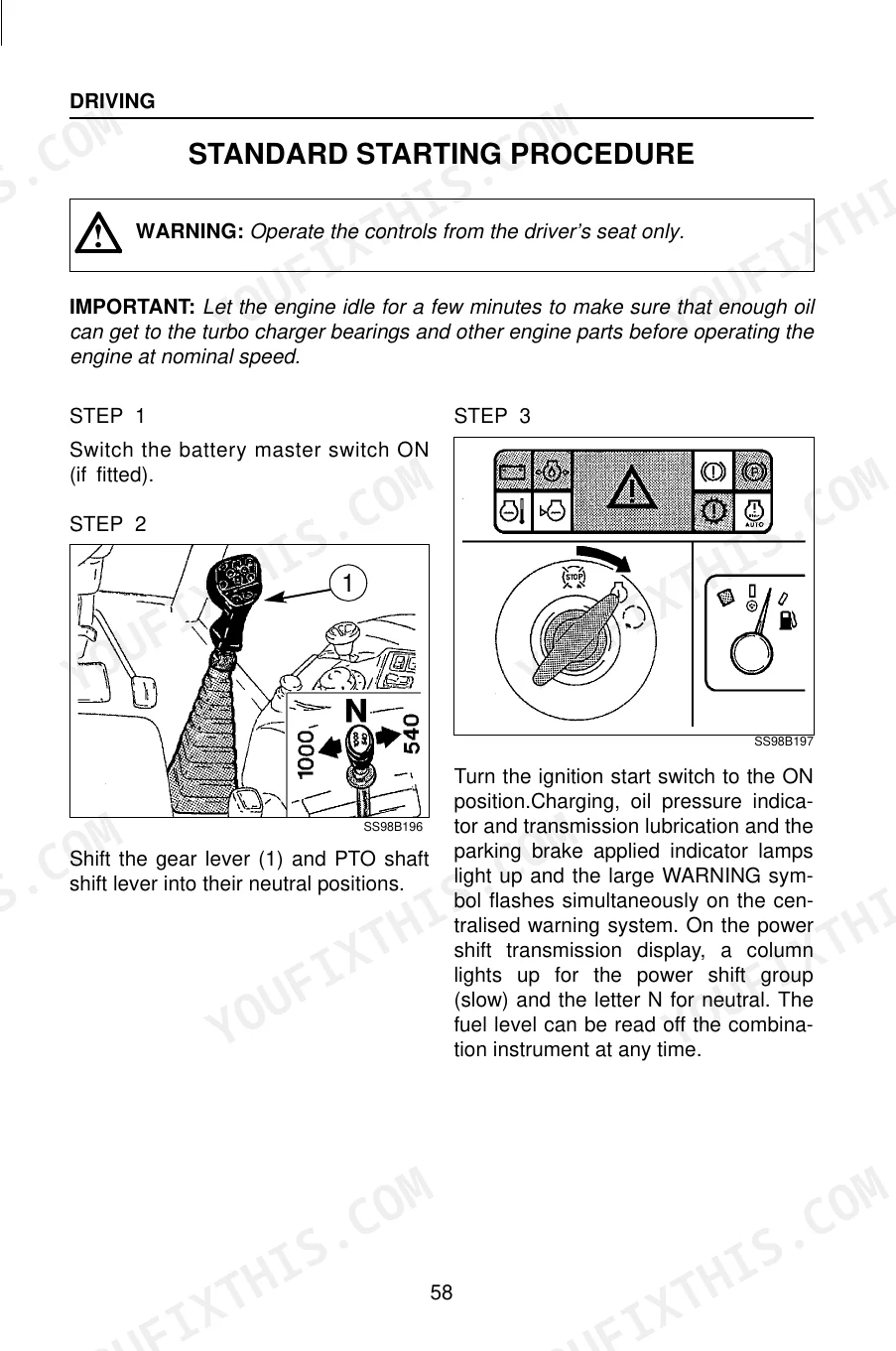

Manual Section: Driving p. 65Engine turns over slowly or will not start on a cold morning
Check the standard starting procedure in the driving section on page 62 and confirm the battery master switch is ON. Inspect battery terminals and electrolyte per the battery maintenance page 211, and load test before replacing anything. Verify the fuel tank holds usable fuel above a quarter of its 220 litre capacity and drain water from the fuel pre-filter.
Manual Section: Electrical Maintenance p. 211Cab blower output drops off and the windows fog during humid morning work
Remove and clean the cab air filter following the procedure on page 215, tapping it out rather than washing it. Check the air conditioning condenser and compressor drive belt on page 214 for chaff packing and belt glazing. Blow the condenser fins clean from the inside out, and replace a filter that stays grey after cleaning.
Manual Section: Cab Air Filter Maintenance p. 215Front wheel wobble or clicking felt through the steering at road speed
Torque the front wheel securing nuts to 280 Nm (plus or minus 30 Nm) using the values on page 171, working across the pattern rather than around it. Check the front axle differential oil against the 6.2 litre fill quantity on page 182 for CS100 through CS130. Inspect the axle for weeping seals before heading back to the field.
Manual Section: Tyres/Wheels/Track Width/Ballast p. 171Frequently Asked Questions
How do I clear fault code 64 on Case CS110/CS120/CS130/CS150?
Fault code 64 indicates the power shift is blocked. To move the tractor, the gearbox must be in neutral for at least 1 second while the tractor is at a standstill. This program is intended only to allow the tractor to be driven to the nearest workshop for repair. p. 74
What is the torque specification for the front wheel securing nuts on the Case CS tractor?
The securing nuts for joining the wheel/rim to the front axle must be tightened to 280 Nm (+ or -30 Nm) in a numbered sequence. The fixing nuts for joining the wheel/hub must be tightened to 480 Nm. p. 171
What is the engine oil capacity for the Case CS120, CS130, and CS150 models?
The engine oil fill quantity for the CS120, CS130, and CS150 models is 20.0 litres. p. 181
What is the valve clearance on a Case CS100, CS110, CS120, CS130 or CS150 engine?
The valve play for both the exhaust and intake valves, when cold, is 0.35 mm. Adjustment must be carried out with the engine stopped. p. 235

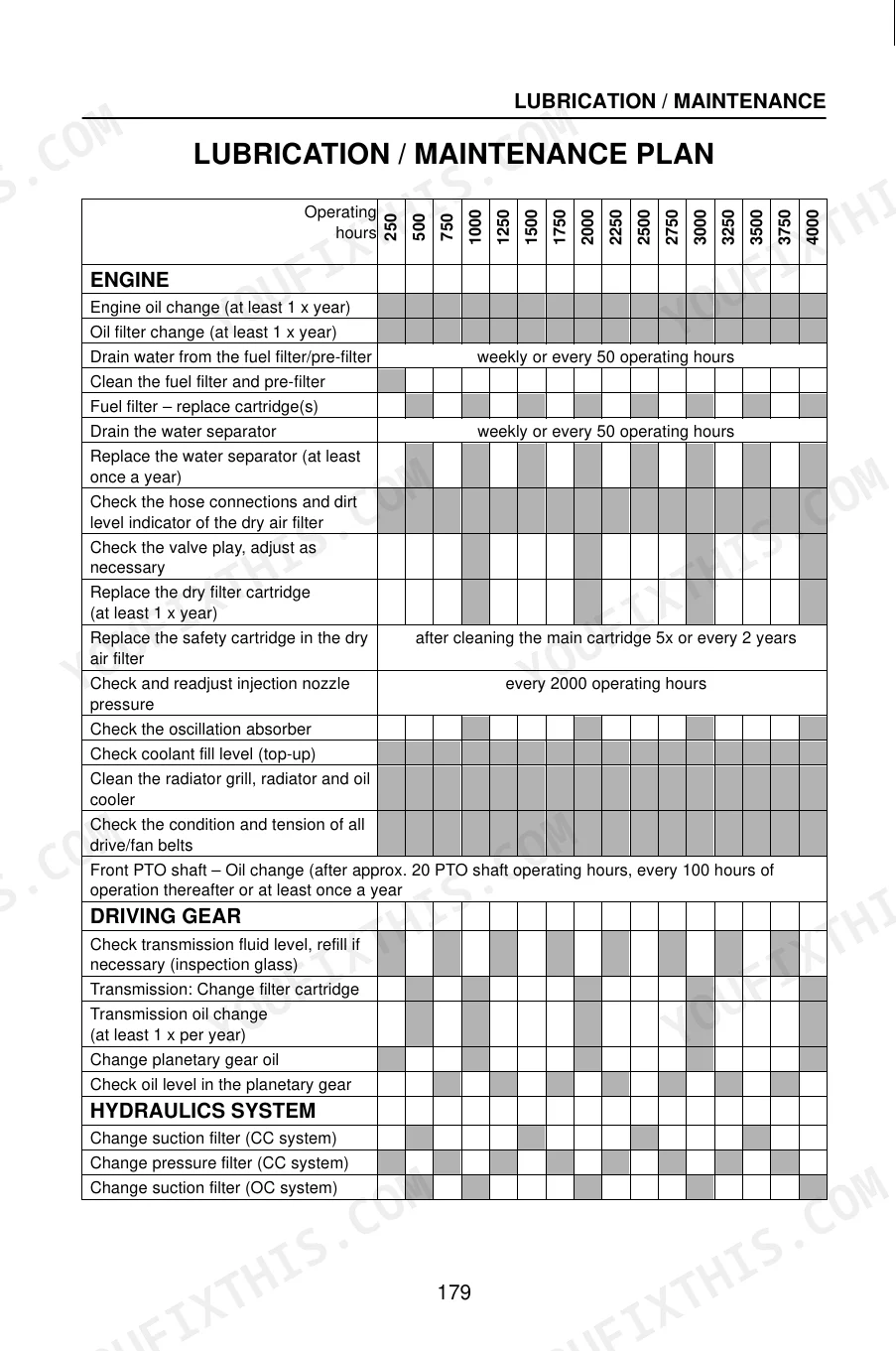

How often should the transmission oil be changed?
The transmission oil should be changed at least once per year, as specified in the lubrication/maintenance plan. p. 186
How quickly can I access this Case CS100 manual after buying?
All 256 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print specific sections of this Case CS100 Operator Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
