Fitment first: this is publication Sva 6-21220, and its title page reads CASE CS110, CS120, CS130 and CS150. The Case CS110 operator manual PDF walks you through the instrument panel and indicator lamps, then hands over driving and operational chapters that carry the bulk of the book: transmission ranges, crawler gear, rear and front PTO engagement, three-point linkage setup, auxiliary control units, differential lock and four-wheel drive. Ballast and track width tables tell you where to set the rear axle before you hang an implement on it. Fill the CS110 engine with 14.0 litres of oil, 20.0 litres on the CS120, CS130 and CS150, and confirm 18 bar of transmission system pressure before you chase a hydraulic complaint. A tractor parked mid-season costs you daylight. Bookmarked and searchable by keyword, it gets the tractor running again before the weather turns.
Complete the set for your CS110, CS120, CS130…
- Operator Manual: Case CS100–CS150 Series Operator Manual
- Repair Manual: Case CS110 CS120 CS130 CS150 & Steyr 9105A 9115A 9125A 9145A Repair Manual [Tractor]
- Repair Manual: Case CS100–CS150 Series Repair Manual — Wiring Diagrams
What's Inside This Case CS110, CS120, CS130, CS150 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the User | 7-9 | How to Use This Manual |
| Aggregate/Serial Numbers | 10-11 | Product Identification and Serial Number |
| Safety/Safety Plates | 12-20 | Safety, Correct Usage, Carriage of Passengers, Leaving the Tractor, Attachments, PTO Shaft Operation, Maintenance and Other Work, Dangerous Chemicals |
| Instruments/Operating Controls | 21-56 | Climbing Onto the Tractor, Driver's Seat, Instrument Panel, Indicator Lamps |

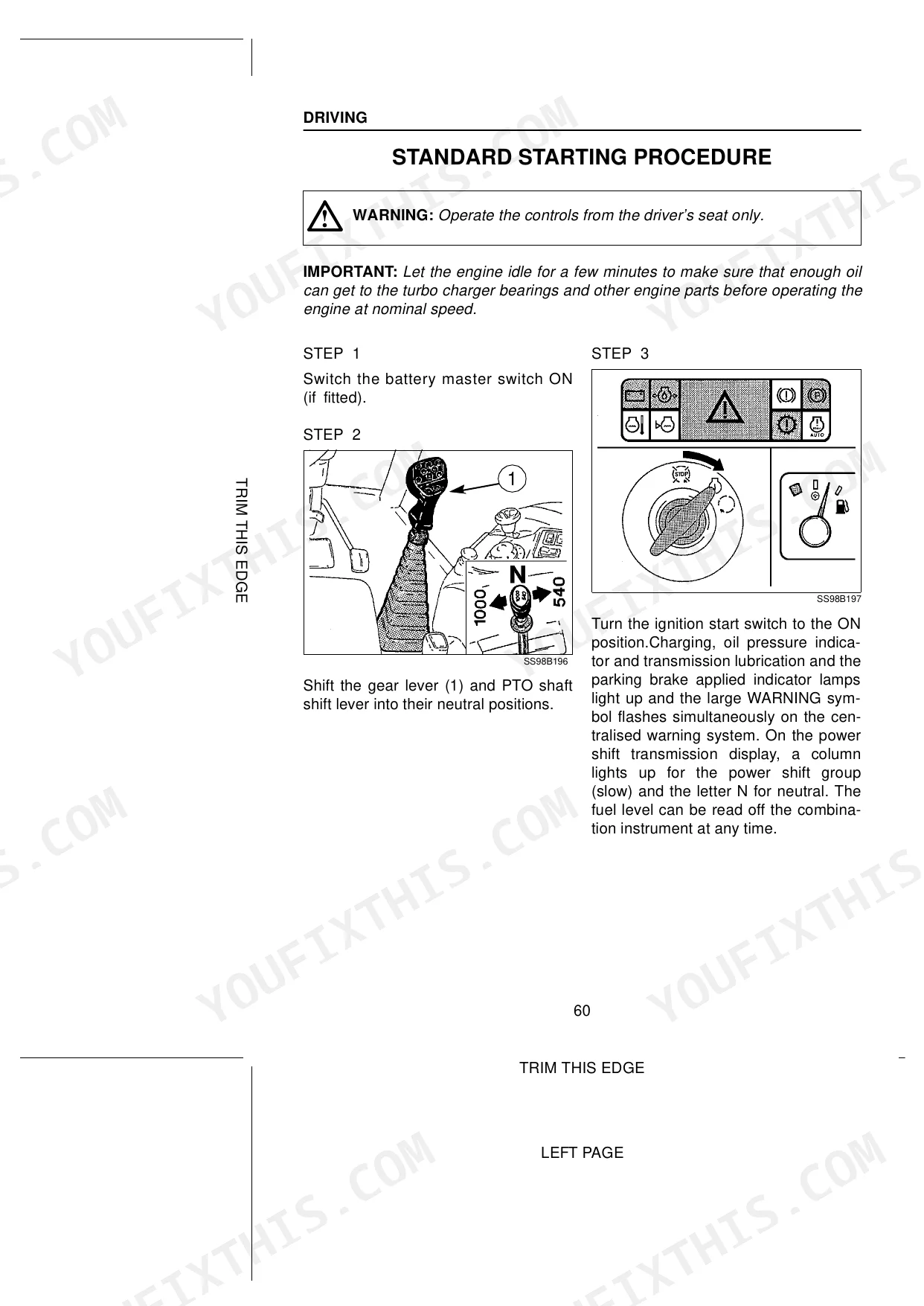

| Driving | 57-106 | Before Starting the Engine, Battery Master Switch, Safety Switch, Indicator Lamps and Combination Instrument for Operating Status, Standard Starting Procedure |
| Operational Use | 107-160 | Crawler Gear Mode, Rear Power Take Off Shaft, Operating the Steyr Front PTO, Preparing the Rear Three-Point Linkage, Operating the Digital Electronic Lifting Gear Control |
| Tyres/Wheels/Track Width/Ballast | 161-173 | Front Axle and the Front Axle Track, Front Axle Track, Rear Axle Track Width, Wheel Drive – Tyre Combinations, Front Wheel Mudguard – 4-Wheel Drive Tractor, Tractor Ballast |
| Lubrication / Maintenance | 174-211 | Environment, Plastic and Fibre-Glass Re-Inforced Parts, Tool Box, Operating Hours Counter, Engine Hood, Lubrication and Filling Levels, Daily Inspections, Engine Maintenance |
| Electrical System | 212-229 | Batteries, Replacing Bulbs and Lamps, Fuses |
| Technical Data | 230-241 | Engine, Driving Speeds, Vehicle Weights, Vehicle Diminsions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Transmission system pressure | 18 bar | p. 111 |
| F1 | 7.5 Amps | p. 231 |
| F2 | 7.5 Amps | p. 231 |
| Fuel tank capacity | 220 litres | p. 183 |
| Transmission/Hydraulic system oil fill level | 72 litres | p. 183 |
| Rear axle planetary gear oil fill quantity (each) | 10 litres | p. 183 |
| Front wheel securing nuts (Wheel/RIM) tightening torque | 280 (+ or -30) Nm | p. 173 |
| Front wheel fixing nuts (Wheel/Hub) tightening torque | 380 Nm | p. 173 |
| CS110 | ||
| Engine Oil Capacity (CS110) | 14.0 litres | p. 183 |
| Coolant fill quantity (CS110) | 21 litres | p. 183 |
| CS120, CS130, CS150 | ||
| Engine Oil Capacity (CS120, CS130, CS150) | 20.0 litres | p. 183 |
| Coolant fill quantity (CS120, CS130, CS150) | 25 litres | p. 183 |
Case CS110, CS120, CS130, CS150 Common Problems This Manual Covers
Case CS110 dash goes dead or engine won't crank when the key is turned
Check the battery master switch is ON before anything else. Inspect the main fuse F40, rated 100 Amps, in the layout on page 232, then check the 20 Amp ignition switch supply fuse F30 on the same page. Clean corroded battery terminals and retighten. Battery service steps start around page 212.
Forward and reverse shuttle feels weak or slips under load
Stop and let the transmission oil warm before judging it. Verify the transmission and hydraulic system holds its 72 litre fill level as listed on page 183, since a low charge starves the shuttle clutch. Transmission system pressure of 18 bar must be available per page 111. Check fuse F19 and F24 for the transmission electronics on page 231.
Fault code appears on the instrument display and the tractor drops into limp mode

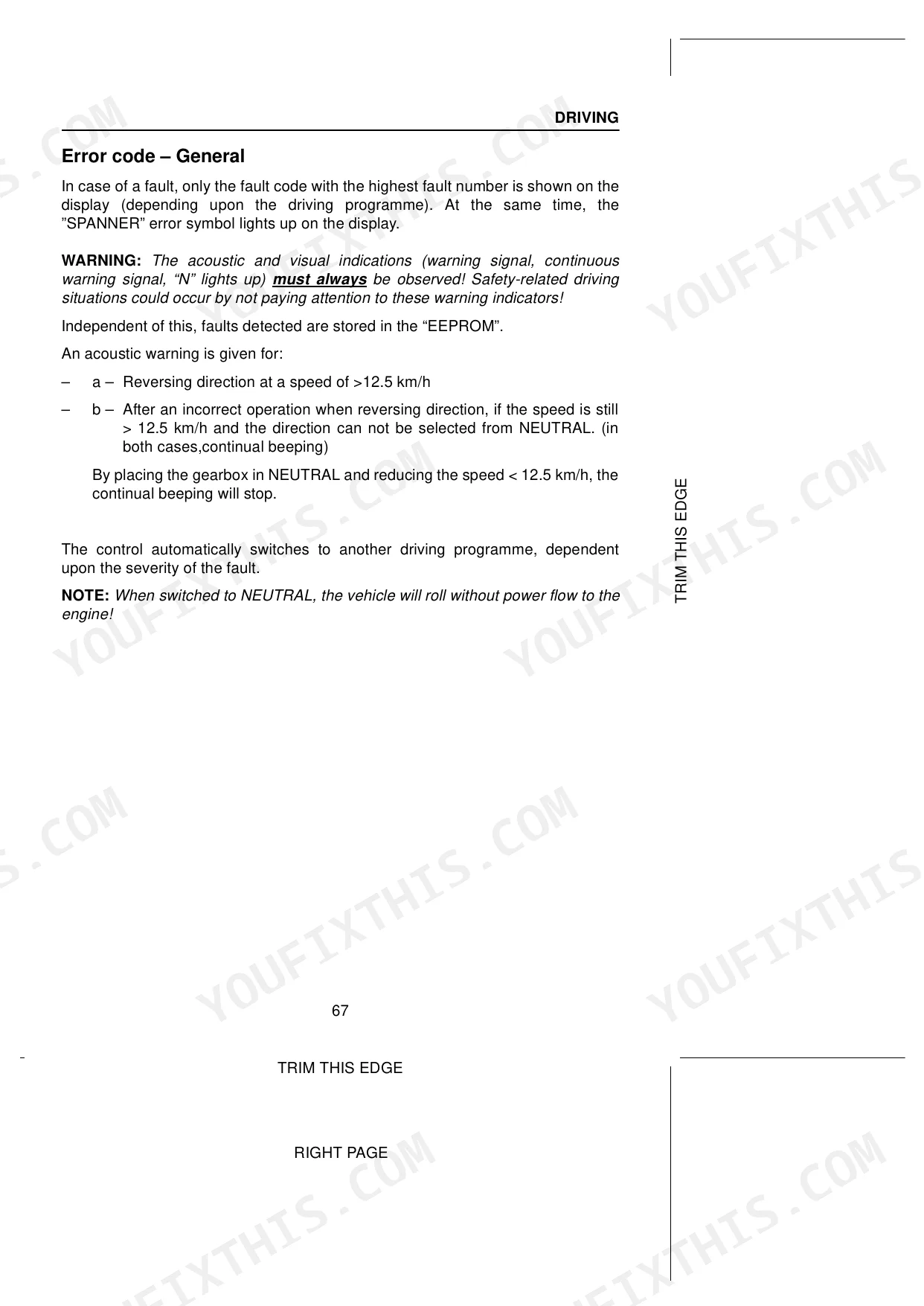

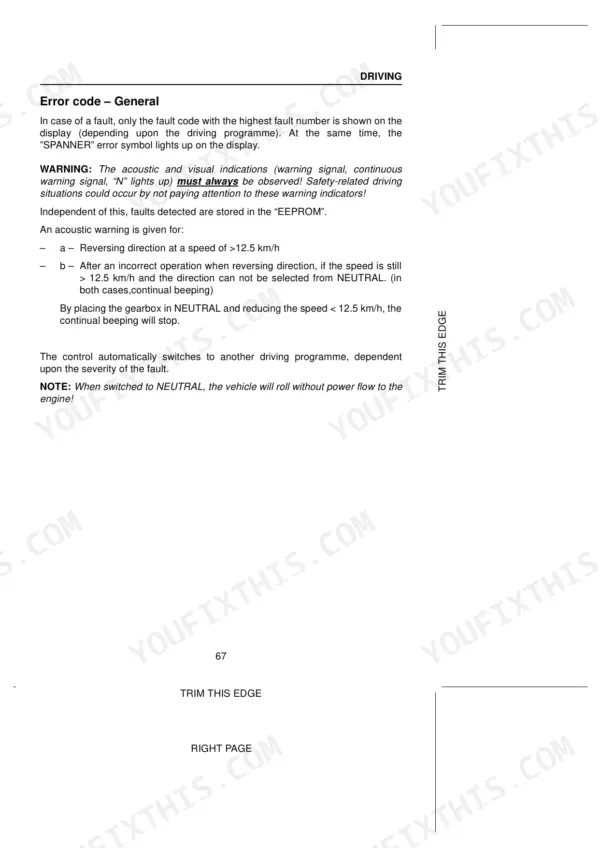

Read the code off the display and match it against the fault code tables on pages 73 through 75, which also cover the driving programmes and the emergency driving programme. Turn the ignition OFF, wait, then ON to see if the code clears. Confirm fuse F19, rated 7,5 Amps on page 231, is intact before you chase sensors.
PTO or differential lock switch works intermittently or not at all
Check that the operator is seated and the PTO switch is cycled through its neutral position before engaging. Inspect fuse F13 for the front and rear differential, rated 10 Amps on page 231. PTO shaft operating procedures begin on page 107.
Front axle drive feels rough or steering pulls hard in four wheel drive
Check front axle oil levels first. Drain and refill intervals for the front axle differential and planetary oil are covered on pages 208 and 209. Verify tyre sizes match an approved wheel drive combination starting on page 161, since mismatched rolling radius fights the axle. Torque the front wheel securing nuts to 280 (+ or -30) Nm per page 173.
Engine oil pressure or temperature warning lamp lights up during field work
Shut down immediately and let the engine cool. Check the oil level on the dipstick against the capacity listed on page 183: 14.0 litres on the CS110. Clear chaff and crop trash off the radiator screen, then check coolant level. Indicator lamp meanings are shown in the instrument panel section starting on page 21.
Frequently Asked Questions
What is the front wheel securing nut torque on a Case CS110, CS120, CS130 or CS150?
The securing nuts for joining the wheel/rim to the front axle must be tightened to 280 (+ or -30) Nm in the specified numbered sequence. p. 173
What is the engine oil capacity for the Case CS110 tractor?
The engine oil fill quantity for the Case CS110 model is 14.0 litres. p. 183
What is the valve clearance on a Case CS110 engine?

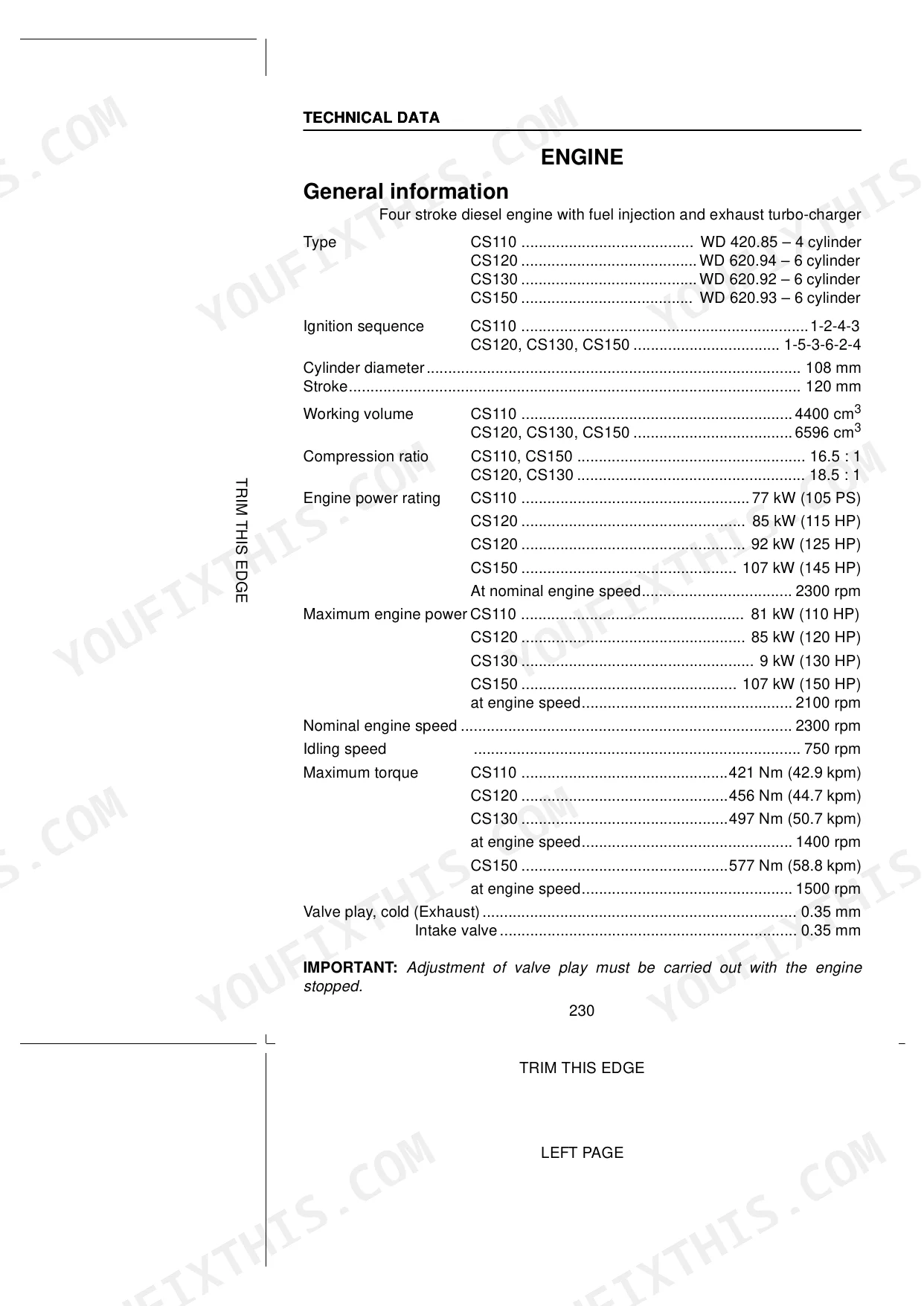

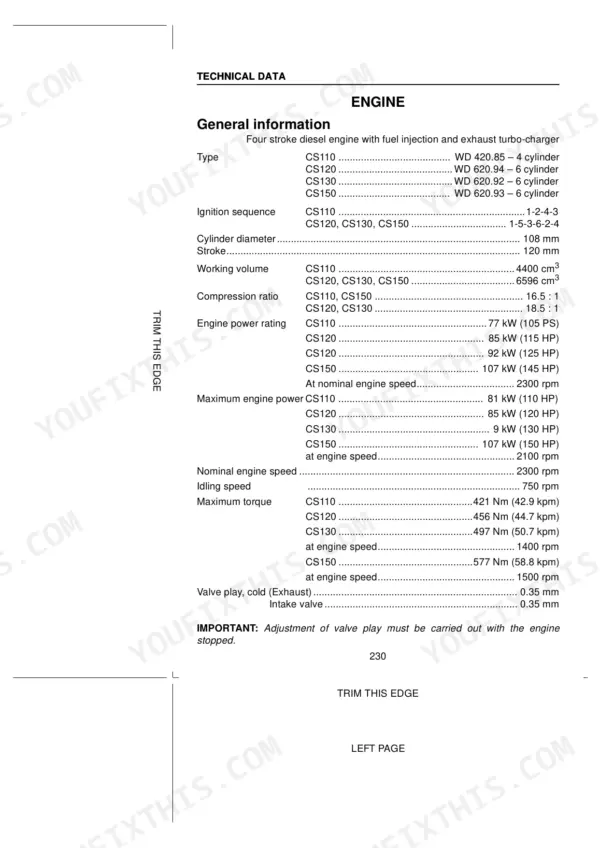

The valve play for both the exhaust and intake valves, when cold, is 0.35 mm. p. 236
How often should the transmission oil be changed?

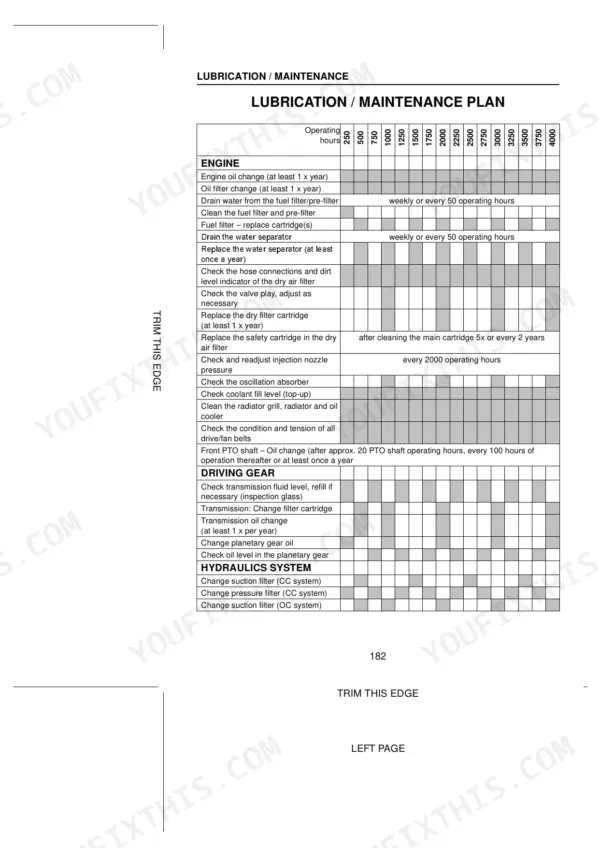

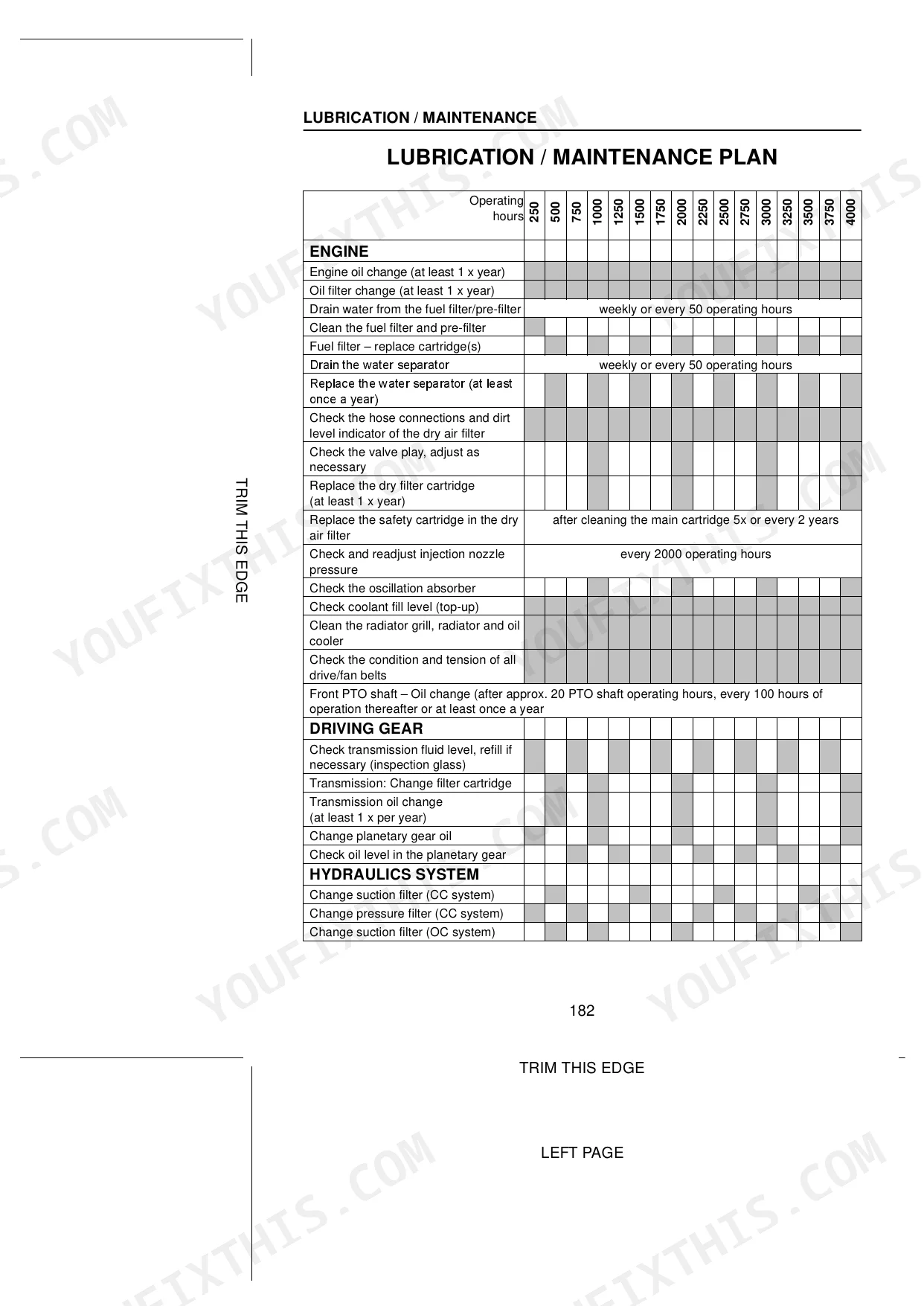

The transmission oil should be changed at least once per year. p. 188
How is this Case CS110 Operator Manual delivered?
A 250-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Does this Case CS110 manual allow printing?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
