The hitch sags with the mower lifted, or the 385 cranks and cranks while the hay is ready to bale. This is the Case factory service manual for the 85 Series tractors. It comes as separate sections: engine, Bosch VE and VA injection pumps, electrical, steering, power train, brakes, hydraulics and the XL cab.

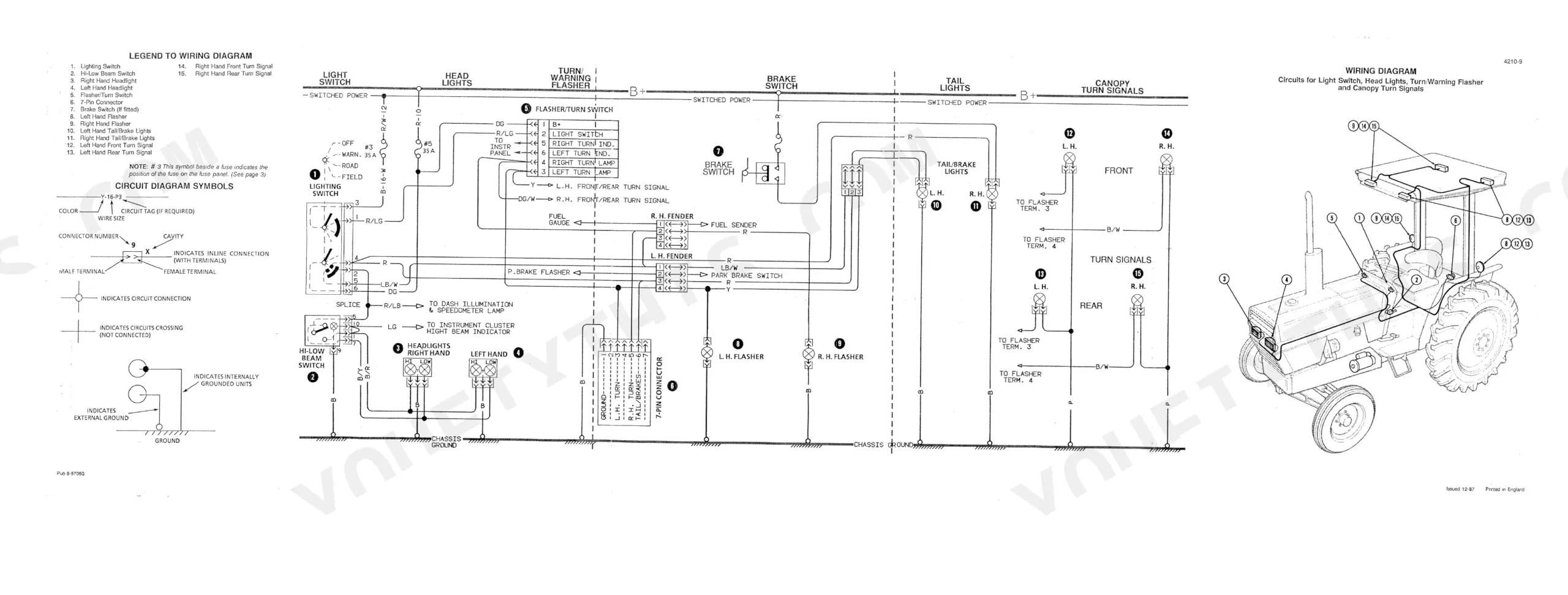

Most jobs stall for want of one number, like the steering relief pressure or the hot valve clearance. Those numbers are in here. Section 8001 adds a full hydraulic schematic with 13 numbered test points. There are also wiring diagrams for the charging, lighting and powershift circuits.
The spec tables cover the 385 and 485, not the 395 or 495. Find the fault, set it to spec, and have the tractor pulling again before the weather turns.
What's Inside This Case 385, 485, 395, 495 Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Contents | 1-2 | - |
| General | 3-80 | General Specifications, Special Tools, Fuel System Specifications, Steering System Specifications, Hydraulic System Specifications |

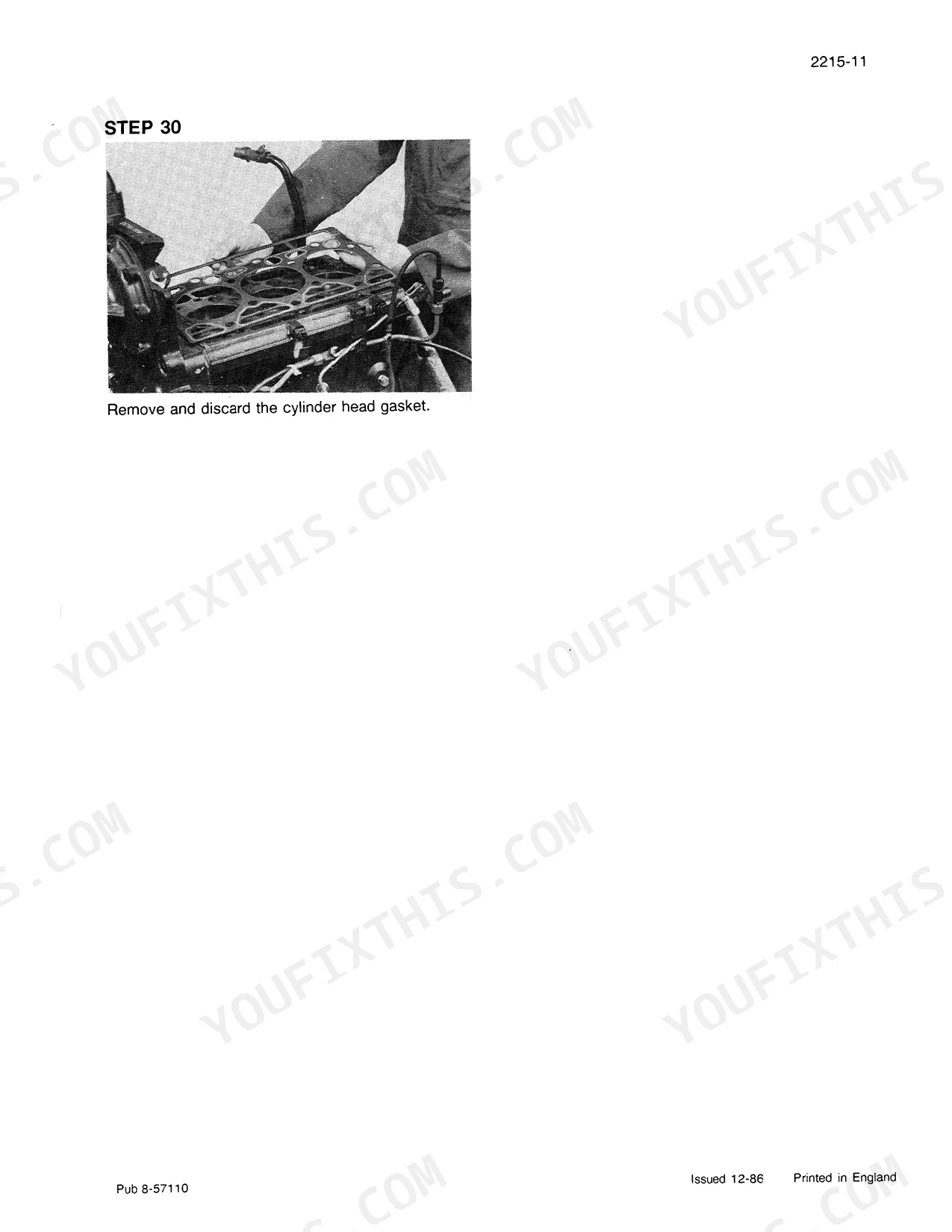

| Engine | 81-314 | Engine Removal, Engine Troubleshooting, Cylinder Head, Valves and Rockers, Cylinder Block, Pistons and Conrods, Crankshaft and Bearings, Camshaft and Idler Gear, Lubrication System |

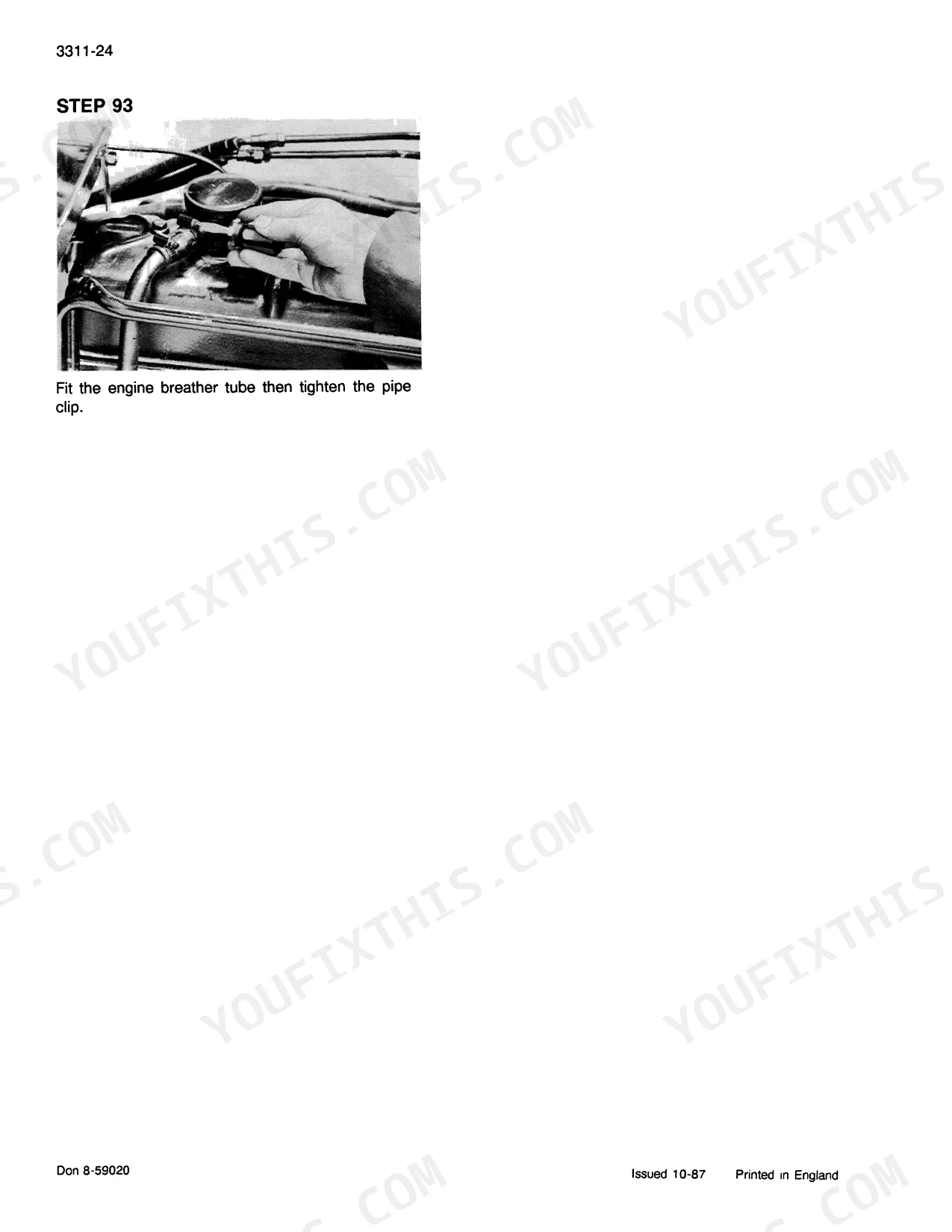

| Fuel System | 315-432 | Fuel Injection Pump VE, Fuel Injection Pump VA, Fuel Injectors, Fuel Tanks |
| Electrical | 433-734 | Electrical Troubleshooting, Wiring Diagrams, Battery Servicing and Testing, Alternators and Regulators, Starter Motors |

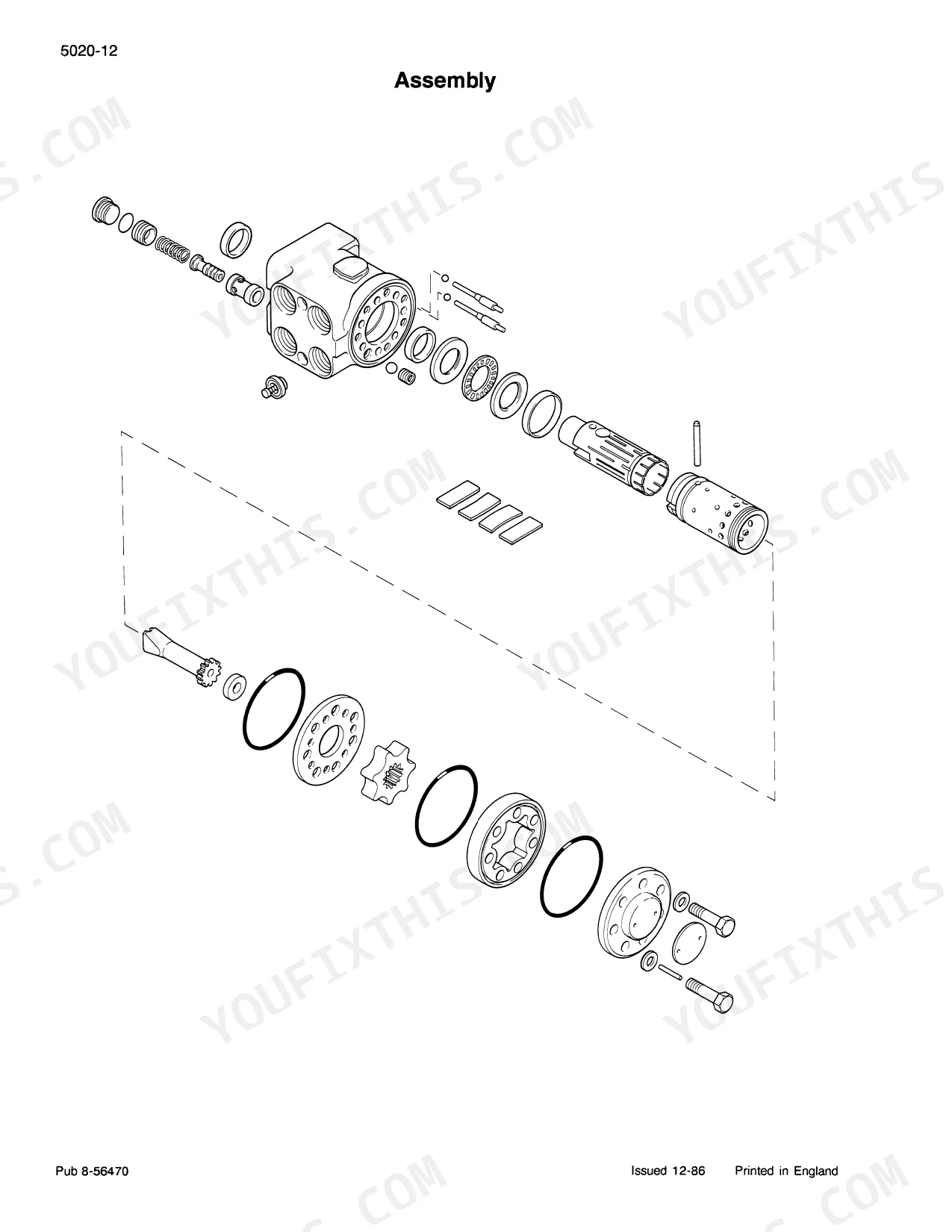

| Steering | 735-884 | Steering Pump Removal, Steering Hand Pump, Front Axles, Steering Cylinders |
| Power Train | 885-1750 | Clutch Controls, Rear Axles, Transmission Rangebox, Power Shift Transmission, Forward/Reverse Transmission, Differential, PTO Clutch, Creeper Speed Transmission, MFD Front Axles and Transfer Gearbox |
| Brakes | 1751-1856 | Disc Brakes, Brake Master Cylinders, Park Brake |
| Hydraulic System | 1857-2180 | Hydraulic Schematic and Troubleshooting, Hitch Adjustments, Multiple Control Valve, Filter and Pump, Draft Cylinder and Rockshaft |

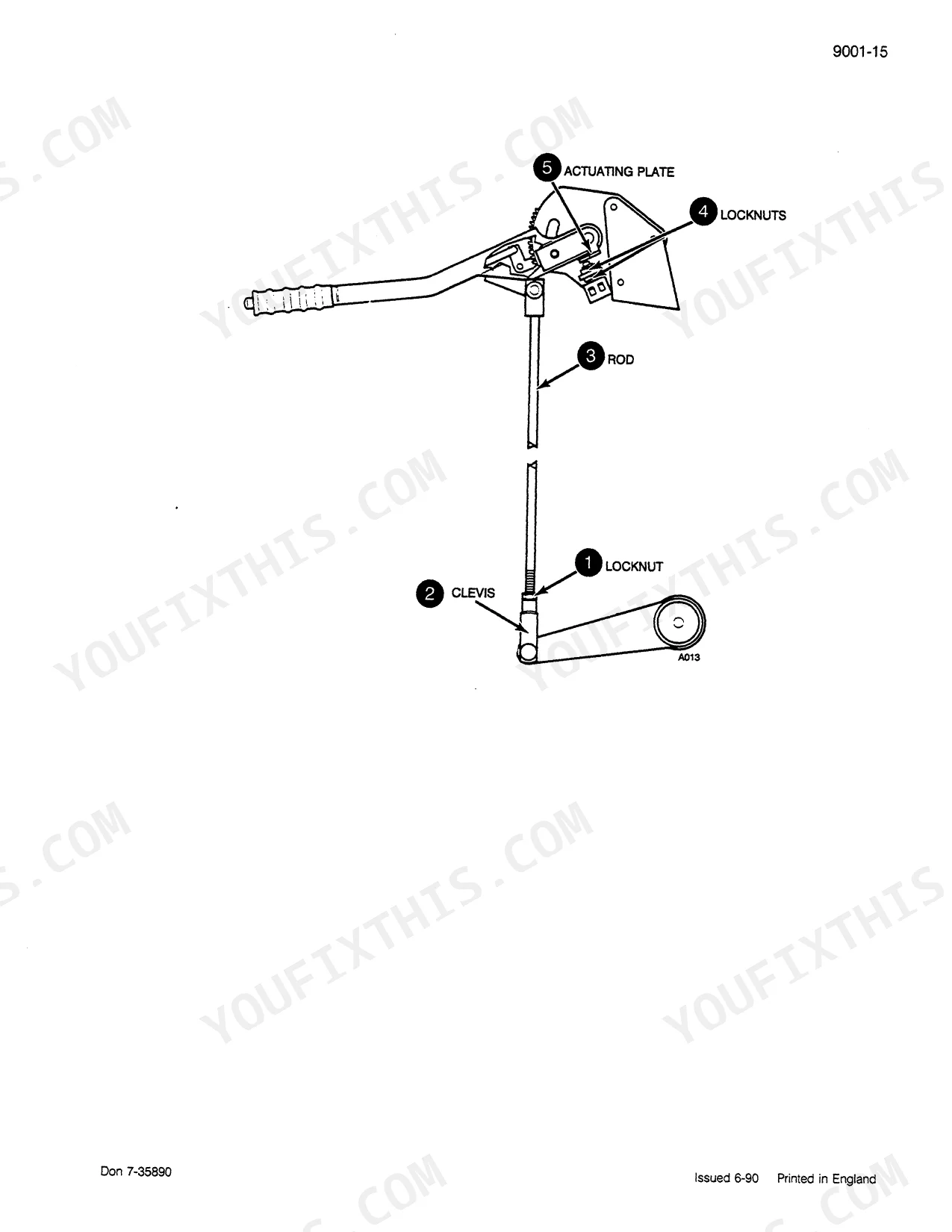

| Chassis and Accessories | 2181-2330 | Pedal and Lever Adjustment, Hood, Fender and Panels, Cab Removal, Servicing XL Cab |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Diesel Engine Model | D 155 (385) / D 179 (485) | p. 10 |
| Rated Engine Speed | 2200 r/min (385) / 2180 r/min (485) | p. 10 |
| Static Timing (before top dead centre) | 10 Degrees (385) / 14 Degrees (485) | p. 10 |
| Displacement | 155 in3 (2536 cm3) (385) / 179 in3 (2934 cm3) (485) | p. 10 |
| Crankcase Capacity (including filter) | 13.2 UK pints / 2 U.S. gal / 7.5 litre (385) / 13.2 UK pints / 8 U.S. qts / 7.5 litre (485) | p. 10 |
| Steering System Check pressure | 750 to 1000 psi (51 to 68.9 bar) engine stopped / 2050 to 2150 psi (141 to 148 bar) engine running | p. 1862 |
| Full Pump Efficiency and Main Relief Valve test | pump efficiency (flow at 2000 PSI / flow at 0 PSI) must not be less than 80% | p. 1882 |
| MFD Check | voltage at solenoid, solenoid ground, MFD pressure | p. 1867 |
| Powershift Check | voltage at solenoid, powershift regulator pressure, powershift pressure in low | p. 1865 |
| Forward/Reverse Check | test the F/R pressure | p. 1866 |
| Special Torques - Steering Hand Pump Retaining Bolts/Capscrews | 33 to 37 lb ft (45 to 51 Nm) | p. 737 |
| Special Torques - Steering Wheel Retaining Nut | 33 to 38 lb ft (45 to 51 Nm) | p. 737 |
| 385 and 485 | ||
| Valve Clearances (hot), Inlet and Exhaust | 0.012 in (0.30 mm) | p. 10 |
| Oil Pressure | 40 to 60 psi (275 to 414 kPa) | p. 10 |
| 385 (2200 r/min) | ||
| Hydraulic Pump Output, 27 tooth drive gear | 10 UK or 12 U.S. gal min (46 litre min) | p. 10 |
| 385 | ||
| PTO r/min at Rated Engine Speed, Upper / Lower Shaft | 614 / 1004 | p. 11 |
| 385 and 485 (585/685/885 Category Two only) | ||
| Hitch Type | Three Point, Category One and Two | p. 9 |
Case 385, 485, 395, 495 Common Problems This Manual Covers
Hitch lifts slowly or will not hold a mounted implement up
Check the fluid level and change the hydraulic filter first, using the Filter and Pump section. If the hitch is still weak, run the Full Pump Efficiency and Main Relief Valve test in Section 8001. Divide the flow at 2000 psi by the flow at 0 psi. A result under 80% means a worn pump. If the pump passes, go to Hitch Adjustments and Draft Cylinder and Rockshaft.
Manual Section: Hydraulic System - Section 8001 Hydraulic Schematic and Troubleshooting / Filter and Pump p. 1882Engine cranks slowly or the battery keeps going flat
Clean and tighten the battery terminals and cables, then test the battery as shown in Battery Servicing and Testing. Trace the charging and starting circuit on the wiring diagrams, including the alternator warning lamp. If the fault is in a unit rather than the wiring, go to the Alternators and Regulators or Starter Motors section.
Manual Section: Electrical - Battery Servicing and Testing / Wiring Diagrams / Starter Motors p. 655Powershift will not change range
Follow the Powershift Check in Section 8001. Check the voltage at the solenoid, then the powershift regulator pressure, then the powershift pressure in low. The two speed power shift circuit is on the wiring diagrams. If the voltage is good but the pressure is not, go to the Power Shift Transmission section in Power Train.
Manual Section: Hydraulic System - Section 8001 Powershift Check / Power Train - Power Shift Transmission p. 1865PTO slips under load or will not drive the implement
Run the PTO/Cooler Check in Section 8001. It measures cooler inlet flow and pressure, PTO regulated pressure, and flow at the steering/regulator return line and MCV supply port. If the pressures are good and the shaft still slips, go to the PTO Clutch section. On a 385 at 2200 r/min, the upper shaft should turn 614 r/min and the lower 1004.
Manual Section: Hydraulic System - Section 8001 PTO/Cooler Check / Power Train - PTO Clutch p. 1868Frequently Asked Questions
Why won't my Case 385 or 485 start after it has been sitting?
Check the simple things first. Make sure the stop control lever is fully open, the air filter is clean and the battery turns the engine over fast enough. Then look for air in the fuel system, blocked fuel lines or filters, and a faulty thermostart unit. The Engine Troubleshooting chart goes on to cover worn injection nozzles, worn piston rings and injection pump faults. p. 113
What steering pressure should a 385 or 485 show?
The steering check in Section 8001 gives 750 to 1000 psi (51 to 68.9 bar) with the engine stopped. With the engine running it should read 2050 to 2150 psi (141 to 148 bar). Heavy or slow steering usually starts with a reading outside those ranges. If you pull the steering hand pump, torque the retaining capscrews to 33 to 37 lb ft (45 to 51 Nm) on refit. p. 1862
The MFD front drive will not engage or will not disengage. Where do I start?
Work through the MFD Check in Section 8001 in the order it is printed. Check the voltage at the solenoid, then the solenoid ground, then test the MFD pressure. A bad ground costs nothing to fix and is easy to miss. If the wiring and pressure are good, the MFD Front Axles and Transfer Gearbox section covers the mechanical side. p. 1867
What oil pressure and oil capacity does the 385 and 485 engine need?
Oil pressure should sit between 40 and 60 psi (275 to 414 kPa). The crankcase holds 7.5 litres including the filter, which is 13.2 UK pints or 8 US quarts. Both are three cylinder diesels with a 1-3-2 firing order. The 385 has the D 155 engine and the 485 has the D 179. p. 10
Does the manual list specs for the 395 and 495?
No. The contents page names the 395 and 495, but General Specifications only prints tables for the 385, 485, 585, 685 and 885. For the 385 and 485, hot valve clearance is 0.012 in (0.30 mm) for inlet and exhaust. Static timing is 10 degrees BTDC on the 385 and 14 on the 485. Do not assume those figures carry over to a 395 or 495. p. 10
