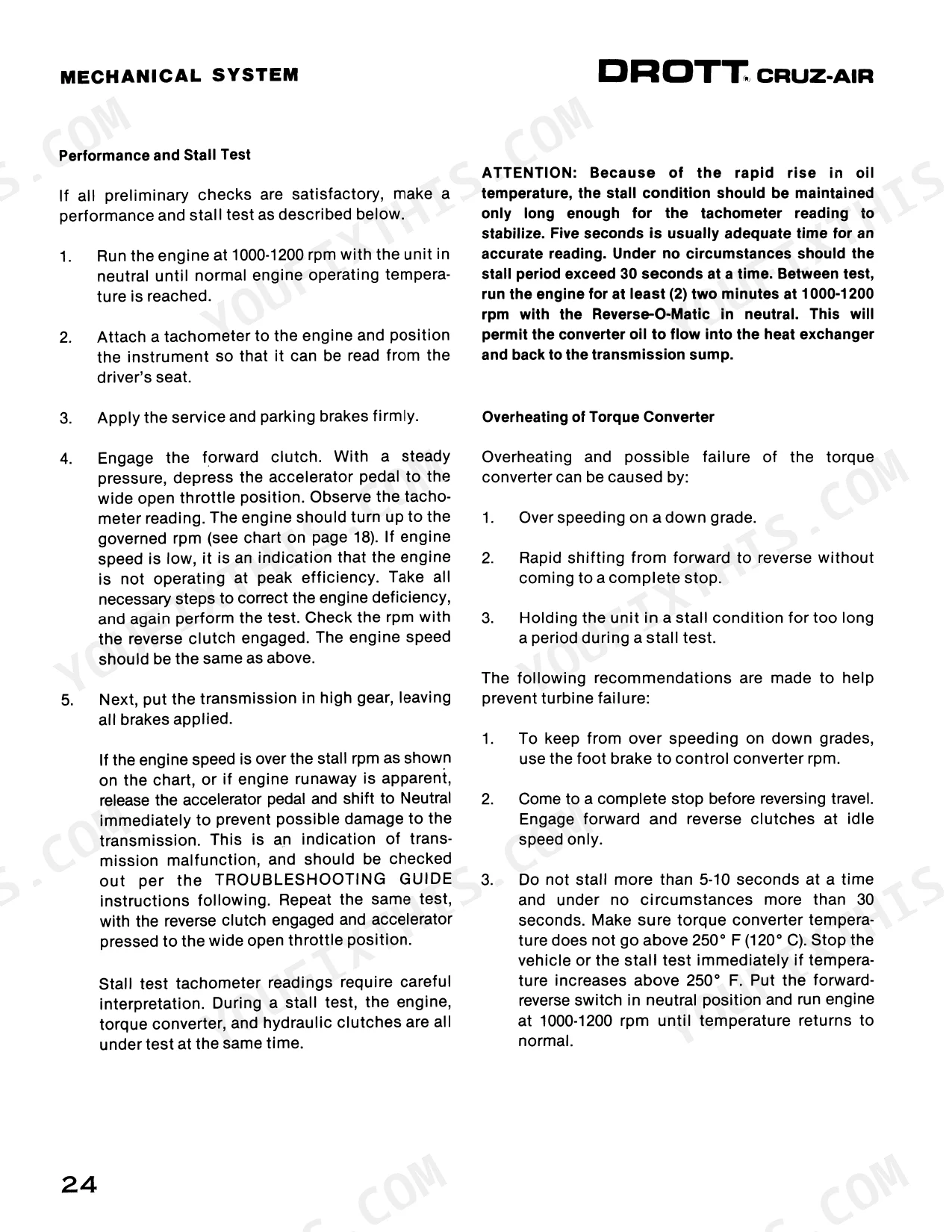

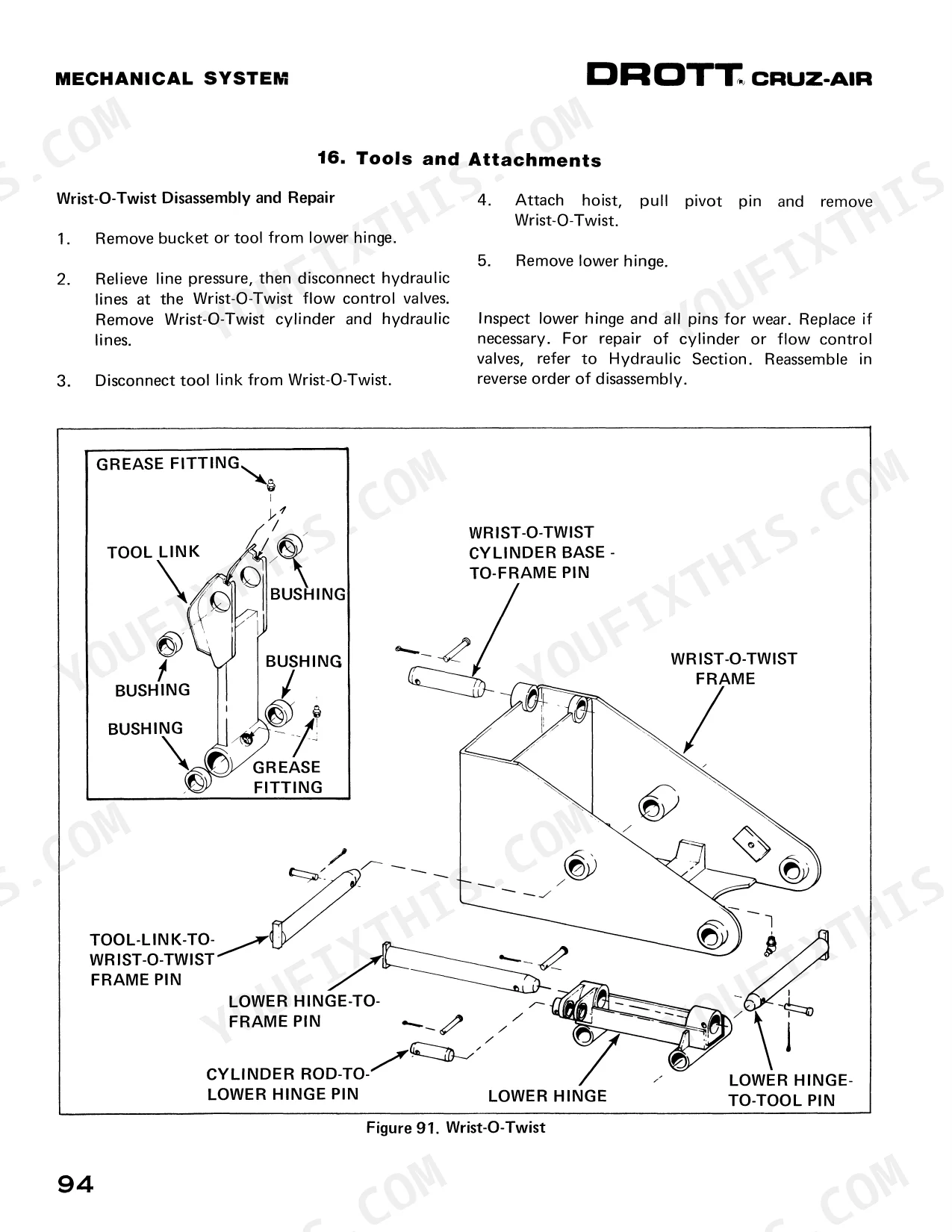

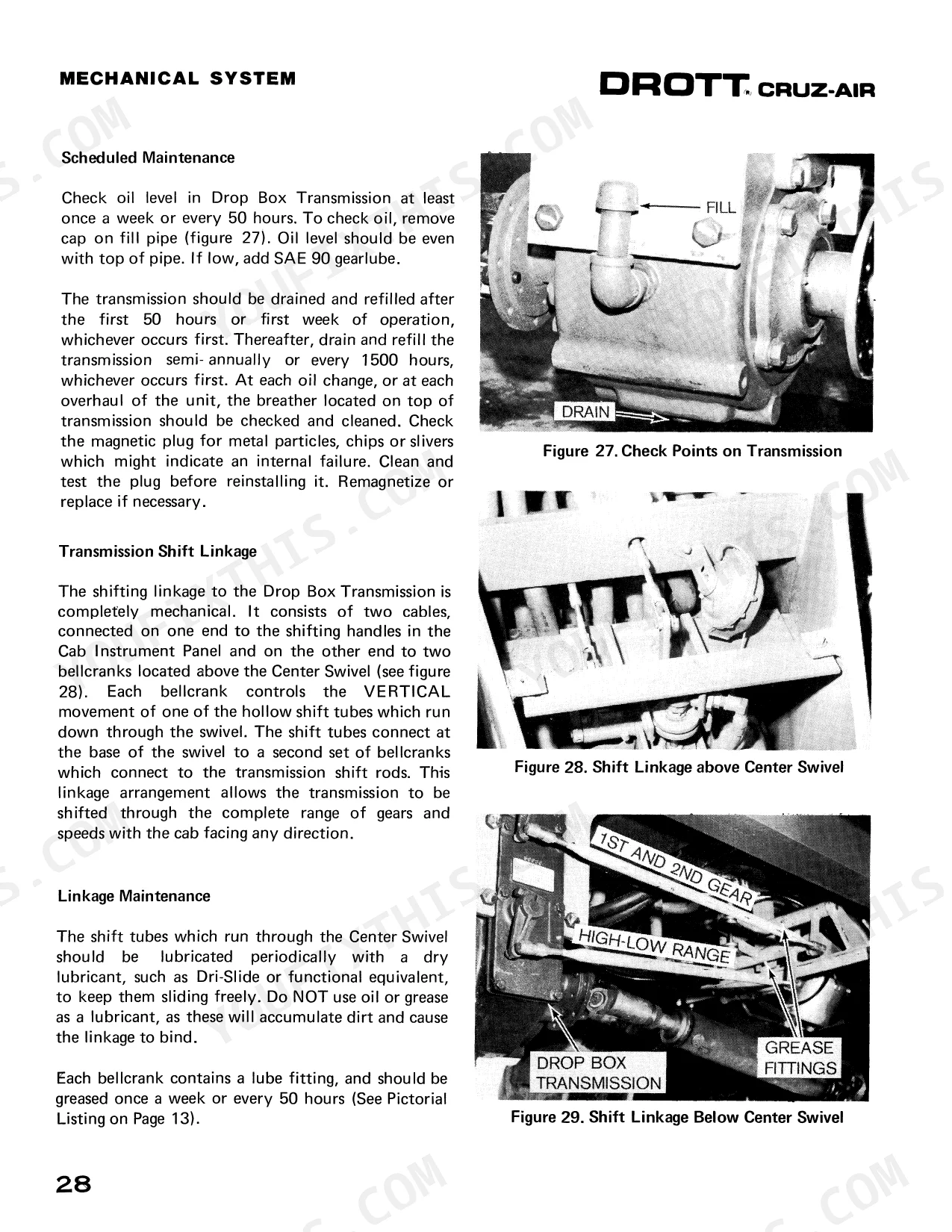

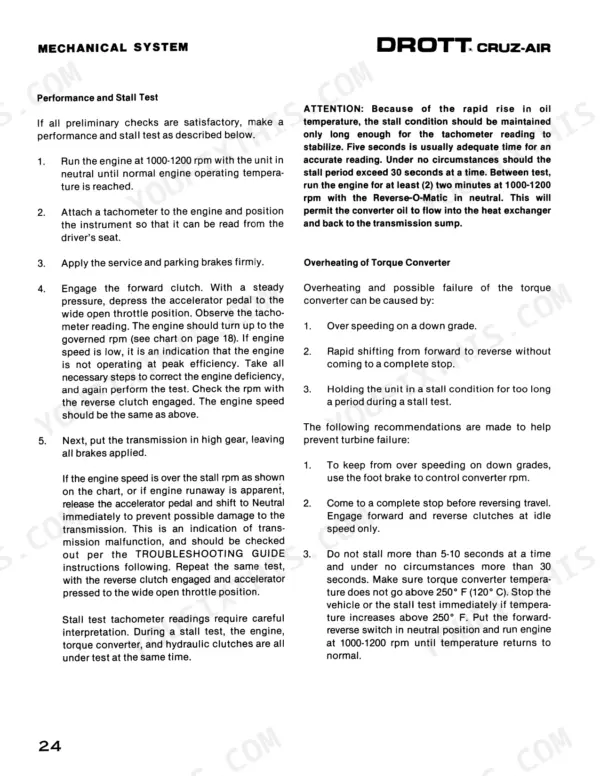

Case Drott 40 Cruz-Air Series D Wheel Excavator Service Manual (incl. Wiring)

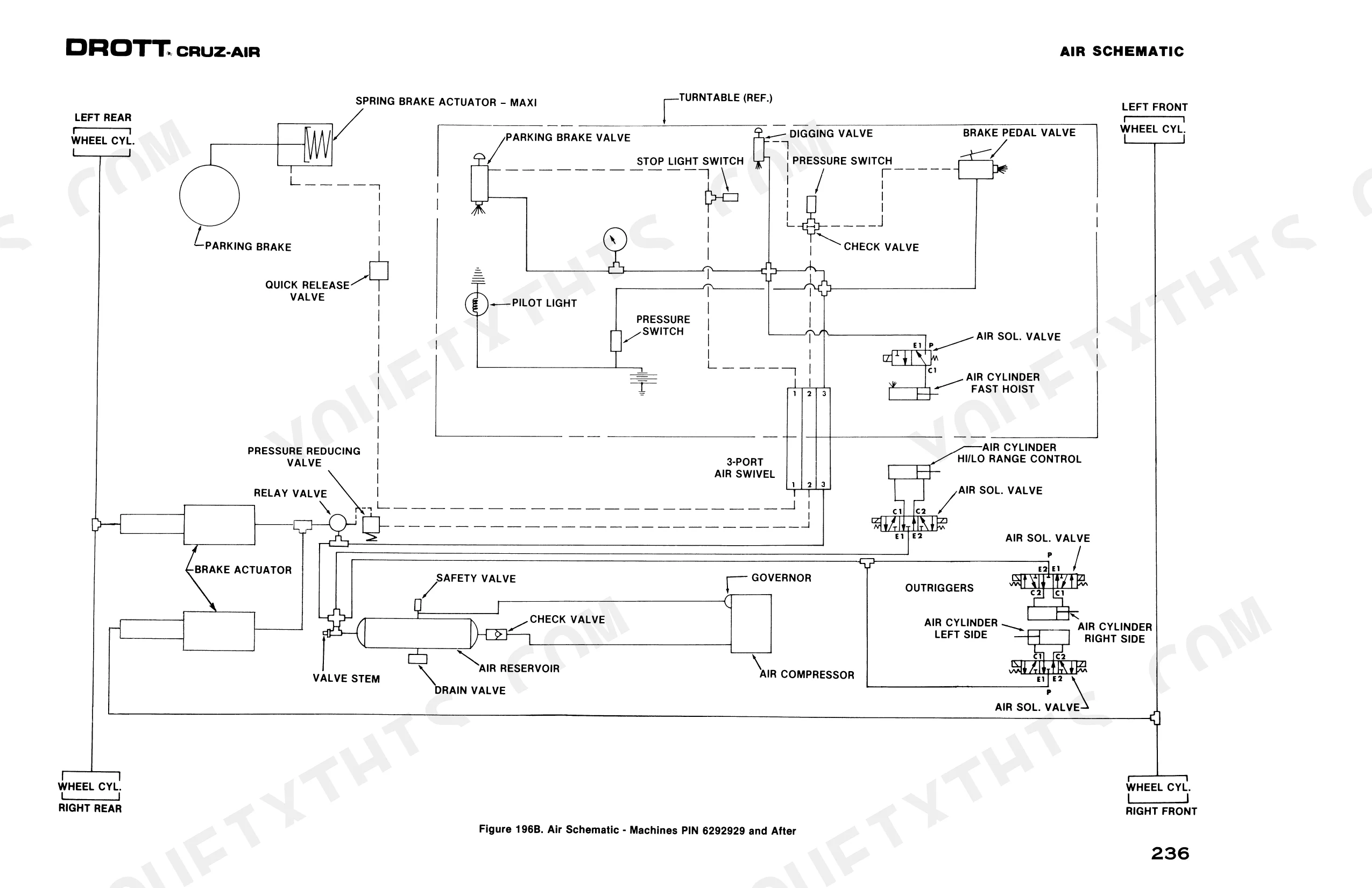

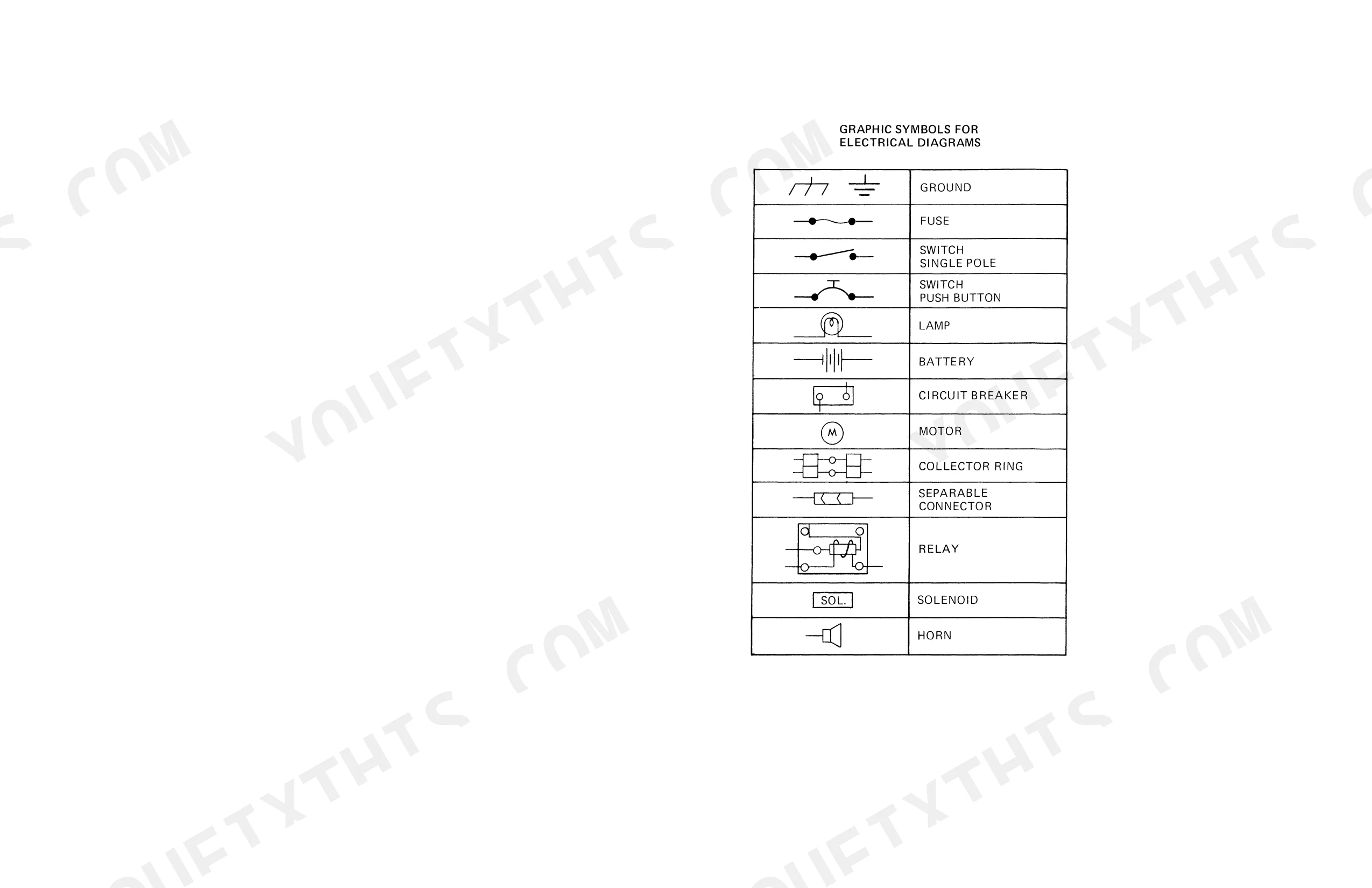

Check the control wiring harness for corrosion, chafed insulation, and loose connector pins before anything else. Inspect each circuit against the wiring diagram on page 237. Verify the circuit breakers — the system uses 10 AMP and 30 AMP breakers (page 153); press the reset button on any tripped breaker, then trace the overloaded circuit to find the underlying short before resetting again.

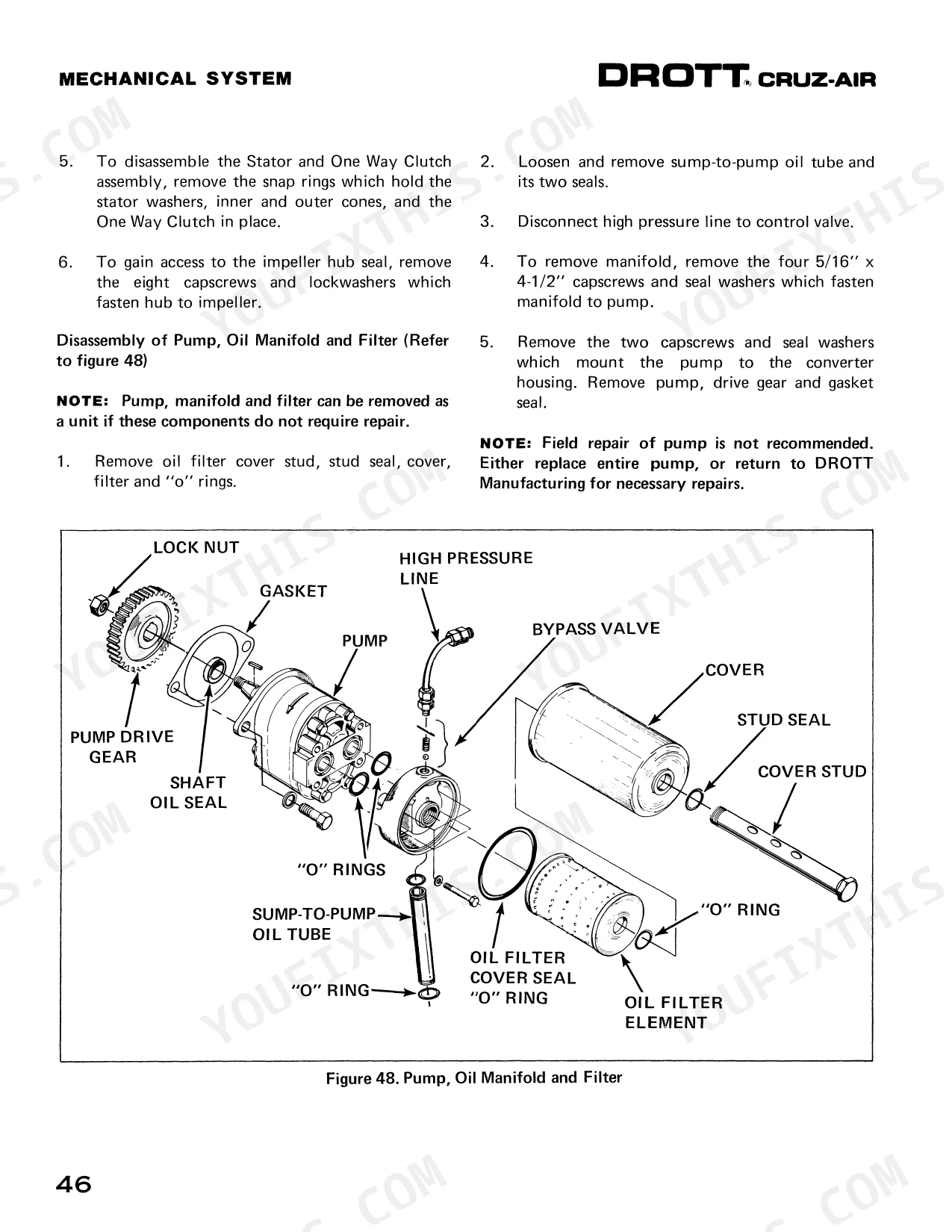

Run the engine at low RPM and cycle every hydraulic function — boom, crowd, swing, outriggers — slowly back and forth for 15 to 20 minutes to purge trapped air. The reservoir holds 18.7 gal. (70.8L); verify it is filled to the correct level with DROTT DHF fluid or approved alternate. Check the hydraulic filter center post torque — maximum 15 lb-ft (20 Nm) per page 180. If pump noise persists, measure output against spec: Pump No. 1 and No. 2 should each deliver 44 gpm (page 184).

Identify which breaker is opening by checking the circuit breaker panel — units are rated 10 AMP, 30 AMP, and 19A depending on the circuit. Press the reset button, then immediately operate the affected function while monitoring for heat or voltage drop. Do not tape over or bypass a breaker that keeps tripping. Trace the fault through the wiring schematic on page 237 to find the short or overloaded component before returning the machine to service.

Inspect the boom seal assembly for visible weeping or bypass. Refer to the cylinder circuit troubleshooting section starting — the diagnostic tree covers cylinders that fail to hold under load and cylinders that drop rapidly. Check hydraulic fluid for contamination or foam, which indicates air ingestion or water intrusion. If seals check out, verify that the holding valve or counterbalance valve spool is not sticking.

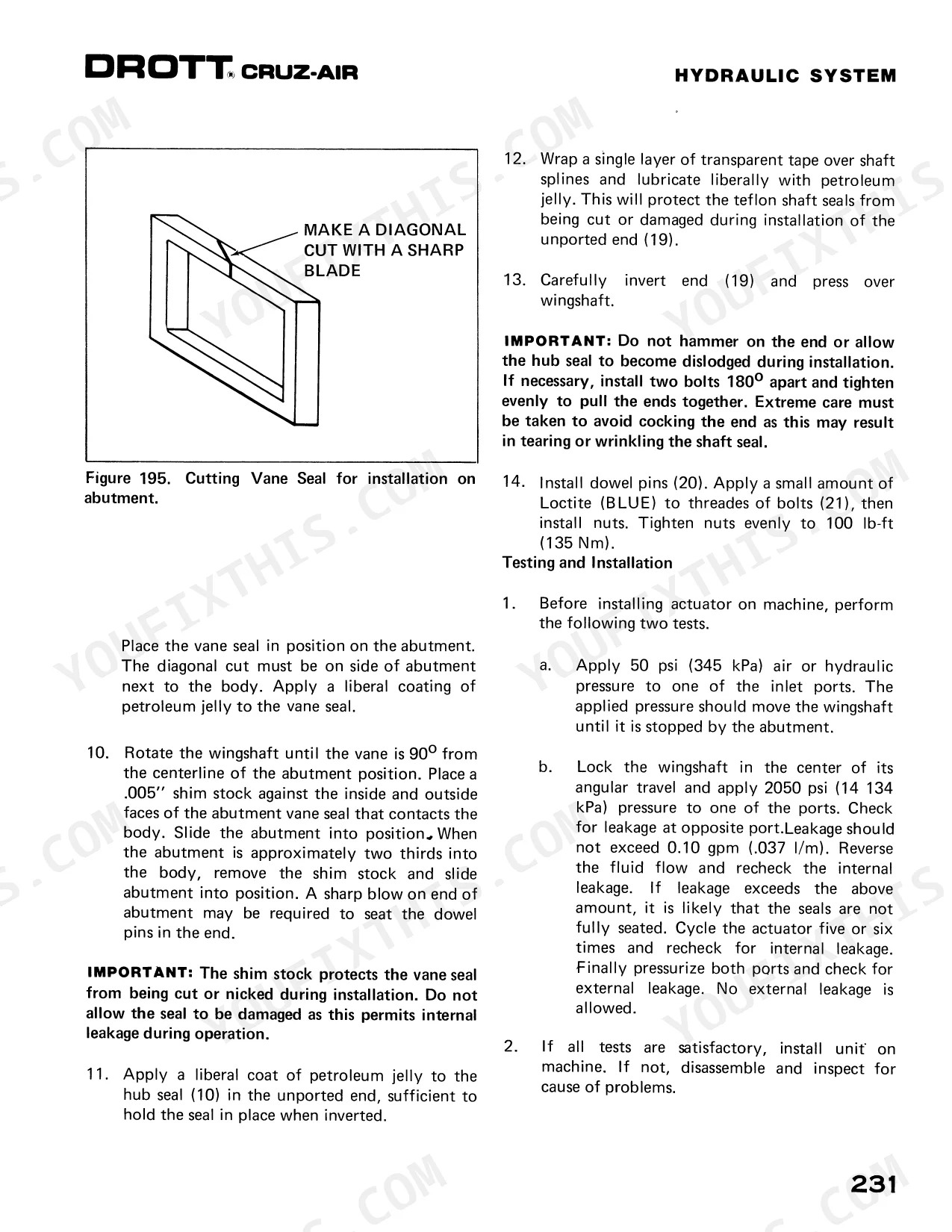

Check swing hydraulic pressure first — no swing and slow erratic swing have different root causes per . Verify that Pump No. 2, which feeds swing along with outriggers and crowd, is delivering 44 gpm (page 184). Inspect the swing control valve for a sticking spool; work the spool manually to confirm it strokes fully. If swing chatters, suspect cavitation from low fluid level or a restricted suction line.

Test battery state of charge before assuming a starter fault. Check the charging circuit troubleshooting procedures on page 159 — the diagnostic covers alternator failure, low charging rate, and run-down batteries. Inspect the alternator output and belt tension. Verify all ground straps are clean and tight; on machines this age, a corroded ground causes more no-start complaints than a failed starter. Engine crankcase capacity is 12 qts. (11.4L), add 2 qts. with filter — low oil pressure from an underfilled crankcase can prevent start via a safety lockout.
