Part of the Case Repair Manuals.
This Case factory service manual covers the Alpha Series Tier 4A SR220, SR250, SV250 and SV300 skid steers and the TR320 and TV380 track loaders, with both mechanical and EH controls.
It covers engine removal, EGR and DPF aftertreatment, the chain drive and the hydrostatic pump and drive motors. It also covers the loader valve, enhanced high flow, quick coupler, rubber tracks and cab climate. For the wiring there are schematic sheets, connector views and fault code tests.
A job usually stalls for want of one number: the relief setting, the track sag or how much oil goes back in. Print it, so the pages can go to the bench and get dirty.
What's Inside This Case SR220–TV380 Alpha Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction, Capacities and Identification | 1-42 | Safety Rules, Capacities and Fluids, PIN and Engine Serial Plate Locations |
| Engine [10] | 43-140 | Engine and Crankcase Removal and Installation, Mounting Torques |
| Fuel, Cooling and Exhaust Treatment | 141-180 | Fuel Tank, Aftercooler, Engine Cooling System, Fan Drive, EGR and DPF Exhaust Treatment |

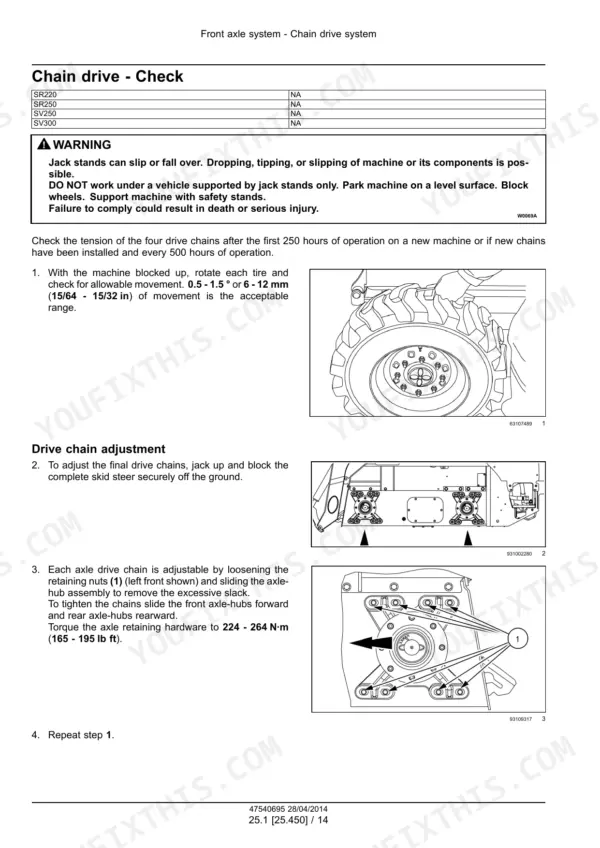

| Chain Drive Axles and Hydrostatic Transmission | 181-244 | Front and Rear Chain Drive, Drive Chain Check and Adjust, Hydrostatic Transmission, Two-Speed Valve, Mechanical Control |
| Hydrostatic Pump and Motors [29] | 245-404 | Pump and Motor Specifications, Pressure Tests, Removal, Disassembly and Assembly, Pump Troubleshooting |
| Parking Brake and Hydraulic Schematics | 405-458 | Parking Brake Valve, Hydraulic System Overview, Component Location, Hydraulic Schematic Frames |
| Loader Pump, Auxiliary Hydraulics and Relief Valves | 459-498 | Fixed Displacement Pump, Secondary Auxiliary Valve, Reservoir Drain and Fill, Main Relief Valve |
| Main Control Valve and High Flow Hydraulics | 499-550 | Main Control Valve Service, High Flow Valve and Pump, Multifunction Controls |
| Loader Arm, Bucket and Quick Coupler Hydraulics | 551-640 | Lift and Bucket Cylinders, Bucket Self-Leveling, Troubleshooting, Quick Coupler |
| Frames, Wheels and Tracks | 641-698 | Ballast, Wheels, Tire Pressure and Wheel Torque, Rubber Track Tension, Track Frame, Idlers and Rollers |

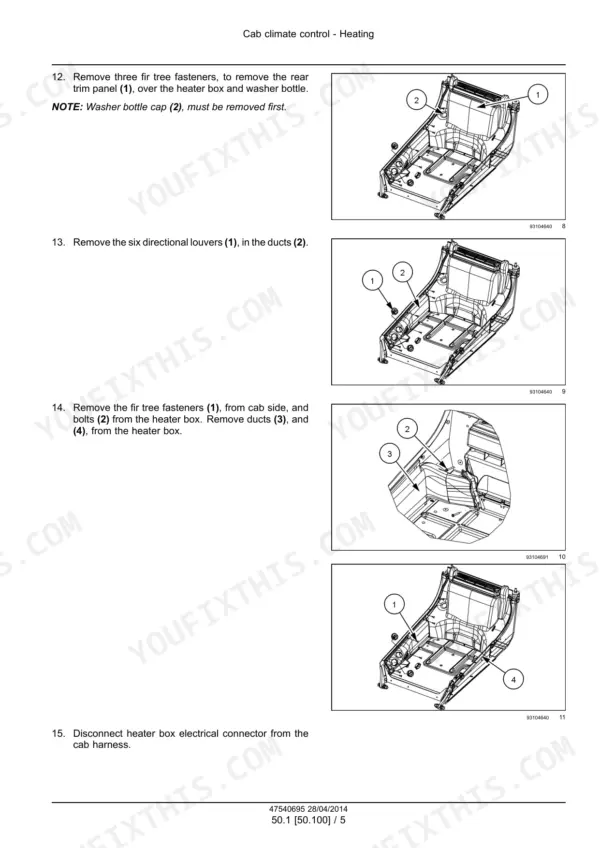

| Cab Climate Control [50] | 699-740 | Heater and Air Conditioning Service |

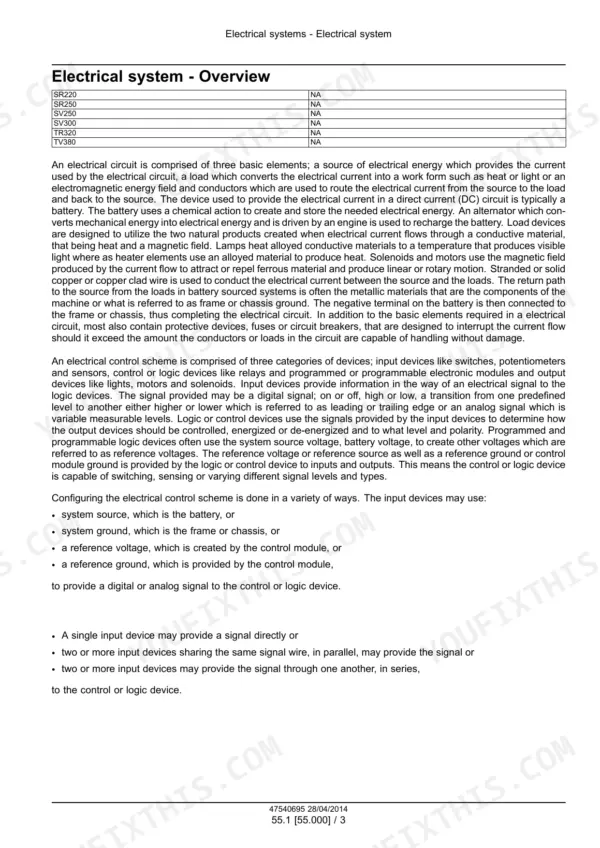

| Electrical Systems [55] | 741-815 | Electrical System Description, Engine and Hydrostatic Control Electrical Systems, Harness Contents |
| Wiring Schematics, Mechanical Units | 816-875 | Electrical Schematic Sheets for Mechanical Control Machines, Main Power Distribution, Ignition Charging System, Engine Power Distribution and Fuel Pump, Left Hand Control Handle, Aux Hydraulics, Boom Lock Valve |
| Wiring Schematics, EH Units | 876-949 | Electrical Schematic Sheets for Electro Hydraulic Machines, Main Power Distribution, Hydraulic Interlocks, Loader Valve and Sensors, Unit Control Module, Enhanced High Flow, 2nd Aux |

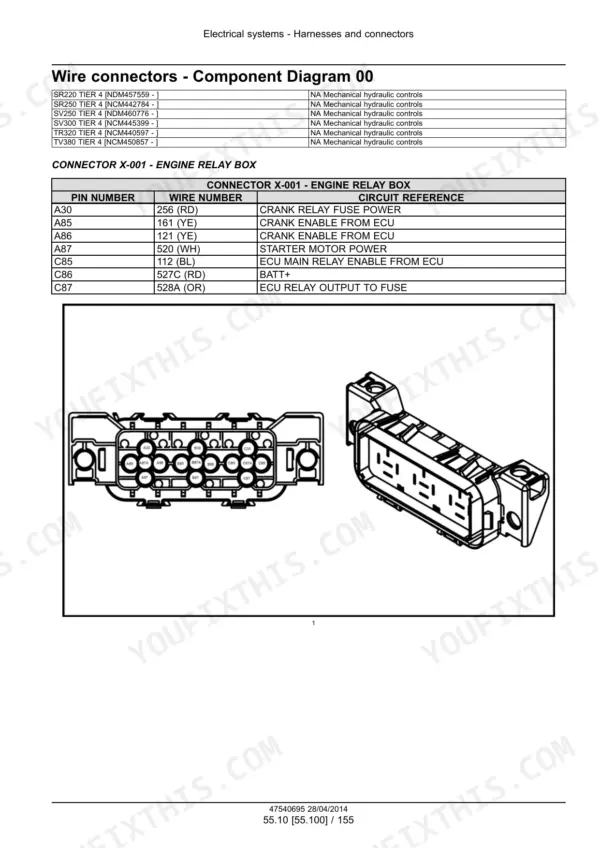

| Connectors, Mechanical Units | 950-1048 | Connector Location, Component Diagrams, Connectors, Grounds |

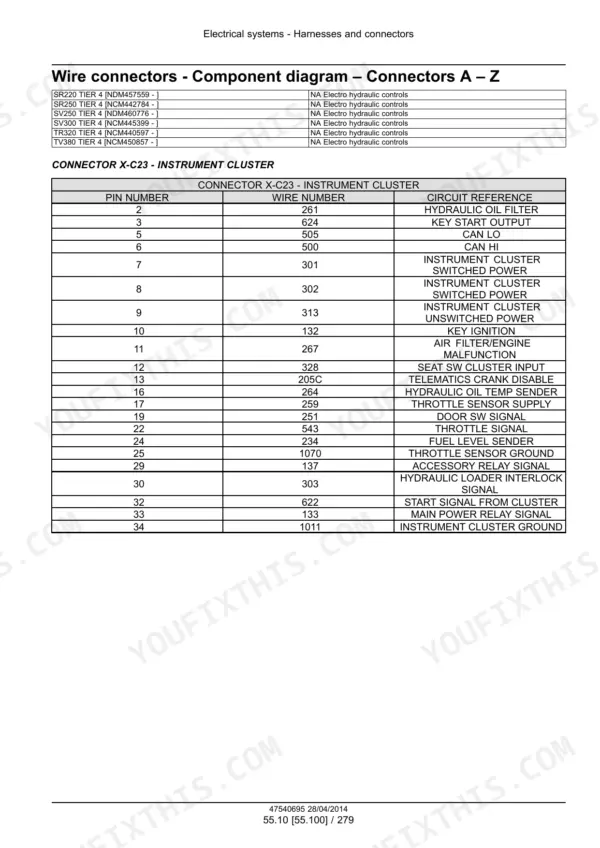

| Connectors, EH Units and Harness Repair | 1049-1148 | Component Diagrams for EH Units, Connectors, Grounds, Harness Repair and Replacement |

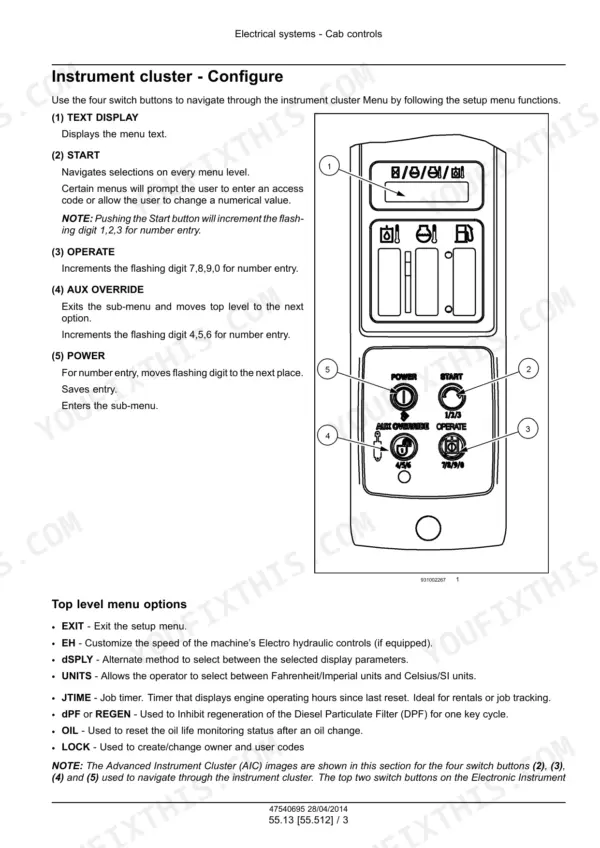

| Battery, Lighting and Cab Controls | 1149-1192 | Battery Service, Work Lights, Instrument Cluster Configuration, Throttle Control |
| Fault Codes [55.DTC], Machine Sensors | 1193-1359 | Fault Code Contents, Fuel Level Sensor, Backup Alarm and Other Machine Codes |
| Fault Codes [55.DTC], Engine Fuel and Air | 1360-1519 | Rail Pressure, Boost, Turbocharger, Air Filter Restriction |
| Fault Codes [55.DTC], Engine Monitoring and Aftertreatment | 1520-1719 | H-Bridge, LSU Heater, Level 2 Monitoring, Fuel Pressure Sensor, Lambda Calibration |
| Fault Codes [55.DTC], Machine Controller, Loader Valve and Memory | 1720-2022 | Park Brake Button, Thumbwheel and Other Machine Controller Faults, Loader Valve Solenoid and Spool Sensor Codes, Memory Errors, Fault Code Index |
| Front Loader and Bucket [82] | 2023-2064 | Loader Arm and Bucket Removal and Installation, Bucket Cutting Edge, Bucket Release Device, Quick Coupler |

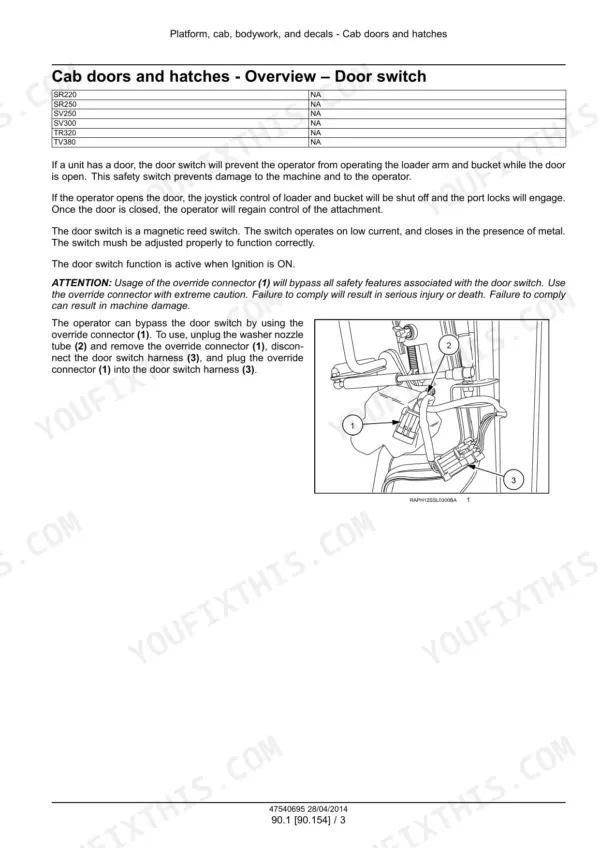

| Cab Doors and Special Tools [90] | 2065-2074 | Cab Doors and Hatches, Door Switch, Special Tool Index |
| Foldout Schematics | 2075-2091 | Full-Machine Electrical Schematics (EH and Mechanical) and Hydraulic Valve and Drive Drawings, Mechanical Valve Assembly, Mechanical Two Speed Track Drive, Electro-Hydraulic (EH) Valve Assembly, EH Two Speed Drive Assembly, Enhanced High Flow (EHF) Option Pump Assembly |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity (SR250, SV300, TR320, TV380) | 95.5 l (25.5 US gal) | p. 39 |
| Engine crankcase oil with filter (SR250, SV300, TR320, TV380) | 8.5 l (8.9 US qt) | p. 39 |
| Engine cooling system (SR250, SV300, TR320, TV380) | 19 l (5 US gal) | p. 39 |
| Hydraulic system capacity (SR250, SV300, TR320, TV380) | 45.4 l (12.0 US gal) | p. 39 |
| Chain compartment oil, each side (SR250, SV300) | 22.2 l (23.5 US qt) | p. 39 |
| Hydrostatic pump main relief, mechanical controls | 360 - 378 bar (5220 - 5481 psi) | p. 248 |
| Hydrostatic pump main relief, electro hydraulic controls | 350 - 370 bar (5075 - 5365 psi) | p. 249 |
| Drive motor displacement, single speed (SR220, SR250, SV250, SV300) | 470 cm³ (29 in³) | p. 250 |
| Drive motor displacement (TR320, TV380) | 33.1 - 50.8 cm³ (2.0 - 3.1 in³) | p. 251 |
| Loader gear pump flow | 92.3 l/min (24.4 US gpm) | p. 461 |
| Auxiliary flow at supply inlet | 87 l/min (23.0 US gpm) | p. 473 |
| Loader valve main relief setting | 207 - 217 bar (3000 - 3145 psi) | p. 491 |
| Enhanced high flow pump flow at 2500 RPM | 126 - 133 l/min (33 - 35 US gpm) | p. 529 |
| Tire pressure, XD2002 10x16.5 | 40 - 60 psi | p. 655 |
| Wheel taper nut torque | 169.5 N·m (125 lb ft) | p. 655 |
| Rubber track tension, center rollers to track (TR320, TV380) | 12 - 19 mm (0.47 - 0.75 in) | p. 670 |
Case SR220–TV380 Alpha Series Common Problems This Manual Covers
One side drive works correctly and the other does not
On an EH unit, run the EH pump electrical check and verify the calibration. Then confirm power to the interlock valve and check that it works. Check power to the brake valve and make sure both park brakes have released. Next, check the circuit relief valve setting on the bad side, then check charge pressure.
Manual Section: Hydrostatic drive - Pump and motor components - Troubleshooting p. 401Machine does not have enough power
On an EH unit, do the electrical check and calibration and check the interlock valve. If full throttle speed is OK but rated engine speed drops, look at the engine or fuel system. Otherwise check charge pressure. Then run the pump and motor pressure test to find out whether the pump or a drive motor has failed.
Manual Section: Hydrostatic drive - Pump and motor components - Troubleshooting p. 401Loaded bucket dumps or uncurls with the control valve in neutral
A leaking unloading spool causes this. Pull the spool and inspect it for damage. If the bucket drifts toward dump, there are three likely causes. The bucket cylinder packing may be bad, so repack the cylinder. The loader control valve ports may leak too much, so replace the valve. Or the unloading spool in the leveling valve may be stuck.
Manual Section: Front loader bucket hydraulic system - Troubleshooting p. 623Engine air filter restriction warning on the instrument cluster
The cluster is seeing the air filter restriction switch tripped. The cause could be a clogged filter, a signal wire shorted to ground, a bad switch or a bad cluster. Inspect the air filter first and replace it if needed. Then trace the switch wiring for a short to ground and test the switch itself.
Manual Section: Fault codes - Engine air filter restriction p. 1450Frequently Asked Questions
Which engine does each Case SR220, SR250, SV250, SV300, TR320 and TV380 have?
The SR220 and SV250 use engine F5HFL413H*A001. The SR250, SV300, TR320 and TV380 use the F5HFL413L*A001, as listed for North America. Read the engine serial plate before you order anything. The identification section shows where that plate and the PIN plate are. p. 2
How much engine oil does a Case SR250, SV300, TR320 or TV380 take, and which grade?
The SR250, SV300, TR320 and TV380 take 8.5 l (8.9 US qt) with a filter change. The oil called for is CASE AKCELA UNITEK NO. 1 SBL CJ-4. p. 39
How much hydraulic oil does a Case SR250, SV300, TR320 or TV380 hold?
On the SR250, SV300, TR320 and TV380 the reservoir holds 15.0 l (3.96 US gal) and the whole system holds 45.4 l (12.0 US gal). The fluid is CASE AKCELA ENGINE OIL 10W-30. p. 39
What is the loader valve main relief pressure and auxiliary flow on the Case SR220, SR250, SV250, SV300, TR320, TV380?
The loader valve main relief is set at 207 - 217 bar (3000 - 3145 psi). The secondary auxiliary valve gives 87 l/min (23.0 US gpm) at the supply inlet. On enhanced high flow machines the pump delivers 126 - 133 l/min (33 - 35 US gpm) at 2500 RPM. p. 491
How do I set rubber track tension on a TR320 or TV380?
Pump grease in at the adjuster until the gap between the bottom of the 2 center rollers and the top of the track is 12 - 19 mm (0.47 - 0.75 in). To slacken the track, open the grease valve. Then tighten the grease valve to 90 ± 10 Nm (66 ± 10 lb ft). p. 670
