Dual path hydrostatic drive is the system on a 2050M that gets expensive to guess at, and this manual covers it properly. You get the pump overview, pressure tests and settings, pump and motor removal, and straight tracking. Charge and port pressures are listed, so you test before you start swapping parts.
The rest of the dozer is in here too. That includes engine removal, fuel and cooling, SCR with DEF/AdBlue, the parking brake, blade and ripper hydraulics, and the undercarriage from track tension to final drives. Cab climate control, wiring schematic sheets, connector pin tables and fault codes for the engine, drive and SCR dosing are also covered.
Every day a dozer sits parked, you lose rental money or a bid. Print the sections you need and take them to the machine.
What's Inside This Case 2050M Manual

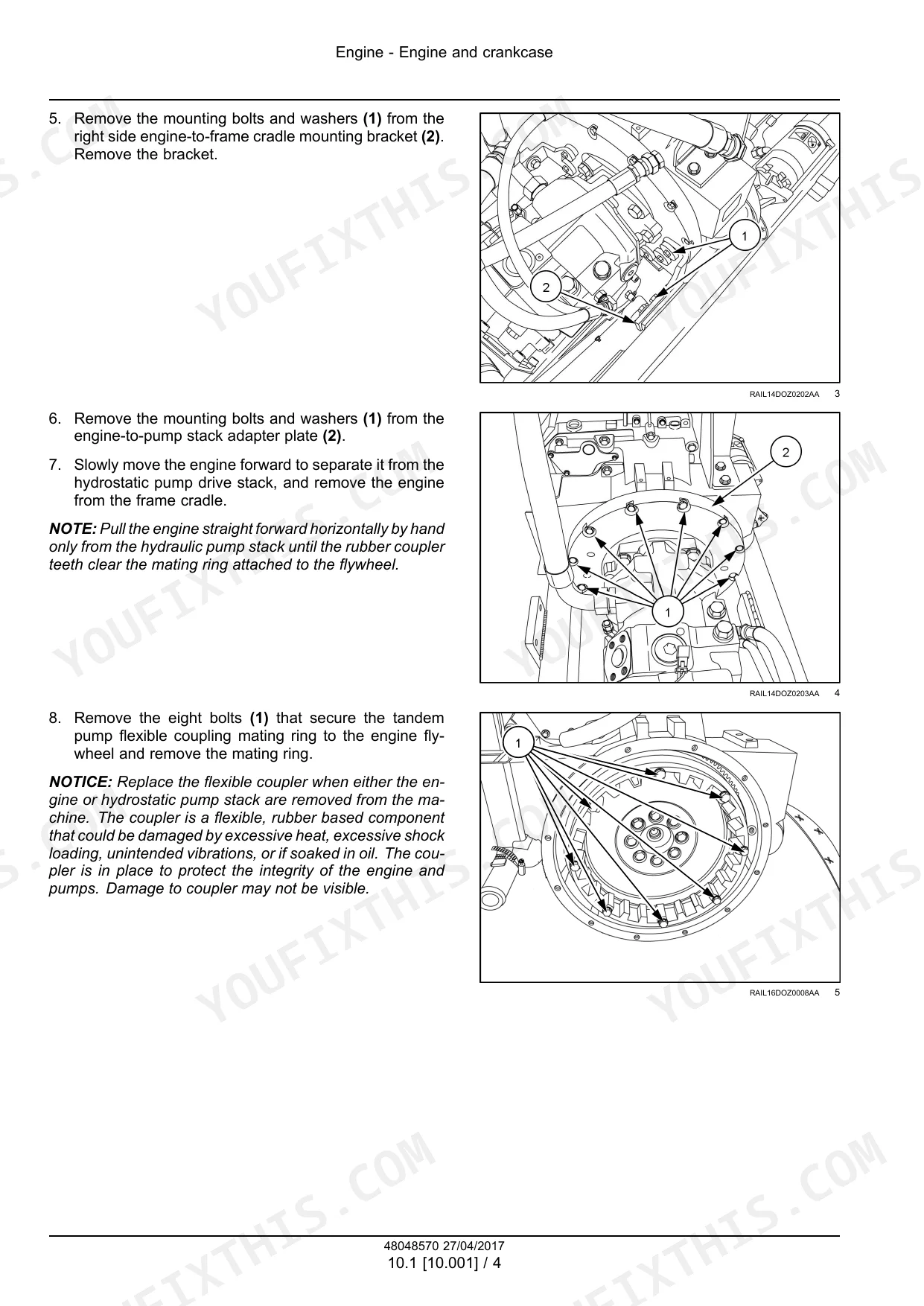

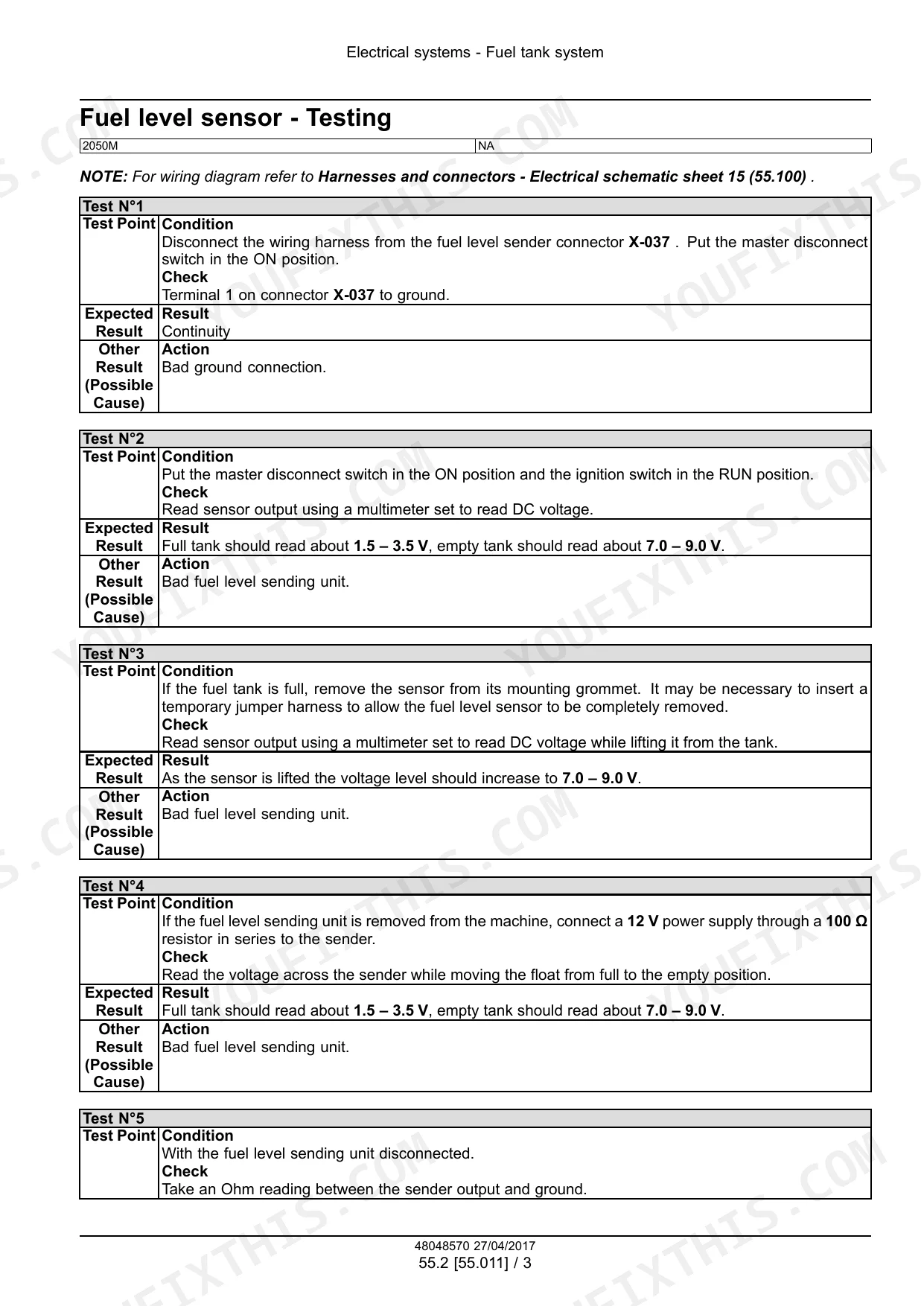

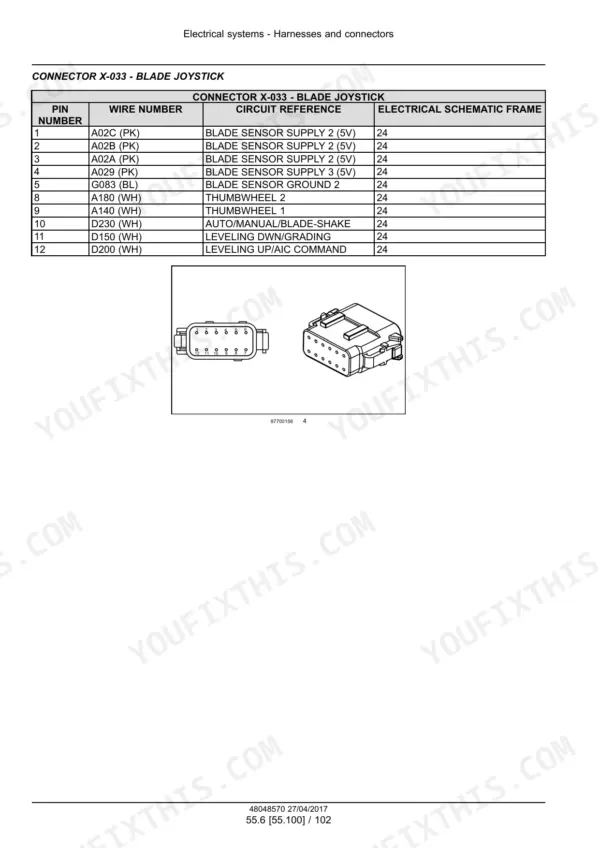

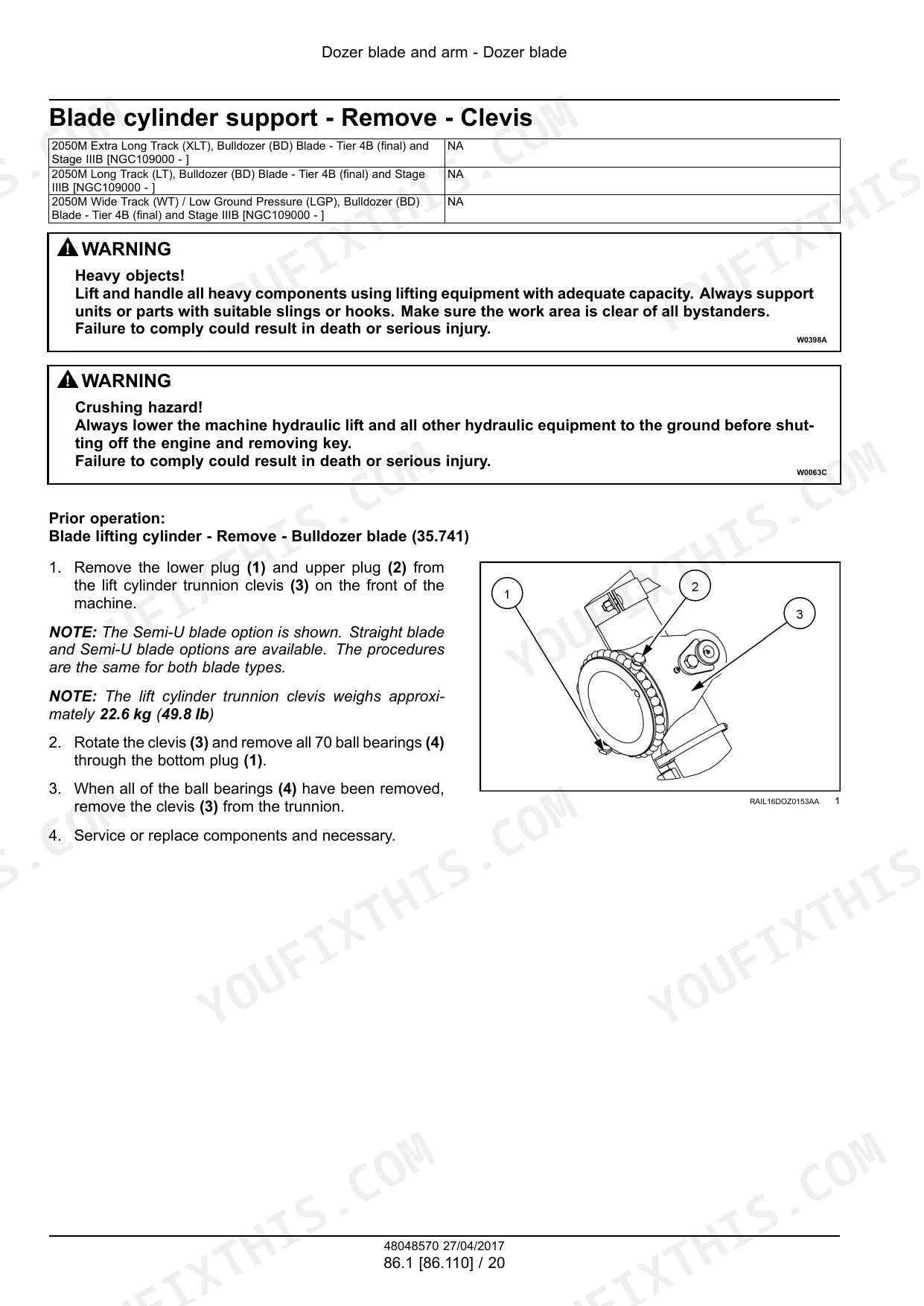

| System | Pages | Key Topics |
|---|---|---|
| Introduction, Capacities and Identification | 1-79 | Safety Rules, Maintenance Chart, Moving a Disabled Machine, Capacities and Fluids, General Specification, PIN and Serial Plate Locations |
| Engine [10] | 80-129 | Engine and Crankcase Removal and Installation, Fuel Tank, Fuel Filters, Air Cleaner, Turbocharger |
| Selective Catalytic Reduction Exhaust Treatment | 130-181 | DEF/AdBlue Tank, Supply Module, Dosing and Coolant Lines, Filters |
| Engine Cooling and Lubrication | 182-234 | Engine Cooling System, Fan and Drive, Aftercooler, Engine Lubrication and Oil Change |
| Hydrostatic Drive [29] | 235-290 | Hydrostatic Pump Overview, Pressure Tests and Settings, Pump and Motor Removal, Straight Tracking |
| Brakes and Hydraulic Reservoir | 291-339 | Parking Brake, Brake Release Solenoid Test, Hydraulic Reservoir, Filters, Breather, Drain and Fill |
| Hydraulic Pumps, Valves and Cylinders [35] | 340-446 | Hydraulic and Charge Pumps, Main Control Valve, Blade Lift, Tilt and Angle Cylinders, Hydraulic Schematic, Pressure Setting |
| Frames and Ballasting [39] | 447-494 | Frame and Ballast Removal and Installation |
| Track Frame and Track Chain [48] | 495-605 | Undercarriage Description and Wear, Track Frame, Track Chain, Shoe Bolt Torque, Track Tension Adjustment, Track Replacement |
| Idlers, Rollers and Final Drive | 606-660 | Track Tension Units and Recoil Spring, Track Rollers, Final Drive Oil Change |
| Cab Climate Control [50] | 661-748 | Heater Test, Ventilation Test, Air Conditioning Specification, Charge and Leak Test, Problem Solving |
| Electrical Systems [55] | 749-803 | Battery, Master Switch, Engine Speed Sensor, Engine Control and Starting Electrical Components |
| Wiring Schematics | 804-879 | Electrical Schematic Sheets with Legend Pages, Title Block and Index, Power Distribution and Charging |
| Connectors and Fuses | 880-1039 | Component Diagrams, Connector Pin Tables, Fuse Key |
| Switches, Sensors, Instruments and SCR Electrical | 1040-1149 | Switches and Sensors, Instrument Cluster Tests, SCR Sensors and Humidity Sensor |
| Fault Codes [55.DTC], Machine Controller | 1150-1286 | Fault Code Contents, Seat Switch, Speed Sensors, Controller Supply, CAN |
| Fault Codes [55.DTC], Engine Monitoring | 1287-1436 | Oil Pressure and Temperature, Battery Voltage, Injectors, Crank and Cam Sensors, Rail Pressure |
| Fault Codes [55.DTC], Engine Controller and Urea | 1437-1587 | Engine Controller Internal Faults, Supply Voltage, Urea Tank, SCR Monitoring, Catalyst Checks |
| Fault Codes [55.DTC], Drive Pumps and Joysticks | 1588-1736 | Drive Pump and Motor Solenoids, Park Brake Valve, Joysticks, Blade Solenoids |
| Fault Codes [55.DTC], Blade, Ripper and Winch | 1737-1920 | Blade, Ripper and Winch Solenoids, Thumbwheels, Implement and Leveling Switches, CAN Timeouts |
| Fault Codes [55.DTC], SCR Dosing and Index | 1921-2060 | SCR Dosing Control Unit Faults, Empty Urea Tank, Fault Code Index |
| Dozer Blade and Ripper [86, 89] | 2061-2153 | Dozer Blade Removal and Installation, Pushbeams and Struts, Pitch Link, Ripper Assembly |

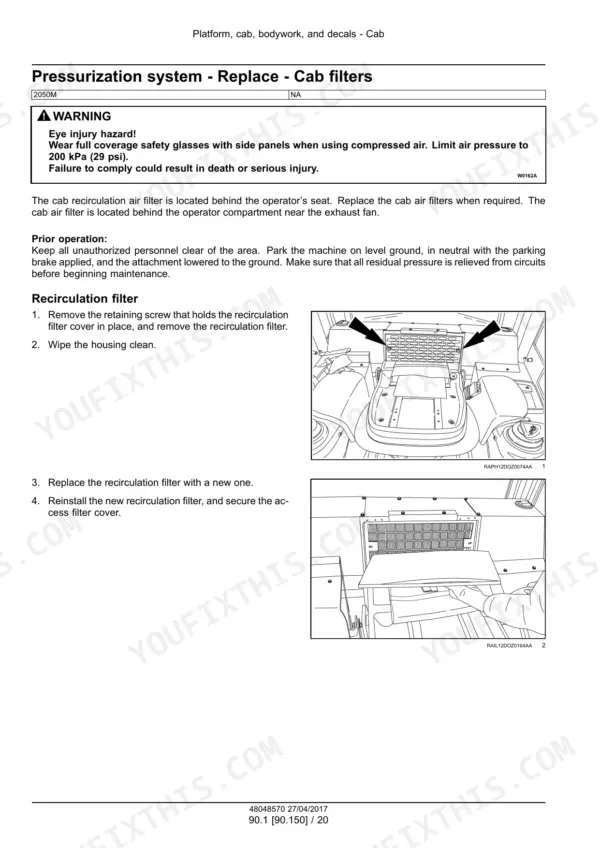

| Cab, Bodywork and Foldout Schematics [90] | 2154-2228 | Cab Removal and Installation, Operator Seat, Engine Hood and Panels, Special Tool Index, Foldout Electrical and Hydraulic Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine model | F4HFE613J*A017, turbo charged, 6 cylinders | p. 73 |
| Engine displacement | 6.7 l (409 in³) | p. 73 |
| Rated gross power at 2200 RPM | 173 kW (235 Hp) | p. 73 |
| Rated net power at 2200 RPM | 160 kW (218 Hp) | p. 73 |
| Maximum peak torque, net, at 1500 RPM | 1004 N·m (741 lb ft) | p. 73 |
| Travel speed, forward and reverse | 0.0 - 9.8 km/h (0.0 - 6.1 mph) | p. 73 |
| Fuel tank capacity | 405 L (107 US gal) | p. 70 |
| DEF / AdBlue tank capacity | 52 L (14 US gal) | p. 70 |
| Engine crankcase oil with filter change | 16.4 L (17.3 US qt) | p. 70 |
| Engine cooling system capacity | 38.0 L (10.0 US gal) | p. 70 |
| Final drive oil, each side | 25.0 L (26.4 US qt) | p. 70 |
| Hydrostatic charge pump pressure, left track | 32 bar (464 psi) | p. 261 |
| Hydrostatic pump port pressure, forward and reverse | 480 bar (6960 psi) | p. 261 |
| Load sense relief valve pressure | 246.5 - 253.5 bar (3574.2 - 3675.8 psi) | p. 424 |
| Blade tilt, lift and angle circuit relief valves | 280 bar (4060 psi) | p. 424 |
| Track tension, total sag (front + middle + rear) | 44.50 - 58.00 mm (1.75 - 2.25 in) | p. 570 |
| Track shoe bolt torque, Salt HD standard link | 491 N·m (362 lb ft) | p. 567 |
Case 2050M Common Problems This Manual Covers

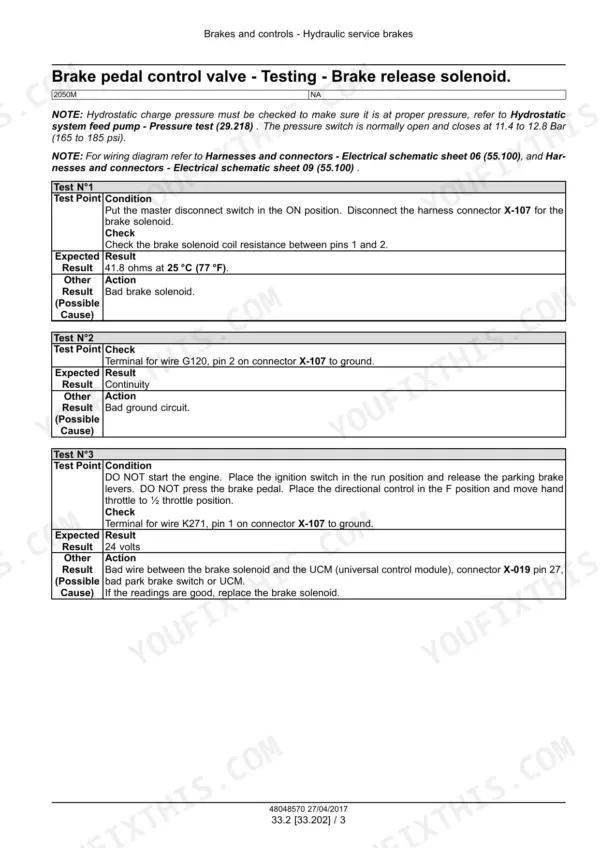

Parking brake will not release

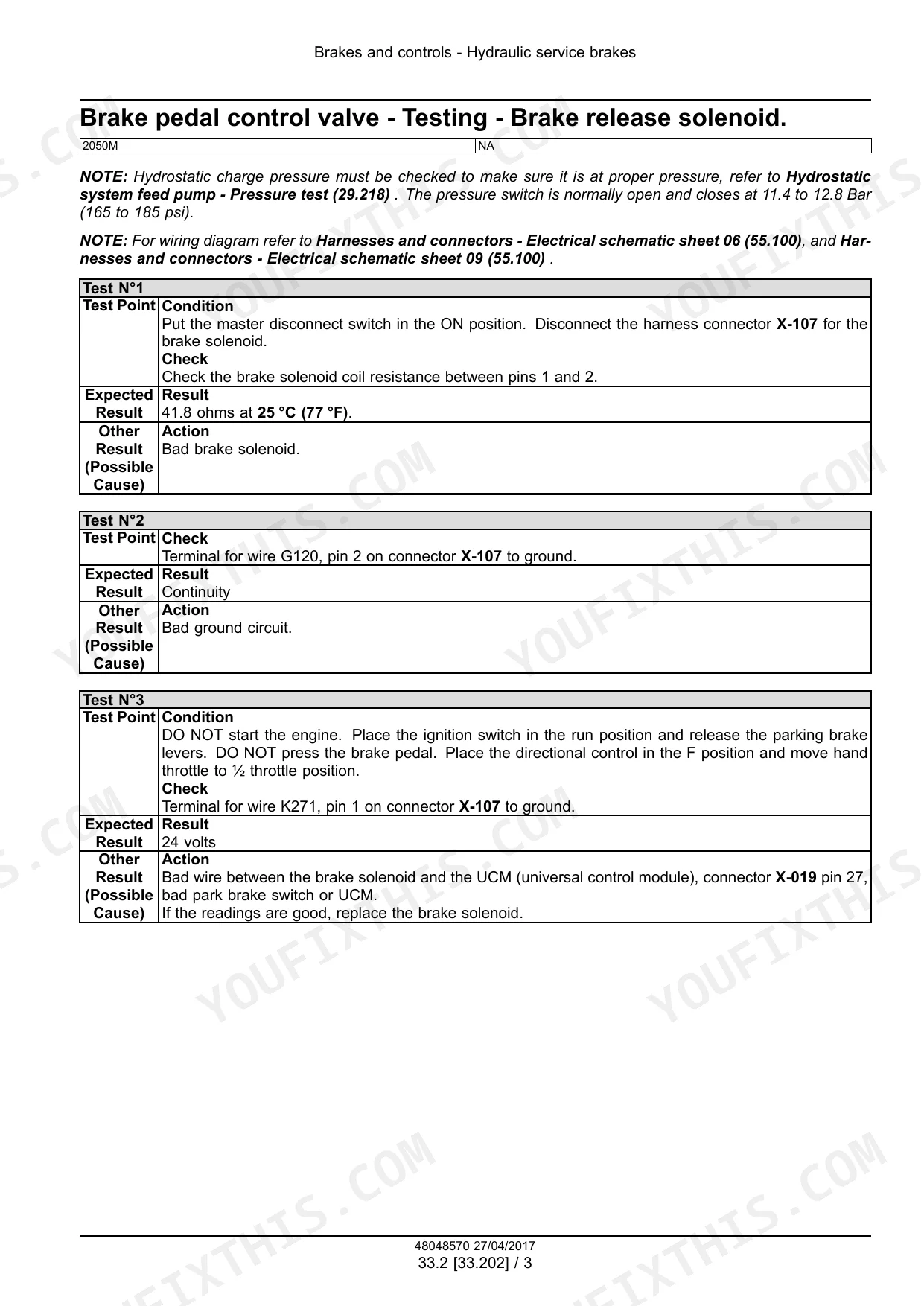

Start with hydrostatic charge pressure, because the pressure switch only closes at 11.4 to 12.8 Bar (165 to 185 psi). Then measure the brake solenoid coil between pins 1 and 2. It should read 41.8 ohms at 25 °C (77 °F). Check the ground circuit and look for 24 volts on the solenoid supply wire. If all of that checks out, replace the solenoid.
Manual Section: Brakes and controls - Brake pedal control valve - Testing - Brake release solenoid p. 300Ground drive stuck in limp home mode from the seat switch circuit
An open or short in the seat switch circuit puts the drive into limp home. Check the seat switch wiring for an open or short first, then the switch itself, then the controller. To reset it, sit in the seat, turn the ignition OFF, and cycle the parking brake from engaged to disengaged.
Manual Section: Fault codes - Seat switch p. 1164Engine oil pressure too low warning
Work through the causes in the manual's order. Check the engine oil level first, then the engine lubrication system, then the electrical wiring. After that, test the oil temperature / pressure sensor. Leave the engine controller, its supply voltages and grounds for last.

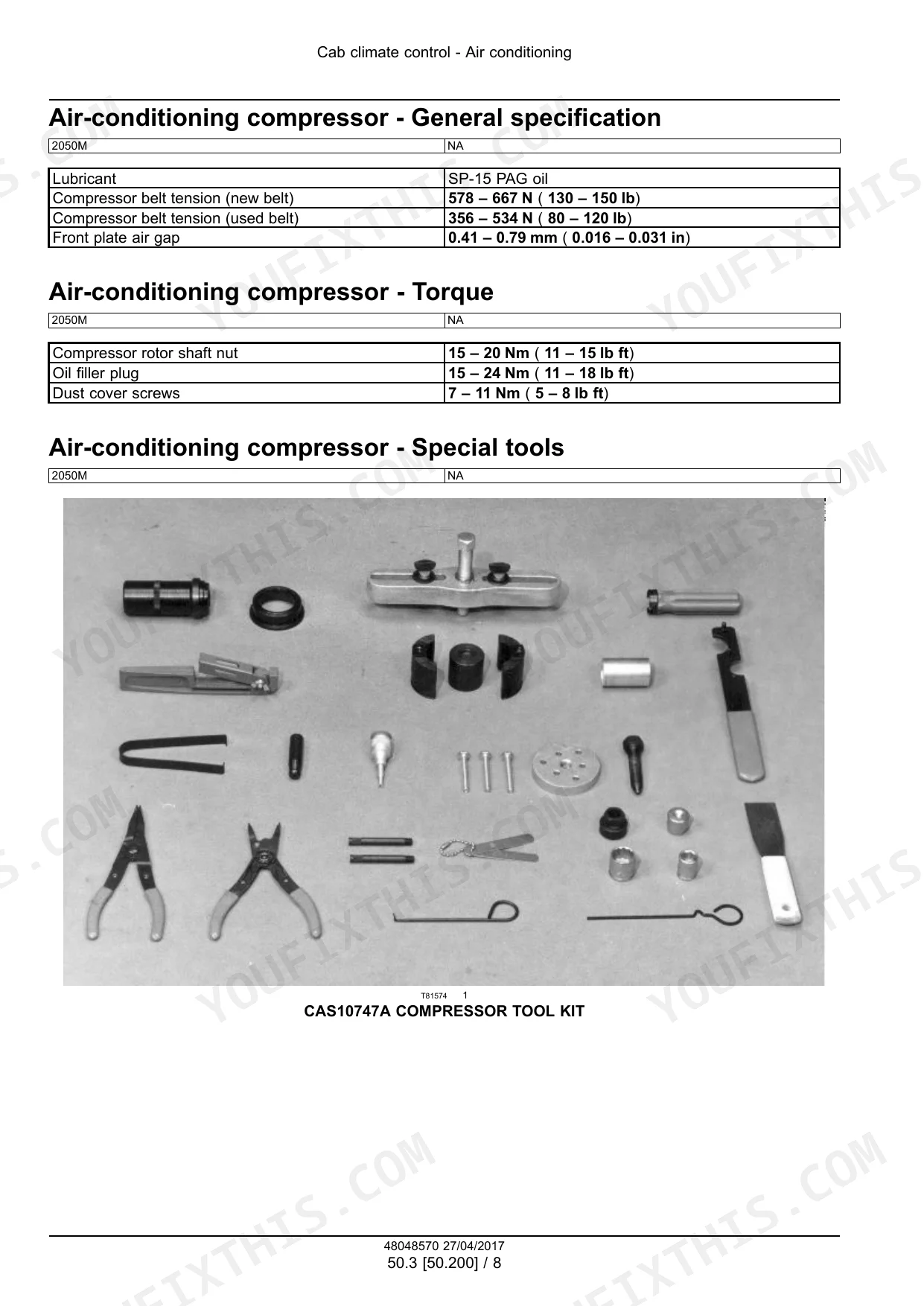

Manual Section: Fault codes - Oil pressure too low p. 1289Air conditioning compressor belt loose or slipping
Set a new belt to 422 to 516 N (95 to 115 lbs). After ten minutes of run-in, reset it to 400 to 489 N (90 to 110 lbs). Replace a worn belt, and tighten or replace any loose or cracked brackets. A seized compressor will also make the belt slip, so check that too. Clutch air gap should be 0.41 to 0.79 mm (0.016 to 0.031 inch).
Manual Section: Air conditioning compressor - Problem solving p. 742Frequently Asked Questions
What engine does the Case 2050M have and how much power does it make?
The 2050M runs the F4HFE613J*A017, a turbocharged, water cooled six cylinder of 6.7 l (409 in³). At 2200 RPM it makes 173 kW (235 Hp) gross and 160 kW (218 Hp) net. Maximum net peak torque is 1004 N·m (741 lb ft) at 1500 RPM. p. 73
How much fuel, DEF, engine oil and coolant does the Case 2050M hold?
The fuel tank holds 405 L (107 US gal) of diesel to ASTM D975 grade No. 2. The DEF/AdBlue tank holds 52 L (14 US gal). An engine oil change with filter takes 16.4 L (17.3 US qt) of CASE AKCELA UNITEK NO. 1 SBL CJ-4 SAE 10W-40. The cooling system holds 38.0 L (10.0 US gal) of 50% water and 50% coolant. Each final drive takes 25.0 L (26.4 US qt). p. 70
How tight should the tracks be on a Case 2050M?
Park on level ground and stop with a pin over the front carrier roller. Lay a straightedge along the track and measure the sag to the grouser at the front, middle and rear. Those three added together should come to 44.50 to 58.00 mm (1.75 to 2.25 in). Pump grease into the adjuster fitting to tighten the track. To slacken it, loosen the ball check, then torque the ball check back to 49 to 68 N·m (36 to 50 lb ft). p. 570
When do the oil, filters and valve clearance need service on a Case 2050M?
The maintenance chart puts engine oil, the oil filter and the fuel filter at every 500 hours. Final drive oil comes every 1000 hours. Engine valve clearance and the drive belt are due every 1500 hours, and engine coolant every 2000 hours. p. 48
What hydrostatic pressures should a Case 2050M show when testing the drive?
Test with the oil at 49 to 63 °C (120 to 145 °F) and the engine at 2000 rpm. Charge pressure should read 32 bar (464 psi) on the left track and 39 bar (566 psi) on the right. Each forward and reverse pump port should hit 480 bar (6960 psi). Travel speed is infinitely variable from 0.0 to 9.8 km/h (0.0 to 6.1 mph) in both directions. p. 261
