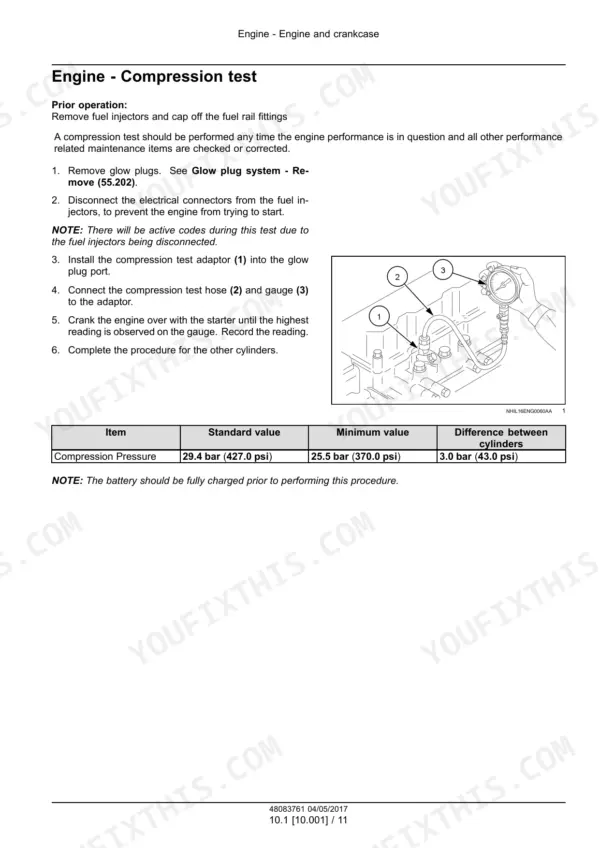

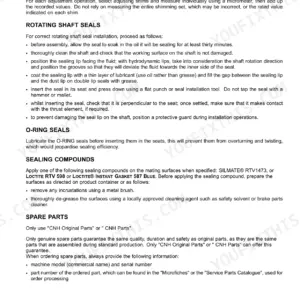

Pick up the Cnh Industrial L3 Series Service Manual PDF (OEM #48083761) and you get 309 pages of factory-level coverage for the L3C19 engine in all five Tier variants: T1, T2, T3, T4, and T5. Inside: complete engine teardown and rebuild procedures from crankcase to flywheel, cylinder head and valve drive sequences, turbocharger and EGR exhaust treatment, and wiring diagrams covering the full electrical control system including cold start aid and EGR electrical circuits. Exploded views walk you through every major assembly, and the specs section backs every procedure with clearances, torque tables, and test values you can verify on the bench. Set top ring-to-groove clearance between 0.0600 and 0.1000 mm, torque the injector hold-down bolts to 38 N·m, and confirm injection pressure holds at 1800 bar before the fuel system goes back together. Your engine is apart. Bookmarked and searchable; open any device, jump straight to the section, and get the number right the first time.
What's Inside This CNH L3C19-T1–T5 series Manual

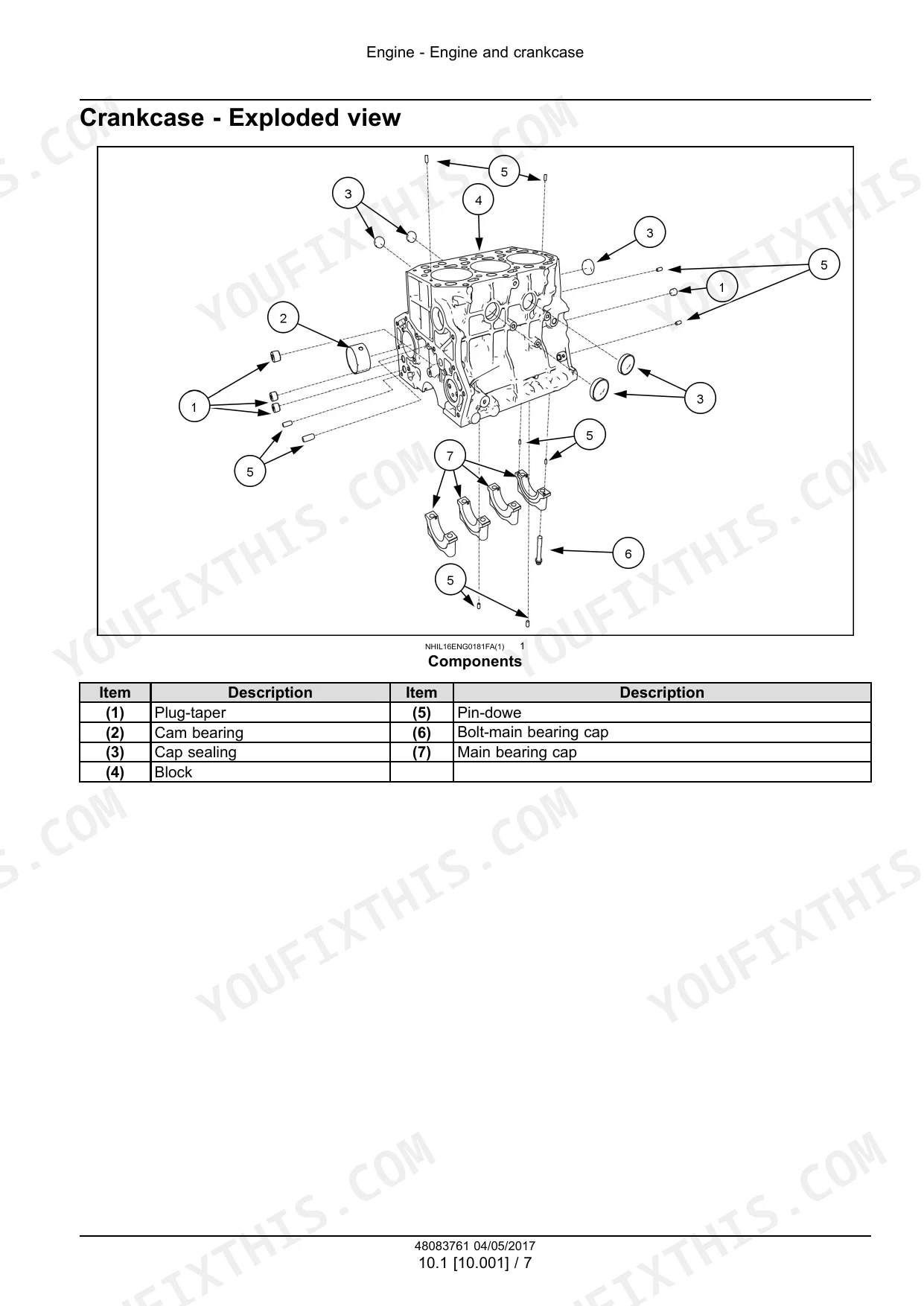

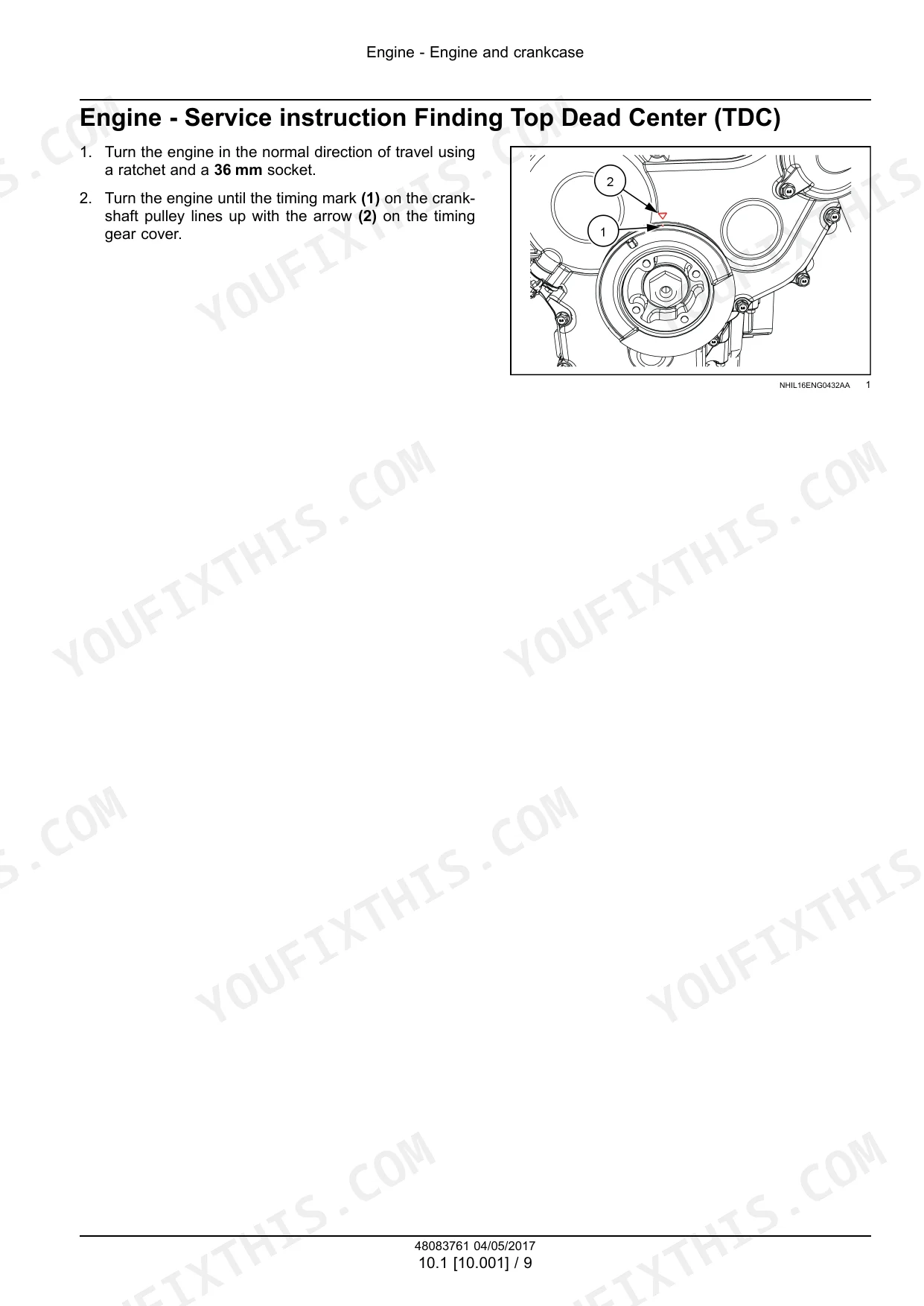

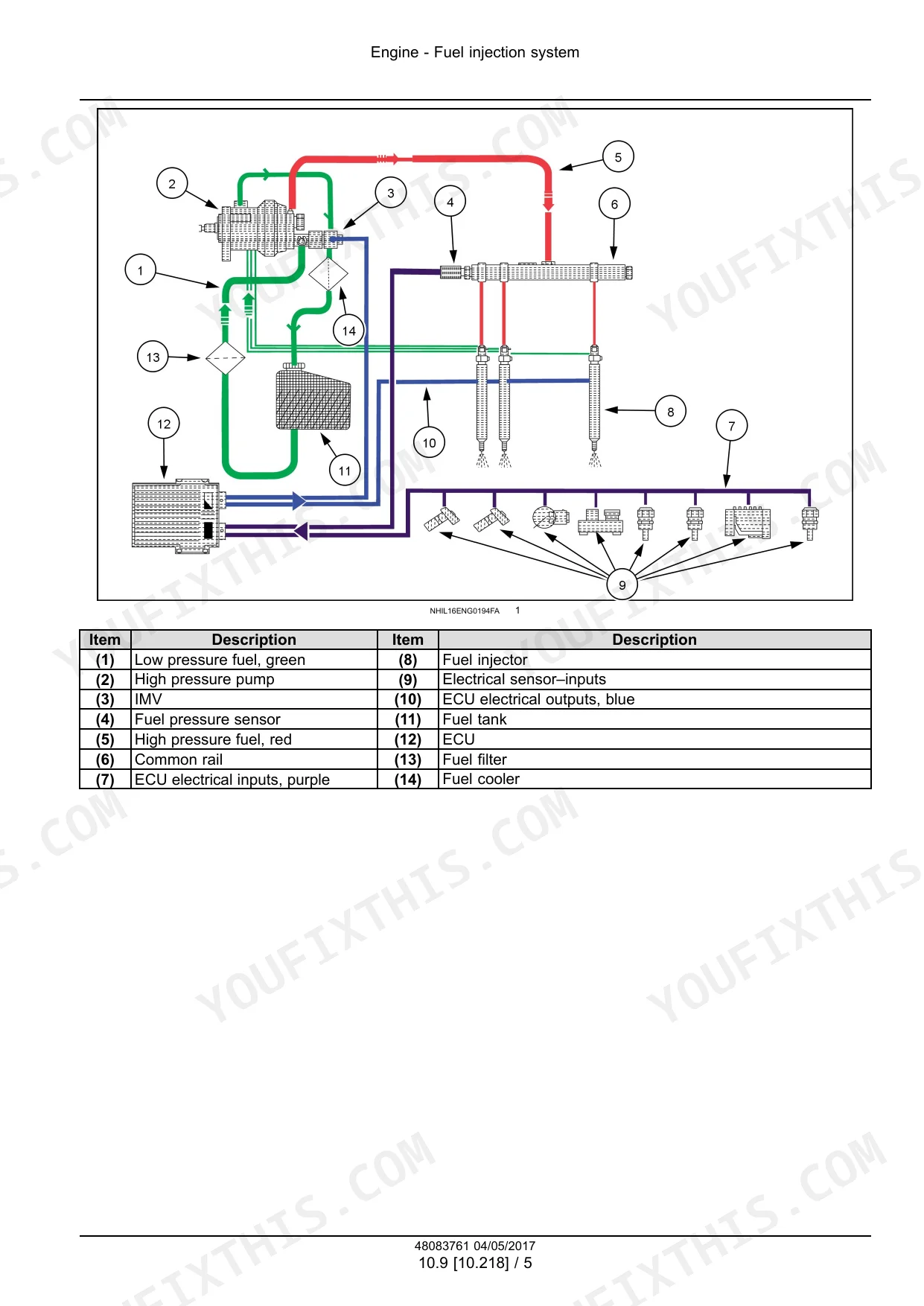

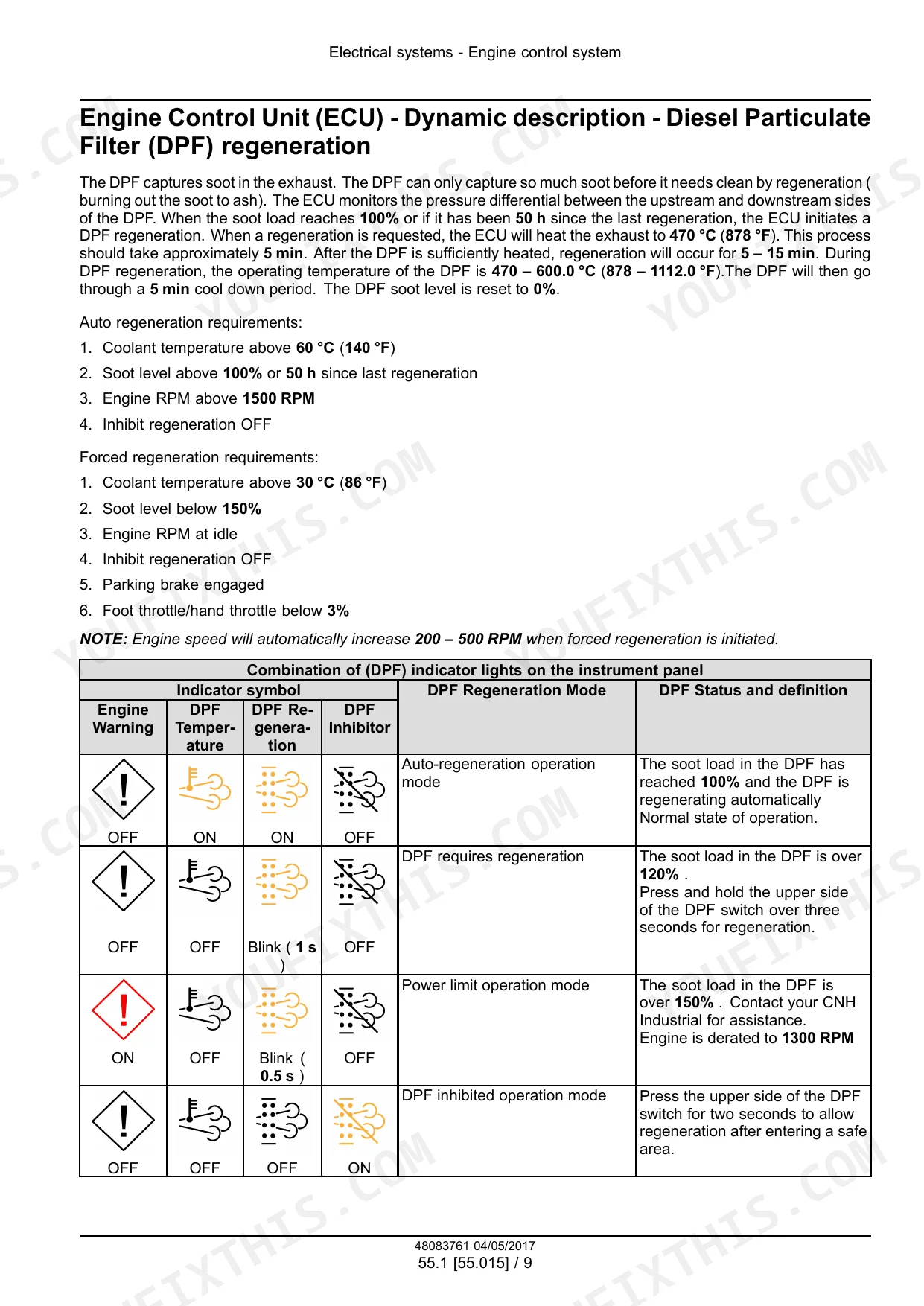

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-16 | Foreword, Safety Rules, Torque Specifications, Basic Shop Instructions |
| Engine Mechanical | 17-97 | Engine and Crankcase, Pan and Covers, Valve Drive and Gears, Cylinder Heads, Connecting Rods and Pistons |
| Engine Drivetrain, Fuel and Air Systems | 98-177 | Crankshaft and Flywheel, Pump Drives, Fuel Filters, Fuel Injection System, Air Cleaners and Lines, Turbocharger and Lines |
| Engine EGR, Cooling and Lubrication | 178-240 | Intake and Exhaust Manifolds, Exhaust Gas Recirculation (EGR) Treatment, Engine Cooling System, Engine Lubrication System, Oil Cooler and Lines |
| Electrical Systems - 55 | 241-307 | Engine Control System, Cold Start Aid, Fuel Injection System, Engine Intake and Exhaust System, EGR Electrical System, Engine Cooling System, Engine Oil System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

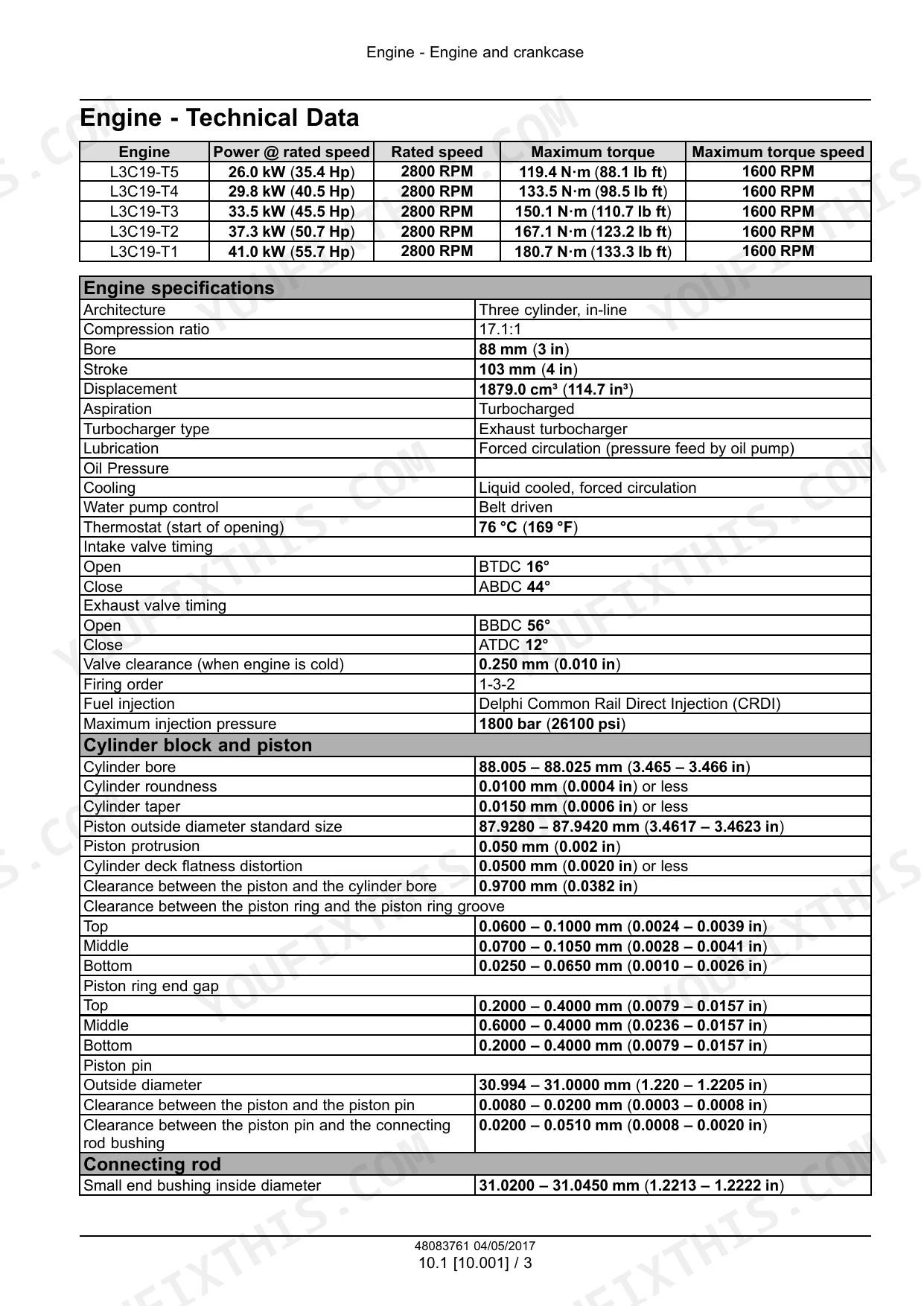

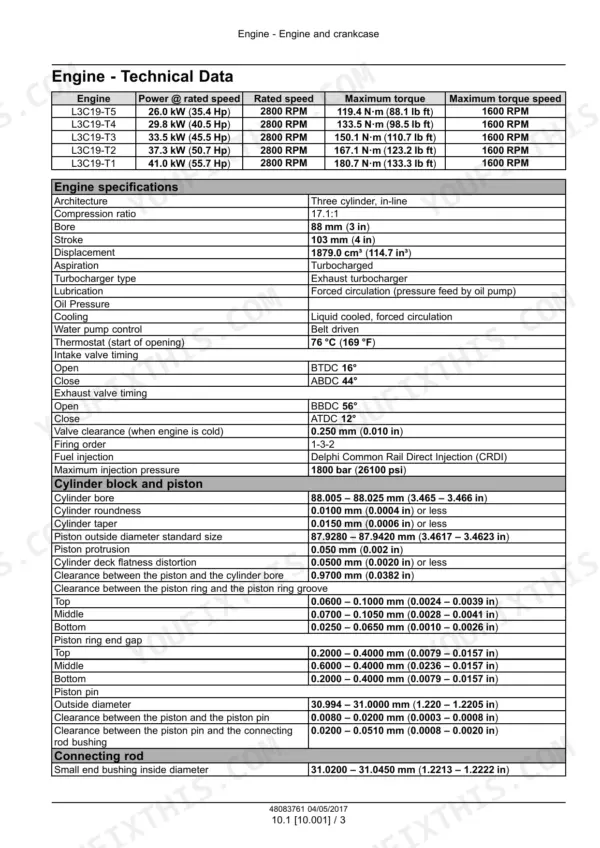

| Clearance between the piston ring and the piston ring groove - Top | 0.0600 – 0.1000 mm (0.0024 – 0.0039 in) | p. 22 |
| Clearance between the piston ring and the piston ring groove - Middle | 0.0700 – 0.1050 mm (0.0028 – 0.0041 in) | p. 22 |
| Maximum injection pressure | 1800 bar (26100 psi) | p. 22 |
| Fuel injector hold down bolts torque | 38 N·m (28 lb ft) | p. 155 |
| EGR valve actuator tightening torque | 4.9 – 6.9 N·m (3.6 – 5.1 lb ft) | p. 286 |
| EGR valve mounting bolts torque | 10 N·m (89 lb in) | p. 200 |
| Crankshaft sensor tightening torque | 4.9 – 5.9 N·m (3.6 – 4.4 lb ft) | p. 245 |
| Crankshaft sensor air gap | 0.4 – 1 mm (0.016 – 0.039 in) | p. 245 |
| Water pump mounting bolts torque | 20 N·m (15 lb ft) | p. 215 |
| Thermostat opening temperature - Start to open | 77 °C (171 °F) | p. 217 |
| Thermostat opening temperature - Fully open | 90 °C (194 °F) | p. 217 |
| L3C19-T5 Power @ rated speed | 26.0 kW (35.4 Hp) | p. 22 |
CNH L3C19-T1–T5 series Common Problems This Manual Covers
CNH Industrial L3C19 engine coolant mixing with oil, milky residue on dipstick after 3000 hours p. 93
Pull the dipstick and check for milky or foamy oil — this confirms coolant intrusion. Remove the pistons and measure ring-to-groove clearance; allowable limit for all three rings is 0.150 mm (0.006 in) at the landing. Check top ring end clearance against the 1.500 mm (0.059 in) limit. Inspect the cylinder head for cracks and warped gasket surfaces. Replace any rings or head gasket that fail measurement.
Manual Section: Connecting Rods and PistonsSudden engine shutdown under load, no restart, fuel system suspected p. 156
Check the fuel-water separator for contamination first — bleed air from the system per the procedure. Run the injector leakage test on page 156: any injector passing more than 15.0 mL (0.5 US fl oz) during the test interval must be replaced. Torque replacement injector hold-down bolts to 38 N·m (28 lb ft) on page 155. Verify fuel rail pressure is within the 1800 bar (26100 psi) maximum injection pressure specification before returning the machine to service.
Manual Section: Fuel FiltersSevere power loss under load with black or blue smoke from exhaust

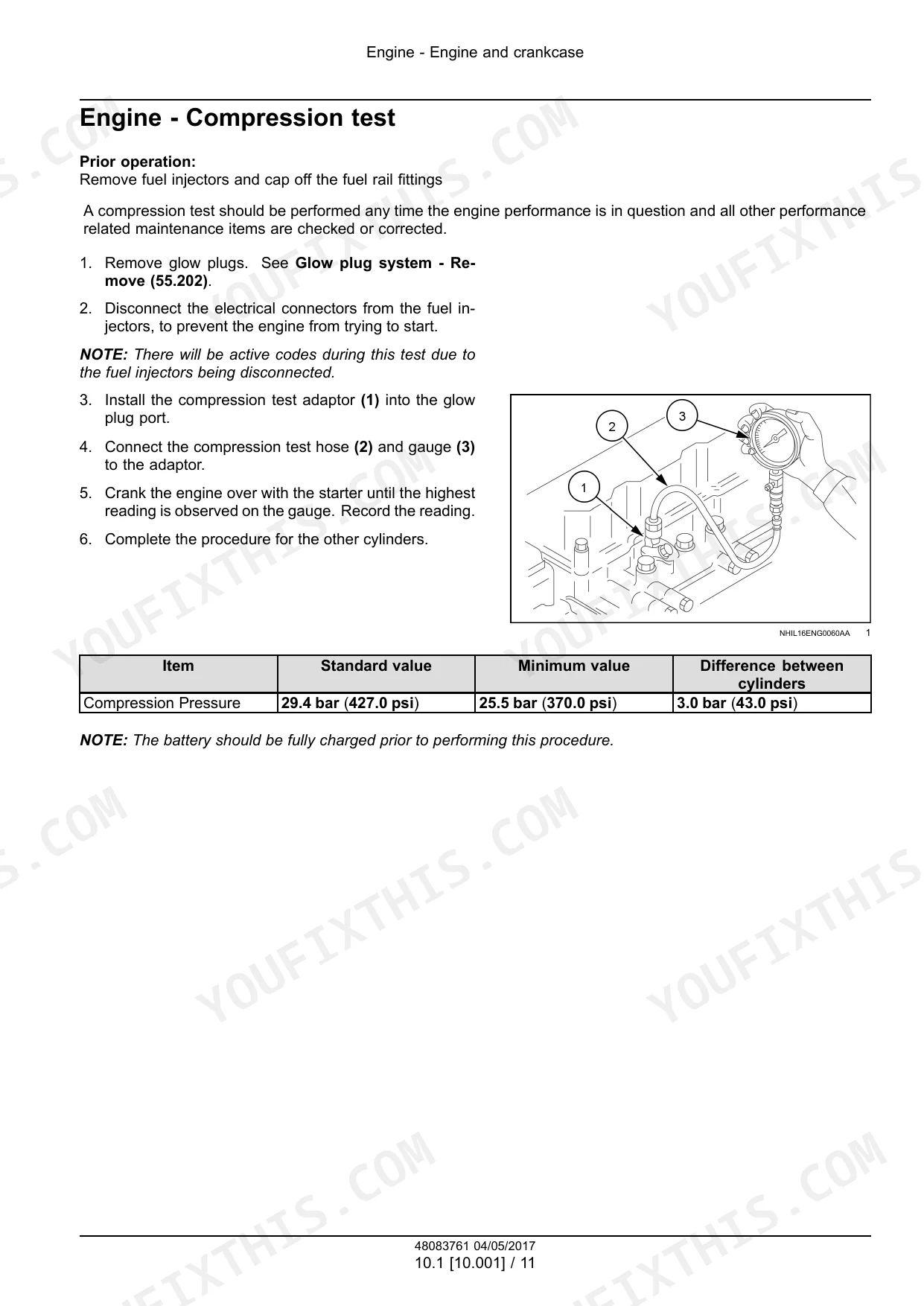

Inspect and replace the air filter before anything else — restricted intake is the fastest path to smoke and power loss on these engines. Check engine oil pressure at full throttle on page 223; target range is 2.00–4.00 bar (29.00–58.00 psi). Run a compression test per and compare cylinders; the 17.1:1 compression ratio leaves little tolerance for ring or valve wear. Adjust valve clearance to 0.250 mm (0.010 in) cold if you find any intake or exhaust valves out of spec.
Manual Section: Engine - 10Engine overheating, coolant temperature warning code 146, machine shuts down under load p. 217
Test the thermostat on page 217 — it should start opening at 77°C (171°F) and be fully open by 90°C (194°F); replace it if it opens late or sticks. Inspect radiator fins for crop debris and compressed air-blow from the engine side out. Check the water pump mounting bolts are torqued to 20 N·m (15 lb ft) on page 215 and confirm the impeller isn't slipping on the shaft. A thermostat that opens too late will trigger code 146 repeatedly even with a clean cooling system.
Manual Section: Engine Cooling SystemEGR valve faults, rough idle, black smoke, and sluggish throttle response
Remove the EGR valve and clean carbon deposits from the valve mechanism per . Inspect the actuator and reinstall, torquing the actuator fasteners to 4.9–6.9 N·m (3.6–5.1 lb ft) and the valve mounting bolts to 10 N·m (89 lb in). If cleaning doesn't resolve the fault codes, check the crankshaft sensor air gap — it must measure 0.4–1.0 mm (0.016–0.039 in) — and torque the sensor bolt to 4.9–5.9 N·m (3.6–4.4 lb ft) on page 245. A mis-set crank sensor will produce erratic fueling that mimics EGR symptoms.
Manual Section: Exhaust Gas Recirculation Electrical SystemHard cold start, glow plug system not heating, engine turns over without firing
Remove the glow plug buss bar and test each plug per . Inspect connectors at the glow plug harness for corrosion or pushed-back terminals — on these engines a single failed connector can kill the entire cold-start aid circuit. Check the ECU programming status if the glow system tests good but cold-start performance remains poor; a corrupted data set can suppress the pre-heat timer. Replace any plug that fails continuity, and verify the system cycles correctly before the next cold morning.
Manual Section: Cold Start AidFrequently Asked Questions

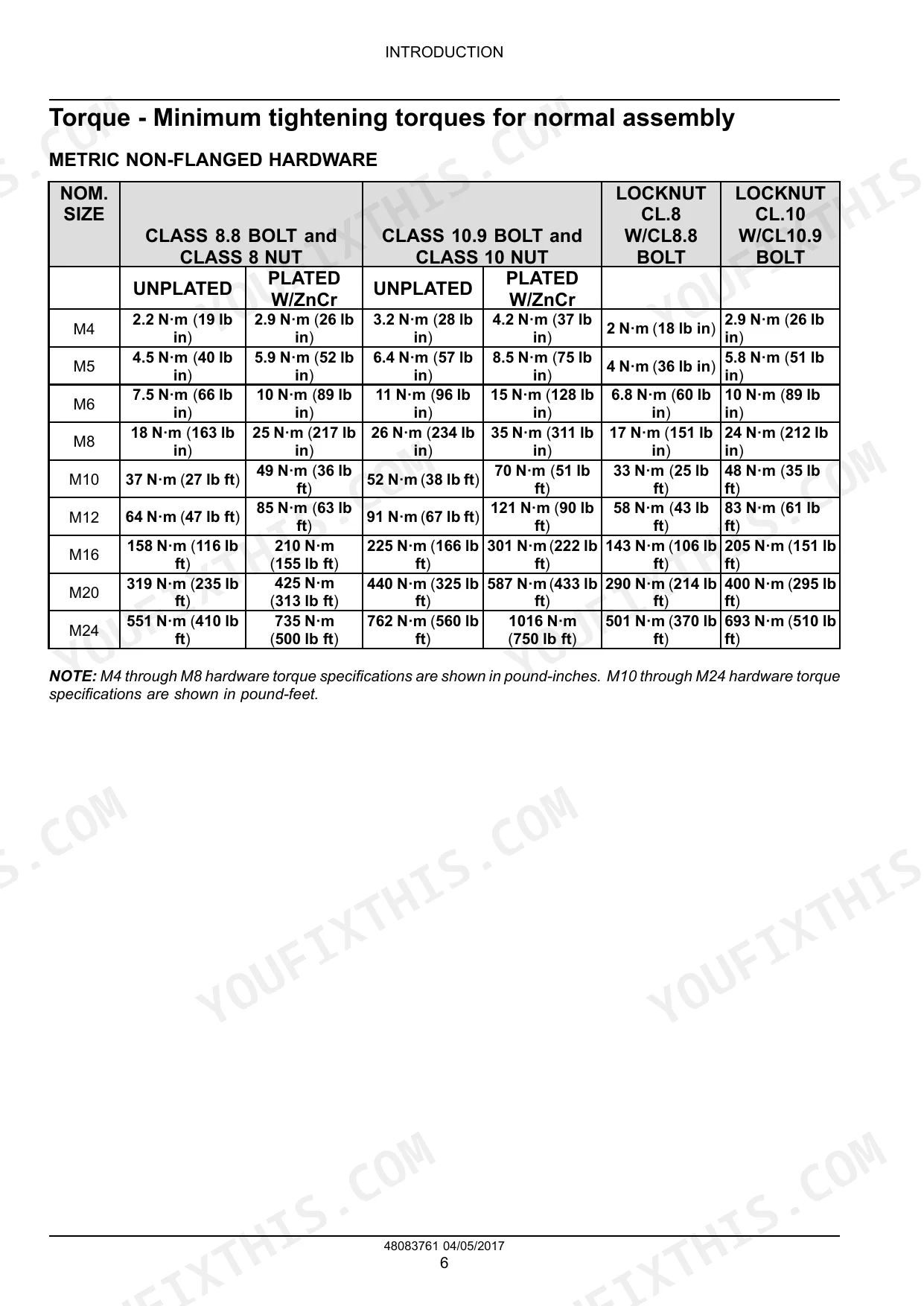

Torque specs for L3C19-T1 M10-M24 hardware?
For M10 non-flanged hardware, the unplated torque specification is 37 N·m (27 lb ft), and for M24, it is 551 N·m (410 lb ft). These values are for Class 8.8 bolts and Class 8 nuts, as detailed in the metric non-flanged hardware table.
What are the torque specs for L3C19-T3 cylinder head bolts?
The cylinder head bolts should be torqued in a specific sequence. Initially, torque the bolts to 64 N·m (47 lb ft), then loosen them 360°, retorque to 64 N·m (47 lb ft), and finally tighten them an additional 60°.
What are the replacement specifications for Piston seals?
For piston rings, if the clearance between the first compression ring and its groove exceeds 0.150 mm (0.006 in), or if the first compression ring end gap exceeds 1.500 mm (0.059 in), the ring or piston should be replaced.
What are the replacement specifications for Fuel injectors?
Fuel injectors should be replaced if they fail the leakage test. During the test, with the engine running at full throttle for 1 minute, the fuel leakage per injector should be less than 15.0 mL (0.5 US fl oz).
Is this Cnh Industrial L3 Series Service Manual a digital download?
Immediate download of the complete 309-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Cnh Industrial L3 Series Service Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Cnh Industrial L3 Series manual include wiring diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
