This is the Isuzu Workshop Manual (publication IDE-2270) for the L-series industrial diesel engines, covering the 4LB1, 4LC1 and 4LE1, plus the turbocharged 4LB1T. Its 119 pages open with general information and specifications, then move into a full engine section covering disassembly, inspection and repair, and reassembly.From there it covers the lubricating, cooling and fuel systems, followed by a troubleshooting chapter, a special tools list and conversion tables. The manual carries the numbers you need, including 4LB1 displacement of 1499 cc, 4LE1 displacement of 2179 cc, cold valve clearance of 0.4 mm, injection timing at 16 degrees BTDC and standard compression pressure of 31.0 kg/cm2.Whether you are rebuilding one of these four-cylinder Isuzu diesels, chasing a no-start, or setting fuel injection timing, this PDF gives you the factory procedures, torque figures and service limits to complete the job.
What's Inside This Isuzu 4LB1, 4LC1, 4LE1, 4LB1T Manual
| System | Pages | Key Topics |
|---|---|---|

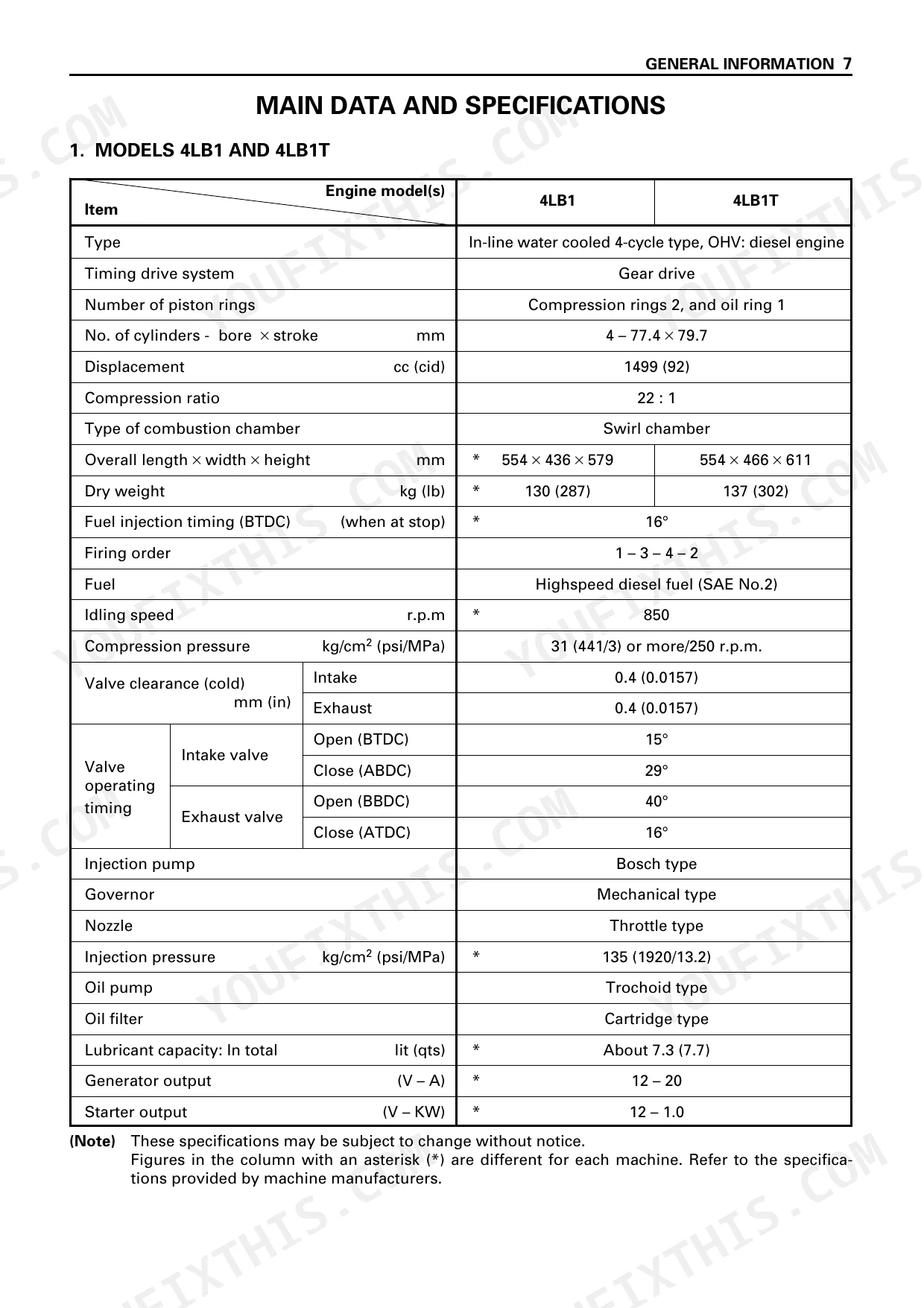

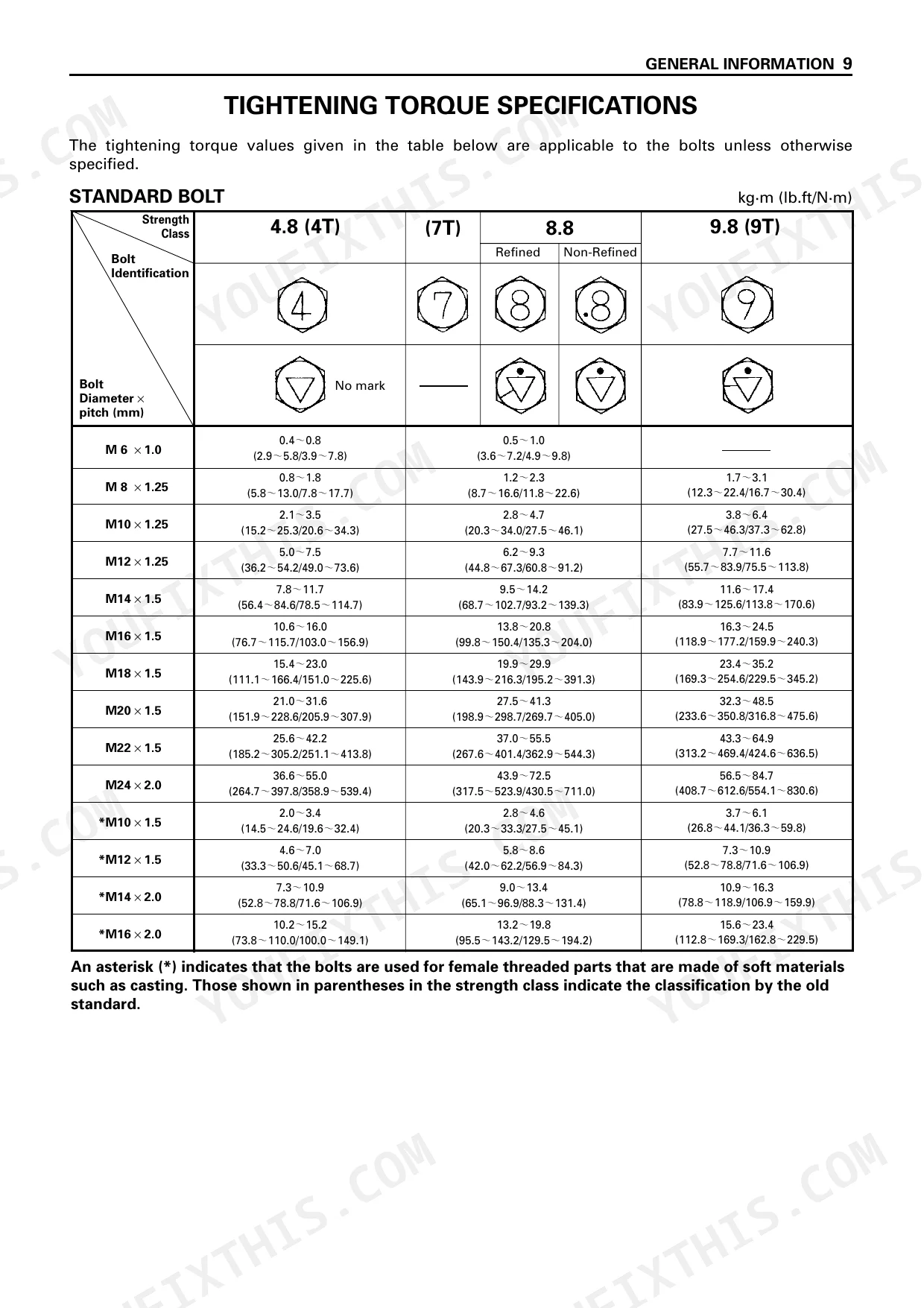

| General Information | 4-29 | General Repair Instructions, Appearance, Main Data and Specifications, Tightening Torque Specifications |
| Disassembly | 31-44 | External Parts, Internal Parts, Cylinder Head Assembly, Piston and Connecting Rod |

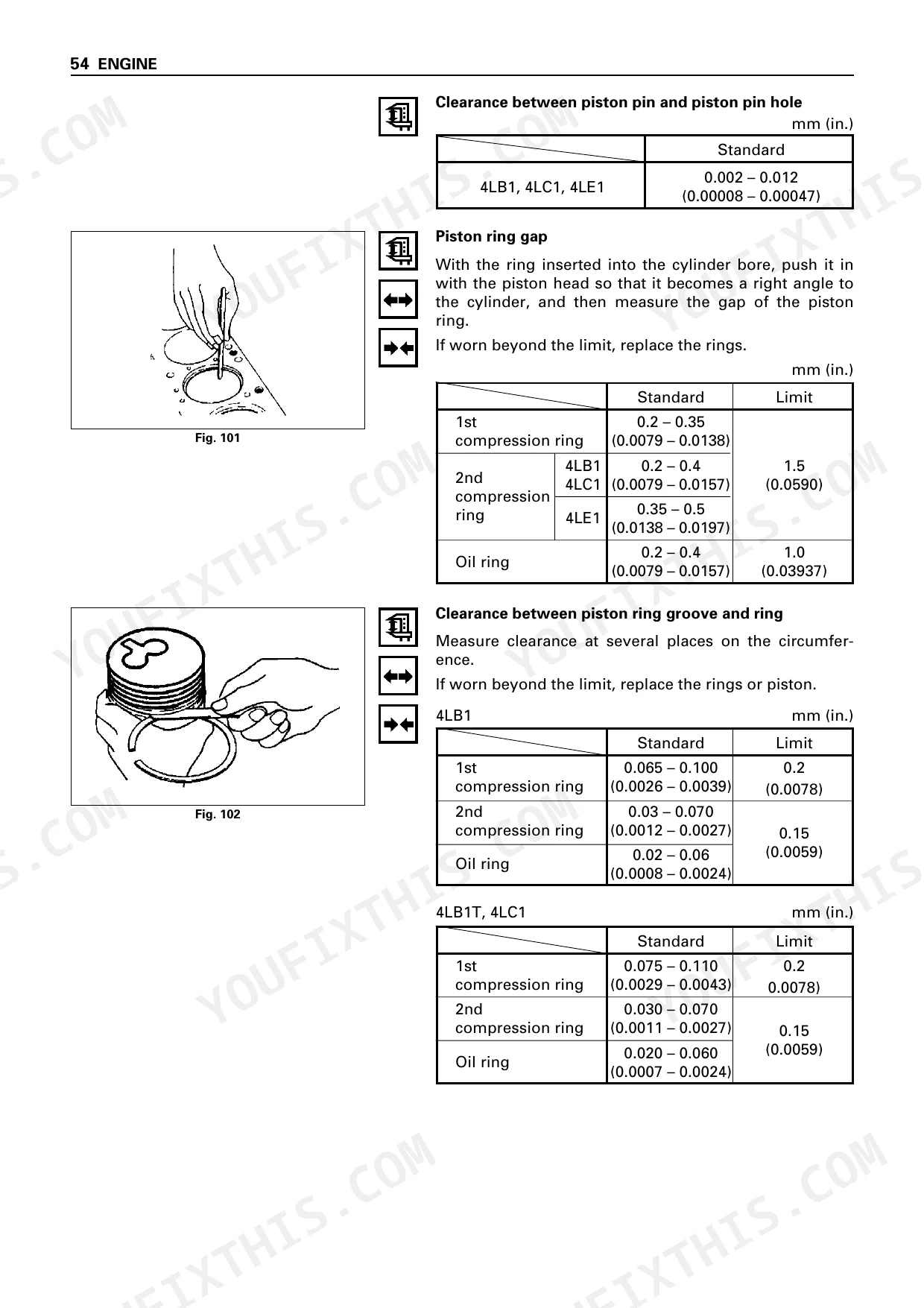

| Inspection and Repair | 45-61 | Cylinder Block, Cylinder Head, Valve and Valve Seat, Piston, Pin and Ring, Connecting Rod and Bearing, Crankshaft and Bearing |

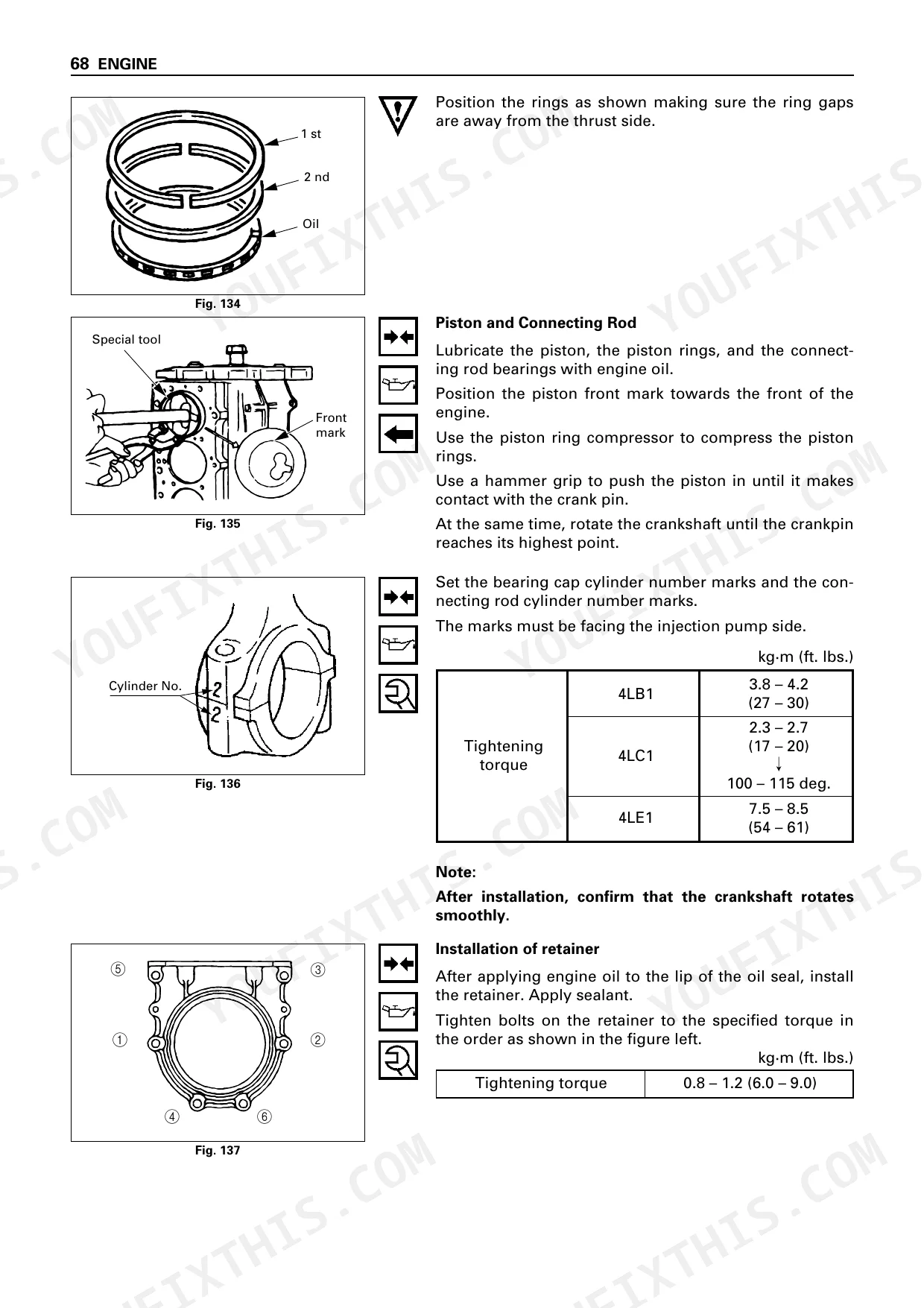

| Reassembly | 62-84 | Cylinder Head Assembly, Piston and Connecting Rod, Internal Parts, External Parts |

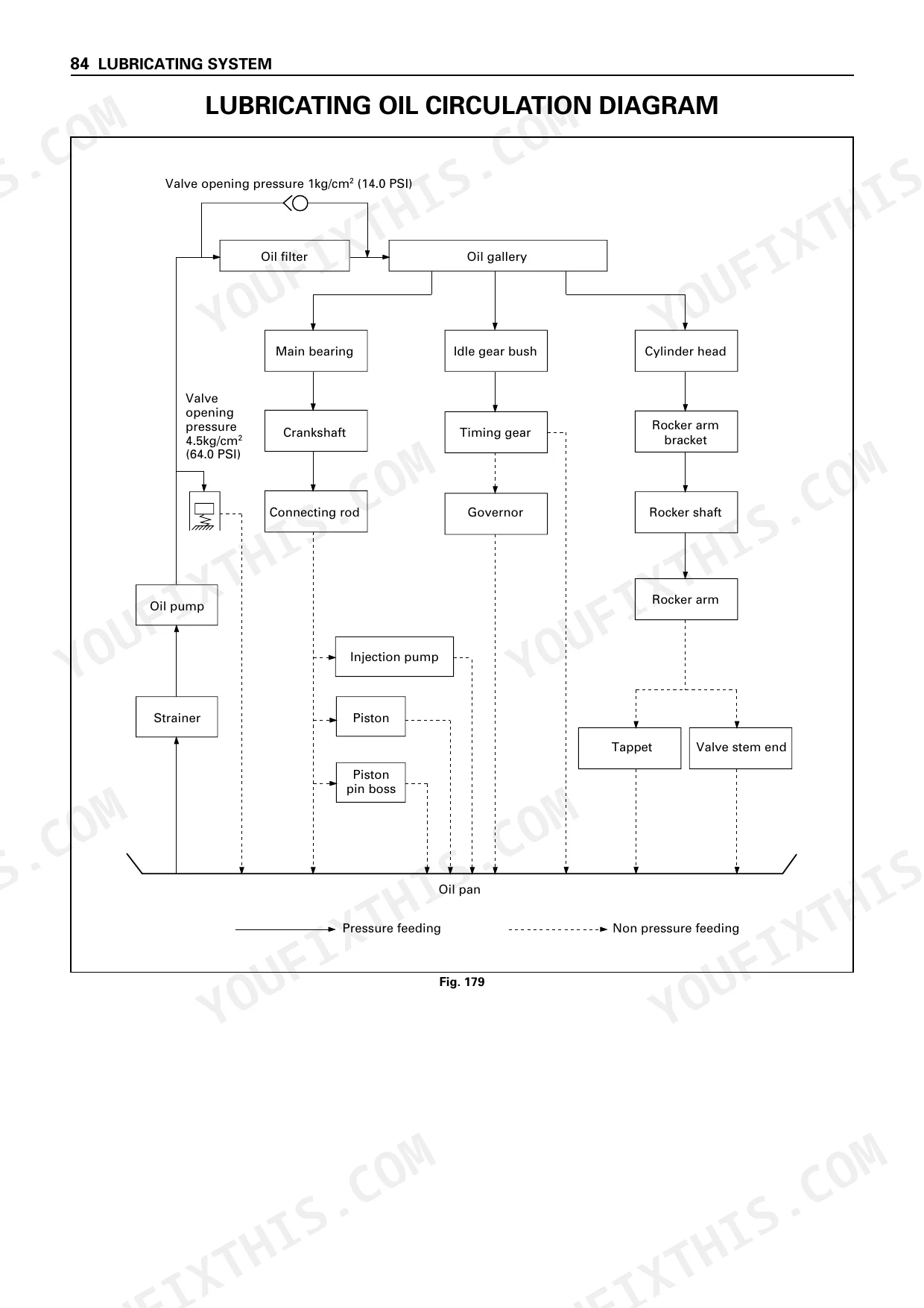

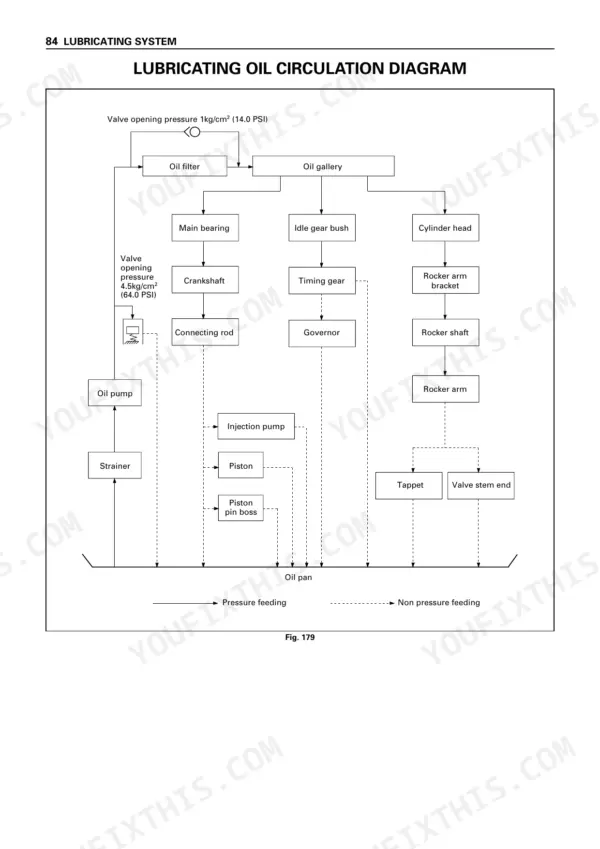

| Lubricating System | 85-87 | Lubricating Oil Circulation Diagram, Oil Pump |
| Cooling System | 88-92 | Cooling Water Circulation Diagram, Water Pump, Thermostat |
| Fuel System | 93-103 | Fuel Circulation System Diagram, Governor, Nozzle Holder Assembly |

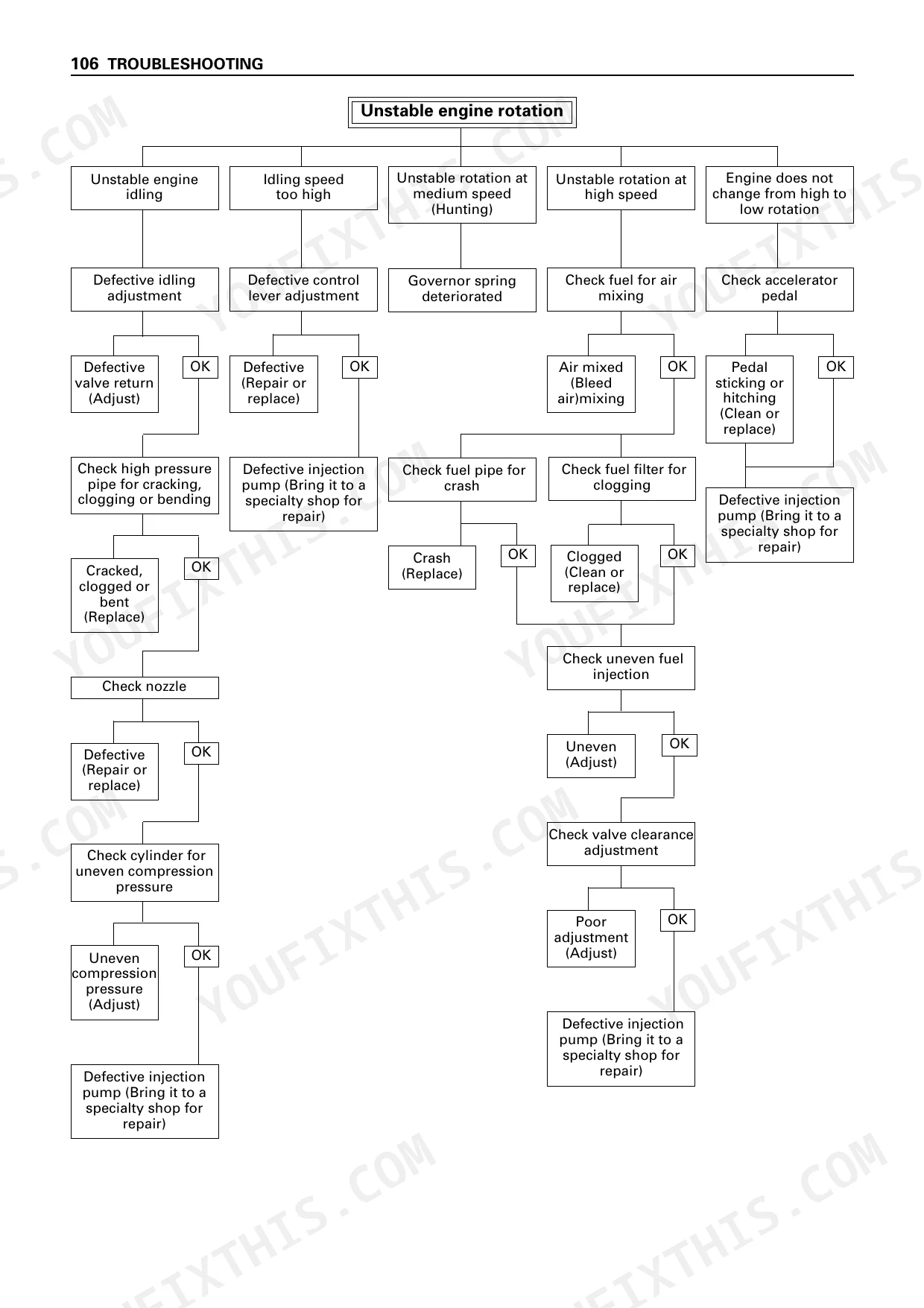

| Troubleshooting | 104-108 | Engine Does Not Start, Unstable Engine Rotation, Insufficient Output and Overheat, Abnormal Exhaust Gas |
| Special Tools | 109-109 | - |
| Conversion Table | 110-119 | - |

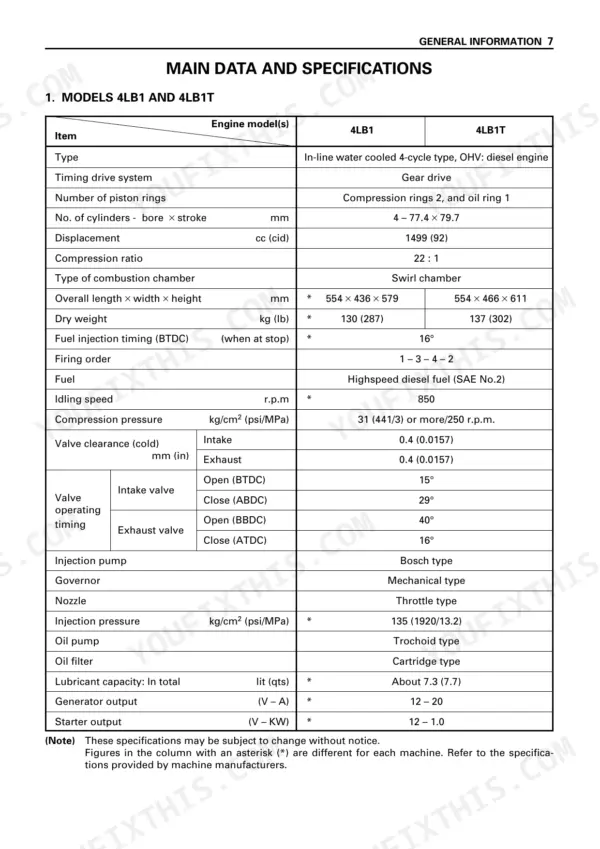

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

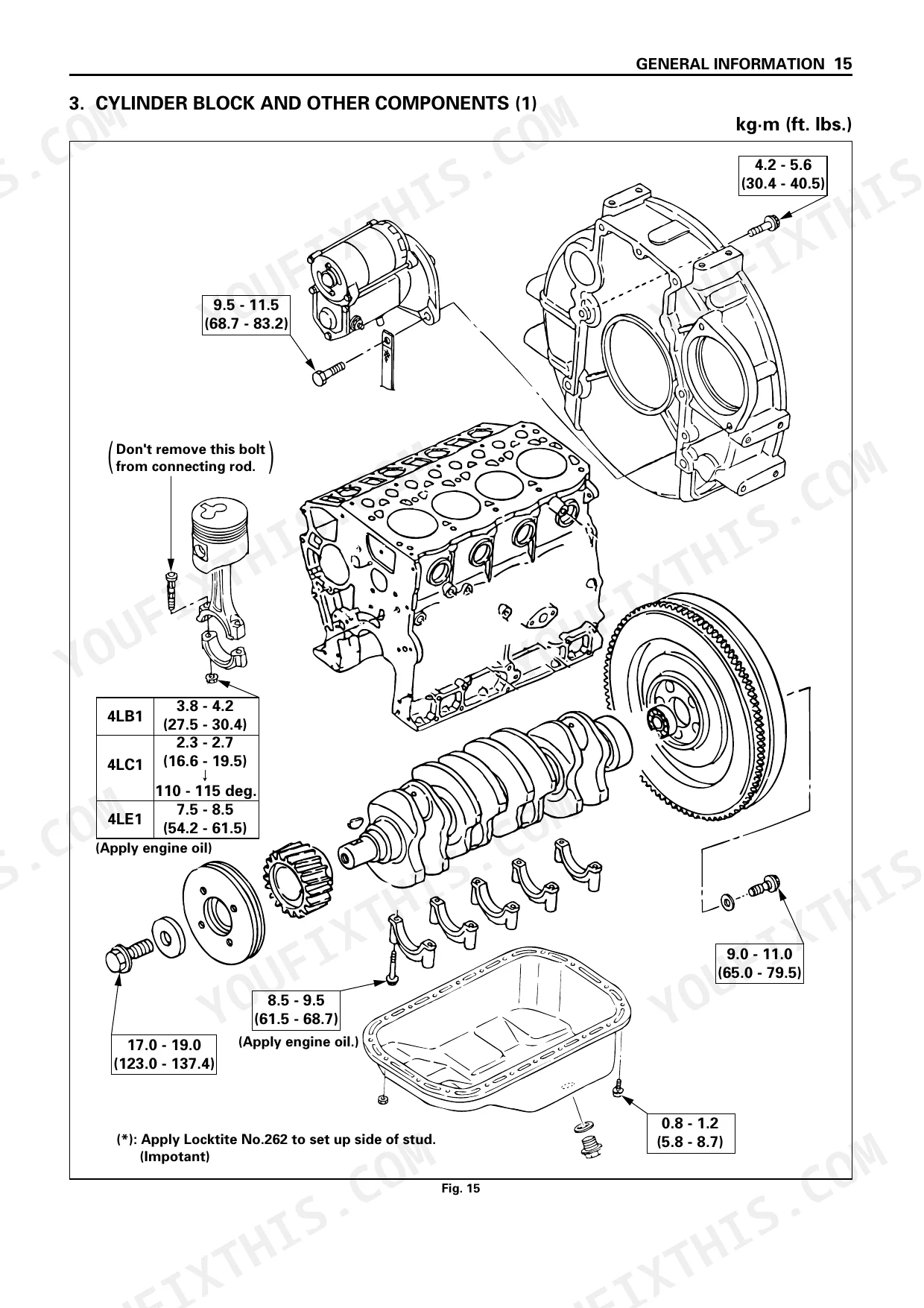

| Cylinder head bolt tightening torque (M12 x 1.5) | 8.5 - 9.5 kg·m (61 - 69 ft. lbs.) then 60°~90° | p. 76 |
| Crankshaft Bearing Cap Bolt Torque | 8.5 - 9.5 kg·m (61.0 - 69.0 ft. lbs.) | p. 70 |
| Cylinder head water pressure test | 5kg/cm2 (for 3 minutes) | p. 47 |
| Fuel Injection Timing (at stop) | 16° BTDC | p. 10 |
| Valve Clearance (cold) | 0.4 mm | p. 10 |
| Injection Pressure | 135 kg/cm² | p. 11 |
| Compression Pressure (Standard) | 31.0 kg/cm² | p. 27 |
| Compression Pressure (Limit) | 26.0 kg/cm² | p. 27 |
| 4LB1, 4LB1T | ||
| Displacement | 1499 cc | p. 10 |
| 4LE1 | ||
| Displacement | 2179 cc | p. 11 |
| Compression Ratio | 21.5 : 1 | p. 11 |
| 4LB1T | ||
| Dry Weight | 137 kg | p. 10 |
Isuzu 4LB1, 4LC1, 4LE1, 4LB1T Common Problems This Manual Covers
Fuel starvation from a clogged screen
A restricted screen in the lift pump banjo bolt fitting starves the engine of fuel, causing it to bog down, lose power under load or stall. The fuel system section covers the governor and nozzle holder assembly to trace and correct fuel delivery.
Manual Section: Fuel System p. 93Cylinder head gasket failure
A failed head gasket shows up as oil traces in the coolant or combustion gases in the cooling system. The engine section covers inspection and repair, including a cylinder head water pressure test at 5 kg/cm2 for three minutes.
Manual Section: Engine p. 30Overheating and thermostat faults
Coolant leaks, a clogged radiator or a stuck thermostat drive temperature up, with steam or smoke from under the hood. The cooling system section covers the water pump and thermostat.
Manual Section: Cooling System p. 88Engine does not start
No-start on the 4LB1, 4LC1 and 4LE1 can trace to fuel, compression or timing. The troubleshooting section covers engine does not start alongside unstable rotation and abnormal exhaust gas.
Manual Section: Troubleshooting p. 104Low compression and internal wear
Worn rings, liners or valves drop compression below the 26.0 kg/cm2 limit, causing hard starting and lost power. The engine section covers inspection and repair with the measurement limits.
Manual Section: Engine p. 30Insufficient output and overheat
A tired engine that runs hot and down on power points to fuel, cooling or mechanical wear. The troubleshooting section groups insufficient output and overheat so you can work the causes in order.
Manual Section: Troubleshooting p. 104Frequently Asked Questions
Which engines does this manual cover?
It covers the Isuzu 4LB1, 4LC1 and 4LE1 industrial diesel engines, including the turbocharged 4LB1T, published under Isuzu number IDE-2270.
Does it include cylinder head and main bearing torque?
Yes. The engine section gives the torque figures, including cylinder head bolts at 8.5 to 9.5 kg-m then 60 to 90 degrees, and crankshaft bearing cap bolts at 8.5 to 9.5 kg-m. p. 30
What are the injection timing and valve clearance settings?
The general information section lists the main data, with fuel injection timing of 16 degrees BTDC at stop, cold valve clearance of 0.4 mm and injection pressure of 135 kg/cm2. p. 4
Is a troubleshooting guide included?
Yes. The troubleshooting section covers engine does not start, unstable engine rotation, insufficient output and overheat, and abnormal exhaust gas. p. 104
What do I get after purchasing this Isuzu 4LB1, 4LC1, 4LE1, 4LB1T manual?
You get a 119-page searchable PDF, ready to download immediately. Works on any device, phone included. No shipping, no wait.
Can I print specific sections of this manual?
Yes, print as many copies as you need. No restrictions. Most mechanics print the relevant section and take it to the shop floor.
