Got a 6RB1 or 6RB1T that won't cooperate? This 234-page workshop manual is the factory reference for both variants. Forty pages of specs compare the naturally aspirated 6RB1 (980 kg dry, 19 L oil capacity) against the turbocharged 6RB1T (1,076 kg, 45 L oil capacity), while 80 pages walk through teardown and reassembly, from piston and connecting rod work to cylinder head rebuilds. Thirty exploded views and 20 pages of torque tables keep your fasteners in spec. Injection pump calibration data covers both timing marks (22° BTDC for the 6RB1, 17° for the 6RB1T). Twenty-three pages of troubleshooting charts address hard starting, unstable idle, and power loss. Thermostat opening range: 80 to 84°C. Total cooling system capacity: 36 liters. Bookmarked and searchable PDF; pull it up on any device.
What's Inside This Isuzu 6RB1, 6RB1T Manual

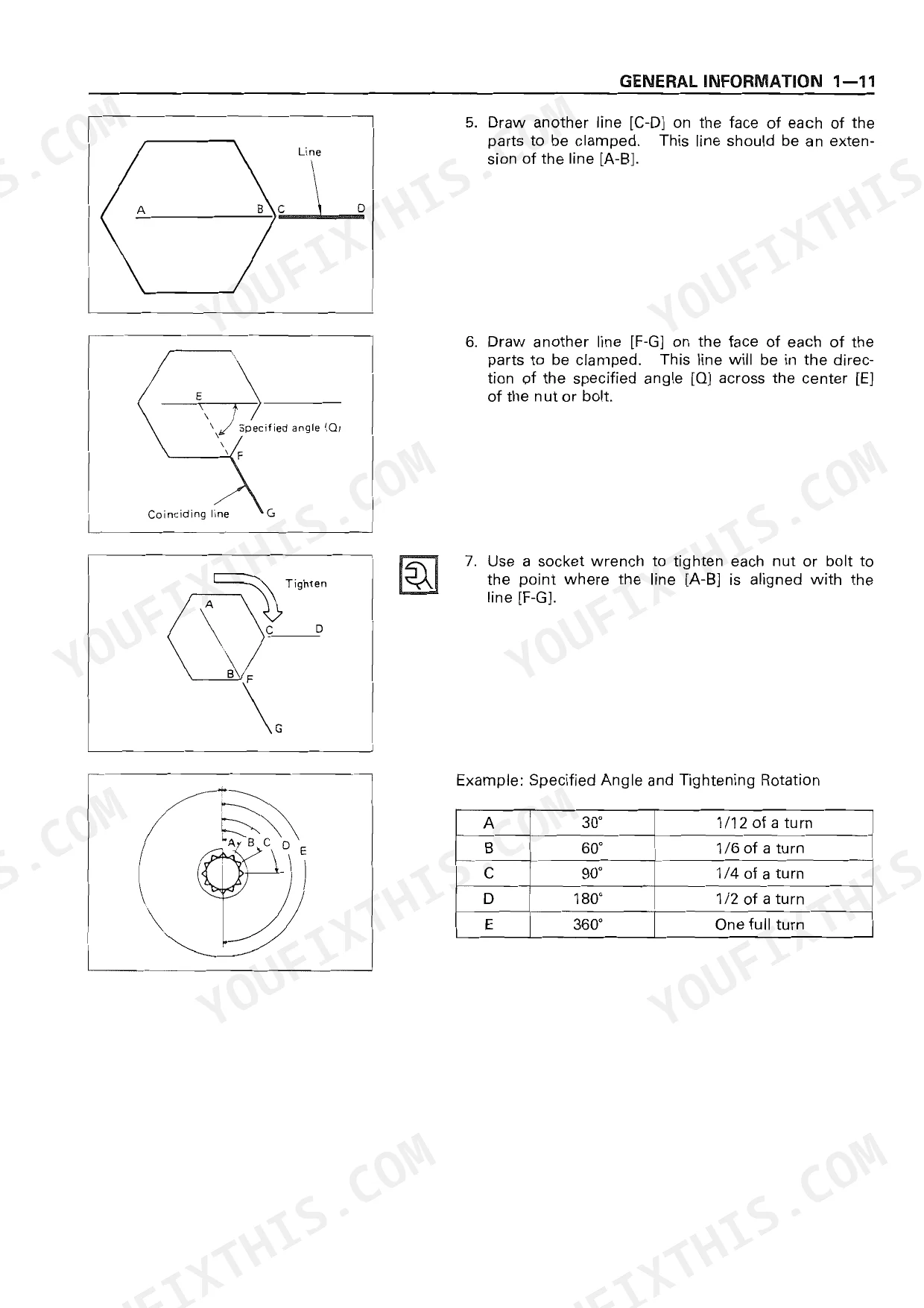

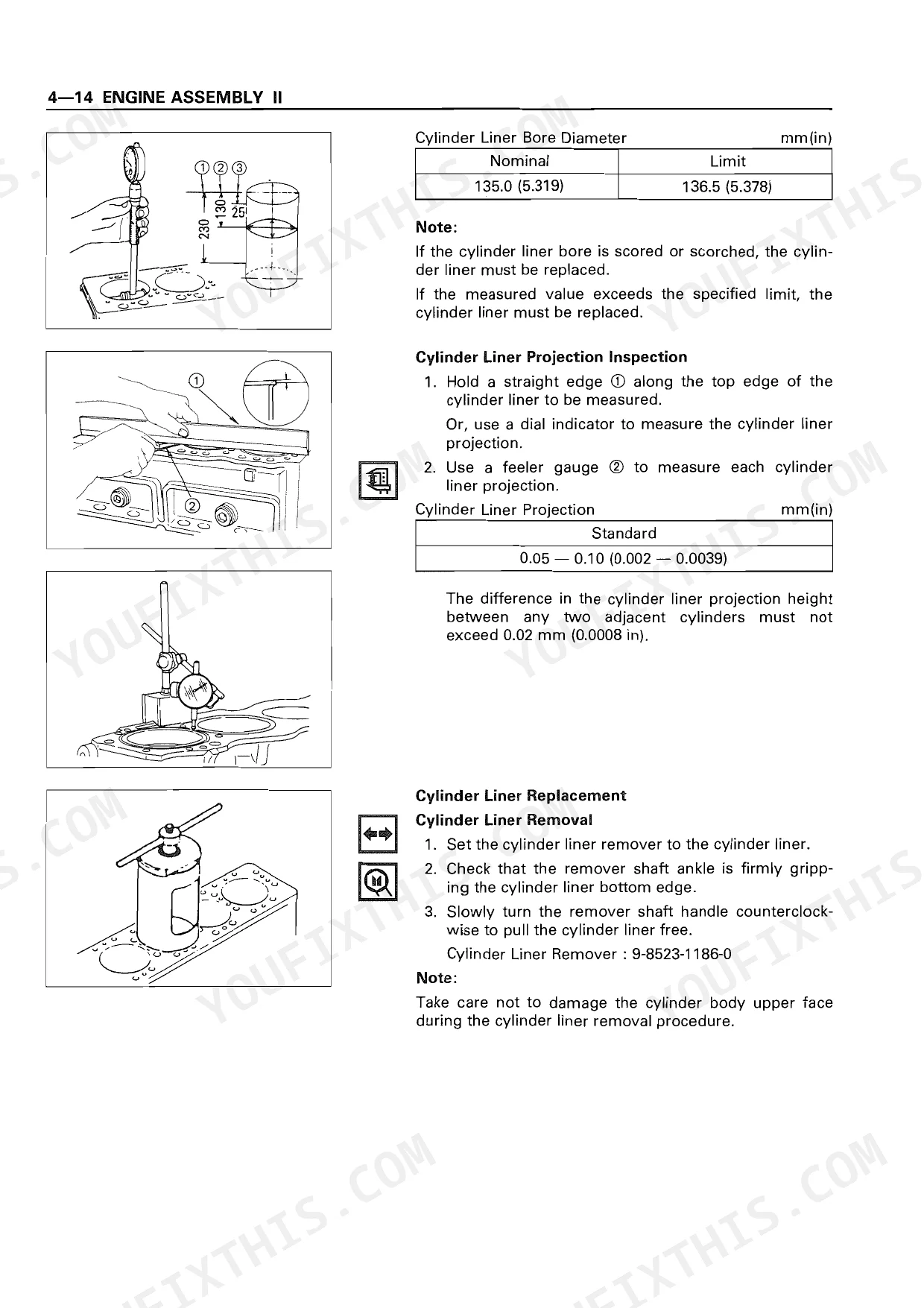

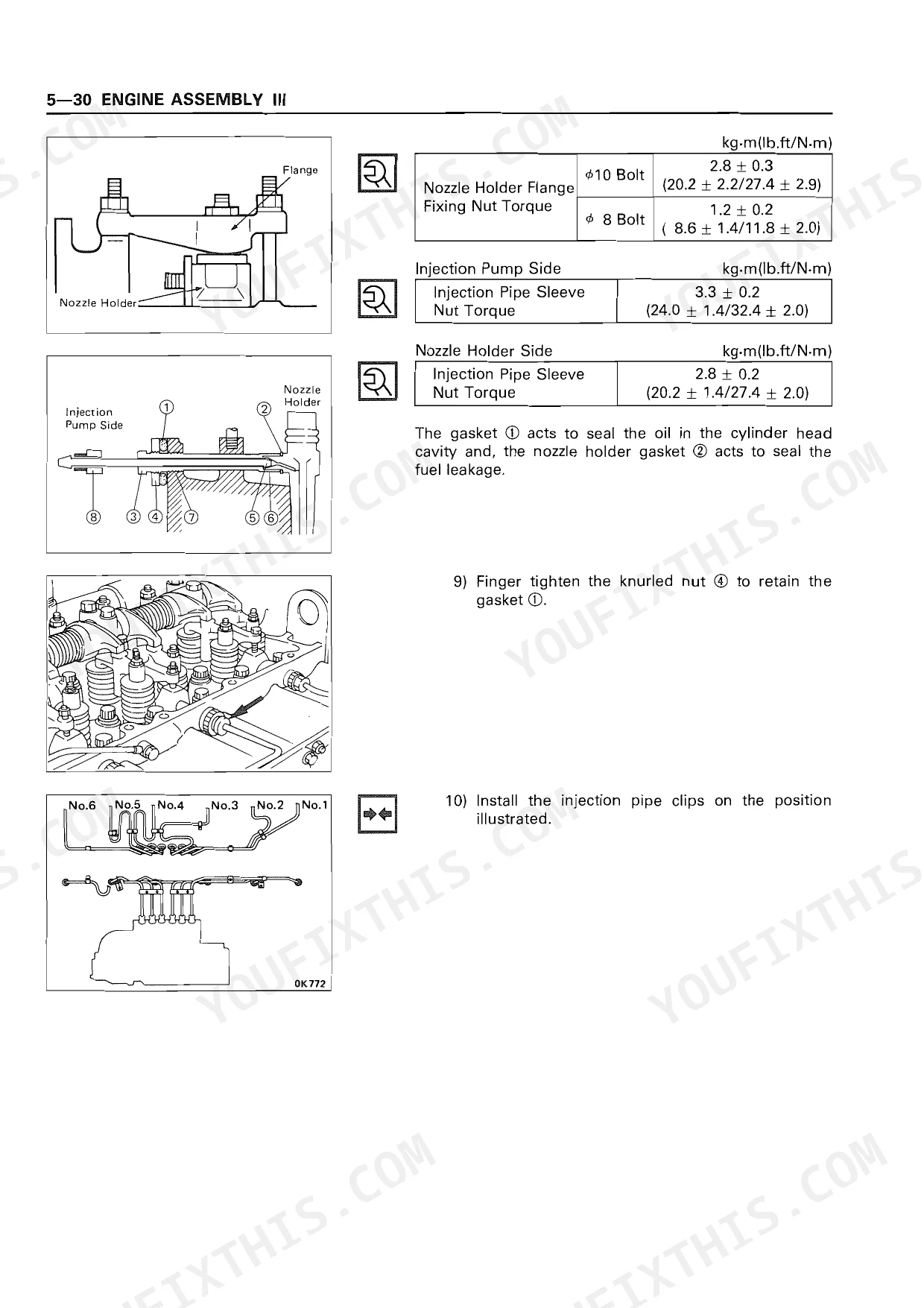

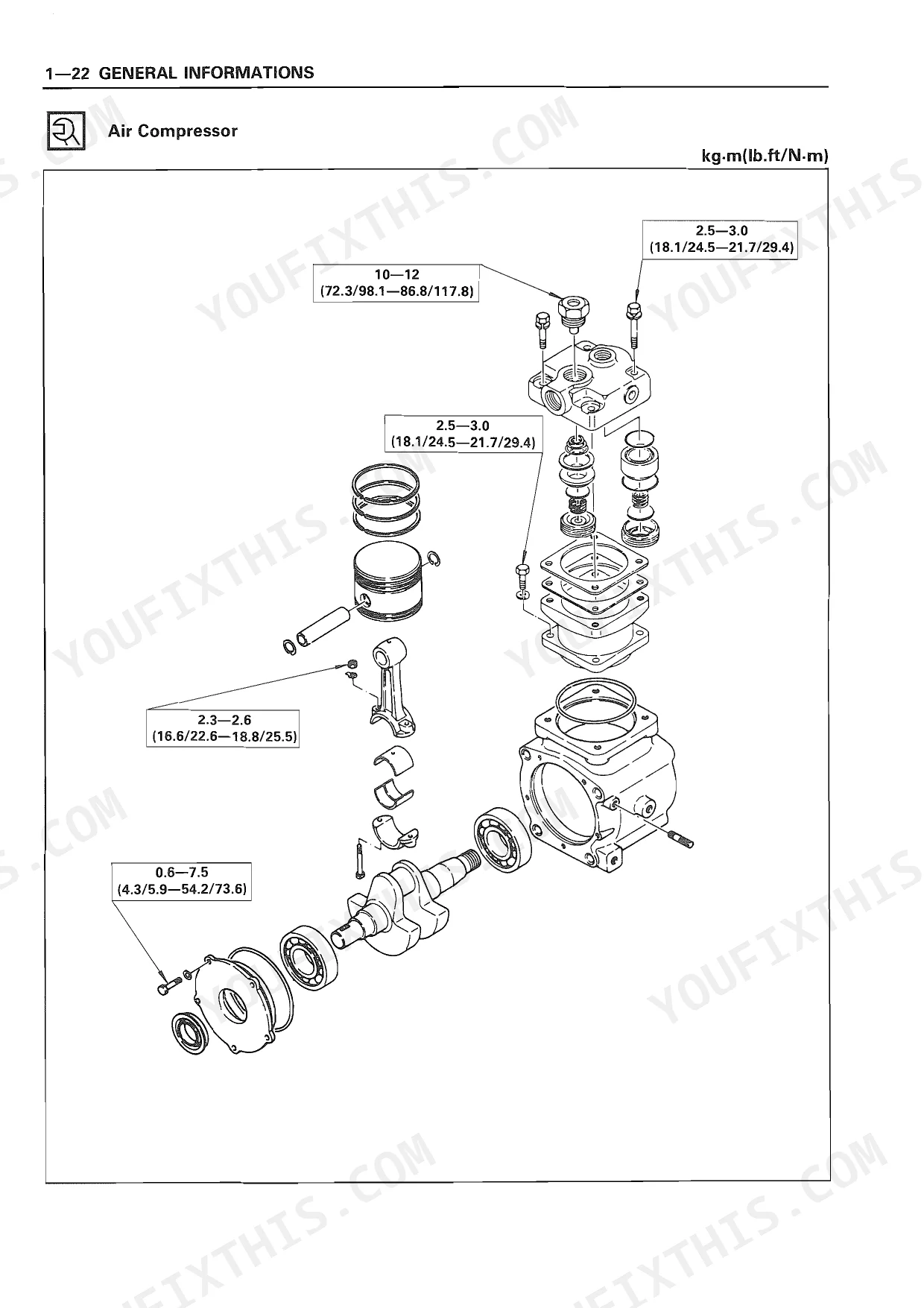

| System | Pages | Key Topics |
|---|---|---|
| General Information | 5-24 | General Repair Instructions, Main Data And Specifications, Design Features And General Outlines, Tightening Torque Specifications |
| Maintenance | 25-40 | Lubricating System, Fuel System, Cooling System, Valve Clearance And Adjustment |
| Engine Assembly I (Disassembly) | 41-58 | General Description, Disassembly 1st Step, Disassembly 2nd Step, Disassembly 3rd Step |
| Engine Assembly II (Inspection & Repair) | 59-102 | Cylinder Head, Valve Guide, Valve and Valve Seat Insert, Valve Spring |
| Engine Assembly III (Reassembly) | 103-142 | Piston And Connecting Rod Reassembly, Cylinder Head Reassembly, Rocker Arm And Shaft Reassembly, Reassembly 1st Step |
| Lubricating System | 143-150 | General Description, Oil Pump, Main Oil Filter, Oil Cooler |
| Cooling System | 151-158 | General Description, Water Pump, Inspection And Repair, Reassembly |
| Fuel System | 159-170 | General Description, Fuel Filter, Injection Nozzle, Injection Pump Calibration Data |
| Turbocharger | 171-174 | General Description, Turbocharger Identification, Rotor Shaft Play Inspection |
| Air Compressor | 175-194 | General Description (Model 107-1), Disassembly Steps (Model 107-1), Inspection And Repair (Model 107-1), Reassembly Steps (Model 107-1) |
| Engine Electricals | 195-208 | Starter Motor Identification, Starter Main Data And Specifications, Starter Motor Sectional View, Starter Motor Exploded View |
| Troubleshooting | 209-228 | Troubleshooting Table Of Contents, Hard Starting, Unstable Low Idling, Insufficient Power |
| Conversion Table | 229-230 | - |
| Special Tool List | 231-234 | - |

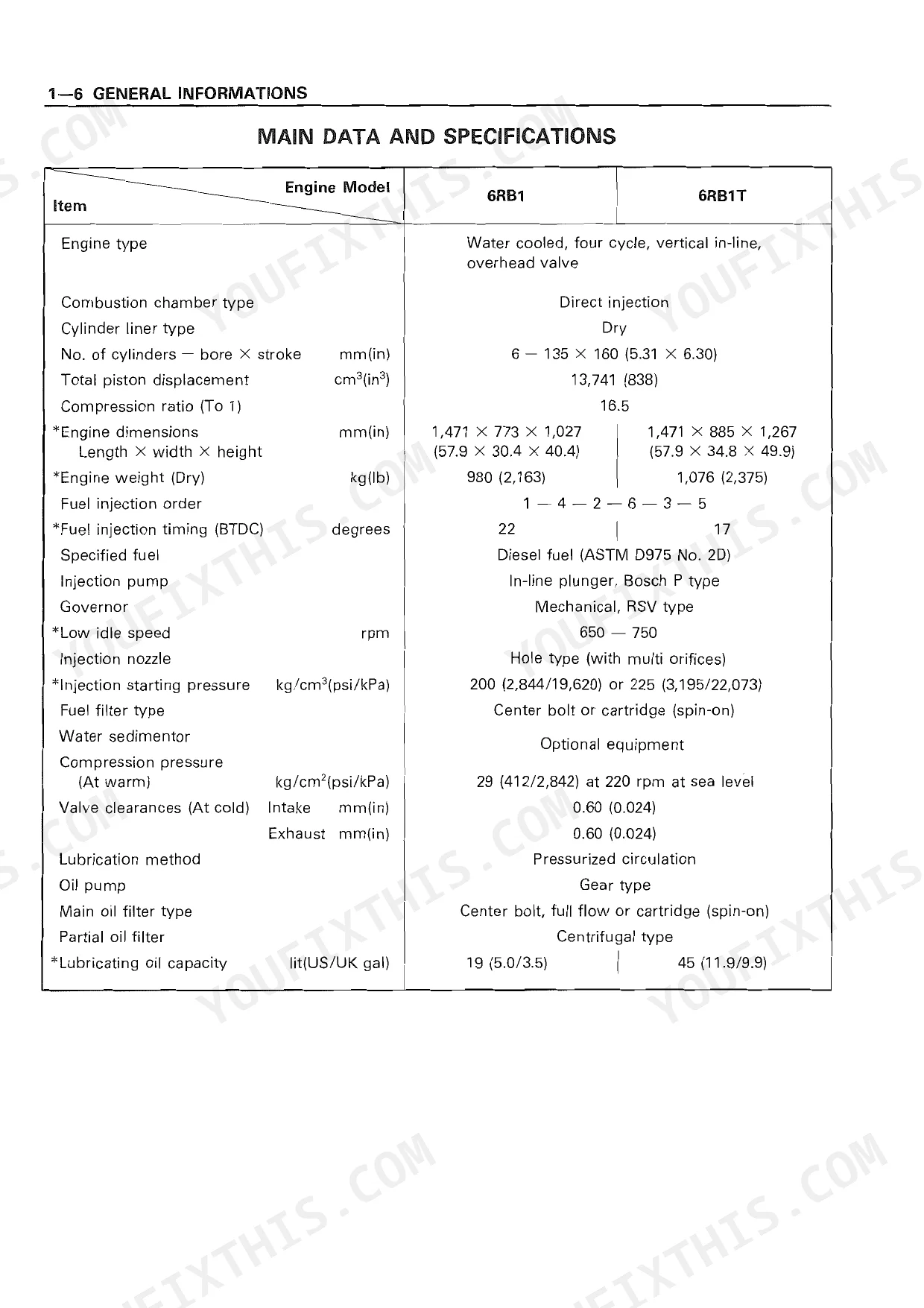

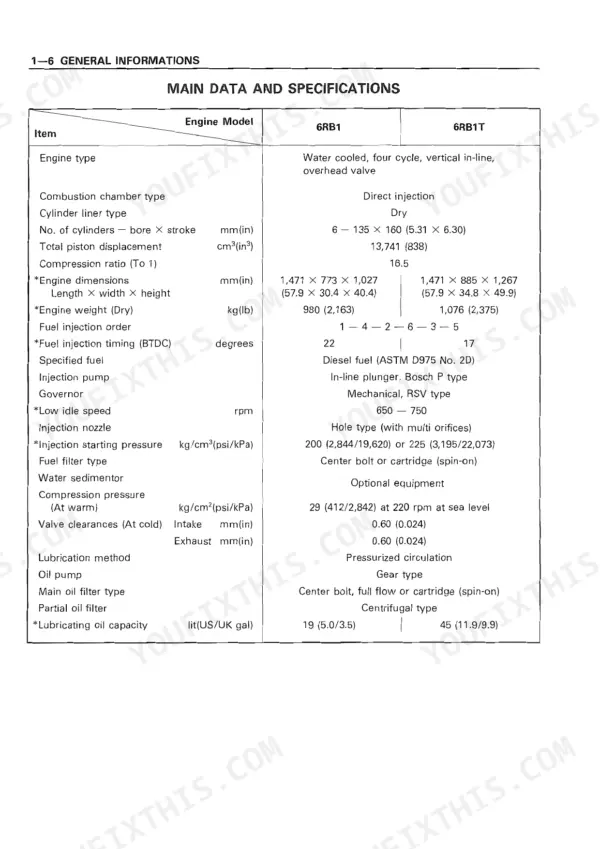

Quick Reference Specifications

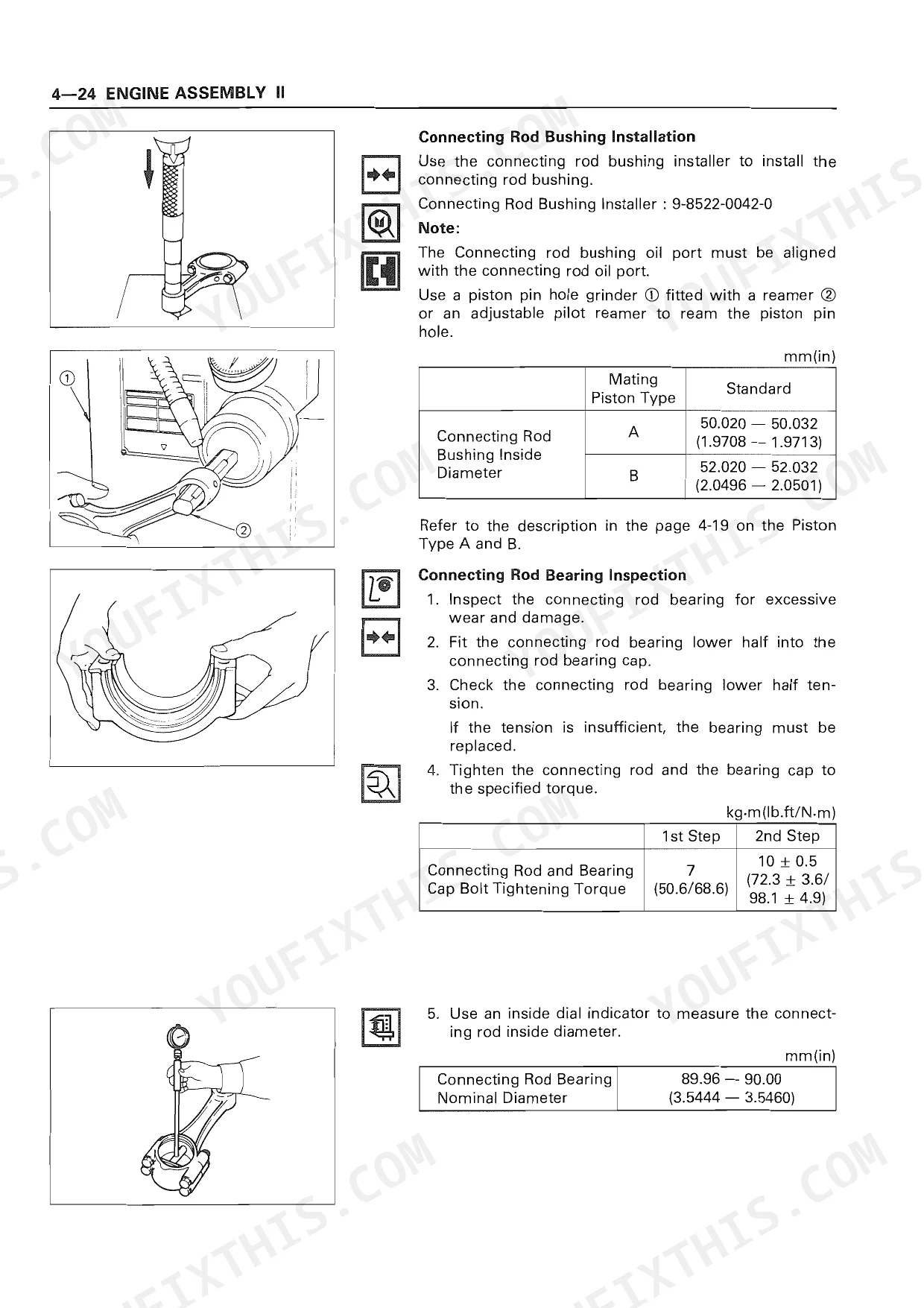

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Coolant capacity | 36 (7.93/6.60) lit(US/UK gal) | p. 11 |
| Thermostat Valve Opening Temperature | 80 — 84 (176 — 183) °C(°F) | p. 40 |
| Valve clearances (At cold) | 0.60 mm | p. 10 |
| Low idle speed | 650 - 750 rpm | p. 10 |
| Standard Compression Pressure (at warm) | 29 kg/cm² | p. 10 |
| Connecting Rod Bearing Nut Torque (2nd Step) | 10.0 ± 0.5 kg-m | p. 118 |
| 6RB1 | ||
| Engine Weight (Dry) | 980 kg | p. 10 |
| Lubricating oil capacity | 19 L | p. 10 |
| Fuel injection timing (BTDC) | 22 degrees | p. 10 |
| 6RB1T | ||
| Engine Weight (Dry) | 1,076 kg | p. 10 |
| Lubricating oil capacity | 45 L | p. 10 |
| Fuel injection timing (BTDC) | 17 degrees | p. 10 |
Isuzu 6RB1, 6RB1T Common Problems This Manual Covers
Isuzu 6RB1 engine overheating with steam from radiator, coolant level dropping fast p. 151
Confirm coolant level first; total system capacity is 36 L (page 11). Inspect the fan belt for glazing or slack and verify the water pump is circulating. Pull the thermostat and bench test it in heated water; it should open between 80 and 84°C as specified on page 40. Replace it if it sticks closed. Flush the radiator core and look for collapsed hoses restricting flow. Refer to the overheating troubleshooting chart on pages 223-224 for the full diagnostic sequence.
Manual Section: Cooling SystemEngine turns over but won't start, no firing on any cylinder p. 209
Start at the fuel filter; check for water contamination or blockage on page 159. Crack each injector line at the nozzle and crank to confirm fuel delivery. Bleed the system completely if air is present. Verify injection timing is set to 22 degrees BTDC for the 6RB1 or 17 degrees BTDC for the 6RB1T (page 10). Test glow plug function and the starter circuit per the hard starting troubleshooting table on pages 210-213.
Manual Section: TroubleshootingBlack smoke under load with noticeable power loss, sluggish response p. 159
Pull the air cleaner element and inspect it; a restricted intake is the most common cause. Test each injection nozzle for spray pattern and opening pressure per the fuel system section starting on page 159. Verify injection timing has not drifted. On the 6RB1T, measure turbocharger shaft play per page 171 and check all boost piping for leaks. The dark exhaust smoke chart on page 226 walks through each cause systematically.
Manual Section: Fuel SystemWhite exhaust smoke on startup that persists after engine reaches operating temperature p. 209
Drain the fuel water separator and look for milky discoloration in the fuel filter. If fuel is clean, run a compression test on all six cylinders; standard warm compression should read 29 kg/cm² (page 10). Low readings on adjacent cylinders point to a blown head gasket. On the 6RB1T, inspect turbocharger seals for oil passage into the intake. Follow the white smoke diagnostic on page 225 to isolate the cause.
Manual Section: TroubleshootingRough idle with engine speed hunting between 600 and 800 RPM p. 209
Set low idle speed within the 650 to 750 RPM spec on page 10. Look for air leaks at all fuel line connections by inspecting for wet spots or bubbles. Tighten or replace suspect fittings. Inspect the governor linkage for binding or worn pins. Adjust valve clearances to 0.60 mm cold (page 10), since tight valves cause erratic idle. Pages 214-216 cover unstable idling diagnostics step by step.
Manual Section: TroubleshootingOil pressure gauge reads low or zero at idle, warning light stays on p. 143
Verify oil level and confirm the correct grade is in use. Swap the oil filter element and check oil cooler lines for restrictions per the lubricating system section starting on page 143. Remove and clean the oil pump strainer screen. If pressure remains low, inspect the relief valve for a stuck plunger or weak spring. Worn main or rod bearings will also bleed off pressure; rod bearing cap nuts torque to 10.0 ± 0.5 kg-m (page 118). Pages 227-228 provide the full low oil pressure diagnostic.
Manual Section: Lubricating SystemFrequently Asked Questions
What are the recommended service intervals?
The manual calls for draining the water sedimentor every 250 operating hours. For the full schedule (fuel filter, oil filter changes, etc.), the manual directs you to the separate "INSTRUCTION BOOK," as this workshop manual does not include a complete maintenance interval chart.
What fluids and capacities does this machine require?
The 6RB1T takes 45 liters (11.9 US gal) of lubricating oil and holds 30 liters (7.93 US gal) of coolant. Specified fuel is Diesel (ASTM D975 No. 2D). For turbocharged models, CD grade diesel engine oil is recommended.
How to troubleshoot engine won't start?
Start by confirming the fuel tank isn't empty. If fuel is present, inspect for clogged or damaged fuel lines and connections. Other causes include a blocked fuel filter element or air in the fuel system, which requires bleeding.

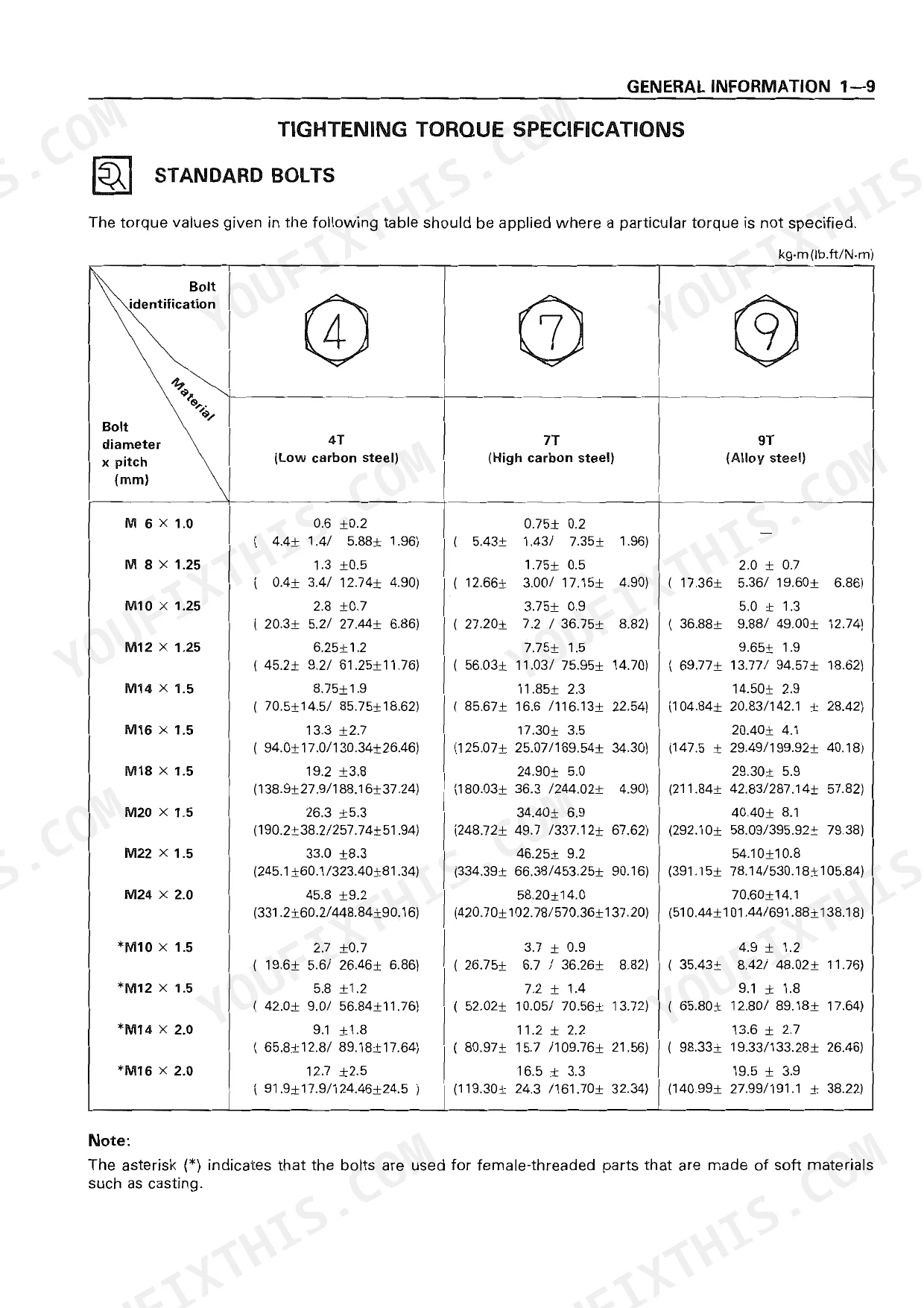

What torque specifications are listed?
Torque tables are organized by bolt size and grade. For example, an M10 x 1.25 7T bolt requires 3.00 ± 0.5 kg-m (21.7 ± 3.6 ft-lb). Specific component values are also listed; the crankshaft pulley nut calls for 80.0 ± 10.0 kg-m (578.5 ± 72.0 ft-lb).
What are the common electrical problems?
The troubleshooting section lists electrical faults tied to no-start conditions: defective neutral switch, loose or rusted battery cable terminals, weak or discharged battery, shorted fusible link, and defective starter switch, relay, or motor.
How quickly can I access this Isuzu 6RB1, 6RB1T manual after buying?
Immediate download of the full 234-page searchable Workshop Manual. Open it on any device, whether that's a laptop at your desk or a phone in the shop.
Can I print this Isuzu 6RB1, 6RB1T manual?
Yes. The PDF has no DRM restrictions. Print any page or section you need for your shop, using any standard printer.
