Part of the Isuzu 4BG1 engine documentation.
This is the Isuzu BB-4BG1-TRE engine parts catalog for the TB1135C application, serial number 51350001 and up. Across 74 pages it presents every engine assembly as an exploded diagram matched to reference numbers, part numbers, and quantities, so you can pinpoint the exact component before you order.The catalog walks the full engine: gasket kit, cylinder head, cylinder block, camshaft and valve, crankshaft and flywheel, manifold, cooling with water pump and thermostat, the turbocharger system, fuel injection, filter and pump, electrical control parts, starter, generator, the injection pump with its governor and feed pump, plus the fuel tank, water sedimenter, air cleaner, and radiator.It is built for accurate parts identification and ordering on the 4BG1-TRE, whether you are doing a full overhaul or replacing a single worn part.
What's Inside This Isuzu BB-4BG1-TRE Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Injection System, Fuel Filter & Bracket, Fuel Pump & Pipe, Injection Pump, Accelerator Pedal and Control, Fuel Tank, Air Cleaner | |
| Cooling System | Water Pump, Thermostat & Housing, Fan & Fan Belt, Oil Cooler & Oil Filter, Radiator & Oil Cooler | |

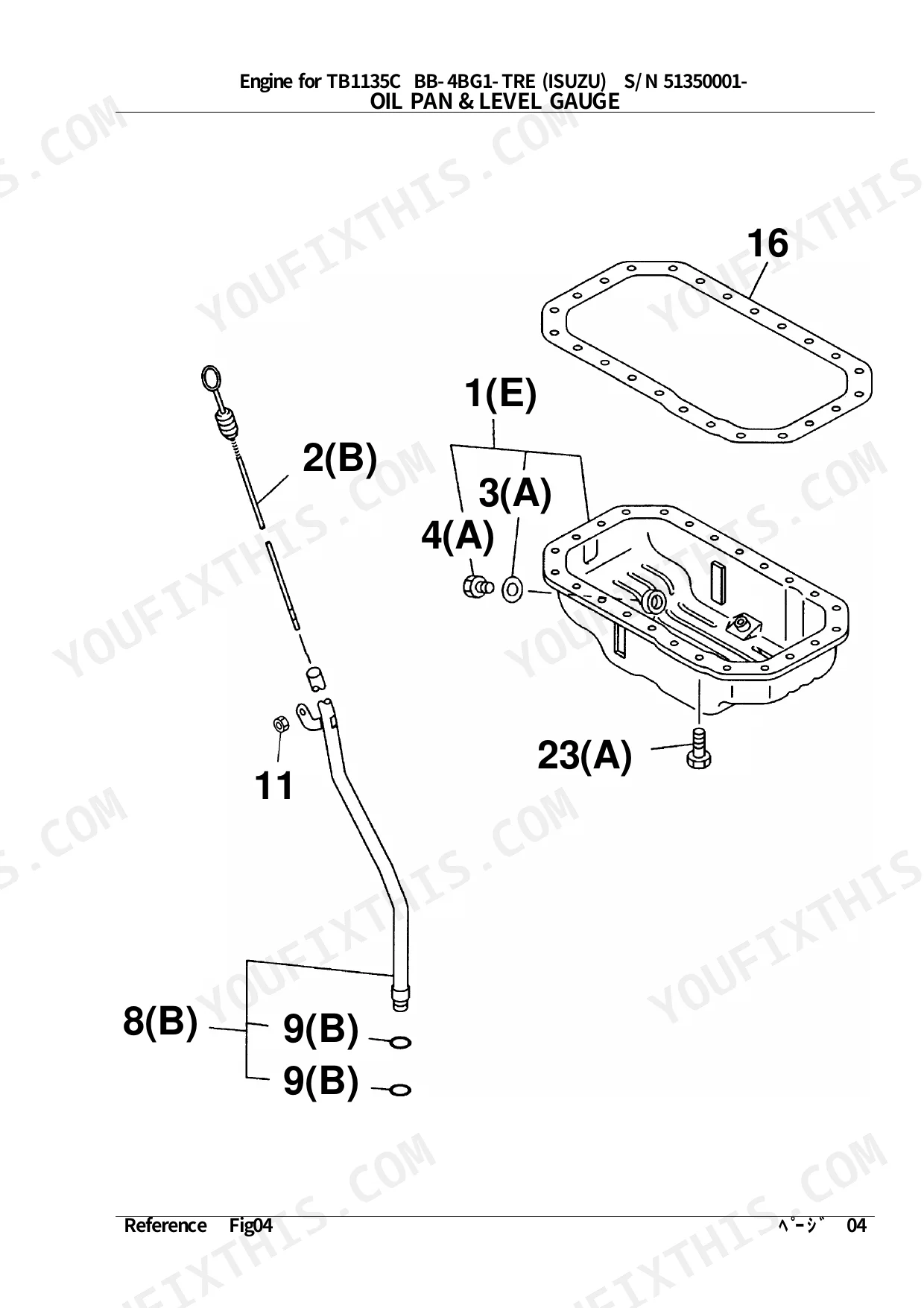

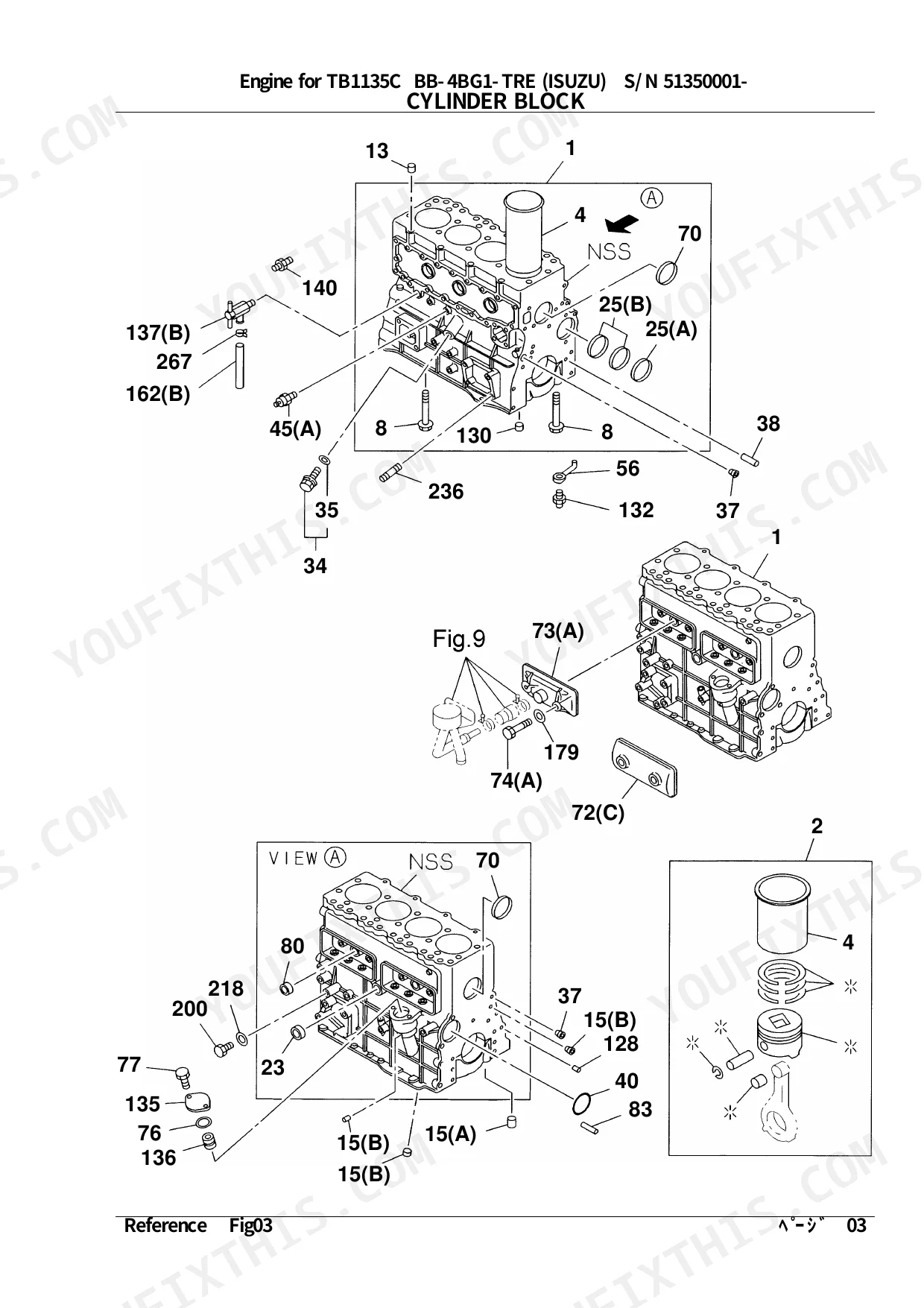

| Engine | Engine Gasket Kit, Cylinder Head, Cylinder Block, Oil Pan & Level Gauge, Camshaft & Valve, Crankshaft, Piston & Flywheel, Gear Case & Flywheel Housing, Turbocharger System, Oil Pump & Oil Strainer | |
| Electrical System | Electrical Control Parts, Starter, Generator | |
| Hydraulics & 3-Point Hitch | Oil & Vacuum Piping | |
| Other Components | Manifold, Ventilation System, Water Sedimenter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Inlet Valve Seat Insert Outer Diameter | 47 | p. 10 |
| Exhaust Valve Seat Insert Outer Diameter | 39 | p. 10 |
| Cylinder Head Sealing Cup Outer Diameter | 12.3 | p. 10 |
| Exhaust Manifold Stud Length | 87 | p. 10 |

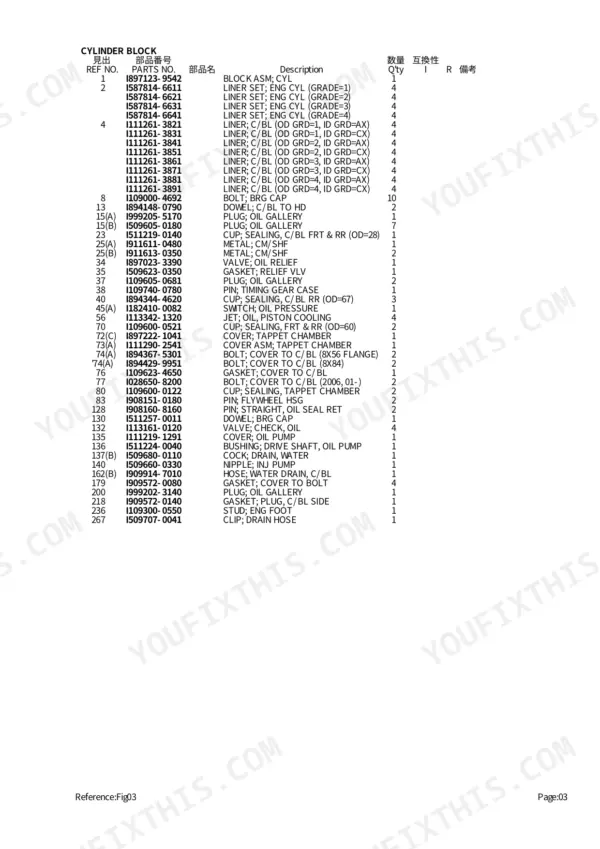

| Cylinder Block Rear Sealing Cup Outer Diameter | 67 | p. 12 |
| Breather Rubber Hose Clip Inner Diameter | 48 | p. 24 |
| Camshaft Rear Bearing Shim Thickness Option 1 | T=0.10 | p. 54 |
| Injection Pump Tappet Shim Thickness Option 1 | T=0.30 | p. 54 |
| Governor Flyweight Sleeve Shim Thickness Option 1 | T=0.20 | p. 57 |
| Starter Through Bolt Quantity | 2 or 4 | p. 50 |
Isuzu BB-4BG1-TRE Common Problems This Manual Covers
Turbocharger failure and overboost
Turbo failures with low or over boost are common, and because the actuator is not sold separately the full turbo often has to be replaced. The turbocharger section shows the exploded view and part references to order the correct unit.
Manual Section: Turbocharger System p. 31Injection pump misfires
Injection pump wear leads to misfires, hesitation, hard starting, and reduced power. The injection pump section breaks down the pump along with its governor, feed pump, and coupling parts.
Manual Section: Injection Pump p. 53Hard starting and worn glow plugs
Slow cranking, clicking, and no-start conditions often come from worn glow plugs, a weak battery, or faulty electrical control parts. Use the electrical control section to identify the right components.
Manual Section: Electrical Control Parts p. 47Fuel starvation from air leaks
The engine can act like it is running out of fuel despite a full tank when there are air leaks or lift pump problems. The fuel pump and pipe section identifies the pump and line components to check.
Manual Section: Fuel Pump & Pipe p. 39Overheating from water pump wear
Coolant loss and overheating on high-hour engines often trace to a worn water pump or thermostat. The water pump section shows the pump and its related parts with part numbers.
Manual Section: Water Pump p. 25Slow cranking and starter faults
A worn starter or weak battery shows up as slow cranking and clicking noises. The starter section identifies the starter assembly and its through bolts and hardware.
Manual Section: Starter p. 49Frequently Asked Questions
What engine and application does this catalog cover?
It covers the Isuzu BB-4BG1-TRE engine as fitted to the TB1135C, serial number 51350001 and up, across 74 pages of exploded parts diagrams.
Does it break down the injection pump?
Yes. The Injection Pump section covers the pump assembly along with its governor, feed pump, miscellaneous parts, and coupling, each with reference and part numbers. p. 53
Can I use it to order turbocharger parts?
Yes. The Turbocharger System section gives the exploded view and part references for the turbo, which helps when the full unit must be replaced after an actuator failure. p. 31
Does it cover electrical and starting parts?
Yes. The Electrical Control Parts, Starter, and Generator sections identify the charging and starting components you need to diagnose hard starting and battery faults. p. 47
Is this Isuzu BB-4BG1-TRE Parts Catalog a digital download?
Yes. It's a 74-page searchable PDF, available immediately after checkout. Works on computer, tablet, or phone with no shipping wait.
Are there any print restrictions on this manual?
No restrictions. The PDF is DRM-free, so you can print any section for the shop. Standard letter or A4 paper works fine.
