Need the Cummins 24 Valve, 8.3 Liter engine back in spec? This 496-page Cummins 24 Valve repair manual pdf (OEM Rac 7-88631) breaks down every group, from cylinder block and cylinder head to fuel system and turbocharger. Inside you get a full troubleshooting section for symptoms like excessive engine noise and low power output, exploded views for the cylinder block, camshaft, and injector assemblies, and a dedicated torque specifications chapter. You also get step-by-step procedures covering the fuel pump, injectors, lubricating oil system, and cooling system, plus dataplate identification pages so you know exactly which engine variant you're working on. Torque cylinder head capscrews to 148 N·m on the first pass, and hold cylinder head flatness within 0.075 mm end to end. No more guessing on head bolt sequence with your engine in pieces. Bookmarked and searchable, so you jump straight to the group you need on your phone in the shop.
What's Inside This Cummins 24 Valve, 8.3 Liter Engine Repair Manual
| System | Pages | Key Topics |
|---|---|---|

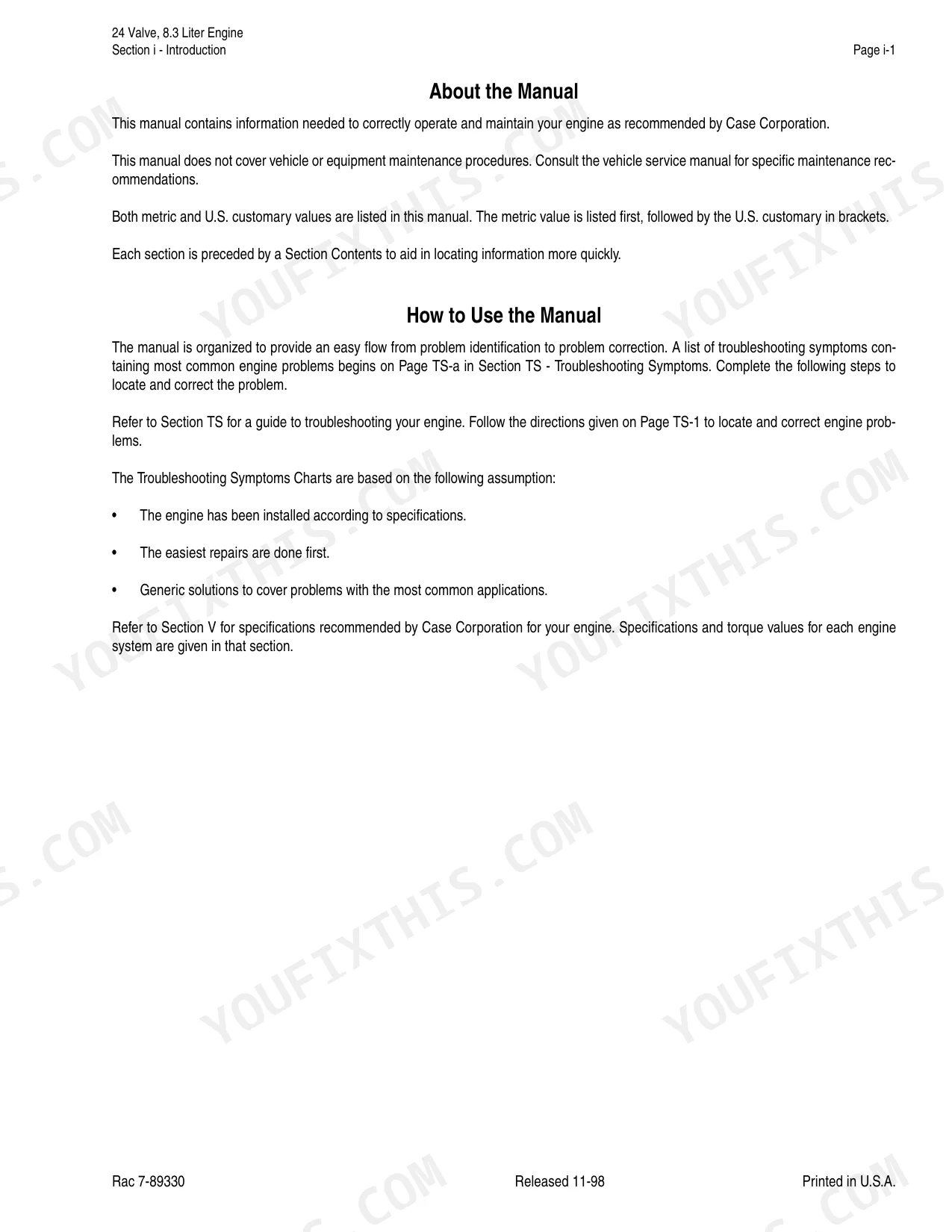

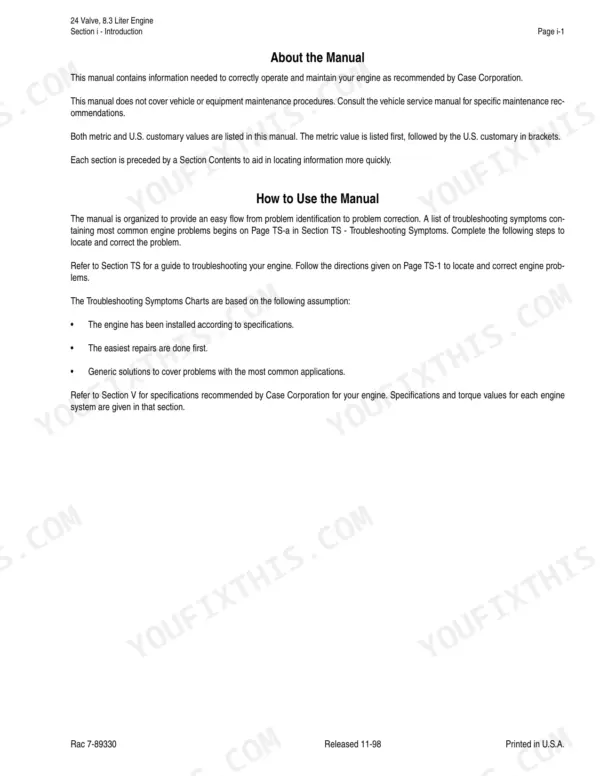

| Introduction | 3-10 | How to Use the Manual, Illustrations |

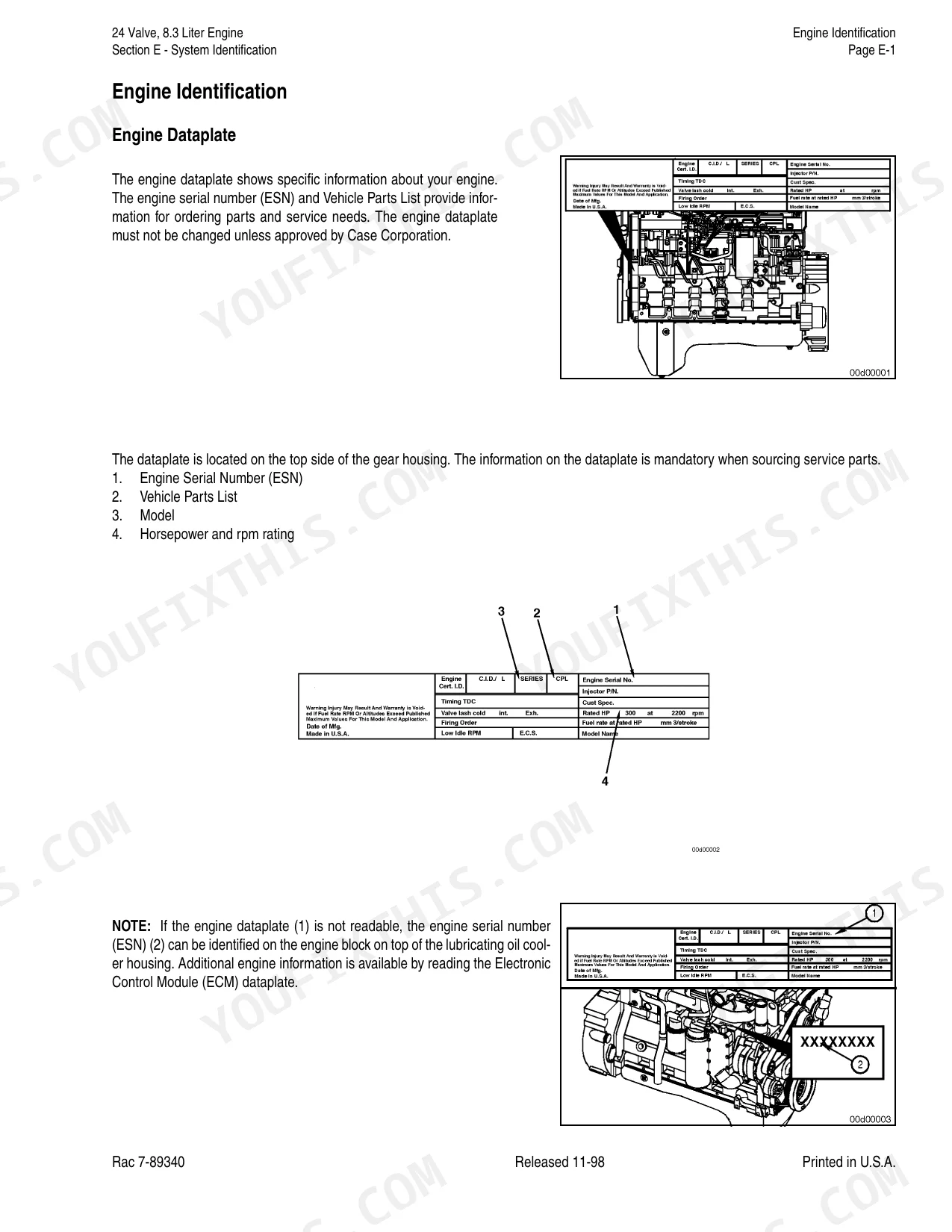

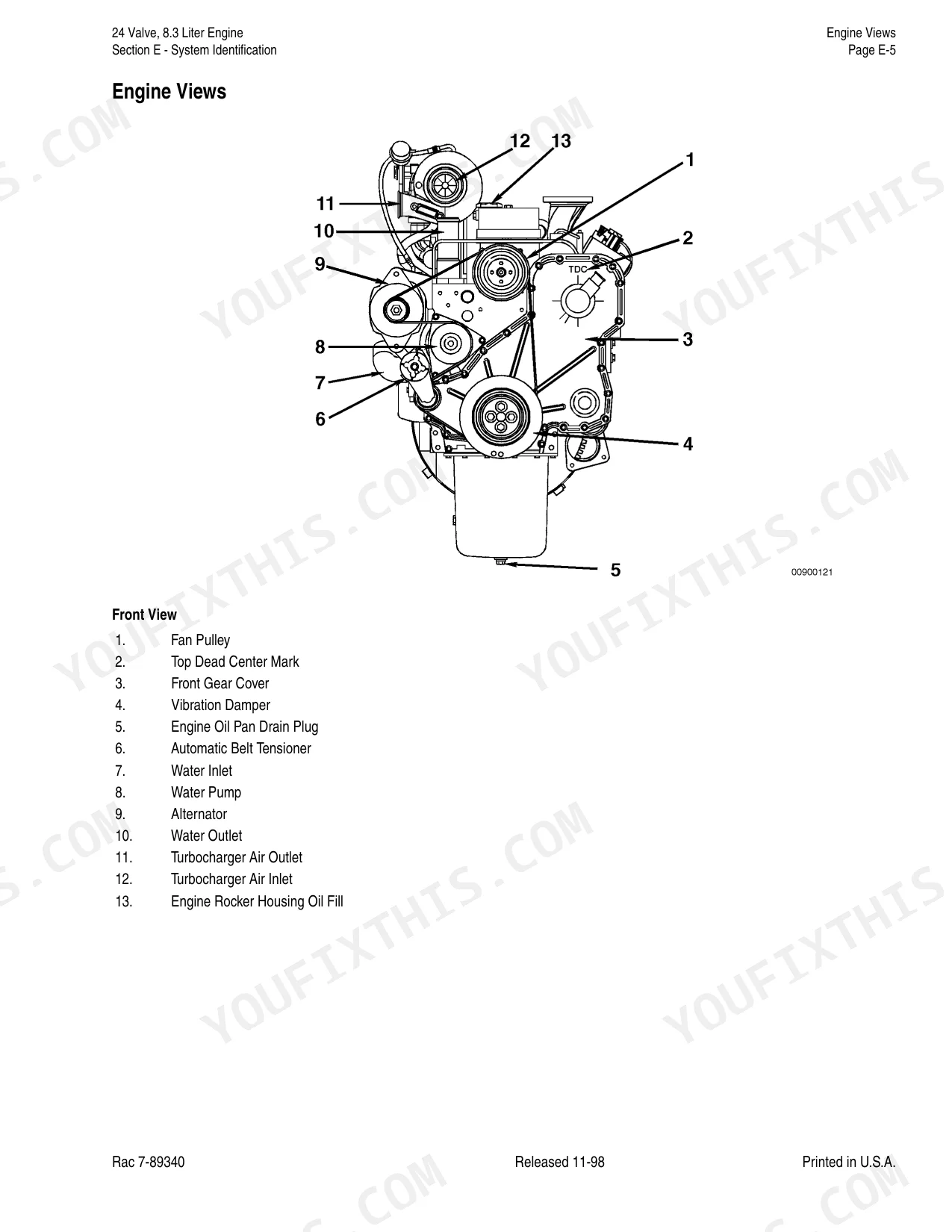

| Engine Identification | 11-20 | Engine Dataplate, Fuel Injection Pump Dataplate, Ecm Dataplate |

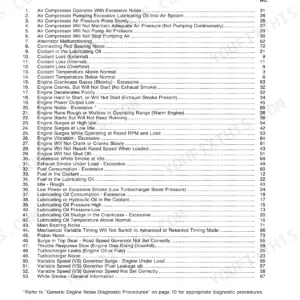

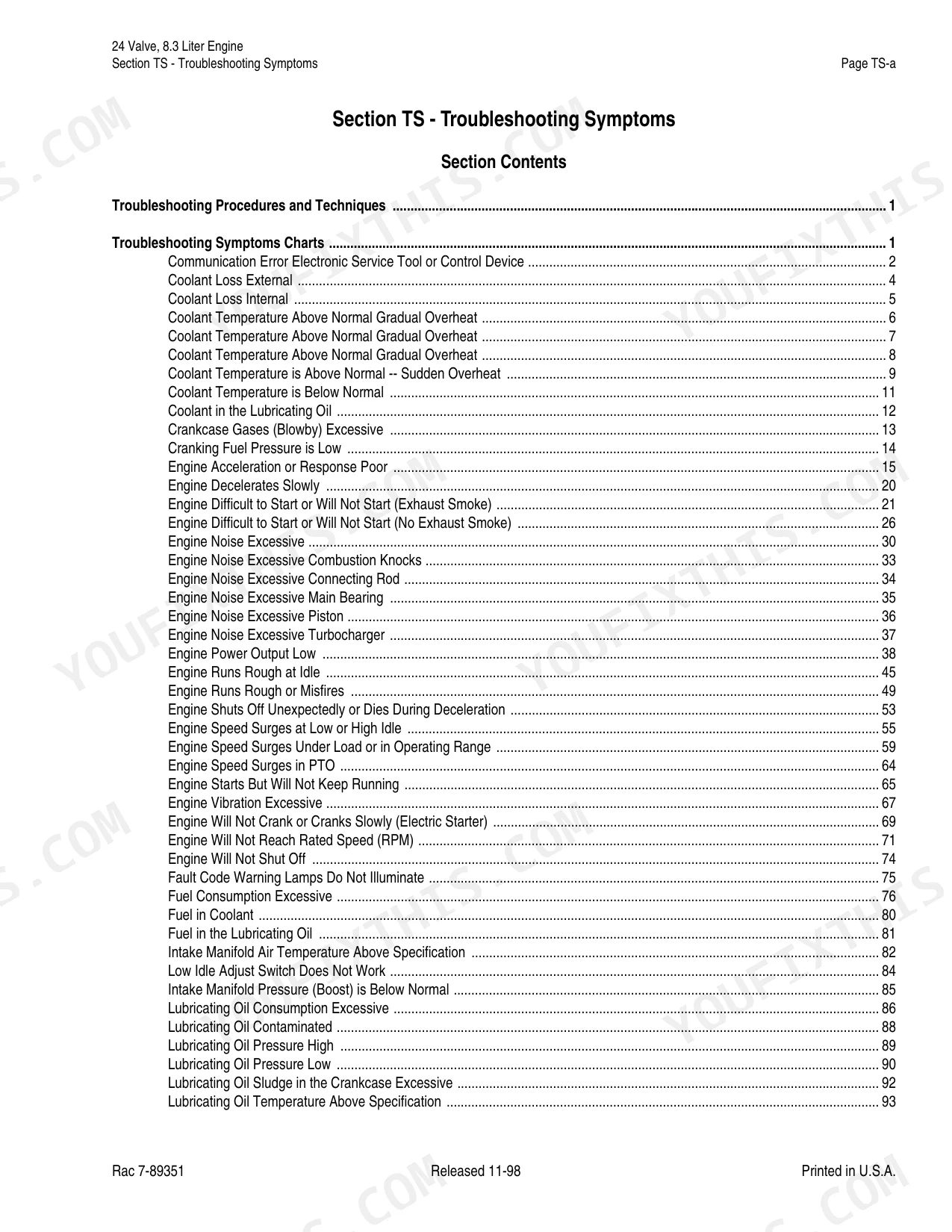

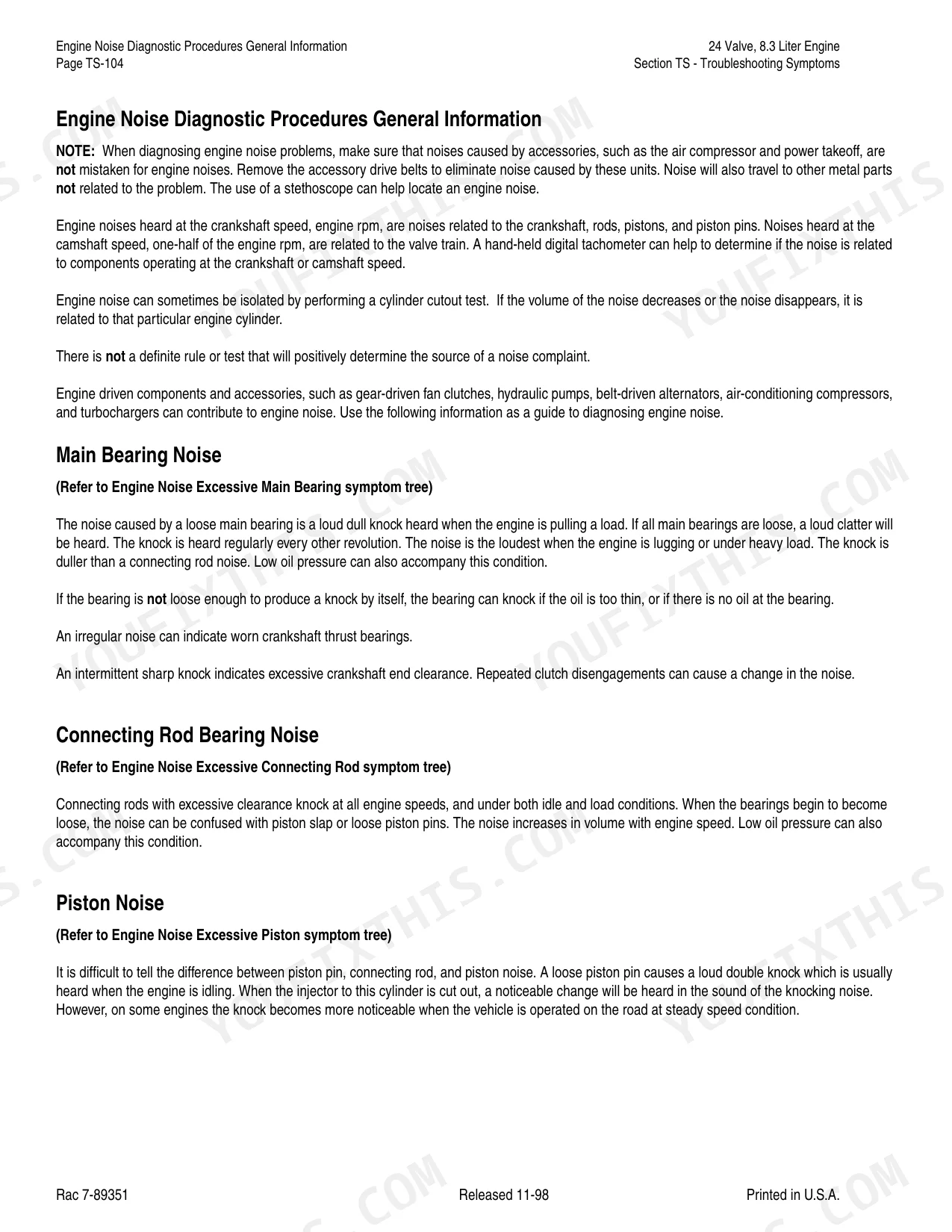

| Troubleshooting Symptoms | 21-126 | Communication Error Electronic Service Tool or Control Device, Coolant Loss External, Engine Noise Excessive, Engine Power Output Low, Fuel Consumption Excessive |

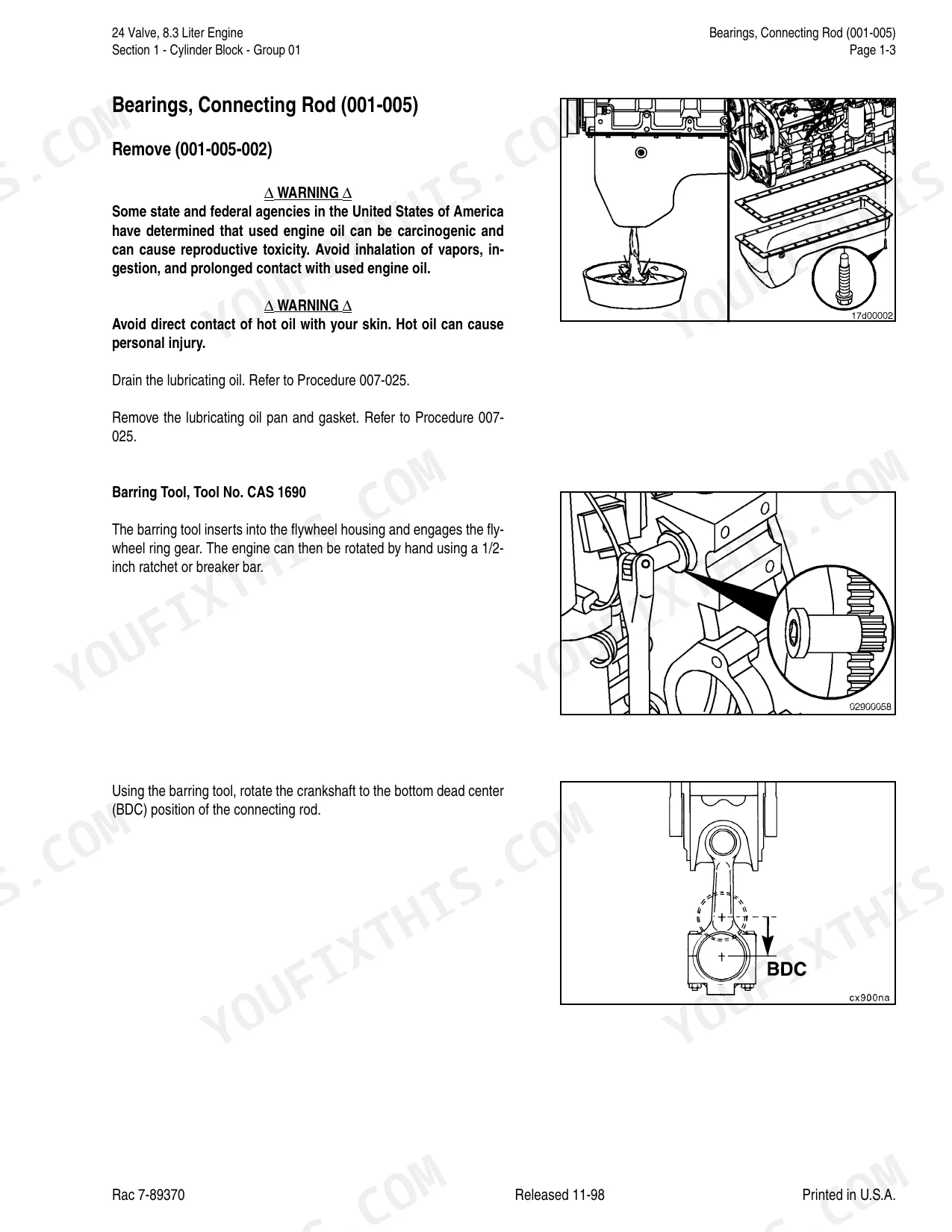

| Cylinder Block - Group 01 | 127-210 | Bearings, Connecting Rod, Main, Camshaft, Cylinder Liner, Piston, Vibration Damper |
| Cylinder Head - Group 02 | 211-234 | Crosshead, Cylinder Head, Injector Protrusion, Valve |
| Rocker Levers - Group 03 | 235-246 | Overhead Set, Rocker Lever, Rocker Lever Cover |
| Cam Followers/Tappets - Group 04 | 247-258 | Push Rods or Tubes, Tappet |
| Fuel System - Group 05 | 259-312 | Engine Fuel Heater, Fuel Lift Pump, Fuel Pump, Fuel Pump Accumulator, Fuel Pump Cam Housing, Fuel Pump Delivery Valve |
| Injectors and Fuel Lines - Group 06 | 313-338 | Air in Fuel, Fuel Drain Lines, Fuel Filter, Fuel Supply Lines, Injector, Injector Supply Lines (High Pressure) |
| Lubricating Oil System - Group 07 | 339-378 | Engine Oil Heater, Lubricating Oil Cooler, Lubricating Oil Pump, Lubricating Oil Pan, Lubricating Oil Thermostat, Lubricating Oil Pressure Sensor |
| Cooling System - Group 08 | 379-410 | Coolant Filter, Coolant Heater, Coolant Thermostat, Radiator, Water Pump, Fan |
| Drive Units - Group 09 | 411-414 | - |
| Air Intake System - Group 10 | 415-448 | Air Crossover, Air Inlet Connection, Air Intake Manifold, Charge Air Cooler, Cold Starting Aid, Turbocharger |
| Exhaust System - Group 11 | 449-456 | - |
| Miscellaneous - Group 17 | 457-464 | Cup Plug, Pipe Plug, Straight Thread Plug |

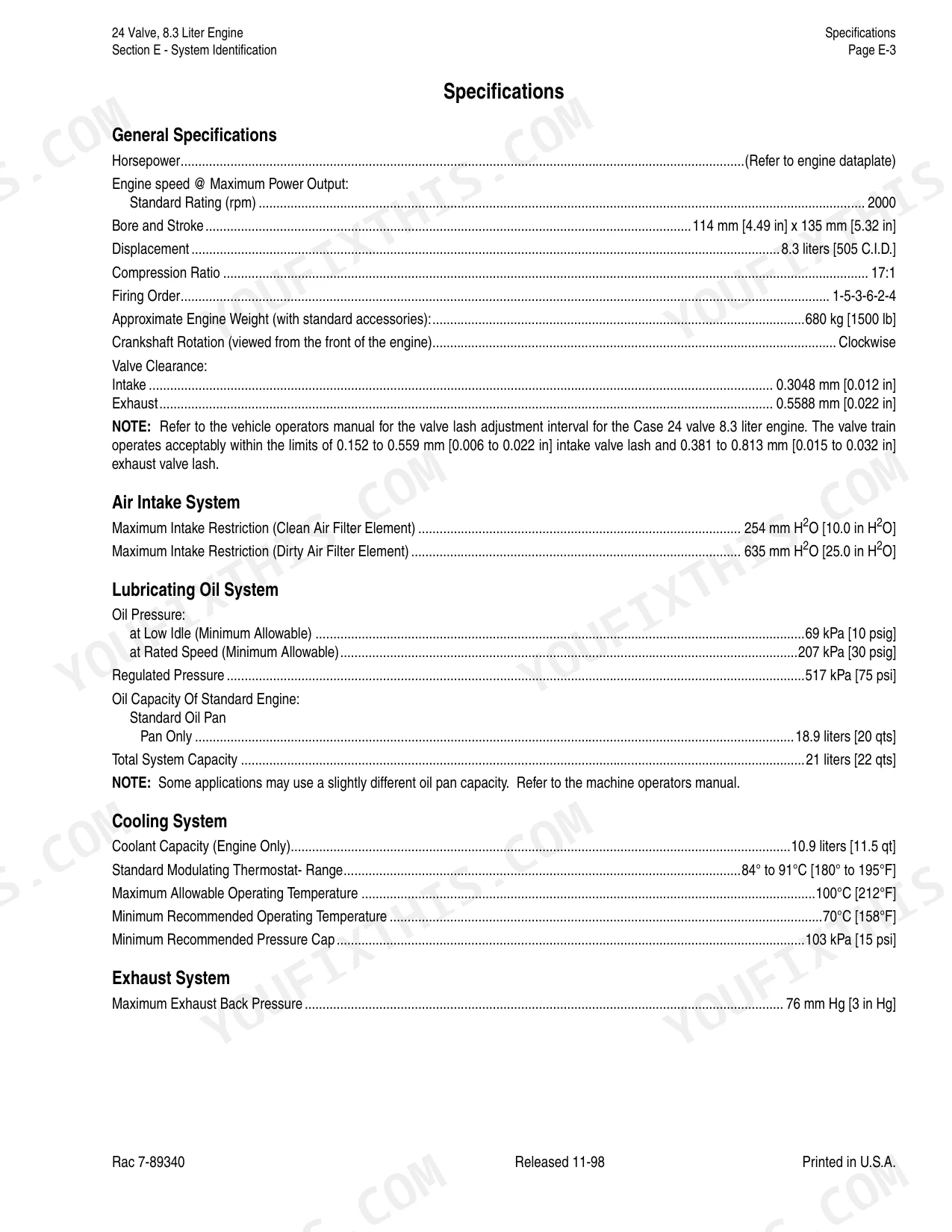

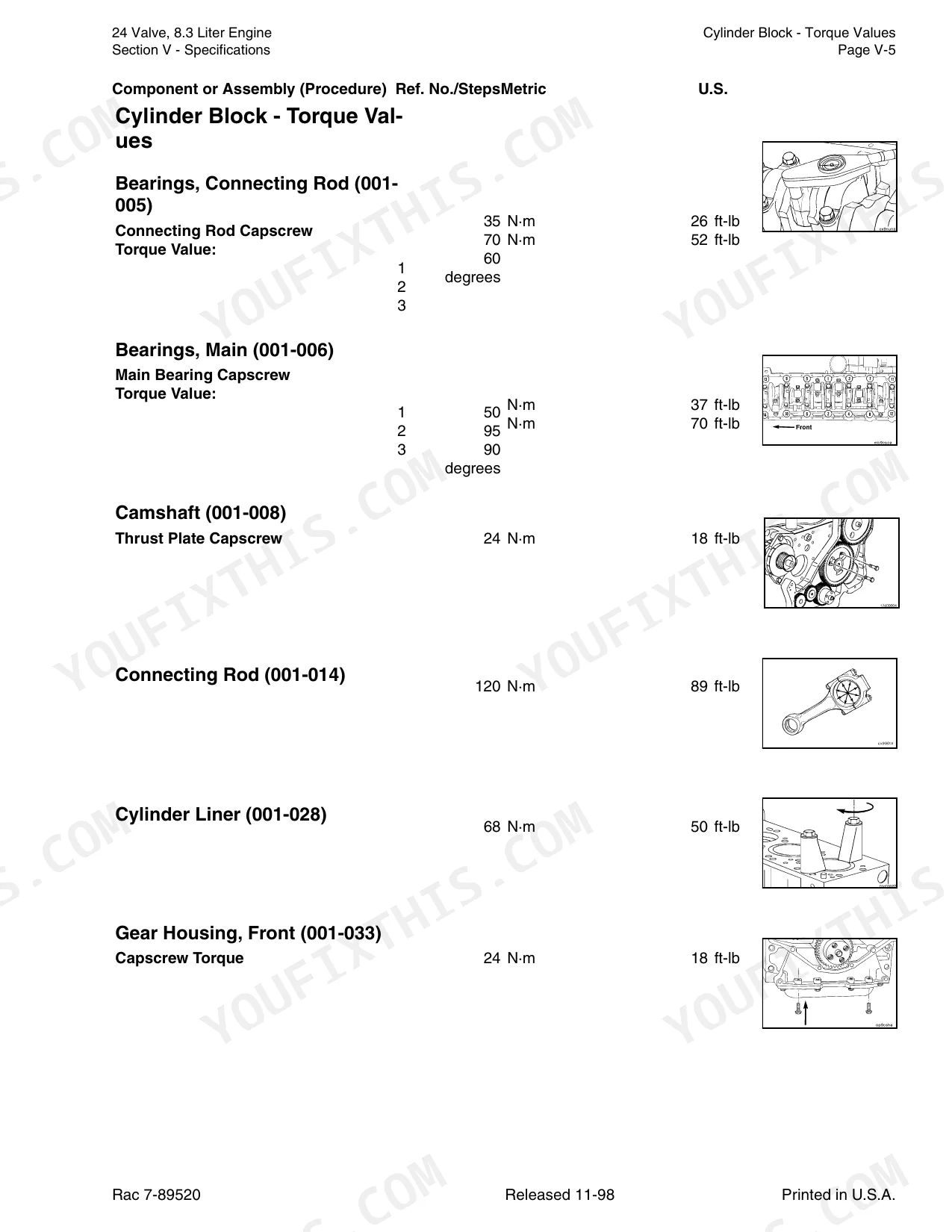

| Specifications | 465-496 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Exhaust Manifold Flatness (Maximum) | 0.20 mm [0.008 in] | p. 454 |
| Exhaust Manifold Capscrew Torque | 43 N·m [32 ft-lb] | p. 455 |
| Cylinder Head Flatness (End to End, Maximum) | 0.075 mm [0.003 in] | p. 218 |
| Cylinder Head Flatness (Side to Side, Maximum) | 0.075 mm [0.003 in] | p. 218 |
| Cylinder Liner Maximum Out of Round | 0.04 mm [0.0016 in] | p. 170 |
| Cylinder Liner Maximum Taper | 0.04 mm [0.0016 in] | p. 170 |
| Fuel Lift Pump Installation Torque | 12 N·m [9 ft-lb] | p. 281 |
| Fuel Filter Stud Torque | 41 N·m [30 ft-lb] | p. 268 |
| Maximum Fuel Pressure Drop Across Fuel Filter | 0.725 kPa [5 psi] | p. 268 |
| Coolant Filter Head Capscrew Torque | 24 N·m [18 ft-lb] | p. 387 |
| Turbocharger Axial Clearance (Minimum) | 0.038 mm [0.0015 in] | p. 439 |
| Turbocharger Axial Clearance (Maximum) | 0.089 mm [0.0035 in] | p. 439 |
Cummins 24 Valve, 8.3 Liter Engine Common Problems This Manual Covers
Cummins 8.3 Liter engine coolant loss with rising oil level on dipstick after high-hour operation p. 218
Remove the cylinder head and check flatness end to end and side to side; max allowable is 0.075 mm (0.003 in) per page 218. Inspect the front corner for lifting and replace the head gasket. Torque capscrews to 148 N·m (108 ft-lb) in step one, recheck at 148 N·m, then turn an additional 90 degrees per page 221.
Manual Section: Cylinder Head - Group 02Loss of power and reduced turbo drive pressure with exhaust leaks at manifold gaskets p. 454

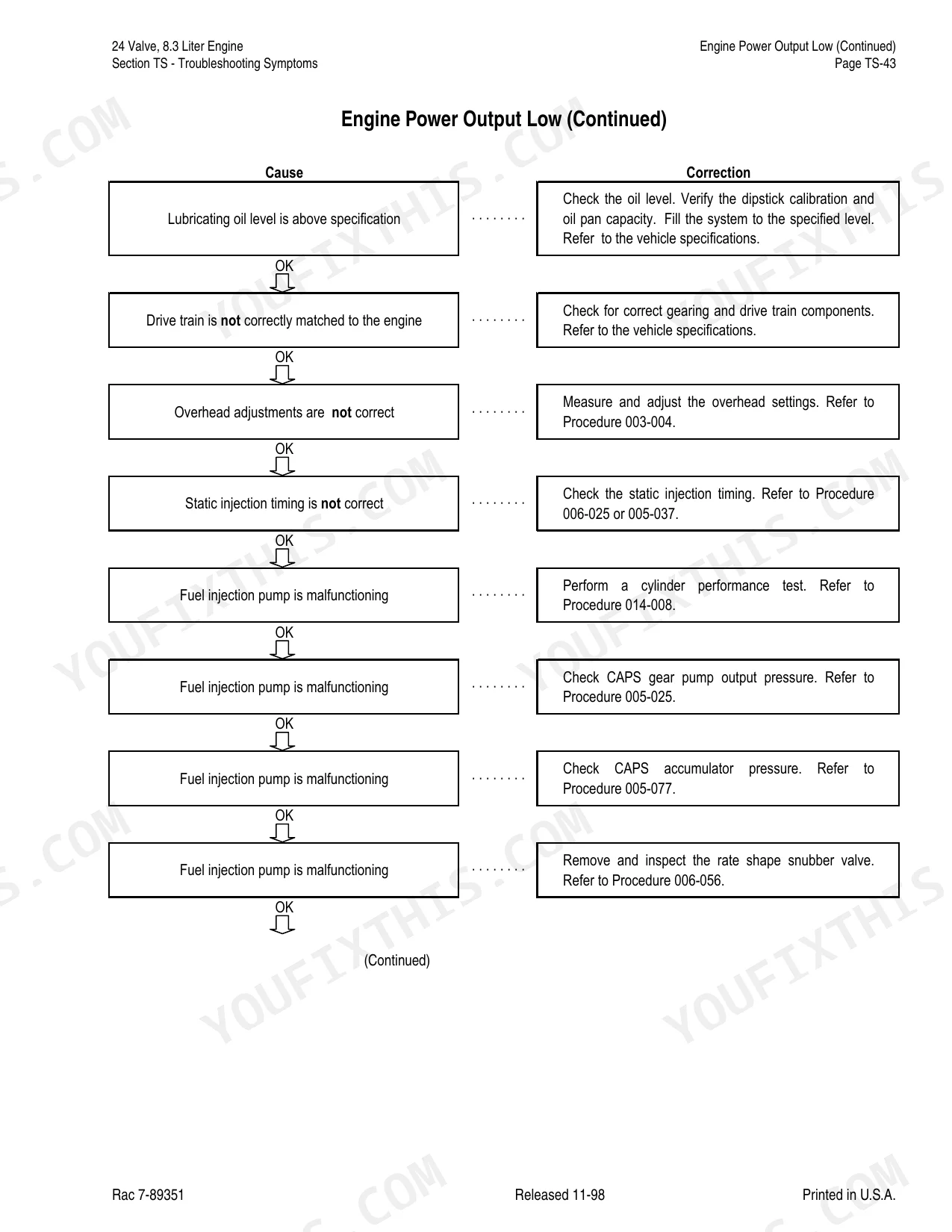

Check the troubleshooting chart for Engine Power Output Low on pages 60 through 66. Remove the exhaust manifold and measure flatness with a straightedge and feeler gauge; maximum allowable warp is 0.20 mm (0.008 in) per page 454. Replace the manifold and gaskets, then torque capscrews to 43 N·m (32 ft-lb) per page 455, working center outward.
Manual Section: Exhaust System - Group 11Hard starting with air bubbles in fuel filter housing after fuel filter changes p. 281
Check the troubleshooting index for Engine Difficult to Start on pages 43 through 47. Inspect the fuel lift pump mounting gaskets for leaks and torque the pump to 12 N·m (9 ft-lb) per page 281. Bleed the system at the primer pump and verify the fuel lift pump meets its minimum output pressure of 34 kPa (5 psi) per page 281.
Manual Section: Fuel System - Group 05Engine speed sensor fault code active, intermittent stalling with erratic tachometer reading p. 39
Refer to the Engine Speed Sensor troubleshooting on pages 39 and 69. Check the sensor for correct adjustment and for debris on the tip, then follow Procedures 019-042 and 019-106 in the Fuel Systems Troubleshooting and Repair Manual for the Case 24 Valve, 8.3 Liter engines to test the circuit with a multimeter and verify continuity before replacing the sensor or harness.
Manual Section: Troubleshooting SymptomsWhite exhaust smoke with coolant loss and no external leaks found at radiator or hoses p. 117
Check the troubleshooting index for Smoke White Excessive on pages 117 through 120 for coolant leak into the combustion chamber. Pressure test the cooling system against the minimum recommended cap rating of 103 kPa per page 15. Measure cylinder head flatness against the 0.075 mm (0.003 in) maximum limit on page 218 before resurfacing or replacing the head.
Manual Section: Troubleshooting SymptomsCylinder liner scoring or excessive wear found during teardown after coolant contamination p. 170
Measure the liner bore diameter and compare to the 114.040 mm (4.4897 in) maximum on page 471. Check out-of-round and taper against the 0.04 mm (0.0016 in) limit on page 170, and verify liner protrusion falls between 0.025 mm and 0.122 mm (0.001 to 0.0048 in) per page 171. Replace any liner exceeding these limits.
Manual Section: Cylinder Block - Group 01Frequently Asked Questions
What are the torque specifications for Cummins 8.3L ISC cylinder head bolts?
The cylinder head capscrews should be tightened in three steps: Step 1 to 148 N•m [108 ft-lb], Step 2 (recheck all) to 148 N•m [108 ft-lb], and Step 3 to 90 degrees. This sequence is illustrated in the manual for proper tightening.
What are the torque specifications for Cummins 8.3L ISC injector mounting nuts?
For the injector retaining nut, the torque value is 47 N•m [35 ft-lb]. For the injector hold-down, the torque value is 10 N•m [89 in-lb].
What are the replacement specifications for the Exhaust manifold?
The exhaust manifold should be inspected for cracks, burnout, or damaged threads. If any port measures out of specifications for flatness (maximum 0.20 mm [0.008 in]), the manifold must be replaced.
What are the replacement specifications for the Head gasket and head bolts?
The cylinder head gasket should not be reused and must be replaced with a new one. Cylinder head capscrews should not be reused if visible corrosion or pitting exceeds 1 sq cm [0.155 sq in] in area or 0.12 mm [0.005 in] in depth, or if they are stretched beyond a free length maximum of 162.6 mm [6.4 in].
What format is this Cummins 24 Valve, 8.3 Liter Engine manual in?
A 496-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this Cummins 24 Valve, 8.3 Liter Engine manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
