Every single page of this 610-page Cummins 24 valve service manual pdf (OEM #Rac 7-88622) is dedicated to keeping your 8.3 Liter engine, including Case variants, running perfectly. Inside, you get complete wiring diagrams for the ECM, a massive troubleshooting section breaking down every fault code, and step-by-step diagnostic procedures for the Accumulator Pump System. Open straight to the exact test values needed to trace sensor faults without wasting time probing wires blind. Verify the fuel inlet restriction stays under 10 inches of mercury, then lock down the CAPS threaded fuel pressure sensor to exactly 81 N-m (60 ft-lb). A dead engine costs money. Grab this bookmarked download, pull it up on your phone in the shop, and get that machine firing again.
What's Inside This Cummins 6TAA-8304 / 6TAA-9004 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-11 | Acronyms and Abbreviations (Solvent and Acid Cleaning, Steam Cleaning, Glass or Plastic Bead Cleaning, Important Safety Notice), How to Use the Manual, Illustrations |

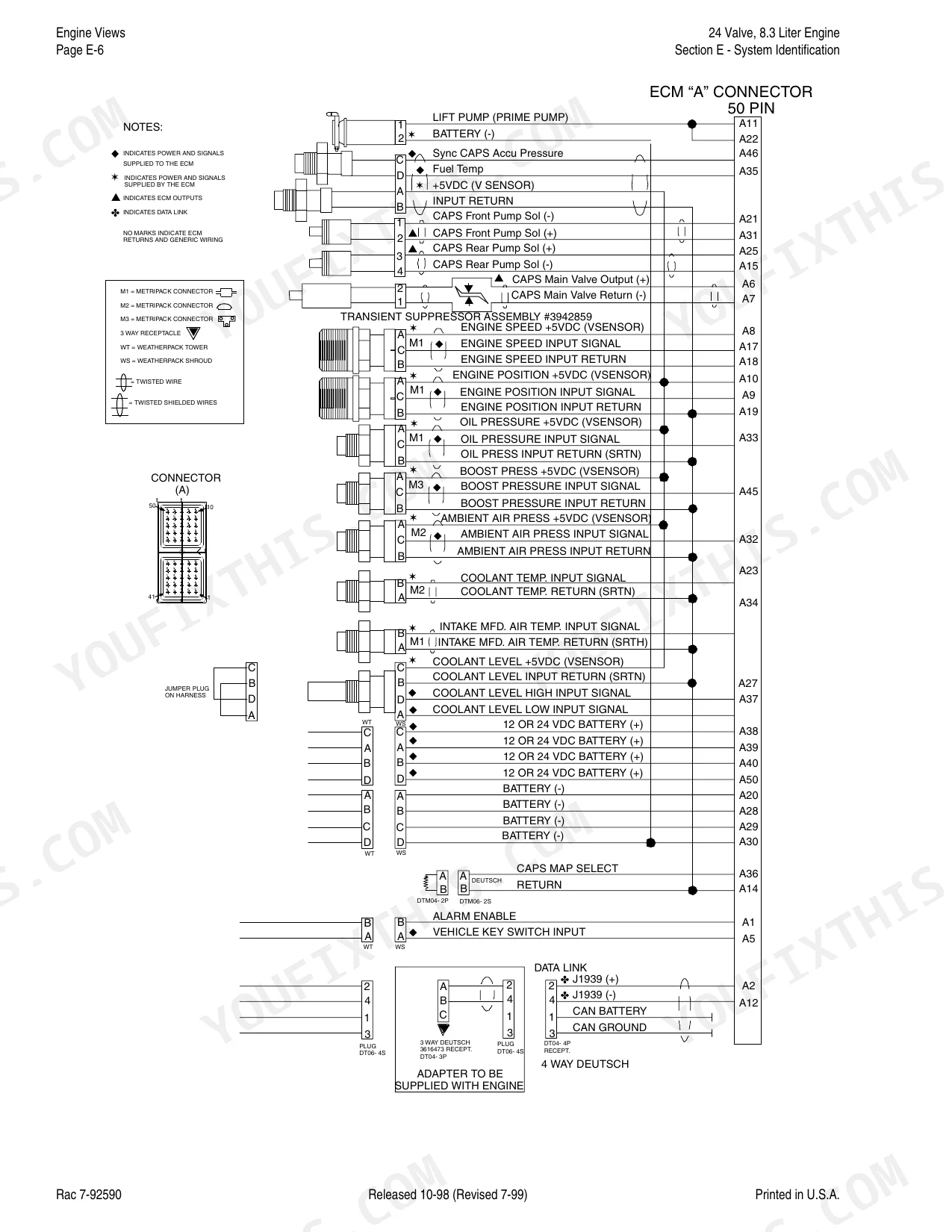

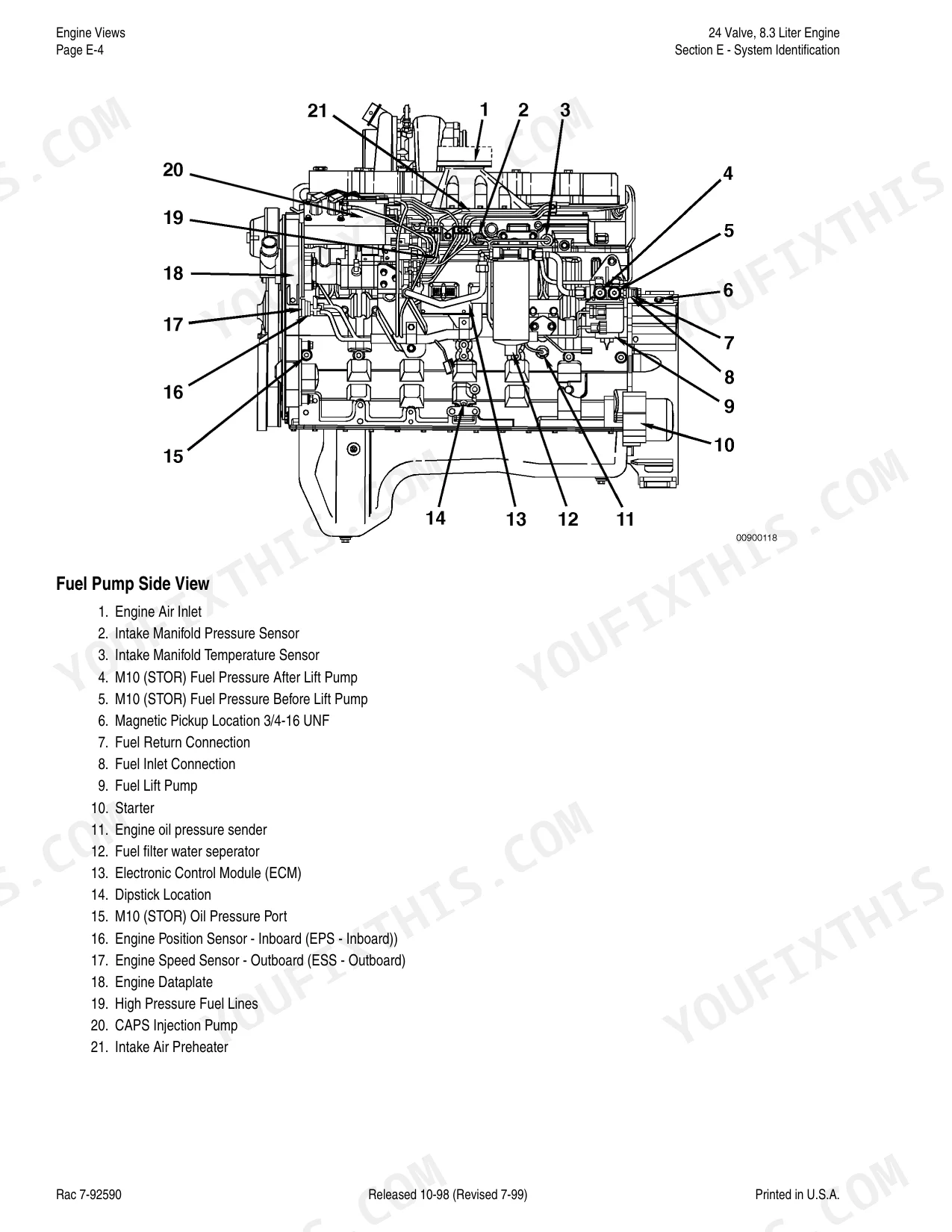

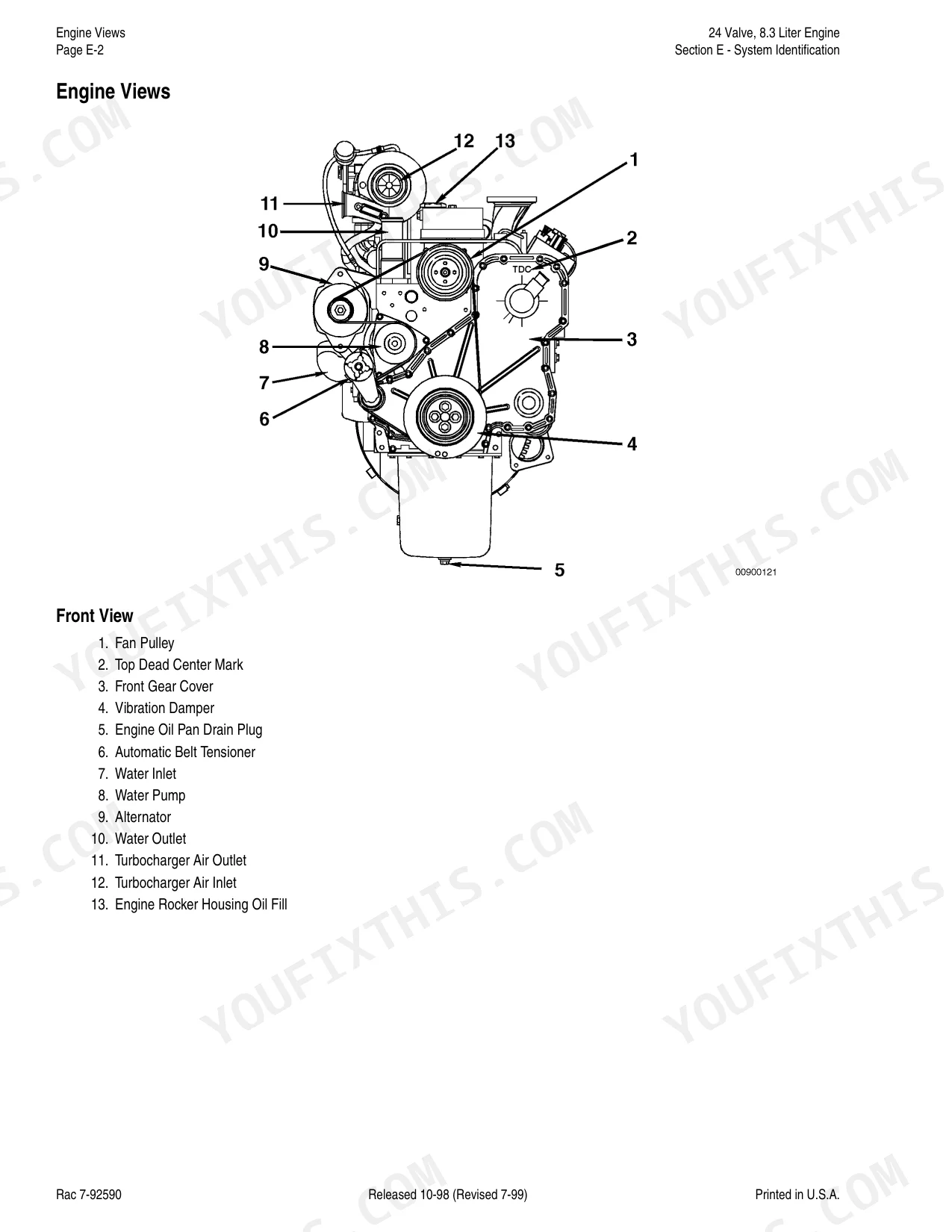

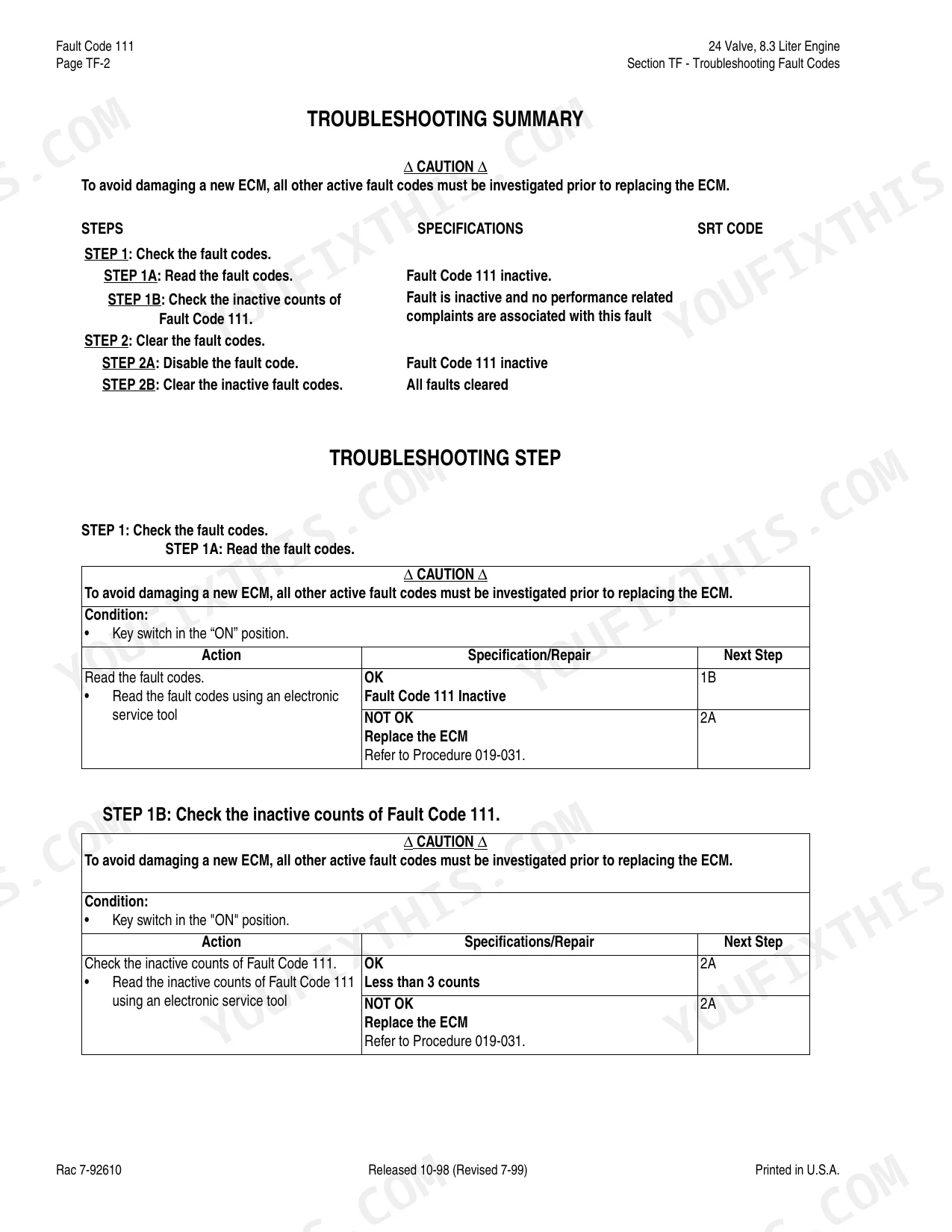

| System Identification | 12-21 | Ecm Dataplate, Engine Views (Front View, Rear View, Fuel Pump Side View, Exhaust Side View), Wiring Diagram |
| Familiarization | 22-25 | Diagnostic Fault Codes (Fault Code Snapshot Data, Engine Time Offset, Duty Cycle Monitor) |
| Fault Code 124 | 36-38 | Intake Manifold Pressure Sensor Circuit |
| Fault Code 131 or 132 | 39-53 | Accelerator Position Sensor Circuit |
| Fault Code 135 or 141 | 54-63 | Oil Pressure Sensor Circuit |
| Fault Code 143 | 64-66 | Oil Pressure Low Engine Protection, Power Derate, Engine Shutdown, Mechanical Pressure Gauge Verification, Ecm Oil Pressure Signal Check |
| Fault Code 144 or 145 | 67-76 | Coolant Temperature Sensor Circuit |
| Fault Code 146 | 77-79 | Coolant Temperature High Engine Protection, Power Derate, Engine Shutdown, Thermocouple Sensor Verification, Radiator Airflow Obstruction Check |
| Fault Code 151 | 80-82 | Coolant Temperature High Severe Engine Protection, Red Lamp, Speed Derate, Engine Shutdown, Thermocouple Verification, Coolant Temperature Sensor Replacement |
| Fault Code 153 or 154 | 83-93 | Intake Manifold Air Temperature Sensor Circuit, Voltage High FC153, Voltage Low FC154, Signal Pin 34, Sensor Resistance Table, Harness Continuity Check, Sensor Replacement |
| Fault Code 155 | 94-96 | Intake Air Temperature High Engine Protection, Speed Derate, Engine Shutdown, Air Cleaner Restriction Check, Intake Manifold Temperature Limit |
| Fault Code 221 or 222 | 97-107 | Ambient Air Pressure Sensor Circuit |
| Fault Code 234 | 108-113 | Engine Overspeed Circuit |
| Fault Code 235 | 114-119 | Engine Coolant Level - Engine Protection |
| Fault Code 263 or 265 | 120-128 | Fuel Temperature Sensor Circuit |
| Fault Code 268 | 129-131 | Fuel Pressure Sensor Circuit |
| Fault Code 271 or 272 | 132-141 | Front Pumping Valve Circuit |
| Fault Code 273 or 274 | 142-151 | Rear Pumping Valve Circuit |
| Fault Code 275 | 152-368 | Front Pumping Element of the Caps Fuel Pump, Circuit Description, Component Location, Shop Talk |
| Troubleshooting Symptoms | 369-442 | Communication Error - Electronic Service Tool or Control Device, Engine Acceleration or Response Poor, Engine Decelerates Slowly |
| Electronic Engine Controls - Group 19 | 443-522 | Ambient Air Pressure Sensor, Battery Ground Circuit, Cold Start Aid Circuit, Coolant Level Sensor, Coolant Temperature Sensor, Electronic Control Module (Ecm) |

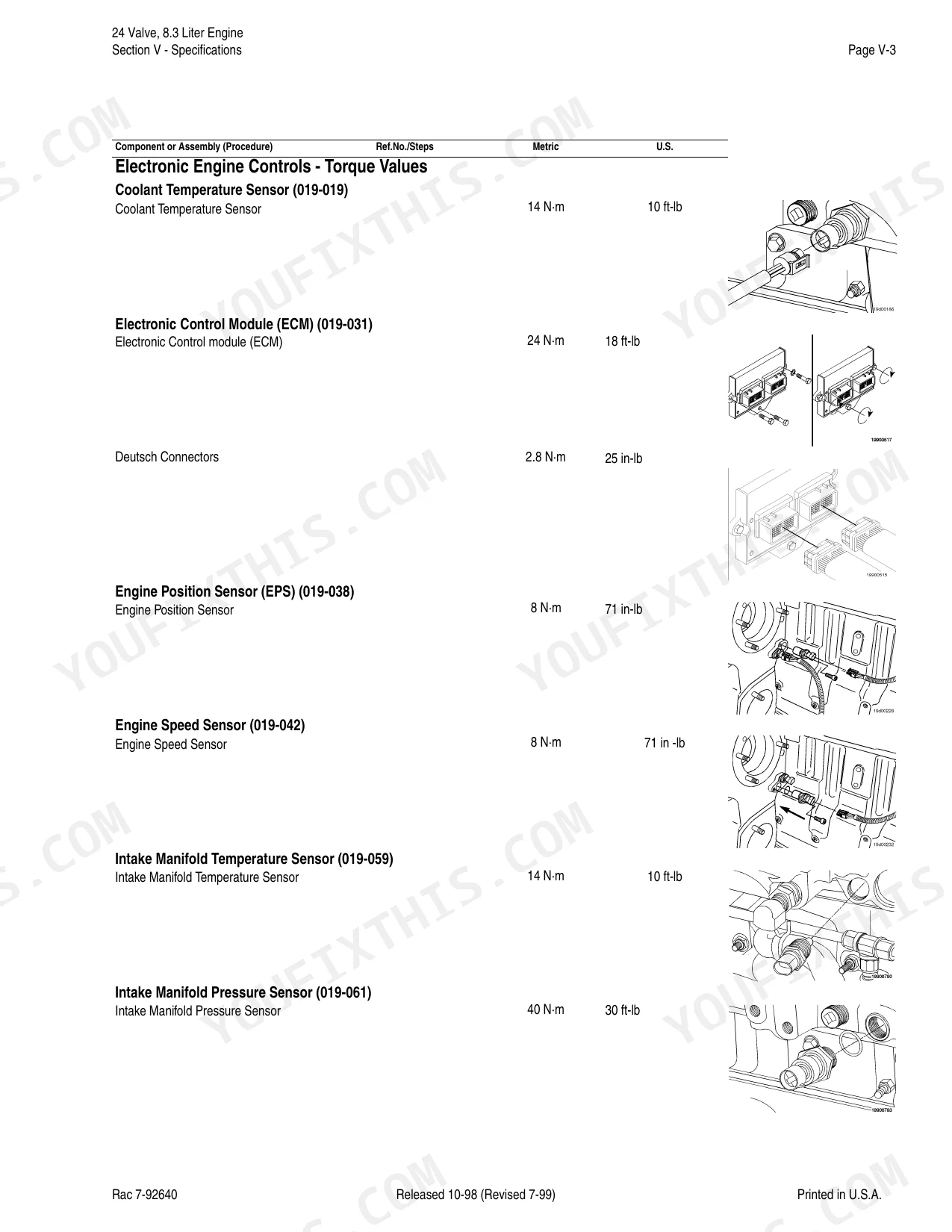

| Specifications | 523-536 | Capscrew Markings and Torque Values, Drive Belt Tension, Electronic Engine Controls - Torque Values |
| Cummins Accumulator Pump System (Caps) Service & Troubleshooting Guide | 537-610 | Accumulator Pump System (Caps), Fuel Pump, Injection Control Valve, Engine Wiring Harness, Ecm, Fuel Pressure Sensor, Filter Minder |

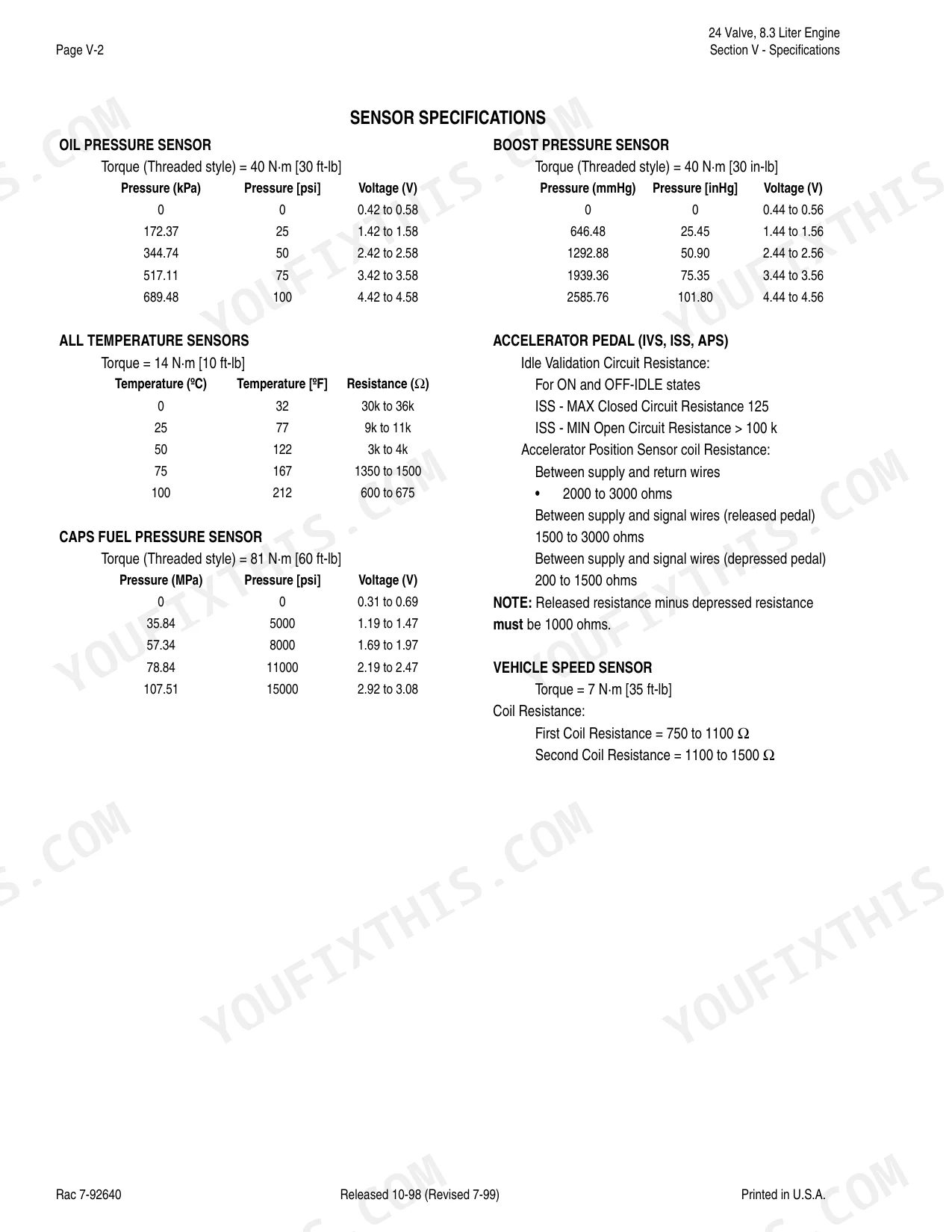

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CAPS Fuel Pressure Sensor Torque (Threaded style) | 81 N·m [60 ft-lb] | p. 526 |
| Snubber Valve Assembly Torque | 14 N·m [10 ft-lb] plus 90 degrees | p. 588 |
| Fuel inlet restriction (maximum) | 10 inches of mercury | p. 582 |
| DATA LINK Positive wire to chassis ground (J1587) | 4.0 to 5.0 volts | p. 525 |
| 5 V POWER SUPPLY (Sensor and Switch) @ ECM | 4.75 to 5.25 volts | p. 525 |
| Priming Pump Resistance | 1.0 to 1.2 Ω | p. 525 |
| Injection Control Valve Resistance | 0.08 to 0.12 Ω | p. 525 |
| Oil Pressure Sensor Torque (Threaded style) | 40 N·m | p. 526 |
| Vehicle Speed Sensor First Coil Resistance | 750 to 1100 Ω | p. 526 |
| SAE Belt Size 0.380 in Belt Tension New | 620 N | p. 528 |
| Pipe Plug Thread 1/16 in Torque In Cast Iron or Steel Components | 15 Nm | p. 535 |
| All Temperature Sensors Torque | 14 N·m | p. 526 |
Cummins 6TAA-8304 / 6TAA-9004 Common Problems This Manual Covers
Cummins 8.3 Liter engine cranks but won't start, especially in cold weather
Check the engine difficult to start troubleshooting flow starting. Verify battery voltage meets cranking requirements, confirm the fuel filter isn't plugged, and check for active fault codes before condemning the CAPS injection pump. Inspect the air intake for restriction and confirm cranking speed is adequate; torque CAPS fuel pressure sensor connections to 81 N·m if disturbed during testing.
Manual Section: Engine Difficult to Start or Will Not Start TroubleshootingLow power complaint under load with active engine protection derate triggered
Pull active fault codes first and check the low power troubleshooting chart. Verify fuel inlet restriction stays under 10 inches of mercury, inspect for air intake or exhaust leaks, and confirm the fuel filter element isn't plugged. Check turbocharger boost and verify static injection timing before suspecting internal engine damage or a CAPS pump fault.
Manual Section: Engine Power Output Low TroubleshootingFuel leaking from CAPS pump mounting area or timing gear housing weep hole
Check the fuel system leaks guidance and trace the leak path before pulling the pump. Inspect the CAPS pump mounting O-ring, rate shape snubber assembly, rate shape tube, and cam housing weep hole for seepage. Torque the CAPS fuel pressure sensor to 81 N·m if removed, and replace any damaged O-ring rather than reusing it.
Manual Section: Fuel System Leaks TroubleshootingCoolant or fuel showing up in the engine oil after a rebuild p. 369
Check the troubleshooting symptoms section starting on page 369 for fuel or coolant contamination procedures. Pull a fuel and coolant sample and pressure test the cooling system before tearing down further. Inspect wet sleeve O-rings for cuts or pinching during installation, since a nicked O-ring is the most common cause of coolant migration into the lubricating oil on these rebuilds.
Manual Section: Troubleshooting SymptomsFuel filter and water separator element clogging frequently, fuel inlet restriction reading high p. 582
Check fuel inlet restriction on the CAPS troubleshooting guide starting on page 537. Replace the fuel filter and water separator element if restriction exceeds 10 inches of mercury. Drain accumulated water from the separator bowl regularly, prime the system per the pre-filling procedure, and inspect the line strainer screen for debris before returning the engine to service.
Manual Section: Cummins Accumulator Pump System (CAPS) Service & Troubleshooting GuideCAPS pump rotor seizure suspected after rough running or sudden loss of fuel delivery
Check the rotor seizure inspection procedure before condemning the entire CAPS pump assembly. Remove the pump cover and verify rotor timing matches specification, looking for scoring or galling on the rotor face. Inspect the check valve springs for debris contamination per the guidance, and torque the snubber valve assembly to 14 N·m plus 90 degrees on reassembly.
Manual Section: Rotor Seizures InspectionFrequently Asked Questions
How to reset Cummins 8.3L 24-valve engine error codes?
To reset Cummins 8.3L 24-valve engine error codes, connect all components and turn the key switch to the "ON" position. Start the engine and let it idle for one minute, then use an electronic service tool to verify that the specific fault code is inactive. Finally, erase the inactive fault codes using the electronic service tool.
What do error codes 329 and 456 mean on Cummins ISC 8.3L?
Fault Code 329 indicates that the Engine ECM has detected an overpumping failure in the CAPS pump. Fault Code 456 (or FC451/FC452) means that fuel pressure in the accumulator is not changing with engine operating conditions or is erratic, which could be due to a wiring problem, sensor issue, or air in the fuel/excess restriction.
How to reset Cummins CAPS fuel system after lift pump restriction?
To reset the Cummins CAPS fuel system after a lift pump restriction, install the fuel filter without pre-filling it. Cycle the key switch to the "ON" position two or three times, waiting approximately 30 seconds between each cycle. This procedure allows the electric lift pump to fill the filter with clean fuel and purge air from the low-pressure side of the CAPS pump.
What is the torque sequence for Cummins 8.3L injector pump mounting nuts?
The manual specifies that fuel pump mounting capscrews should be torqued to 32 ft-lb. However, it does not provide a specific torque sequence for these mounting nuts.
Is this Service Manual a digital download?
Instant PDF download. You get the full 610-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Cummins 24 Valve & variants Service Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are electrical wiring diagrams included in this Cummins 24 Valve & variants?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
