Hunting for a Daewoo Solar 290LL shop manual PDF that isn't a blurry scan? This 454-page factory shop manual (OEM #2023-7132E) covers the Solar 290LL track excavator from swing bearing to track assembly. You get the full S290LL hydraulic schematic, complete electrical wiring diagrams, and a dedicated hydraulic troubleshooting, testing and adjustment section that walks you through every pressure check. Rebuild procedures run through the swing motor, center joint, main pump with regulator, remote control valve, and the Kawasaki DNB travel motor, backed by standard torque tables and maintenance procedures. Set main relief at 330 kg/cm2 (4,689 psi), 350 with Pressure Up engaged, and swap track shoes when grouser height wears from 18.0 mm to 14.0 mm. No more chasing hydraulic faults with a gauge and a guess. Bookmarked and keyword-searchable; pull it up on your phone next to the machine.
What's Inside This Daewoo Solar 290LL Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-30 | Track Excavator Safety |

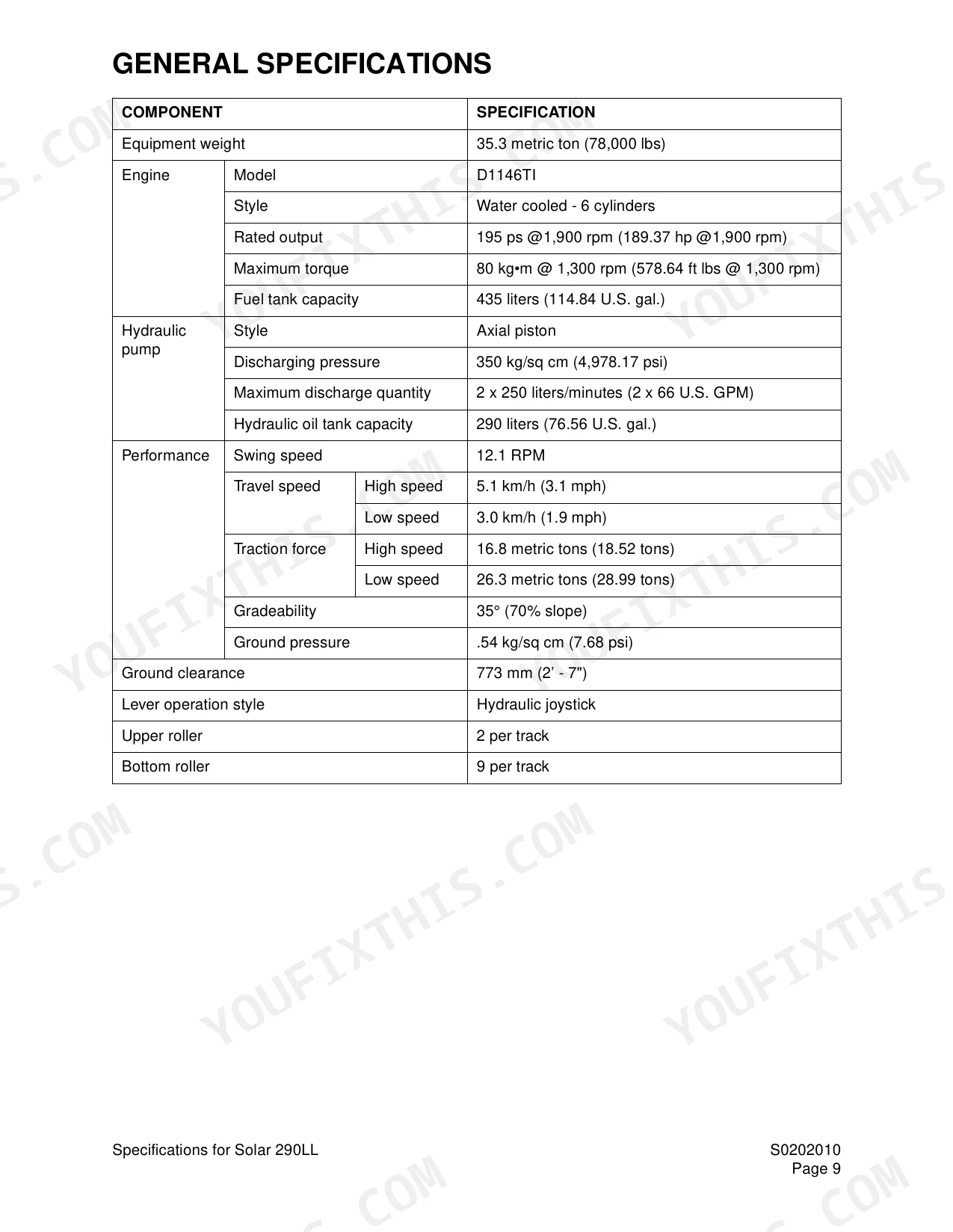

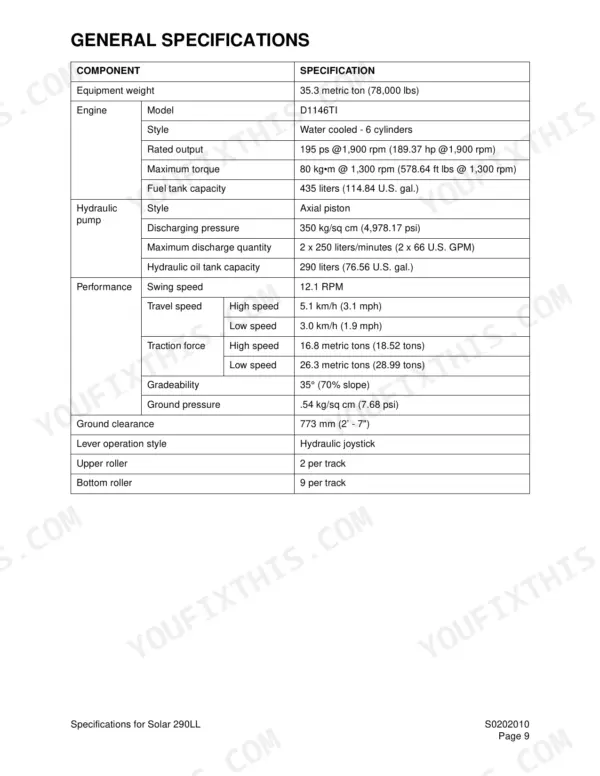

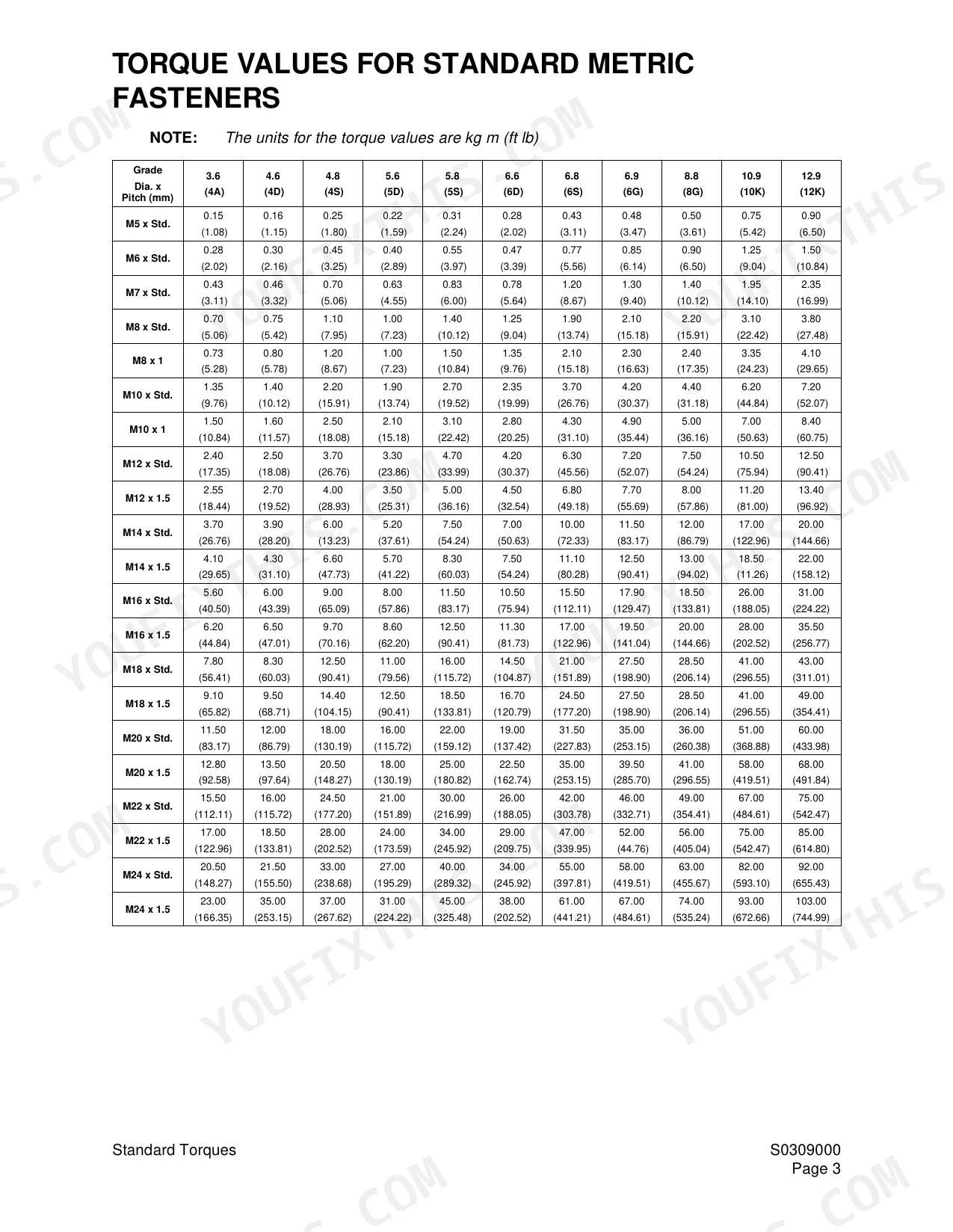

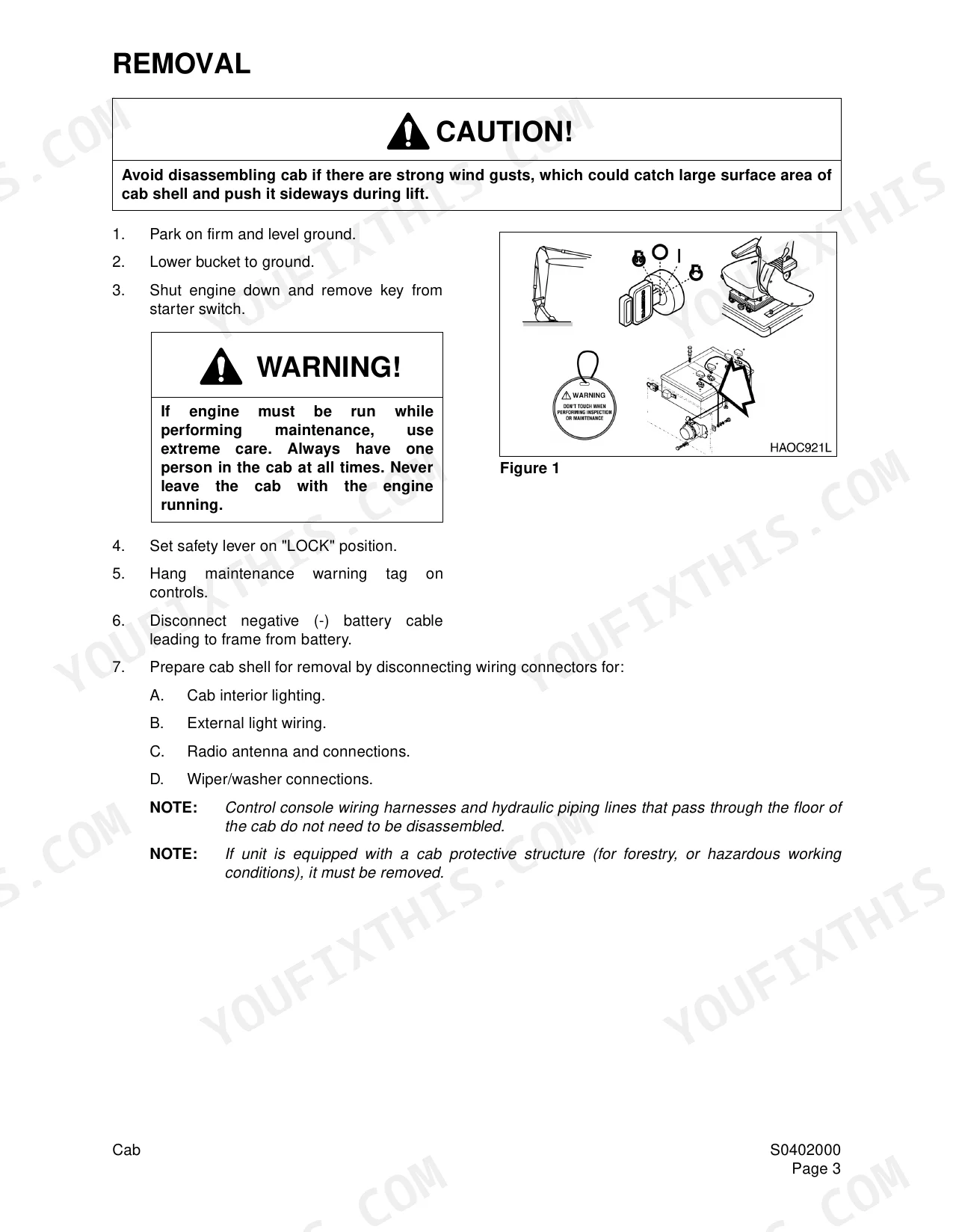

| Specifications | 31-48 | General Description, General Dimensions, Dimensions and Working Range, General Specifications, Engine Performance Curve, Performance Tests |
| General Maintenance | 49-76 | Welding Precautions and Guidelines, Hydraulic System - General Precautions, Maintenance Service and Repair Procedure, General Precautions, Hydraulic System Cleanliness and Oil Leaks, Maintenance Precautions for Hydraulic System Service |
| Upper Structure | 77-128 | Cab, Counterweight, Fuel Tank, Swing Bearing, Swing Reduction Gearbox |
| Lower Structure and Chassis | 129-150 | Track Assembly |
| Engine and Drive Train | 151-176 | Air-Conditioner |

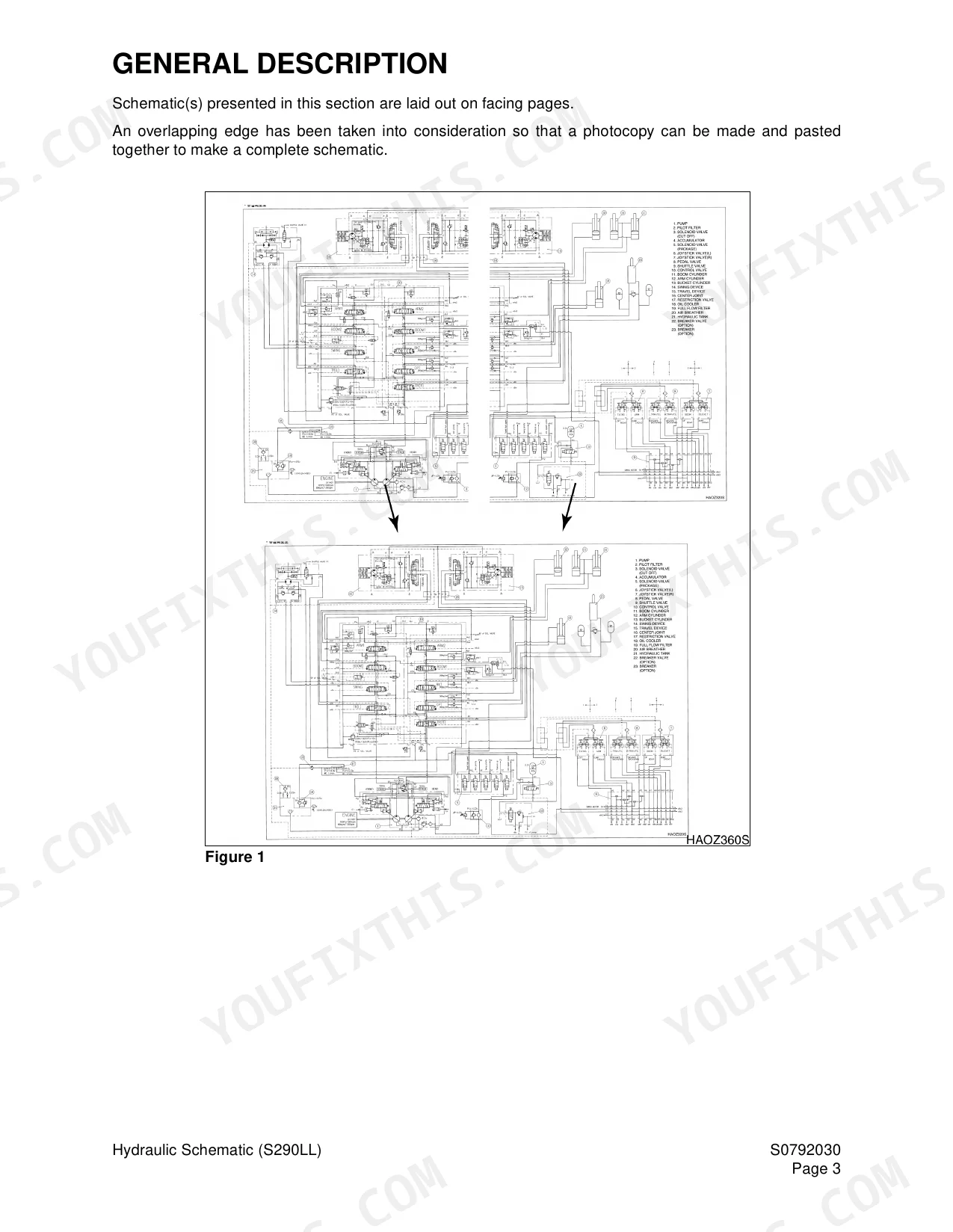

| Hydraulic System Troubleshooting, Testing and Adjustment | 179-206 | Hydraulic System - General Notes, Hydraulic Schematic, Operation of Working Components, Boom Operating Circuit, Boom Up Circuit, Boom Down Circuit |
| Accumulator | 207-220 | General Description, Accumulator Charging, Charging the Accumulator with Nitrogen |
| Swing Motor | 221-246 | General Description, Theory of Operation, Swing Motor Anti-Cavitation Make-Up Valve, Relief Valve, Swing Brake Operation, Special Tools |
| Travel Motor (with Gearbox) (Kawasaki DNB Series) | 247-298 | - |
| Main Pump (with Regulator) | 299-332 | General Description, Gear (Pilot) Pump, Relief Valve, Pump Regulator Description, Horsepower Control, Power Shift Control |
| Remote Control Valve (Work Lever / Joystick) | 333-350 | - |
| Travel Control Valve (RCV8C4015A) | 351-378 | General Description, Theory of Operation, Torque Table, Special Tools and Materials, Special Tools, Troubleshooting, Testing and Adjustment |
| Hydraulic Schematic (S290LL) | 379-384 | General Description, Solar 290LL |

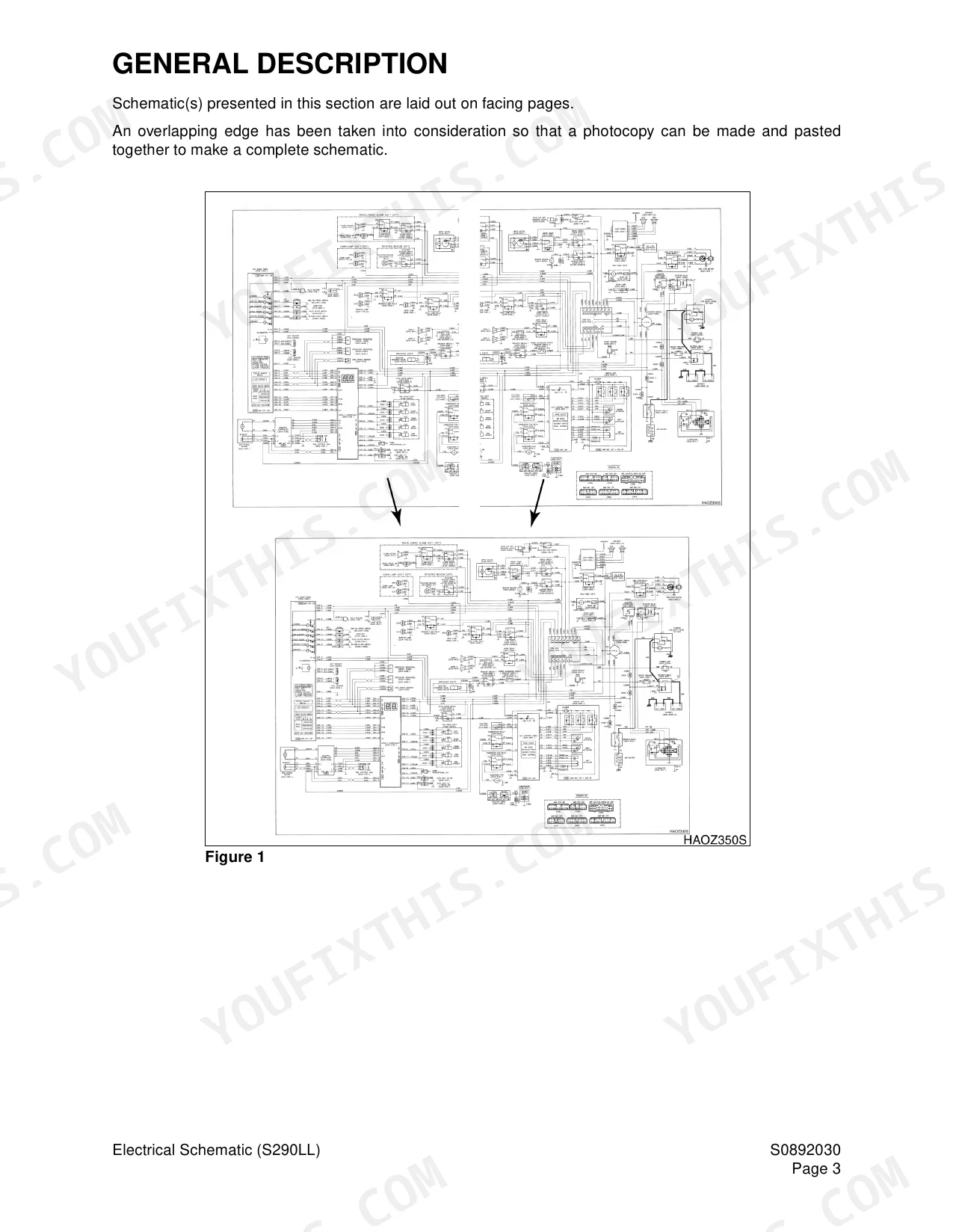

| Electrical System | 385-452 | Troubleshooting - Electrical System, Wiring Harness Illustrations, Overview, Electric Supply System, Engine Starting Circuit, Operation During Start Process |
| Attachments | 453-454 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum torque | 80 kg•m @ 1,300 rpm (578.64 ft lbs @ 1,300 rpm) | p. 41 |
| Main Relief Pressure (normal operation) | 330 kg/cm3 (4,689 psi) | p. 44 |
| Main Relief Pressure (with “Pressure Up”) | 350 kg/cm3 (4,970 psi) | p. 44 |
| Standard 700.0 mm (27.56 in.) shoe, Reference B, Normal (New) Dimension | 18.0 mm (0.71 in.) | p. 135 |
| Standard 700.0 mm (27.56 in.) shoe, Reference B, Recommended Limit for Maintenance | 14.0 mm (0.55 in.) | p. 135 |
| Air filter replacement interval | 1000 hours | p. 153 |
| Air filter cleaning interval | 500 hours | p. 153 |
| Hydraulic reservoir return line filter rating | 10 micron | p. 181 |
| Pilot circuit filter rating | 10 micron | p. 181 |
| Reservoir intake strainer rating | 177 micron | p. 181 |
| Engine output rated speed | 2,050 RPM (± 50 RPM) | p. 195 |
| Swing motor inlet and outlet pressure (with swing locks engaged) | 280 to 290 bar (4,060 to 4,205 psi) | p. 199 |
Daewoo Solar 290LL Common Problems This Manual Covers
Daewoo Solar 290LL hydraulic functions weak and slow, oil running hot after an hour of digging
Check hydraulic oil level and condition first, then pull the return line filter; the return and pilot circuits both run 10 micron full flow filters, covered on page 181. Test main relief pressure against the 330 kg/cm3 (4,689 psi) spec on page 44. Clean the 177 micron reservoir intake strainer whenever you drain the system.
Manual Section: Hydraulic Problems Troubleshooting p. 181Engine overheats and loses power under load, temperature gauge climbing into the red
Shut down and blow out the radiator and cooling package cores with compressed air from the fan side. Clean the outer air filter element every 500 hours and replace it at 1000 hours, as laid out on page 153. Verify coolant level with the engine cold, then inspect the fan belt tension and thermostat.
Manual Section: Engine and Drive Train p. 153Tracks loose, popping over the sprocket, or throwing a track when turning on slopes
Measure link wear before cranking up tension; the master link A dimension is 117.30 mm (4.62 in.) new and hits the replacement limit at 103 mm (4.055 in.), shown on page 135. Check lower rollers and front idlers against the wear tables on pages 136 through 138, then grease the track adjuster to set sag.

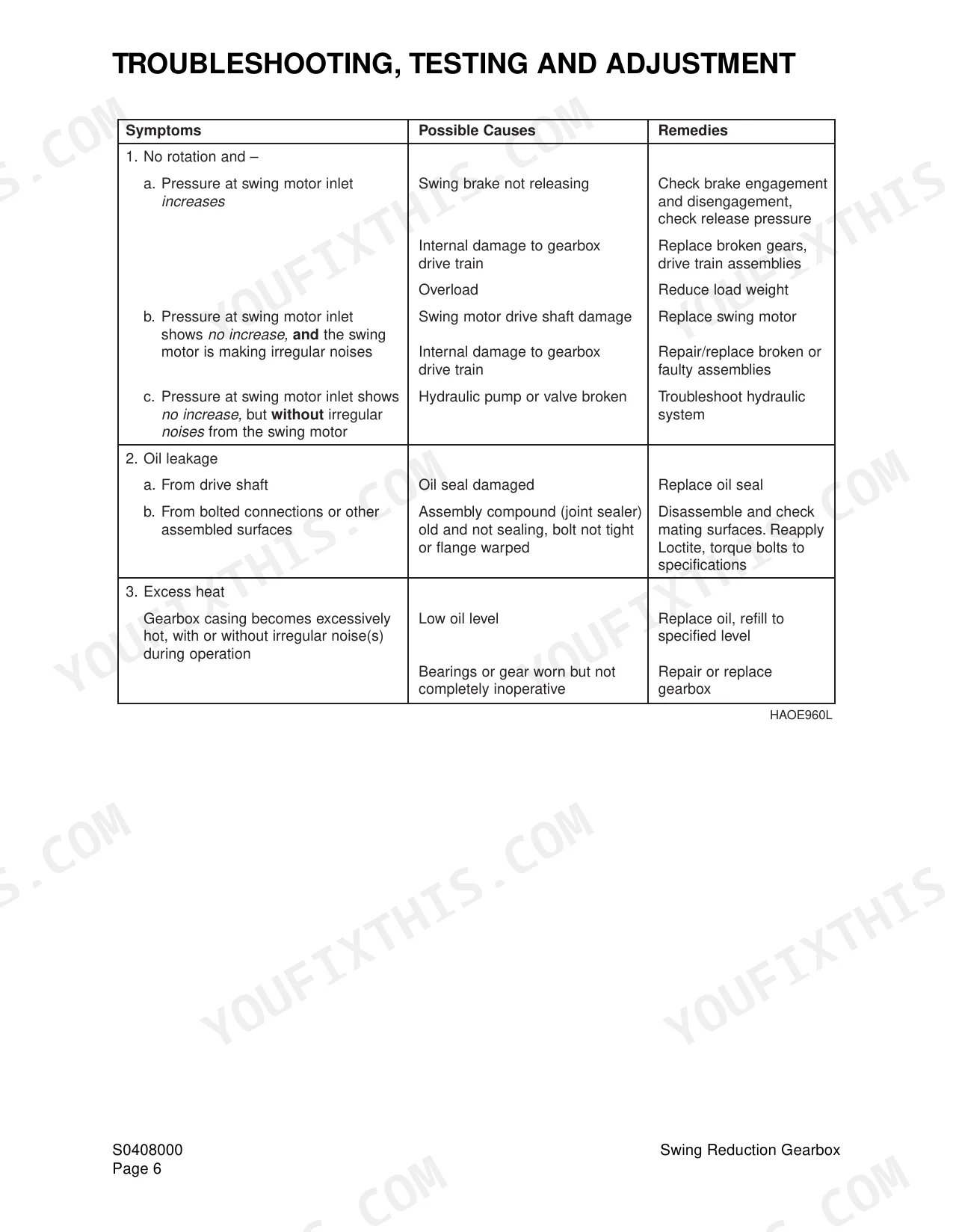

Manual Section: Lower Structure and Chassis p. 135Swing sluggish or uneven, upper structure coasts past the stopping point
Test swing motor inlet and outlet pressure with the swing locks engaged; expect 280 to 290 bar (4,060 to 4,205 psi), the spec on page 199. Verify the hydraulic brake SH port sees 4 bar (58 psi) release pressure. Drain a sample from the swing reduction gearbox and check for metal before condemning the motor.
Manual Section: Swing Gearbox Troubleshooting p. 199Frequently Asked Questions
How do I reset a malfunction display code on the Daewoo Solar 290LL?
To reset a malfunction display code, you must first correct the underlying problem. Once the issue is resolved, turn the start switch from the 'OFF' position to the 'ON' position to clear the code. p. 443
What is the main relief pressure specification for the Daewoo Solar 290LL?
The main relief pressure for normal operation is 330 kg/cm³ (4,689 psi). When the 'Pressure Up' function is engaged, the pressure is 350 kg/cm³ (4,970 psi). p. 44
What is the torque specification for the mounting nuts on the cabin floor?
The mounting nut torque for the cabin floor is 20.2 kg•m (146 ft lbs). p. 84
What is the replacement interval for the air filtration system filter in the operator's cab?
The air filtration system filter should be cleaned every 500 hours and replaced with a new one every 1000 hours. p. 155
What is the tightening torque for the M14 nuts on the remote control valve?
The tightening torque for the M14 nuts on the remote control valve is 500 ± 35 kg/m (3,617 ± 253 ft lb). p. 337
What format is this Daewoo Solar 290LL manual in?
One searchable PDF covering 454 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print a copy of this Daewoo Solar 290LL Shop Manual for the shop?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
