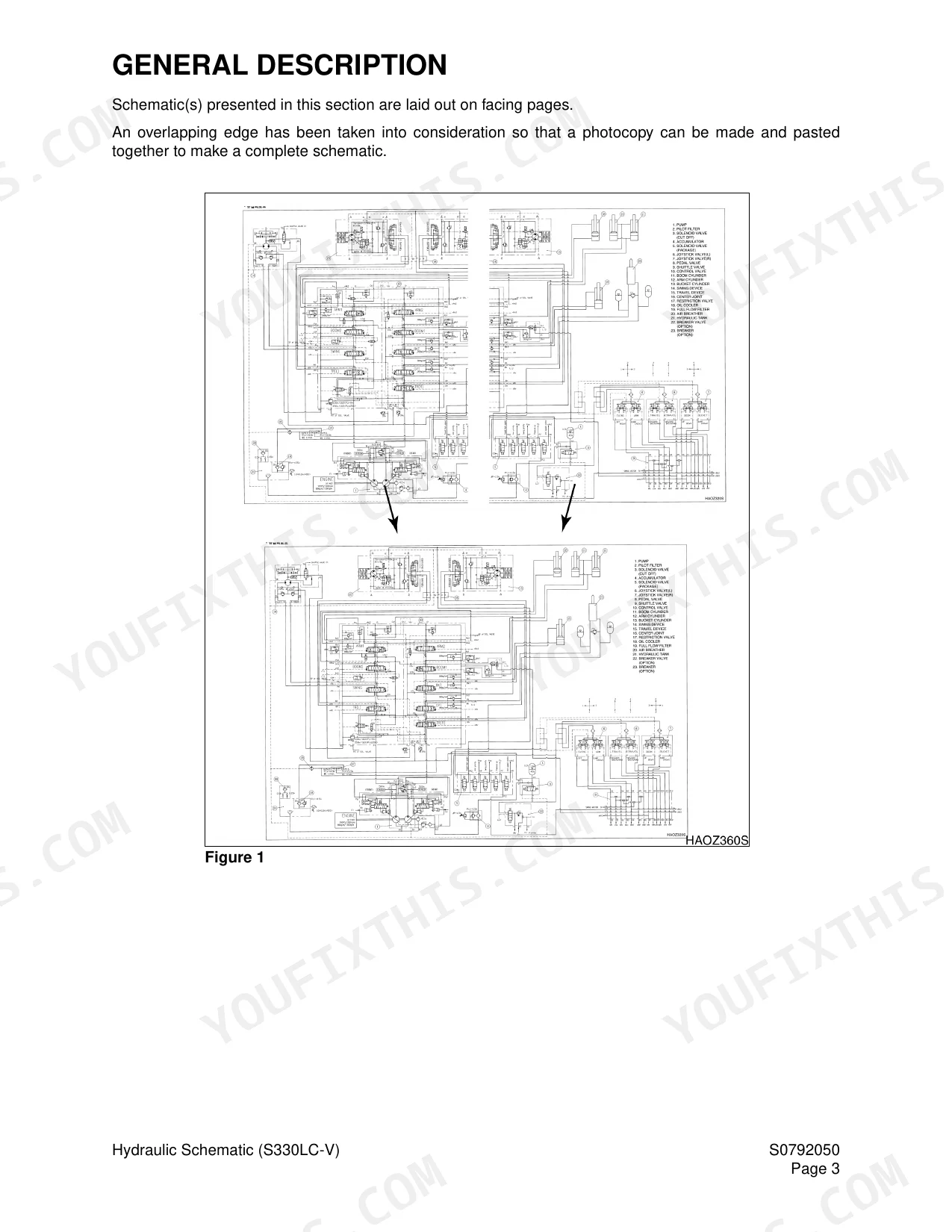

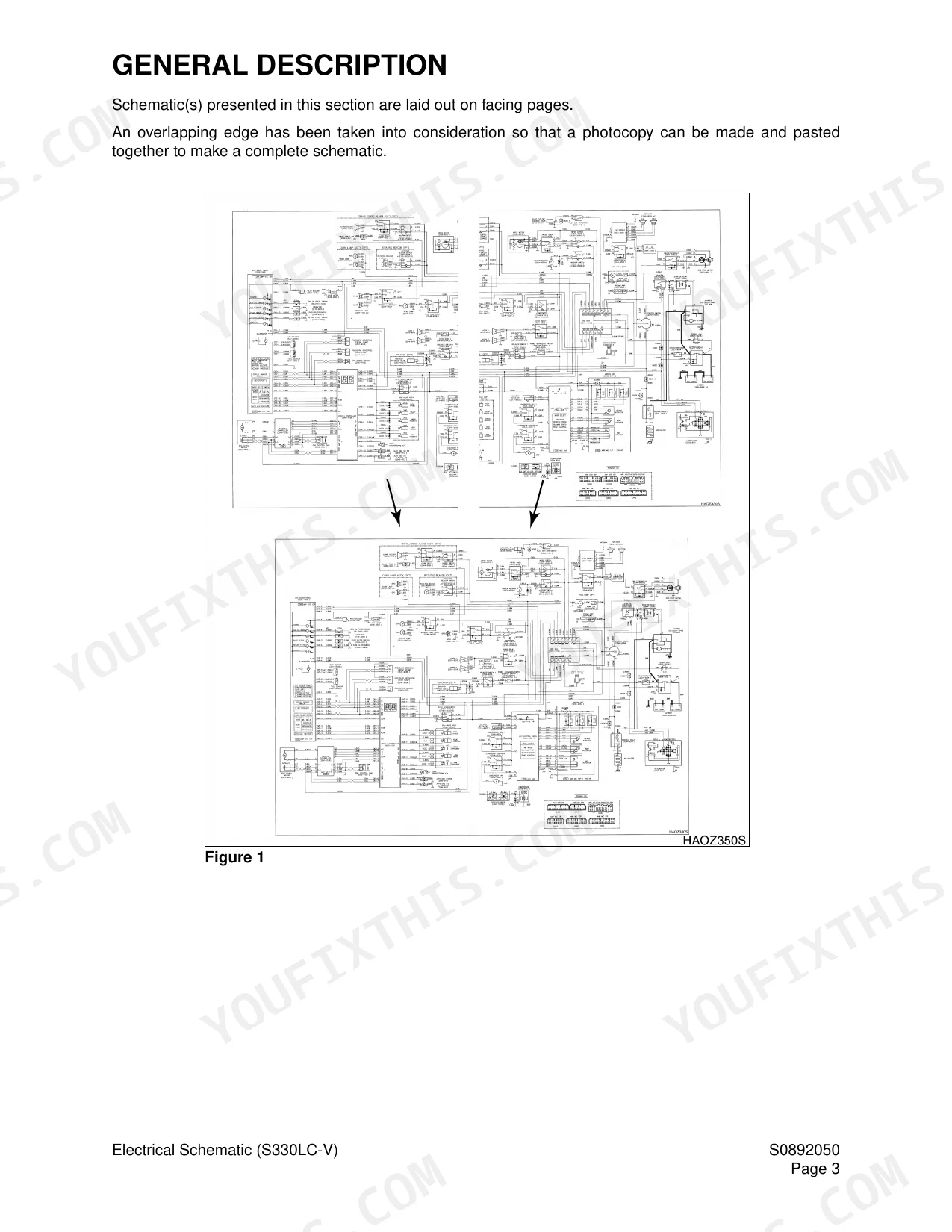

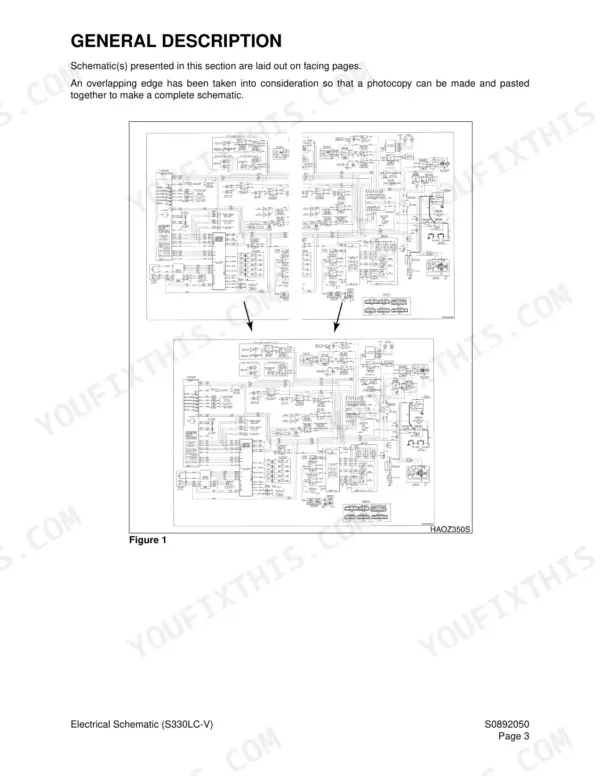

Rebuilding a Kawasaki DNB travel motor or chasing a lazy swing on your Solar 330LC-V track excavator? This 610-page Daewoo Solar 330LC-V shop manual PDF (OEM #2023-7135AE) has the factory answer for every system on the machine. You get complete electrical schematics for hunting harness faults, full hydraulic schematics with pilot circuit routing, and step-by-step disassembly and reassembly for the main pump, main control valve, swing motor, and travel motor. A dedicated troubleshooting and adjustment section walks you through pilot pressure checks and pump regulator setup. Undercarriage wear? Measure your 600 mm shoe grousers against the 31 mm factory standard, schedule replacement at 26 mm, and pull them from service at 21 mm. Guesswork burns diesel and daylight. Bookmarked and keyword-searchable; download it, pull it up on the tablet, and go fix the excavator.
What's Inside This Daewoo Solar 330LC-V Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-30 | - |

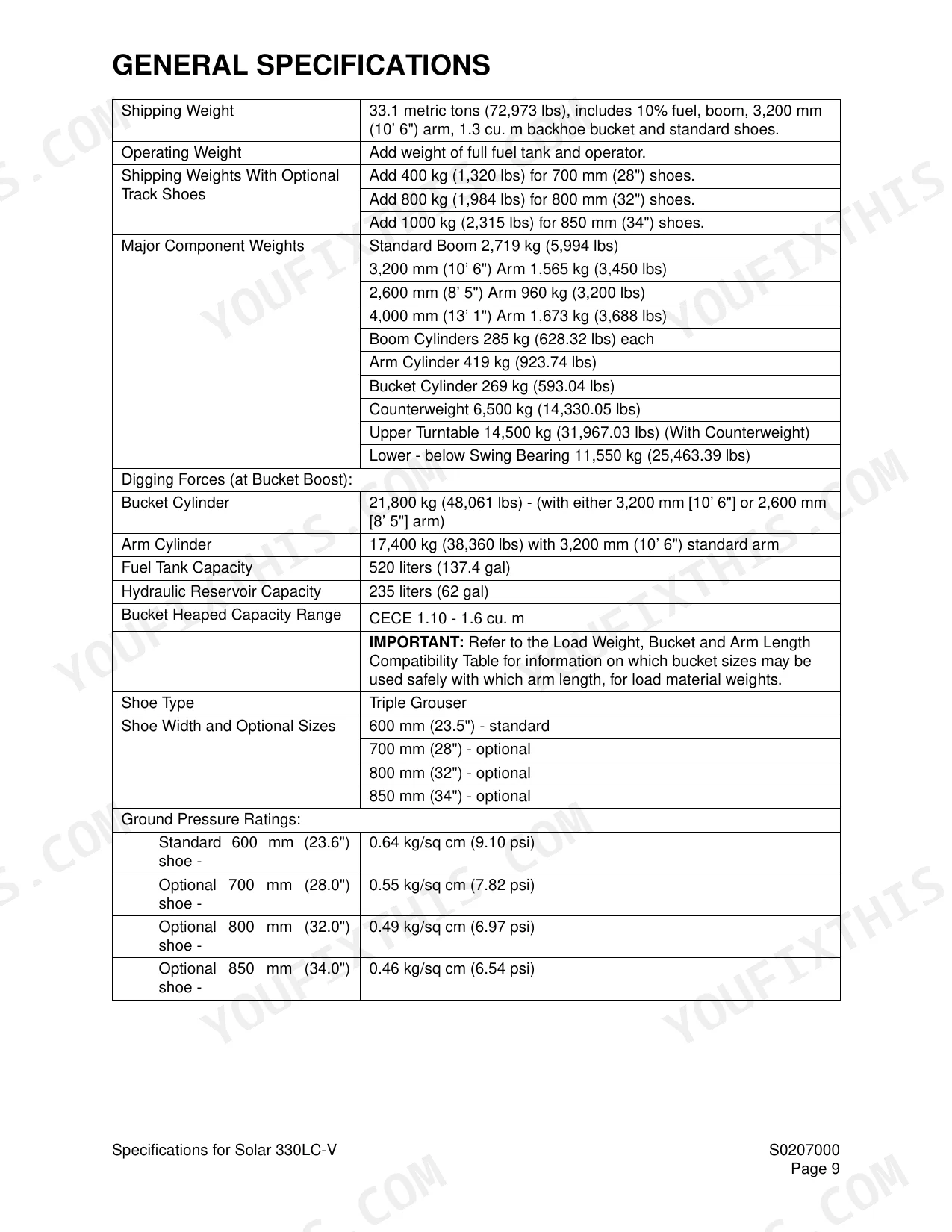

| Specifications | 31-52 | General Description, General Dimensions, Dimensions and Working Range, General Specifications, Engine Performance Curves (per Ks-R1004 Standard), Approximate Weight of Workload Materials |
| General Maintenance | 53-80 | Welding Precautions and Guidelines, Hydraulic System - General Precautions, Maintenance Service and Repair Procedure, General Precautions, Hydraulic System Cleanliness and Oil Leaks, Maintenance Precautions for Hydraulic System Service |

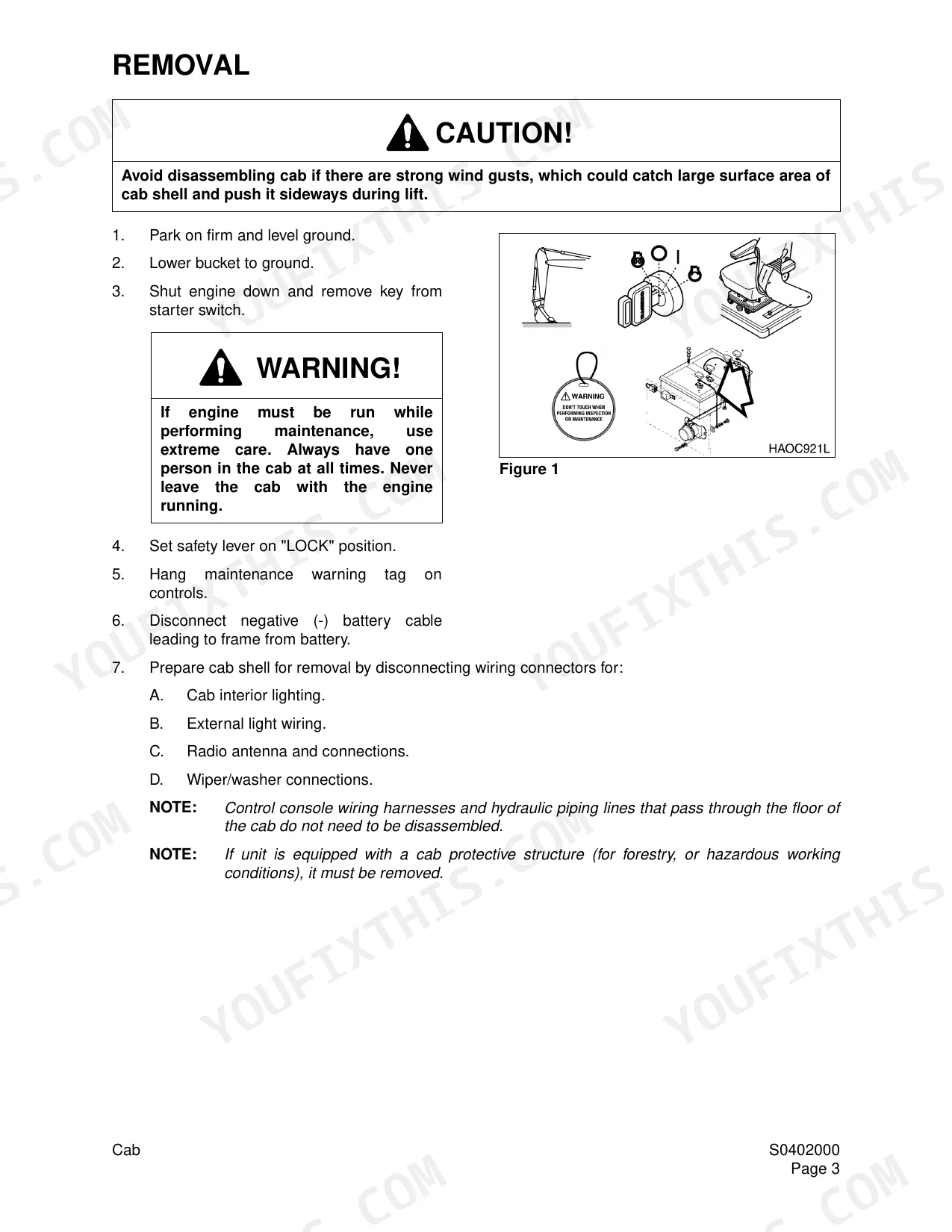

| Upper Structure | 81-142 | Cab, Counterweight, Fuel Tank, Fuel Transfer Pump, Swing Bearing, Swing Reduction Gearbox |
| Lower Structure and Chassis | 143-170 | Track Assembly |
| Engine and Drive Train | 171-210 | Air-Conditioner, Drive Coupling (Main Pump) |
| Hydraulic System Troubleshooting, Testing and Adjustment | 211-242 | General Notes, Working Components, Pilot Pressure, Power Mode Valve, Pump Regulator Adjustment |
| Accumulator | 243-248 | General Description, Specifications, Accumulator Charging, Nitrogen Charging |
| Center Joint (Swivel) | 249-256 | Slipper Seal and Internal Leakage Check, Flange Block-Off Plates, High-Pressure Relief Valve Rig, Stop Valve and In-Line Changeover Valve, Body Port Connections |
| Cylinders | 257-276 | Cylinder Piston and Rod Operation, Rod Stopper Cushion on Boom and Bucket Cylinders, Rod Diameter and Stroke Force, Extend and Retract Oil Flow, Seal and Wear Ring Replacement |
| Swing Motor | 277-302 | General Description, Relief Valve, Swing Brake Operation, Disassembly, Reassembly |
| Travel Motor (with Gearbox) (Kawasaki Dnb Series) | 303-354 | Rotary Group and Valve Plate, Cross Relief Valve, Negative Brake, Counterbalance Valve, Tilting (Swash Plate) Parts, 3-Speed Planetary Reduction Gearbox |
| Main Pump (with Regulator) | 355-388 | General Description, Pump Regulator, Overload Protection, Disassembly, Reassembly |
| Main Control Valve | 389-524 | Control Valve Operation, Main Relief Valve, Overload Relief Valve, Arm Load Holding Valve, Boom Regeneration |
| Electrical System | 525-586 | Troubleshooting - Electrical System, Wiring Harness Illustrations, Electric Supply System, Engine Starting Circuit, Operation During Start Process |
| Attachments | 587-610 | Boom and Arm, Bucket |
Quick Reference Specifications

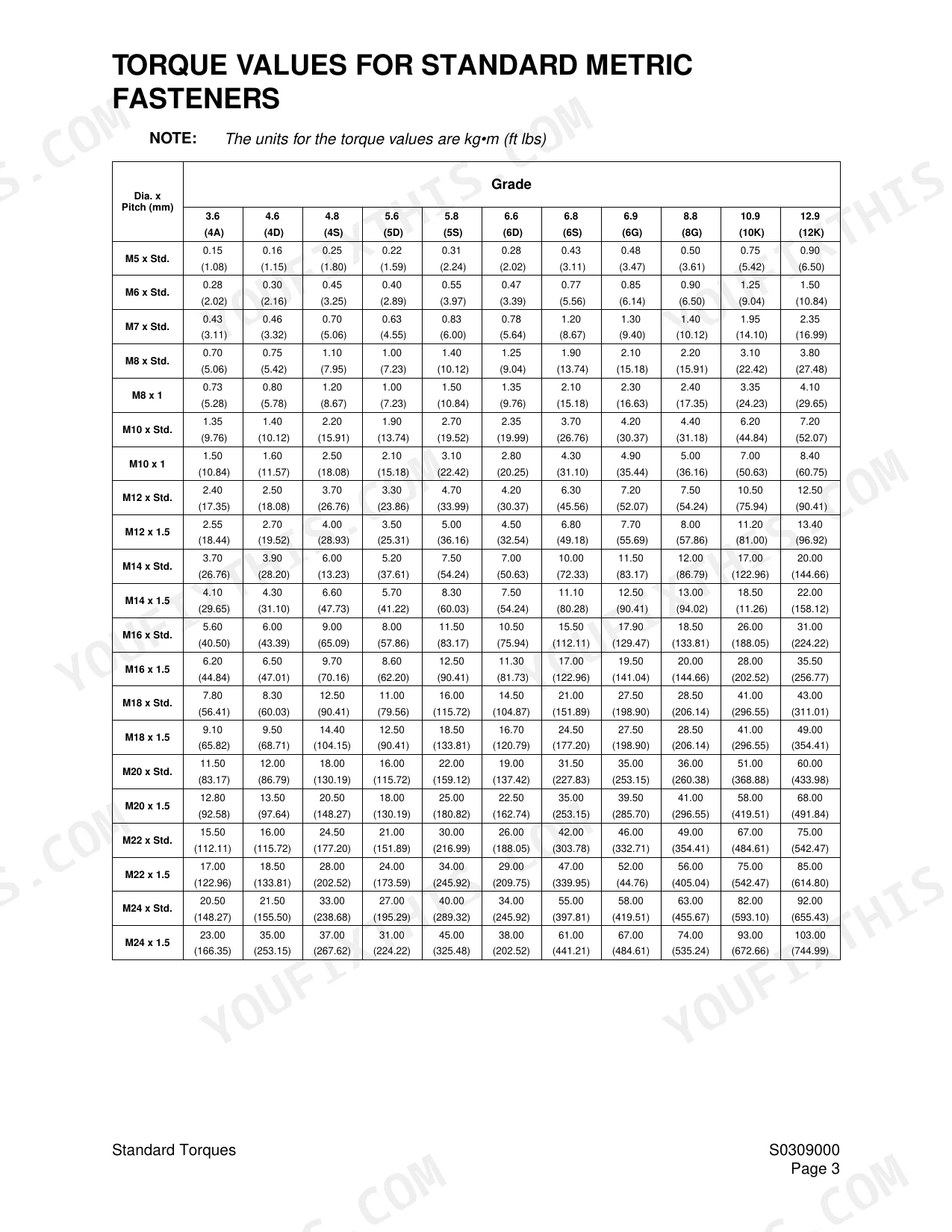

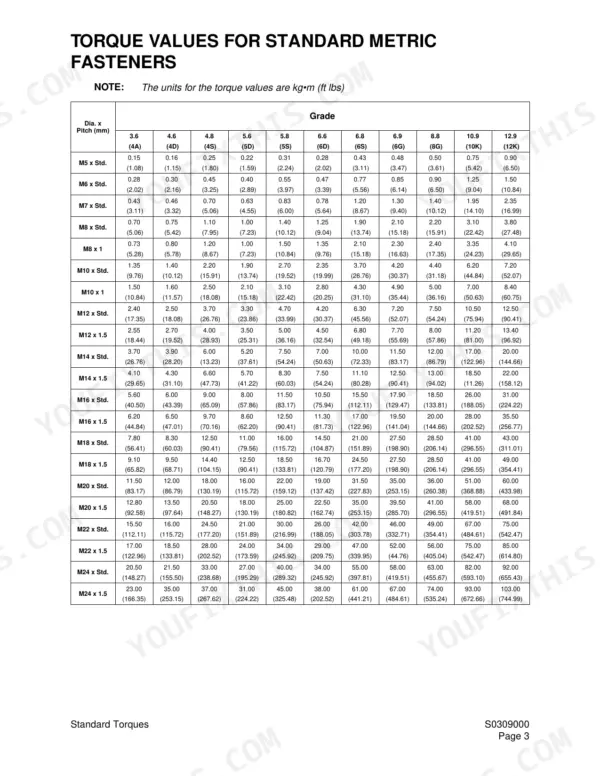

| Specification | Value | Page |
|---|---|---|
| Lateral force to move bucket | less than 100 lb | p. 121 |
| Standard 600 mm Shoe Reference C Normal Dimension | 31 mm | p. 149 |
| Standard 600 mm Shoe Reference C Recommended Limit for Maintenance | 26 mm | p. 149 |
| Track link, master pin bushing, master bushing Reference A Normal Dimension | 66.50 mm | p. 150 |
| Track link, master pin bushing, master bushing Reference A Recommended Limit for Maintenance | 63.50 mm | p. 150 |
| Clearance between the stem and body of the center swivel | 0.1 mm (0.0039") | p. 254 |
| Torque increase for outer screw (628) adjustment | 4 kg•m (29 ft lbs) | p. 365 |
| Input torque increase for inner screw (924) adjustment | 4.8 kg•m (35 ft lbs) | p. 365 |
| Clearance between cylinder bore and piston (D-d) Standard Value | 0.043 mm (0.00169 in.) | p. 381 |
| Clearance between cylinder bore and piston (D-d) Replacement Limit | 0.070 mm (0.00276 in.) | p. 381 |
| Pilot Filter pressure threshold | 1 kg/sq cm | p. 548 |
| Main Relief Pressure (Normal) | 330 kg/sq cm | p. 47 |
Daewoo Solar 330LC-V Common Problems This Manual Covers
Daewoo Solar 330LC-V hydraulic functions weak and erratic, pump noisy, metal grit in case drain oil
Test main relief pressure at the pump: 330 kg/sq cm in normal mode, per page 47. Pull a case drain sample; metallic grit means internal pump wear. Replace all hydraulic filters, then tear down the pump and measure cylinder bore to piston clearance against the specs on page 381; replace parts past the 0.070 mm limit.
Manual Section: Hydraulic System Troubleshooting, Testing and Adjustment p. 211Oil leaking from the center joint area under the cab, swing swivel seals weeping steadily
Inspect the center joint seals before condemning the whole swivel. Disassemble following the procedure starting on page 249, clean everything, and measure stem to body clearance; the limit is 0.1 mm (0.0039 in) per page 254. Replace all O-rings on reassembly and check the case drain line for blockage that pressurizes the seals.
Manual Section: Center Joint (Swivel) p. 249Swing coasts past target and feels rough, swing reduction gearbox running hot

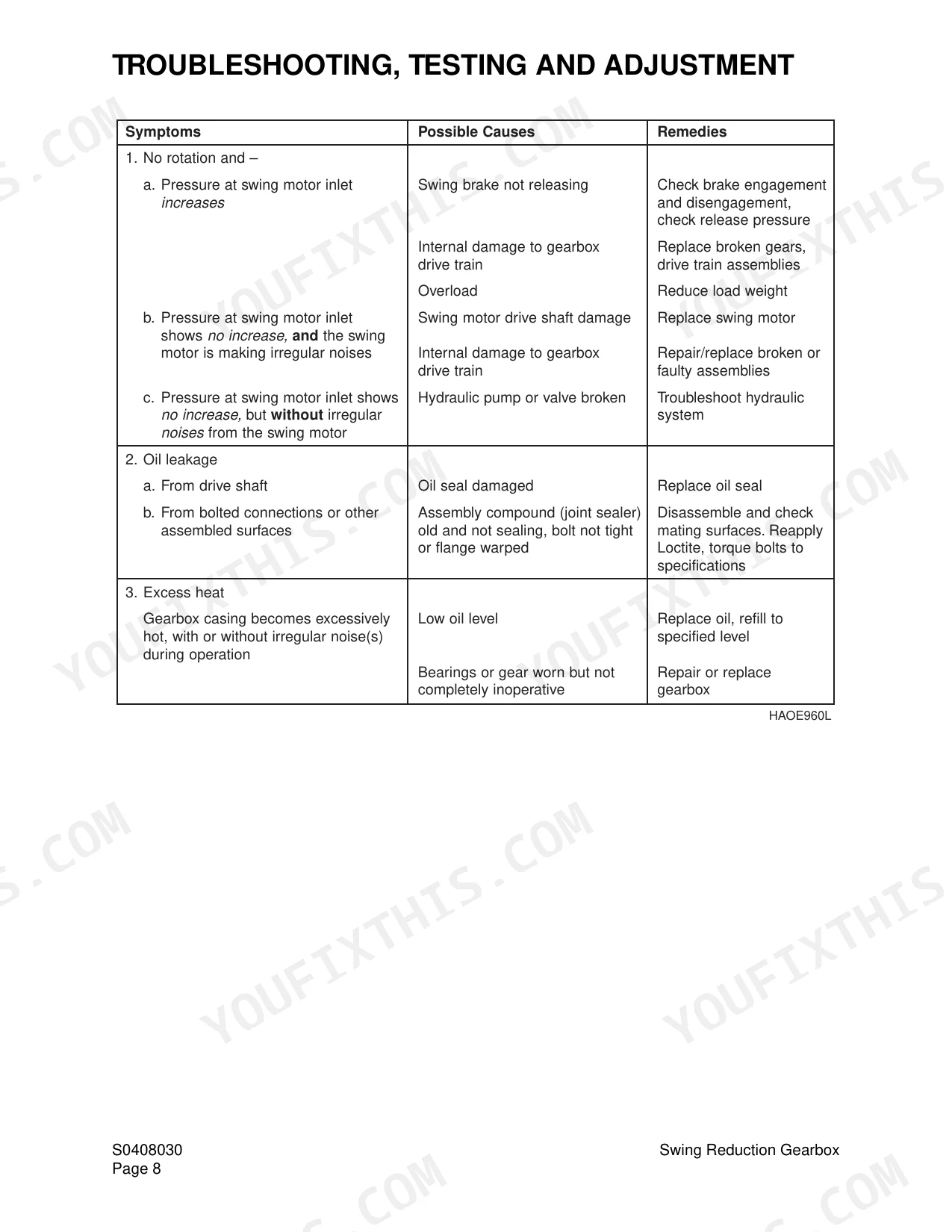

Check the swing motor relief valve setting first: 270 kg/sq cm per page 284. Low relief pressure gives weak swing and coasting past the target. Drain the swing reduction gearbox oil and check for metal particles, then refill to the level plug. If rotation stays rough, follow the gearbox troubleshooting.
Manual Section: Swing Motor p. 277Travel sluggish or jerky on one side after hydraulic service, travel motor whines under load
Bleed air from the travel motor drain line after any hydraulic service before working the machine hard. Check pilot pressure to the travel control valve: full spool stroke needs 27 kg/sq cm per page 481. If one side still lags, swap travel lines side to side at the center joint to isolate motor from valve.
Manual Section: Travel Motor (with Gearbox) (Kawasaki Dnb Series) p. 303Tracks keep going loose, link pitch stretched, shoes and grousers wearing down fast
Measure grouser height on the standard 600 mm shoes: new is 31 mm, plan maintenance at 26 mm, replace at 21 mm, per the wear charts on page 149. Check link pitch against the 203.2 mm standard on the same chart. Adjust track sag with the grease adjuster and inspect rollers and idlers for flat spots.
Manual Section: Lower Structure and Chassis p. 149Frequently Asked Questions
How do I clear error codes on a Daewoo Solar 330LC-V excavator?
To reset a malfunction code, you must first correct the underlying problem. Once the issue is resolved, turn the starter switch from the "OFF" position to the "ON" position to clear the code from the display. p. 578
How do I check diagnostic codes on a Daewoo Solar 330LC-V?
You can check the system operation status and malfunction codes by inspecting the display located on top of the EPOS-V control box, which is found in the drawer under the operator's seat. p. 576
What is the tightening torque for the main relief valve on the main control valve?
The tightening torque for the main relief valve on the main control valve is 10 kg•m (72 ft lbs). p. 431
What is the fuel tank capacity for the Solar 330LC-V?
The fuel tank capacity for the Solar 330LC-V is 520 liters (137 gal). p. 105
What is the recommended preheat time for the engine preheating system?
The preheat time for the engine preheating system is approximately 19 seconds. A built-in timer in the instrument panel will activate an indicator light once this time has elapsed. p. 535
How will I receive this Daewoo Solar 330LC-V Shop Manual?
A 610-page Shop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Daewoo Solar 330LC-V Shop Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
