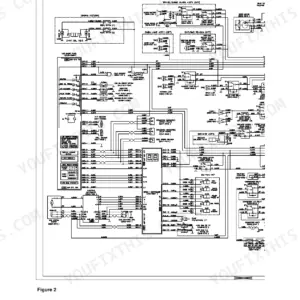

Need the factory procedures for your Daewoo Solar 140LC-V hydraulic excavator? This 636-page Daewoo Solar 140LC-V Shop Manual PDF (OEM #023-00076E) covers the machine from swing bearing to track assembly. Inside: a full hydraulic schematic, electrical schematics for tracing wiring faults, and step-by-step teardown and reassembly procedures for the main pump, swing motor, travel motor, and main control valve. You also get cylinder rebuild instructions and a standard torque section covering metric fasteners from 0.15 to 103.00 kg-m. Set the motor makeup valve gauge pressure to 10 bar (145 psi), and torque hydraulic hose clamps to 0.5-0.6 kg-m, straight from the factory tables. No more chasing hydraulic pressure problems with borrowed numbers. Bookmarked with a full text layer; search any spec by keyword, pull it up on your phone, and get back to work.
What's Inside This Daewoo Solar 140LC-V Manual
| System | Pages | Key Topics |
|---|
| Safety | 7-46 | Track Excavator Safety |
| Specifications | 47-68 | Specifications for Solar 140LCV |
| General Maintenance | 69-96 | General Maintenance Procedures, Standard Torques |

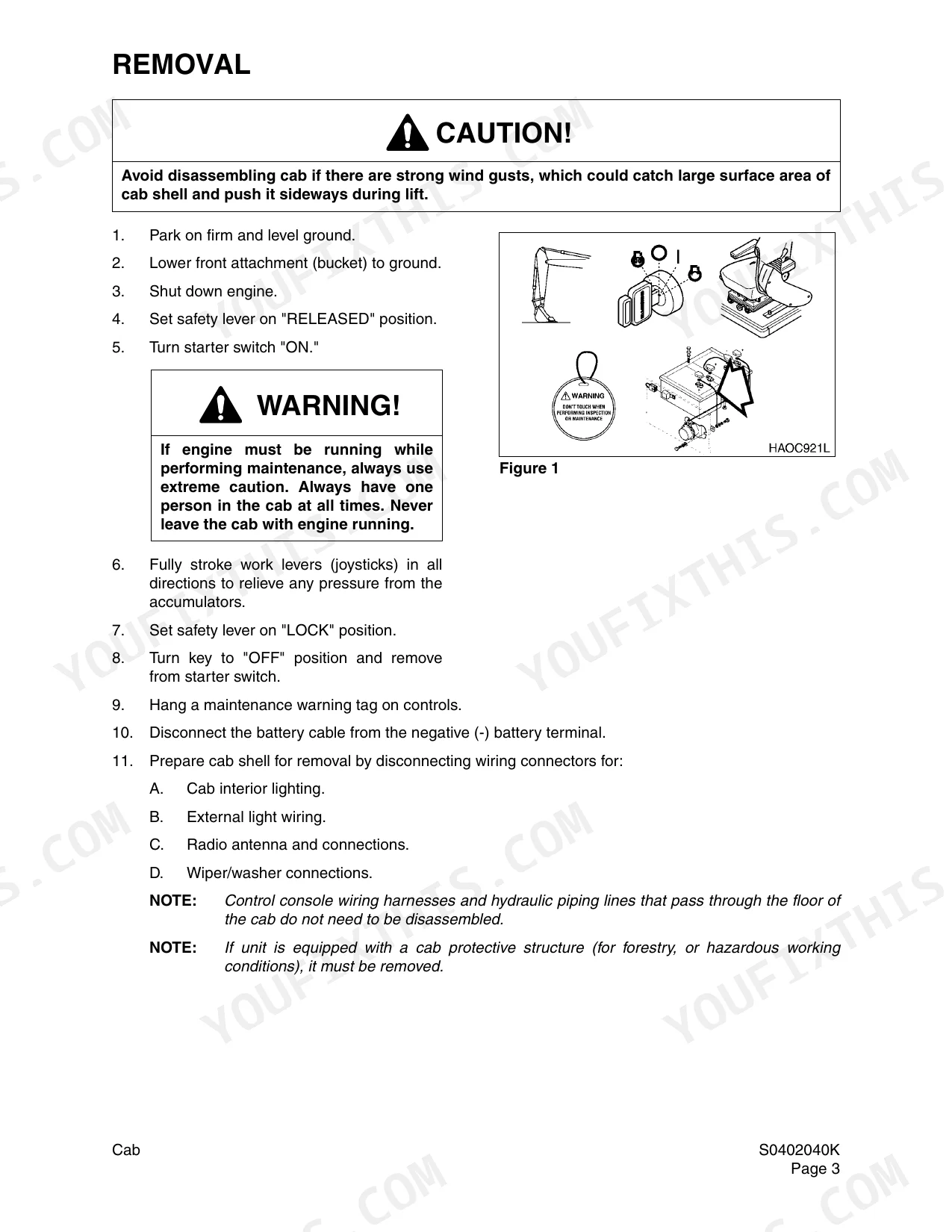

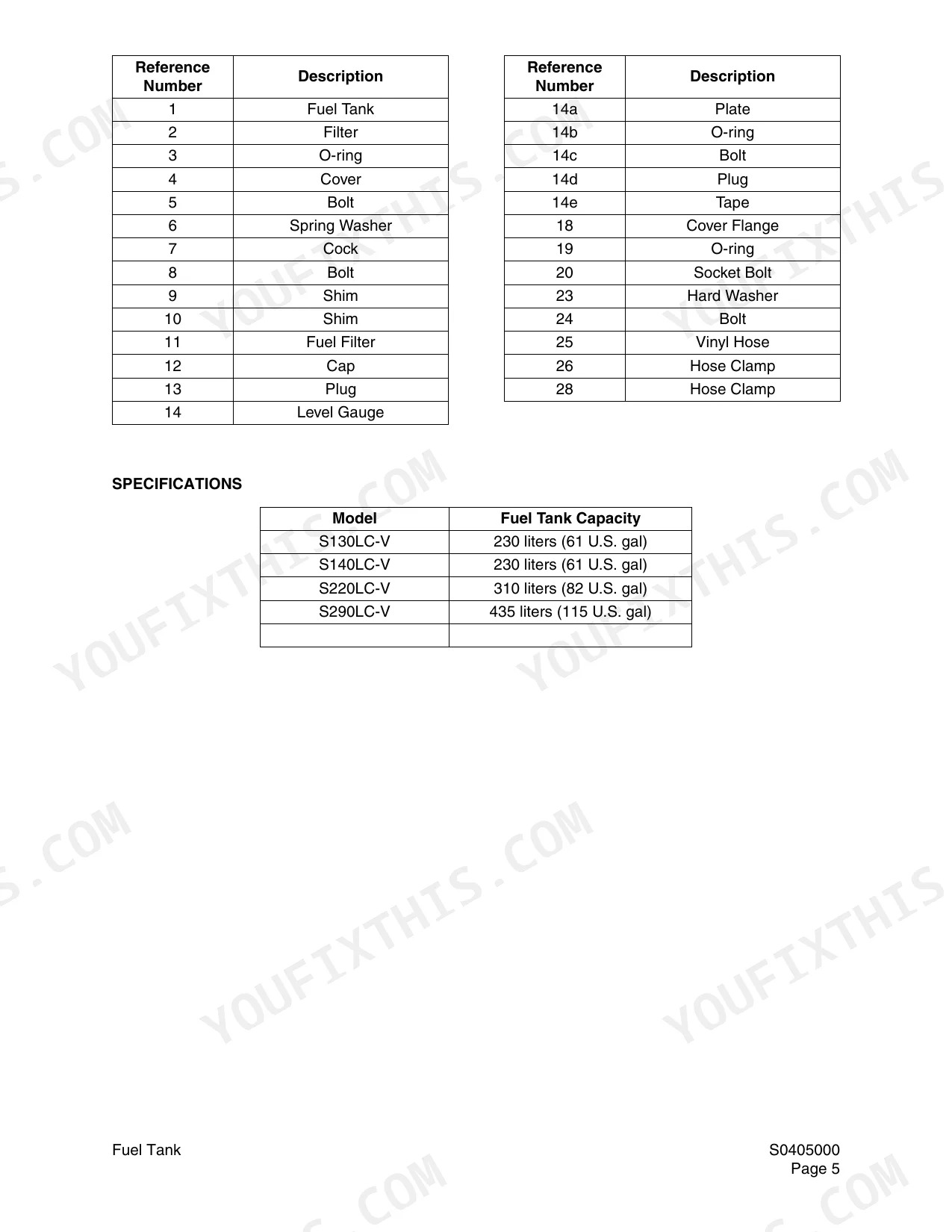

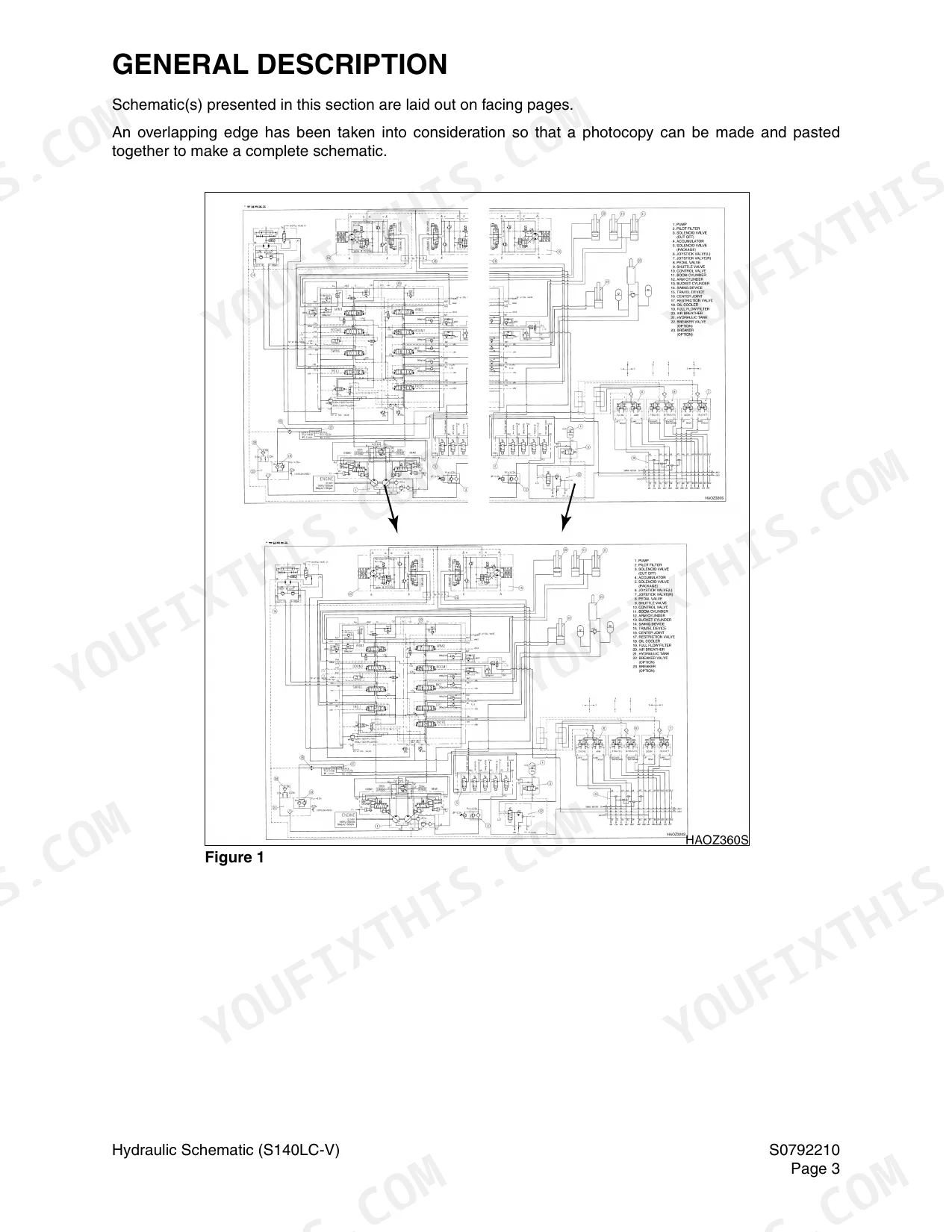

| Upper Structure | 97-152 | Cab, Counterweight, Fuel Tank, Fuel Transfer Pump, Swing Bearing, Swing Reduction Gearbox |
| Lower Structure and Chassis | 153-178 | Track Assembly |
| Engine and Drive Train | 179-220 | Air Conditioner, Drive Coupling (Main Pump) |
| Hydraulic System Troubleshooting, Testing and Adjustment | 221-254 | Hydraulic Schematic, Working Components, Pilot Pressure, Power Mode Valve, Pump Input Power Control |
| Accumulator | 255-260 | Accumulator General Description, Specifications, Charge Pressure, Volume |
| Cylinders | 261-300 | Cylinder Theory of Operation, Disassembly, Assembly, Piston Nut, Steel Bushing Jig, Dust Wiper Jig, Slipper Seal Jig |
| Swing Motor | 301-326 | Swing Motor Theory of Operation, Anticavitation Makeup Valve, Relief Valve, Swing Brake Operation, Disassembly, Reassembly |
| Travel Motor (with Gearbox) | 327-378 | Travel Motor Theory of Operation, Reduction Gearbox Operation, Disassembly, Reassembly, Special Tools |
| Main Pump (with Regulator) | 379-412 | Main Pump General Description, Pump Regulator Operation, Horsepower Control, Disassembly, Reassembly |
| Main Control Valve | 413-528 | Control Valve Operation, Swing Priority Circuit, Arm Priority Circuitry, Bucket Junction Circuitry, Straight Traveling Circuit, Plunger Replacement |
| Electrical System | 529-612 | Electrical Schematic (S140LCV) |
| Attachments | 613-636 | Boom and Arm, Bucket |
Quick Reference Specifications
| Specification | Value | Page |
|---|
| Motor makeup valve gauge pressure | 10 bar (145 psi) | p. 247 |
| Motor makeup valve recommended minimum pressure | 2.5 bar (36 psi) | p. 247 |
| Pilot / travel charge pressure | 10 kg/cm2 (142 psi) | p. 258 |
| Main Relief Pressure (Normal) | 330 kg/cm2 | p. 64 |
| Main Relief Pressure (Pressure Up) | 350 kg/cm2 | p. 64 |

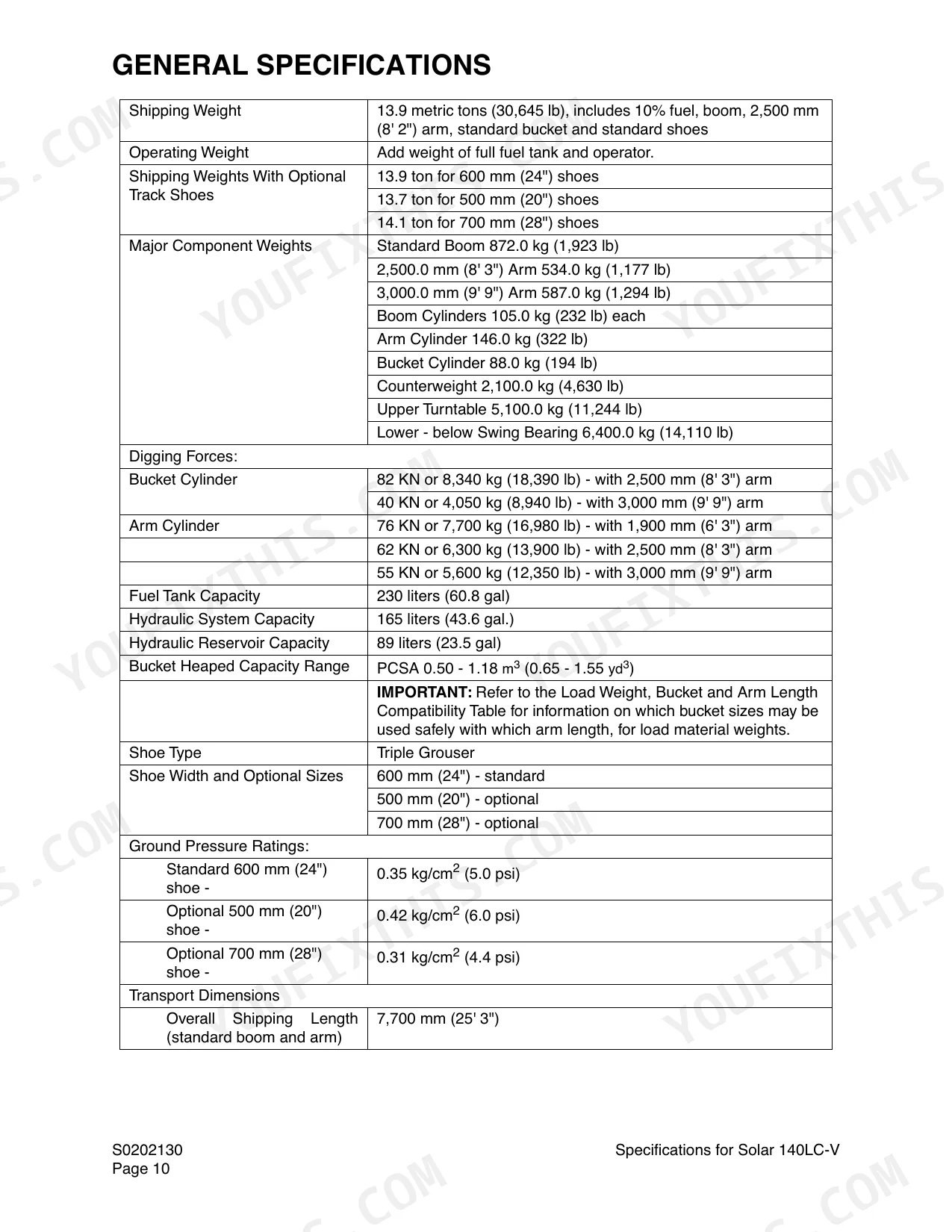

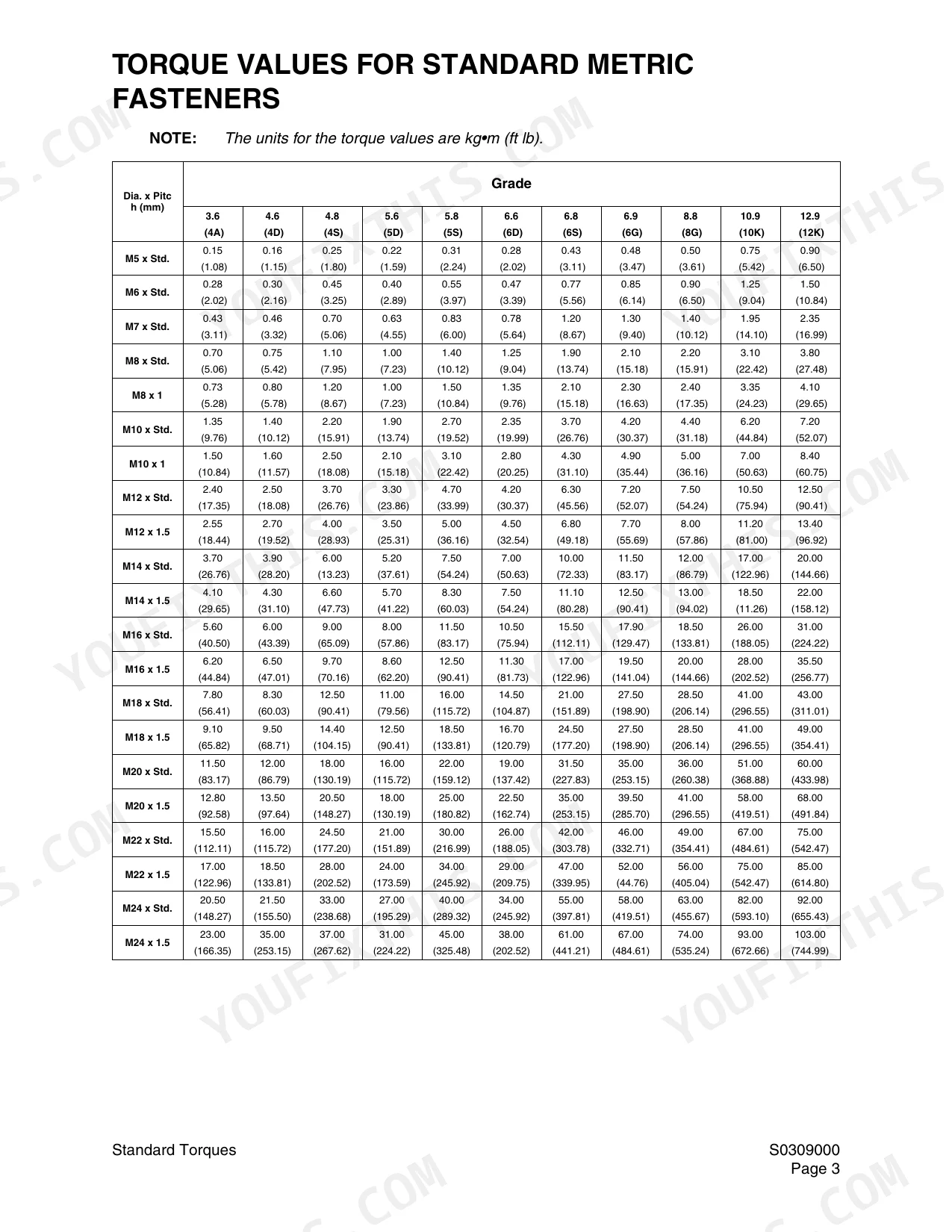

| Fuel Tank Capacity | 230 liters | p. 58 |
| Hydraulic System Capacity | 165 liters | p. 58 |
| Hydraulic Reservoir Capacity | 89 liters | p. 58 |
| Hose clamp torque, hydraulic system | 0.5 - 0.6 kg•m (40 - 50 in lb) | p. 91 |
| Split flange bolt torque, 1/2" flange | 2.1 - 2.5 kg•m (15 - 18 ft lb) | p. 92 |
| Swing brake release pressure at the SH port | at least 4 bar (58 psi) | p. 247 |
| Main relief valve cap tightening torque | 10 kg•m | p. 454 |
