Looking for the exact factory specifications to overhaul your crawler dozer? This 601-page Fiat-hitachi FD 175 Service Manual PDF (OEM #604.06.572) breaks down every undercarriage, transmission, and heavy engine component. Inside, you get detailed hydraulic schematics mapping out the entire fluid routing, clear electrical wiring diagrams, and a full section of troubleshooting charts to pinpoint faults fast. Packed with step-by-step procedures, this guide walks you through everything from final drive rebuilds to routine cab tilting maintenance. Verify your fuel injector release pressure hits exactly 240 + 12 bar, and confirm your brake band release springs still have 17 coils intact before reassembly. Downtime drains your budget on a job site. Grab this bookmarked file, pull it up on your shop tablet, and get your machine pushing dirt again.
What's Inside This Fiat-Hitachi FD175 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety & Machine Identification | 1-15 | Safety Rules, Model and Engine Identification, Machine Specifications |
| Operating Instructions & Controls | 16-40 | Preliminary Instructions and Running-In, Operating Warnings, Controls and Instruments, Machine Operation (Dozing, Ripping, Steering) |
| Cab (Operation) | 41-53 | ROPS Cab, Doors and Windows, Heating, Dome Lighting |
| Maintenance Schedule & Service | 54-75 | Every 500 Hours, Every 2000 Hours, As-Required Operations, Electrical System Service, Fluid Capacities |

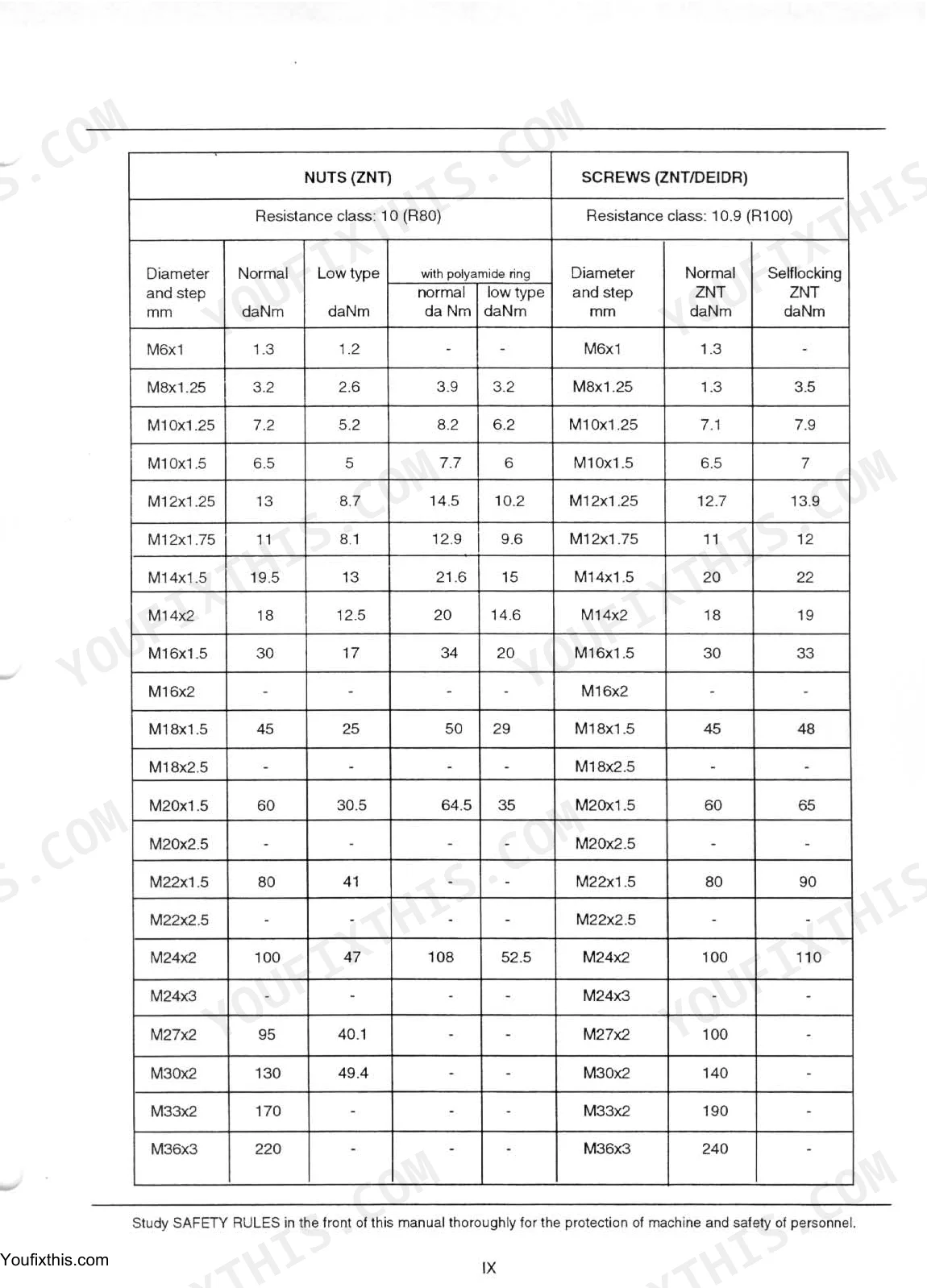

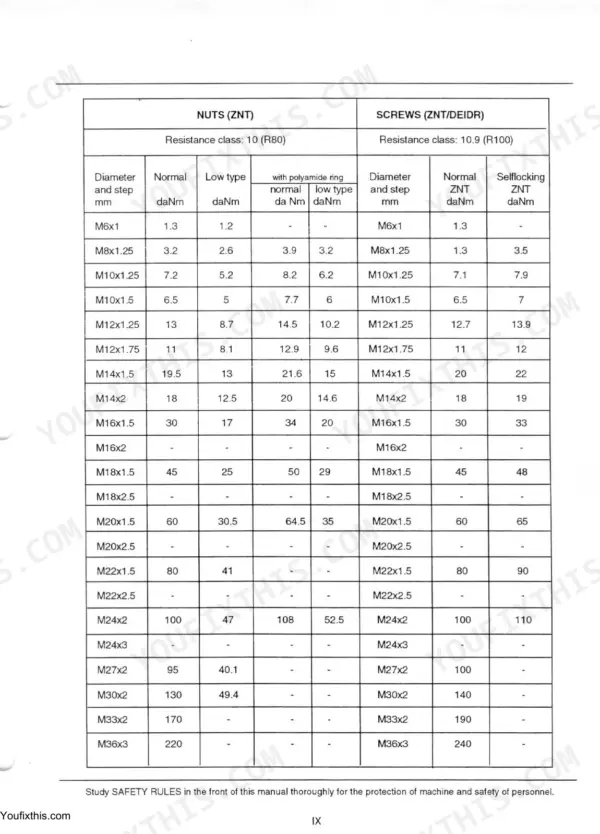

| Conversion Tables & Standard Torques | 82-84 | Units of Measure Conversion, Standard Torque Specifications |

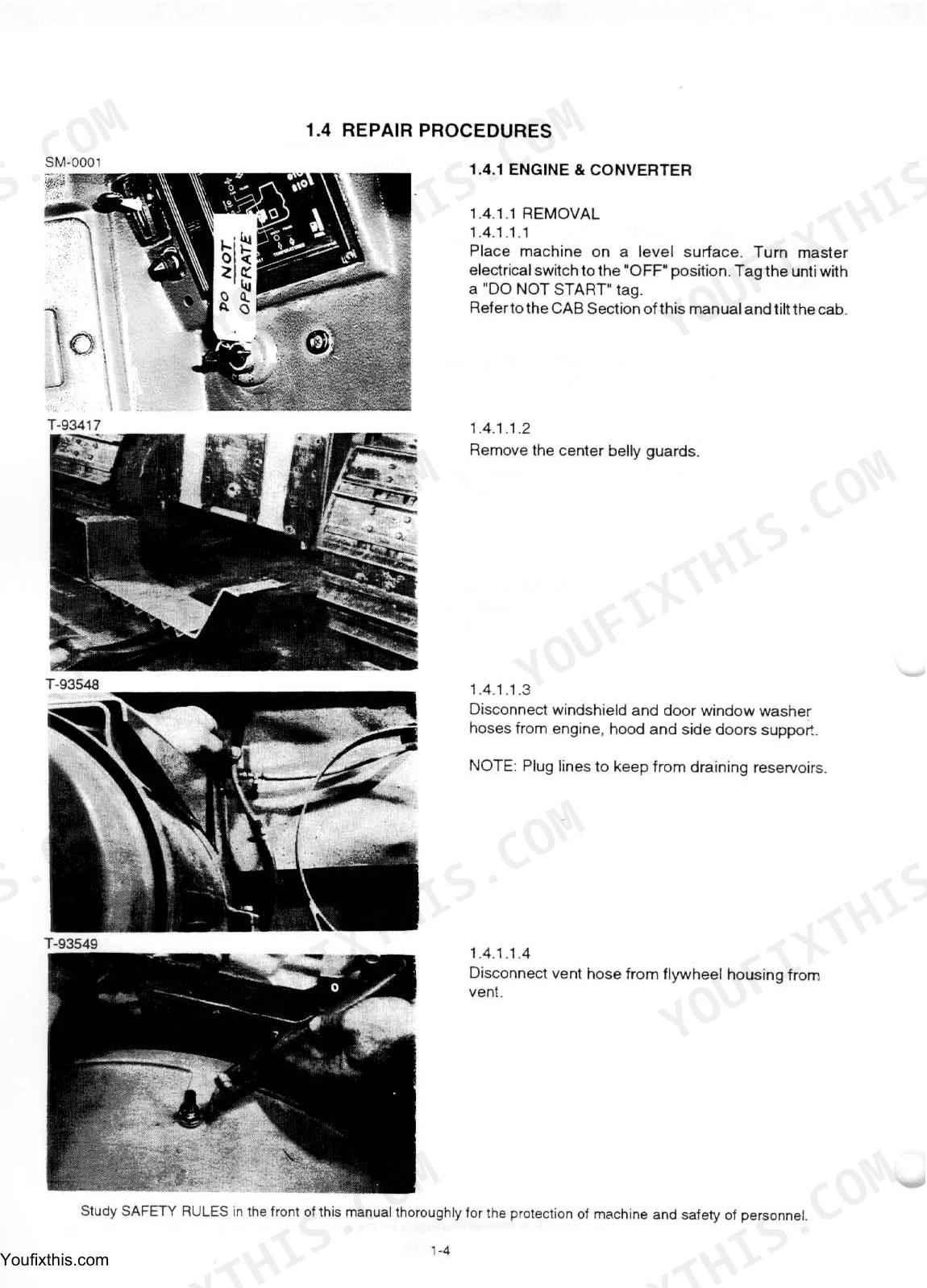

| Engine Related Components | 85-128 | Cylinder Head, Pistons and Connecting Rods, Crankshaft, Timing, Fuel Injection, Cooling |
| Transmission & Torque Converter | 129-221 | Torque Converter, Powershift Transmission, Control Valve, Clutches, Disassembly and Assembly |
| Final Drives | 222-311 | Sprocket, Planetary Gears, Bearings, Removal and Installation |
| Steering Clutches & Brakes | 312-426 | Steering Clutches, Brake Spools and Cylinders, Steering Modulating Valve, Adjustment |

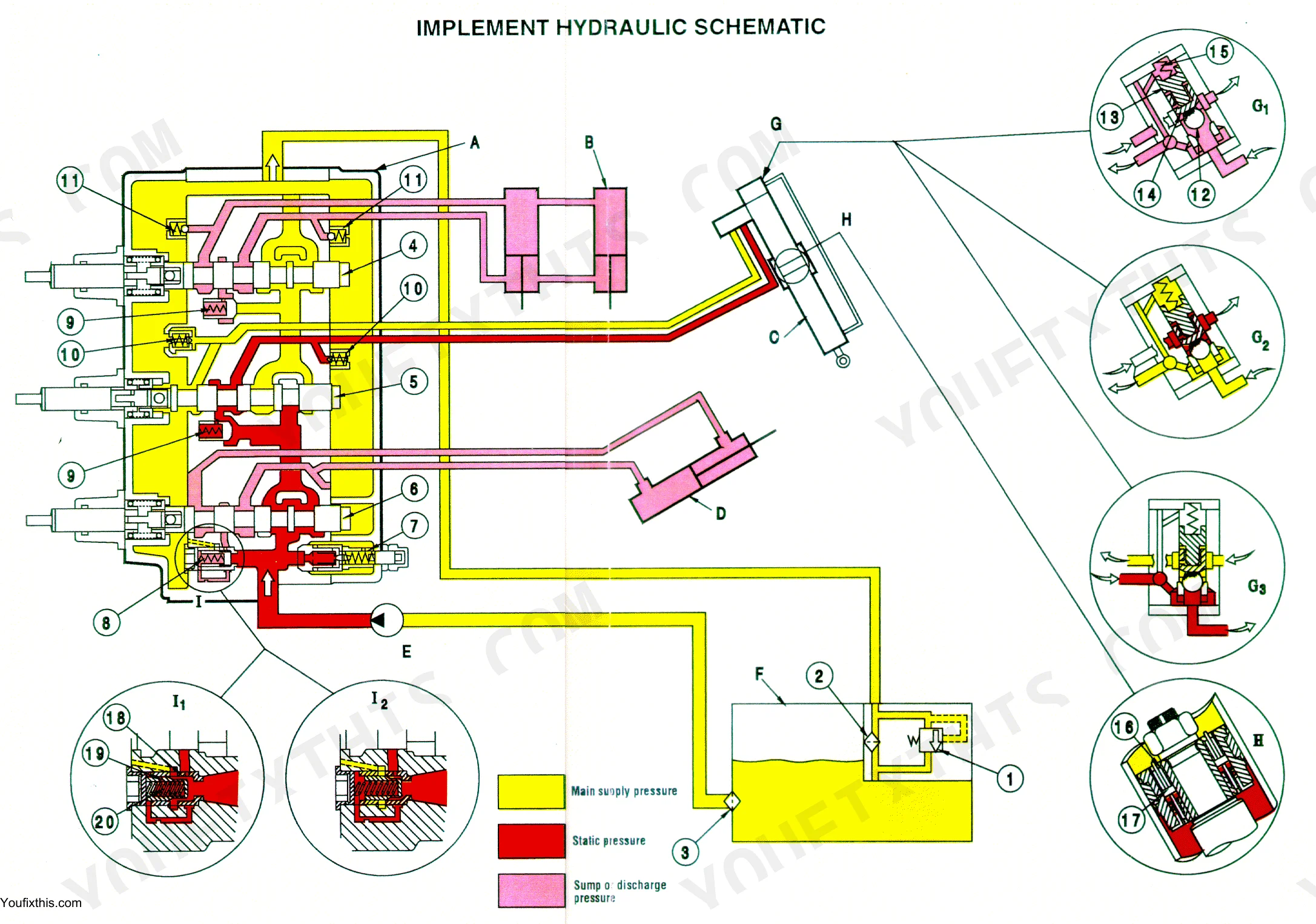

| Hydraulic System | 427-484 | Pump, Control Valves, Cylinders, Lines and Fittings, Relief Pressures |
| Undercarriage | 485-539 | Track Chains, Rollers, Idlers, Track Adjuster, Sprockets |

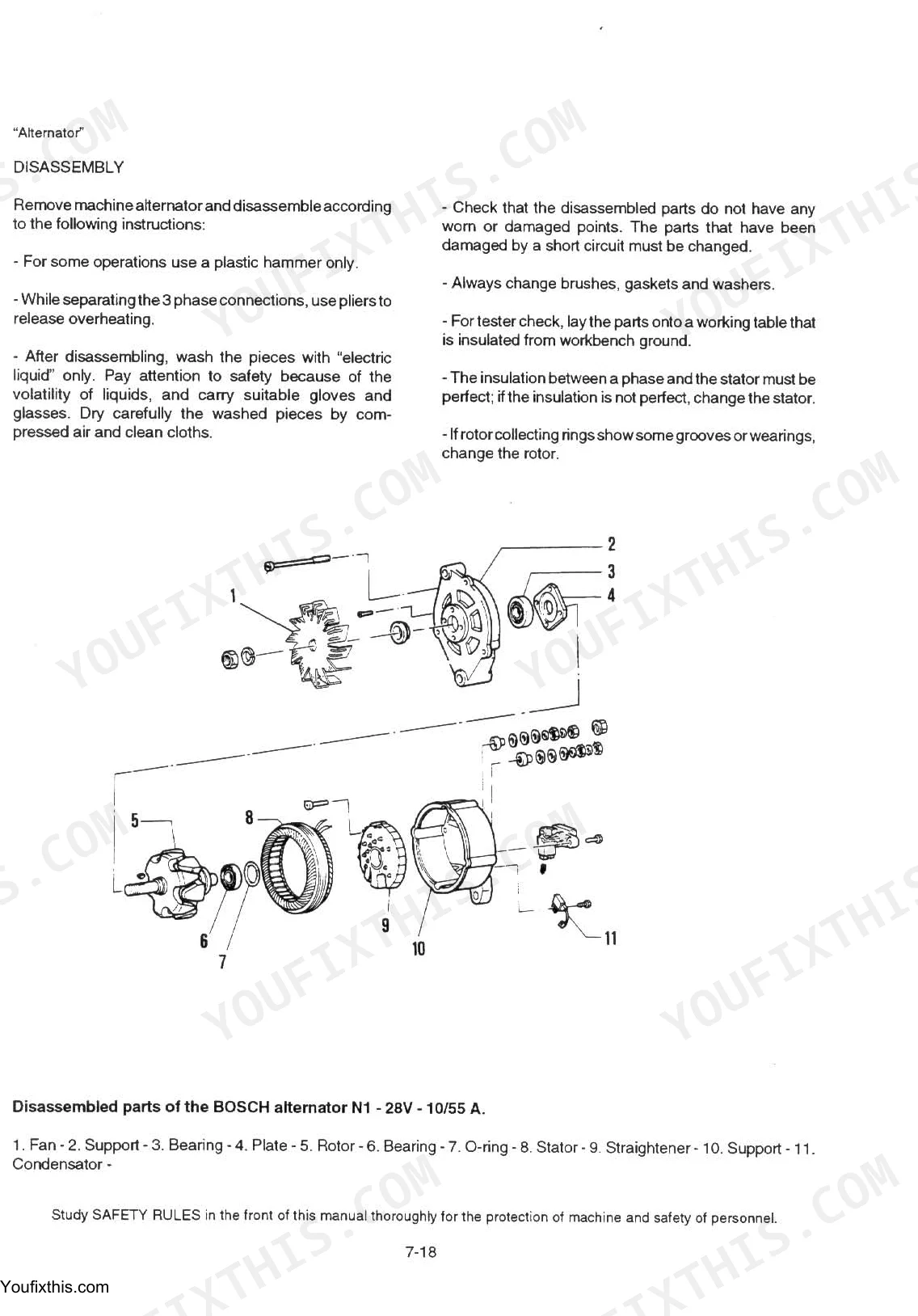

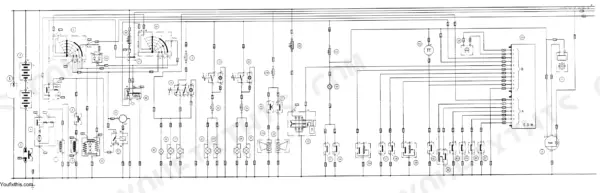

| Electrical System | 540-585 | Wiring Diagrams, Starting and Charging, Instruments, Lighting, Fuses |
| Cab (Service & Repair) | 586-601 | Cab Tilting, Cab Lowering, Seat Assembly, Panels and Headliner |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cab tilting system re-filling and bleeding | 20 | p. 2 |

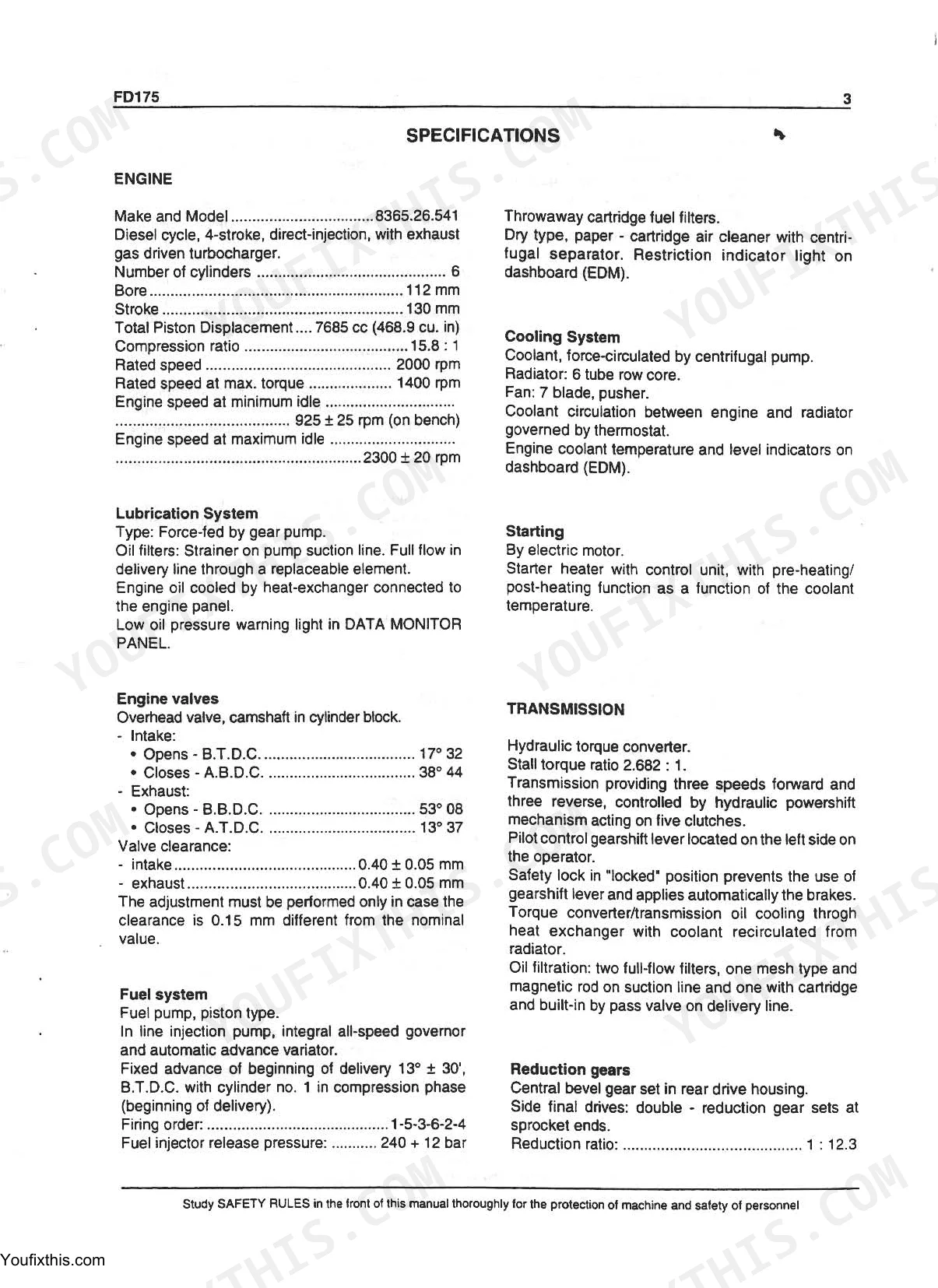

| Fuel injector release pressure | 240 + 12 bar | p. 13 |
| Injector calibration | 240 + 12 bar | p. 13 |
| Steering brake bands | worn | p. 316 |
| Brake band release spring Number of coils | 17 | p. 401 |
| Maximum oil temperature at inlet | 80°C | p. 407 |
| Rotation (as seen from drive end) Section A | Counter-clockwise | p. 419 |
| Engine Oil Capacity (Refill) | 15 I. (3,9 gal) | p. 126 |
| Fuel Tank Capacity | 345 I. (91 gal) | p. 126 |
| Converter/Transmission Oil Capacity (Refill) | 27,5 I. (7,26 gal) | p. 126 |
| Engine to converter spacer capscrews torque | 6,8 + 7,4 daNm (50 + 55 ft lbs) | p. 126 |
| Transmission shaft lock nuts torque | 92 + 95.5 daNm (678 + 704 lbs. ft.) | p. 210 |
Fiat-Hitachi FD175 Common Problems This Manual Covers
Fiat-Hitachi FD 175 steering pulls hard or feels inconsistent, especially when turning on slopes
Inspect the steering clutch and brake troubleshooting chart on page 316 for oversteering or no-brake symptoms. Check the brake actuating spring on page 409; free length should read 425 mm and force to compress to 275 mm should fall between 668 and 738 daN. Replace worn brake bands and readjust linkage before returning to slope work.
Manual Section: Steering Clutches & Brakes - Troubleshooting p. 316Loss of power or inability to hold blade load under heavy digging conditions
Verify the hydraulic pump on page 473 is the correct Sundstrand Hydratec TAP 60-200/85S unit rated for 85 L/min at 1000 rpm no-load. Trace the hydraulic schematic and test selector valve flow. If output falls below spec, pull the pump per the repair procedures beginning on page 427 and check the gear-to-bushing clearance for wear.
Manual Section: Hdraulic System p. 427Engine runs hot and coolant level keeps dropping during extended operation
Check radiator coolant level per the Operations to Be Performed When Required section on page 65 and top off if low. Inspect the alternator/fan belt tension on page 127; a new belt should deflect under 60 to 80 N of force. Flush the radiator core of debris and replace any cracked or swollen coolant hoses before restarting.
Manual Section: Operations to Be Performed When Required p. 65Blade lift and dump cycles feel sluggish or delayed under load
Pull the dozer lift cylinder per the repair procedures on page 427 and inspect the head O-rings for swelling or hardening. Torque the cylinder head to cylinder tube fasteners on page 474 to 162 to 178 daNm (1195 to 1313 ft lbs) on reassembly. Bleed trapped air from the lines and confirm smooth lift and dump cycles before returning to service.
Manual Section: Hdraulic System p. 474Machine creeps forward or backward when transmission is shifted to neutral

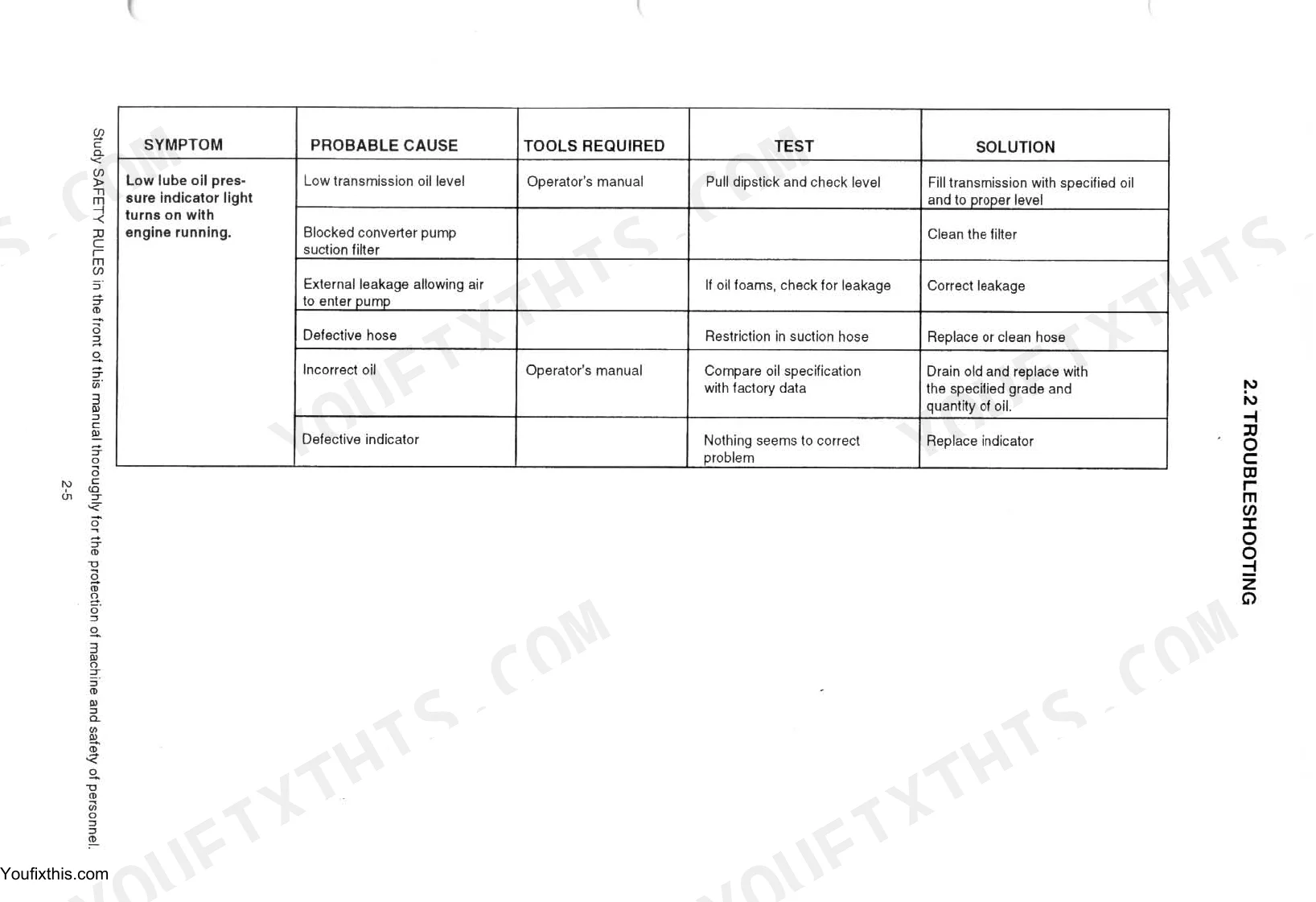

Reference the transmission troubleshooting procedures for machine-creep and powershift lever complaints; check clutch pack pressure and the lube pump for blockage. If a clutch fails to fully release, inspect the modulating valve and clutch packs per the transmission repair section (pages 129 to 221), then verify the machine holds in neutral before returning it to work.
Frequently Asked Questions
How to reset Fiat Hitachi FD175 error codes?
The manual does not describe a specific procedure to 'reset' error codes. When the general fault indicator (k) flashes, the recommended actions are to stop the machine, turn off the engine, turn off the master switch, and take necessary actions to eliminate the fault. If the fault persists, contact an authorized Service Center. p. 22
What are the torque specifications for FD175 blade bolts?
The dozer blade fastening nuts should be tightened to a torque of 49 + 53 daNm. This specification is found in the section detailing dozer assembly. p. 467
How to reset steering calibration on FD175?
The manual does not provide an explicit procedure for resetting steering calibration. However, it mentions that 'Automatic adjustment is blocked' can be a probable cause for steering issues, suggesting that there is an automatic adjustment mechanism. p. 316
What do FD175 error codes mean?
The Electronic Data Monitor (E.D.M.) signals various conditions. For example, 'g. Battery charge indicator' glowing indicates a malfunction of the battery recharging system, and 'h. Engine coolant high temperature indicator' signals overheating of the coolant. p. 21
How will I receive this Fiat-hitachi FD 175 Service Manual?
You get a 601-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Fiat-hitachi FD 175 Service Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

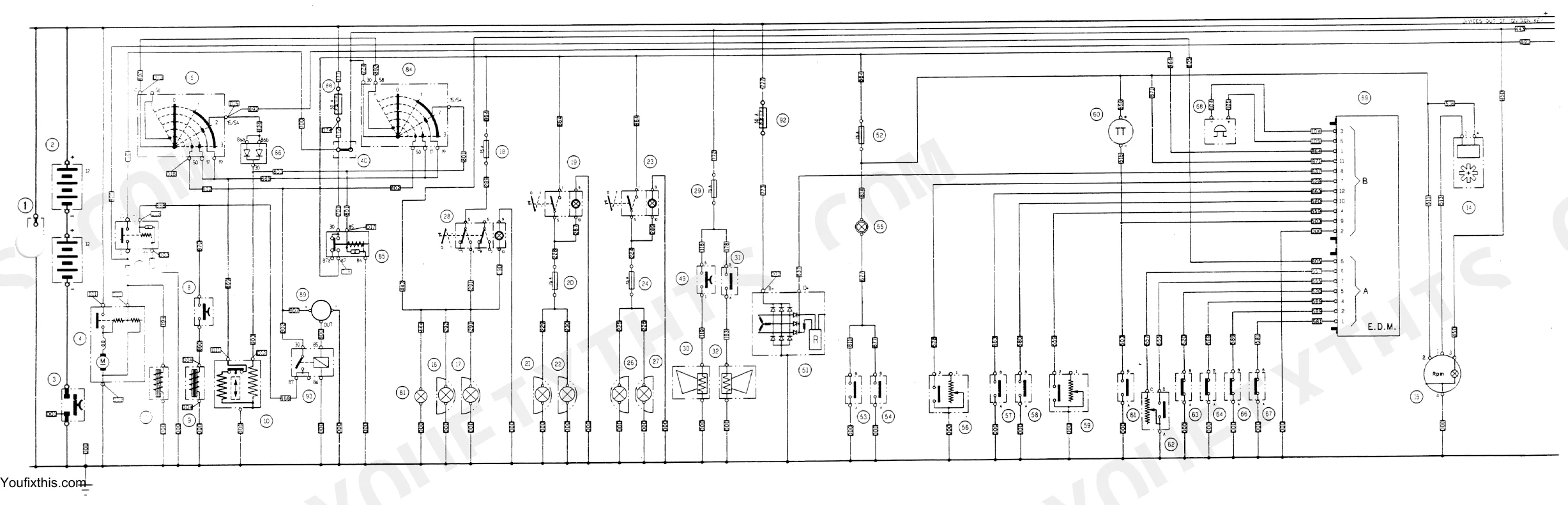

Can I find wiring schematics in this Fiat-hitachi FD 175 manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Fiat-hitachi FD 175.
