What's inside: three FiatAllis books bound into one 1,326-page file for the FX600, FX600LC crawler excavator - the volumes dealers sold separately. Pages 1-227 are the Operation and Maintenance manual (introduction, operation, inspection and servicing, repair work and the annex). Pages 228-573 are the illustrated Parts Manual: undercarriage, hydraulic and fuel tanks, swings, counter balance, engine, travel and slewing gear, swing brake, hydraulic system, heater, greasing system, electrical system and sheet metal. Pages 574-1326 are the Service Manual - the FiatAllis Technical Handbook - running its numbered sections from How To Use and Specifications through General, Superstructure, Diesel Boxes, Undercarriage, Front-End Attachments, Hydraulic System, Electrical System and Equipment to the EDS operating instructions, fittings, pipes and hoses, welding for maintenance and repair, and the sealing, protective, checking and cleaning agents. On diagrams, precisely: the Technical Handbook explains circuits and refers to them by component number, and it carries sectional views of the hydraulic components and the electrical procedures - including emergency operation of the proportional valve when the electronic regulator fails - but it does not print drawn wiring or hydraulic schematic sheets.
What's Inside This FiatAllis FX600, FX600LC Manual

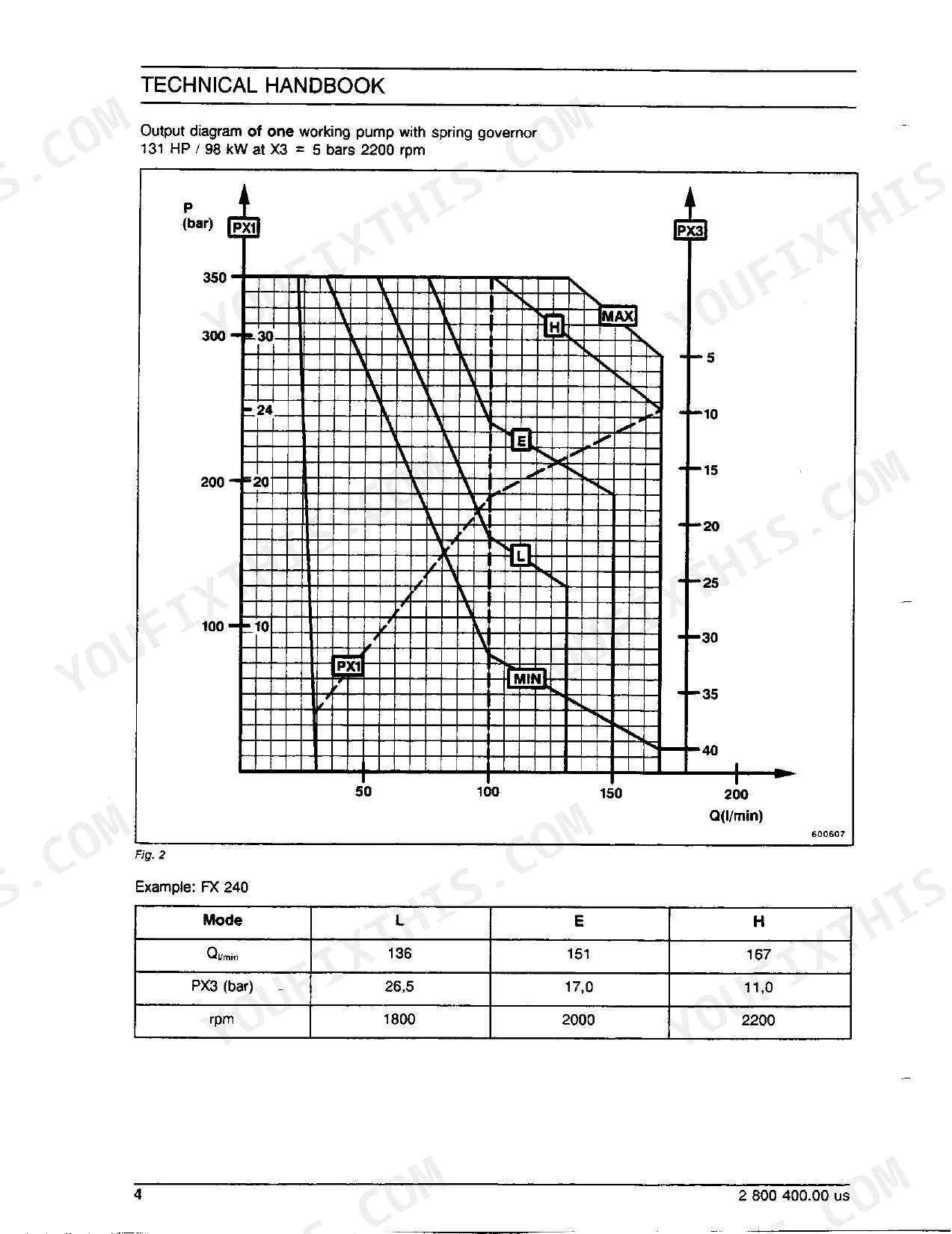

| System | Pages | Key Topics |
|---|---|---|
| Operation & Maintenance | 1-227 | Introduction, Operation, Inspection and Servicing, Repair Work, Annex |
| Parts Manual - FX 600LC | 228-408 | Undercarriage, Superstructure, Track & Related Parts, Fuel & Hydraulic Tanks, Swivel Connection, Counter Balance |
| Parts Manual - Heater | 409-573 | Grease System, Electrical System, Sheet Metal & Covers, Implement, Decals, Tools |
| Service Manual - FX600LC | 574-812 | Foreword/Safety Instructions, Service Data FX 600, Diesel Engine, Gear Boxes |
| Service Manual - Hydraulic System | 813-1093 | - |
| Service Manual - Equipment | 1094-1326 | EDS Operating Instructions, Fittings, Pipes, And Hoses, Welding for Maintenance and Repair, Sealing, Protective, Checking, And Cleaning Agents |
FiatAllis FX600, FX600LC Common Problems This Manual Covers

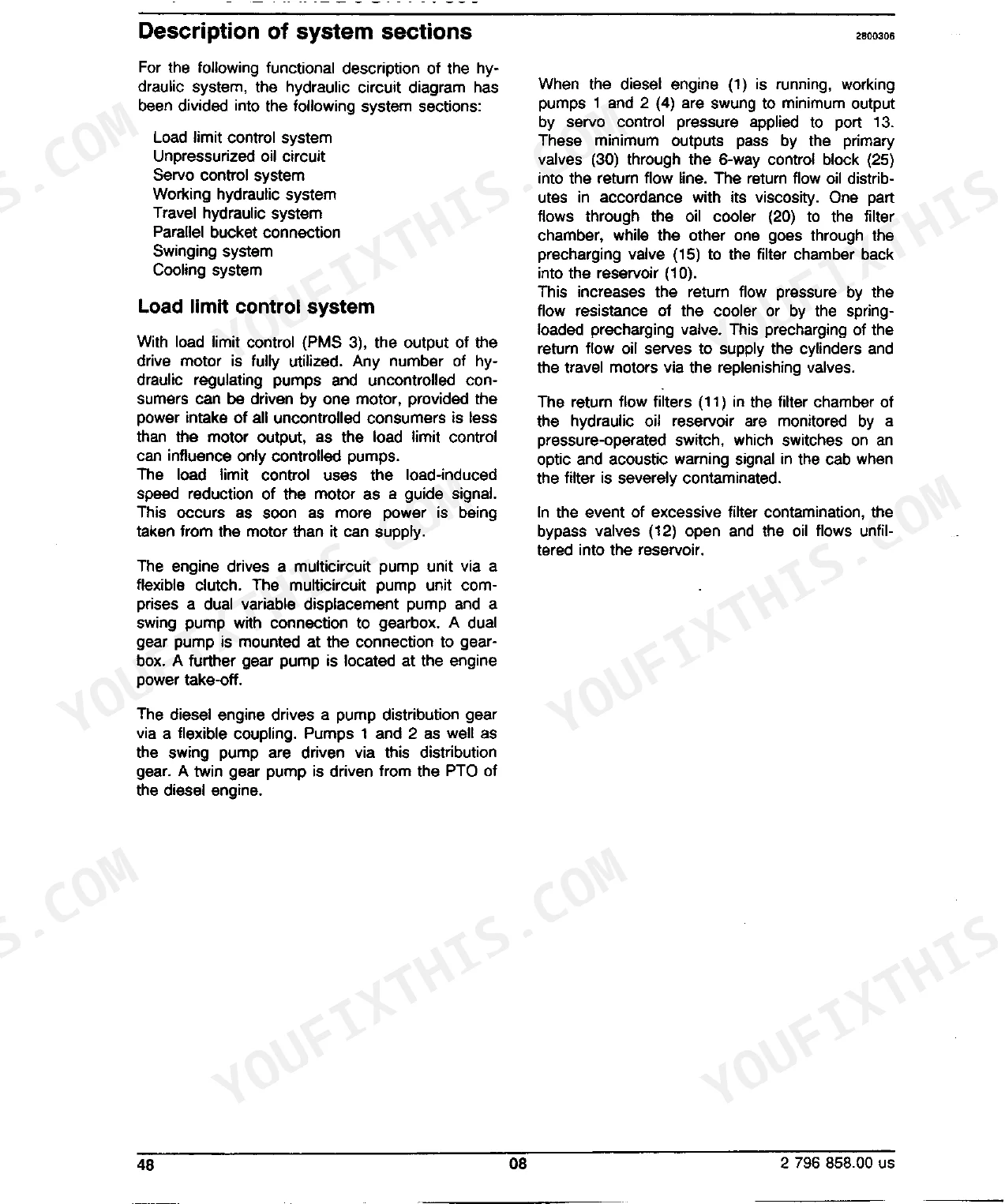

Machine derates or behaves oddly under load and you suspect the load limit governor or speed control
Start with the electrical component tables that key each part to the circuit diagram. The load limit governor, electronic speed control, resistance module and speed sensor are each listed with current path reference, location and part number, then follow the EDS Operating Instructions to test through the diagnostic connector.
Manual Section: Service Manual - Equipment, EDS Operating Instructions and electrical components in circuit diagramWeak or erratic travel on one side
Check the travel pressure sensor first using its circuit diagram reference before condemning a travel motor. Then work through the hydraulic system service manual for pressure checks, and use the parts manual undercarriage and track sections to price the mechanical side honestly.
Manual Section: Service Manual - Hydraulic system; Parts Manual FX 600LC, Undercarriage / Track and Related PartsLeaks at the swivel connection or around the fuel and hydraulic tanks
The parts manual breaks out the swivel connection and both tanks with exploded views so you can identify every seal and fitting by part number, while the equipment manual's sections on fittings, pipes and hoses plus sealing agents tell you what to reseal it with.

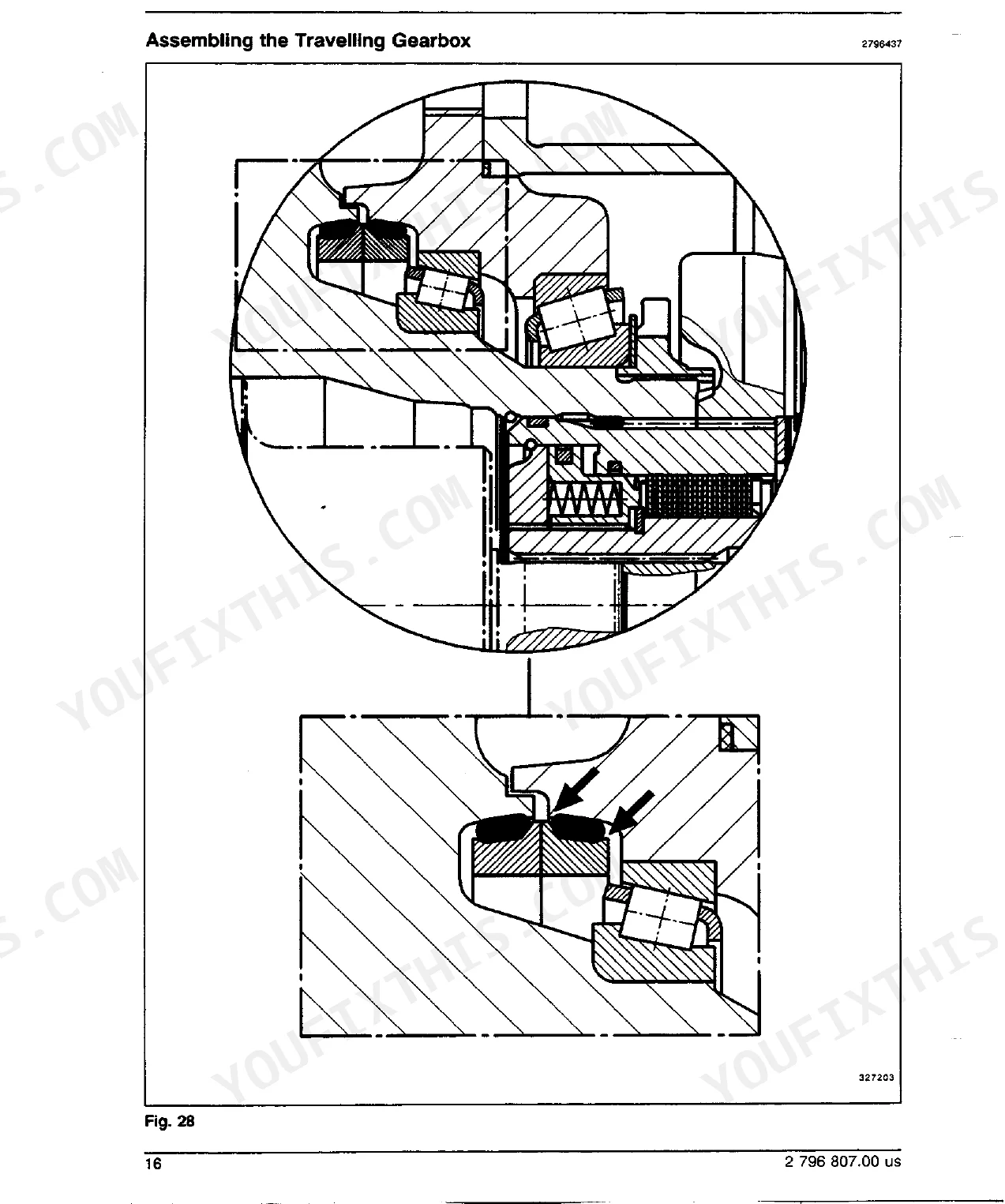

Manual Section: Parts Manual FX 600LC, Swivel Connection / Fuel and Hydraulic Tanks; Service Manual - Equipment, Sealing agentsEngine or gearbox work with no baseline figures on hand

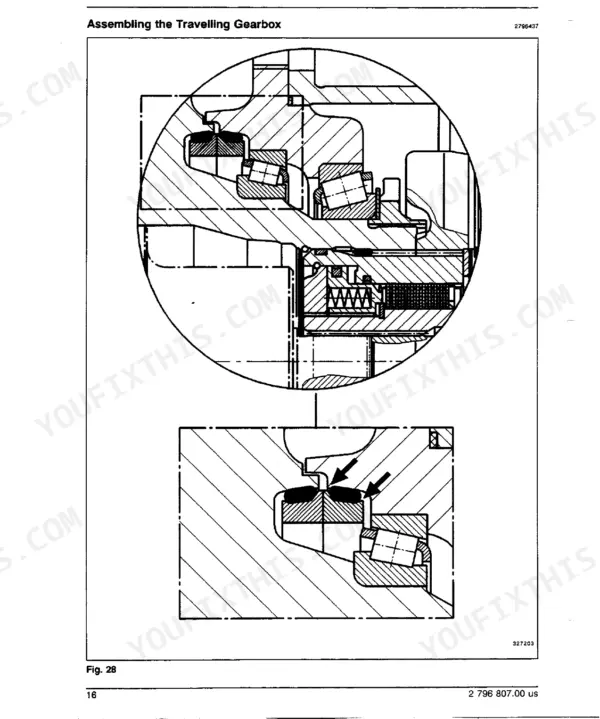

The FX600LC service manual opens with Service Data for the FX600 before the diesel engine and gear box chapters, so you have the factory reference values in front of you before opening either unit, plus the safety instructions in the foreword for a machine of this weight class.
Manual Section: Service Manual - FX600LC, Service Data FX 600 / Diesel engine / Gear boxesFrequently Asked Questions
Does this cover the electrical system, or just iron and hydraulics?

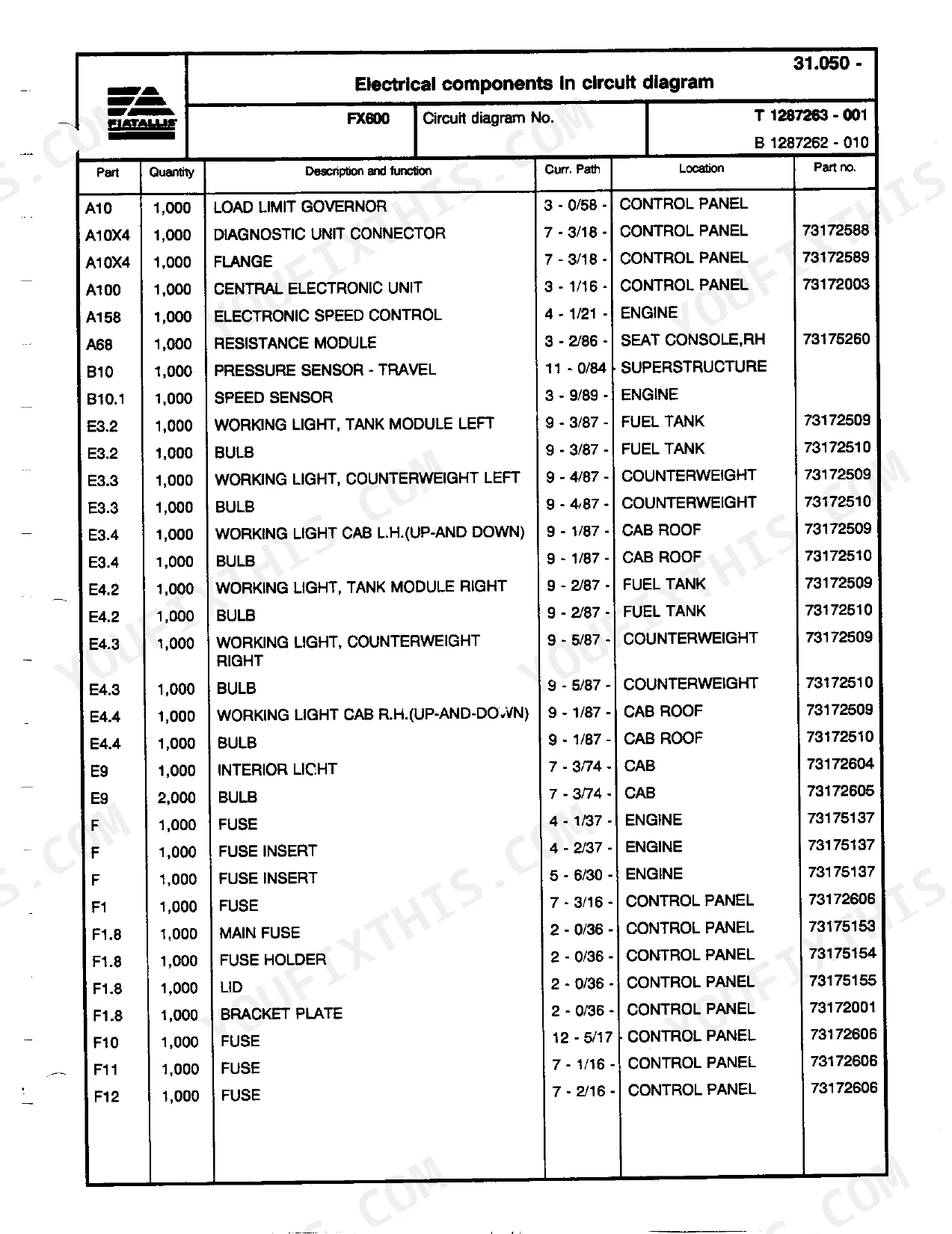

It covers electrics properly. There is a table of electrical components keyed to the circuit diagram: every component with its current path reference, its location on the machine, and its part number. That includes the load limit governor, central electronic unit, electronic speed control, travel pressure sensor, speed sensor, the diagnostic unit connector, working lights by position (fuel tank, counterweight, cab roof), and the fuses by circuit. When you are chasing a dead sensor at the machine, that current path reference saves real time.

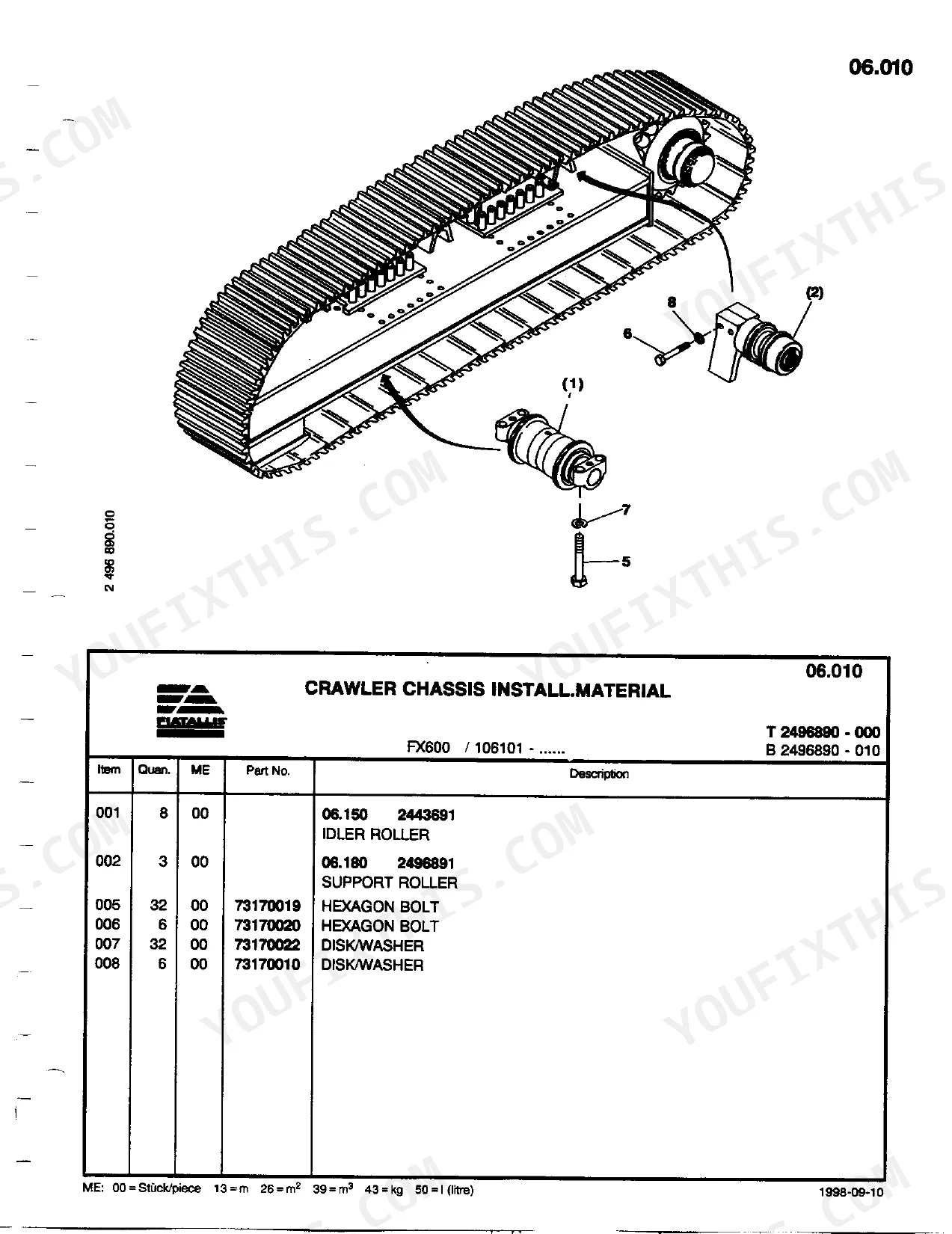

Is the parts manual usable for ordering, or just pictures?
It is the illustrated Parts Manual for the FX600LC with part numbers against exploded views, organized by group: undercarriage, superstructure, track and related parts, fuel and hydraulic tanks, swivel connection, counterbalance, plus grease system, electrical, sheet metal and covers, implement, decals and tools. FiatAllis has been gone a long while, so cross referencing these numbers is how you find seals, pins and track hardware from surviving suppliers. p. 228

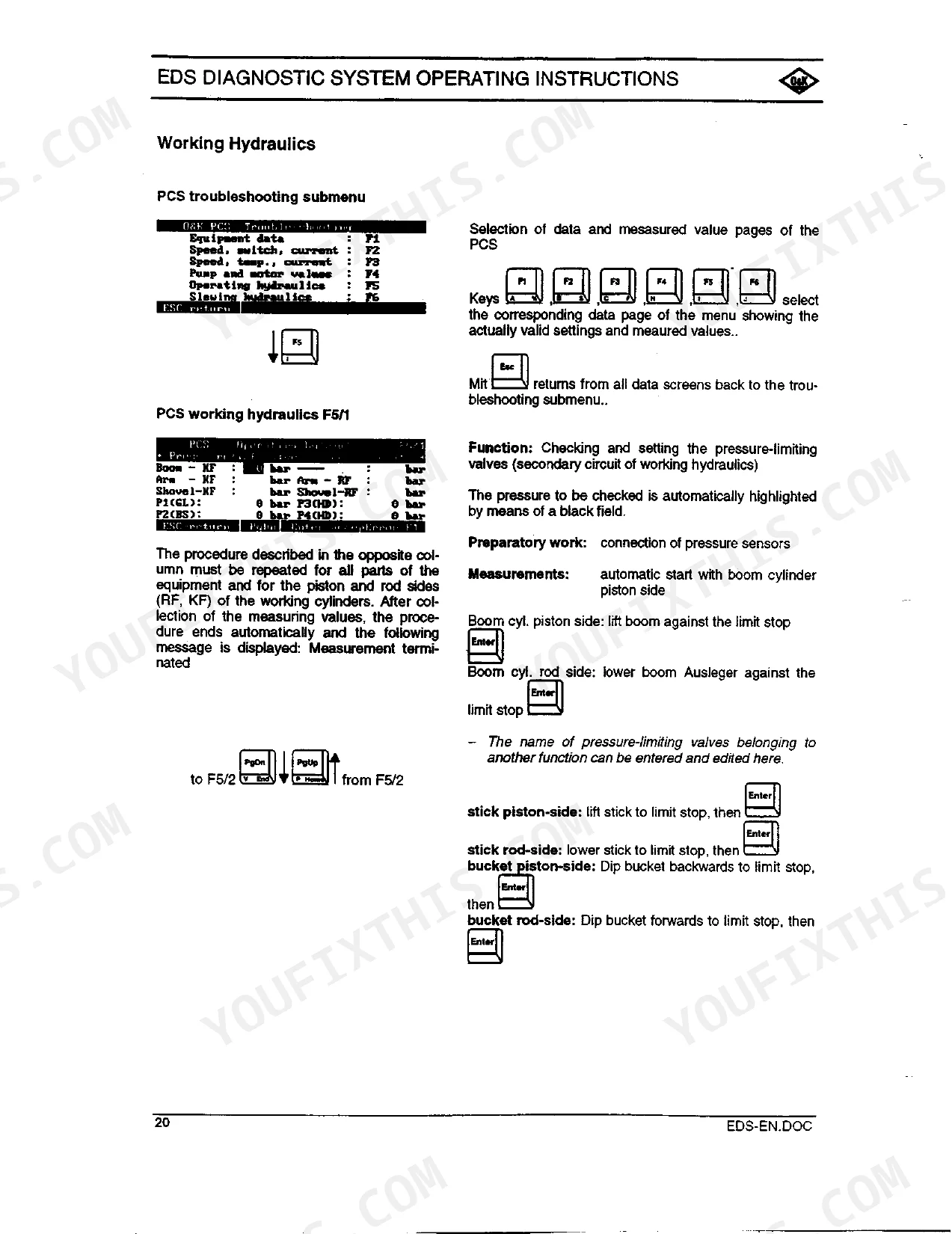

What is EDS and does the manual explain it?

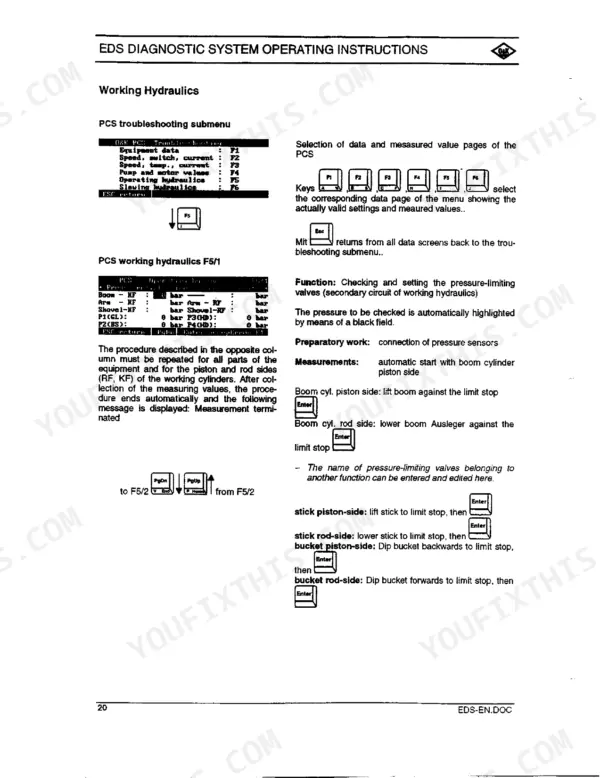

The Service Manual for equipment includes the EDS operating instructions, which is the machine's electronic diagnostic side. Paired with the diagnostic unit connector and central electronic unit references in the electrical component tables, you can actually work through the electronics instead of guessing at a box of relays.

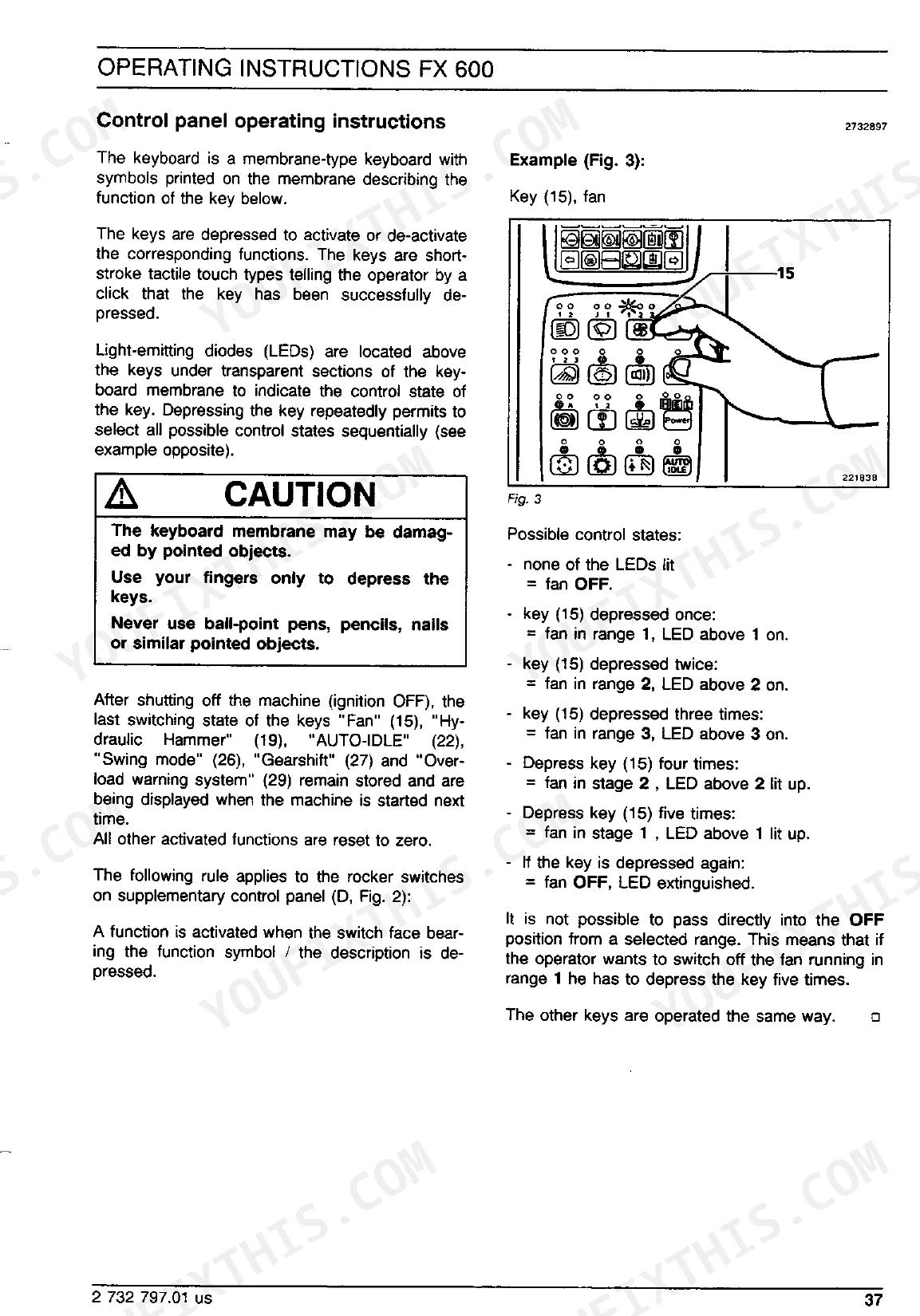

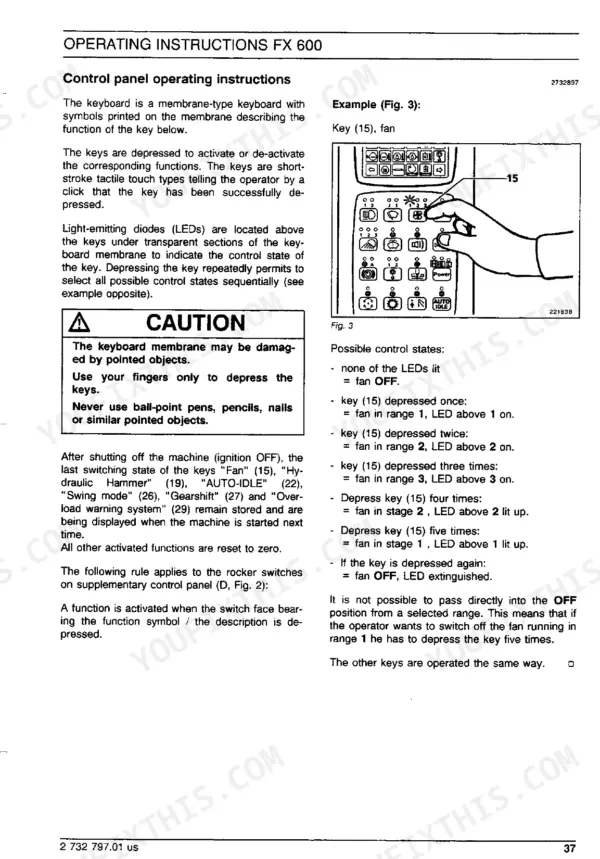

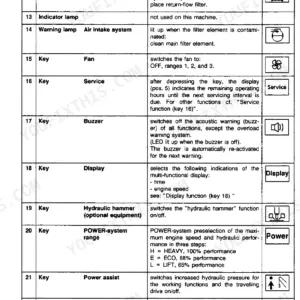

Will this help with routine service, or is it repair only?
Both. The Operation and Maintenance manual is structured as introduction, operation, inspection and servicing, repair work, and an annex. Part 3 walks the inspection and servicing intervals, so an operator or owner can keep on top of daily and periodic checks without touching the deeper Technical Handbook material.
Does it cover hose and fitting work?
Yes. The equipment service manual has dedicated sections on fittings, pipes and hoses, welding for maintenance and repair, and sealing, protective, checking and cleaning agents. On a machine this size, knowing which sealing compound and which weld procedure FiatAllis specified matters more than on a small excavator.
