Ballast splits, Dual Power shifting, the right tyre pressure for the load: this Ford 7810 operator manual PDF settles those questions with factory answers across 172 pages, published under OEM ID 42781010 for the agricultural tractor. The lubrication and maintenance chart maps every grease point and hour interval on the machine, and the specifications section carries dimensions, weights, and full fluid capacities. Operation coverage walks through the transmission, four wheel drive, PTO, three-point linkage, and remote control valves, plus the universal symbols across your instrument panel. Set clutch pedal free play at 1.1 to 1.6 in. (28-41 mm), and pull the rear disc to hub nuts to 350 lb.ft. (475 Nm). Guess a capacity wrong and you buy a rear end. Searchable text and bookmarks land you on the right section, and the pages print clean enough to ride the fender and take the grease.
What's Inside This Ford 7810 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 14-16 | The Tractor, Driving the Tractor |
| Roll Over Protective Structure | 17 | ROPS Mounting Bolts, Operator's Seat Mounting Bolts, Seat Belt Mounting Parts, FOPS Canopy |
| Universal Symbols | 18-20 | Engine Speed, Engine Coolant Temperature, Fuel Level, Engine Oil Pressure, Transmission Oil Pressure, Differential Lock |

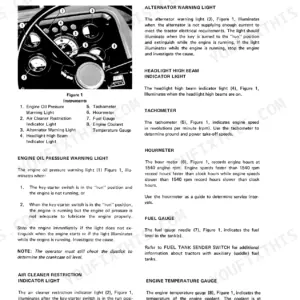

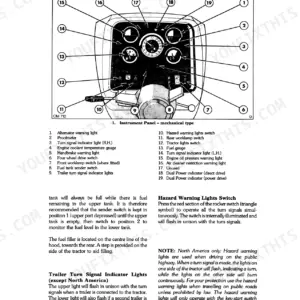

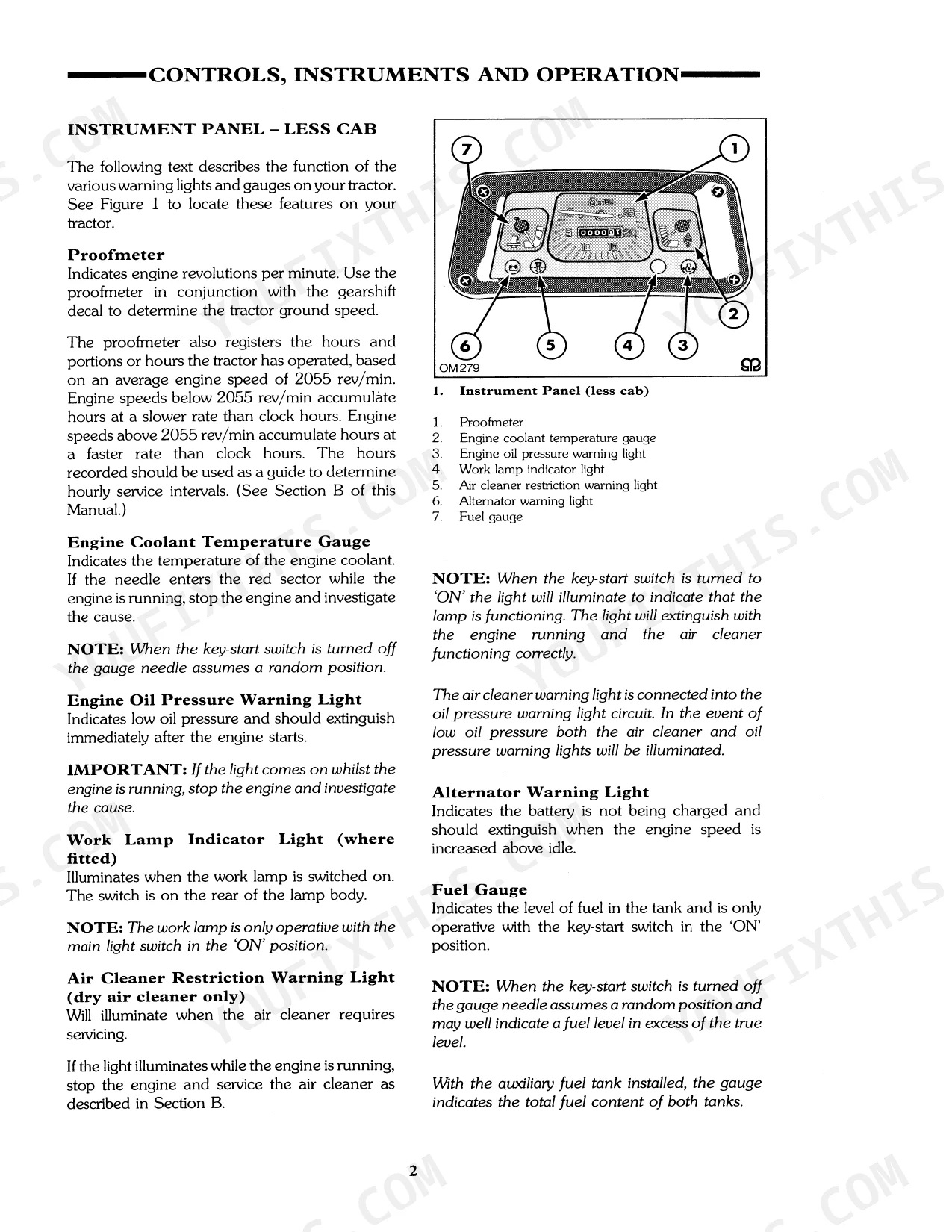

| Controls, Instruments and Operation | 21-88 | Tractor Controls, Engine Starting/Stopping Procedure, Transmission, Dual Power, Four Wheel Drive, Safety Cab, Operator's Seat, Power Take-Off |

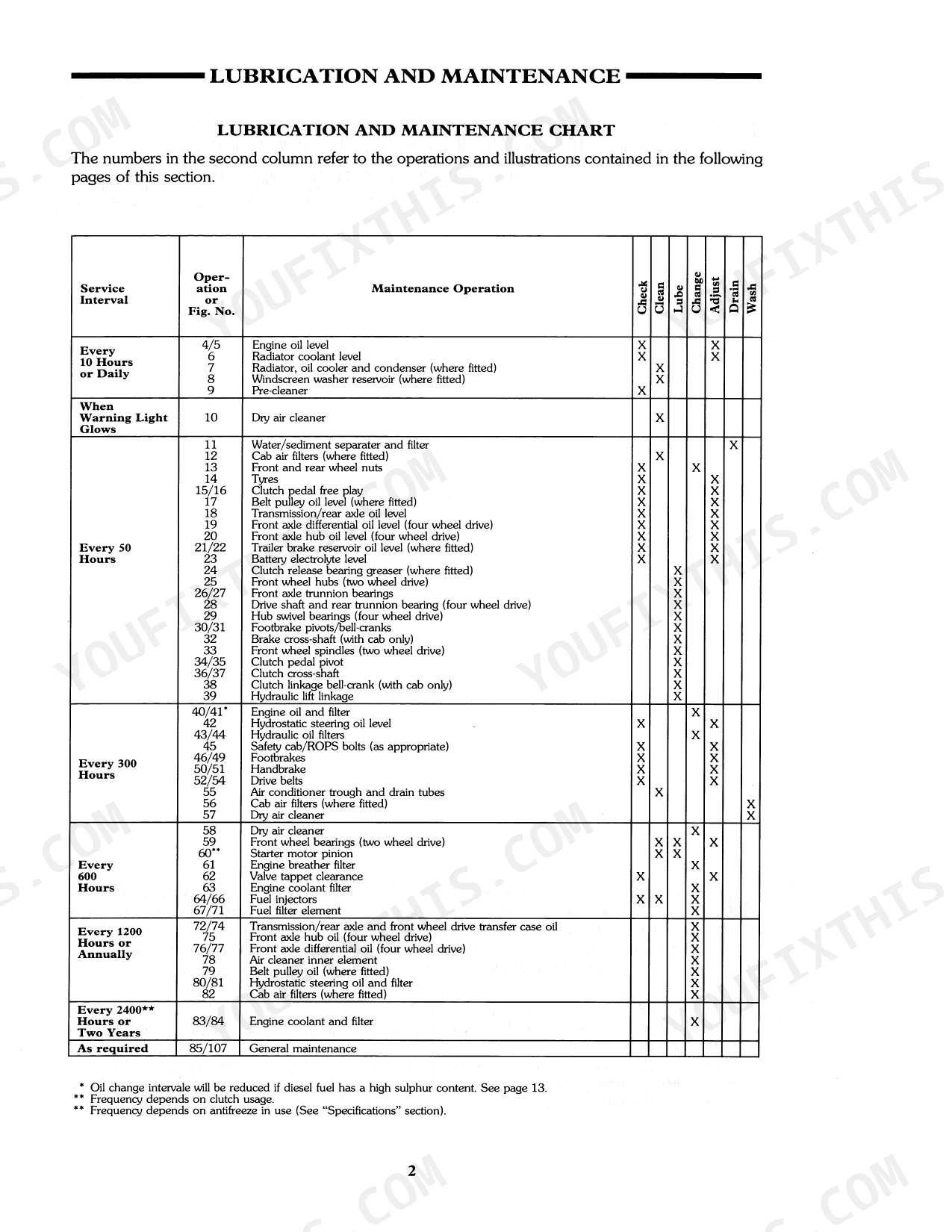

| Lubrication and Maintenance | 89-124 | Lubrication and Maintenance Chart, Diesel Fuel, General Maintenance |
| Specifications | 125-144 | General Dimensions, Weight, Capacities |
| Index | 145-147 | Air Cleaner, Brakes, Cab Air Filters, Hydraulic System, Lubrication, Steering |
| Notes | 148-148 | - |
| Safety Decals | 149-150 | Battery Safety, Parking Brake, Jump Start Instructions, PTO Safety, Rotating Fan and Belt Safety |

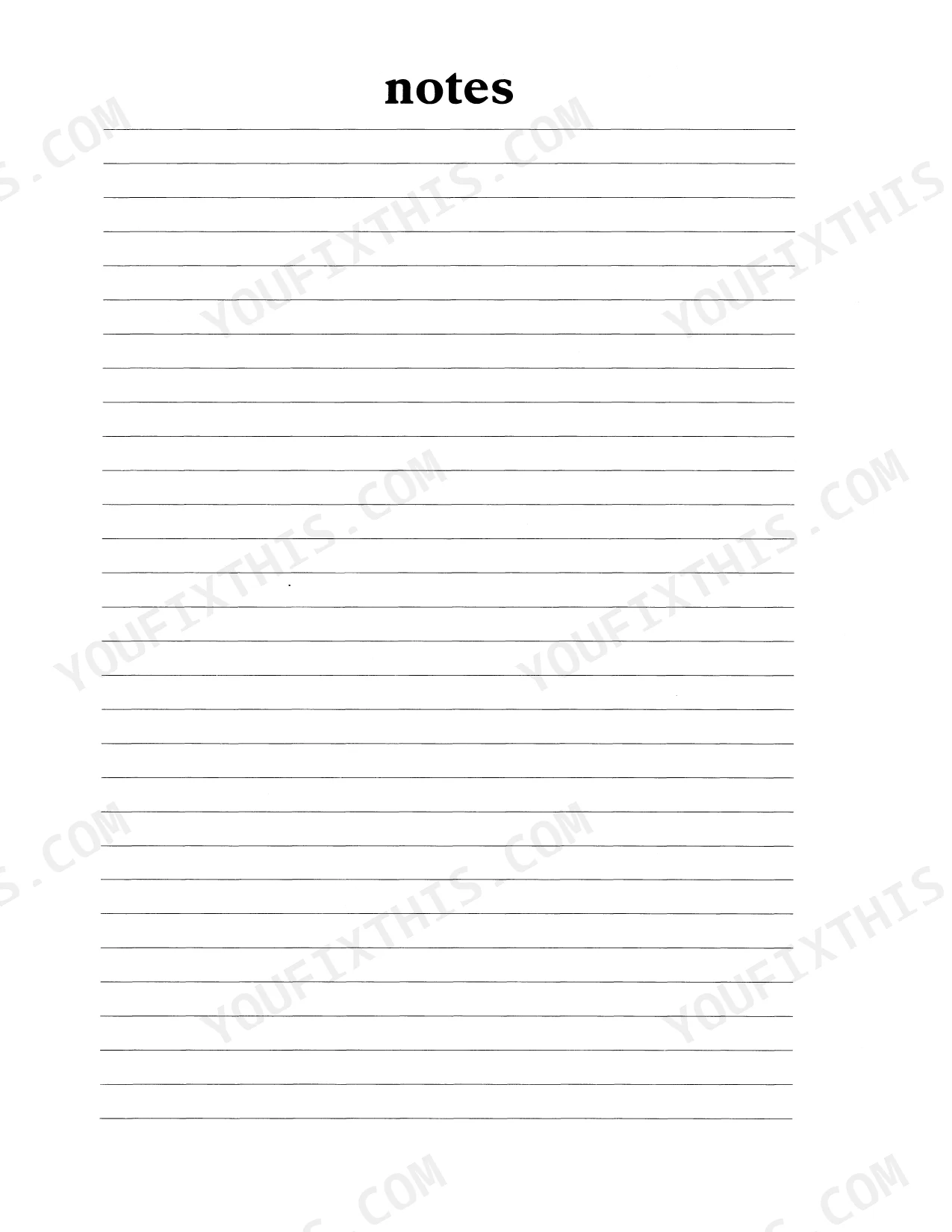

| Notes | 151-158 | - |
| Operator's Manual Supplement | 159-169 | Cooling System Improvements, Fuel Injection Pump, Coolant Inhibitor, Coolant Recovery System, Service Requirements |
| Back Cover and Dealer Information | 170-172 | Ford New Holland Dealer Support, Parts and Service, Tractor Care |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Free play at the brake pedal (de-luxe cab) | 2.0 in. (50 mm) | p. 103 |
| Rear disc to hub nuts | 350 lb.ft. (475 Nm) | p. 83 |
| Rear disc to rim nuts (Wheels up to 30 in. diameter) | 130 lbf.ft. (176 Nm) | p. 83 |
| Clutch pedal free play | 1.1-1.6 in. (28-41 mm) | p. 96 |
| Brake pedal free play (models without cab) | 1.50 in. (38 mm) | p. 103 |
| Thermostart fuse rating | 25A | p. 121 |
| Thermostart heater fuse rating | 15A | p. 122 |
| Automatic Pick-up Hitch locknut torque | 59 lbf.ft (80 Nm) | p. 122 |
| ROPS mounting bolt torque | 280 lbf.ft (380 Nm) | p. 17 |
| Exhaust valve clearance (cold) | 0.43-0.48 mm | p. 129 |
| Hydraulic system nominal pressure | 172 bar | p. 131 |
| Steering pump maximum pressure | 111-116 bar | p. 132 |
Ford 7810 Common Problems This Manual Covers
Ford 7810 cranks but won't fire on frosty mornings, thermostart aid seems dead
Check the 25A thermostart fuse first; the fuse identification chart on page 121 shows its location. Hold the key in the heat position for the full recommended time before cranking, and confirm the fuel shut-off is fully open. If the fuse keeps blowing, get the thermostart wiring sorted before winter sets in.
Manual Section: Electrical System p. 121Gear lever baulks going into gear, shifting stays stiff with clutch pedal down
Measure clutch pedal free play before blaming the gearbox. You should have 1.1 to 1.6 in. (28-41 mm) of travel before resistance; the adjustment procedure on page 96 walks you through setting the linkage. Too little free play keeps the clutch dragging, and the gears will baulk every time. Recheck after adjusting.
Manual Section: Lubrication and Maintenance p. 96Three-point hitch lift arms slow to raise or won't lift a mounted plough
Check the rear axle oil level before anything else; a low sump starves the lift pump. Verify the position control lever moves through its full range and the flow control is not turned right down. If the arms still stall, have your dealer check relief pressure against the 172 bar figure on page 131 before drilling season.
Manual Section: Hydraulic System p. 131Brake pedal travels nearly to the floor before the tractor pulls up
Measure free play at the brake pedal: you want 1.50 in. (38 mm) on tractors without a cab, or 2.0 in. (50 mm) with the de-luxe cab, as listed on page 103. Adjust each pedal equally so the tractor pulls up straight, and lock the pedals together before road work with a loaded trailer.
Manual Section: Steering and Brakes p. 103Rear wheel clunks or shifts on the hub after track width adjustment
Retorque the wheel hardware after any track change and again after the first few hours of work. Tighten rear wheel clamp nuts on power adjust wheels to 325 lbf.ft. (440 Nm), following the figures on page 95. Recheck daily until the nuts hold torque; a loose wheel wallows out the disc holes fast.
Manual Section: Wheel and Tyre Maintenance p. 95Frequently Asked Questions
What is the torque specification for the front axle extension securing bolts on a Ford 7810?
The front axle extension securing bolts must be tightened to 155 lbf.ft (210 Nm). These should be re-checked after 50 hours of operation. p. 80
What is the correct torque for the rear wheel disc to hub nuts on a Ford 7810 tractor?
The rear disc to hub nuts must be tightened to 350 lbf.ft (475 Nm). p. 83
What is the intake valve clearance on a Ford 7810 engine?
The intake valve clearance on the Ford 7810 is 0.014–0.016 inches (0.36–0.41 mm) with the engine cold. p. 108
How tight should the ROPS mounting bolts be on a Ford 7810 tractor?
The ROPS mounting bolts must be tightened to 280 lbf.ft (380 Nm). p. 17
How often should the engine oil and filter be changed on a Ford 7810?
The engine oil and filter should be changed every 300 hours under normal conditions. However, if operating in temperatures below -12°C (10°F), the oil should be changed every 150 hours. p. 102
Is this Ford 7810 manual a download or a disc?
One searchable PDF covering 172 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Is this Ford 7810 manual print-friendly?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
