Hunting down the right Ford 8630 parts catalog PDF? All 539 pages of this factory parts book cover the 1990-1993 Ford 8630 and 8630 6 CYL AG tractors, from front wheel assemblies and two-piece rims to power adjust rear wheels. You get exploded views with numbered callouts for every engine, hydraulic, drivetrain, chassis, and cab component, so identifying a worn part takes seconds instead of a parts-counter argument. Inside: complete factory part numbers, an abbreviations key, and a metric-to-inches conversion table for easy cross-referencing. Verify dimensions before you order; the hydraulic pump check plug housing measures 63.5mm and the flat center plug runs 59.85mm. No more ordering the wrong part twice. Bookmarked with a working text layer, this PDF opens on any device; type in a part number and jump straight to the diagram.
What's Inside This Ford 8630, 8630 6 CYL AG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank Assembly & Related Parts, Fuel Sedimenter & Filter Assembly, Fuel Injection Pump, Fuel Injector Assembly, Fuel Pump Assembly, Air Cleaner & Related Parts, Diesel Fuel Primer Assembly | |
| Cooling System | Transmission Oil Cooling System, Radiator, Water Pump, Bracket Assembly & Thermostat Housing, Radiator Overflow Container | |

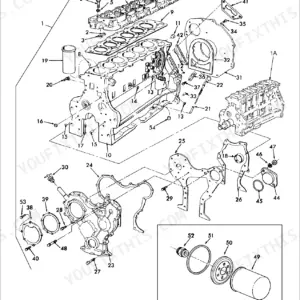

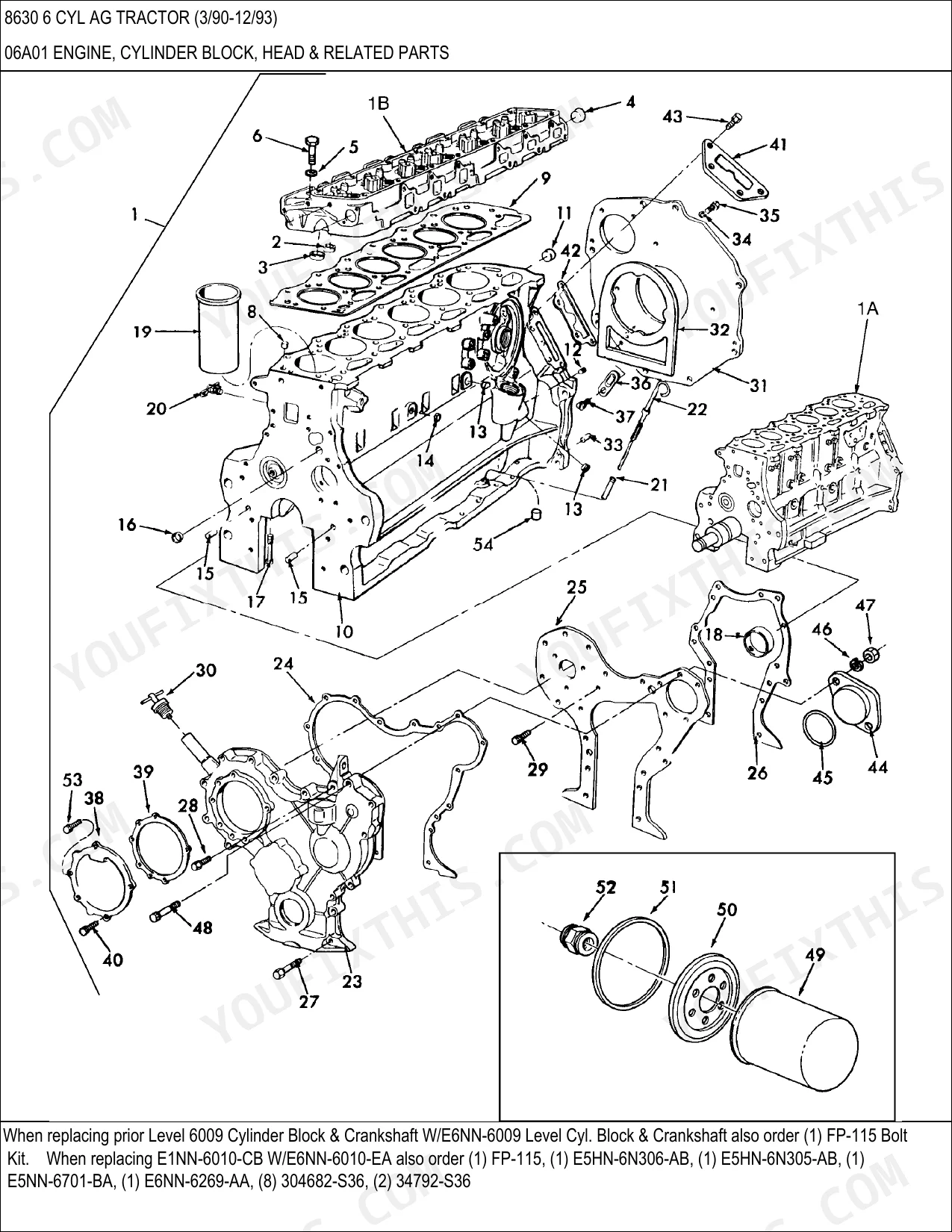

| Engine | Crankshaft, Camshaft, Pistons & Connecting Rods, Oil Pump, Gasket Overhaul Kit, Oil Pump Control Valve & Tubes, Lubrication Equipment | |
| Electrical System | Headlamp Assembly, Rear Lamps, Parking Lamps, Lamp Assembly, Implement Lamp Assembly, Lamp, Alternator, Battery, Stop & Tail Lights, Tail Lights, Hourmeter Assembly | |

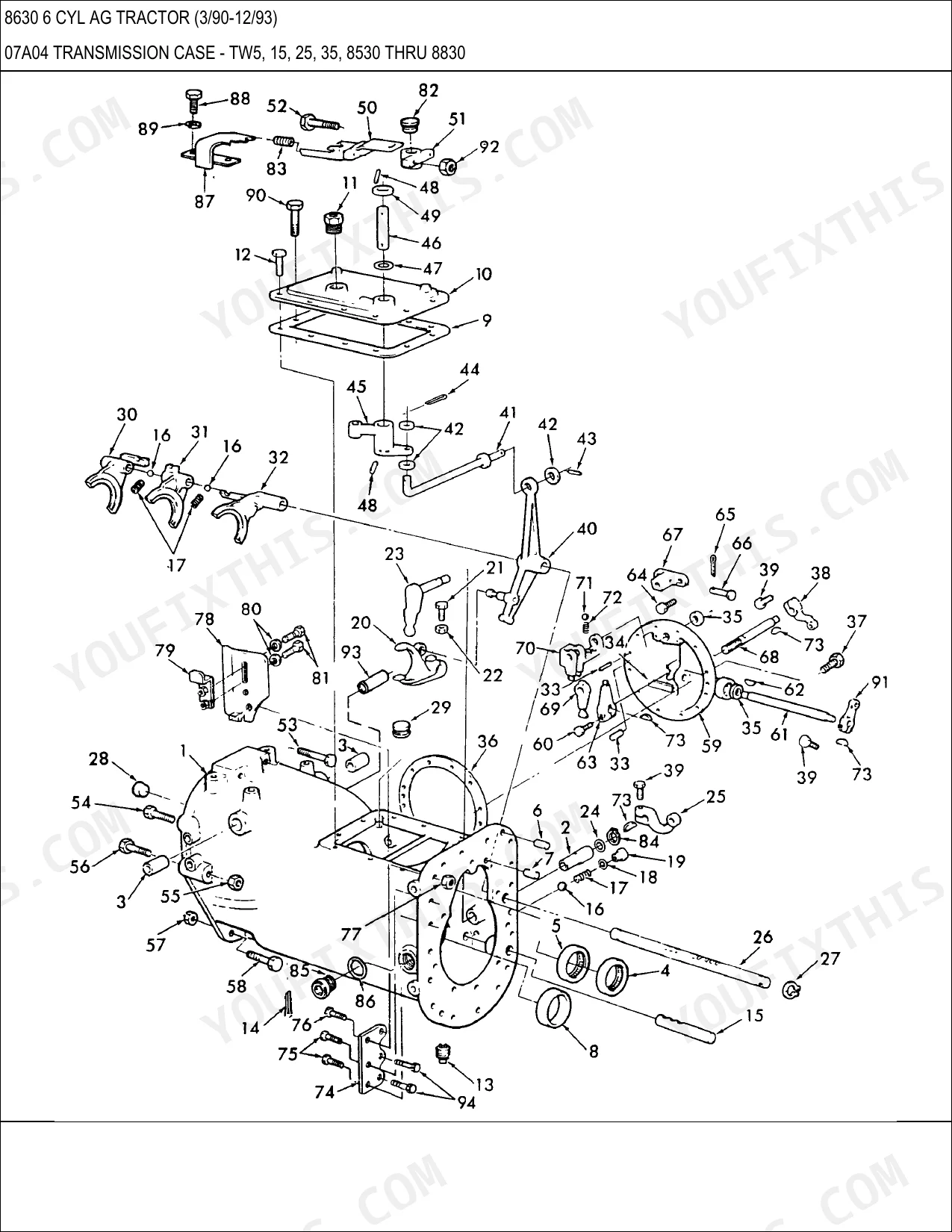

| Clutch & Transmission | Transmission Handbrake Lever, Transmission Case, 8-Speed Transmission Gears & Related Parts, Transmission Control, Transmission Dual Power, PTO Clutch, PTO Clutch Controls, Independent PTO Clutch Linkage, Clutch Controls, Creeper Gears, Transmission Housings & Related Parts, Clutch Assembly & Charge Pump, Speed Clutch Assemblies, Range Clutch Assemblies, Range Clutch Assembly, Transmission Shift Control | |
| PTO | PTO Guard Kit | |
| Rear Axle, Differential & Brakes | Rear Wheels, Power Adjust & Manual Adjust Rear Wheels, Rear Wheel Weights, Manual Adjust Rear Wheel Weights, Brake Lines, Transfer Gear Handbrake, Brake Controls, Brake Tubes & Fittings, Hydraulic Trailer Brakes, Rear Axle, Differential Lock Linkage & Valve | |

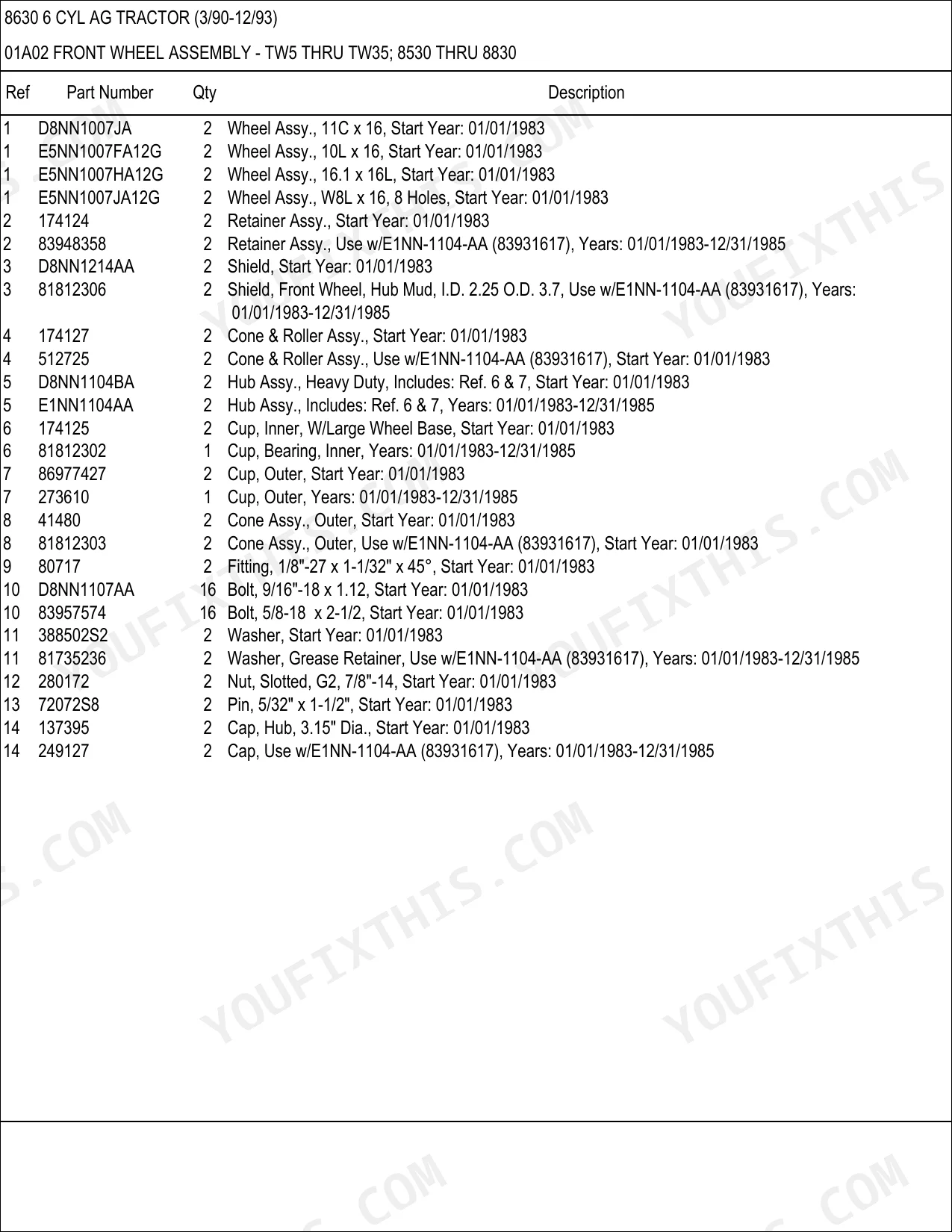

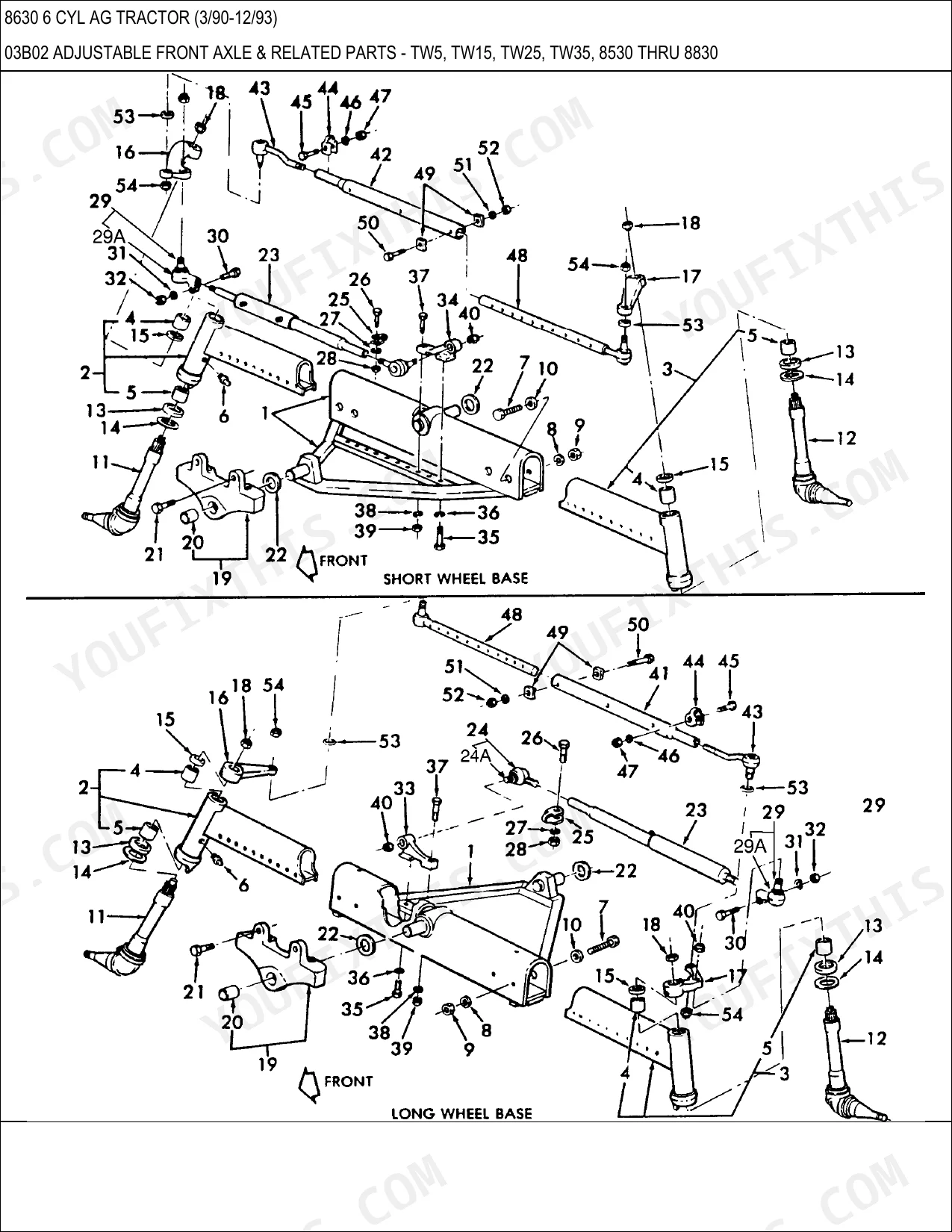

| Front Axle & Steering | Front Wheel Assembly, Front Wheel, Front Wheels, Front Wheel Weights, Steering System, Adjustable Front Axle & Related Parts, Steering Column Assembly, Steering Column Flange Assembly, Steering Motor, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly & End Assemblies, R.H. Front Axle & Differential Parts, Front Axle, FWD Power Steering Cylinder, Front Axle Transfer Case, Steering Housing | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cylinder, Hydraulic Lift, Hydraulic Lift Linkage, Swinging Drawbars, Hydraulic Remote Valves & Related Parts, Deluxe Remote Control Valve, Remote Cylinder Circuit Check, Quick-Hitch Linkage & Related Parts, Remote Control Unload Valve Assembly, Hydraulic Lift Assist Ram, Lift & Draft Control, Cover & Valve Assembly, Hydraulic Lift Cover & Related Parts, Cylinder, Hydraulic Lift Lock, Control Valve Assembly | |

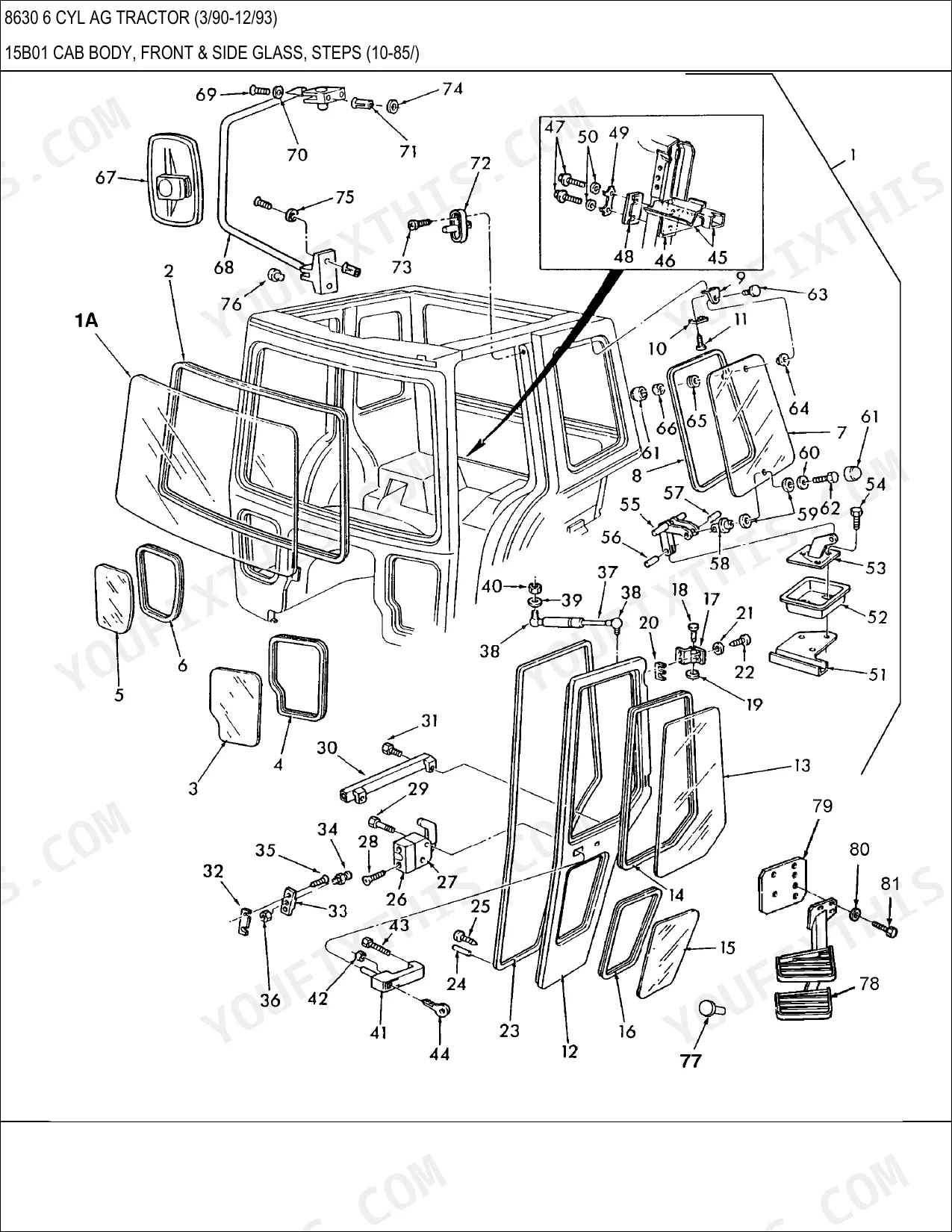

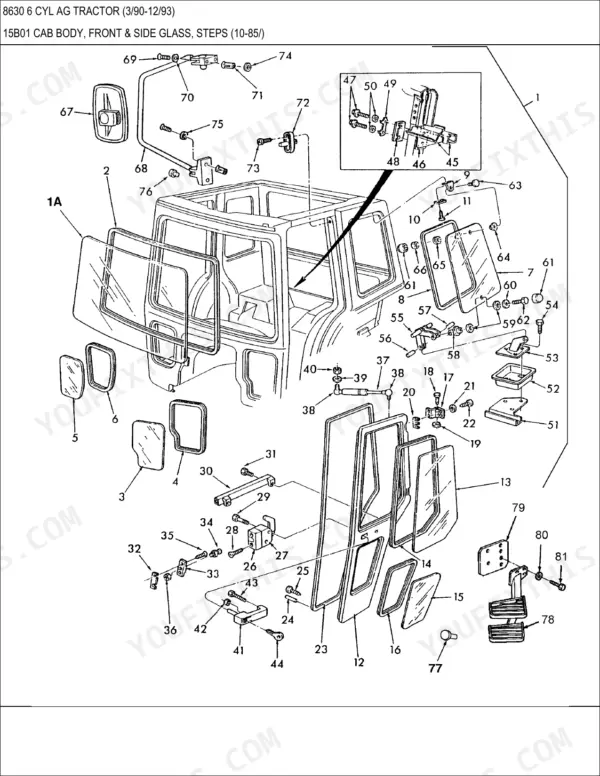

| Body & Operator Station | Throttle Controls 7810 L/Cab, Tractor Seat Assembly, Seat Assembly, Seat Assembly Suspension, Seat Suspension Assembly, Rear Flat Top Fenders, Rear Mud Fenders, Hood Panels, Front Fenders, Safety Frame, Seat Belt & Rollbar, Cab Body, Cab Underbody, Cab Mounting & Insulation, Cab Mountings, Canopy Assembly | |
| Decals & Accessories | Model Identification Decals, Instruction Decals, Shift Pattern & Control Console Decals | |
| Other Components | Pressed Steel Wheel Assembly, Front End Wafer Weights, Shield Assembly, Transfer Case, Axle Assembly, Carrier Assembly, Planetary Drive, Transfer Case Assembly, Center Housing, Oil Tubes & Fittings, Lower Lift Torsion Bar System, Handles, Kit, Tubes & Filters, Coupling Assembly, Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Housing, Check Plug Diameter | 63.5mm | p. 302 |
| Plug, Dome Center, Diameter | 63.5mm | p. 302 |
Ford 8630, 8630 6 CYL AG Common Problems This Manual Covers
Ford 8630 hydraulic lift cylinder leaking at the rod end, can't identify the correct seal kit part numbers
Check the hydraulic system exploded view and match each seal to its callout number. Verify dimensions before you order: the check plug seal measures 59.85mm and its O-ring 63.5mm, both listed on page 303. Cross-reference the callout number in the parts number list against your serial range.
Manual Section: Hydraulic Lift CylinderHydraulic pump plugs look nearly identical, can't tell the check plug from the center plugs when ordering
Measure the plug diameter before you order. The check plug housing and dome center plug both run 63.5mm, while the flat center plug measures 59.85mm, all listed on page 302. Match your measurement to the correct callout in the hydraulic exploded view, then pull the part number from the parts number list.
Manual Section: Hydraulic Lift Cylinder p. 302Hydraulic hoses weeping at the fittings, caliper reads metric but some parts listings show inch sizes
Measure the fitting and hose dimensions in millimeters, then convert with the metric to inches table on pages 538-539; 63.5mm, for example, works out to 2.5 inches. Trace the hose run in the hydraulic exploded view and confirm the part number in the parts number list.
Manual Section: General Infomation - Metric to Inches p. 538Parts list descriptions packed with abbreviations, hard to confirm which seal or plug the line describes
Check the abbreviations list starting on page 524 whenever a parts description reads unclear. Decode the line first, then confirm the dimension against the spec pages; a check plug seal, for example, measures 59.85mm per page 303. Verify the callout in the hydraulic exploded view before ordering anything.
Manual Section: General Infomation - Abbreviations p. 524Frequently Asked Questions
What are the replacement specifications for hydraulic seals in the hydraulic lift cylinder?
The hydraulic lift cylinder uses several O-rings and seals for maintenance. For example, the O-ring for the piston (Ref 26) is part number 83904858, which is a 90 Duro, 3.750" ID x .210" Thk seal. Other seals for the cylinder are listed on page 114, such as O-ring part number 272344, which is a 90 Duro, .487" ID x .103" Thk seal. p. 113
What is the part number for the alternator belt on the 8630 tractor?
The part number for the alternator belt on the 8630 tractor is 9625879, which is a 1/2" x 56.5" belt. p. 263
What is the part number for the engine oil filter on the 8630 tractor?
The engine oil filter for the 8630 tractor is part number 86546615. p. 169
What is the specification for the starting motor assembly diesel?
The starting motor assembly for the diesel engine is a 5-inch diameter unit. The part number for the motor assembly is D8NN11000CE. p. 366
How will I receive this Ford 8630, 8630 6 CYL AG Parts Catalog?
Immediate download of the complete 539-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Ford 8630, 8630 6 CYL AG manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
