A cracked disc, a worn roller bearing or a snapped shear bolt on your disc mower conditioner starts with the same job: finding the right part number. This 86-page Gehl 2412 and DC2412 parts catalog PDF (Form No. 908152) is where that number lives. Exploded views break the cutterbar, discs, roll tension system, trailer, hydraulics and electrical down callout by callout, while the universal drive and gearbox breakdowns fill much of the back half. Serial splits are marked plainly, with the roller drive changing at SN11500 and the trailer assembly at SN10500, so you match the drawing to your machine before ordering. Measure the roll tension spring against its 67.00-inch overall length, and order the driveline clutch by its 12000 in-lb rating as part 157429. Hay keeps growing while the mower sits in the shed. Bookmarked, text-searchable and indexed by name and part number, this copy is yours to keep for as long as the 2412 runs.
What's Inside This Gehl 2412, DC2412 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Fastener Abbreviations |
| Decal Locations | 4-11 | Decal Application, Paint Notice, Decal Set, Safety Decals, Reflector Strips, SMV Mounting |
| Rear Tongue Assembly | 12-13 | Bearing, Cover, Tongue, Clamp, Grease Fitting, Retainer Plate |

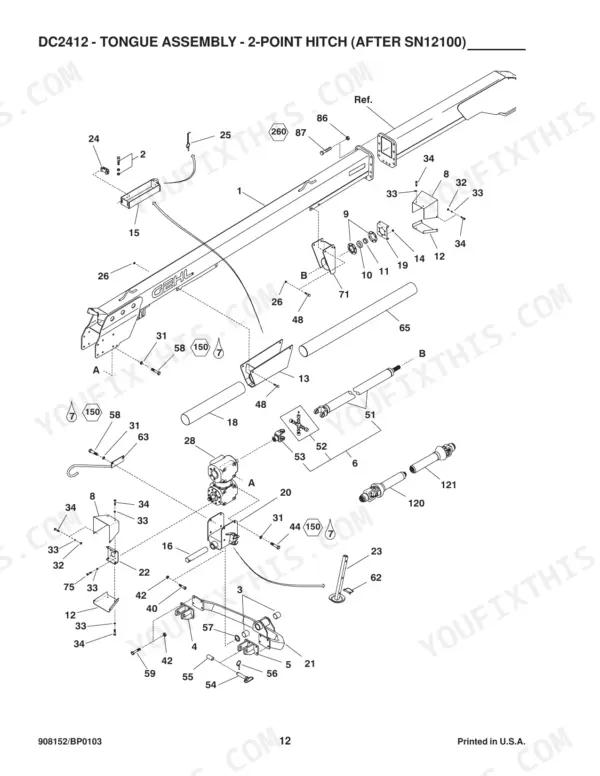

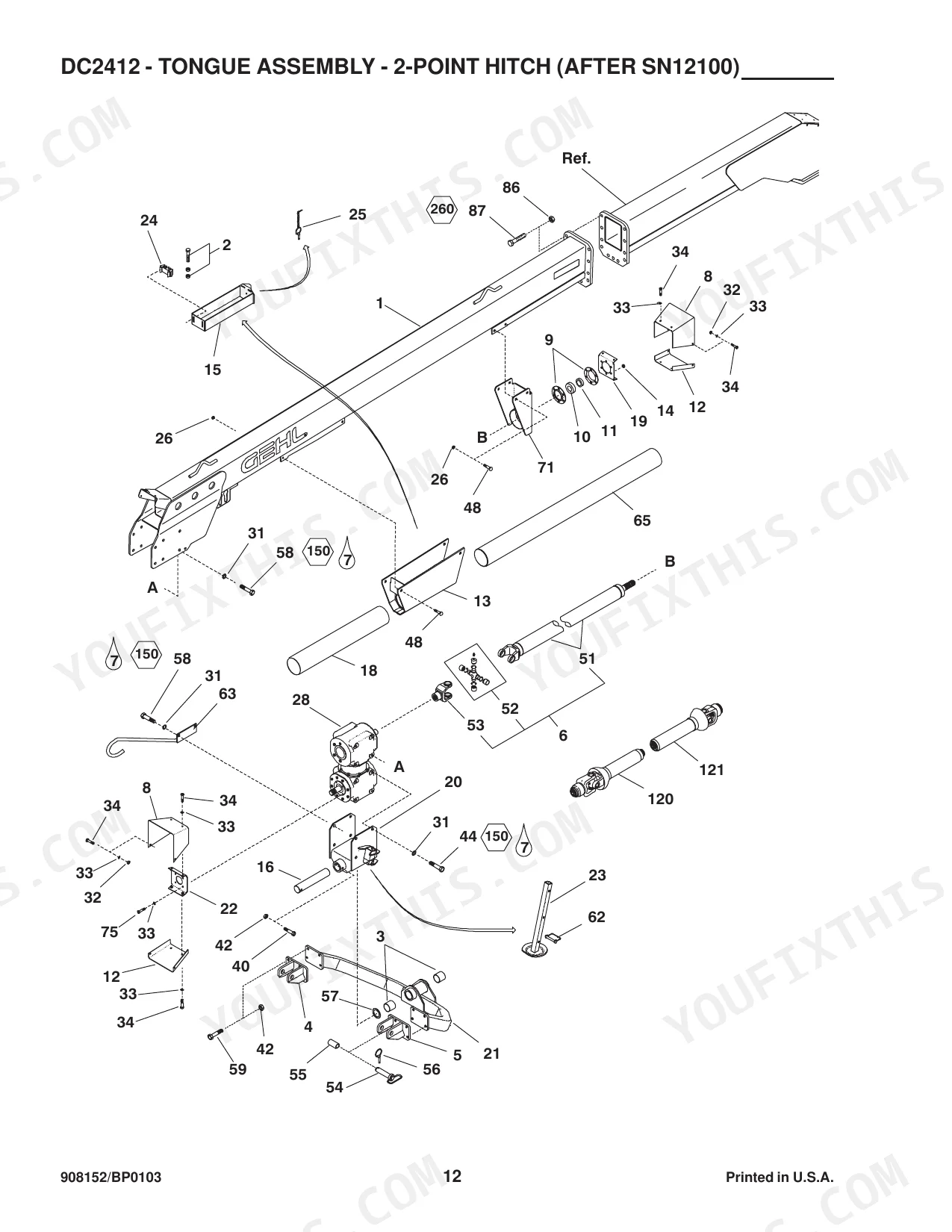

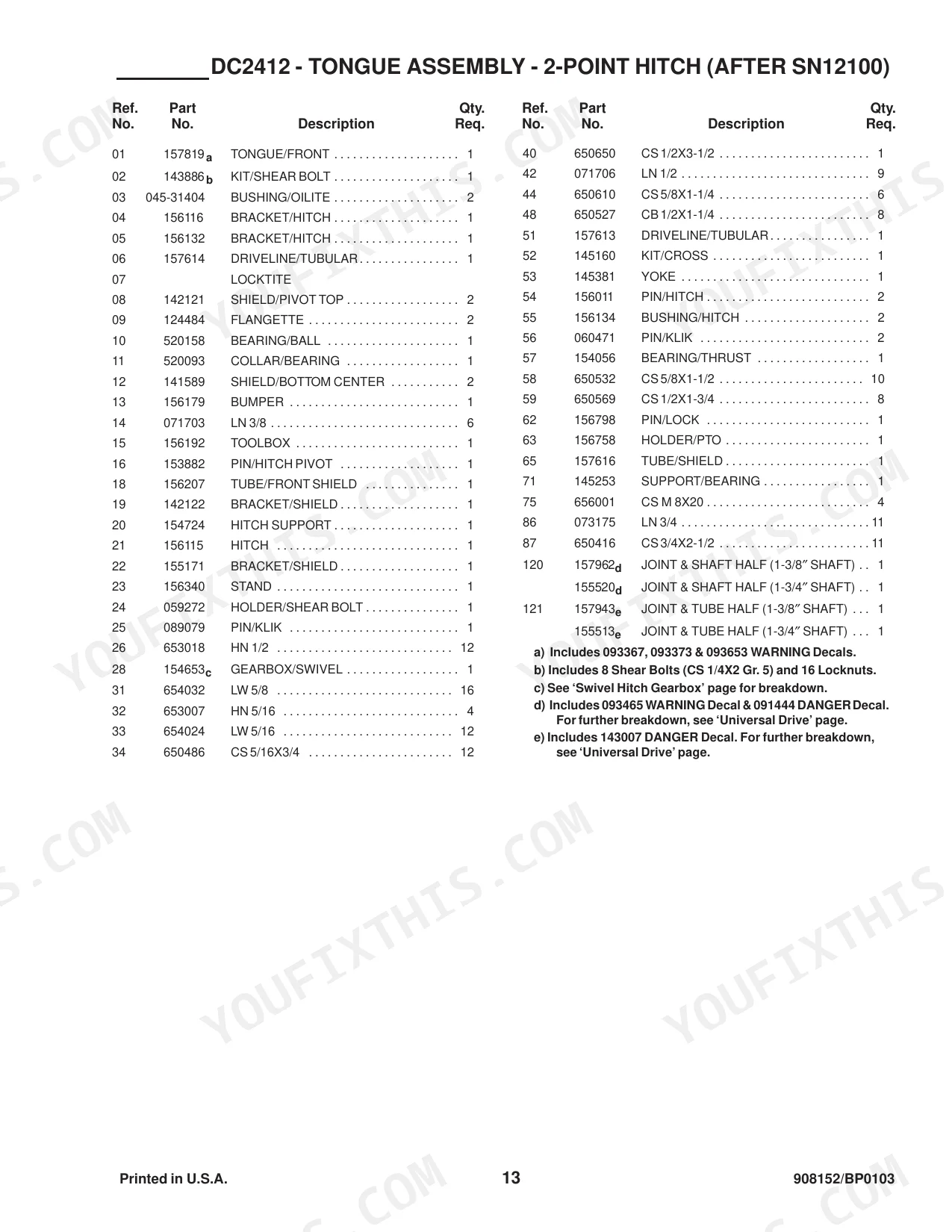

| Tongue Assembly (2-Point Hitch) | 14-15 | Front Tongue, Shear Bolt Kit, Hitch Bracket, Driveline, Gearbox, Hitch Support, Stand, Toolbox |
| Tongue Assembly (Drawbar Hitch) | 16-17 | Front Tongue, Jack, Shear Bolt Kit, Pivot Center Bearing, Hitch Plate, Driveline, Hose Holder, Hitch Tube |
| Drawbar & Tower Shields | 18-19 | Tongue, Driveline, Pivot Center Bearing, Cover, Hitch, Drive Shield, Front Tube, Support |
| Tower, Hitch & Hitchjack | 20-21 | Hitch Extension, Linchpin, Jack, Driveline, Hose Holder, Hose Clamp |
| Cutterbar | 22 | Disc Bearing Housing, Gear Case Plate, Idler Gear, Special Ball Bearing, Magnetic Drain Plug |
| Cutterbar & Discs | 23 | Disc, Blade, Screw |
| Cutterbar & Skid Shoes | 24 | Plate, Center Cross, Spacer |
| Gearbox Mounting | 25 | Gearbox, Plate |
| Roll Tension System | 26-27 | Coupler, Connector, Spring, Plug, Turnbuckle, Pin, Chain |
| Roller Drive (After SN11500) | 28 | Sprocket, Chain |
| Roller Drive (Before SN11501) | 29 | Plate |
| Rollers & Roller Bearings (Left) | 30-31 | Arm, Flangette, Bearing, Retainer, Shield, Link, Block, Chain |
| Rollers & Roller Bearings (Right) | 32-33 | Arm, Flangette, Bearing, Retainer, Shield, Roll Cover, Link, Block |
| Trailer Assembly (After SN10500) | 34-35 | Frame, Axle, Chain, Push Arm, Link, Pivot Shaft, Transport Link, Bearing |
| Trailer Assembly (Before SN10501) | 36-37 | Frame, Axle, Chain, Push Arm, Link, Pivot Shaft, Transport Link, Handle |
| Header to Trailer Assembly | 38 | Bushing, Push Arm Assembly, Pin |
| Forming Chamber | 39 | Grommet |
| Shields & Covers | 40-41 | Pivot Cover, Spring Cover, Toolbox, Chain Case Cover, Oil Case Top |
| Deflector | 42 | Tapped Pin, Adjusting Rod, Handle |
| Curtains | 43 | |
| Hydraulics | 44-49 | Hydraulic Cylinder, Lock Valve, Hydraulic Fitting, Elbow Fitting, Hydraulic Tube, Hose Assembly, Quick-Disconnect, Tee Fitting |

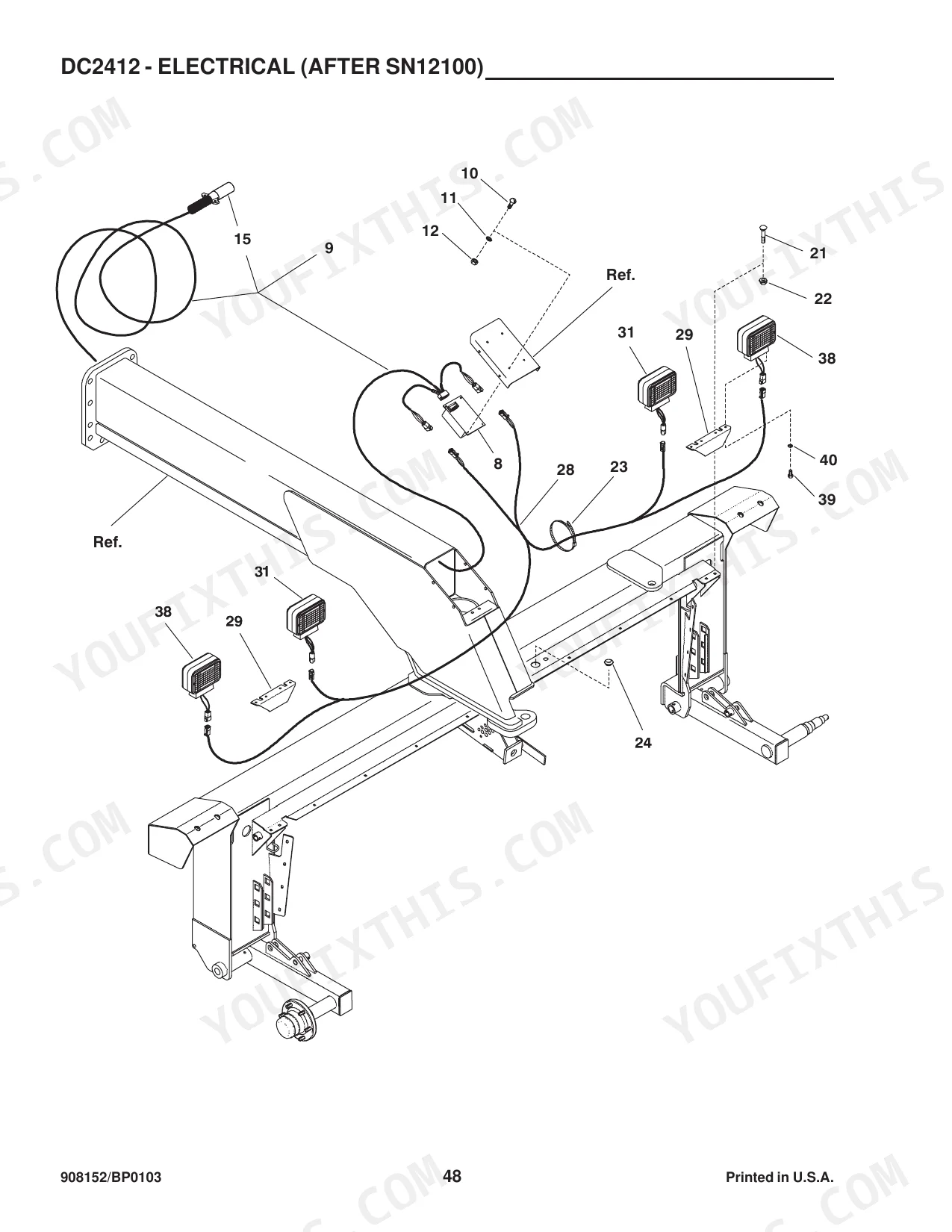

| Electrical | 50-53 | Module, Harness, Light, Plug, Grommet, Bracket |
| Axles & Wheels | 54 | Arm, Cone, Hub, Spindle, Rim |
| Component Breakdowns | 55-71 | Universal Drives, Gearboxes, Hydraulic Components, Hitchjack |
| Hitch Extension | 72 | Spacer, Hitch, Pin, Linchpin, Box, Shim, Card |
| Options & Accessories | 73-76 | Safety Chain, Tall Skid Shoes, Wide Tire Bumper Kit, Crop Lifter Kit, V-Type Blades, Sway Chain Kit, Truck Hitch Kit |
| Service Kits - Electrical Connectors | 77 | Connector, Crimping Pliers |
| Standard Hardware Torque Specifications | 85-86 | Unified National Thread, Grade, Dry, Lubed, Metric Course Thread |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch Assembly | 12000 IN-LB | p. 55 |
| Hitch Extension Nut Torque | 550-650 ft-lbs | p. 72 |
| Roll Tension Spring Overall Length | 67.00 inches | p. 26 |
Gehl 2412, DC2412 Common Problems This Manual Covers
Gehl 2412 cutterbar idler gear, special ball bearing or disc bearing housing part number not found
Check the Cutterbar exploded view on page 22 and match each callout to the parts list for the idler gear, special ball bearing and disc bearing housing. Get the magnetic drain plug number from the same page while you're there. Pull disc, blade, hub and nut numbers from the Cutterbar & Discs breakdown on page 23.
Manual Section: Cutterbar p. 22Roller drive sprocket and chain parts from the book do not match the machine
Check the machine serial number before ordering anything. Machines after SN11500 use the Roller Drive breakdown on page 28; machines before SN11501 use the earlier layout on page 29. Match the sprocket, chain, key and element callouts to the correct page, then confirm each part number against that page's list.
Manual Section: Roller Drive (After SN11500) p. 28Conditioner roll tension spring and turnbuckle replacement parts hard to identify on the parts list
Inspect the Roll Tension System exploded view on page 26 and match the spring, turnbuckle, coupler, connector, pin and chain callouts to the parts list. Compare the spring assembly against the 67.00 inch overall length called out on the diagram before ordering, so the replacement matches the factory setup.
Manual Section: Roll Tension System p. 26Hydraulic cylinder seal kit, lock valve and hose assembly part numbers hard to track down

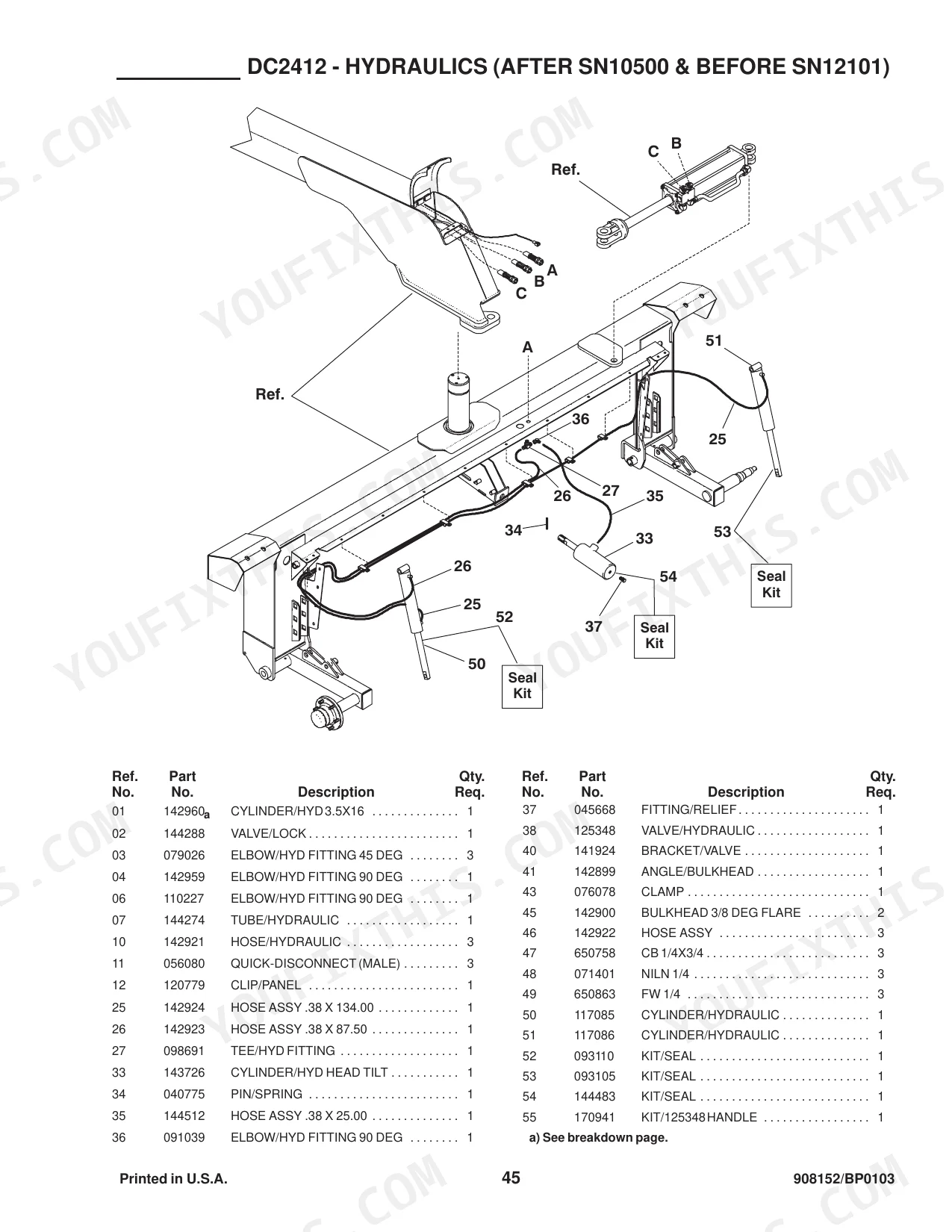

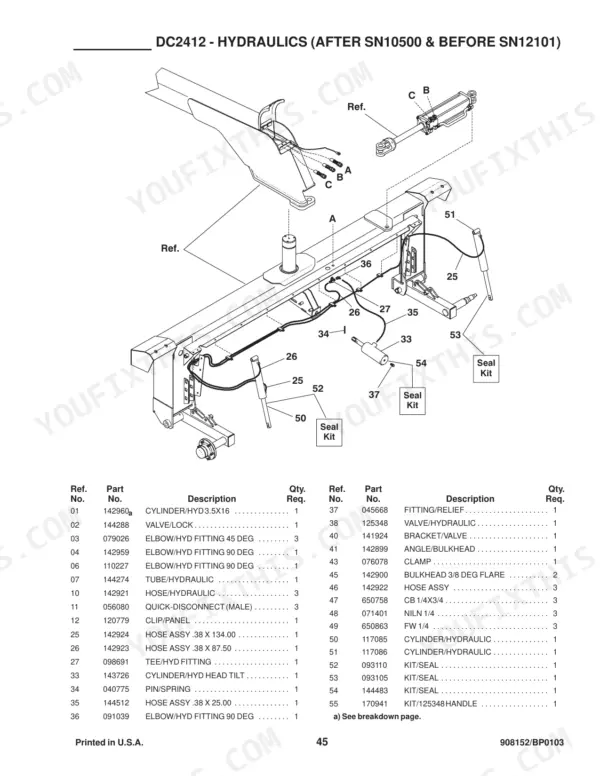

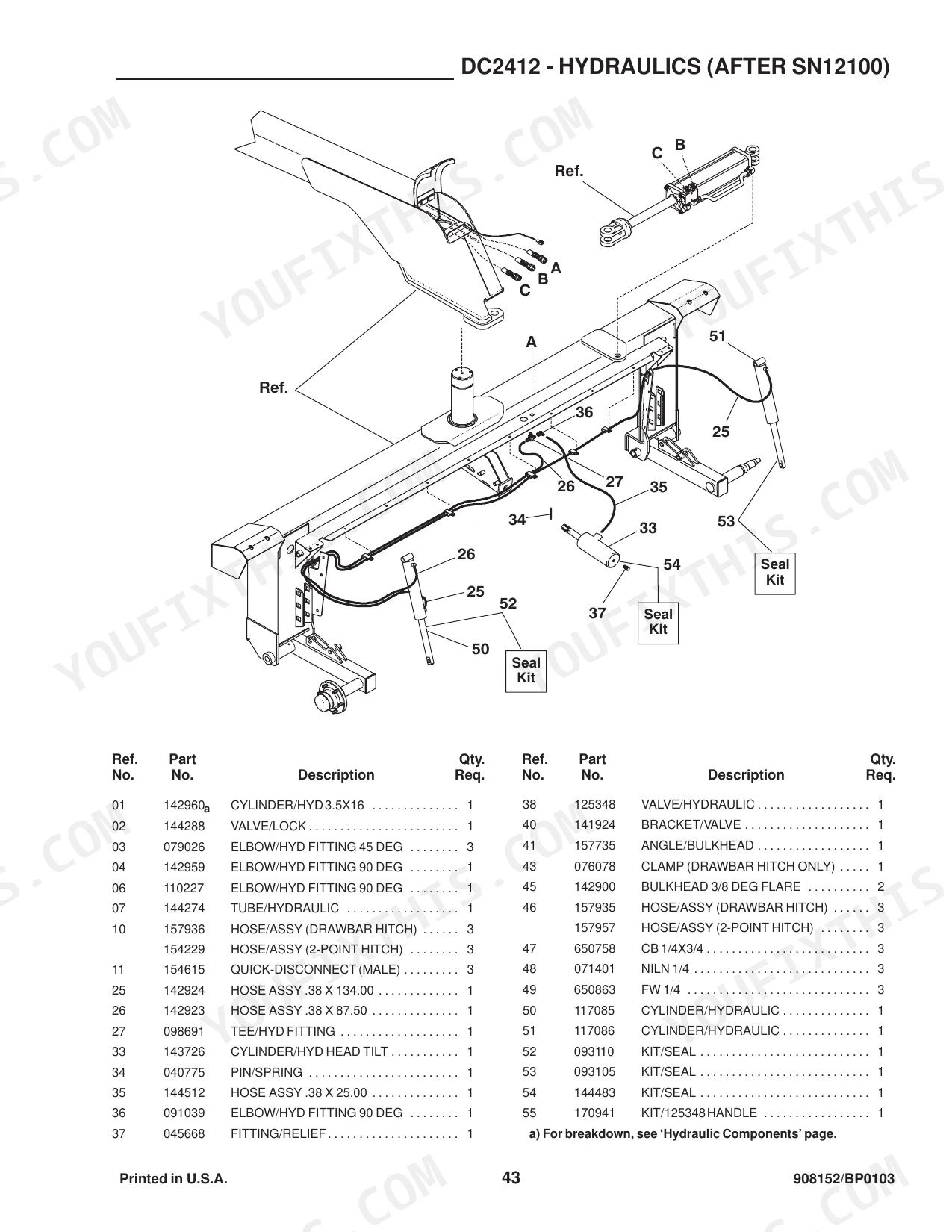

Check the Hydraulics section starting on page 44 for the cylinder and valve assembly breakdowns and the seal kit listings. Trace hose routing on the hydraulic parts diagrams on pages 45 and 47 to identify each hose assembly, elbow fitting, tee fitting and quick-disconnect by callout before ordering replacements.

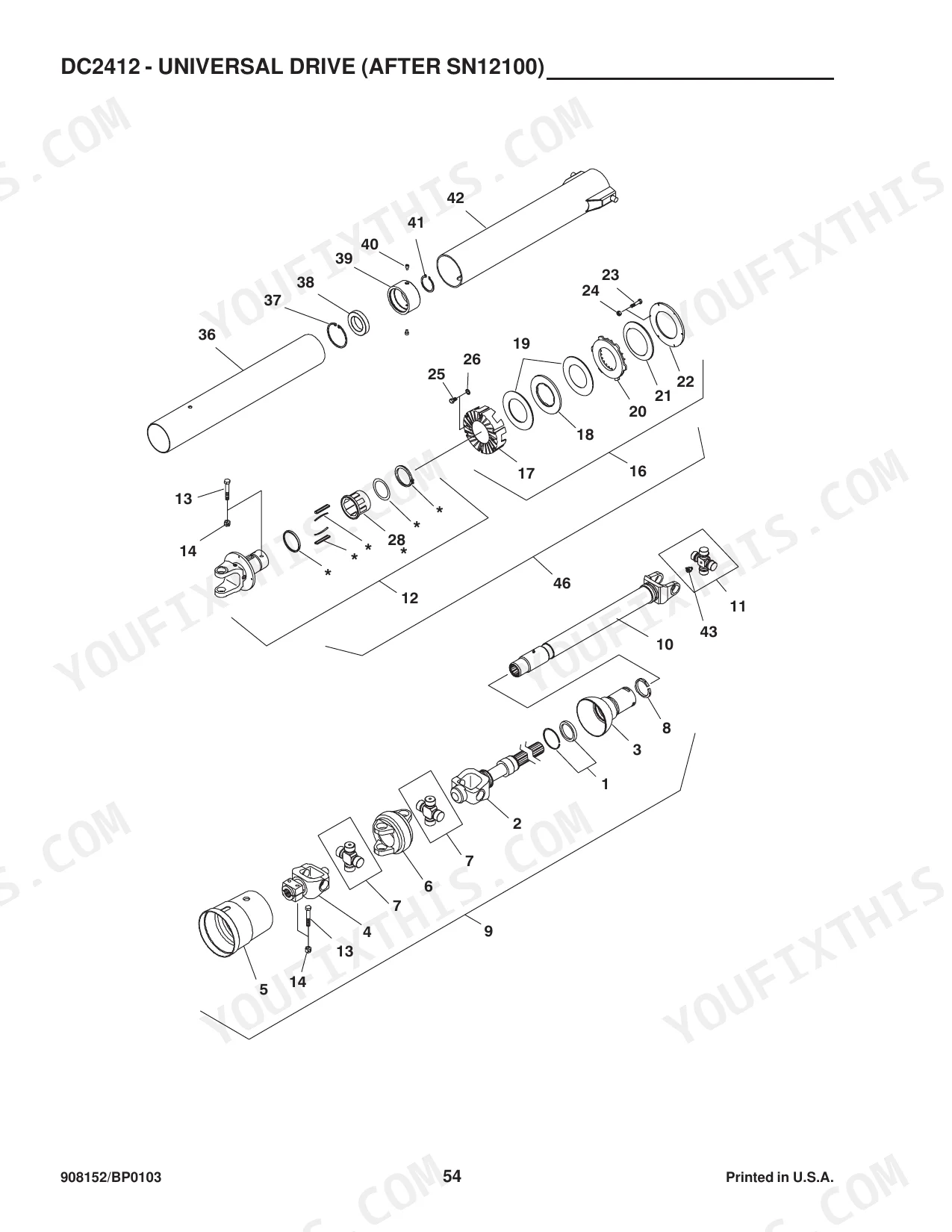

Manual Section: Hydraulics p. 44Universal drive clutch assembly, shear bolt kit or cross and bearing kit part number not found

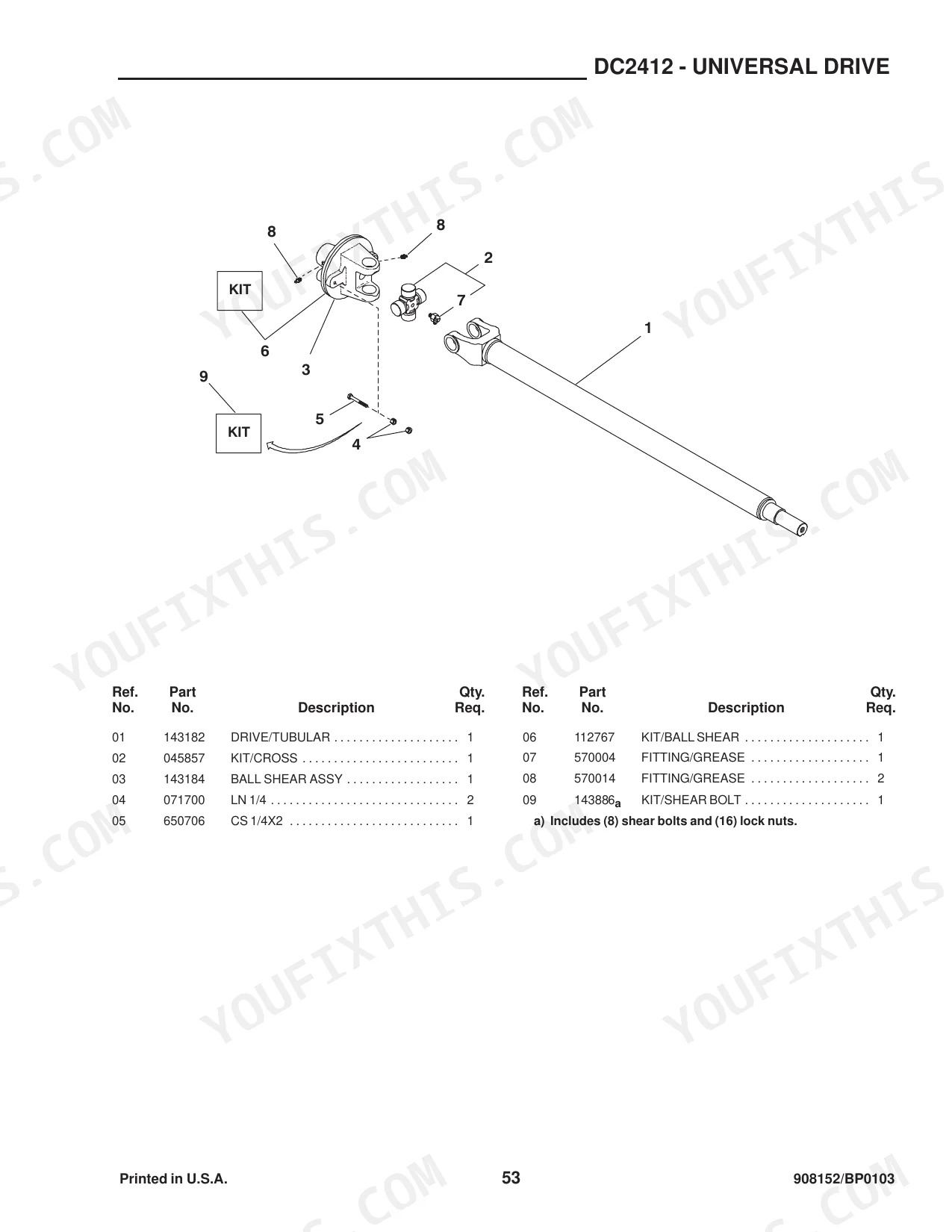

Check the Universal Drive breakdown on page 55 for the clutch assembly, listed as part 157429 and rated 12000 in-lb. Verify that rating before ordering a replacement clutch. Pull the shear bolt kit and cross and bearing kit numbers from the Universal Drive diagrams that follow, matching each callout to your driveline.
Manual Section: Universal Drive p. 55Hitch extension spacers, shims and linchpin part numbers hard to identify on the parts list
Check the Hitch Extension breakdown on page 72 and match the spacer, shim, pin and linchpin callouts to the parts list. Torque nut item 13 to 550-650 ft-lbs when you reinstall it. Use the Standard Hardware Torque Specifications on page 85 for the remaining hitch fasteners.
Manual Section: Hitch Extension p. 72Frequently Asked Questions
What are the torque specifications for standard hardware on the Gehl 2412, DC2412 disc mower conditioner?
The manual provides comprehensive torque specifications for Unified National Thread and Metric Course Thread hardware on page 85. For example, a 1/2-13 Grade 5 bolt (dry) requires 75 Lb-Ft of torque, while an M12-1.75 Grade 8.8 bolt (dry) requires 65 Lb-Ft. p. 85
What is the torque requirement for the hitch extension nut on the Gehl 2412, DC2412 disc mower conditioner?
The hitch extension nut (Item 13) must be tightened to a torque of 550-650 Foot-Pounds. p. 72
What is the recommended spring length for the roll tension system?
The spring in the roll tension system should be adjusted to an overall length of 67.00 inches, including the hook. p. 26
What is the recommended spring length for the roller drive?
The spring length for the roller drive should be adjusted to 1-7/8 to 2 inches (48 to 51 mm). p. 28
What is the Decal Set Number for the DC2412?
The Decal Set Number for the DC2412 is 142892. p. 4
Do I get instant access to this Gehl 2412 Parts Catalog?
This is a 86-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print pages of this Gehl 2412 manual for my own shop?
Yes. Printing works from any reader and any printer, for your own shop use.
