Correct part numbers for the Gehl 1075 and CB1075 forage harvester are what this 102-page catalog (OEM ID 908044) puts on record, from drawbar to deflector cap. Exploded views break each assembly into numbered components, so the Gehl CB1075 parts catalog PDF lets you match a shearbar, knife set or blower paddle to its part number, while alphabetical and numerical indexes cross-reference a number back to its assembly. Coverage reaches the shifter and bevel transmissions, universal drives, hitch jack, optional single and tandem axles, and the transport lighting package. Connector repairs come as kits: 2-way, 6-way and 8-way. When your task is tracing the control box circuit, the wiring diagrams show how the amplifier box, gearmotor, solenoid, overload switch and harness connect. Bookmarked and text-searchable, the file goes on a phone or laptop wherever the harvester is, ready for your next feed roll order.
What's Inside This Gehl 1075, CB1075 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Service Parts, Fastener Abbreviations |
| Decal Locations | 4-9 | Decal Application, Safety Precautions, Paint Ordering, Decal Kit Contents |
| Frame & Attachment Lift | 10-11 | Conveyor Lock, Lift Cylinder Link, Lift Tube Bearing, Lift Spring, Lift Roller, Hitch Plate |
| Drawbar & Extension | 12-13 | Throwout Link, Stop Dog, Tongue Latch, Drawbar Assembly, Hitch Jack, Control Cord |
| Driveline | 14-15 | Shield Weldment, PTO Drive Cover, Reverse Shaft, Transmission Gear, Ball Bearing, Shear Bolt Kit |
| Cylinder & Cutting Mechanism | 16-19 | Cylinder Assembly, Bevel Transmission, Shearbar, Cutterbar Baffle, Knife Set, Cylinder Shaft |
| Knife Sharpener | 20-22 | Sharpener Handle, Compression Spring, Ratchet Assembly, Sharpener Stone, Carrier Housing, Ball Bearing |
| Stalk Guides | 23 | Stalk Guide, Cylinder Tie |
| Attachment Drive | 24-27 | Sprocket, Magnet Assembly, Armature, Transmission, Chain, Bearing |
| Feed Roll Drive Frame | 28-29 | Spring, Roller Guard, Plate, Bearing, Idler Arm, Torque Sensor |
| Feed Roll Drives | 30-31 | Sprocket, Pin, Yoke, Joint, Chain, Link Connector |
| Roll Arm Assemblies | 32-33 | Retainer, Bearing, Shim, Flangette, Guide, Grease Tubing |
| Feed Rolls - Left Side | 34-37 | Adapter, Clamp, Wear Sheet, Bearing, Stabilizer, Chain |
| Feed Rolls - Right Side | 38-39 | Bearing, Strap, Shim, Retainer, Side Feed Roll, Hinge |
| Lower Front Detector Roll | 40 | Connector, Detector Assembly, Shaft |
| Chains | 41 | Chain, Link Connector, Link O-Ring Connector |
| Blower & Drive | 42-45 | Blower Housing, Blower Shaft, Blower Paddle, Idler Arm, Drive Belt, Blower Brace |
| Auger & Drive | 46-49 | Auger Assembly, Auger Trough, Monitor Gear, Idler Block, Shear Hub, Drive Sprocket |
| Deflector & Cap | 50-53 | Deflector Cap, Deflector Extension, Cap Control Cable, Pulley, Deflector Gear, Worm Shaft |
| Hydraulics | 54-55 | Hydraulic Cylinder, Hydraulic Hose, Male Coupler, Cylinder Pin, Twin Cover Plate, Hose Clamp |
| Control Box | 56-65 | Amplifier Box, Gearmotor, Solenoid, Overload Switch, Wiring Harness |
| Shields & Covers | 66-70 | Rear Shield, Side Shield, Top Cover, Toolbox, Hinge, Shield Latch |
| Transition | 71 | Extension Pan, Side Panel, Top Cover, Shield Mount, Shield Handle |
| Shifter Transmission | 72-73 | Input Shaft, Middle Shaft, Output Shaft, Shifter Fork, Shifter Shaft, Clutch Sprocket |
| Bevel Transmission | 74-75 | Shim, Nut, Bearing Lock, Washer, Cup, Cone, Seal, Gasket |
| Universal Drives | 76-78 | Yoke, Kit, Center Cross, Tube, Shaft, Guard, Centralizer |
| Hitchjack | 79 | Jack Handle, Pin, Chain |
| Optional Single Axles & Wheels | 80-81 | Hub, Wheel Assembly, Cup, Bearing, Cone, Seal, Grease, Nut |
| Optional Tandem Axles & Wheels | 82 | Hub, Wheel Assembly |
| Accessories | 83-87 | Safety Chain, Transport Lighting Package, Horizontal Deflector Extensions, Deflector Tripod Kit, Vertical Extensions, Torque Sensor Harness Extension Wiring Kit |
| Service Kits - Electrical Connectors | 88 | 2-Way Repair, 6-Way Male Repair, 6-Way Female Repair, 8-Way Female Repair, 8-Way Male Repair |
| Standard Hardware Torque Specifications | 101-102 | Unified National Thread, Grade 2, Grade 5, Grade 8, Metric Course Thread, Grade 8.8, Grade 10.9, Grade 12.9 |
Gehl 1075, CB1075 Common Problems This Manual Covers
Gehl CB1075 hydraulic cylinder seal kit part number unclear between lock wire and threaded gland styles
Check the Hydraulics exploded view on page 54 and confirm which cylinder is on your machine. The 095145 2X8 cylinder takes seal kit 089693. The 060626 cylinder takes 060627 for the lock wire style or 089157 for the threaded gland style. Order hose assembly 154160 or 154161 and male coupler 122862 or 154615 from the same cylinder listing.

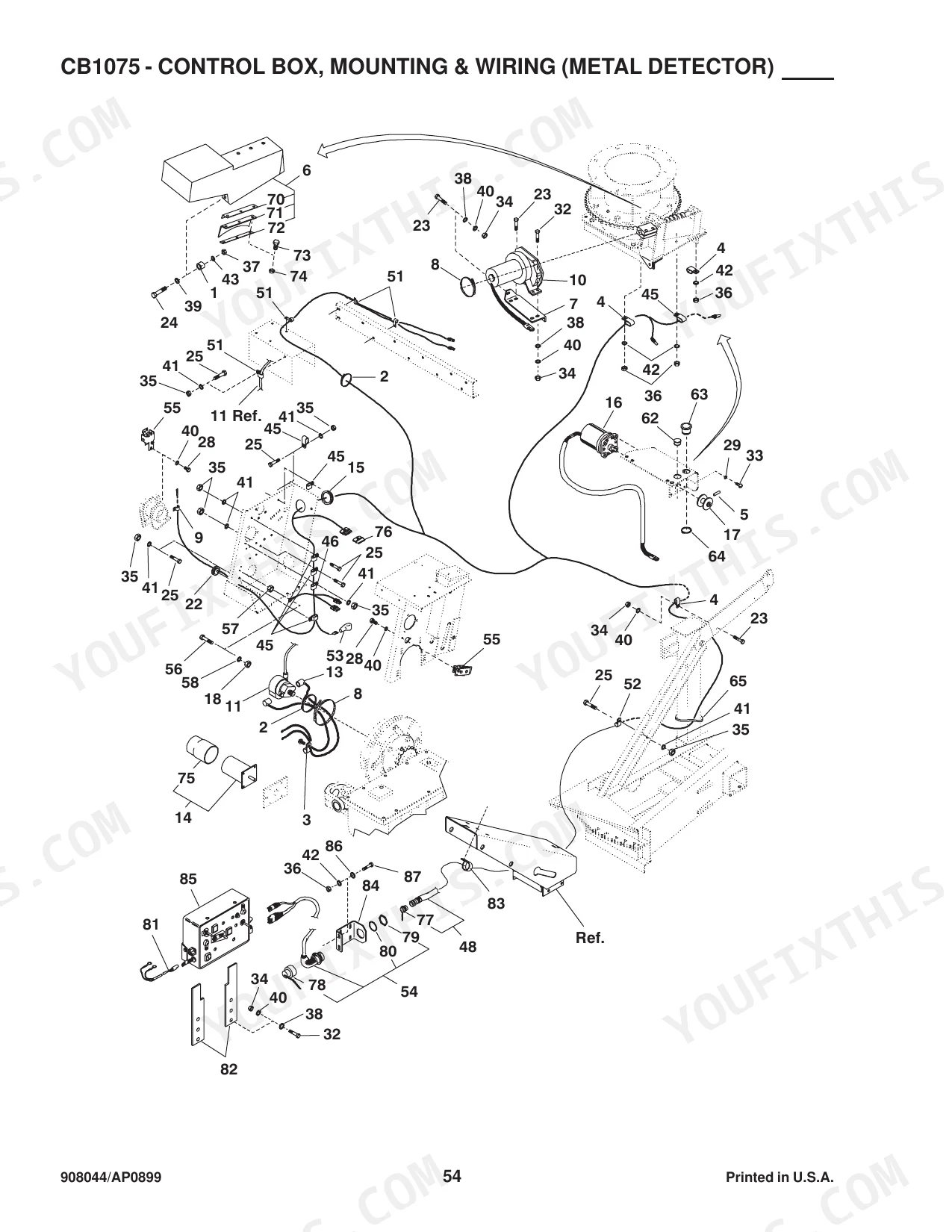

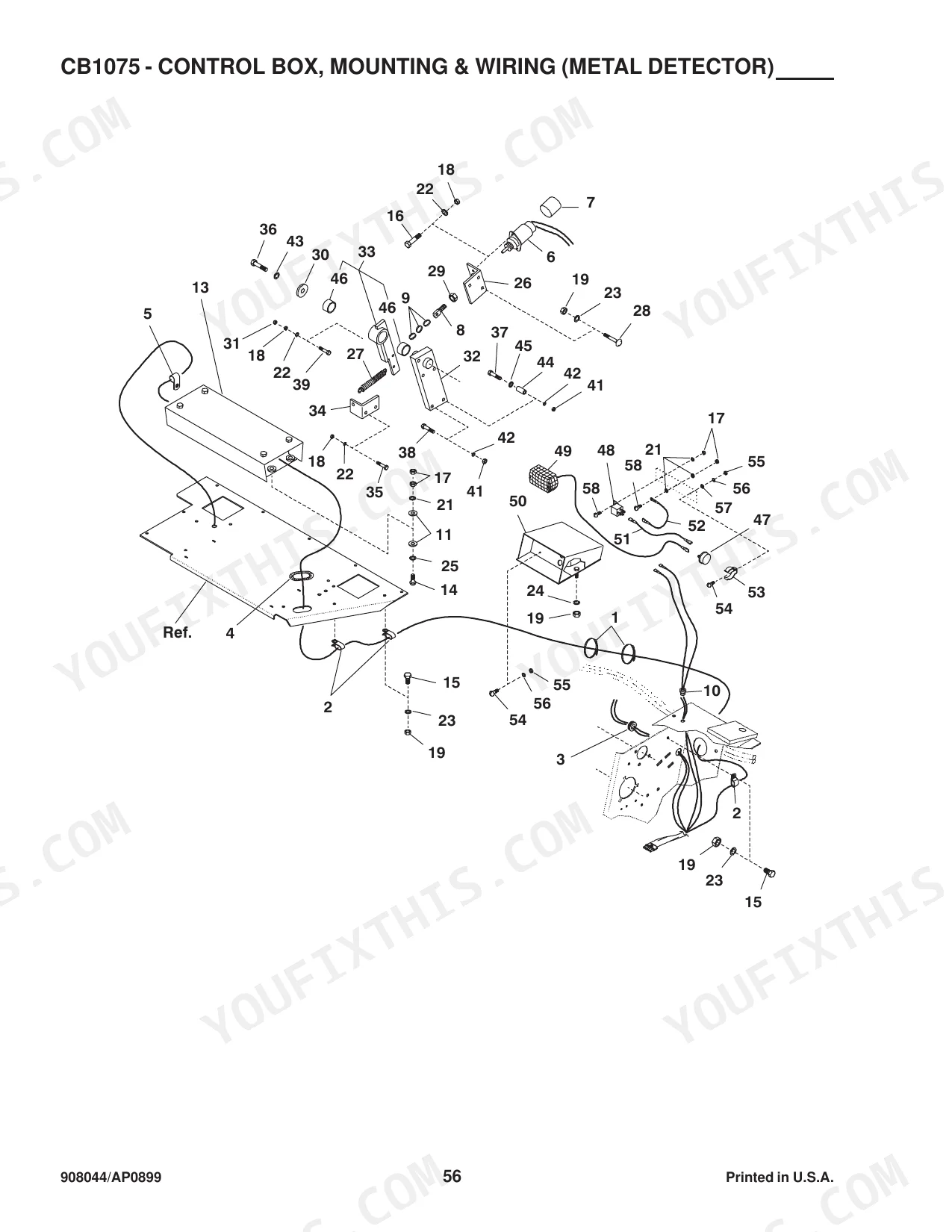

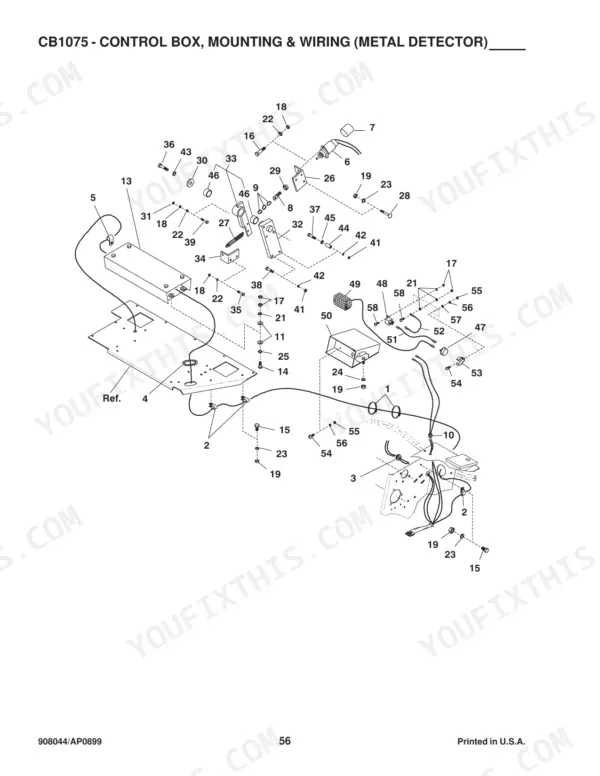

Manual Section: Hydraulics p. 54Metal detector control box overload switch spring or pivot pin part number missing from the assembly listing
Check the CB1075 metal detector Control Box wiring view on page 56 and its parts list. Overload switch 077292 (two required) breaks down into switch assembly 077294, switch spring 077293, switch base assembly 077300 and pivot pin 077302. Order only the worn piece instead of the full assembly, and confirm control harness 112155 against the routing shown.

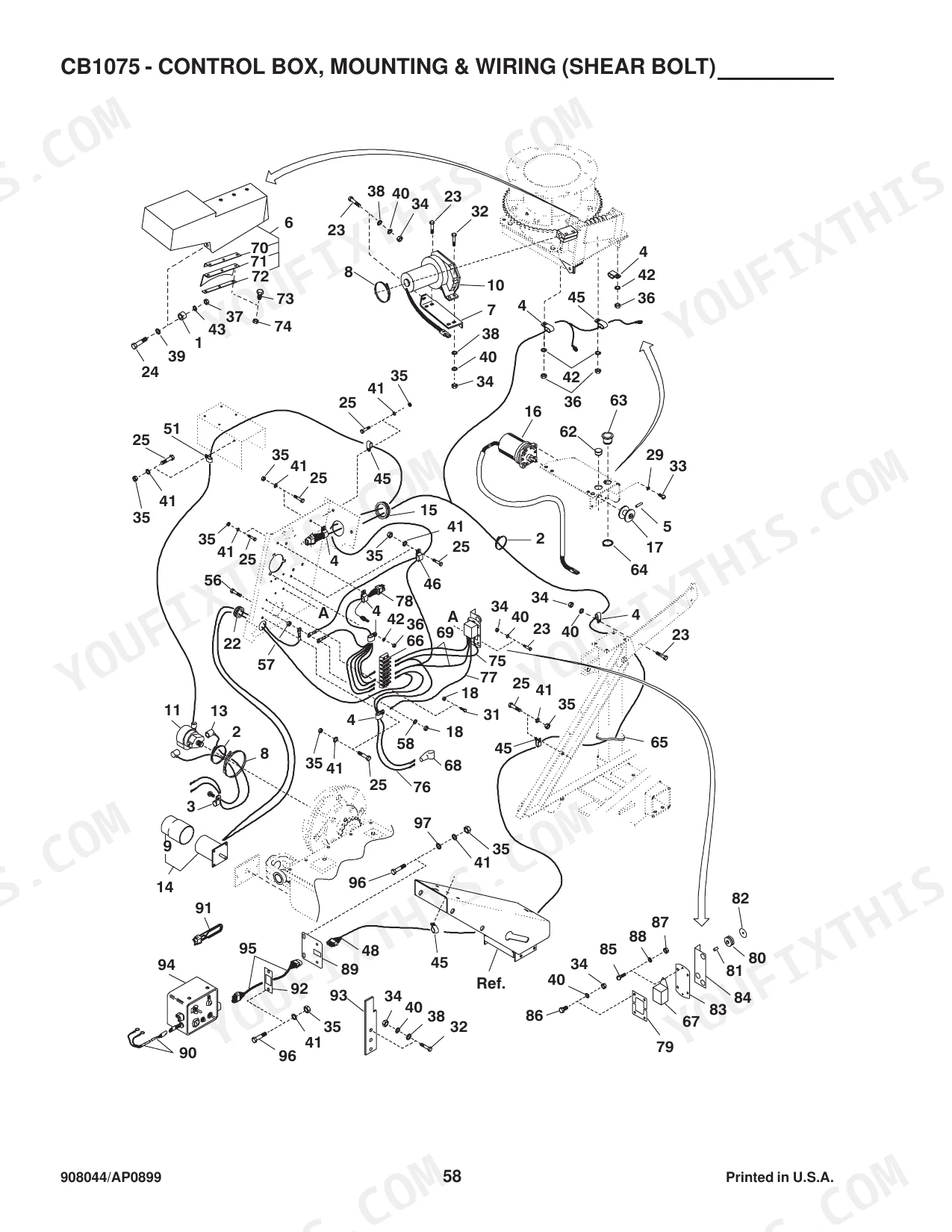

Manual Section: Control Box (Metal Detector) p. 56Metal detector amplifier box, solenoid and stop pawl part numbers hard to locate in the control box pages
Check the second Control Box wiring view on page 58 and the parts list beside it. Look for amplifier box 154035, solenoid 078234 with solenoid mount 078236, stop pawl assembly 078232, pivot pawl assembly 078230, relay 076058 and heavy duty flasher 055925. Match the reference number on the drawing first; page 2 notes items without reference numbers are not sold.
Manual Section: Control Box (Metal Detector) p. 58Control box harness plug needs repair and the matching 2-way, 6-way or 8-way connector kit is unclear
Check the Service Kits, Electrical Connectors listing on page 88, which the control box footnote on page 56 points to for plug repair. Identify the plug by pin count and gender: 2-way, 6-way male, 6-way female, 8-way male or 8-way female. Confirm the harness first, such as power supply harness 074391 or implement harness 112150.
Manual Section: Service Kits - Electrical Connectors p. 88Safety decals damaged or missing after repainting the harvester, with no decal or paint order numbers on hand
Replace damaged decals and, after repainting, make sure every applicable decal is affixed, as the caution on page 4 requires. Order paint 906315 (one gal. AG Red), 906316 (six 12 oz. spray cans AG Red) or 902872 (one qt. Light Grey). Check the Decal Locations pages starting at page 4 for placement and decal kit contents.
Manual Section: Decal Locations p. 4Frequently Asked Questions

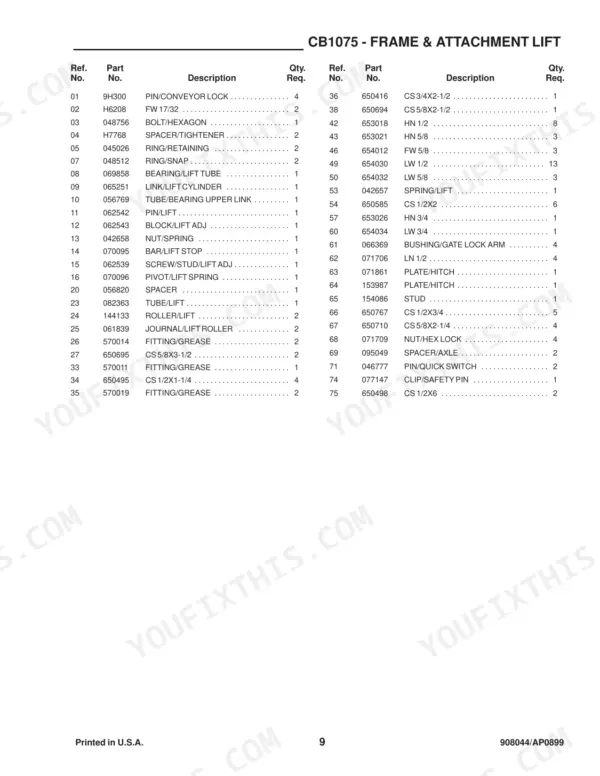

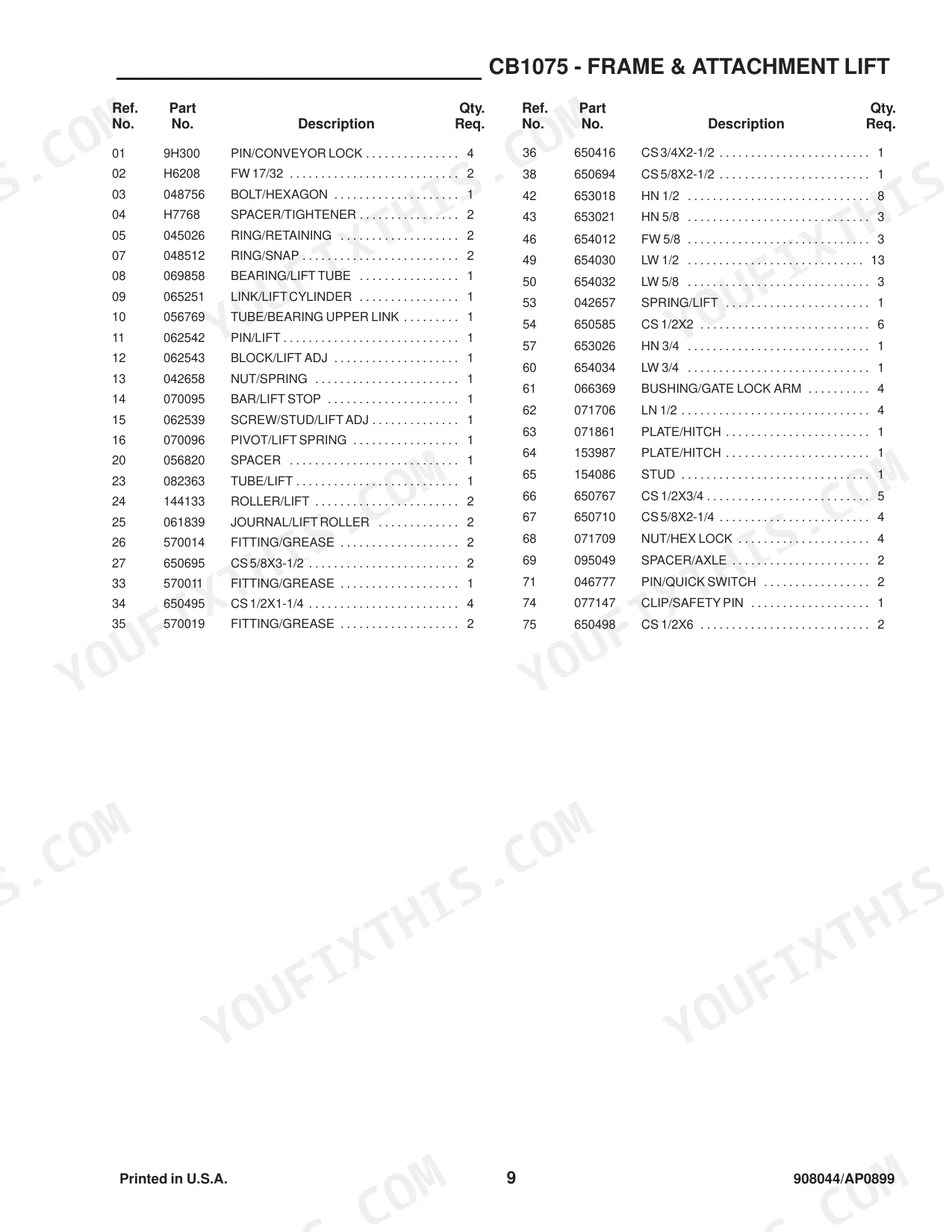

What is the part number for the PIN/CONVEYOR LOCK in this manual?
Page 11 lists part number 9H300 for the PIN/CONVEYOR LOCK. p. 11
What is the part number for the SPACER/THROWOUT LINK in this manual?
Page 12 lists part number M12151 for the SPACER/THROWOUT LINK. p. 12
What is the part number for the PIN ASSY in this manual?
Page 13 lists part number 119269 for the PIN ASSY. p. 13

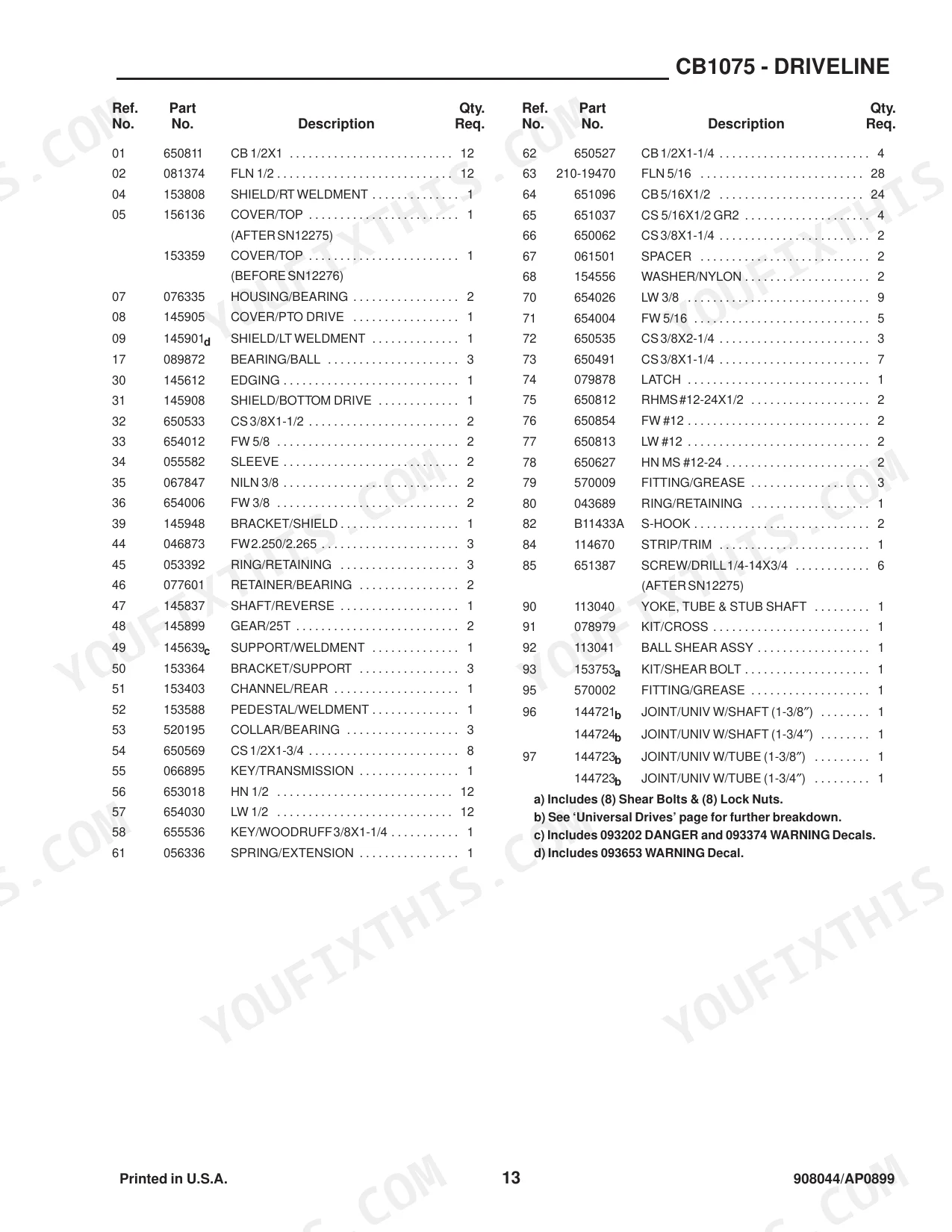

What is the part number for the SHIELD/RT WELDMENT in this manual?
Page 15 lists part number 153808 for the SHIELD/RT WELDMENT. p. 15

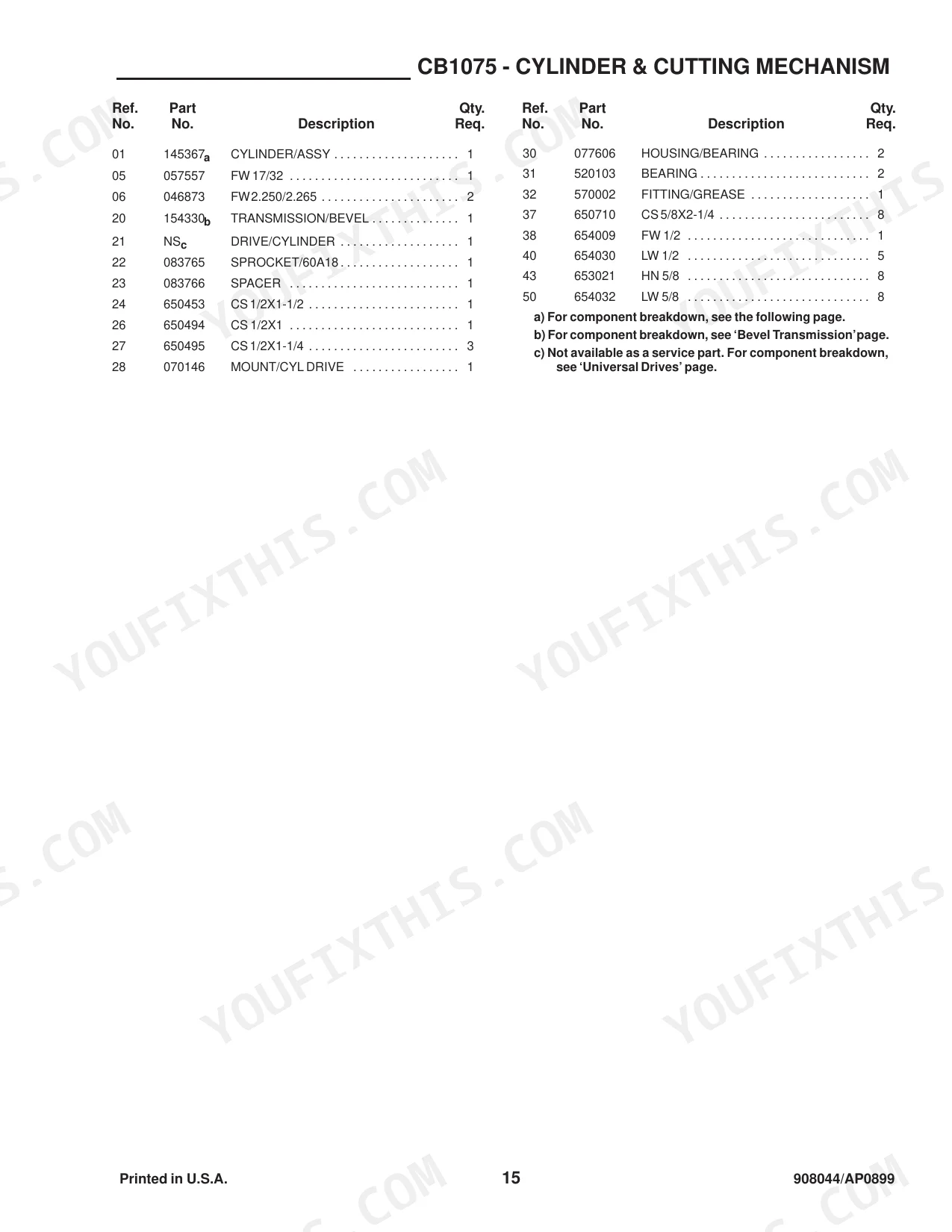

What is the part number for the SPROCKET/60A18 in this manual?
Page 17 lists part number 083765 for the SPROCKET/60A18. p. 17
What do I get after purchasing this Gehl 1075 manual?
All 102 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print this Gehl 1075 manual?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
