Need factory-level service data for your Gehl CTL70 Compact Track Loader? This 498-page manual (OEM #917100) runs through all six major systems: General, Specifications, Machine Configuration, Hydraulic Units, Troubleshooting, and a full Engine chapter. The hydraulic schematics map complete circuit routing, the wiring diagrams trace electrical faults back to the source, and 57 pages of troubleshooting procedures are organized by system. Nearly 300 pages of procedures and exploded views cover the HST pump, control valve, lift arm, bucket cylinder, and travel motor. Set crawler tension to 15~25 mm deflection before returning to service, and torque 1/8-inch hydraulic union nuts to 9.8 N·m. Every hour the machine sits idle costs you. Bookmarked and keyword-searchable, it opens on any device, so you can jump straight to the spec and fix the machine.
What's Inside This Gehl CTL70 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 7-20 | Safety Precautions, Cautions During Disassembly and Assembly, Handling of Seals |

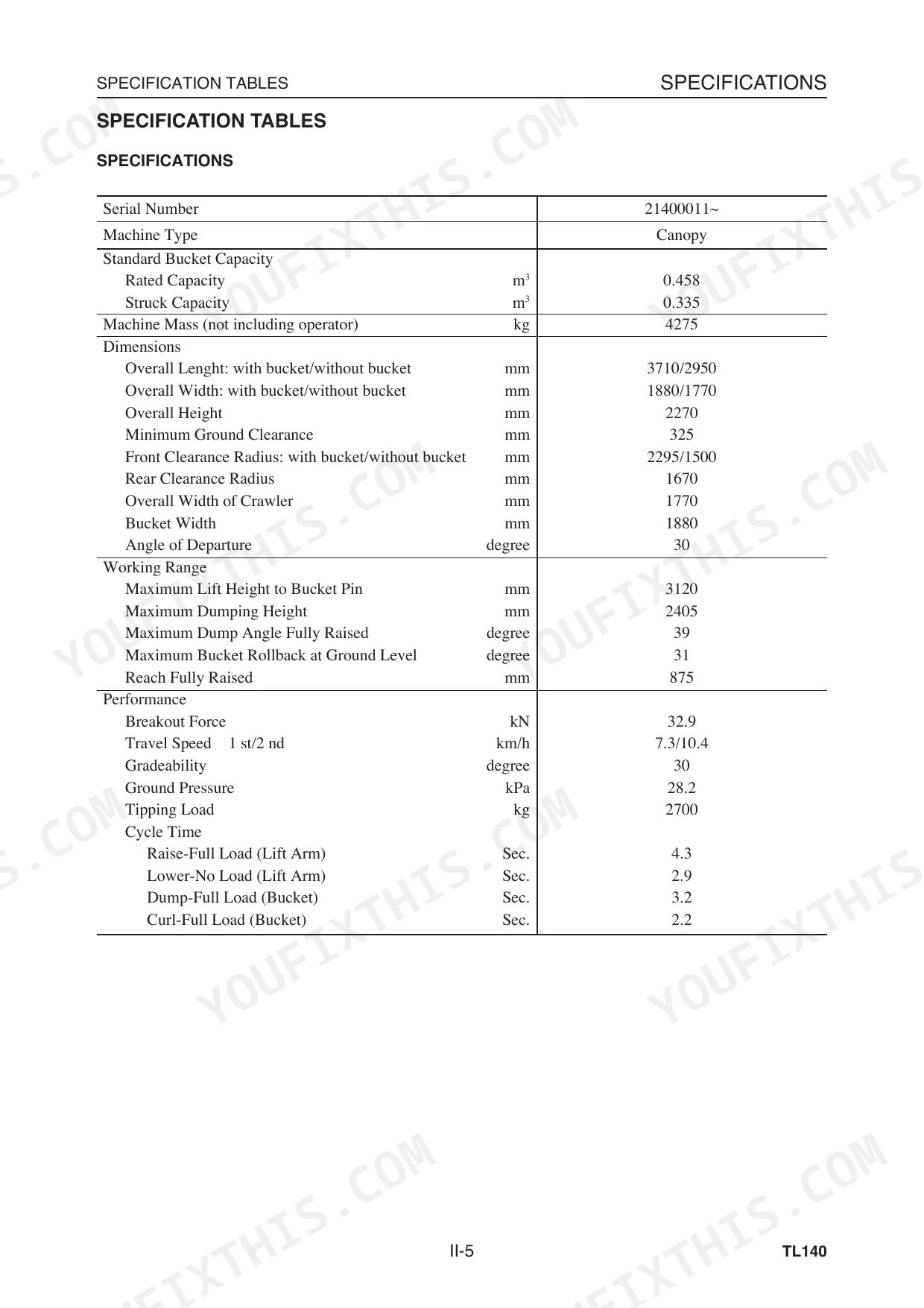

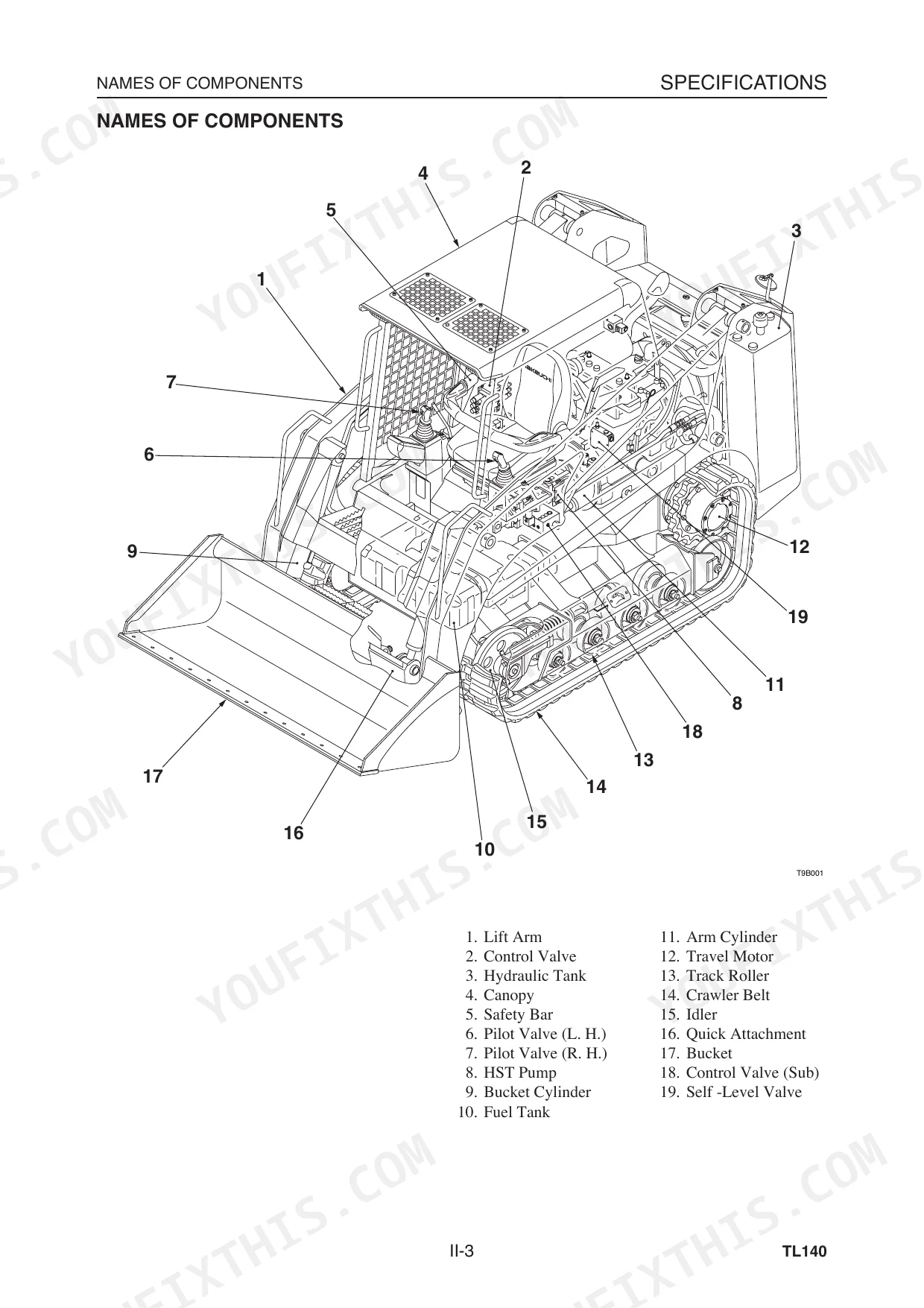

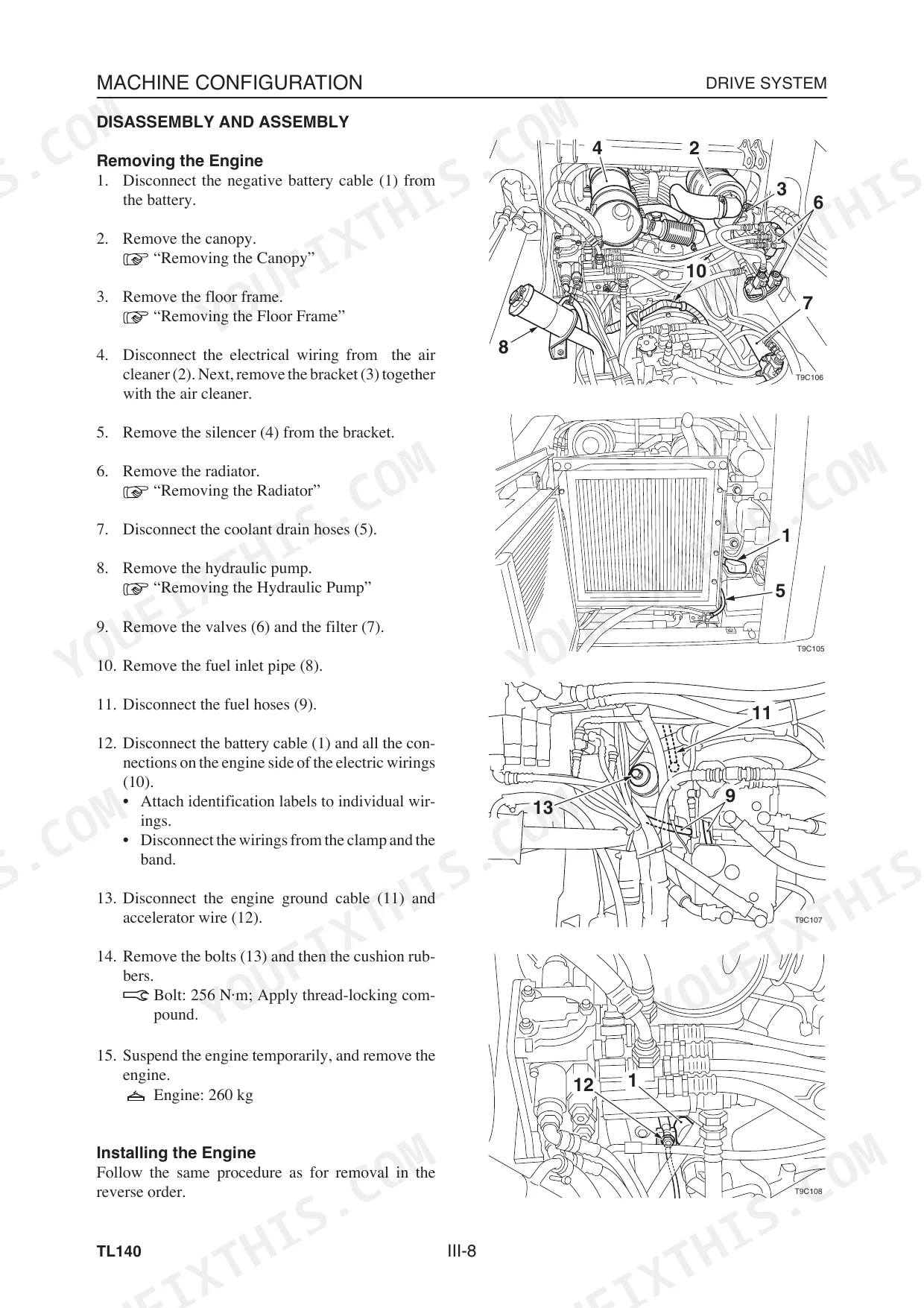

| Specifications | 21-38 | Machine Dimensions, Machine Specifications, Engine Specifications, Hydraulic Unit Specifications, Electrical Component Specifications, Service Standards |
| Machine Configuration | 39-90 | Upper Frame, Lower Frame, Canopy, Fuel Tank, Hydraulic Tank, Control Lever, Control Pedal |
| Hydraulic Units | 91-208 | Hydraulic Pump, Control Valve, Travel Motor, Swing Motor, Hydraulic Cylinder, Pilot Valve |

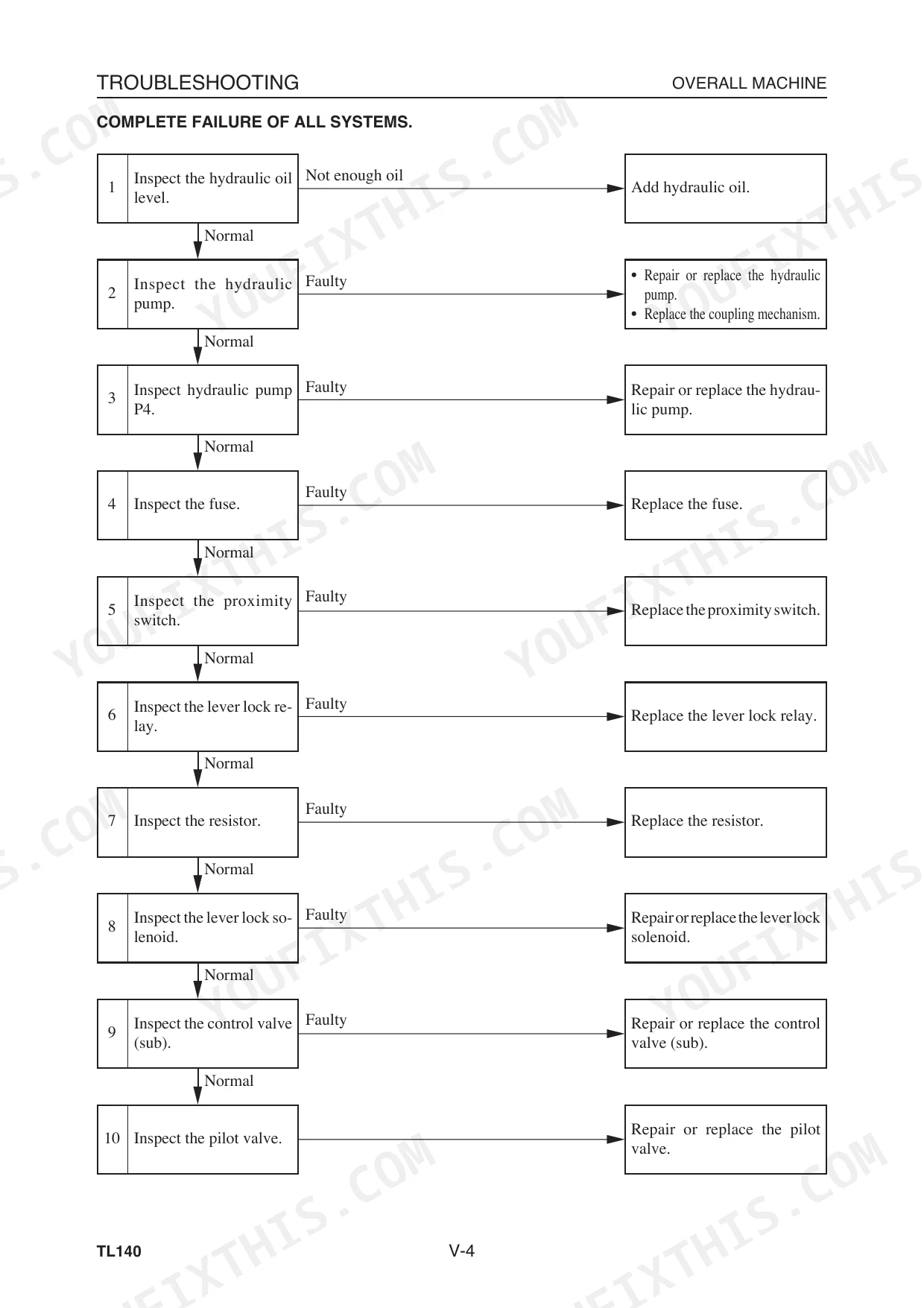

| Troubleshooting | 209-240 | Troubleshooting by Symptom, Engine Troubleshooting, Hydraulic System Troubleshooting, Electrical System Troubleshooting, Undercarriage Troubleshooting, Attachment Troubleshooting |
| Engine | 241-498 | Engine Assembly, Cylinder Head, Cylinder Block, Lubrication System, Cooling System, Fuel System, Air Intake System, Exhaust System |

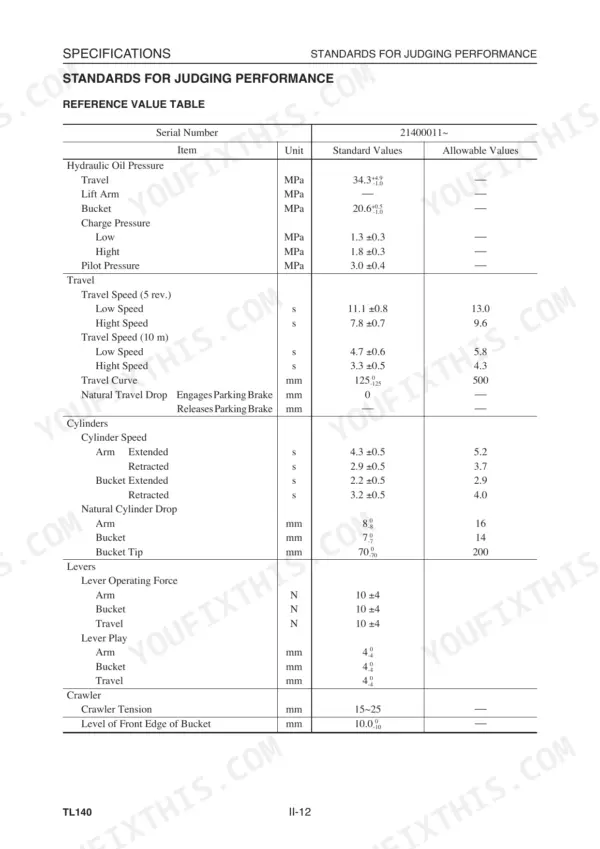

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

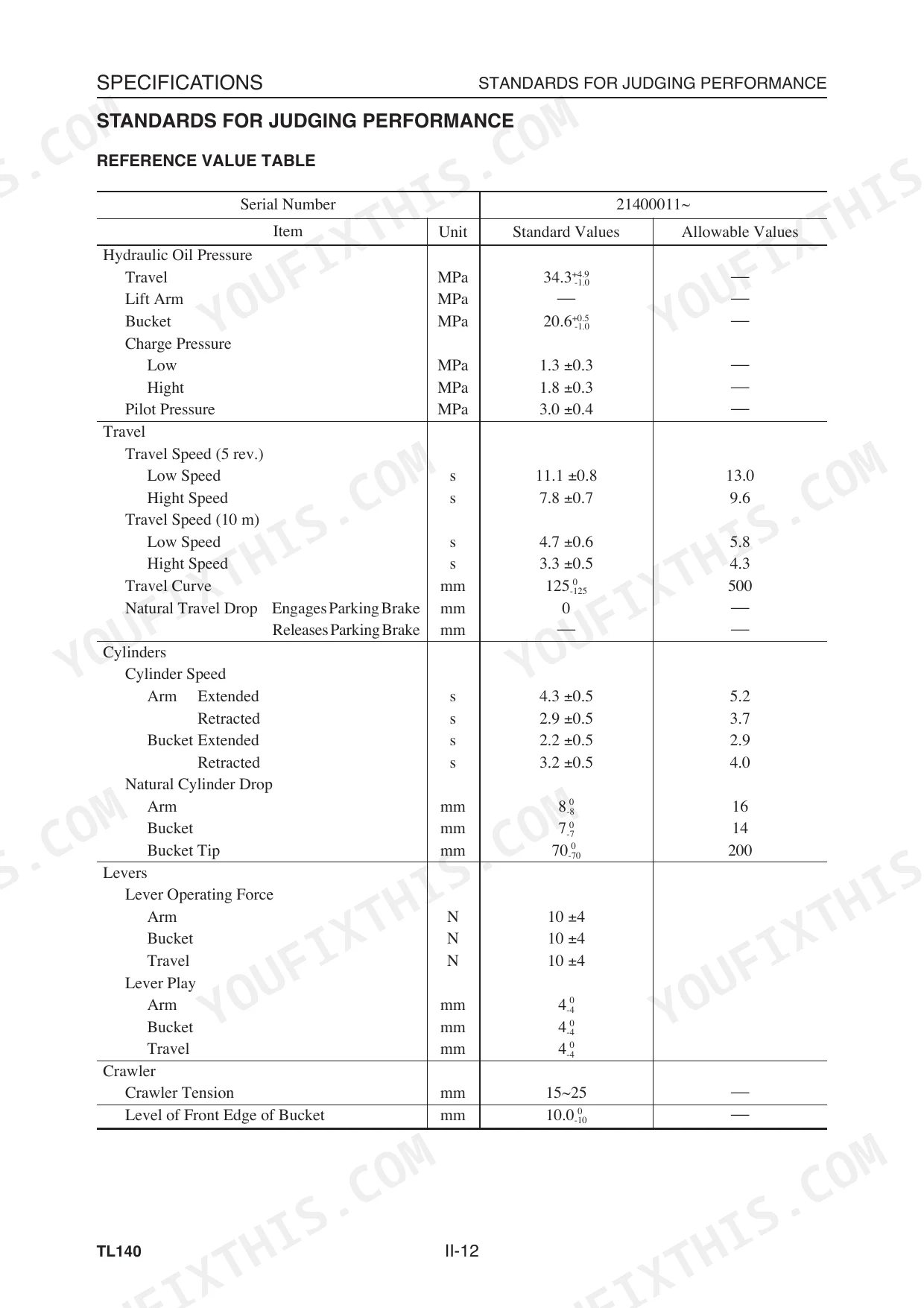

| Crawler Tension Standard Value | 15~25 mm | p. 32 |
| Rubber crawler mass | 260 kg | p. 54 |

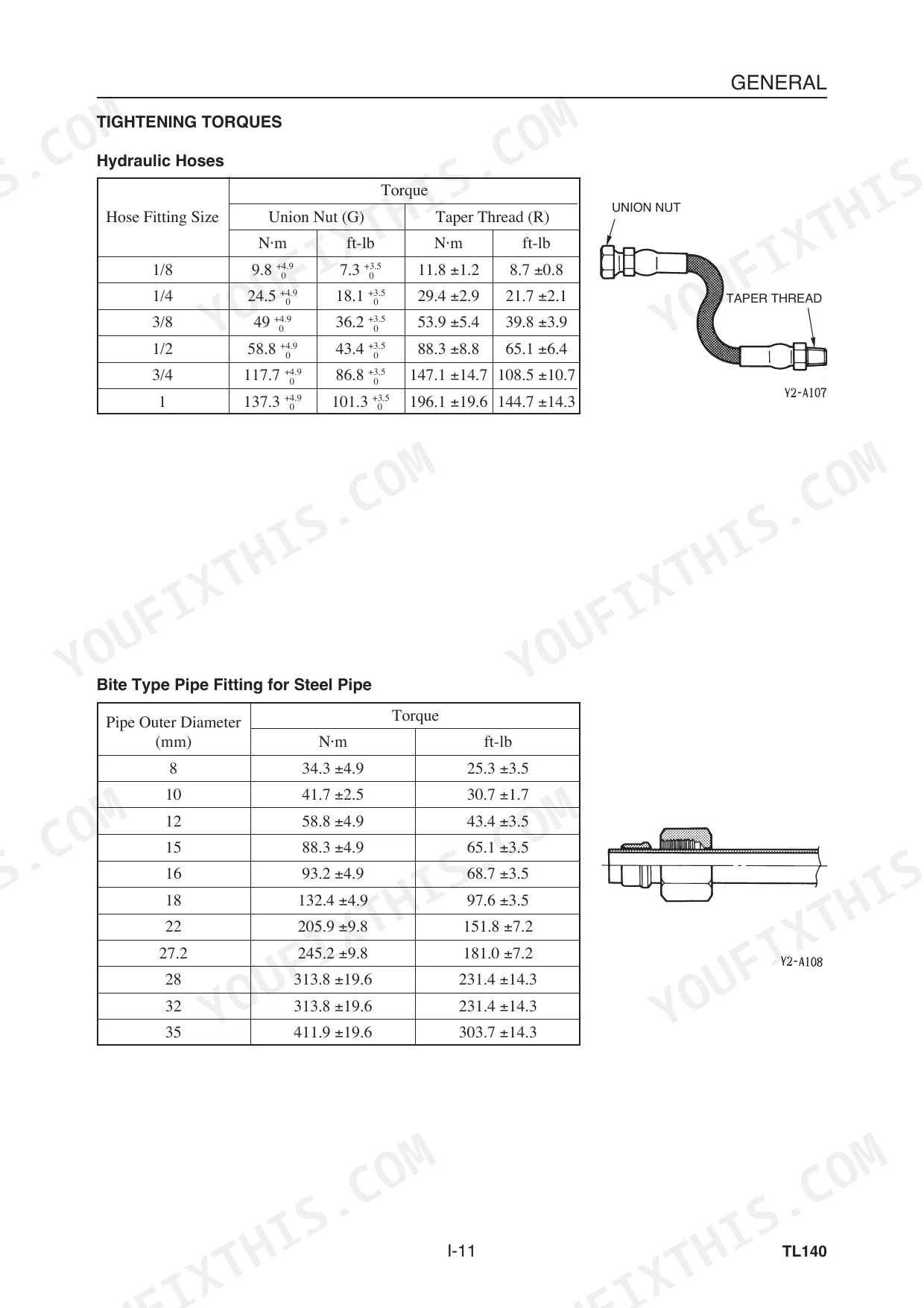

| Hydraulic Hoses Union Nut (G) 1/8 N·m torque | 9.8 +4.9 -0 N·m | p. 17 |
| Hydraulic Hoses Taper Thread (R) 1/8 N·m torque | 11.8 ±1.2 N·m | p. 17 |
| Bite Type Pipe Fitting for Steel Pipe (8mm) N·m torque | 34.3 ±4.9 N·m | p. 17 |
| Joints for Piping (Taper Thread R 1/8 Steel) N·m torque | 11.8 ±1.2 N·m | p. 18 |
| Air cleaner element replacement | Special order item from manufacturer | p. 240 |
| Engine oil filter replacement interval | Every 250 hrs. | p. 29 |
| Oil Filter Torque | 14 – 24 N·m | p. 130 |
| Thermostat Initial Opening Temperature | 82°C (180°F) | p. 25 |
| Thermostat Full Opening Temperature | 95°C (203°F) | p. 25 |
| Track Roller A Basic Dimension | 216 mm | p. 30 |

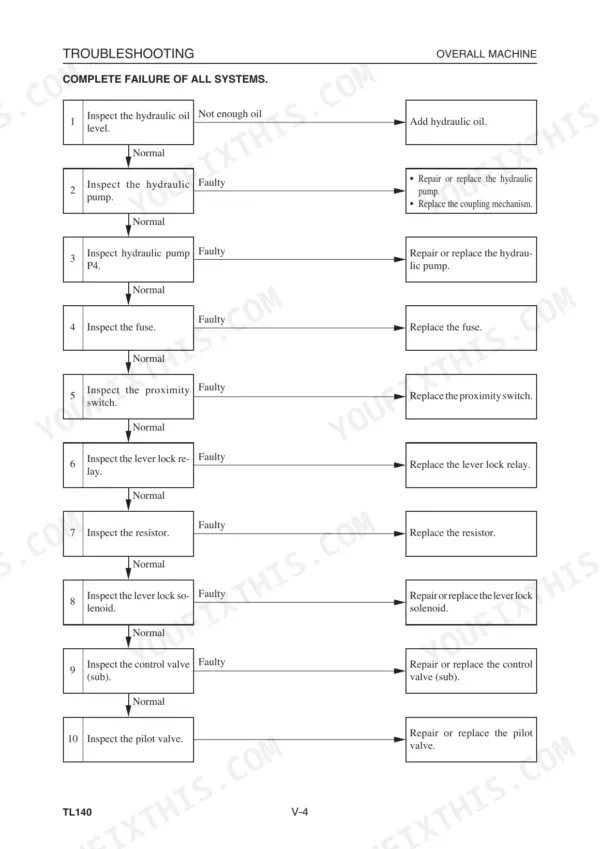

Gehl CTL70 Common Problems This Manual Covers
Gehl CTL70 hydraulic system slow response or bucket won't lift under load p. 216
Check hydraulic oil level first; tank capacity is 52 L (page 29) and low fluid is the fastest diagnosis. Inspect all hoses and fittings for leaks; torque union nut fittings to 9.8 +4.9/-0 N·m and taper thread fittings to 11.8 ±1.2 N·m (page 17). If oil level is correct, work through the insufficient-power troubleshooting sequence on pages 216-217, checking the line filter and listening for abnormal pump noise.
Manual Section: V . TroubleshootingEngine won't start or cranks slowly, especially in cold conditions p. 203
Verify battery terminals are clean and tight, then check the neutral switch and fusible link before condemning the starter. Work through the hard-starting sequence covering fuel delivery, injection nozzle condition, and the injection pump. Replace the engine oil filter on schedule (every 250 hours per page 29), since a clogged filter starves the engine at startup.
Manual Section: Vi . EngineMachine veers to one side or speed drops unevenly during travel p. 221
Measure crawler tension immediately; standard value is 15-25 mm (page 32). A track that's out of spec is the single most common cause of pulling and uneven drive. If tension checks out, follow the travel fault sequence on pages 221-222, verifying pilot valve function and HST pump output pressure against the charge relief valve setting of 1.8 MPa (page 26).
Manual Section: V . TroubleshootingNew rubber tracks stretch and go slack within the first 50 hours of use p. 32
Schedule a tension check after the first 10 hours on a new track, then again at 50 hours; new rubber stretches fast and the spec is 15-25 mm (page 32). Adjust at the idler. Each crawler belt weighs 260 kg (page 54), so line up a second person and proper lifting gear before breaking the track.
Manual Section: Ii . SpecificationsEngine overheating, temperature gauge climbing, or coolant loss p. 217
Confirm the cooling water level; total system volume is 15 L (page 47). Inspect the radiator for debris blockage and verify fan belt condition. Work through the overheating checklist covering the thermostat (opens at 82°C/180°F, fully open at 95°C/203°F per page 25), water pump, and fan coupling. If coolant keeps disappearing with no visible leak, suspect the cylinder head sealing cap.
Manual Section: Vi . EngineUndercarriage rollers or idler worn past allowable limits, tracking feels rough p. 30
Gauge track roller A diameter against its 208 mm wear limit and 216 mm basic dimension; idler allowable value is 440 mm against a basic of 450 mm (page 30). Replace any component at or beyond allowable value. Torque roller A bolts to 241 N·m and idler bolts to 158 N·m (pages 51-52). Worn undercarriage accelerates track wear, so inspect rollers, sprockets, and idlers together whenever you change or retension a track.
Manual Section: Ii . SpecificationsFrequently Asked Questions
How do I reset a Gehl CTL70 alarm/interlock fault?
The proportional controller has a built-in fault detection function that shuts down the solenoid driving current output when an error is detected. It stays self-retained until reset at power-up, once the error has been eliminated. For sensor errors, repair the wiring or replace the handle assembly.
What are the torque specs for Gehl CTL70 track/idler or undercarriage bolts?
Undercarriage torque values run as follows: Track Roller A installation bolts at 241 N·m, Track Roller B installation bolts at 156 N·m, and Idler bolts at 158 N·m. Travel motor and sprocket bolts also take 241 N·m with thread-locking compound.
How to reset Gehl CTL70 alarm
On the proportional controller, fault detection cuts the solenoid driving current output the moment an error is detected. The lockout holds until you reset it at power-up, after clearing the underlying error.
How to clear Gehl CTL70 error code
Error codes show up as LEDs (SE, NE, OL for sensor, neutral, or overcurrent faults) and clear when the fault detection resets at power-up, once the underlying error is gone. Fix the root cause, then power cycle the machine.
How quickly can I access this Gehl CTL70 manual after buying?
This is a 498-page searchable PDF, ready to download the moment you buy. It works on any device, so pull it up on your phone right at the machine. No shipping, no waiting.
Is this Gehl CTL70 Service Manual printable?
None at all. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.
Can I find hydraulic circuit diagrams in this Gehl CTL70 manual?
Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a scanned PDF, but it includes an OCR layer, so you can search and copy text throughout the manual. The text quality is generally crisp and easy to read, with no noticeable blurriness or fading. Diagrams and illustrations are primarily raster images; while labels are readable, they may not retain sharpness at very high zoom levels. Pages are clean with no significant scan artifacts, stains, or skewed content. There are a few blank pages interspersed, primarily as section dividers or end pages.
