Wrenching on a Hitachi Zaxis mini excavator? This 447-page Hitachi Zaxis shop manual PDF (OEM #W1LA-E-01) covers the Zaxis 27U, 30U and 35U. Inside: a full torque chart for bolts and nuts, hydraulic circuit and injection pressure specs, track sag and cylinder bore dimensions, and page after page of step-by-step removal and installation procedures. You also get scheduled maintenance intervals, right down to the two-year fuel hose replacement. The counterweight runs 299 kg on the Zaxis 27U and 30U, so plan your lift, and snug the oil filter to 12-16 N·m, three quarters of a turn past gasket contact. Guesswork wrecks threads and warranties. This bookmarked PDF has a real text layer: search any spec by keyword, pull it up on your phone, and get back in the seat.

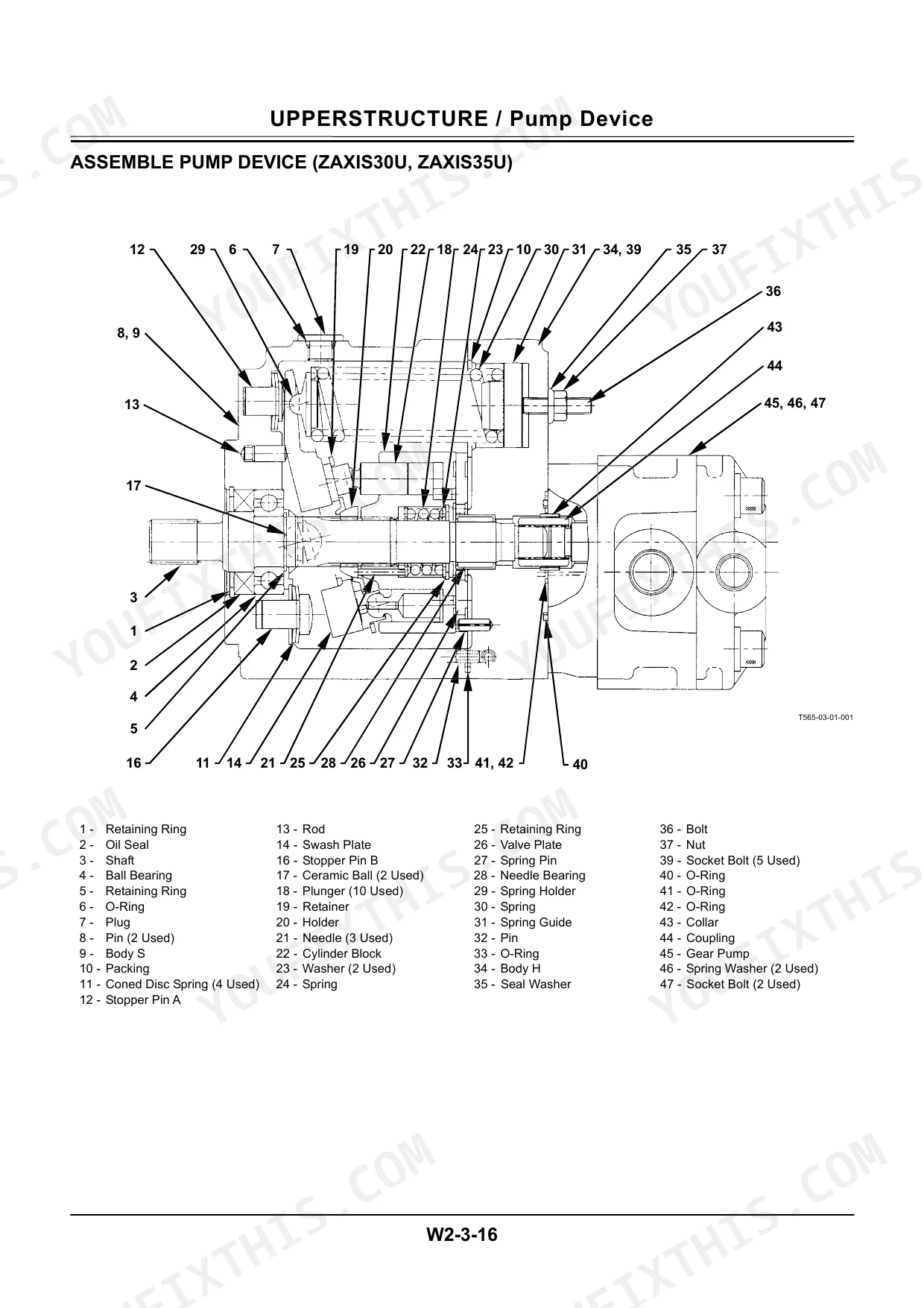

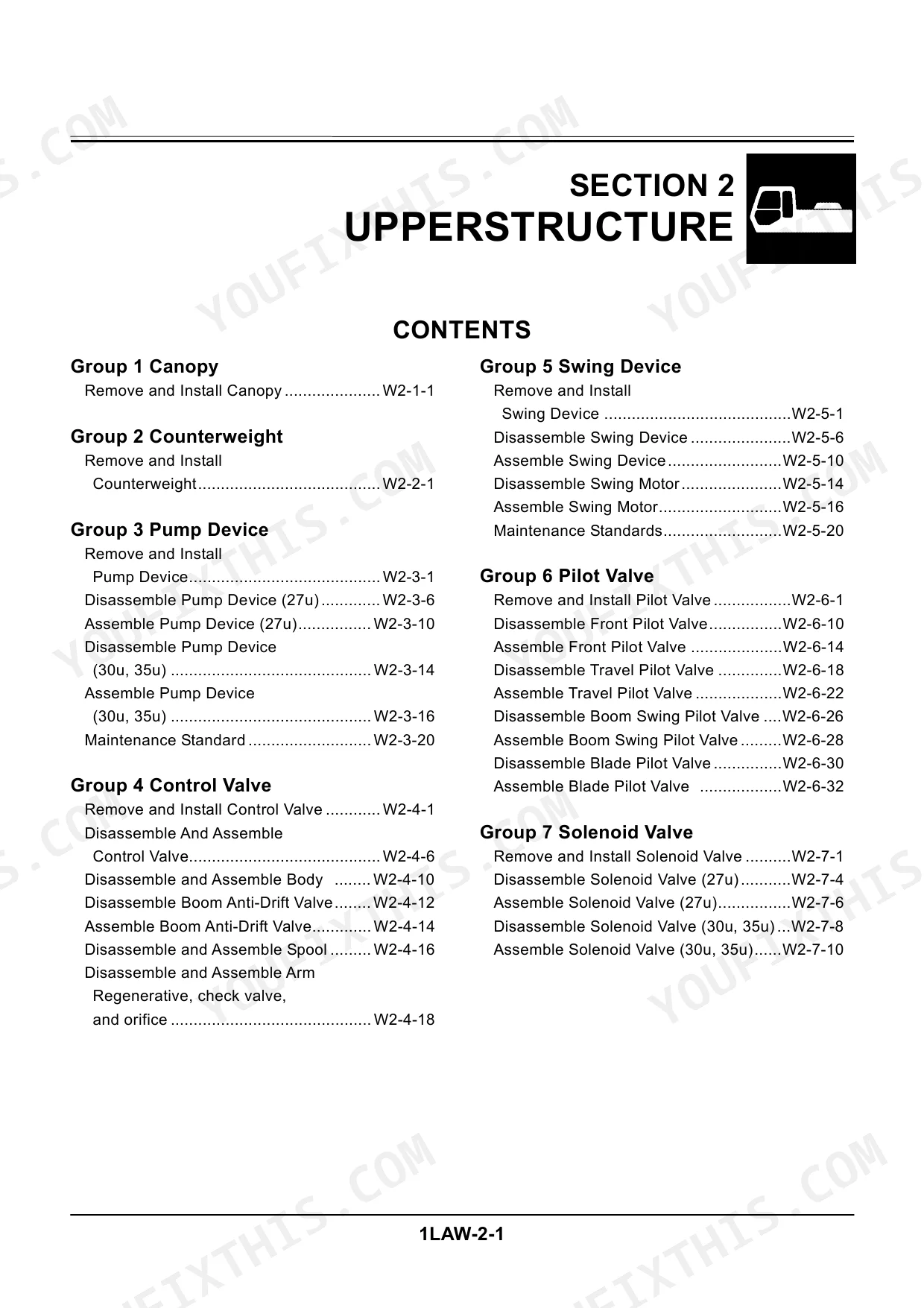

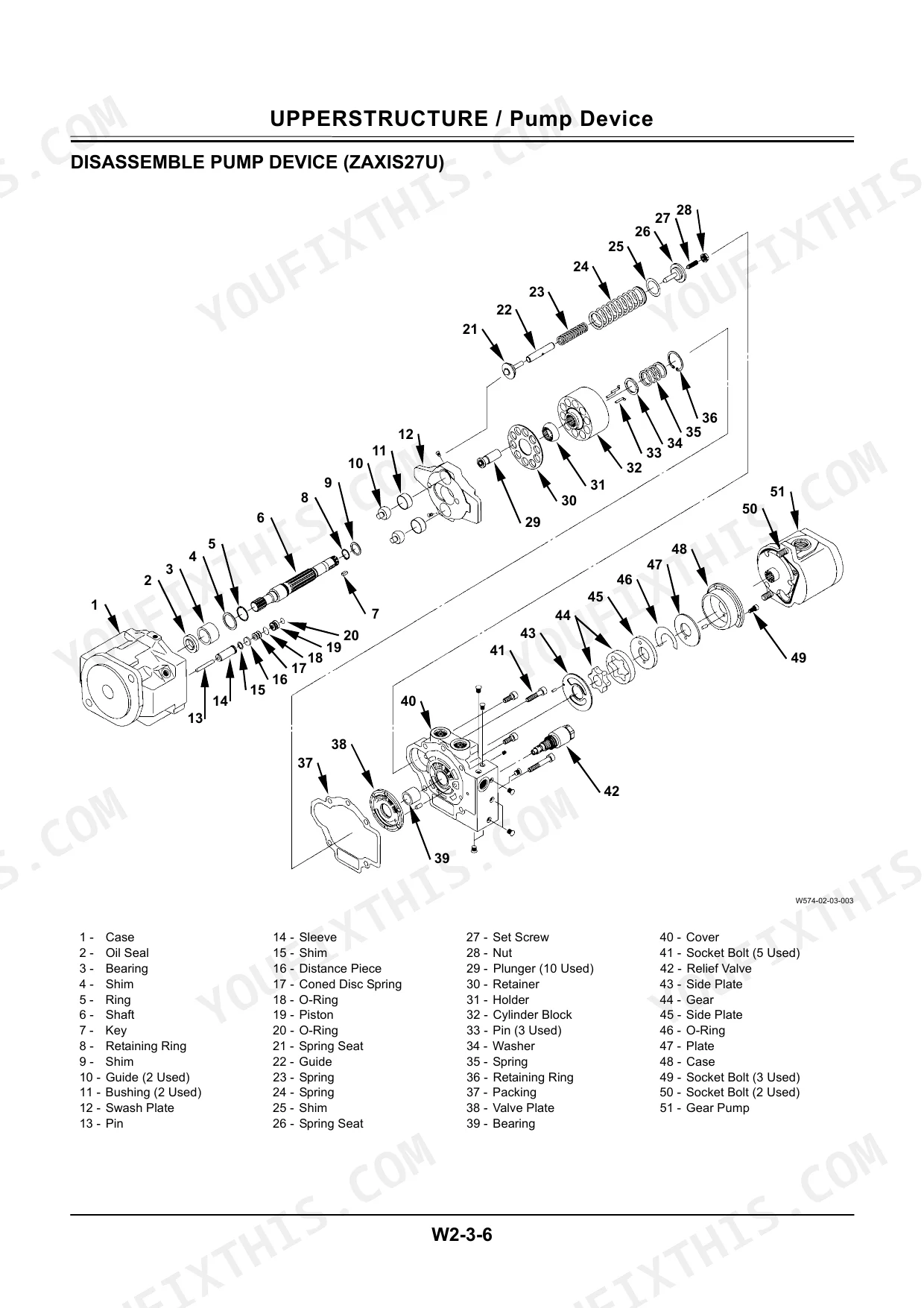

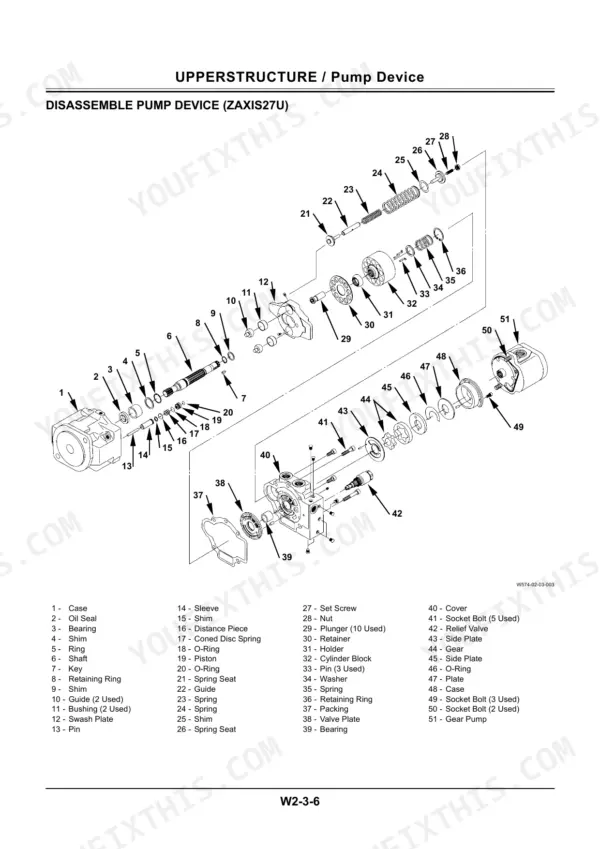

What's Inside This Hitachi Zaxis 27U/30U/35U Manual

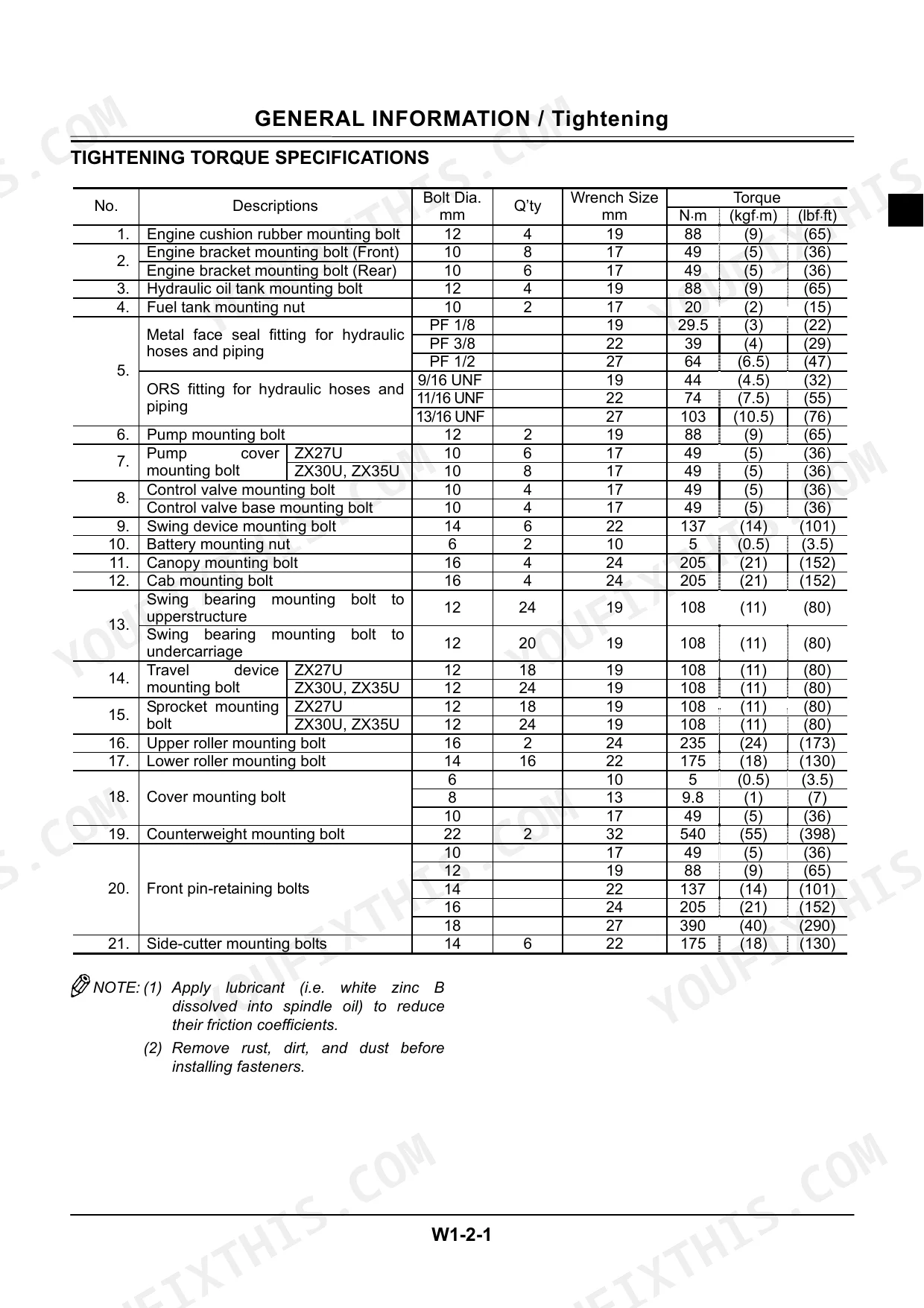

| System | Pages | Key Topics |
|---|---|---|
| Length | 438-439 | Arm Connection Dimensions, Bucket Connection Dimensions, Cylinder Head Diameter, Piston Rod Length, Track Sag Specifications |
| Area | 440-441 | Piston Surface Area, Cylinder Bore Area, Valve Seat Contact Width, Conversion Table |
| Mass | 442 | Counterweight Weight, Front Attachment Weight, Bucket Cylinder Weight, Arm Cylinder Weight, Boom Cylinder Weight |
| Pressure | 443 | Hydraulic Circuit Pressure, Compression Pressure, Injection Pressure, Valve Opening Pressure |
| Torque | 444 | Tightening Torque Specifications, Torque Chart, Bolt Tightening, Nut Tightening |
| Temperature | 445-447 | Ambient Temperature, Coolant Temperature, Thermostat Opening Temperature |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel hose (Fuel tank to filter) replacement interval | Every 2 years | p. 50 |
| Oil filter installation | 3/4 of a turn or one turn | p. 351 |
| Oil filter tightening torque | 12 - 16 N·m | p. 401 |
| Canopy Weight | 74 kg | p. 58 |
| ZAXIS27U, 30U | ||
| Counterweight Weight | 299 kg | p. 60 |
| ZAXIS35U | ||
| Counterweight Weight | 570 kg | p. 60 |
| ZAXIS27U | ||
| Pump Device Weight | 18 kg | p. 63 |
| Swing Device Weight | 33 kg | p. 104 |
| Travel Device Weight | 36 kg | p. 174 |
| ZAXIS30U, 35U | ||
| Pump Device Weight | 21 kg | p. 66 |
| Swing Device Weight | 38 kg | p. 104 |
| Travel Device Weight | 44 kg | p. 174 |
Hitachi Zaxis 27U/30U/35U Common Problems This Manual Covers
Hitachi Zaxis 30U hydraulic functions weak and noisy, bucket lifts slowly when oil is hot
Drain a hydraulic oil sample and look for milky or dark fluid, then clean the suction strainer and replace the full flow filter element. Test circuit pressures against the values on page 443 before condemning the pump. If the pump has to come out, rig a lift; the Zaxis 30U pump device weighs 21 kg.
Manual Section: Pressure p. 443Oil pressure light stays on and filter base leaks after routine oil change
Check the oil level, then remove the filter and inspect the base for a doubled or torn gasket. Coat the new seal with clean engine oil, spin the filter on until the gasket seats, then tighten an additional 3/4 to one turn per page 351, or torque it to 12-16 N·m (page 401).
Manual Section: Engine Troubleshooting p. 351Rubber track keeps derailing and clatters over the front idler on side slopes
Measure track sag with the machine raised and compare it to the specifications on page 438; adjust tension at the grease fitting until sag is within spec. Inspect the front idler and rollers for flat spots or seized bearings. On the Zaxis 27U the front idler weighs 8.5 kg, so one mechanic can swap it on the bench.
Manual Section: Length p. 438Engine cranks but won't start, or stalls under load with cloudy fuel
Drain the water separator and check the bowl for water or sediment, then replace the fuel filter and bleed the system. Inspect every rubber fuel line for cracks or sponginess; the hose from tank to filter is due for replacement every 2 years (page 50) regardless of appearance. Verify the tank pickup is not clogged.
Manual Section: Fuel System Maintenance p. 50Boom drifts down overnight and bucket cylinder weeps at the rod seal
Release all pressure in the cylinder circuit before cracking any fitting. Check the rod for pitting or a bent shaft, then reseal or swap the cylinder; the Zaxis 27U boom cylinder weighs 29 kg, so use a sling and a helper. Compare holding pressure against the hydraulic circuit values on page 443 after reassembly.
Manual Section: Pressure p. 443Frequently Asked Questions
What are the replacement specifications for the engine oil filter?
The engine oil filter is a cartridge (spin-on) type. To replace it, use filter wrench 5-8840-9015-0. After installing the new filter, turn it an additional 3/4 of a turn or one turn after the sealing face comes into contact with the gasket. p. 351
What is the standard valve clearance for the engine?
The standard valve clearance for both intake and exhaust valves when the engine is cold is 0.20 ± 0.05 mm (0.008 ± 0.002 in). p. 350
What is the tightening torque for the cylinder head bolts?
The cylinder head bolts for the M12 x 1.5 size should be tightened to 83-93 N·m (8.5-9.5 kgf·m / 61-69 lb-ft) followed by a 60° to 90° turn. The M8 x 1.25 bolts should be tightened to 25-34 N·m (2.5-3.5 kgf·m / 18-25 lb-ft). p. 397
What is the specified deflection for the cooling fan drive belt?
The cooling fan drive belt deflection should be 7.5 to 8.5 mm (0.30 to 0.33 in) when pressed with a force of 98 N (10 kg). p. 405
What is the standard compression pressure for the engine?
The standard compression pressure for the engine is 3.04 MPa (31 kgf/cm² or 440 psi) at 250 min⁻¹. p. 353
Is this manual a download or a disc?
You get a 447-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
