Operating, charging and checking the Hyster P1.5UT (A3D1) electric pallet truck is what this 22-page Hyster P1.5UT operator manual PDF (OEM ID 4280001) walks you through. Each control on the truck gets its own explanation: display, steering, accelerator knob, braking, lifting and lowering, the turtle-mode low-speed button, the belly-switch emergency reverse, keyswitch and emergency power off. Further chapters cover intended use and user obligations, safe operation norms, a technical parameters table listing motor power and battery capacity, and battery charging, storage, emergency treatment and replacement. Plan pallets against the 1500 kg rated capacity at a 600 mm load center, and expect 4.3 km/h when traveling laden. Charger output is specified at 24V, 20-30A. Your routine checks are set out as well: the inspection before operation, then the after-operation steps. Bookmarks and a searchable text layer get you to any section quickly, and the 4280001 number lets you order the correct publication the first time.
What's Inside This Hyster P1.5UT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Intended Use | 5 | Obligations and Responsibilities of Equipment User, Installation Accessories |
| Unit Description | 6-11 | Specified Use, Operating Environment |
| Main Technical Parameters | 12-13 | Rated Load, Lift Height, Traveling Speed, Driving Motor Power, Lifting Motor Power, Battery Capacity |

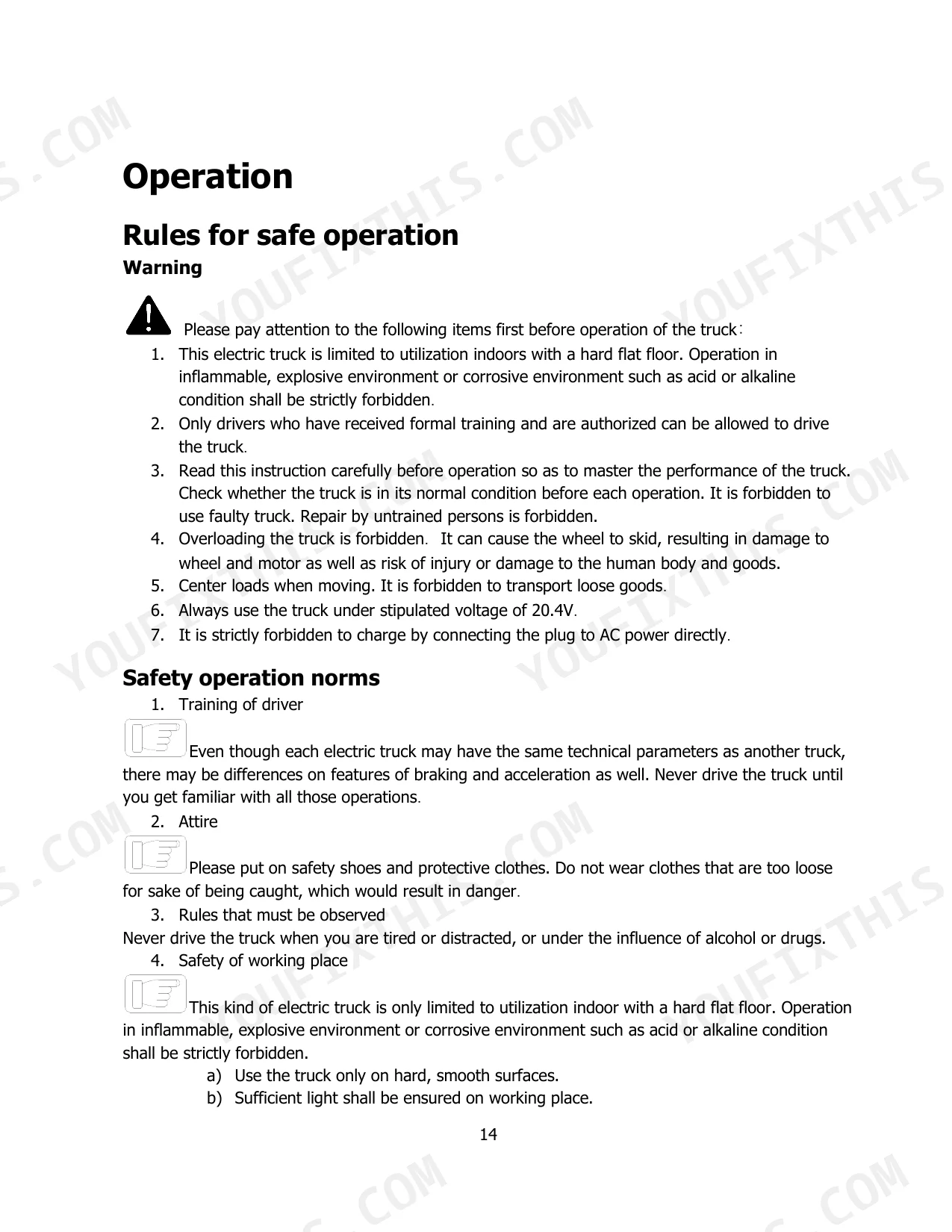

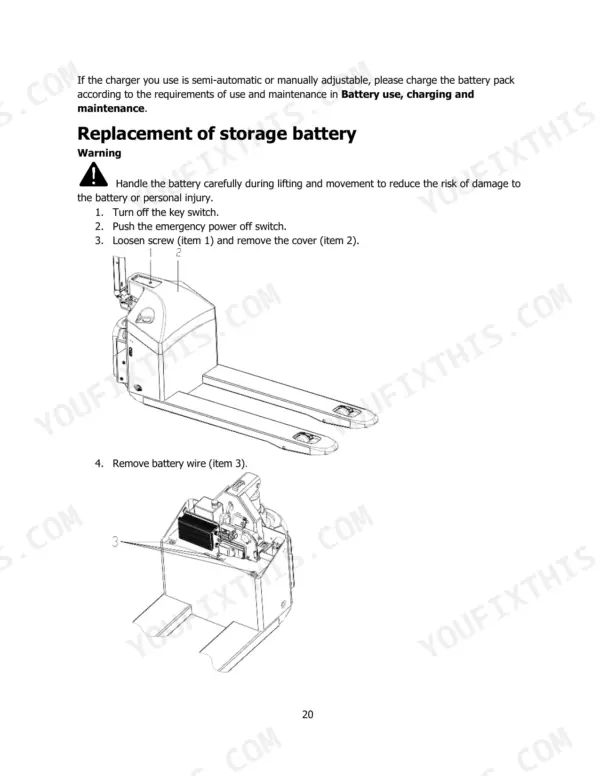

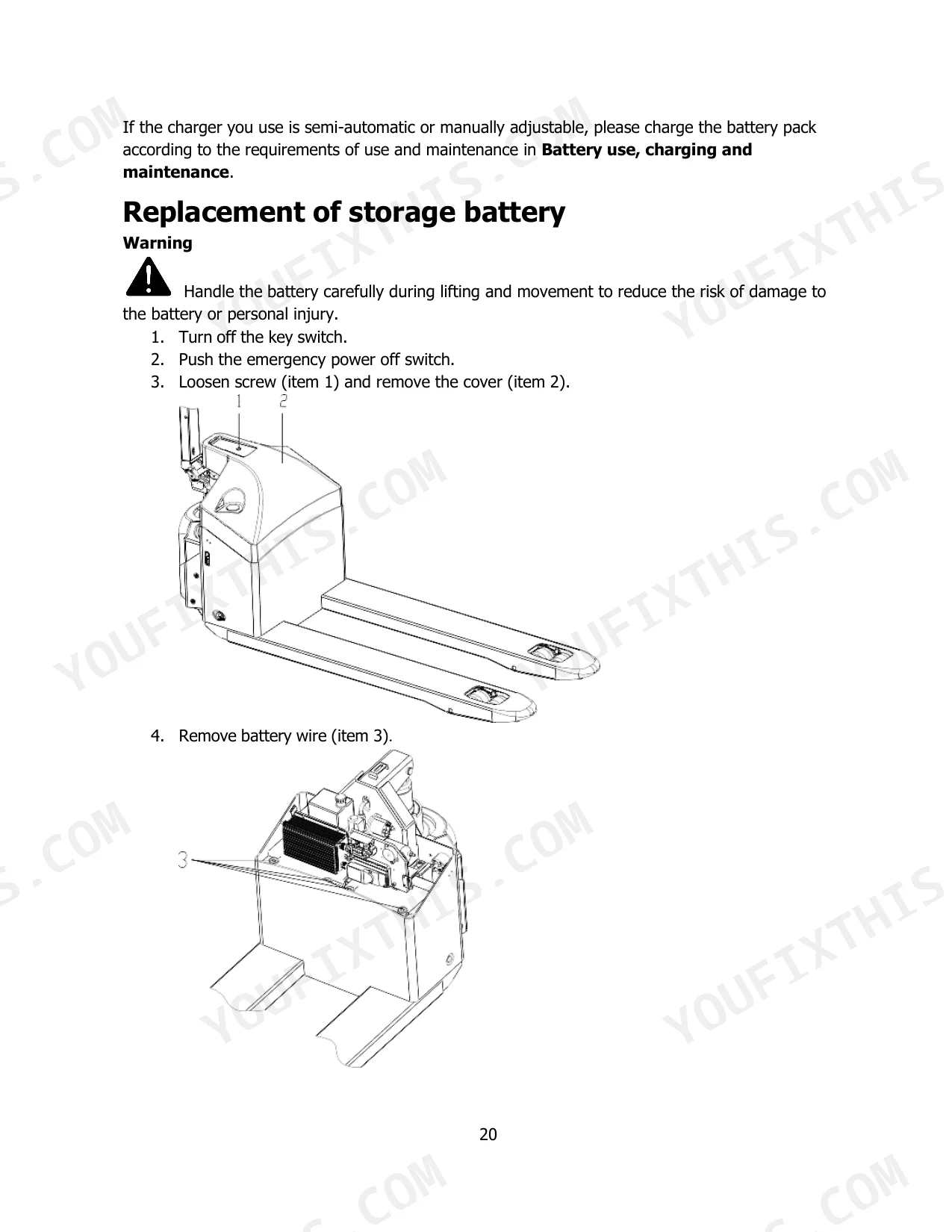

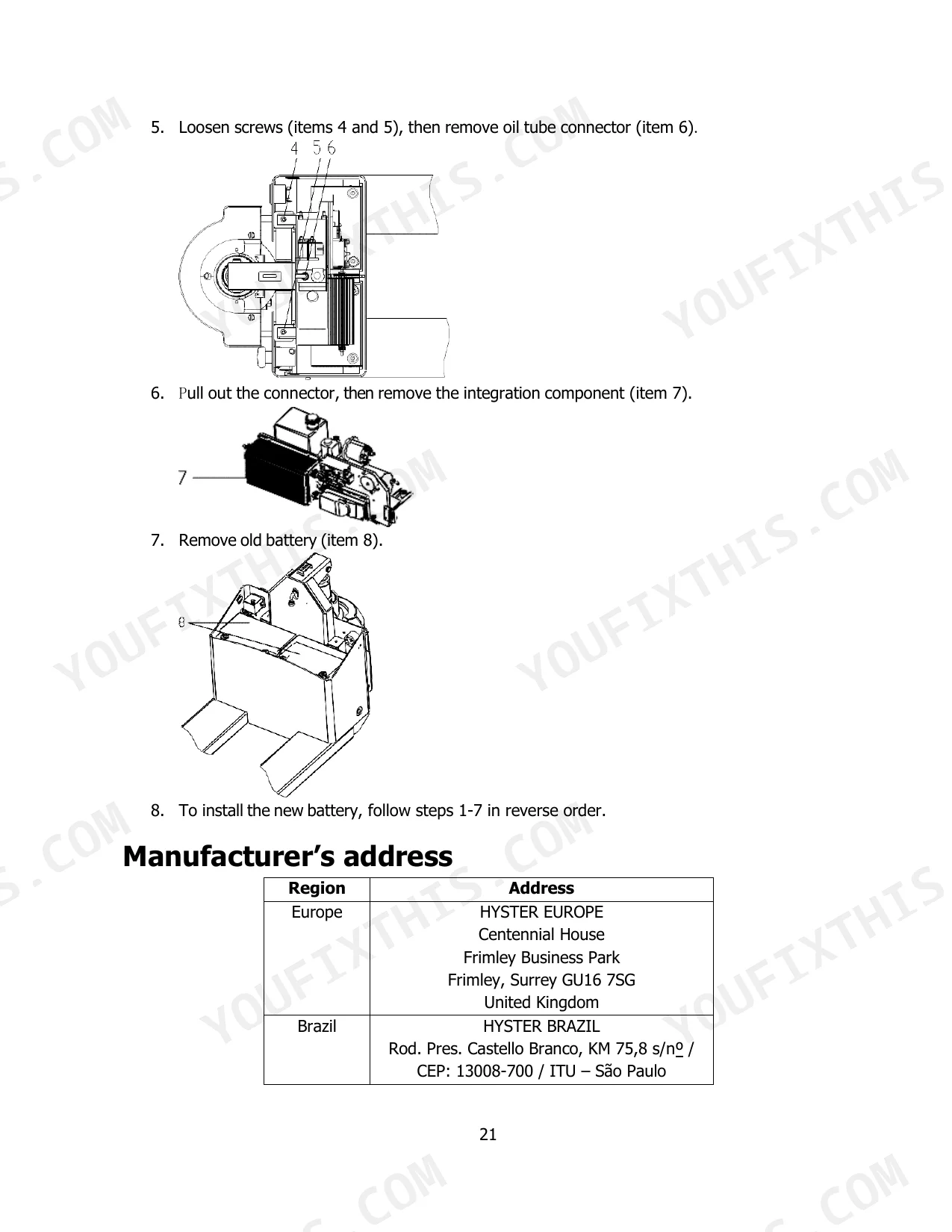

| Operation | 14-18 | Rules for Safe Operation (Safety Operation: Norms, Specification), Driving and Operation (Inspection Before Operation, After Operation) |
| Battery Use, Charging, and Maintenance | 19-20 | Charging with an External Charger, Battery Storage, Emergency Treatment, Charger, Storage Battery |
| Manufacturer’s Address | 21-22 | Europe Region, Brazil Region, Hyster Europe Address, Hyster Brazil Address |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Output voltage of charger | 24V | p. 19 |
| Output current of charger | 20-30A | p. 19 |
| Rated load | 1500 kg | p. 13 |
| Load center distance | 600 mm | p. 13 |
| Traveling speed, laden | 4.3 km/h | p. 13 |
| Traveling speed, unladen | 4.8 km/h | p. 13 |
| Driving motor power | 0.65 kW | p. 13 |
| Lifting motor power | 0.8 kW | p. 13 |
| Battery voltage | 24 V | p. 13 |
| Battery rated capacity | 50 Ah | p. 13 |
| Battery weight | 36 kg | p. 13 |
| Service weight | 205 kg | p. 13 |
Hyster P1.5UT Common Problems This Manual Covers
Hyster P1.5UT battery state of charge indicator showing insufficient charge level on the display
Verify the charger output is 24V at 20-30A if it is a full automatic type, per page 19. Turn off the key switch, push in the emergency power disconnect, then move the battery cable from the truck to the charger. Keep open flame out of the charging location (page 18). A fully discharged battery needs up to 12 hours; wait for the green pilot light.
Manual Section: Battery Use, Charging, and Maintenance p. 19Instrument display blank or battery capacity reading incorrect after turning on the key switch
Check that the emergency power off switch is up before turning on the key switch, as page 17 directs. Confirm the instrument displays normally and states the battery capacity correctly. Inspect the battery connecting line and socket; both must be firm. If the display still reads wrong, stop and contact the Hyster sales department. Never use a faulty truck.

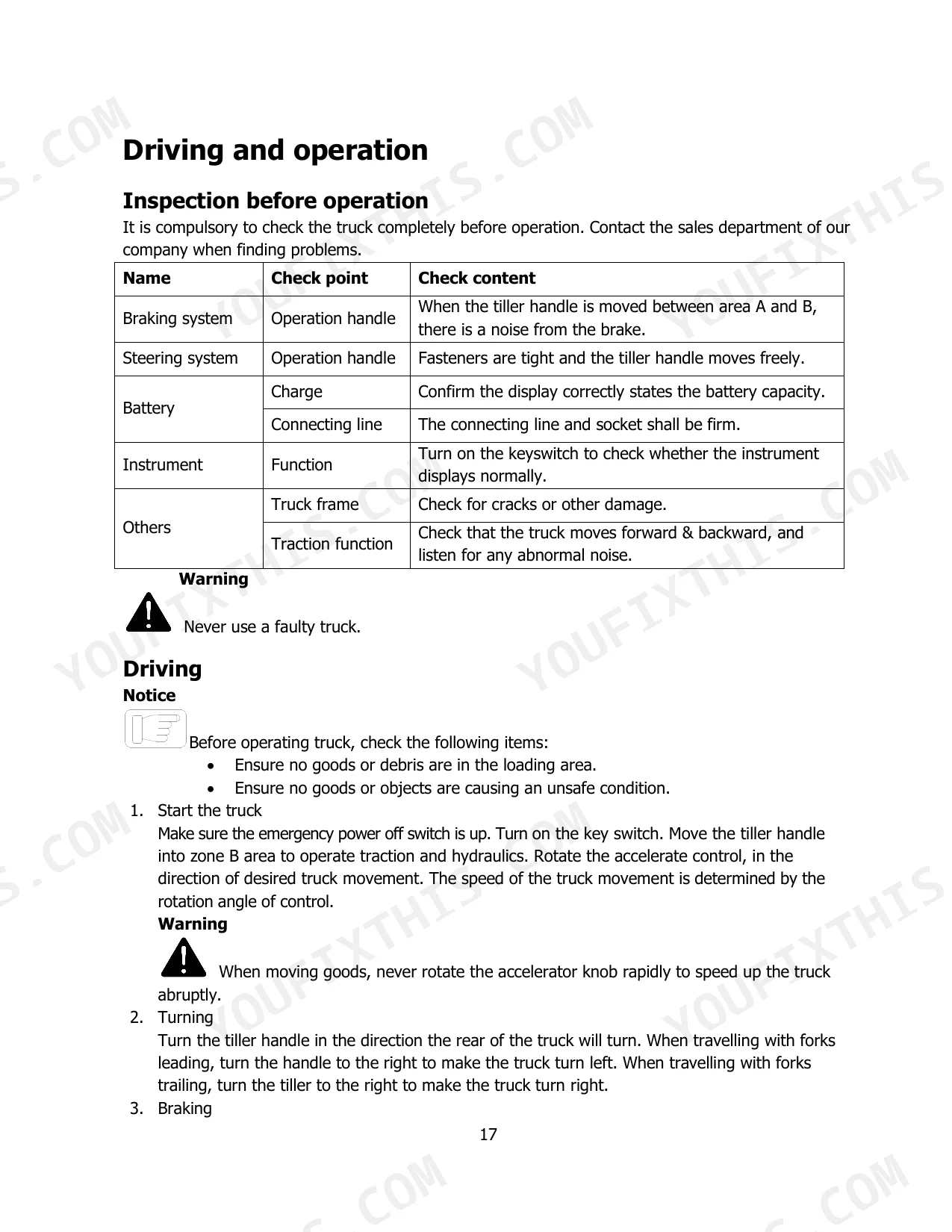

Manual Section: Inspection before operation p. 17Truck will not travel forward or backward when the accelerator control is rotated
Verify the start sequence on page 17: emergency power off switch up, key switch on, and tiller handle moved into zone B, where traction and hydraulics operate. Rotate the accelerator control in the direction of travel; speed follows the rotation angle. Listen for abnormal noise. If it still will not move, stop using it and contact the Hyster sales department.
Manual Section: Operation p. 17No brake noise heard when the tiller handle moves between area A and area B
Check the brake during the pre-operation inspection on page 17: swing the tiller handle between area A and B and listen for the brake. No noise means the braking system check has failed. Do not drive the truck, because the manual forbids using a faulty truck. Park it on level ground, never on a slope, and contact the Hyster sales department.
Manual Section: Inspection before operation p. 17Tiller handle not moving freely or steering fasteners feeling loose during daily inspection
Check the steering system at the operation handle as page 17 lists: every fastener must be tight and the tiller handle must move freely. Inspect the truck frame for cracks or other damage at the same time. If the handle binds or fasteners are loose, keep the truck out of service and contact the Hyster sales department before anyone drives it.
Manual Section: Inspection before operation p. 17Electrolyte leaking from the storage battery or spilled on skin, eyes, or clothing
Clean up battery leaks by neutralizing with lime or strong carbonic acid soda, then flush with plenty of water, following page 19. Wash skin with large amounts of water; flush eyes the same way and see a specialist doctor. Remove soaked clothes right away, rinse with water, then weak basic soap solution. Never open the battery air vent valve.
Manual Section: Emergency treatment p. 19Frequently Asked Questions
What are the replacement specifications for the on-board battery charger on the Hyster P1.5UT?
If the charger is a full automatic type, it must have an output voltage of 24V and an output current of 20-30A. If the charger is semi-automatic or manually adjustable, it must be used according to the requirements in the Battery use, charging, and maintenance section. p. 19
What is the battery capacity and weight for the P1.5UT?
The P1.5UT electric pallet truck uses a battery with a rated capacity of 50 Ah and a voltage of 24 V. The battery weight is 36 kg (79 lb). p. 13
What is the maximum hourmeter reading for the truck?
The maximum hourmeter readout for the P1.5UT is 99999.9 hours. The hourmeter only displays when the battery is connected. p. 8
What is the required ambient temperature range for the truck's operating environment?
The truck should be operated in an environment where the ambient temperature is not higher than 40°C (104°F) and no lower than -25°C (-13°F). p. 6
How often should the storage battery be charged when not in use?
When the battery is in storage, it must be charged every 5 months to maintain its condition. p. 19
