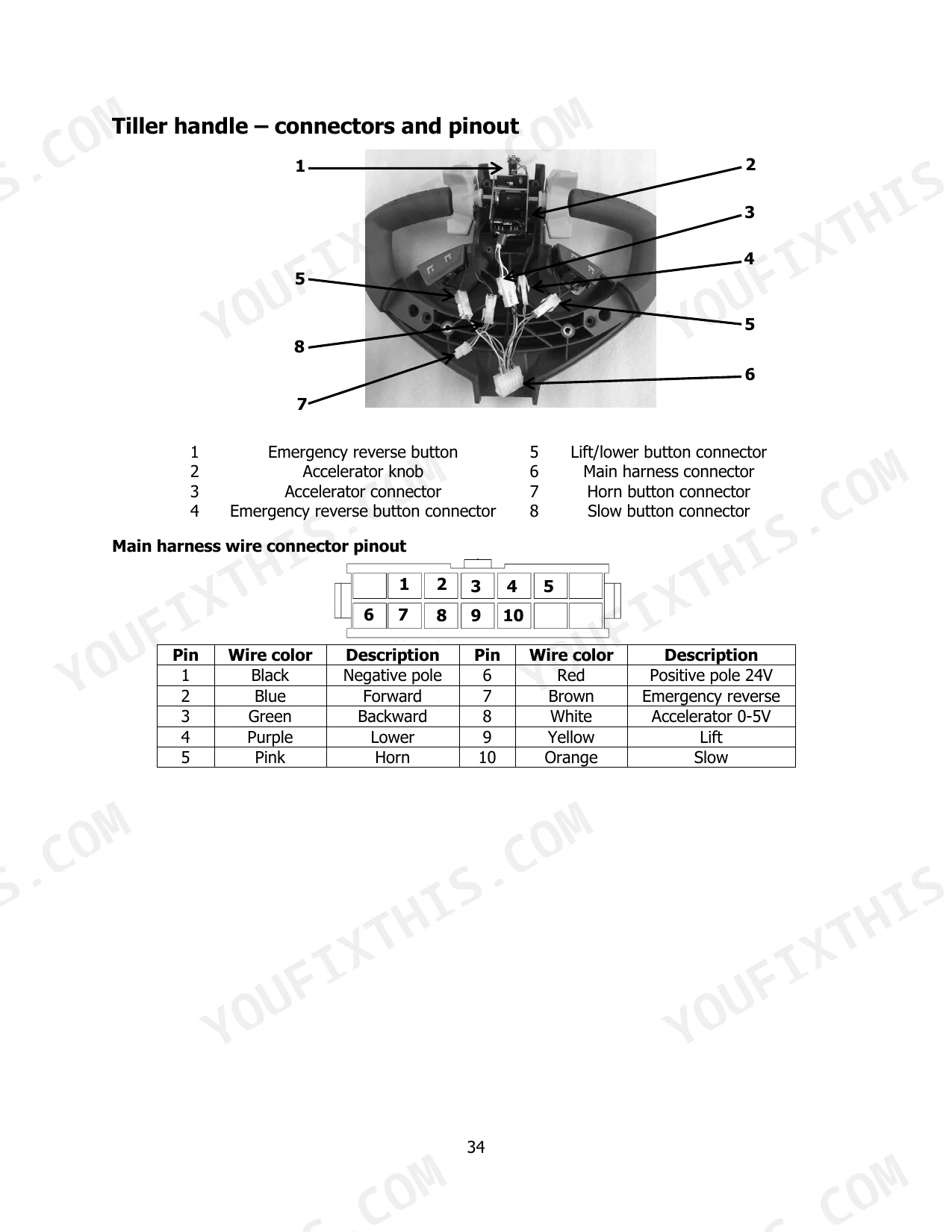

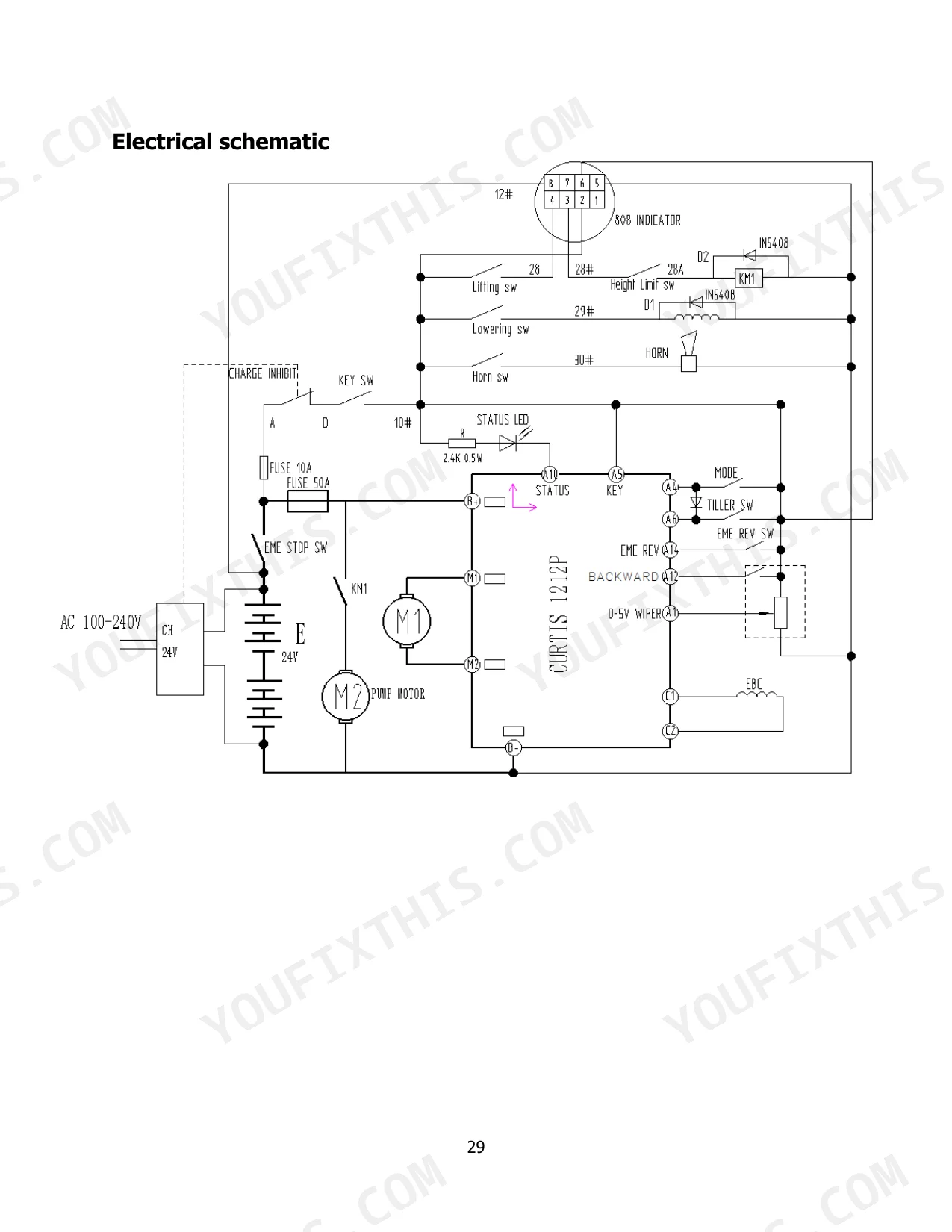

Drive system repair on the Hyster P1.5UT electric pallet truck, A3D1 variant included, is set out across the 54 pages of this Hyster P1.5UT service manual PDF, OEM ID 4280034. The electrical section pairs the wiring schematic with component identification and pinouts for the BDI display and tiller handle connectors, while the fault code tables cover controller checks and the Handheld Programmer 1313. Symptoms come first. When the truck cannot lift, lower or travel, you start from that symptom, and the maintenance schedule runs from daily 8-hour checks to the 12-month inspection. Hold the gap between the load wheel top and the fork bottom to no less than 1 mm (.039 in), and check the traction motor against its 650W rating at 38A rated current. Maybe the job on your list is a lift system repair or battery charging with an external charger. Bookmarked and text-searchable, the file travels on your laptop or phone to wherever the pallet truck is parked.
What's Inside This Hyster P1.5UT Manual
| System | Pages | Key Topics |
|---|---|---|
| Description of Symbols | 4 | Danger, Warning, Caution, Notice |
| Maintenance | 5-10 | Precautions During Maintenance (Places for Maintenance, Precautions Before Repair and Maintenance), Battery Use and Maintenance |
| Driving System | 11-21 | Principles of Operation, Driving System Structure, Traction Motor Specifications, Drive System Repair |
| Lift System | 22-27 | Principles of Operation, Hydraulic System Structure, Lift System Repair |
| Electrical System | 28-36 | Principles of Operation, Electrical Schematic, Electrical Component Identification, Major Electrical Components |
| Troubleshooting | 37-53 | Observed Symptoms (Cannot: Lift, Lower, Travel), Fault Codes (Controller Checks, The Controller, Using the Handheld Programmer 1313) |
| Truck Storage and Transportation | 54 | Loading and Unloading, Transportation of Truck, Storing the Truck |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Traction motor rated power | 650W | p. 12 |
| Traction motor rated current | 38A | p. 12 |
| Charger output voltage | 24V | p. 7 |
| Charger output current | 20-30A | p. 7 |
| Minimum clearance between the top of the load wheel and the bottom of the fork | 1 mm (.039 in) | p. 26 |
| Gear oil quantity | 320ml (0.39 qt) | p. 10 |
| Hydraulic oil quantity | 650 ml (0.69 qt) | p. 10 |
| Traction motor rated RPM | 2650 rpm | p. 12 |
| Traction motor rated torque | 2.34N•m (1.77 lbf ft) | p. 12 |
| Traction motor carbon brush lifetime | 1200h | p. 12 |
| Load wheel to fork minimum clearance | 1 mm (.039 in) | p. 26 |
| Electromagnetic brake resistance | 31+/-5Ω | p. 47 |
Hyster P1.5UT Common Problems This Manual Covers
Hyster P1.5UT electric pallet truck forks do not respond when the lift button is pressed
Press the lift button and measure voltage between wire 28 and B- with a digital multimeter, following page 37. It should read 24V. If not, check the lift switch and its wiring. If 24V is present, check the power meter, then the height limit switch at wire 28#A. Discharge capacitors before repairing any wiring (page 5).
Manual Section: Troubleshooting Observed Symptoms p. 37Battery needs charging more often and voltage drops quickly after a full charge
Charge with the key switch off and the emergency power disconnect pushed in, following page 6. A fully discharged battery can take up to 12 hours, and the green pilot light confirms full charge. Verify an automatic charger outputs 24V at 20-30A (page 7). If voltage still drops fast, the battery is near end of life. When pulling batteries, remove negative wires before positive wires to reduce shock risk (page 36).
Manual Section: Battery Use and Maintenance p. 6Electromagnetic brake makes no noise when tiller handle moves between area A and area B

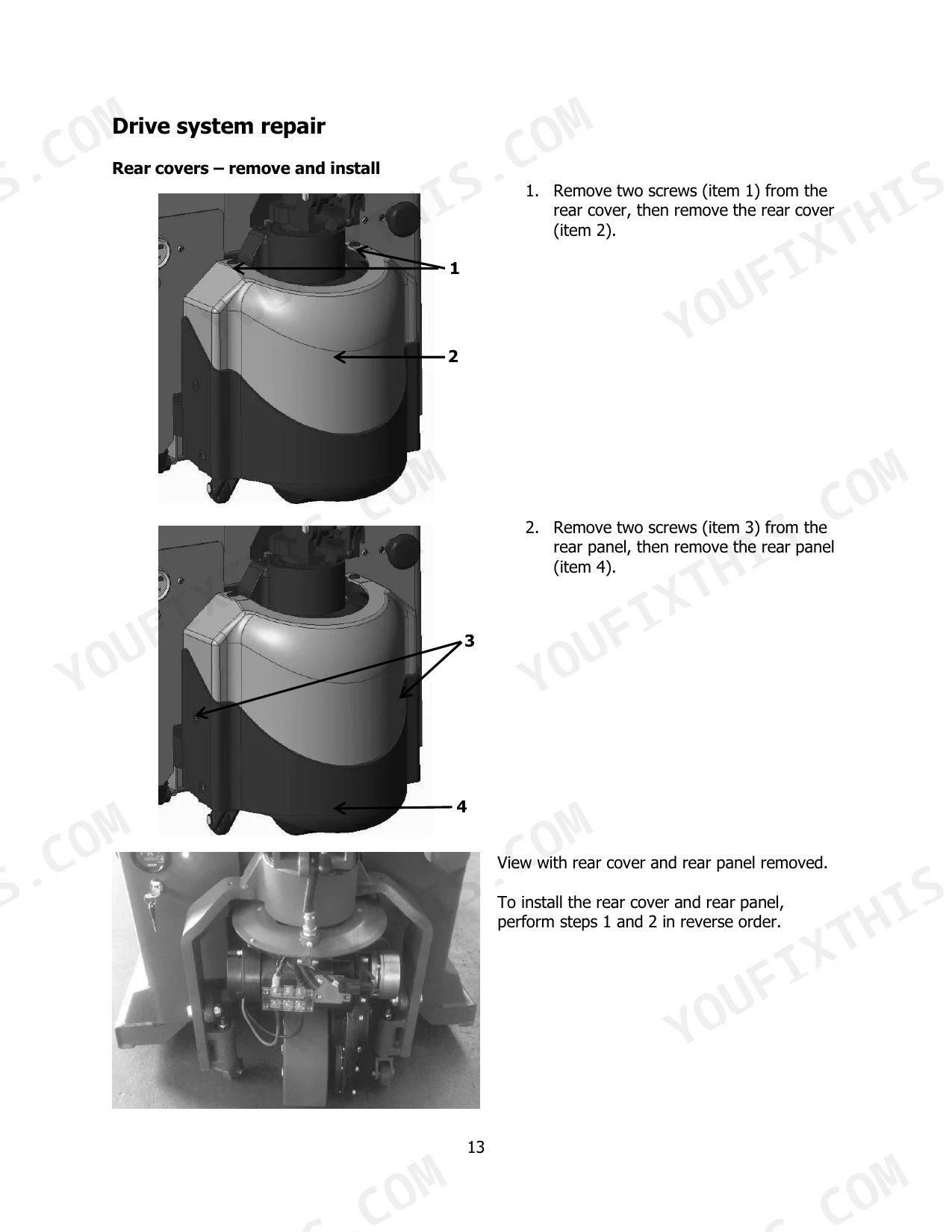

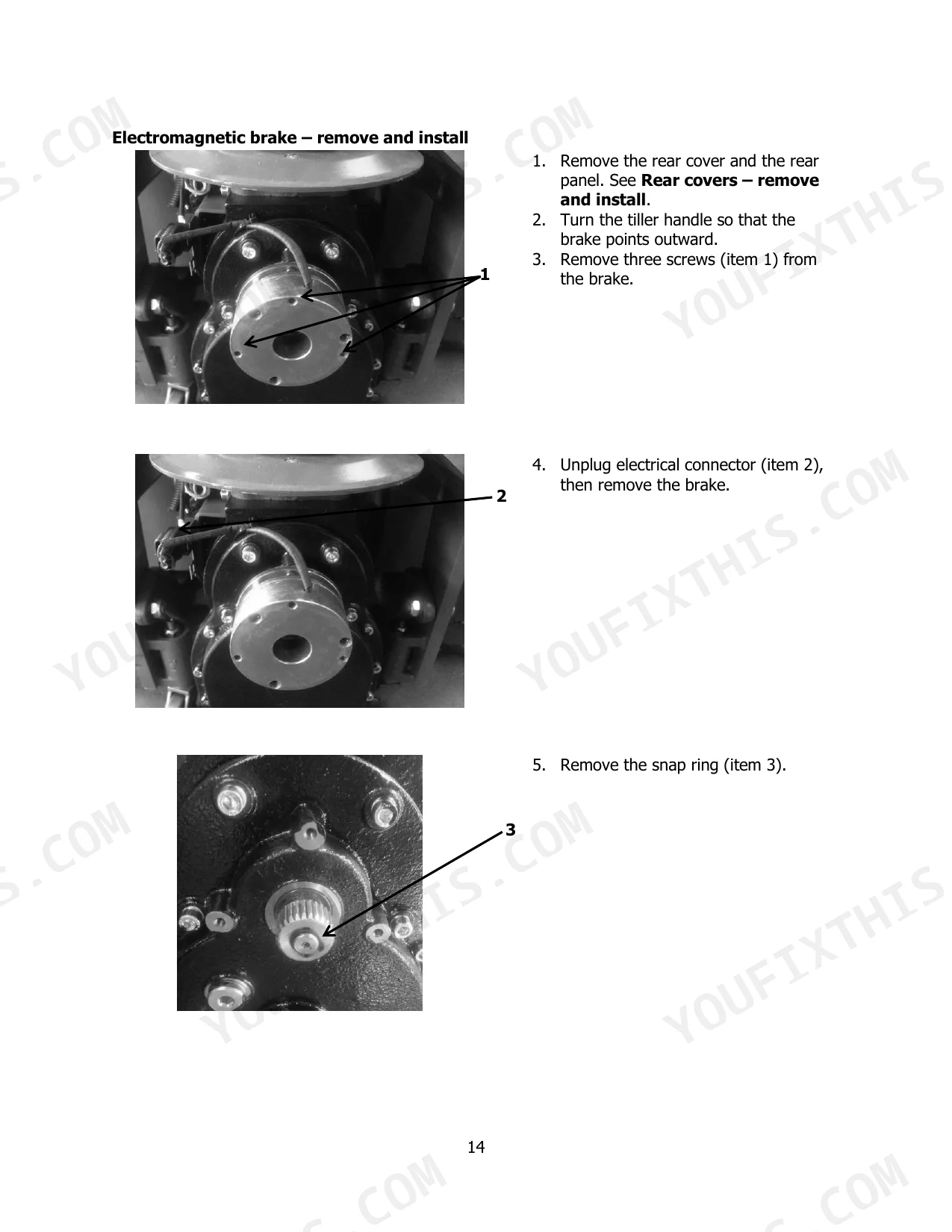

Measure electromagnetic brake resistance against 31+/-5Ω, following page 47. Discharge capacitors before this electrical work (page 5). If it reads out of range, remove the rear cover and rear panel, turn the tiller so the brake points outward, remove the three brake screws and unplug the connector per page 14. Then remove the snap ring, spline gear and flat key.
Manual Section: Specific Fault Troubleshooting Procedures p. 47Load wheel clearance to fork bottom below minimum with truck on level surface
Measure clearance between the top of the load wheel and the bottom of the fork with the truck on a stable, level surface. Minimum is 1 mm (.039 in). Adjust following page 26: remove the snap ring and roll pin, then turn the pull rod end clockwise to shorten the rod or counterclockwise to lengthen it.
Manual Section: Lift System Repair p. 26Hydraulic oil level low on dipstick or oil leaks found during weekly inspection
Remove the upper cover following page 23, then the hydraulic tank cover, and check the dipstick. Add HL-N32 (HV-N20 at -35 to -5°C) up to the Max mark per page 25. Do not fill the tank above the Max mark. Total capacity is 650 ml (0.69 qt) per page 10. Replace the tank cover when done.
Manual Section: Lift System Repair p. 25Drive motor showing new or increased noise during forward and reverse travel check

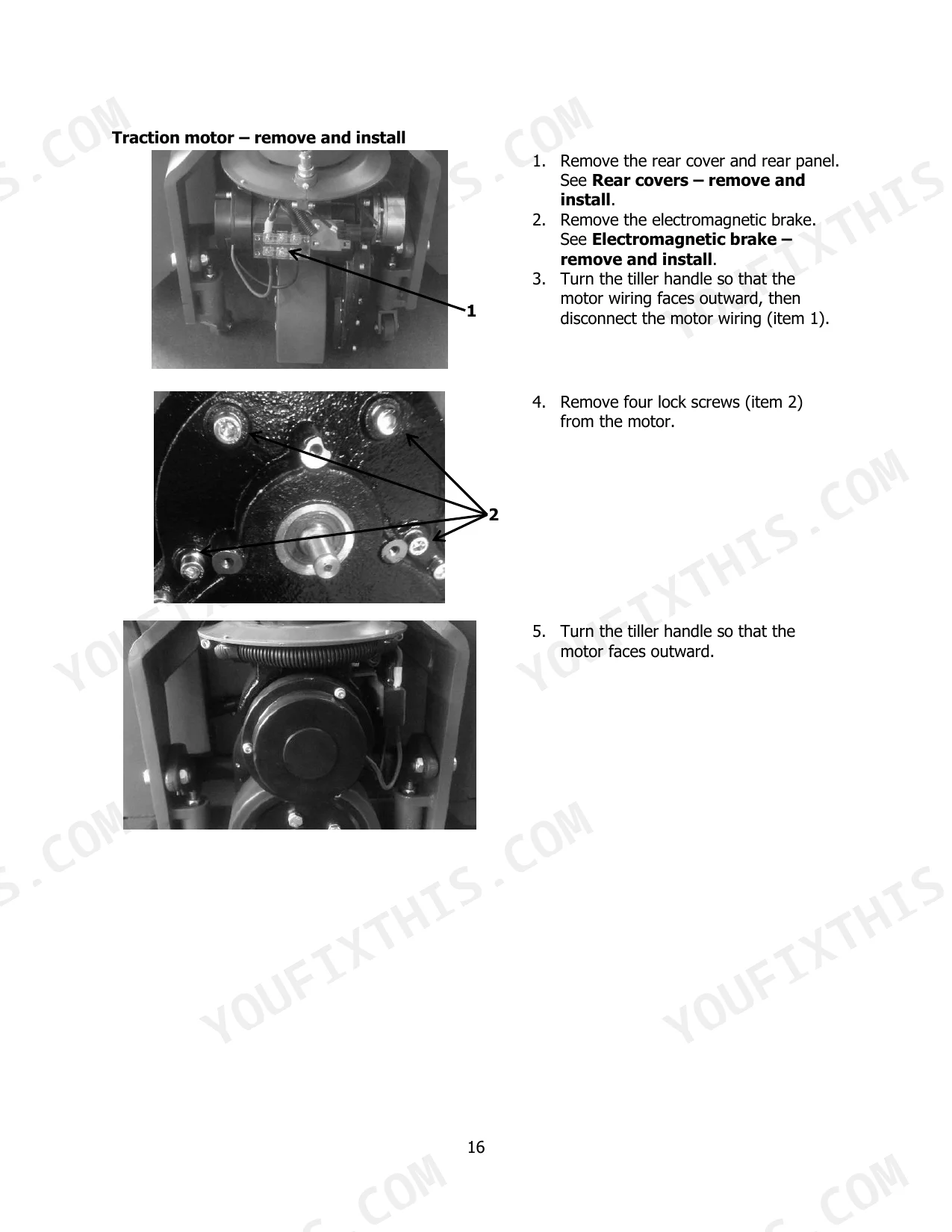

Check traction function and listen for new or increased drive motor noise, following page 9. Replace the gear oil with 320ml (0.39 qt) of GL-5 85W/90 per page 10. To remove the traction motor, follow page 16: remove the rear covers and electromagnetic brake, disconnect the motor wiring after discharging capacitors (page 5), then remove the four lock screws.
Manual Section: Periodic Inspection and Maintenance p. 9Frequently Asked Questions

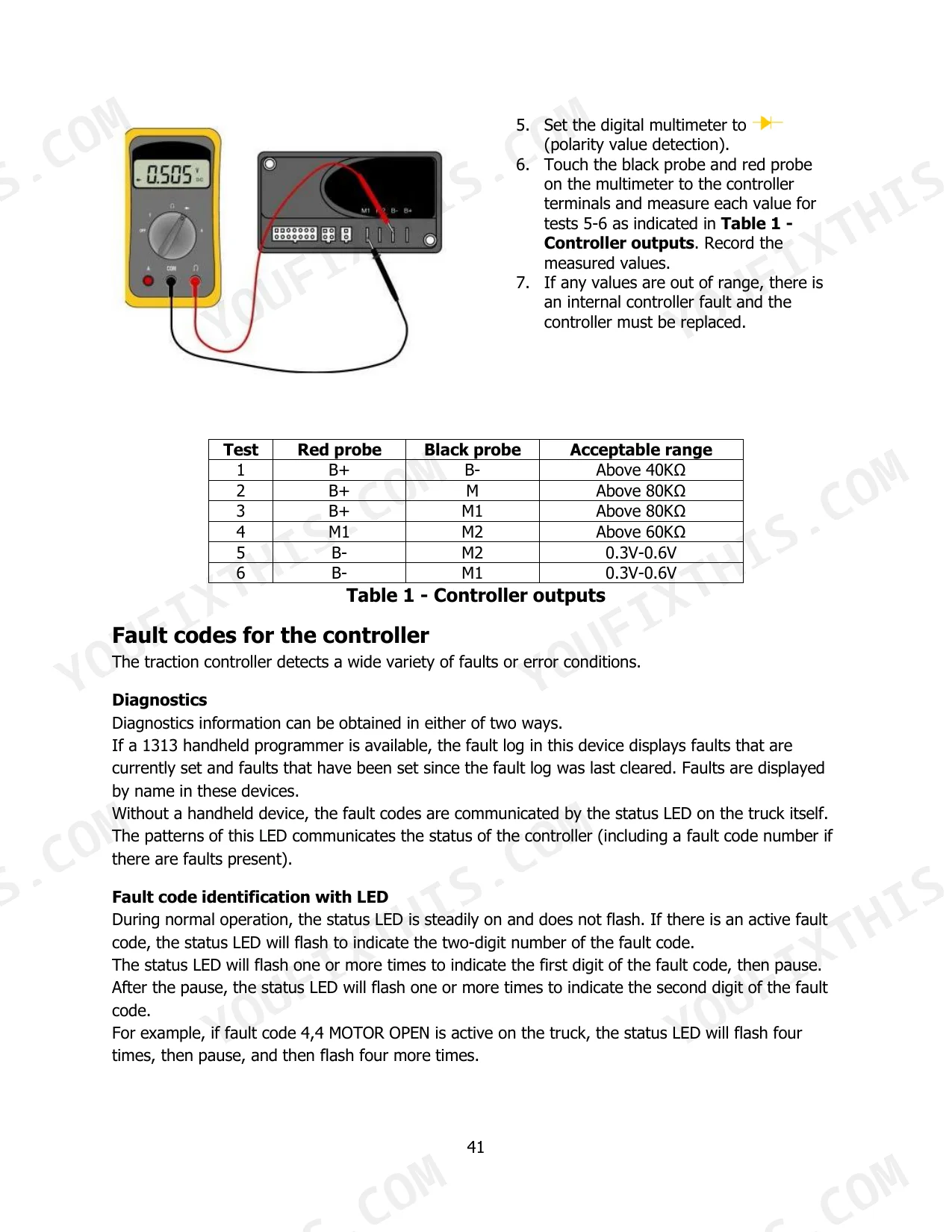

How do I clear fault codes on a Hyster P1.5UT?
To remove all faults from the Fault History, press the Clear All softkey on the handheld programmer. Items in the Present Errors folder are only removed when the fault condition is resolved. p. 53
Why is the Hyster P1.5UT not moving or lifting?
If the truck does not respond, first check if the status LED is flashing a fault code. If there is no fault code, ensure the battery is fully charged and check all motor wiring for damage, short circuits, or corrosion as described on page 39. p. 39
How do I troubleshoot low battery voltage on a Hyster P1.5UT?

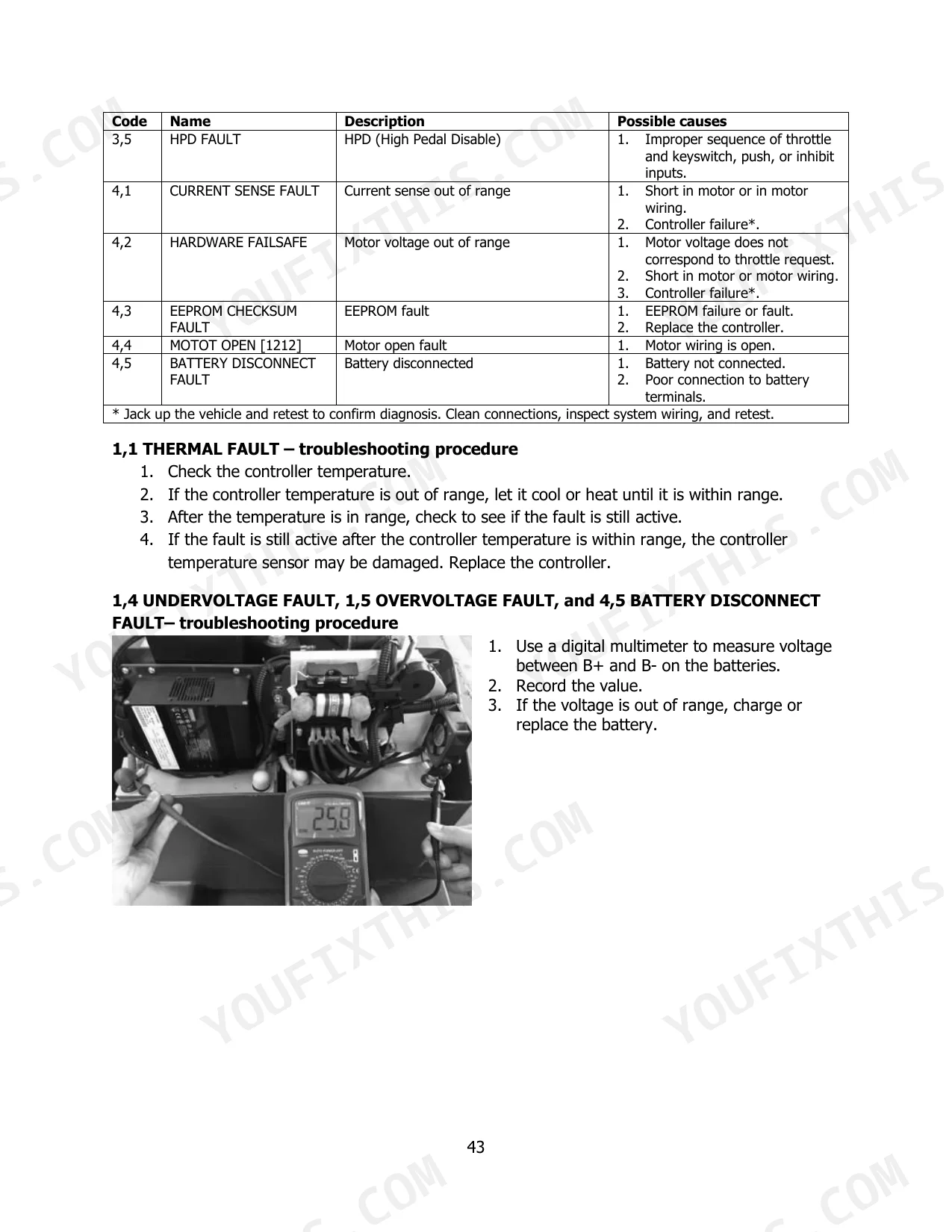

Use a digital multimeter to measure the voltage between B+ and B- on the batteries. If the voltage is out of range, charge or replace the battery. Further checks on the 50A fuse and emergency power disconnect wiring are detailed on page 44. p. 43
What is the recommended gear oil specification and quantity for the Hyster P1.5UT?
The recommended gear oil is GL-5 85W/90 gear oil, and the required quantity is 320ml (0.39 qt). p. 10
What is the required hydraulic oil for the Hyster P1.5UT in ambient temperatures between -5 to 40°C?
For ambient temperatures between -5 to 40°C (23 to 104°F), use HL-N32 hydraulic oil. The required quantity is 650 ml (0.69 qt). p. 10
Is this Hyster P1.5UT Service Manual a digital download?
One searchable PDF covering 54 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Does this Hyster P1.5UT manual allow printing?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
