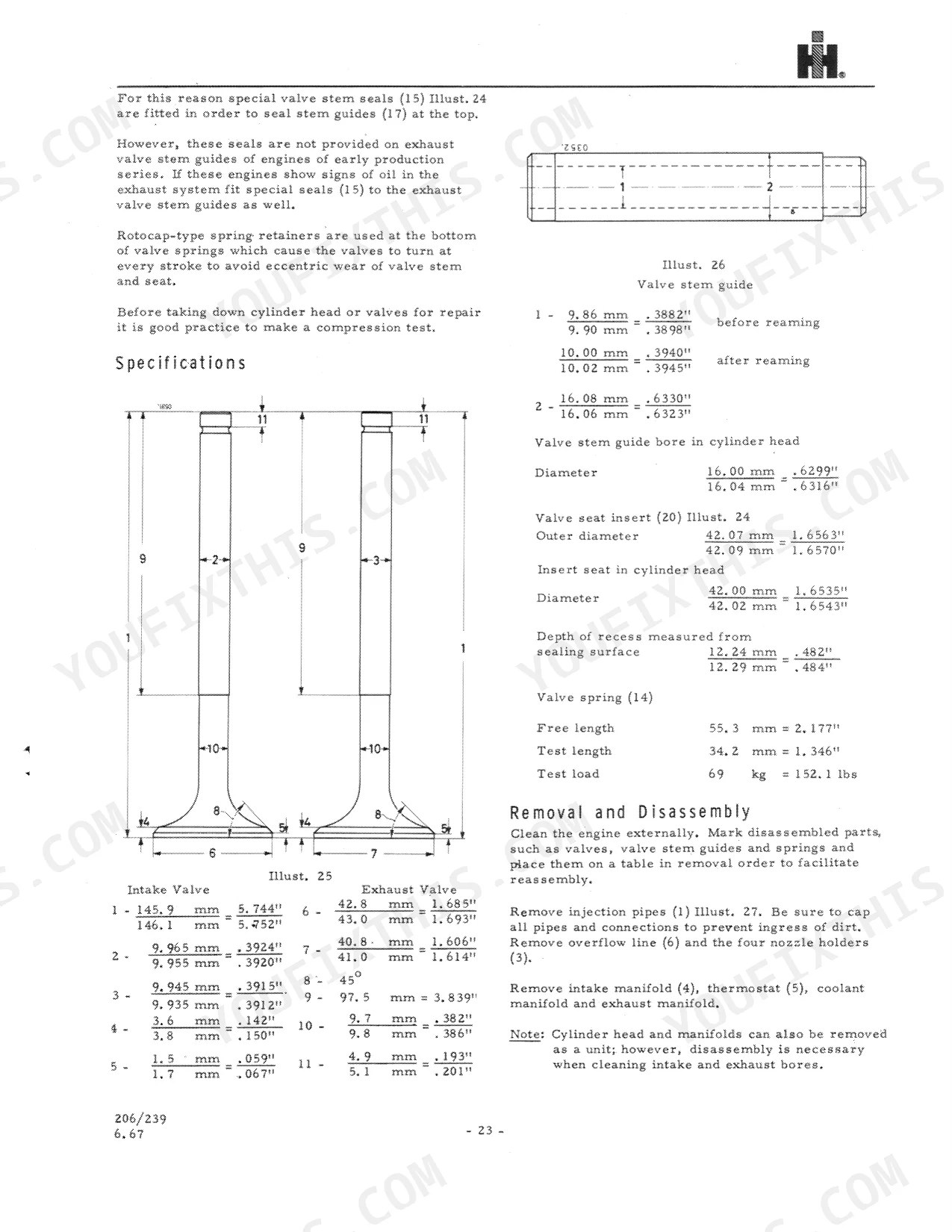

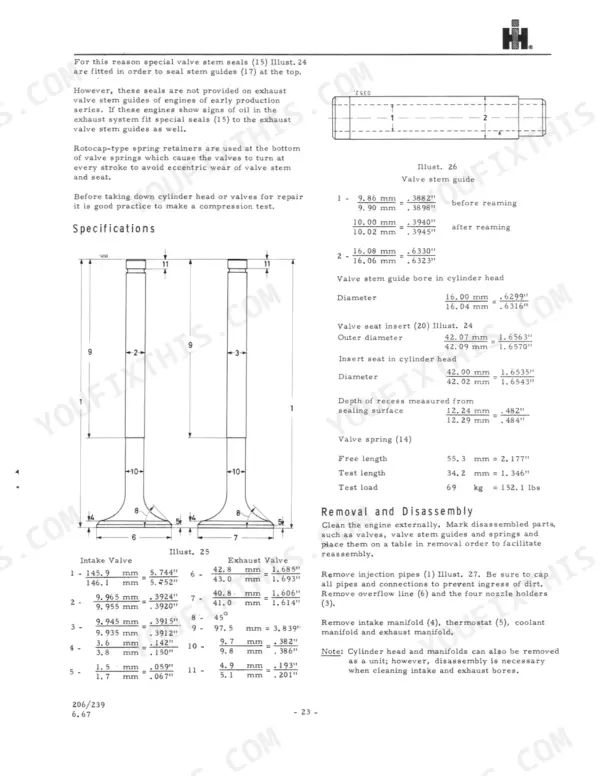

All 128 pages of this International D-206, D-239 Service Manual (OEM #206/239) are built around one goal: getting your diesel engine apart, inspected, and back together to factory spec. You get a Special Torque Chart for every critical fastener, a wiring diagram covering the cranking motor, generator, and voltage regulator circuit, and page after page of exploded views showing each assembly in exact build order. Inside: a full injection pump chapter spanning specs, disassembly, repair, reassembly, and static timing, plus complete procedures for camshaft, crankshaft, pistons, sleeves, and the valve train. Set intake valve clearance to 0.25 mm and exhaust to 0.30 mm on a hot engine; cylinder head nuts torque to 12-13 mkg. No more chasing specs across forum threads. Bookmarks drop you straight to any chapter, or search any value by keyword and pull it up on your phone right at the engine.
What's Inside This International D-206, D-239 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction & General Information | 4 | Manual Overview, Service Operations, assembly/disassembly Procedures, Unit Breakdown |

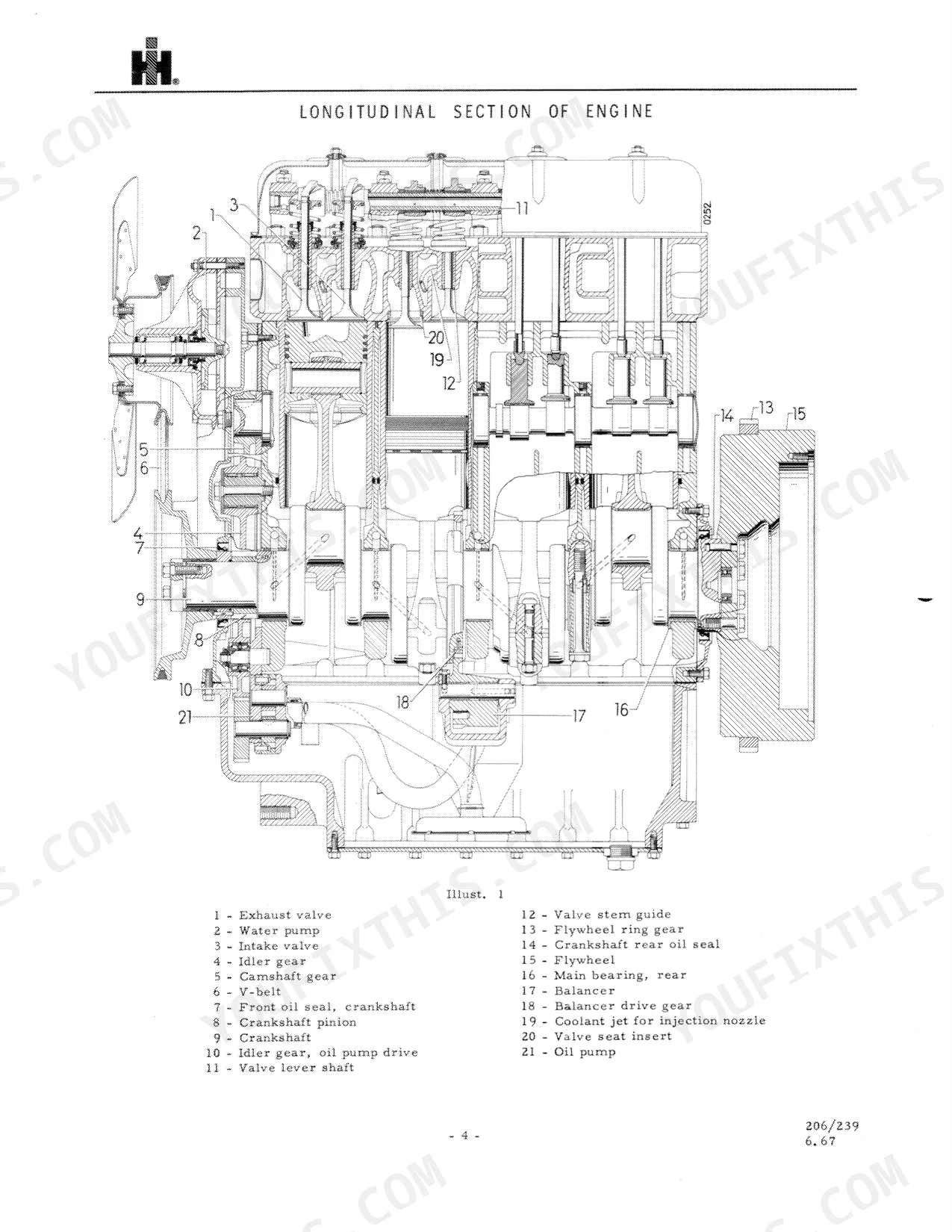

| Index & Reference Data | 5-10 | Table of Contents, Longitudinal Engine Section, Special Torque Chart, Special Tools List |
| Valve Lever Assembly | 11-16 | General Description, Removal, Disassembly, Cleaning, Inspection, Repair, Reassembly |
| Camshaft & Idler Gear | 17-23 | Camshaft, Idler Gear, Valve Tappet, Camshaft Drive Gear, Thrust Plate, Camshaft Bushings, Needle Bearings, Valve Push Rods |
| Cylinder Head & Valve Guides | 24-32 | Cylinder Head, Valve Stem Guides, Valve Seat Insert, Valve Spring, Intake Valve, Exhaust Valve, Valve Lever Shaft Assembly, Intake Manifold |
| Manifolds (Intake & Exhaust) | 33-34 | Intake Manifold Removal, Exhaust Manifold Removal, Cleaning, Inspection, Repair, Reassembly, Installation |
| Crankcase & Related Components | 35-41 | Front Cover, Front Plate, Oil Pan, Side Cover, Breather Filter, Flywheel Housing, Specifications, Removal |
| Crankshaft, Balancer & V-Belt Pulley | 42-51 | Crankshaft, Balancer, V-Belt Pulley, Main Bearing, Balancer Drive Gear, Crankshaft Pinion, Spacer Ring, Flywheel |
| Flywheel & Ring Gear | 52-55 | Flywheel, Dual Clutch, Torque Converter, Flywheel Ring Gear, Clutch Assembly, Starter Pinion, Ball Bearing, Dowel Pin |
| Pistons, Cylinder Sleeves & Connecting Rods | 56-65 | Pistons, Cylinder Sleeves, Connecting Rods, Piston Pin, Piston Pin Bushing, Connecting Rod Nut, Connecting Rod Bolt, Bearing Insert |
| Oil Pump & Oil Filter | 66-71 | Oil Pump, Oil Filter, Idler Gear, Relief Valve, Drive Shaft, Bearing Cap |
| Water Pump, Fan & V-Belt | 72-77 | Water Pump, Fan, V-Belt, Pump Impeller, Pump Hub, Pump Body, Bearing Face Ring |
| Thermostat & Coolant Manifold | 78-79 | Thermostat, Coolant Manifold |

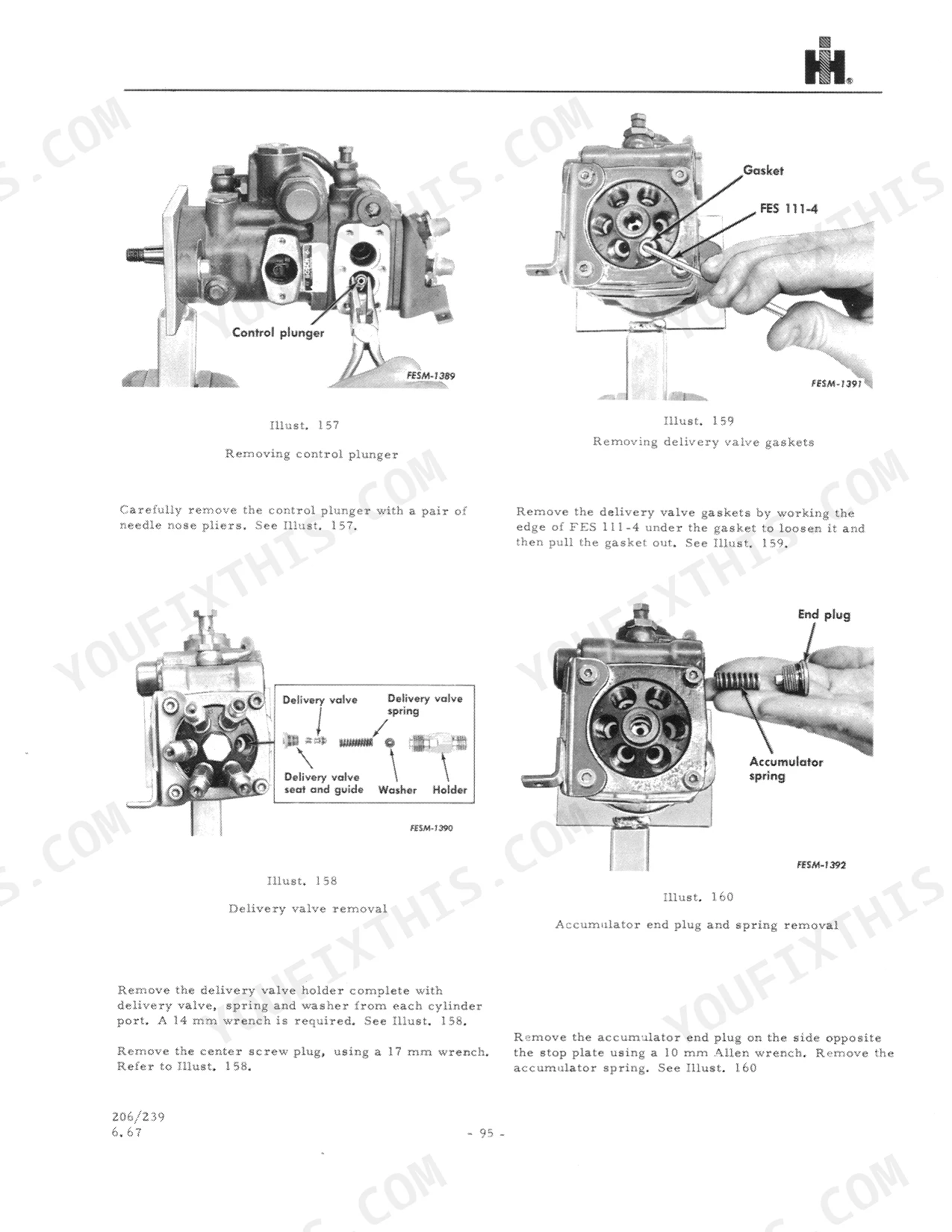

| Injection Pump System | 81-112 | Injection Pump, Charging Pump, Automatic Advance Device, Plunger and Spring Assembly, Hydraulic Head, Throttle and Control Plunger Bushings |
| Fuel System Components (Feed Pump, Filter, Nozzles) | 113-123 | Control at Stop and Starting Positions, Control at Variable Speed, Delivery, End of Delivery, Excess Fuel for Starting, Flow, Fuel Rator Adjustment, Low and High Idle Adjustment |
| Electrical Equipment | 124-127 | Cranking Motor, Generator, Voltage Regulator, Removal, Cleaning, Inspection, Repair, Installation |
| Tuning-Up & Breaking-In | 128 | Valve Clearance Adjustment, Injection Pump Timing Check, General Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve clearance (hot engine) - intake valve | 0.25 mm = .010" | p. 126 |
| Valve clearance (hot engine) - exhaust valve | 0.30 mm = .012" | p. 126 |
| Cylinder head nuts torque | 12-13 mkg | p. 8 |
| Connecting rod nuts torque | 8.5-9 mkg | p. 8 |
| Valve lever shaft diameter | 21.593 mm | p. 12 |
| Camshaft end float | 0.10 mm | p. 17 |
| Intake valve length | 145.9 mm | p. 25 |
| Main bearing inner diameter | 55.00 mm | p. 41 |
| Flywheel bolts torque | 9.5-10 mkg | p. 53 |
| Piston pin diameter | 36.000 mm | p. 57 |
| Cylinder sleeve inner diameter | 98.425 mm | p. 57 |
| Oil pump gear number of teeth | 10 | p. 67 |
International D-206, D-239 Common Problems This Manual Covers
International D-206/D-239 diesel idles roughly and loses power once valve lash drifts out of specification p. 126
Adjust the valve lash clearance on a hot engine following the procedures on page 126. Set the intake valve clearance to exactly 0.25 mm and the exhaust valve to 0.30 mm. Recheck the gap with a feeler gauge after tightening the locknut.
Manual Section: Electrical EquipmentCoolant weeping from the block deck mating surface or sudden compression loss during operation. p. 8
Inspect the block deck and head surface for flatness. Torque the cylinder head nuts to 12 to 13 mkg as specified on page 8. Follow the correct tightening sequence from the center outward to ensure proper gasket crush and sealing.
Manual Section: Index & Reference DataHeavy engine blow-by and excessive crankcase oil consumption requiring a full lower end overhaul. p. 57
Measure the cylinder sleeve inner diameter during block inspection. Verify the bore does not exceed the standard 98.425 mm specification for the D-239 model on page 57. Replace the sleeves and pistons if out of roundness or taper limits are reached.
Manual Section: Pistons, Cylinder Sleeves & Connecting RodsEngine vibration and hard, noisy starting traced to flywheel scoring, heat cracks, or worn ring gear teeth p. 53
Remove the clutch assembly and inspect the flywheel for scoring or heat cracks. Clean the mounting flange and torque the flywheel bolts to exactly 9.5 to 10 mkg as detailed on page 53. Check ring gear teeth for abnormal wear patterns.
Manual Section: Flywheel & Ring GearFrequently Asked Questions
Torque specs for International D239 connecting rod bolts?
The torque specification for connecting rod nuts on the D239 engine is 8.5 - 9 mkg, which translates to 62 - 65 ft lbs. During reassembly, the connecting rod caps should be tightened in two steps: first to 5 mkg (36 ft lbs), then to 8.5 mkg (61.5 ft lbs).
Are D206 and D239 engines basically the same except crank and rods?
The D206 and D239 engines are not basically the same except for the crankshaft and rods. Due to the difference in stroke between the two engines, the dimensions of pistons, piston rings, connecting rods, and cylinder sleeves vary.
What are the replacement specifications for High-pressure fuel lines?
The manual notes that injection pipes (high-pressure fuel lines) can become brittle and leaky if subjected to vibrations or chafing, which reduces their service life. However, specific replacement specifications like part numbers or detailed material requirements are not provided.
What are the replacement specifications for Electrical wire clips and connectors?
For electrical wire clips and connectors, the manual specifies ensuring all connectors are tight and terminal clamps are securely fastened to prevent intermittent contacts. Cables must be correctly connected according to the color code shown in Illust. 257 and the respective machine's Operator's Manual. However, specific replacement specifications like part numbers or dimensions for the clips and connectors are not provided.
How quickly can I access this manual after buying?
Immediate download of the complete 128-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this International D-206, D-239 manual?
Yes, this International D-206, D-239 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
