Moving a disabled machine and helping a cold engine start each get their own instructions in the J I Case 580E operator manual PDF, a 179-page book (OEM ID 9-8893) for the 580E and 580SE loader backhoe. The instrument cluster, loader and backhoe controls, the Case coupler, return-to-dig and lifting with the backhoe come first; then the Maintenance and Lubrication chapter lists fuel, fluids and lubricants, grease fittings, and service for the engine, hydraulics, power shuttle, transaxle and brakes. Safety rules and specifications round out the book. Refill the hydraulic reservoir with 12.5 gallons (47.3 litres) after a filter change, and hold compressed air to 30 psi (206 kPa) when you clean the air filter. Your walk-around inspection and the run-in maintenance chart are both set out. Serial number locations for the engine, transaxle and front drive axle help you quote the right numbers when ordering parts, and the bookmarked, text-searchable PDF finds them fast.
What's Inside This J I Case 580E, 580SE Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Warning | 2 | Safety Alert Symbol, Operator Instructions, Improper Operation, Safety Decals, Machine Controls |
| Introduction | 4-5 | To the Owner, After Delivery Check |
| Safety | 6-25 | Before You Start the Engine, Operation (Loader Operation, Backhoe Operation, Stopping the Machine), Service (Spark Arrester, ROPS Safety, Cast Iron Parts) |

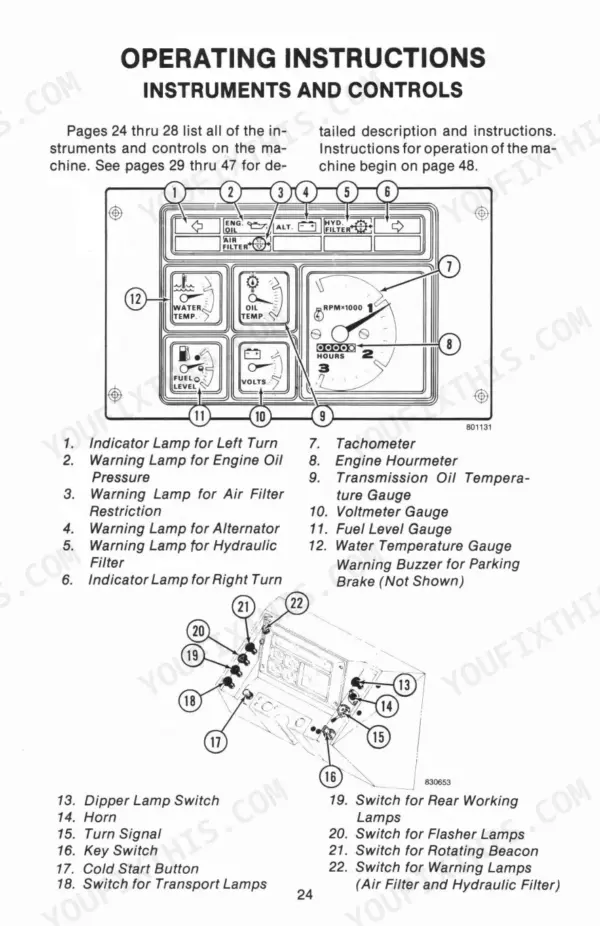

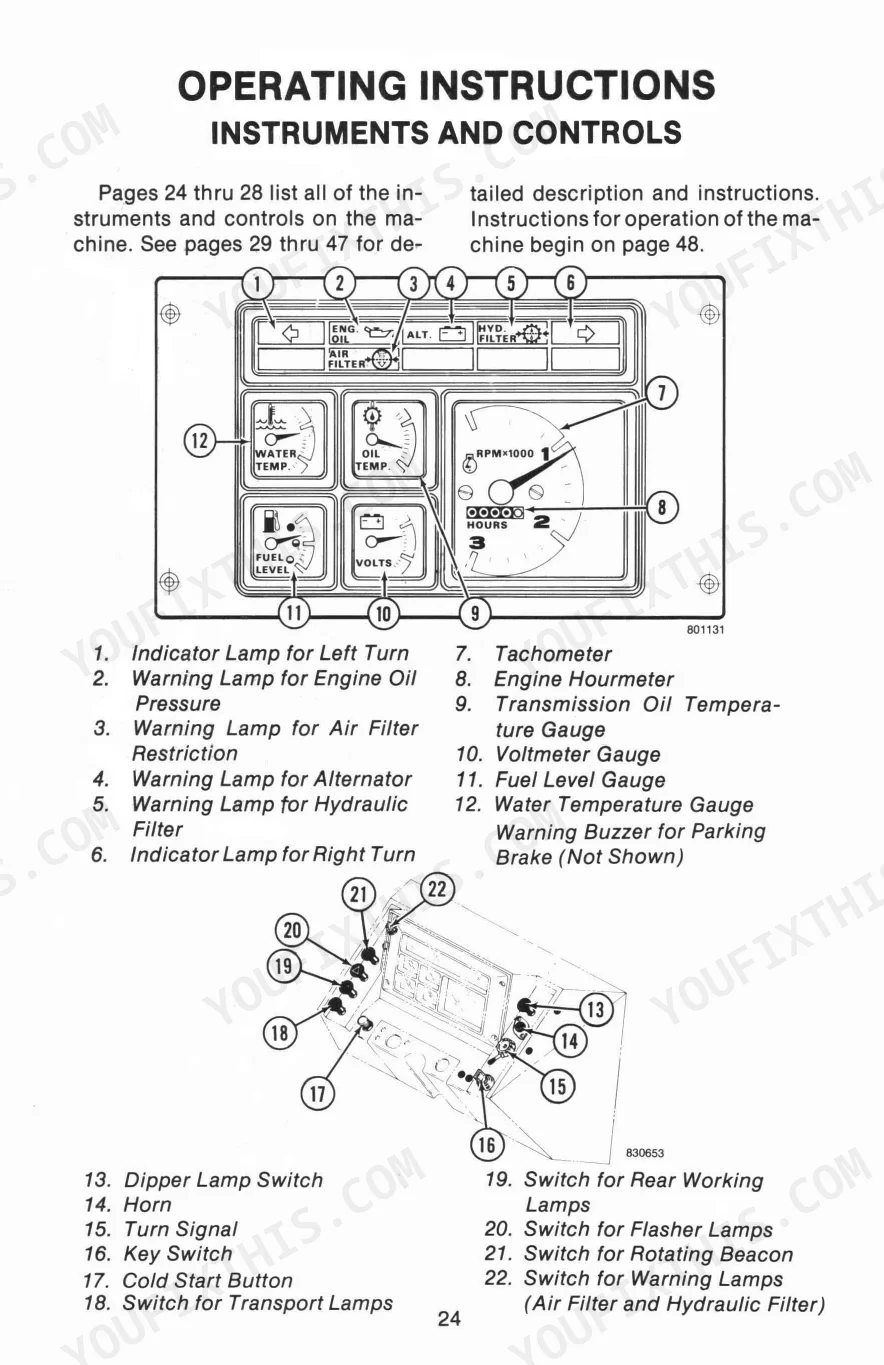

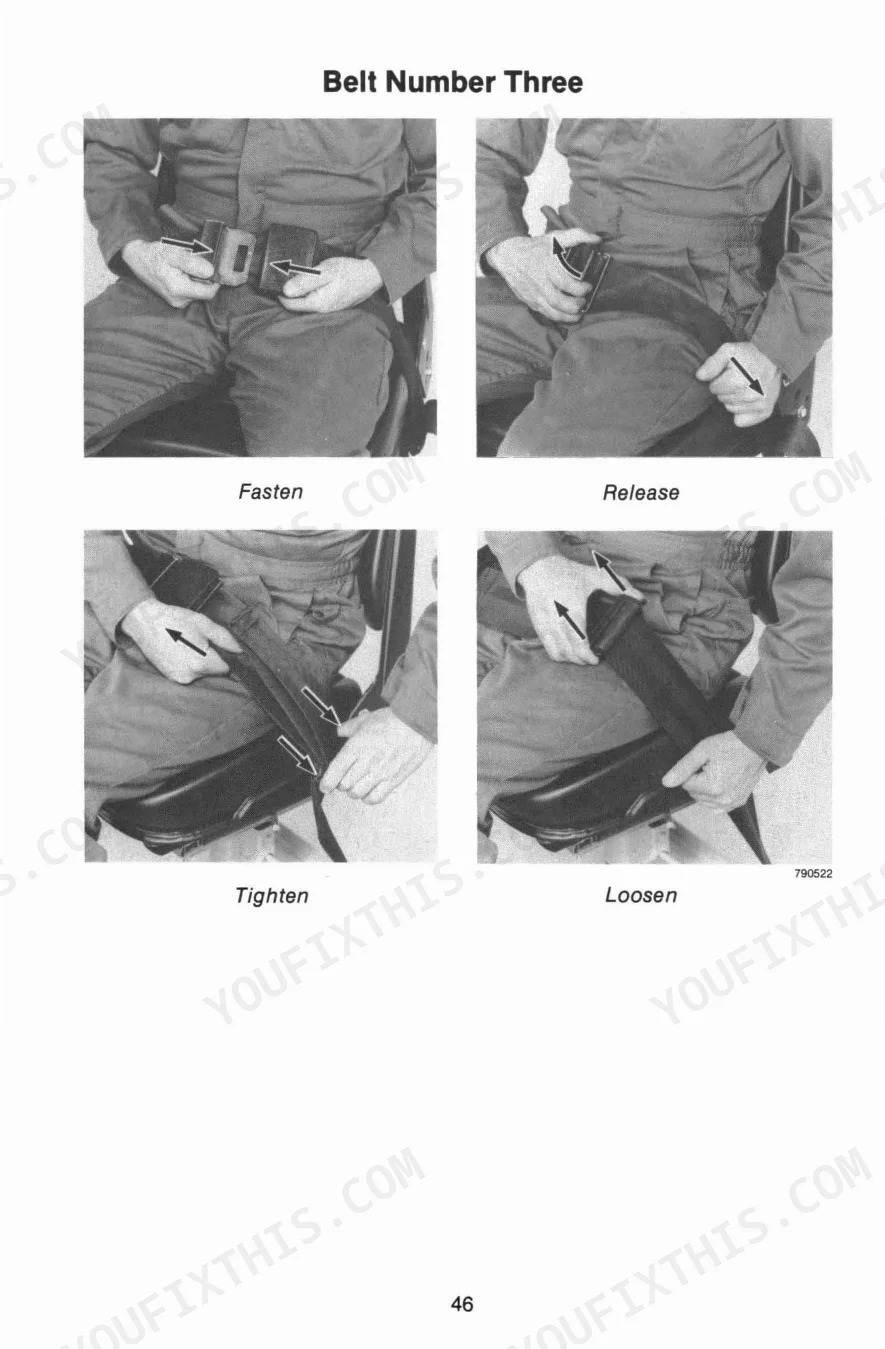

| Operating Instructions | 26-49 | Instruments and Controls (Instrument Cluster, Machine Controls, Parking Brake), Differential Lock, Clutch Cutout, Front Drive Axle Control, Operator Seats, Cab Controls, Operator Seat Belts |
| Engine Operation | 50-55 | Walk-Around Inspection, Starting the Engine, Engine Speed, Stopping the Engine, Methods to Help Start the Engine During Cold Weather |
| Machine Operation | 56-62 | Adjusting the Seat, Operating on a Hill, Four Wheel Drive, Transporting the Machine |
| Loader Operation | 63-68 | Loader Controls, Bucket Indicators, 4-In-1 Bucket, Fast Cycle Switch, Job Layout |
| Backhoe Operation | 69-90 | Stabilizer Pads, Case Coupler, Backhoe Control, Digging with the Backhoe, Lifting with the Backhoe, Transport Position, Backhoe Removal, Backhoe Installation, Three Point Hitch Controls |

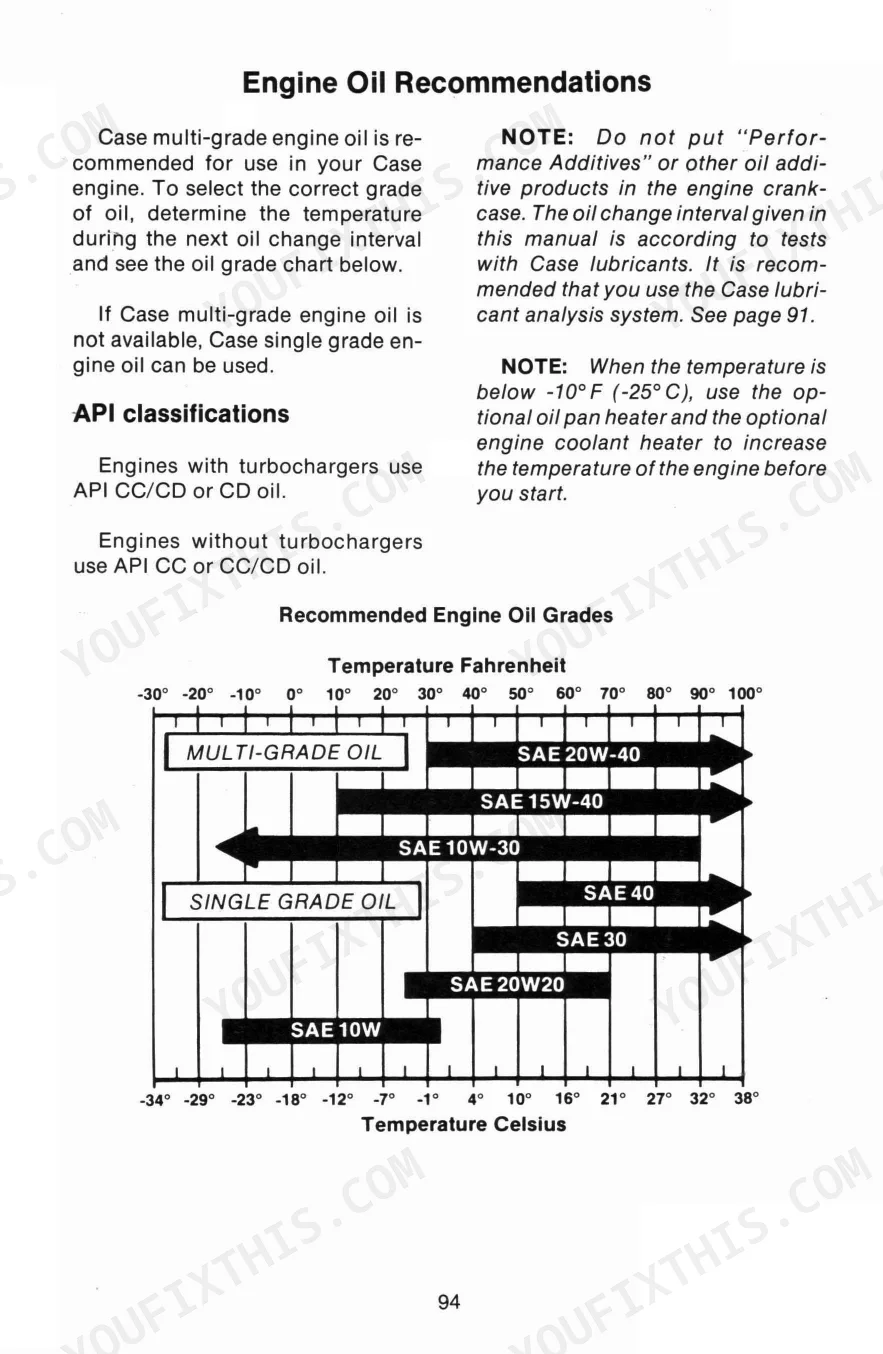

| Maintenance and Lubrication | 91-108 | General Safety Before You Service, Support Strut for Loader Lift Arms, Diesel Fuel, Fluids and Lubricants Chart, Run-In Maintenance Chart, Maintenance Chart, Grease Fittings |

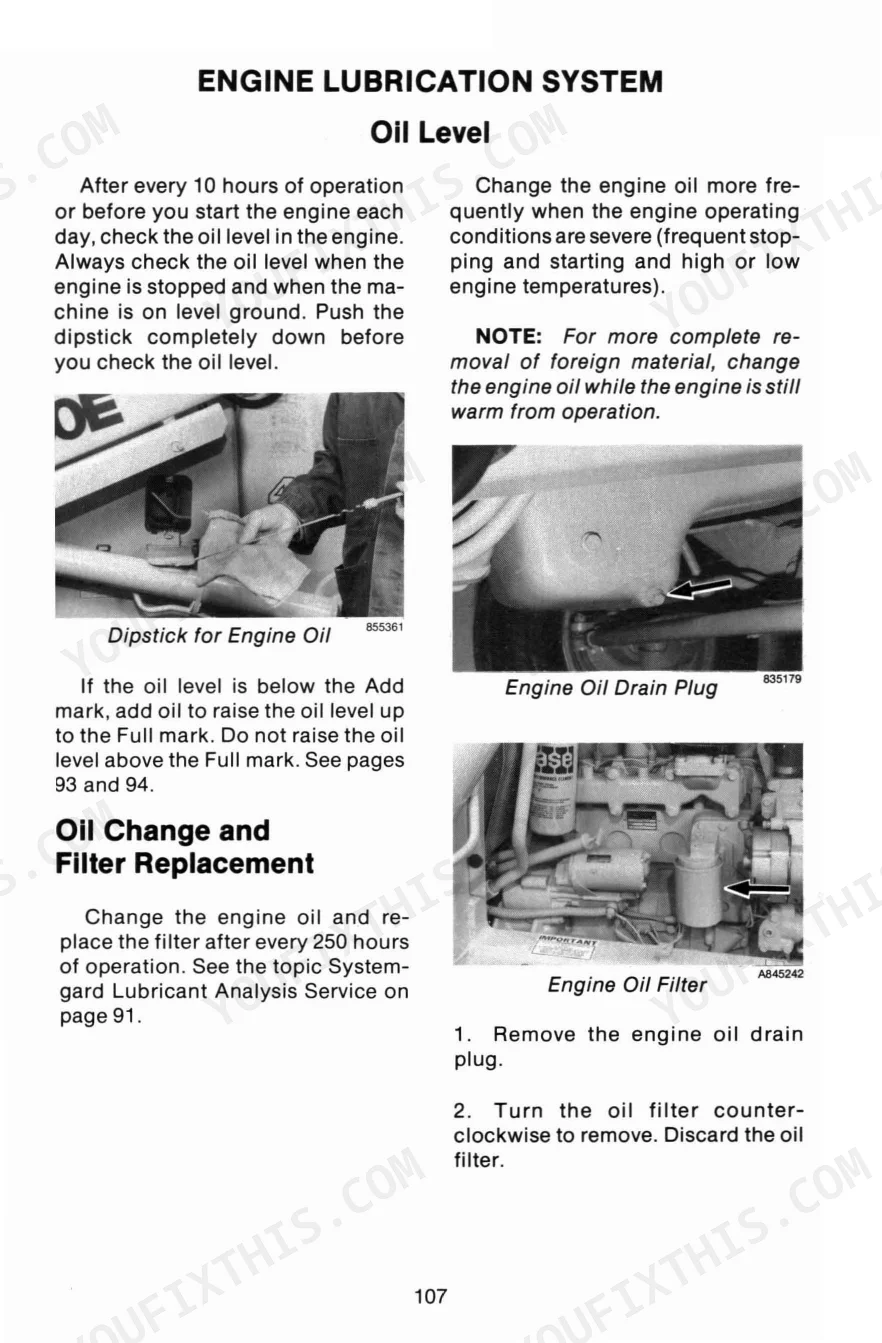

| Engine Lubrication System | 109-117 | Oil Level, Engine Oil Filter, Air Cleaning System, Engine Cooling System, Diesel Fuel System |
| Electrical System | 118-124 | Battery Maintenance, Hydraulic System |
| Power Shuttle Transmission | 125-131 | Four-Speed Transaxle, Front Drive Axle, Transfer Case |
| Wheels and Tires | 132-138 | Spark Arrester Muffler, Loader Adjustments, Bucket Teeth, Air Conditioner Drive Belt |
| Cab Service | 139-146 | Cab Air Filter, Ether Cold Start CAN, Storage Preparation, Removal From Storage |
| Roll-Over Protective Structure | 147-153 | ROPS Inspection, Safety Decals |

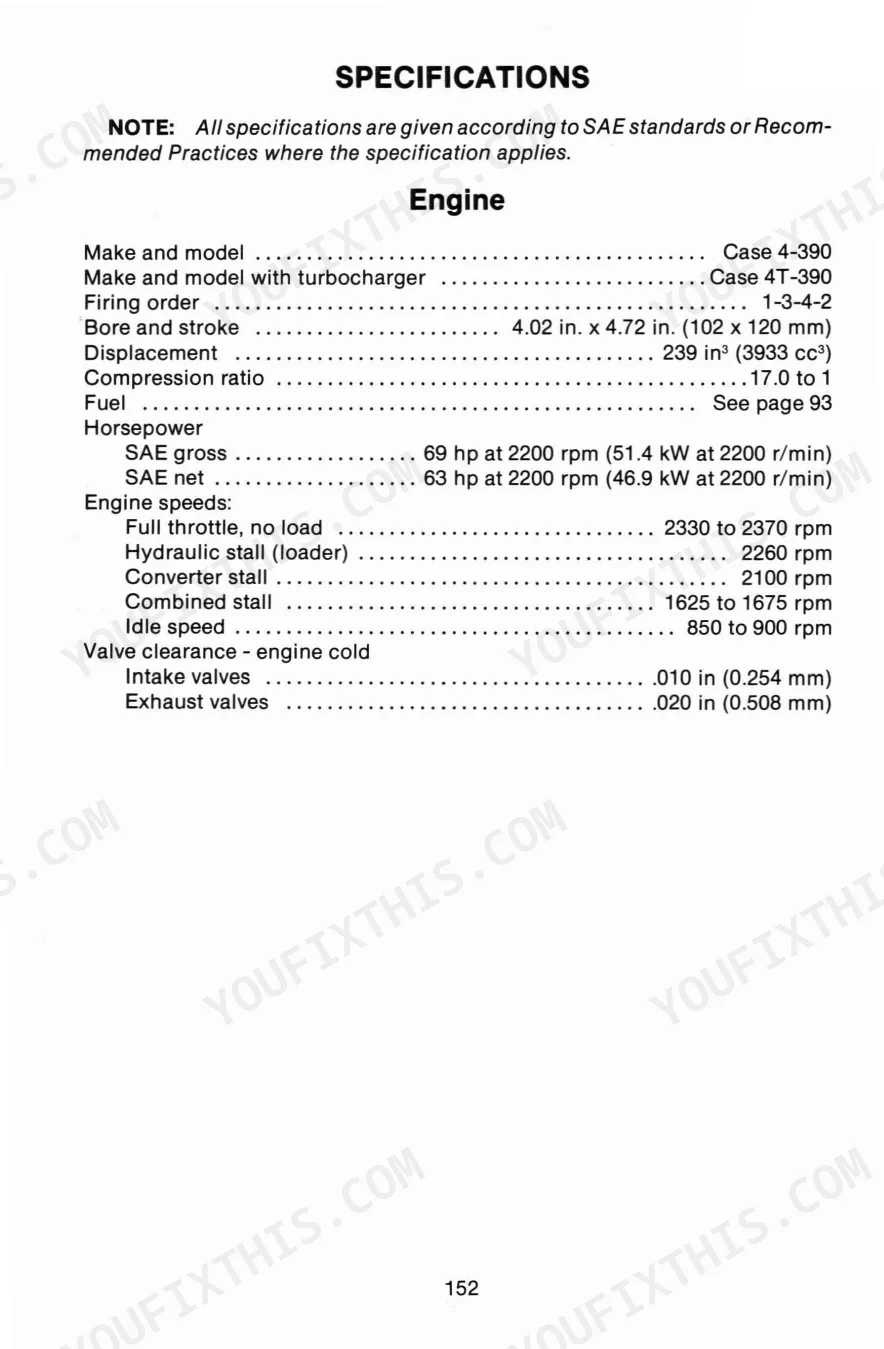

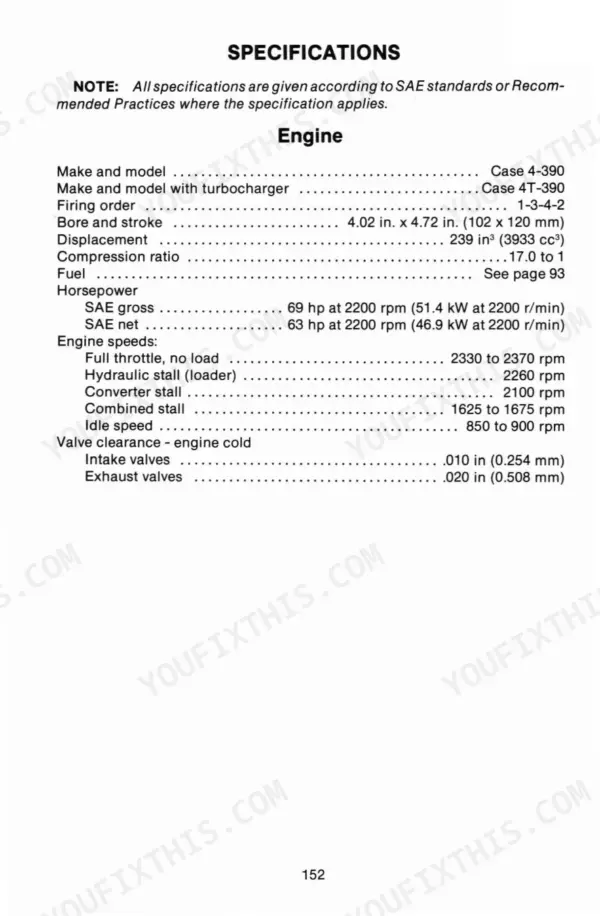

| Specifications | 154-172 | Backhoe Lift Capacity, Extendahoe Lift Capacity, Loader Bucket |
| Location of Product ID & Serial Numbers | 173-176 | Basic Machine, Operator's Compartment, ROPS Cab, ROPS Canopy, Engine, Four Speed Transaxle, Front Drive Axle, Identification Number (PIN) |
| After Delivery Check | 177-179 | Fuel System, Hydraulic System, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tension rod nut torque | First 300-350 pound-feet (405-475 N m), Second 200-250 pound-feet (270-340 Nm) | p. 90 |
| Compressed air pressure for cleaning air filter | 30 psi (206 kPa) | p. 111 |
| Engine Oil Capacity (with filter change) | 11 quarts (10.4 litres) | p. 95 |
| Hydraulic Reservoir Refill Capacity (with filter change) | 12.5 gallons (47.3 litres) | p. 95 |
| Power Shuttle Transmission Oil Capacity | 8 quarts (7.6 litres) | p. 95 |
| Four-Speed Transaxle Oil Capacity (Machines before Pin 17032504) | 20 quarts (19 litres) | p. 95 |
| Four-Speed Transaxle Oil Capacity (Machines with Pin 17032504 and after) | 16 quarts (15 litres) | p. 95 |
| Wheel Bolt Torque | 115 to 130 pound-feet (155 to 176 N m) | p. 132 |
| Front Wheel Nut Torque (four-wheel drive) | 95 to 105 pound-feet (128 to 142 N m) | p. 132 |
| Backhoe Tension Rod Nut Torque (Initial) | 300 to 350 pound-feet (405 to 475 N m) | p. 90 |
| Backhoe Tension Rod Nut Torque (Final) | 200 to 250 pound-feet (270 to 340 N m) | p. 90 |
| Lower Swing Pivot Pin Nut Torque | 800 to 1000 pound-feet (1085 to 1356 N m) | p. 157 |
J I Case 580E, 580SE Common Problems This Manual Covers
J I Case 580E/580SE engine cranks but no white or black smoke appears at the exhaust pipe
Check the fuel supply first. Cranking should show white or black smoke at the exhaust (page 50). Fasten the seat belt before cranking. Confirm the parking brake is engaged and the shuttle and transaxle levers are in Neutral, then push the foot throttle 1/4 down. Crank no more than 30 seconds, and let the starter cool three minutes between tries. If the tank ran dry, remove air from the fuel system following page 117.
Manual Section: Engine Starting Problems p. 50Ether cold start system will not start the engine after two attempts in cold weather
Check the supply of ether in the cold start can, as page 53 directs after two failed attempts. The system only works on a cold engine. Hold the foot throttle 1/2 open while you crank. Before you replace the can, read its warnings. Sparks or flame near ether can cause an explosion, so keep cans out of high-heat storage (page 52).
Manual Section: Engine Starting Problems p. 53Radiator coolant level low while the coolant reservoir level stays at the FULL mark
Inspect the hose between the radiator and the coolant reservoir for air leaks (page 114). Check with the engine stopped and the coolant cold. Hot coolant can spray out of the radiator. Let the system cool, turn the cap to the first notch, and wait until all pressure releases before you remove it. Top up with 50% ethylene glycol and 50% water to the radiator opening.
Manual Section: Cooling System Troubleshooting p. 114Engine coolant looks dirty or has a rust color when checked at the reservoir
Drain, clean and replace the coolant following page 115. With the coolant cold, open the radiator drain valve and pull the block drain plug. Run the cleaning solution through, then flush with clean water. Remove the grille and clear the radiator with compressed air or water. Refill to the radiator opening and the reservoir FULL mark. After warm-up, check the level at the reservoir only, and never pull a hot radiator cap (page 114).
Manual Section: Cooling System Troubleshooting p. 115Engine power decreased and water or sediment shows when draining the first stage fuel filter
Open the fuel tank drain valve until the water and sediment are gone (page 116). Then replace both fuel filters following page 117. Hand tighten each filter 1/2 to 3/4 turn after the gasket makes contact, and never tighten them with the strap wrench. Refill the tank with the engine stopped and no flame or smoking nearby (page 116). Finally, bleed air at the intake manifold and injection pump screws.
Manual Section: Fuel System Troubleshooting p. 117Engine oil pressure or alternator warning lamp does not light with key switch ON
Verify that both the oil pressure and alternator lamps light at key ON (page 50). Push the warning lamp switch right to test the two filter lamps. If a lamp stays dark, disconnect the battery ground cable first (page 119). Then turn the lamp assembly counterclockwise and replace the bulb with a No. 168 (page 118).
Manual Section: Electrical System Troubleshooting p. 118Frequently Asked Questions
How do you bleed the hydraulic system after replacing the filter on a Case 580E?
After replacing the hydraulic filter and filling the reservoir, start the engine and operate the loader and backhoe controls for three or four minutes. Stop the engine and check for leaks, then check the fluid level. p. 123
What is the correct torque for the wheel bolts on a Case 580E?
The wheel bolts must be tightened to a torque of 115 to 130 pound-feet (155 to 176 N m). p. 132
What is the engine oil capacity for a Case 580E with a filter change?
The engine oil capacity for the Case 580E with a filter change is 11 quarts (10.4 litres). p. 95
What is the fuel tank capacity of the Case 580E?
The fuel tank holds 26.5 gallons, as listed in the Capacities table of the Specifications section. p. 156
How much coolant does the Case 580E cooling system hold?
The cooling system holds 19 quarts on models with a heater and 18.2 quarts on models without a heater. p. 156
Is this J I Case 580E manual a PDF I download?
A single searchable PDF file of 179 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print specific sections of this J I Case 580E Operator Manual?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
