This JCB 520-40, 524-50, 527-55 Service Manual (OEM #9803/3690-10) runs 733 pages with one job: getting your 2003-2009 Compact Loadalls back to factory condition. Wiring coverage spans 153 pages across every electrical circuit on all three models, backed by hydraulic schematics with full pump and motor test points for early and later machines. Step-by-step service procedures, Load Moment Indicator fault codes with diagnostic test sequences, and torque tables for fasteners, hydraulic connections, and O-ring face seal fittings are all included. Set your SAE 3/4-16 hydraulic connections at 95.0-105.0 Nm; wheel nuts front and rear take 680 Nm. With the machine down, forum guesses won't cut it. Bookmarked by section and keyword-searchable, it opens on your tablet so you can read it at the machine and get to work.
What's Inside This JCB 520-40, 524-50, 527-55 Manual
| System | Pages | Key Topics |
|---|---|---|

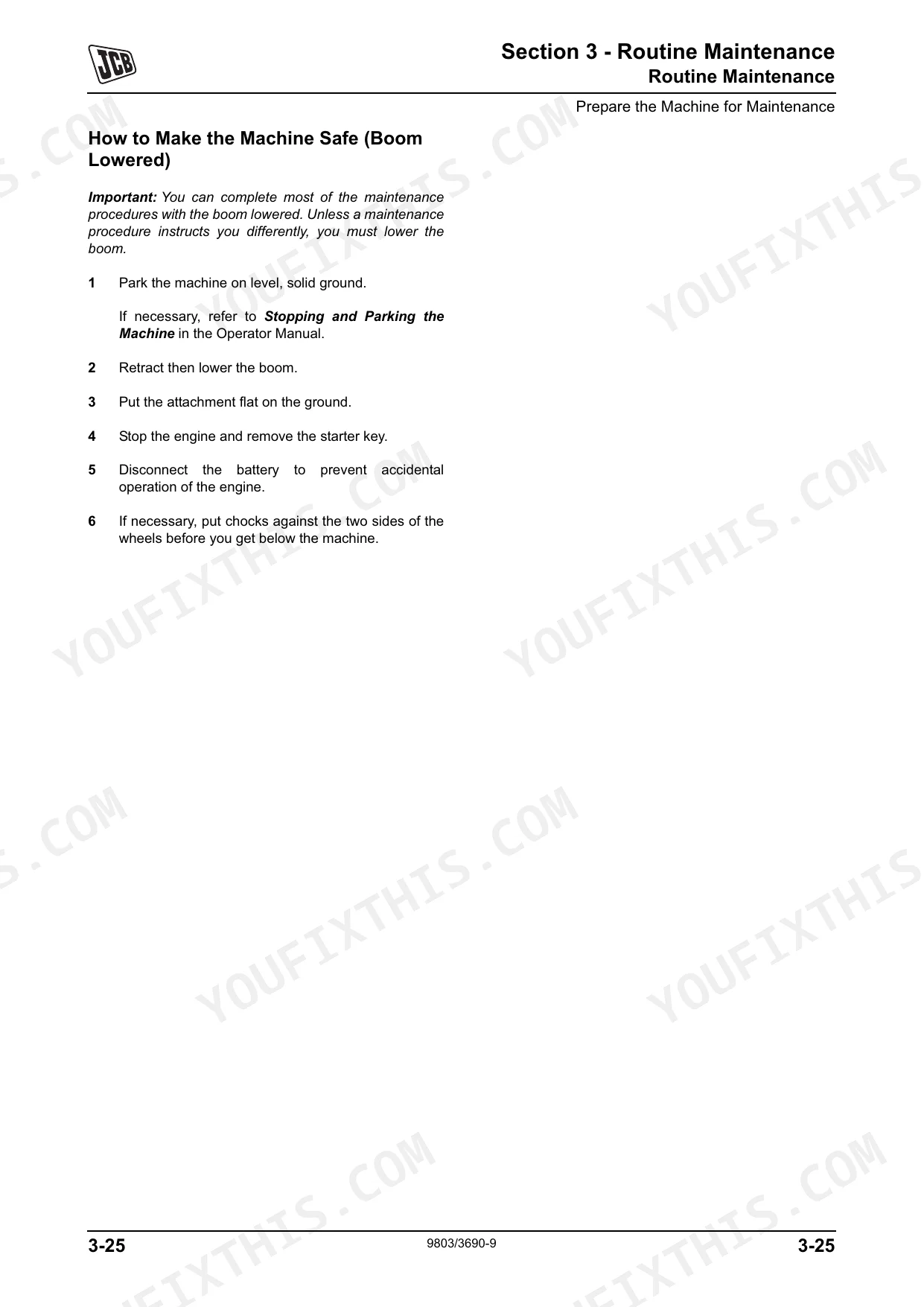

| Care and Safety | 36-55 | Safety Notices (Important Information, Operator Manual, Safety Warnings), Safety Checklist (Safety - Yours and Others, Operating Safety, Maintenance Safety) |
| Attachments | 156-161 | Service Procedures (Quick Release Couplings, Connecting and Disconnecting, Quick Release Couplings - Do's and Don'ts, Connecting Quick Release Couplings, Disconnecting Quick Release Couplings) |
| Body and Framework | 162-223 | Service Tools (Numerical List), Basic Operation (Load Moment Indicator), Fault Finding (Load Moment Indicator, Fault Codes, Diagnostic Tests) |
| Electrics | 224-405 | Service Tools (Numerical List), Technical Data (Fuses and Relays, Fuses, Primary Fuses, Relays) |
| Controls | 406-427 | Manual Control Levers |

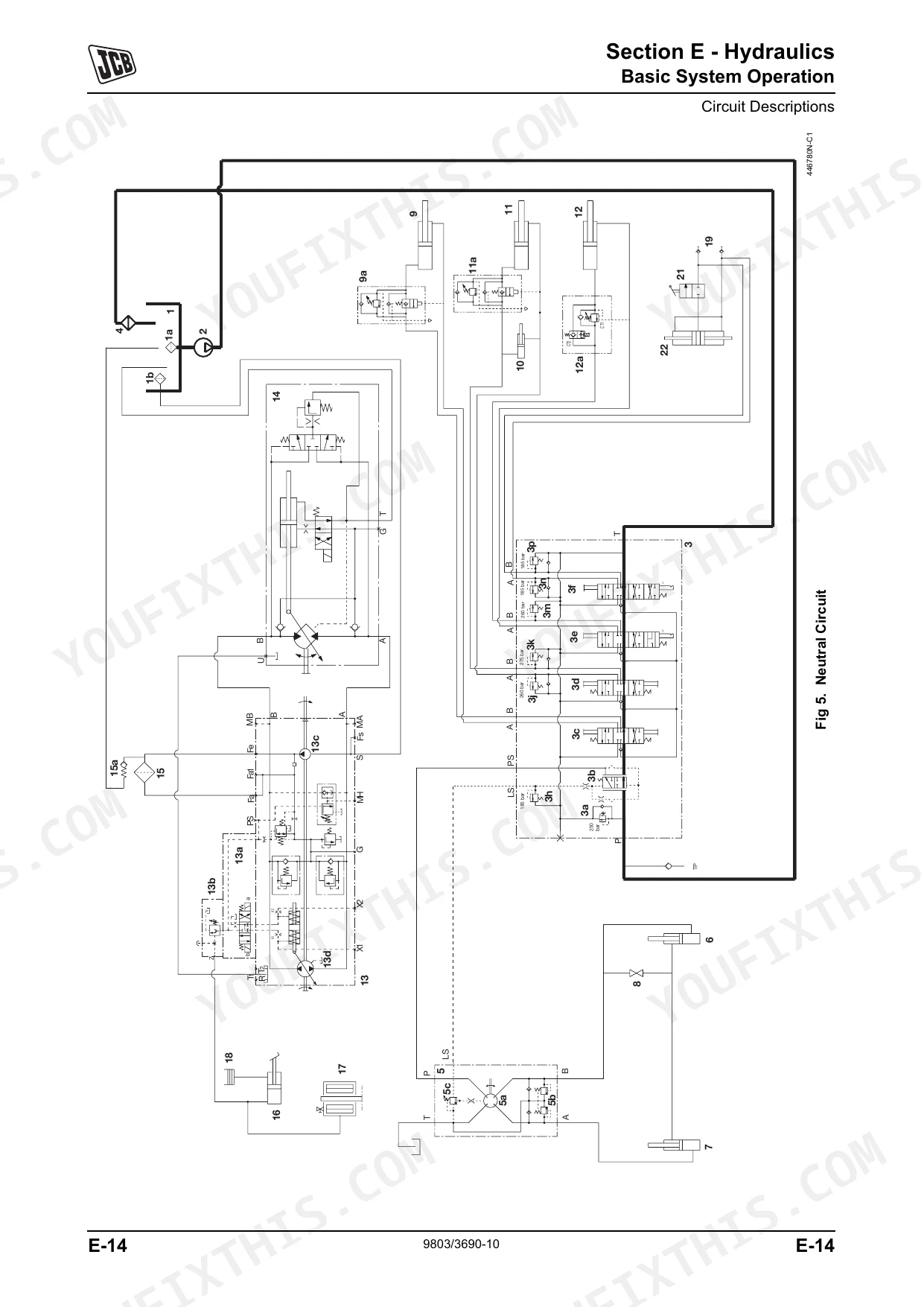

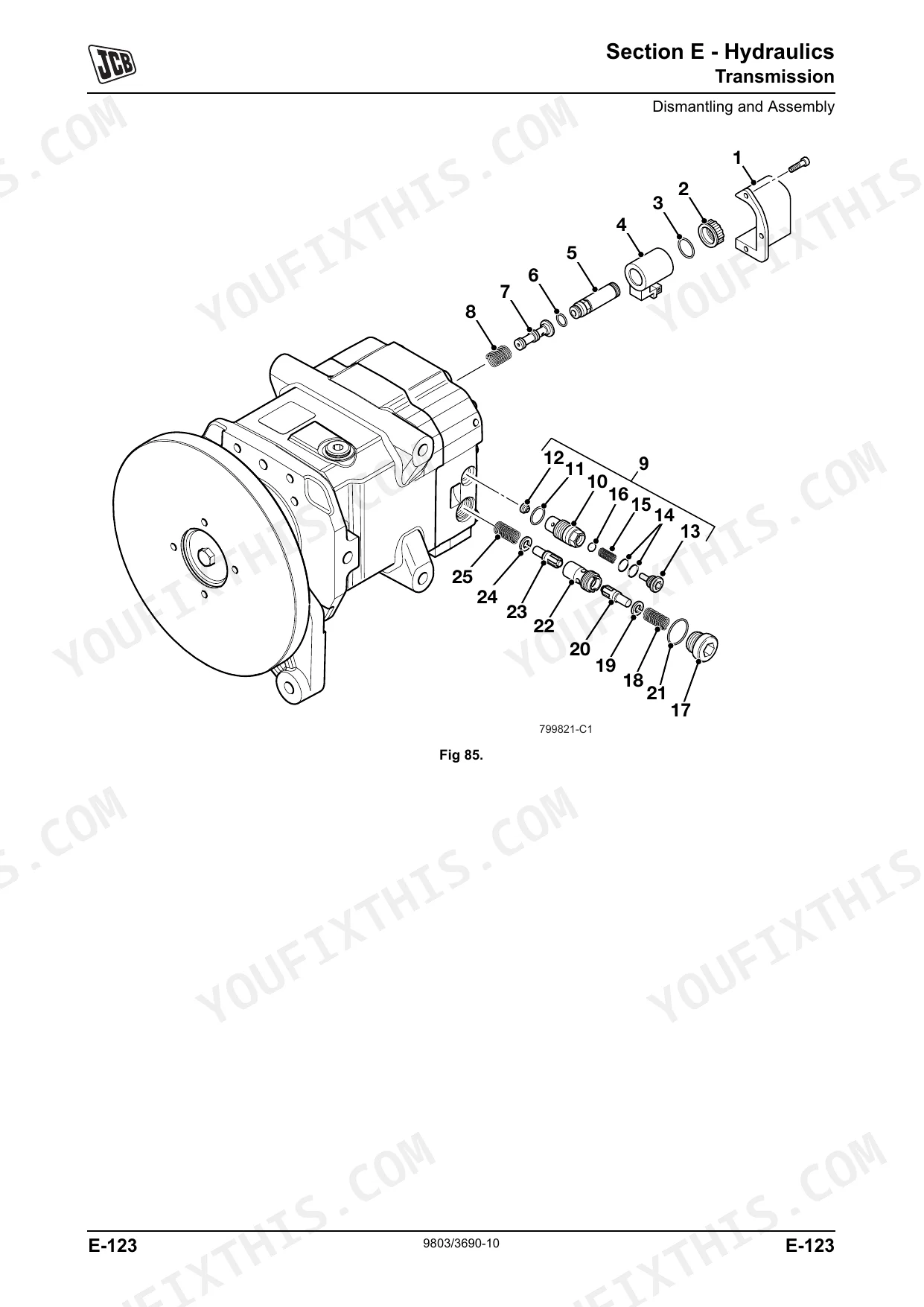

| Hydraulics | 428-579 | Service Tools (Numerical List), Technical Data (515-40, 520-40, 524-50, 527-55, Pump and Motor Test Points, Early Machines, Later Machines) |
| Transmissions | 580-621 | Service Tools (Numerical List), Technical Data (520-40, 524-50, 527-55), Basic Operation (Drive Train, Transfer Gearbox, Hg 310, Hg 700, Front and Rear Axles, Sd40, Sd55) |
| Brakes | 622-649 | Technical Data |
| Steering | 650-703 | Service Tools (Numerical List), Technical Data (All Models), Basic System Operation (515-40, 520-40, 524-50, 527-55, Hydraulic Operation, Electrical Operation) |
| Engine | 704-733 | Service Tools, Technical Data, Electrical Connections, Air Filter, Exhaust Assembly, Radiator Assembly |

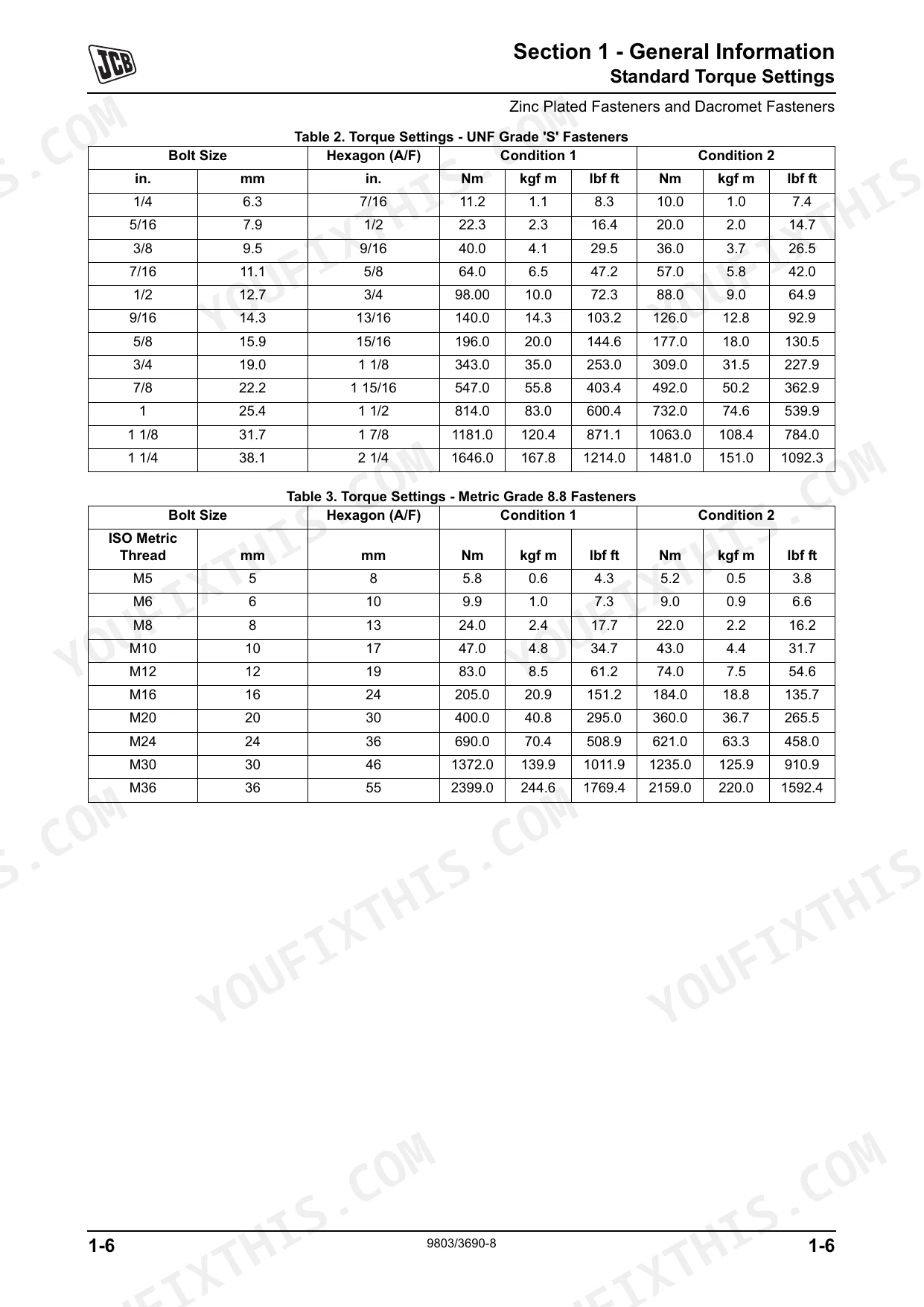

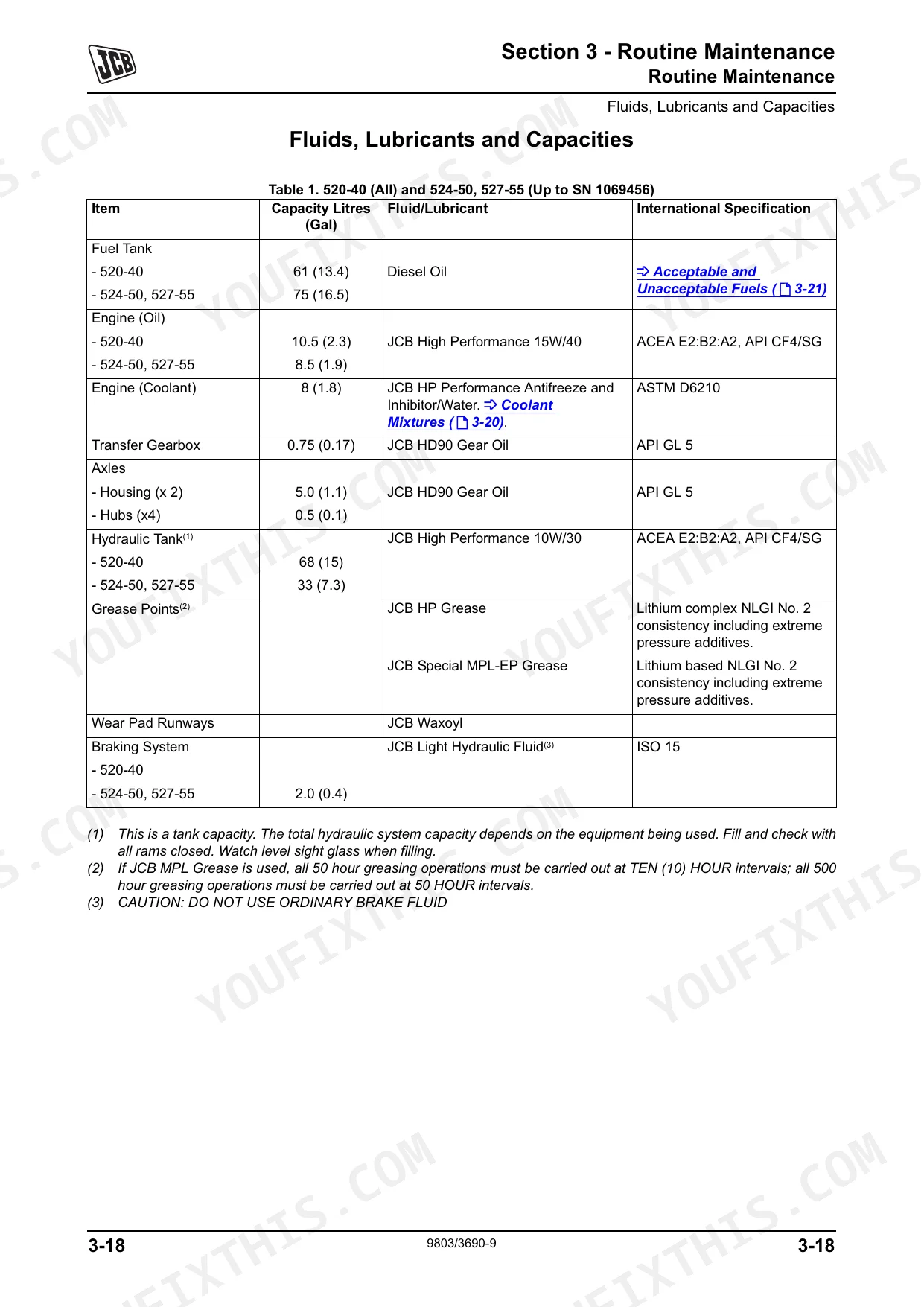

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque (Front) | 680 Nm | p. 149 |
| Wheel Nut Torque (Rear) | 680 Nm | p. 149 |
| BSP Adaptors Torque (1/2 in) | 98.00 Nm | p. 14 |
| SAE Connections Torque (3/4 - 16 thread) | 95.0 - 105.0 Nm | p. 14 |
| Battery Cold Crank Amps | 410 to 58 | p. 230 |
| Boom Wear Pad Replacement Clearance | less than 11 mm (0.43 in) thick | p. 152 |
| Service Brake Pad Minimum Thickness for Replacement | 3 mm (0.12 in) | p. 627 |
| 524-50, 527-55 | ||
| Engine Mounting Bolts Torque (Item S) | 80 Nm | p. 724 |
| Engine Mounting Bolts Torque (Item T) | 80 Nm | p. 724 |
| Alternator Maximum Output (from SN 1069457) | 95 amp | p. 230 |
| 515-40, 520-40 | ||
| Boom Lift Ram Bore | 100 mm | p. 437 |
| Hydraulic Filter Filtration Size (initial factory fit) | 5 microns | p. 437 |
JCB 520-40, 524-50, 527-55 Common Problems This Manual Covers

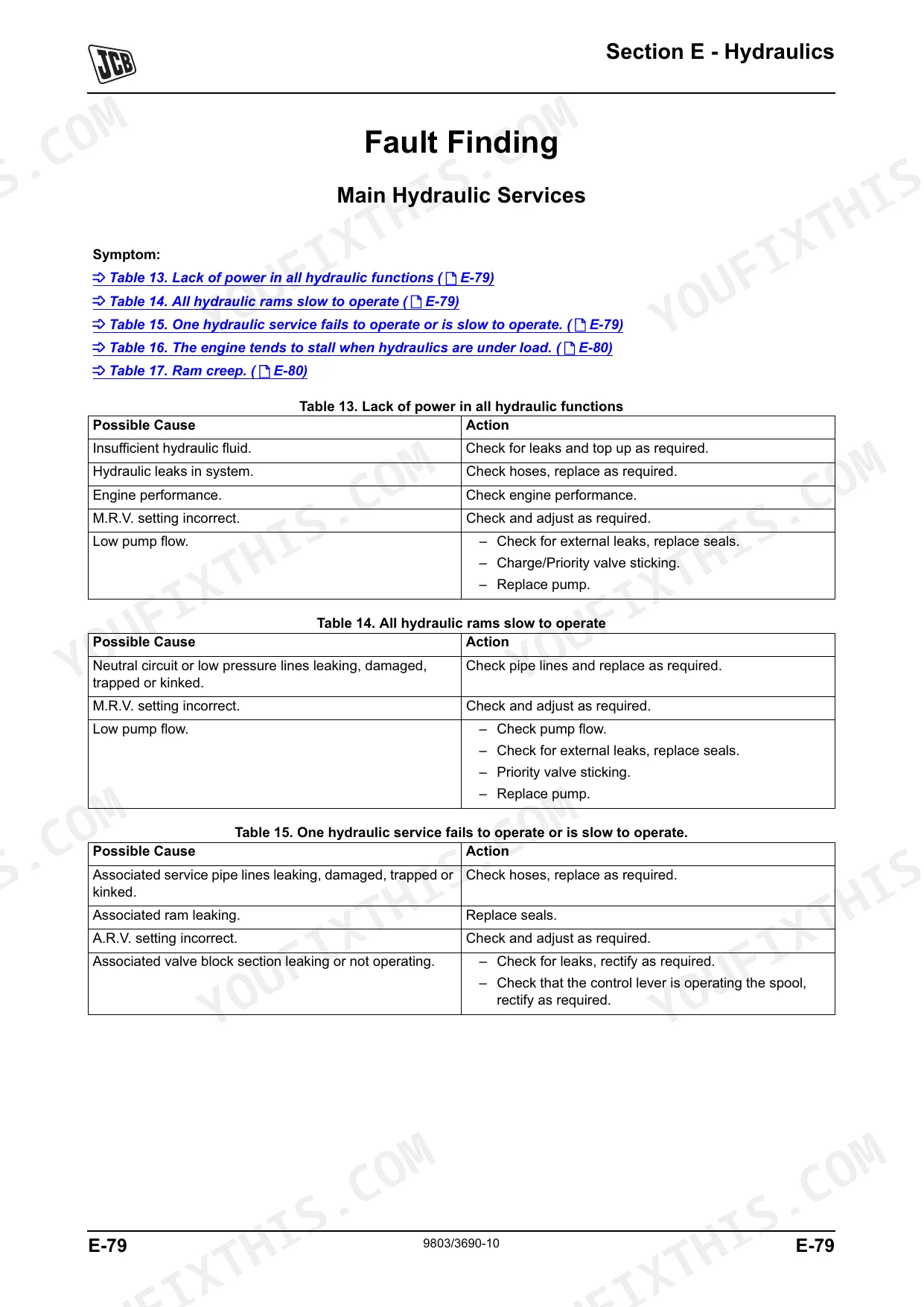

JCB 520-40 auxiliary hydraulics lack power and boom rams are slow to operate under heavy load p. 512
Inspect the main relief valve operating pressure on page 437. Hook up a gauge and confirm it reaches exactly 240 bar. If it reads low, look for external leaks or a sticking priority valve before condemning the main hydraulic pump. Torque SAE connections to 95.0 Nm.
Manual Section: Main Hydraulic Services Fault FindingSteering fails to respond to selected mode and machine will not turn when steering wheel turned p. 681
Test the electrical operation and proximity switches on page 681. On 524-50 and 527-55 models, set the proximity switch to hold a 2-4 mm (0.08-0.16 in) gap. Where wires are damaged, repair the harness with a red splice sized 0.5-1.5 mm.
Manual Section: Steering System Adjustment/BleedingService brake pedal feels soft and machine takes too long to stop during road travel p. 627
Check the service brake pads for wear on page 627. Measure pad thickness and replace them right away if they hit the 3 mm (0.12 in) minimum. Bleed the service brake system to clear trapped air before road-testing the machine.
Manual Section: Brakes Service Procedures (Testing & Adjustment)Low battery voltage warning on indicator display box and engine turns over slowly p. 230
Measure the alternator charging circuit output. On 524-50 and 527-55 models from serial number 1069457, the alternator nominal output should reach 95 amp on page 230. Load-test the battery and check the harness connections for corrosion before replacing the alternator.
Manual Section: Electrical System Testing (Multimeter, Battery, Alternator, Starter Motor)Frequently Asked Questions
How do I reset the warning lights on a JCB 520-40 / 524-50 / 527-55?
The manual indicates that Load Moment Indicator (LMI) fault codes cancel automatically after 10 seconds if the fault is resolved. For cold start heater faults, a power off/on cycle (switching ignition off for a couple of seconds then back on) is required to clear latched fault conditions. There is no general reset procedure for all warning lights.
What do the error codes mean on a JCB 520-40 / 524-50 / 527-55?
For the Load Moment Indicator (LMI), Fault Code 1 indicates a transducer signal fault, and Fault Code 5 indicates low battery voltage. For the Cold Start Heater, 1 flash means a temperature sensor or circuit fault (open circuit), and 3 flashes mean a Heater Relay fault.
What are the hydraulic torque specs for a JCB 520-40 / 524-50 / 527-55?
Hydraulic torque specifications vary by connection type and size. For BSP adaptors, a 1/4 inch connection requires 18.0 Nm (1.8 kgf m, 13.0 lbf ft). For SAE connections, a 7/16 - 20 thread size requires 20.0 - 28.0 Nm (2.0 - 2.8 kgf m, 16.5 - 18.5 lbf ft).
How do I reset the service interval on a JCB 520-40 / 524-50 / 527-55?
Service schedules run off operating hours and calendar equivalents, such as "Every 10 Hours = Daily" and "Every 50 Hours = Weekly." The manual describes no procedure for resetting a dashboard service-interval indicator, advising instead to "Keep a regular check on the hourmeter readings to correctly gauge service intervals."
How will I receive this Service Manual?
Right after checkout you download the 733-page searchable PDF instantly. It opens on a laptop, tablet, or phone, so you can carry it straight to the shop floor.
Can I print this manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and take it to the shop floor.
Does this Service Manual have electrical diagrams?

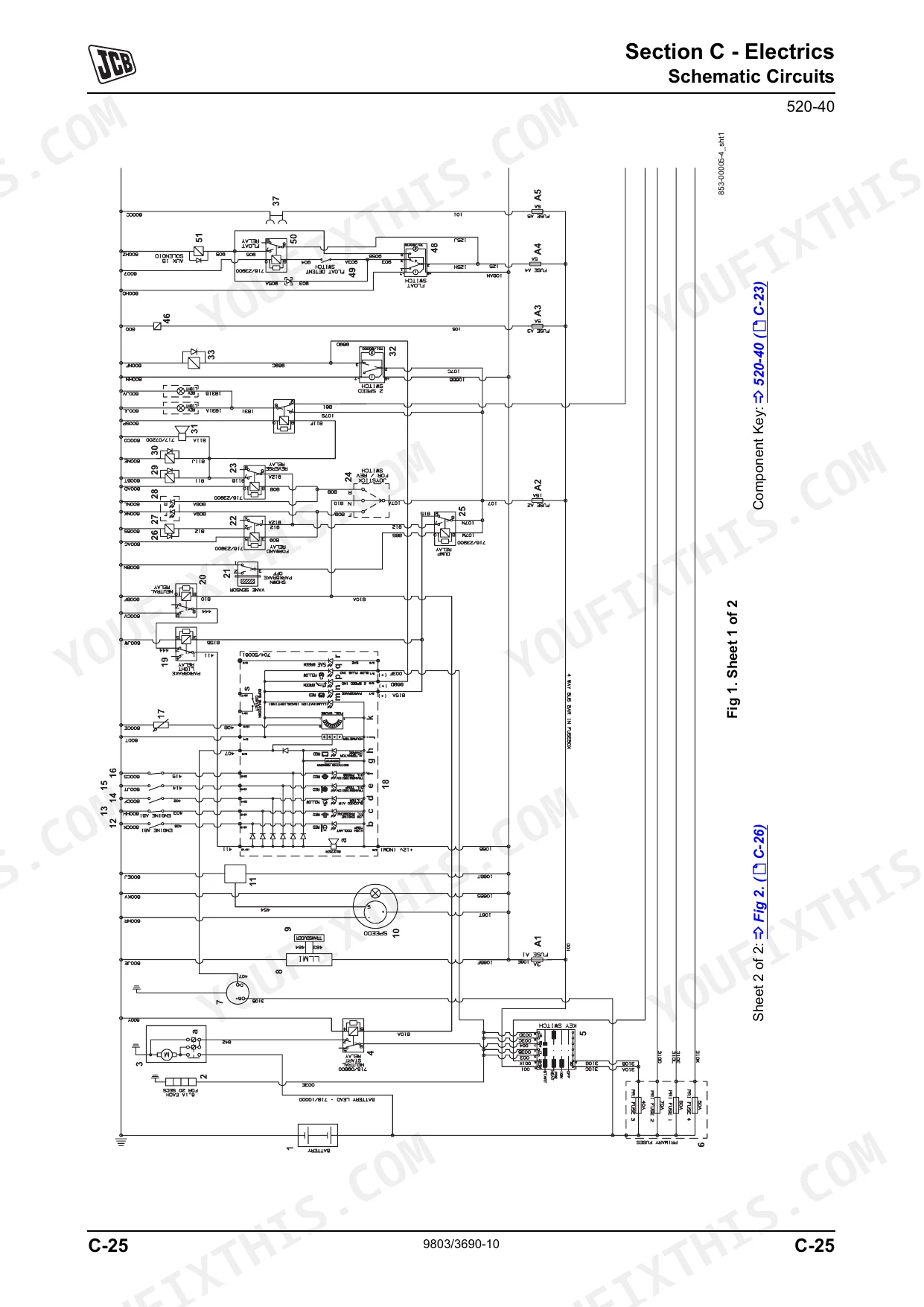

Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the JCB 520-40, 524-50, 527-55.
Document Quality
This is a scanned PDF document with an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read throughout the manual. Diagrams and illustrations are raster images, meaning they may appear slightly pixelated when zoomed in, but all labels and details remain clearly readable. Pages are generally clean with no notable scan artifacts, stains, or skewed content. There are several "Page left intentionally blank" or "Notes" filler pages present.
