Need to know exactly how to run and maintain your JCB tamper? This 25-page JCB Vibromax VMR 60, 75 Operator Manual PDF (OEM #05101/28135B) breaks down every daily check, startup procedure, and operating limit for your powered tamper. Inside, you get clear operating instructions covering everything from cold-starting the recoil engine to long-term storage prep. Open to the maintenance section for complete daily walkaround checklists, safe transport guidelines, and exact fluid capacities to keep the pad foot hitting hard. Confirm your operating weight sits exactly at 60 kg for the smaller unit, and top off the engine with 0.3 liters of oil before hitting the dirt. A seized engine from a missed daily check ruins the entire shift. Load this bookmarked file straight to your phone, check your maintenance schedules on the job site, and get to work.
What's Inside This JCB Vibromax VMR 60, 75 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Brief Description of the Machine | 6 | Front, Rear, Right-Hand Side, Left-Hand Side, Modular Design, Common Mode of Operation |
| Product Identification and Serial Numbers | 7 | Serial Numbers, Product Identification Numbers P.I.N., Model, Engine Serial Number |
| Identifying the Machine Parts | 8 | Guide Handle, Fuel Tank, Speed Control Lever, Engine, Recoil Starter, Pad Foot |

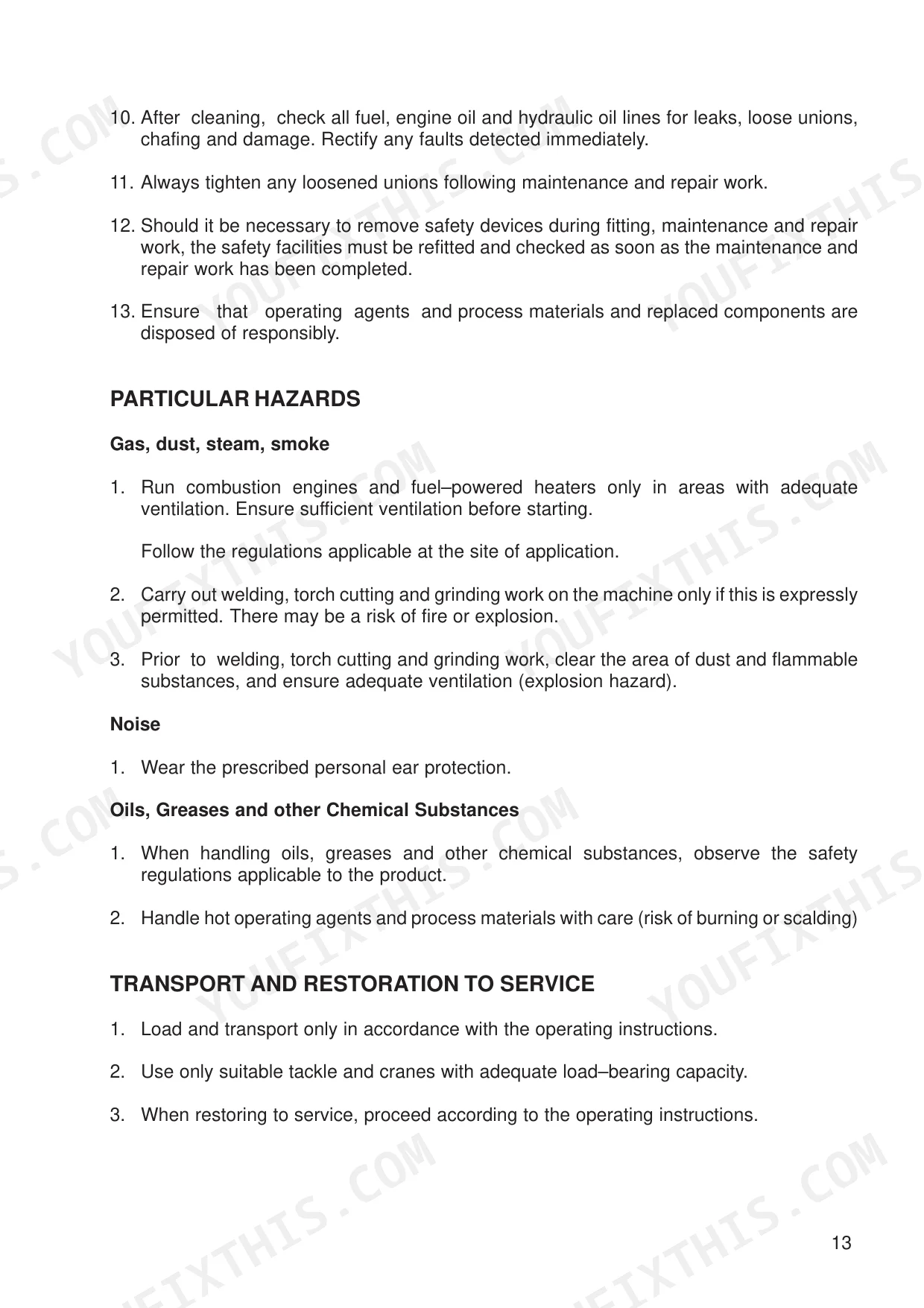

| Basic Safety Notes | 9-14 | Warning Notes, Caution, Danger, Proper Use, Machine Condition, Compaction Materials |

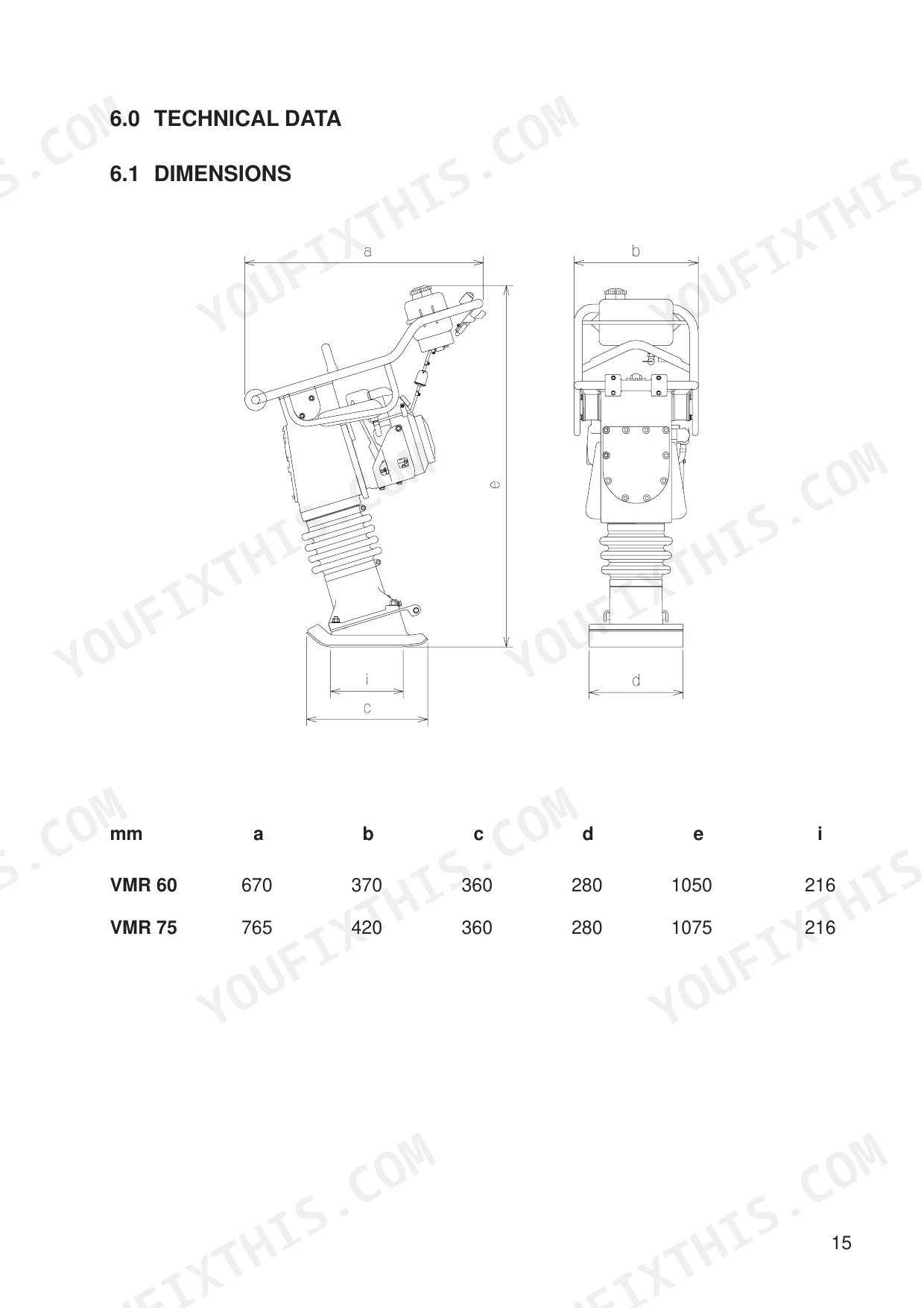

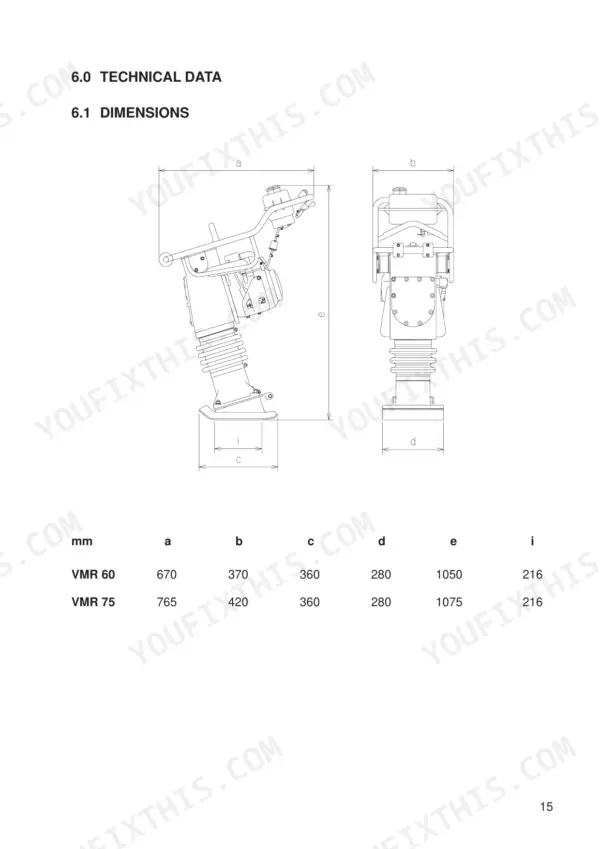

| Technical Data | 15-18 | Dimensions, Main Data, Areas of Application, Noise Immission |
| Description | 19 | Construction, Mode of Operation, Safety Devices |
| Operation | 20-22 | Start-Up (Preparations, Starting the Engine), Working with the Equipment, Stoppages (Short-Term, Long-Term) |

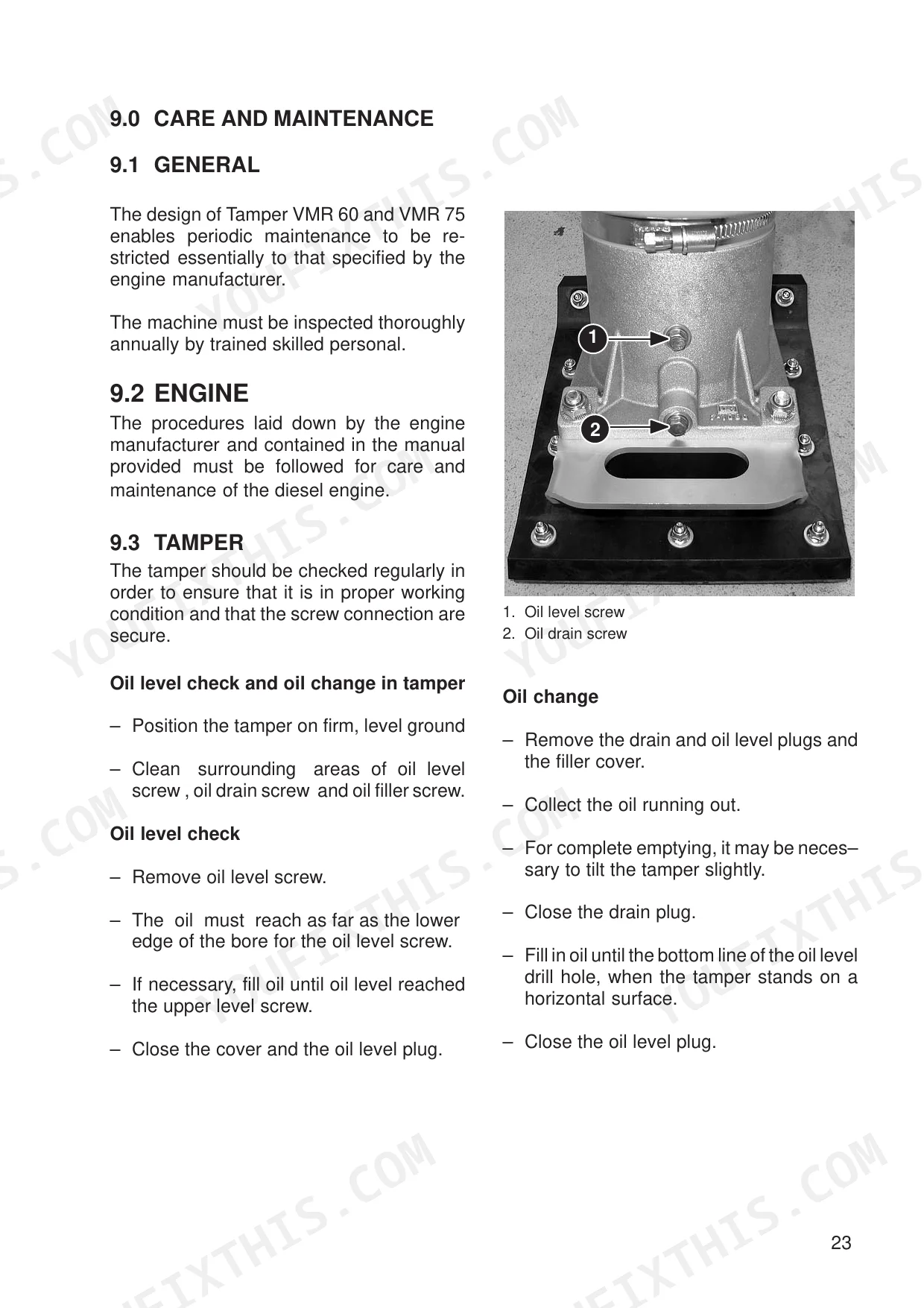

| Care and Maintenance | 23-24 | General, Engine, Powered Tamper, Maintenance Schedule |
| Operating Agents | 25 | Fuel, Tamper - Lubricating Oil |

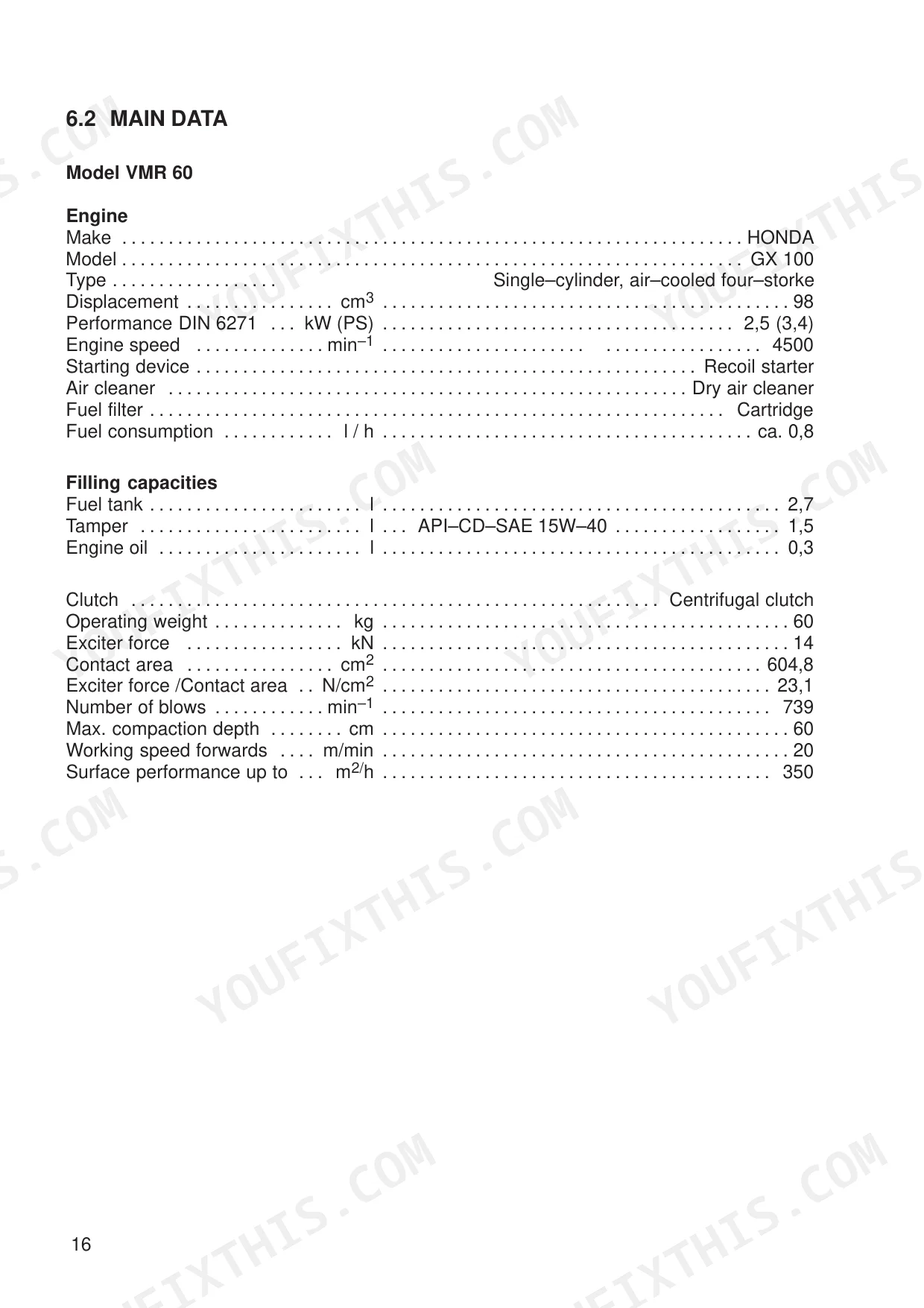

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air cleaner type | Dry air cleaner | p. 16 |
| Air filter element type | Cartridge | p. 16 |
| Fuel Tank Capacity | 2.7 l | p. 16 |
| Tamper Lubricating Oil Capacity | 1.5 l | p. 16 |
| VMR 60 | ||
| Engine oil filling capacity | 0.3 l | p. 16 |
| Operating Weight | 60 kg | p. 16 |
| Engine Displacement | 98 cm³ | p. 16 |
| Engine Speed | 4500 min⁻¹ | p. 16 |
| Max. Compaction Depth | 60 cm | p. 16 |
| VMR 75 | ||
| Operating Weight | 73 kg | p. 17 |
| Engine Displacement | 121 cm³ | p. 17 |
| Engine Speed | 3600 min⁻¹ | p. 17 |
| Max. Compaction Depth | 70 cm | p. 17 |
| Engine Oil Capacity | 0.4 l | p. 17 |
JCB Vibromax VMR 60, 75 Common Problems This Manual Covers
JCB Vibromax VMR 60 engine runs rough, loses power under load, or refuses to start. p. 24
Remove the air filter cartridge and inspect for severe dust accumulation. Clean or replace the element per the schedule on page 24. Perform this maintenance every 10 hours of operation or weekly to ensure proper airflow, maintain optimal fuel mixture, and prevent starting issues.
Manual Section: Care and MaintenanceMachine exhibits reduced pounding force and exceptionally poor compaction depth during heavy trench work. p. 17
Check the engine speed setting and verify the throttle lever is fully engaged. For the VMR 75 model, ensure the engine reaches 3600 min⁻¹ to achieve the maximum compaction depth of 70 cm as listed on page 17. Inspect the pad foot for excessive wear or damage.
Manual Section: Technical DataEquipment bogs down in loose soil and fails to achieve expected compaction depth. p. 16
Verify the throttle is fully open during operation. Check that the VMR 60 engine achieves 4500 min⁻¹ to hit the maximum compaction depth of 60 cm detailed on page 16. Inspect the pad foot hardware and clean any packed dirt from the lower tamper housing.
Manual Section: Technical DataFrequently Asked Questions
What are the replacement specifications for air filter element?
The air cleaner for both VMR 60 and VMR 75 models is a Dry air cleaner, and the fuel filter is a Cartridge type. The air filter should be cleaned or changed every 10 hours of operation or weekly, as indicated on page 6, position 11.
How do you fix JCB Vibromax VMR 60 engine runs rough, loses power under load, or refuses to start?
Remove the air filter cartridge and inspect for severe dust accumulation. Clean or replace the element per the schedule on page 24. Perform this maintenance every 10 hours of operation or weekly to ensure proper airflow, maintain optimal fuel mixture, and prevent starting issues.
How do you fix machine exhibits reduced pounding force and exceptionally poor compaction depth during heavy trench work?
Check the engine speed setting and verify the throttle lever is fully engaged. For the VMR 75 model, ensure the engine reaches 3600 min⁻¹ to achieve the maximum compaction depth of 70 cm as listed on page 17. Inspect the pad foot for excessive wear or damage.
How do you fix equipment bogs down in loose soil and fails to achieve expected compaction depth?
Verify the throttle is fully open during operation. Check that the VMR 60 engine achieves 4500 min⁻¹ to hit the maximum compaction depth of 60 cm detailed on page 16. Inspect the pad foot hardware and clean any packed dirt from the lower tamper housing.
What do I get after purchasing this JCB Vibromax VMR 60, 75 manual?
Immediate download of the complete 25-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a high-quality scanned PDF with a reliable OCR layer, allowing you to search and copy the full text content. All text is consistently crisp and easy to read, ensuring clarity throughout the manual. Diagrams and illustrations are clear raster images, and their labels are easily readable for quick reference. The pages are clean, free from scan artifacts, stains, or skewed content, presenting a professional appearance. Please note that pages 4 and 14 are intentionally blank except for their respective page numbers.
