Looking for the factory operating instructions for your vibrating plate? This 32-page JCB Vibromax VMP 14, 18, 24, 40, 48 operator manual PDF (OEM #05412/28135) details the complete daily maintenance and running procedures for your machine. It walks through clear start-up steps for both engine types, specific long-term storage guidelines, and complete routine care instructions for the plate vibrator. Open to the maintenance section to find daily engine oil checks, operating noise immission data, and step-by-step guides for safely fitting tamping plate extensions or plate dampers. Confirm your fluid levels before firing up by verifying the specific engine and exciter oil capacities for your model, as these vary (e.g., VMP 14 has 0.95 U.S. quart engine oil capacity and 0.42 U.S. quart exciter oil limit). A ruined exciter bearing costs your crew valuable time and money. Download this bookmarked file, pull it up on your phone, and get straight to work.
What's Inside This JCB Vibromax Vmp 14–48 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Brief Description of the Machine | 6 | Modular Design, Uniform Design, Common Mode of Operation, Plate Dampers, Tamping Plate Extensions, speed/direction Control |
| Product Identification and Serial Numbers | 7 | Serial Numbers, Product Identification Numbers P.I.N., Model, Engine Serial Number |
| Identifying the Machine Parts | 8-9 | Tamping Plate, Engine, Vibrator, Speed Direction Control, Guide Bar, Roll-Over Protection Bow |
| Basic Safety Notes | 10-15 | Warning Notes, Caution Notes, Danger Notes, Proper Use, Particular Hazards, Chemical Substances |
| Technical Data | 16-22 | Dimensions, Main Data, Areas of Application, Noise Immission |
| Description | 23 | Construction, Mode of Operation, Safety Devices |

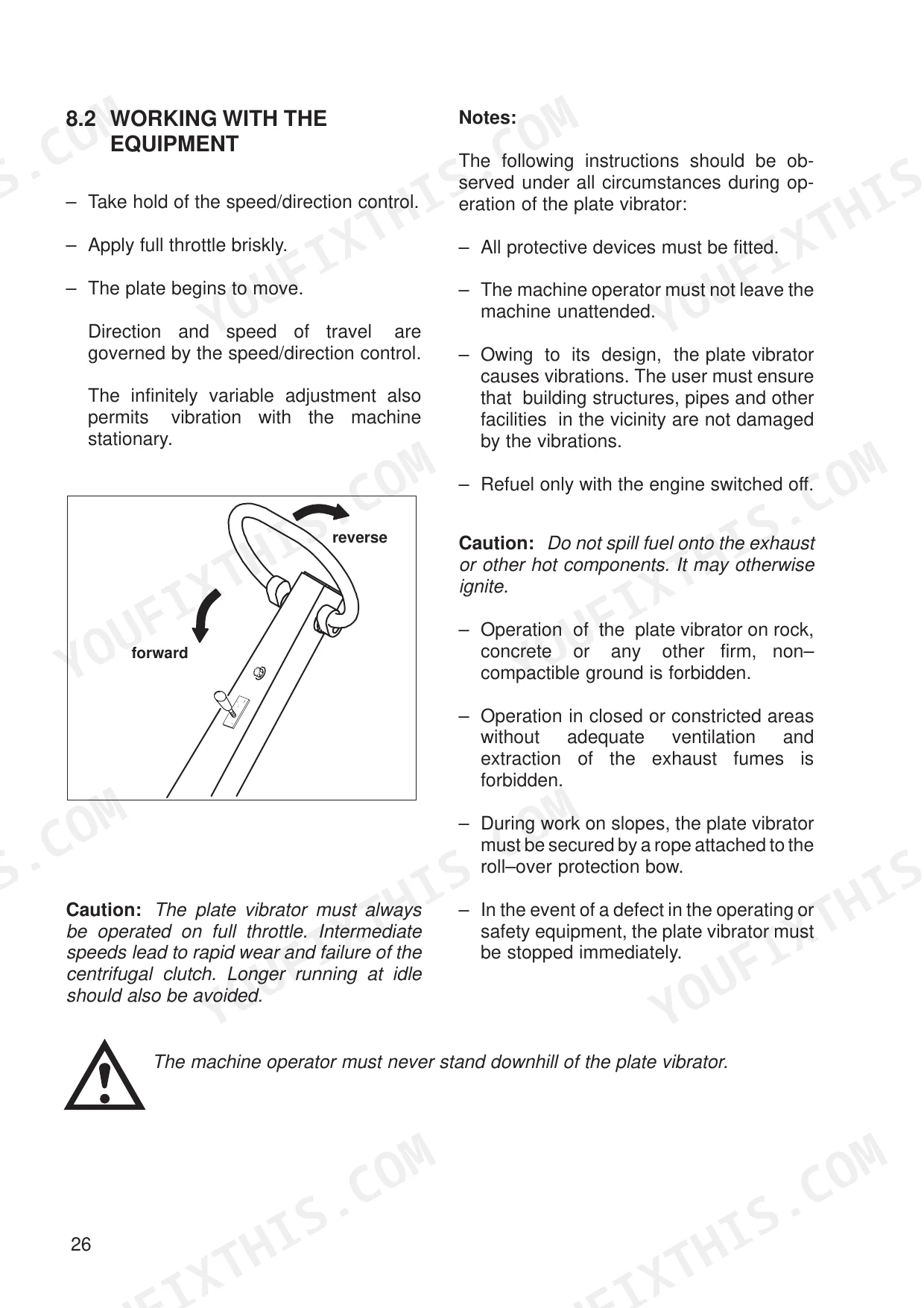

| Operation | 24-27 | Start-Up (Preparations, Starting the Engine), Working with the Equipment, Stoppages (Short-Term, Long-Term) |
| Care and Maintenance | 28-30 | General, Engine (Check Oil Level in Exciter, Change Oil Exciter), Plate Vibrator |
| Transport and Storage | 31 | Towing, Loading, Guide Bar, Storage Conditions, Tarpaulin, Suspension Points |
| Fitting the Accessories | 32 | Tamping Plate Extensions, Plate Dampers |
JCB Vibromax Vmp 14–48 Common Problems This Manual Covers

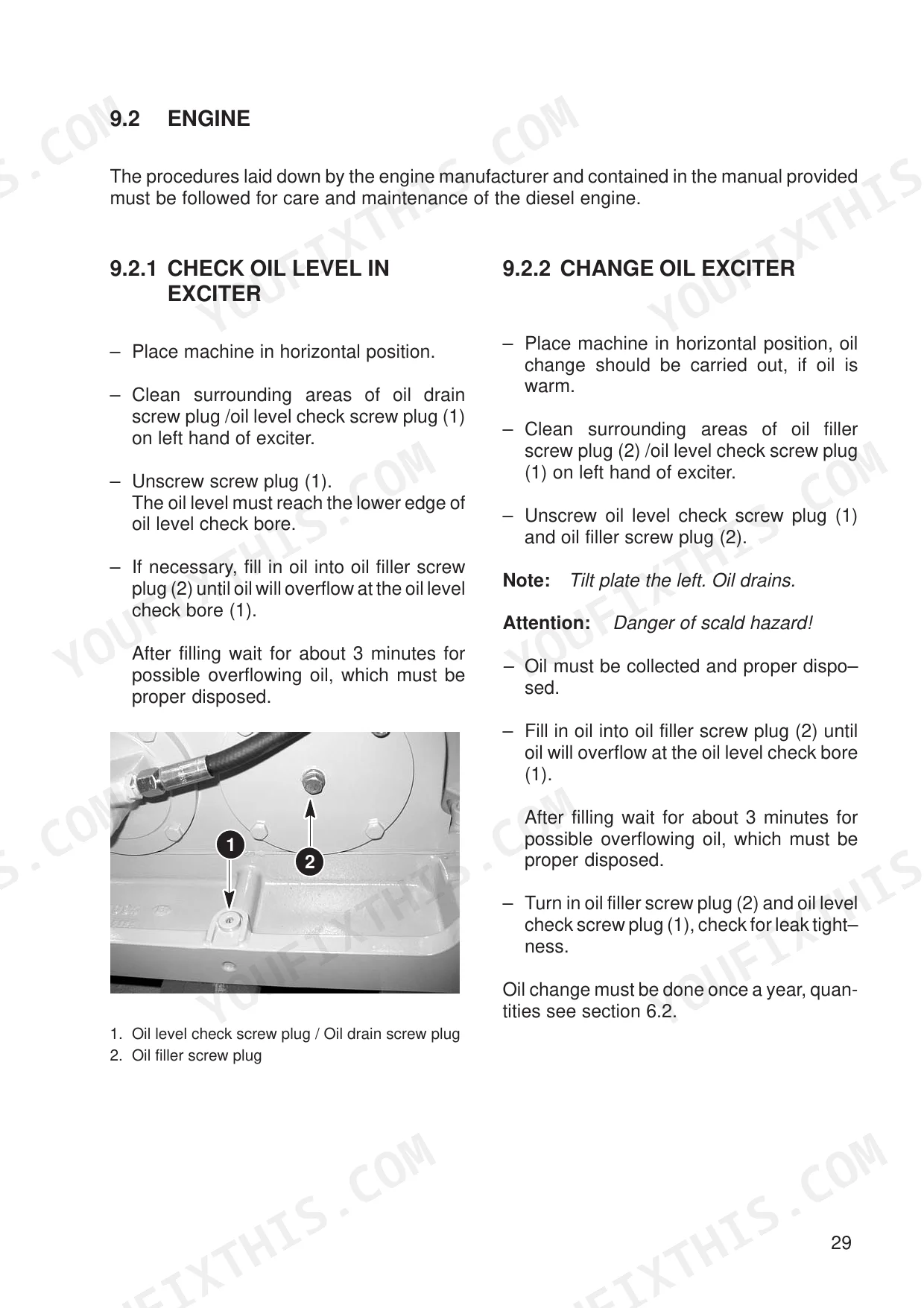

JCB Vibromax VMP 24 engine runs fine but machine vibrates weakly or will not travel forward p. 29
Inspect the V-belt for damage and verify the engine operating speed reaches 2850 rpm as specified for this model. Check the maintenance schedule on page 29 for exciter oil intervals. Drain and refill the exciter housing if the oil appears degraded or low.
Manual Section: Care and MaintenanceRepeated oil loss from exciter housing or visible fluid leaks around the base plate after operation p. 17

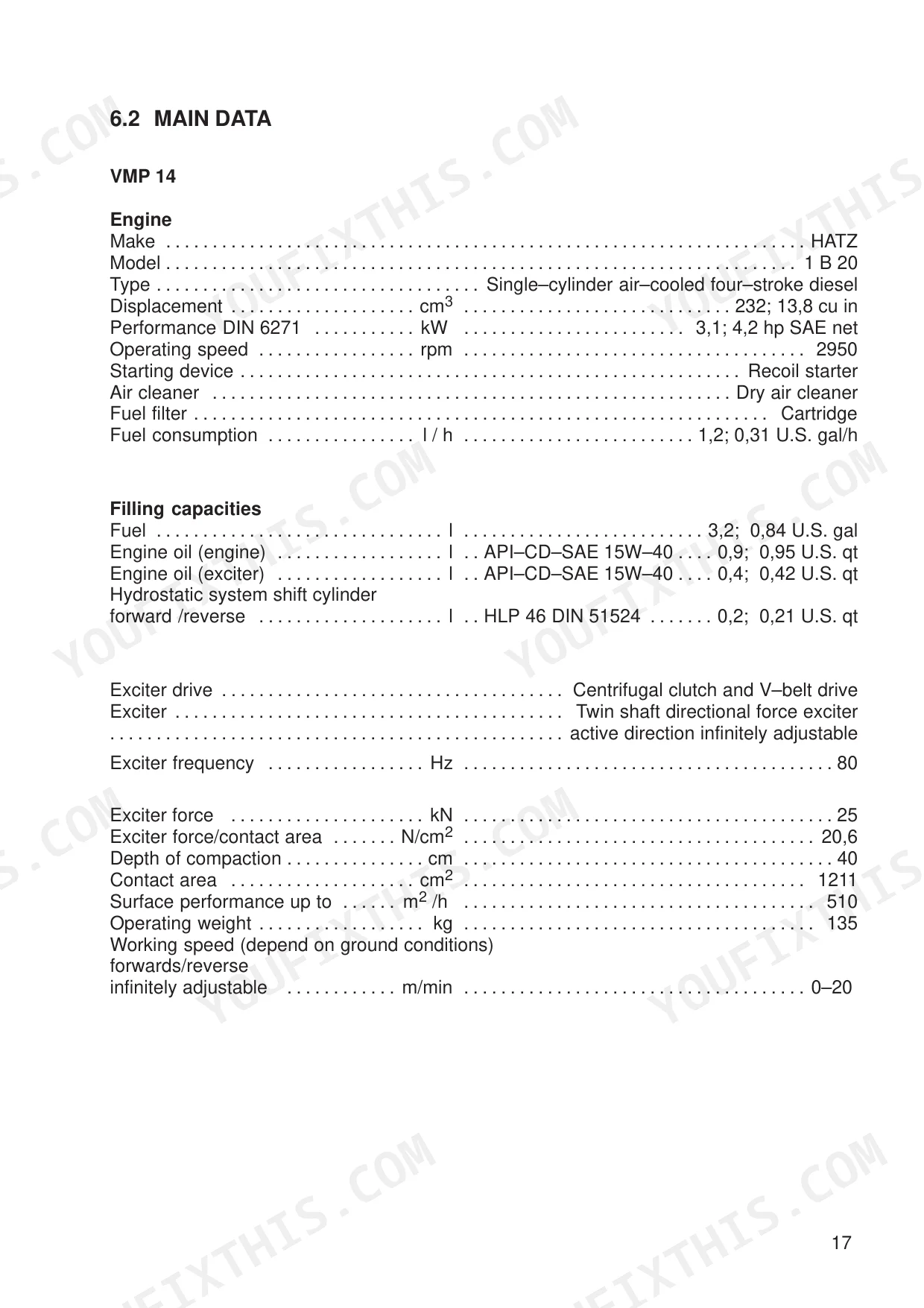

Clean the plate area immediately and inspect all housing screws and unions for tightness. Check the exciter oil level. If refilling the VMP 14 exciter, verify the capacity is exactly 0.42 U.S. qt as listed on page 17. Look for obvious external seal damage.
Manual Section: Technical DataEngine stalls frequently during compaction or turns over slowly during initial morning start attempts p. 19
Verify the fuel tank has sufficient clean fuel. If operating the VMP 48, confirm the tank contains up to the 5.0 l capacity listed on page 19. Inspect the engine air filter for heavy dust buildup and clean the machine entirely before attempting another restart.
Manual Section: Technical DataExcessive knocking noise from the lower plate area or machine bounces erratically during operation p. 18
Stop the engine immediately. Check the lower plate for loose fasteners and missing dampers. Verify the engine is running at the correct throttle speed to maintain the 75 Hz exciter frequency for the VMP 18 model, as specified on page 18. Inspect the exciter bearings.
Manual Section: Technical DataFrequently Asked Questions
How do you fix JCB Vibromax VMP 24 engine runs fine but machine vibrates weakly or will not travel forward?
Inspect the V-belt for damage and verify the engine operating speed reaches 2850 rpm as specified for this model. Check the maintenance schedule on page 29 for exciter oil intervals. Drain and refill the exciter housing if the oil appears degraded or low.
How do you fix repeated oil loss from exciter housing or visible fluid leaks around the base plate after operation?
Clean the plate area immediately and inspect all housing screws and unions for tightness. Check the exciter oil level. If refilling the VMP 14 exciter, verify the capacity is exactly 0.42 U.S. qt as listed on page 17. Look for obvious external seal damage.
How do you fix engine stalls frequently during compaction or turns over slowly during initial morning start attempts?
Verify the fuel tank has sufficient clean fuel. If operating the VMP 48, confirm the tank contains up to the 5.0 l capacity listed on page 19. Inspect the engine air filter for heavy dust buildup and clean the machine entirely before attempting another restart.
How do you fix excessive knocking noise from the lower plate area or machine bounces erratically during operation?
Stop the engine immediately. Check the lower plate for loose fasteners and missing dampers. Verify the engine is running at the correct throttle speed to maintain the 75 Hz exciter frequency for the VMP 18 model, as specified on page 18. Inspect the exciter bearings.
What format is this manual in?
This is a 32-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text throughout is crisp and easy to read, ensuring good legibility. Diagrams and illustrations are raster images or photos; while they show some pixelation upon close zoom, their labels remain clear and readable. The pages are clean with no significant scan artifacts, stains, or skewed content, though there are two blank filler pages present.
