Six JLG E-series electric scissor lifts share a single factory reference for pressures, torques, and cylinder rebuilds: service manual 3120846, and this JLG 1932E service manual PDF puts its full 56 pages on your bench. Electrical schematics map the SMART System control wiring, and hydraulic diagrams trace oil flow through lift, steer, and brake circuits, so a flash fault code leads you to a specific wire or valve instead of a guess. Cylinder repair procedures split by build date, before and after August 1996, which means the rebuild you follow matches the lift cylinder actually on your machine. Set the lift up relief at 145 bar +/- 7 bar for Power Lift Down machines, or refer to the specific model value for Gravity Lift Down machines; refill the hydraulic tank on the 1532E and 1932E with 14.0 liters. Just you, the lift, and nobody to ask. Bookmarked and searchable by keyword, this PDF gets you from fault code to a machine that raises, levels, and drives again.
What's Inside This JLG 1532E–2658E Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction - Maintenance Safety Precautions | 3 | |
| Effectivity Page | 4 | Manual Revisions |
| List of Illustrations | 6 | Torque Chart, Lubrication Chart, Serial Number Locations |
| Specifications | 7-16 | Capacities, Component Data, Performance Data, Torque Requirements, Lubrication, Cylinder Specifications, Pressure Settings, Serial Number Locations |
| General Procedures and Guidelines | 17-20 | Safety and Workmanship, Cleanliness, Component Removal and Installation, Cylinder Theory of Operation, Valve Theory of Operation |

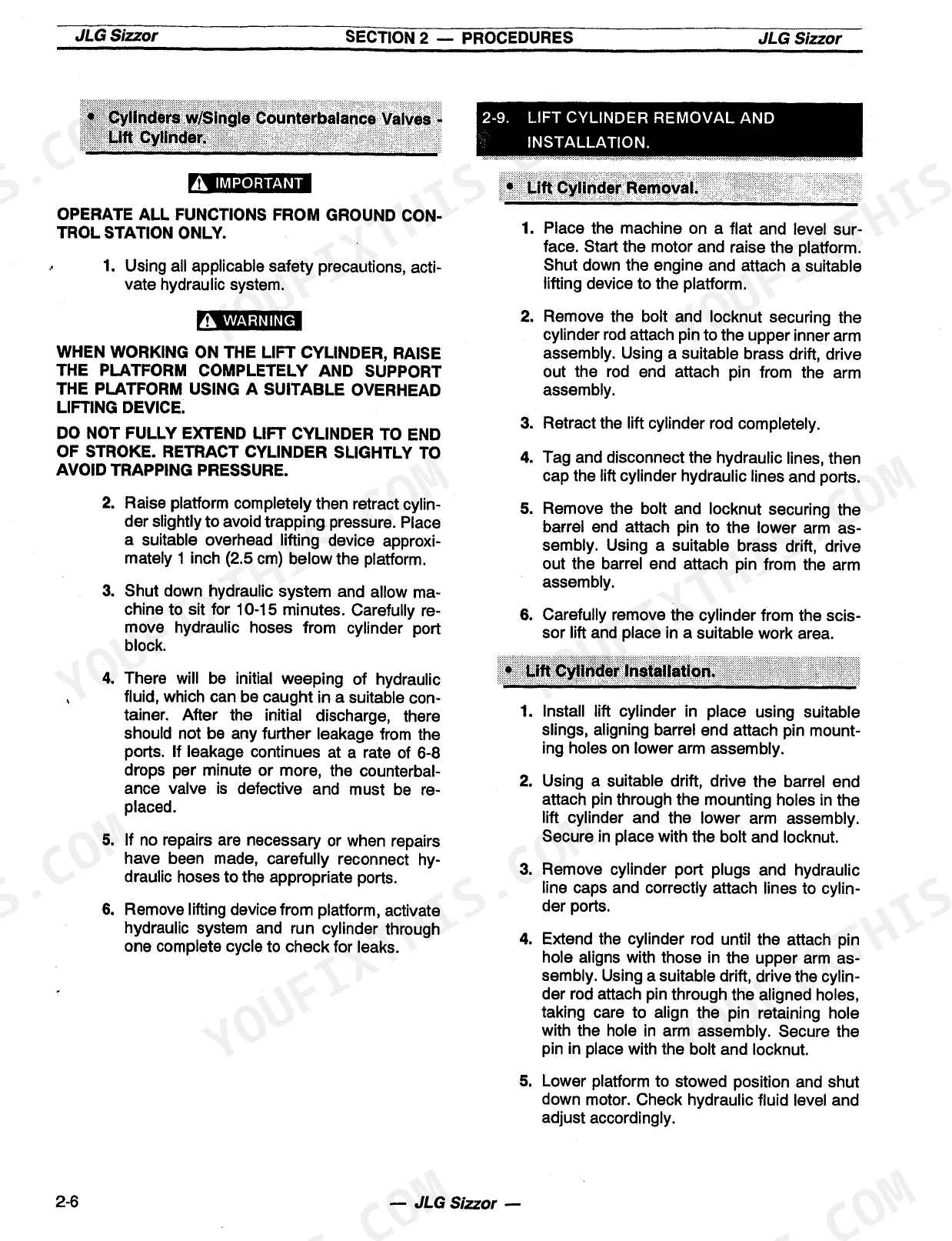

| Cylinder Maintenance and Repair | 21-33 | Cylinder Checking Procedures, Lift Cylinder Removal and Installation, Lift Cylinder Repair, Brake Cylinder Repair, Steer Cylinder Repair, Tilt Switch Adjustment |
| Limit Switches and System Settings | 34-38 | Tilt Switch Leveling, Limit Switch Adjustment, Pressure Setting Procedures, Pothole Protection System, Jlg Smart System |
| Preventive Maintenance and Schematics | 39-48 | Jlg Smart System Flash Fault Codes, Preventive Maintenance and Inspection Schedule, Electrical Schematics, Hydraulic Diagrams |
| Troubleshooting | 49-56 | General, Troubleshooting Information, Hydraulic Circuit Checks, Jlg Smart System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Lugs | 122 Nm | p. 10 |
| Wheel Hub To Drive Motor | 169-203 Nm | p. 10 |
| Torque Battery Cable Post Nuts | 7 Nm | p. 50 |
| Wheel Lug Torque | 122 Nm | p. 10 |
| Wheel Hub to Drive Motor Torque | 169-203 Nm | p. 10 |
| Main Relief Pressure (Power Lift Down) | 207 bar | p. 13 |
| Main Relief Pressure (Gravity Lift Down) | 220 bar | p. 13 |
| Sliding Pad Replacement Thickness | 48 mm | p. 21 |
| 1532E/1932E | ||
| Hydraulic Oil Tank Capacity (1532E/1932E) | 14.0 liters | p. 7 |
| 2033E/2046E/2646E/2658E | ||
| Hydraulic Oil Tank Capacity (2033E/2046E/2646E/2658E) | 20.4 liters | p. 7 |
| 1532E | ||
| Lift Up Relief Pressure (1532E Gravity Lift Down) | 114 bar | p. 13 |
| 2658E | ||
| Lift Up Relief Pressure (2658E Gravity Lift Down) | 159 bar | p. 13 |
JLG 1532E–2658E Common Problems This Manual Covers
JLG 1932E scissor lift won't power up, no response from platform or ground controls
Test each battery under load and check pack voltage at the posts. Clean corroded terminals and torque the battery cable post nuts to 7 Nm as specified on page 50. Verify both emergency stop buttons are pulled out. If the line contactor never clicks, work through the troubleshooting procedures starting on page 49.
Manual Section: Troubleshooting p. 50Machine powers on but drive and lift functions dead, SMART system flashing fault codes

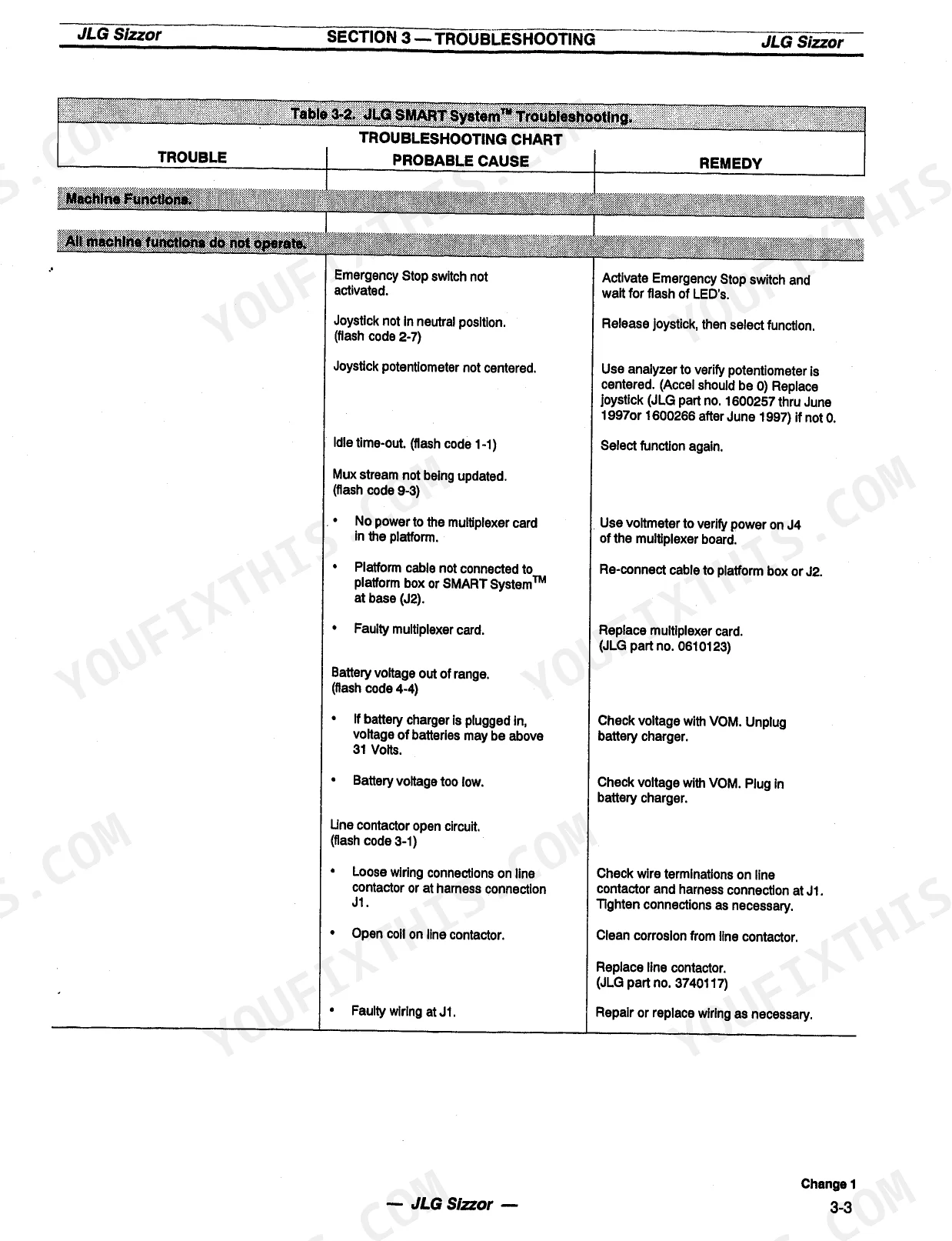

Check the flash code at the ground station and decode it with the SMART System fault code chart starting on page 39. Code 3-1 flags an open line contactor circuit, 7-7 the 24V electric motor. Follow the SMART System troubleshooting steps on page 51. Test the joystick potentiometer and inspect the platform cable through the scissor arms for chafing.
Manual Section: JLG SMART System Troubleshooting p. 51Tilt alarm sounds on level ground, lift and drive functions locked out
Test the tilt switch on a known level surface; it should trip at 2 degrees, the activation angle listed on page 15. Adjust it with the manual or voltmeter procedure in the tilt switch leveling coverage on page 34. Confirm both pothole protection bars stroke fully and reset; a stuck bar blocks lift and drive functions.
Manual Section: Tilt Switch Adjustment p. 34Platform lifts slowly under load or stalls before full height, pump sounds strained
Inspect the hydraulic oil level and condition first; a low tank makes the pump cavitate and starve. Tee a gauge into the lift circuit and compare main relief pressure to the 207 bar power lift down setting on page 13. Adjust it per the system settings section starting on page 34, and check the suction line for air leaks.
Manual Section: Limit Switches and System Settings p. 34Machine completely dead after new battery installation, charger plugged in but no functions work
Verify battery polarity and series wiring against the electrical schematic on page 42 before condemning parts. Measure voltage at the controller input and confirm the 24V supply holds up under load. Clean and tighten every cable connection from the batteries forward. Unplug the charger and retest, since some chargers interrupt machine power while connected.
Manual Section: Preventive Maintenance and Schematics p. 42Frequently Asked Questions
What are the torque specifications for the wheel lugs on the JLG scissor lift?
The torque specification for the wheel lugs on the JLG scissor lift is 122 Nm. This should be checked at an interval of 50 hours. p. 10
What is the procedure for replacing the joystick controller on a JLG scissor lift?
If the joystick potentiometer is not centered, you should use an analyzer to verify. If it is not centered, replace the joystick using JLG part number 1600257 (for units through June 1997) or 1600266 (for units after June 1997). p. 51
What is the correct hydraulic oil change interval for the JLG scissor lift?

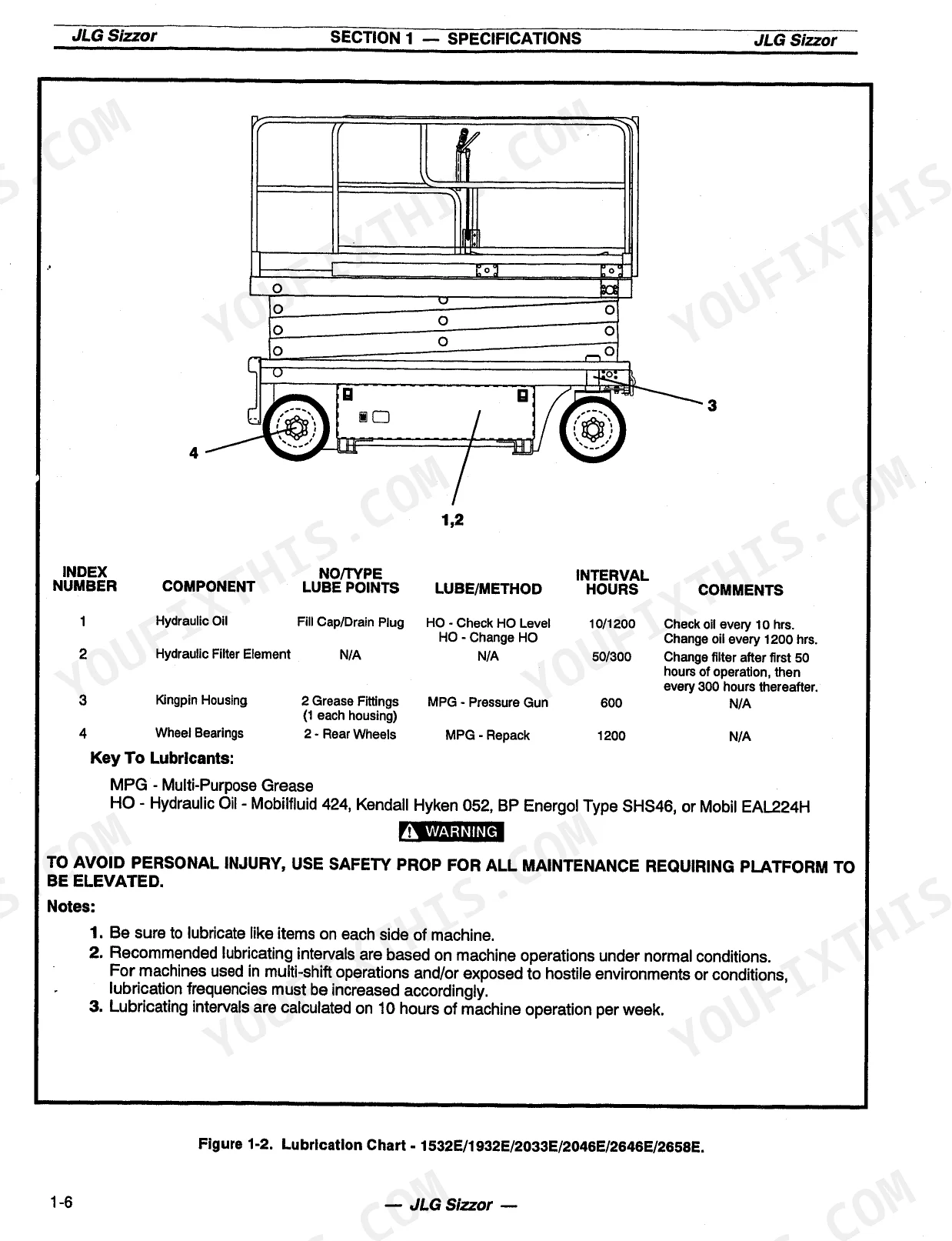

The recommended hydraulic oil change interval is 1200 hours. However, filter elements must be changed after the first 50 hours of operation and every 300 hours thereafter. p. 19
What is the Lift Up relief pressure setting on a JLG 1532E-2658E scissor lift with the Power Down option?
The Lift Up relief pressure setting for all Power Lift Down machines is 145 bar +/- 7 bar. p. 35
What is the replacement specification for the JLG SMART System controller?
When installing a new SMART System controller, you must apply electrical silicone grease (JLG part number 0100076 or 7016397) to the back of the controller. You must also program the controller for the proper machine configuration using analyzer kit 2901443 or software kit 2900874. p. 38
What do I get after purchasing this JLG 1532E manual?
You get a 56-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this JLG 1532E manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
