A dead scissor lift bills nobody, and this 258-page JLG 1932E parts catalog PDF (OEM 3120726) exists to shorten that downtime across six E-series electric models, from the 1532E through the 2658E. Exploded views break every assembly into numbered callouts, so you match the part in your hand to its JLG part number before you call the dealer. Hydraulic and electrical diagrams cover both power down and gravity down machines, and a recommended service parts stock list tells a fleet shop which circuit breakers, filter elements, and valve coils belong on the shelf. Ordering a lift cylinder? Check your serial number first: 1532E and 1932E power down machines changed assemblies at S/N 27181, and this book lists both versions. Every hour spent guessing part numbers is an hour the lift sits chained off. Buy the PDF once, bookmarked and with a full text layer, and it stays yours for the life of the machine.
What's Inside This JLG 1532E–2658E Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Frame | 9-54 | Drive and Steering Installation, Drive Motor Assemblies - White, Drive Motor Assemblies - Eaton, Axle/Brake Installations, Jlg Pothole Protection System Installation |
| Ground Components | 55-78 | Hydraulic Components and Cover Installation - 1532E/1932E, Hydraulic Components and Covers Installation - 1532E/1932E |
| Scissor Arms | 79-110 | Installation - 1532E, Installation - 1932E, Installation - 2033E/2046E, Installation - 2646E/2658E |
| Platform | 111-162 | Installation - Manually Operated Extension, Handrails and Extension Installation - Standard Rails, Handrails and Extension Installation - Folddown Rails, Assembly - Power Operated |
| Cylinders | 163-192 | Brake Cylinder Assembly, Lift Cylinder Components, Platform Extension Cylinder Assemblies, Steer Cylinder Assembly |
| Hydraulic | 193-202 | Diagram List |
| Electrical | 203-216 | Diagram List, Harness and Cable Assemblies |
| Decals | 217-240 | Installation - 1532E/1932E Power Down Machines, Installation - 2033E/2046E/2646E/2658E Power Down Machines, Decal Installation - Gravity Down Machines |
| Recommended Service Parts Stock | 241-242 | Circuit Breakers, Hydraulic Couplings, Filter Elements, Valve Cartridge Coils, Controller Assemblies, Limit Switches |
| Special Options | 243-246 | Air Line Assembly, Steer and Drive Installation, Camera Mount Assembly, Cold Weather Kit, Overload Protection Installation, Platform Control Box |
JLG 1532E–2658E Common Problems This Manual Covers
Need JLG 1932E drive motor seal kit part numbers, lift steers and raises but won't drive

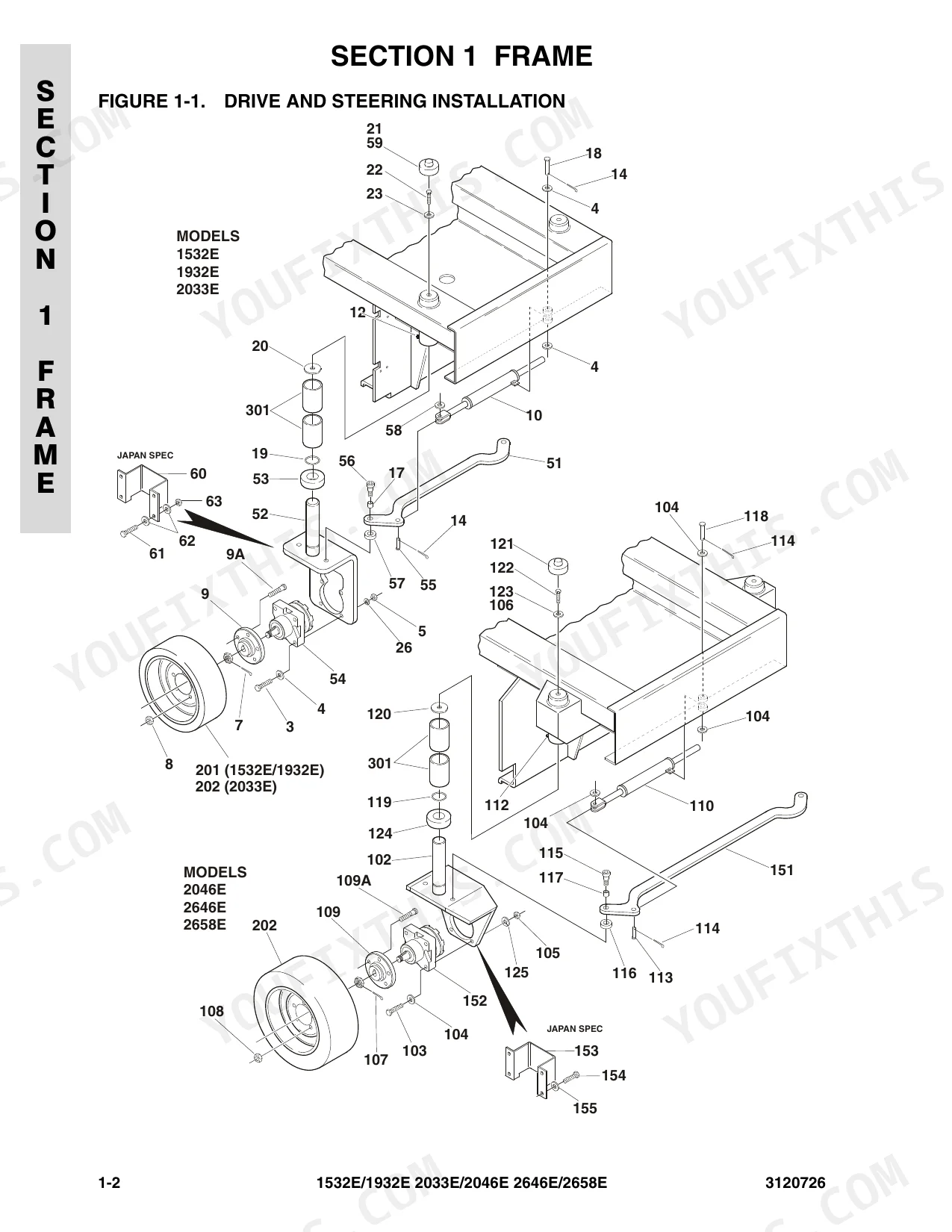

Check the chassis parts diagram on page 10 and match your drive motor against the parts number list on page 11. White and Eaton motors use different seal and carrier kits, so identify which brand is fitted before ordering. Verify the kit against your machine serial number, since drive motor assemblies vary across serial ranges.
Manual Section: Frame p. 10Lift raises slowly under load, need valve cartridge and coil part numbers for replacement
Check the hydraulic schematic on page 194 to identify which cartridge feeds the lift function, then match the coil and cartridge to the hydraulic parts diagram on page 56. Compare against the valve cartridge coils and filter elements stocked under Recommended Service Parts on page 241, and confirm your serial number range before ordering.
Manual Section: Ground Components p. 56Machine goes dead until power reset, need controller board, relay, and limit switch part numbers
Check the wiring diagram on page 206 and trace the enable circuit to pin down whether the fault sits in the controller, a relay, or the foot switch. Match each suspect component to the controller assemblies, circuit breakers, and limit switches in the Recommended Service Parts Stock list on page 241, then confirm fitment by serial number.
Manual Section: Electrical p. 206Lift cylinder weeping oil at the rod, can't find the correct seal kit number
Check the Cylinders section starting on page 163 and locate the exploded view for your model's lift cylinder; barrel, rod, piston, and seal kit items are itemized there. Each of the six models uses its own cylinder assembly, so match the part number stamped on the barrel and your serial number before ordering the kit.
Manual Section: Cylinders p. 163Blown hydraulic hose between pump and valve block, need the replacement hose kit number

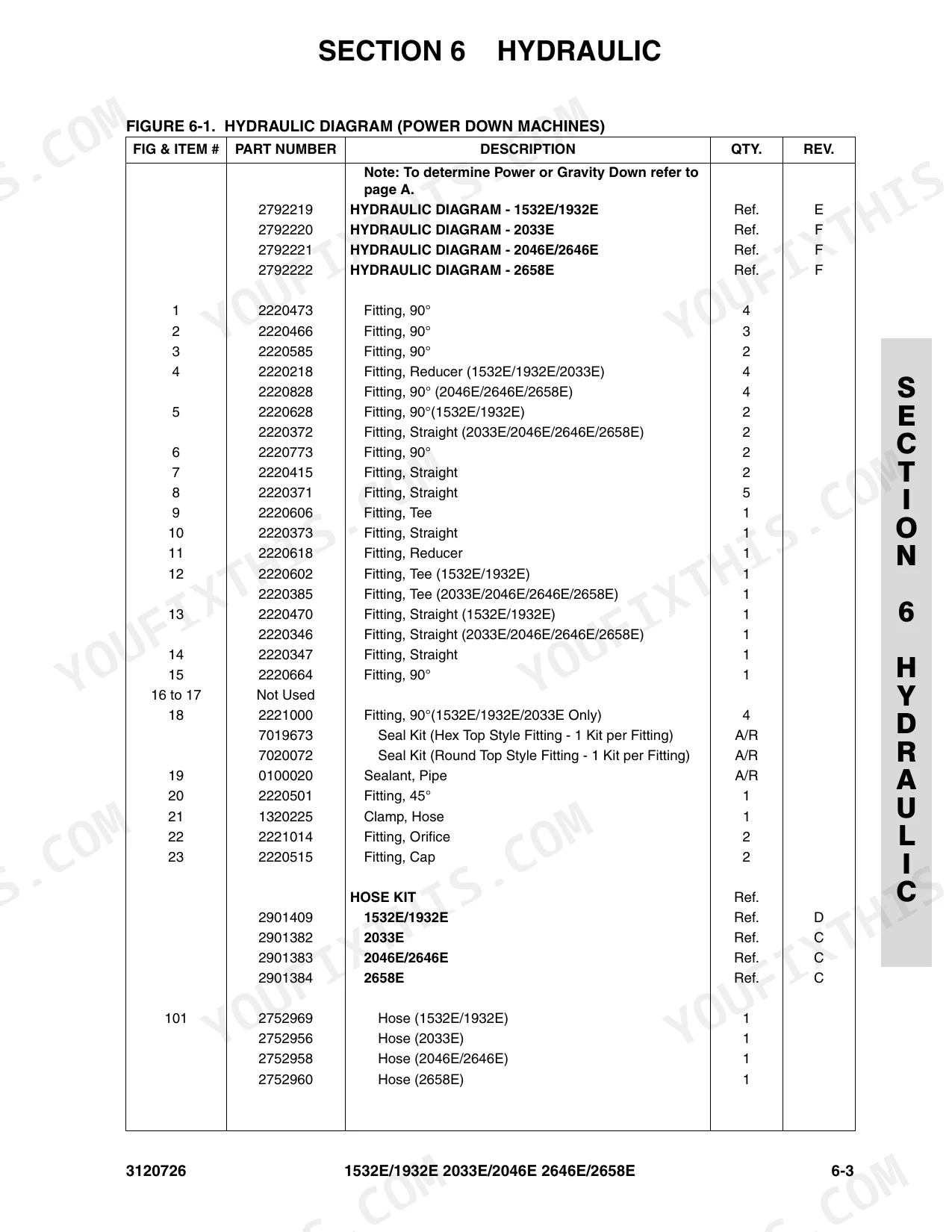

Check the hydraulic diagrams beginning on page 193 and follow the circuit on the schematic on page 194 to identify which hose and tube kit covers the failed line. Power down and gravity down machines route hoses differently, so verify your configuration and serial number range against the parts list before ordering.
Manual Section: Hydraulic p. 193Worn safety decals failed a jobsite inspection, need decal kit numbers for gravity down machines
Check the Decals section starting on page 217; gravity down and power down machines use separate decal installations, and the 1532E/1932E kits differ from the 2033E/2046E/2646E/2658E kits. Identify your configuration first, then pull each decal part number from the installation drawing that matches your model and serial number.
Manual Section: Decals p. 217Frequently Asked Questions
What is the battery charger assembly part number for a 120V/60HZ ANSI spec JLG 1532E-2658E scissor lift?
The part number for the 120V/60HZ ANSI spec battery charger assembly is 0400138, as listed in the Battery Charger Assemblies section. p. 49
What is the part number for the lift cylinder assembly for 1532E/1932E machines built prior to S/N 27181?
The part number for the lift cylinder assembly for 1532E/1932E machines built prior to S/N 27181 is 1683377. p. 167
What is the part number for the emergency stop switch used on the platform console?
The part number for the emergency stop switch used on the platform console is 4360289. p. 155
What is the part number for the hydraulic filter element used in the hydraulic tank assembly?
The part number for the hydraulic filter element is 2120072. p. 57
Will this JLG 1532E Parts Catalog download right away?
A 258-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print a copy of this JLG 1532E Parts Catalog for the shop?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
Is the hydraulic system diagrammed in this JLG 1532E manual?
A hydraulic system diagram for the JLG 1532E & variants is included. See page 194 for an example.
