Written for JLG's E2 electric scissor lift series, five models from the 1932E2 through the 3246E2, this 46-page Operator Manual (OEM ID 3120854) tells you up front that it fits the machine in your yard. In the JLG 1932E2 operator manual PDF, controls and indicators take up the largest share of the book, with separate layouts for non-proportional and proportional control boxes so you can match every switch and warning light to your own unit. Pre-start inspection, platform extension, the safety prop, tie-down and lifting points, and emergency operation of a raised platform each get their own section, along with emergency towing. Hydraulic pressure tops out at 207 bar on a 24 volt system, and a 1932E2 weighs 1360 kg gross, a figure that matters when you load the trailer. Guessing at the emergency controls costs far more than this book. It's bookmarked, text-searchable and a one-time purchase that stays yours for as long as you run the lift.
What's Inside This JLG 1932E2–3246E2 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 9-12 | General, Pre-Operation, Operation, Towing, Lifting, And Hauling, Additional Hazards / Safety |

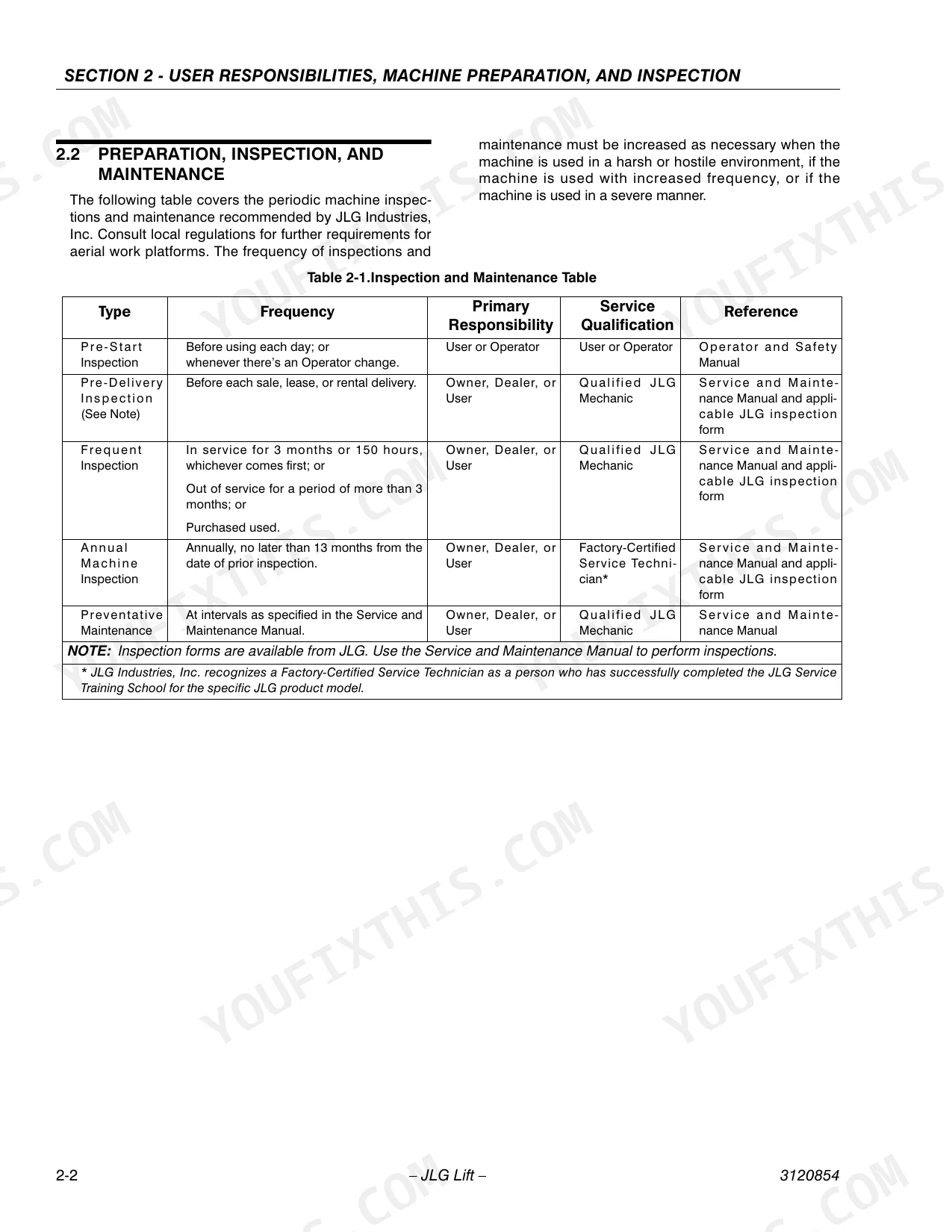

| User Responsibilities, Machine Preparation, and Inspection | 13-20 | Personnel Training, Preparation, Inspection, And Maintenance |
| User Responsibilities and Machine Control | 21-36 | General, Personnel Training, Operating Characteristics and Limitations, Controls and Indicators for Non Proportional Control, Controls and Indicators for Proportional Control |

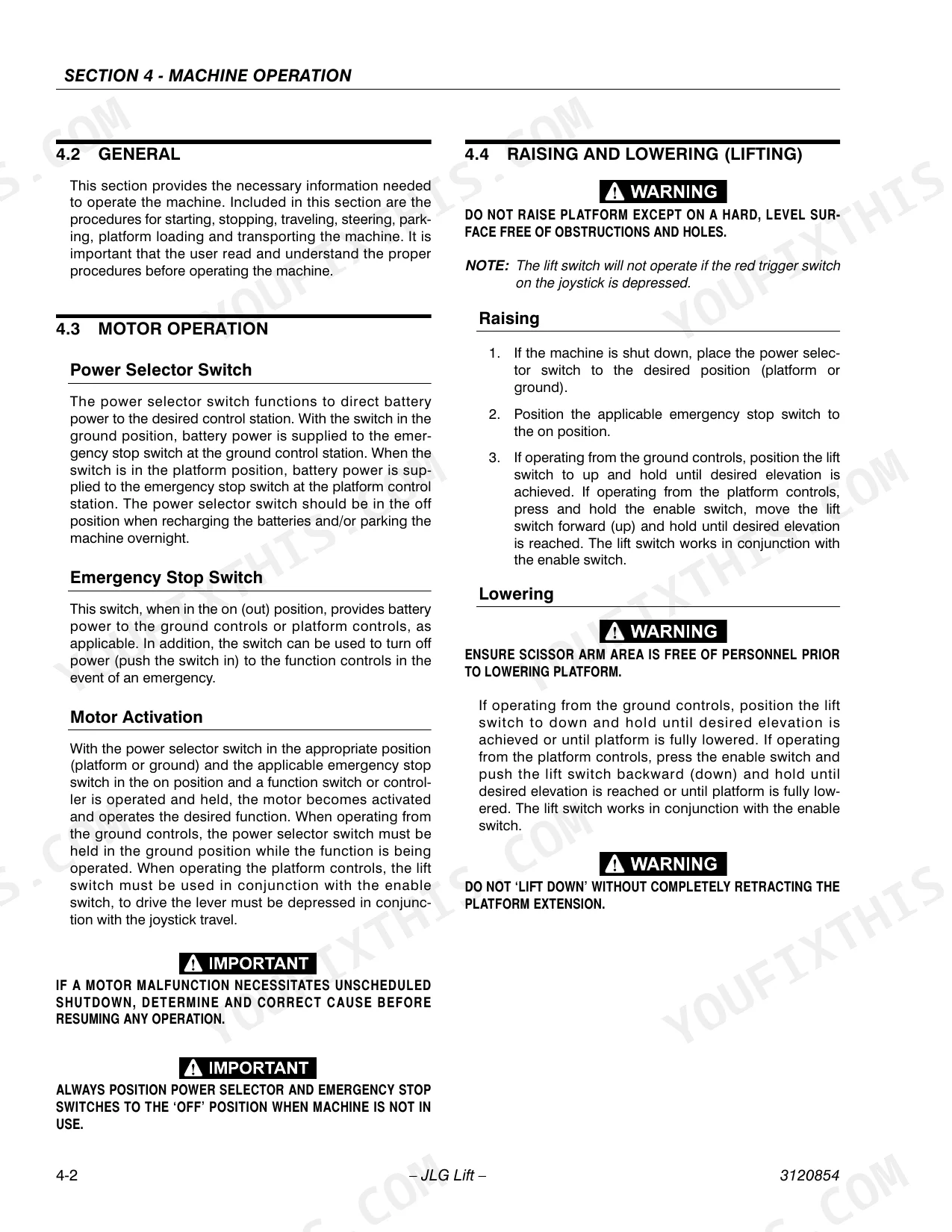

| Machine Operation | 37-42 | Description, General, Motor Operation, Raising and Lowering, Platform Extension, Steering, Traveling, Parking and Stowing |
| Emergency Procedures | 43-44 | General, Emergency Towing Procedures, Emergency Controls and Their Locations, Emergency Operation, Incident Notification |
| Inspection and Repair Log | 45-46 | Date, Comments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Maximum Hydraulic System Pressure | 207 Bar | p. 37 |
| Electrical System Voltage | 24 Volt | p. 37 |
| 1932E2 | ||
| Gross Machine Weight | 1360 kg | p. 37 |
| 2032E2 | ||
| Gross Machine Weight | 2091 kg | p. 37 |
| 2632E2 | ||
| Gross Machine Weight | 2415 kg | p. 37 |
| 3246E2 | ||
| Gross Machine Weight | 2804 kg | p. 37 |
JLG 1932E2–3246E2 Series Common Problems This Manual Covers
JLG 1932E2 platform will not lower from ground or platform controls after electrical power loss
Check that the area below the platform is clear of people and obstructions, then bring the basket down using the manual descent procedure on page 44. Once the platform is stowed, complete the post-incident inspection on page 44 and log any findings in the inspection and repair log on page 45 before returning the lift to service.
Manual Section: Emergency Operation p. 44Tilt alarm sounding at platform control station while raising platform on uneven ground
Check the machine position the moment the tilt alarm sounds: stop raising, lower the platform to stowed, and move to firm, level ground. The tilt alarm is explained with the controls on page 22, and tipping hazards are listed on page 9. Record the event in the inspection and repair log on page 45.

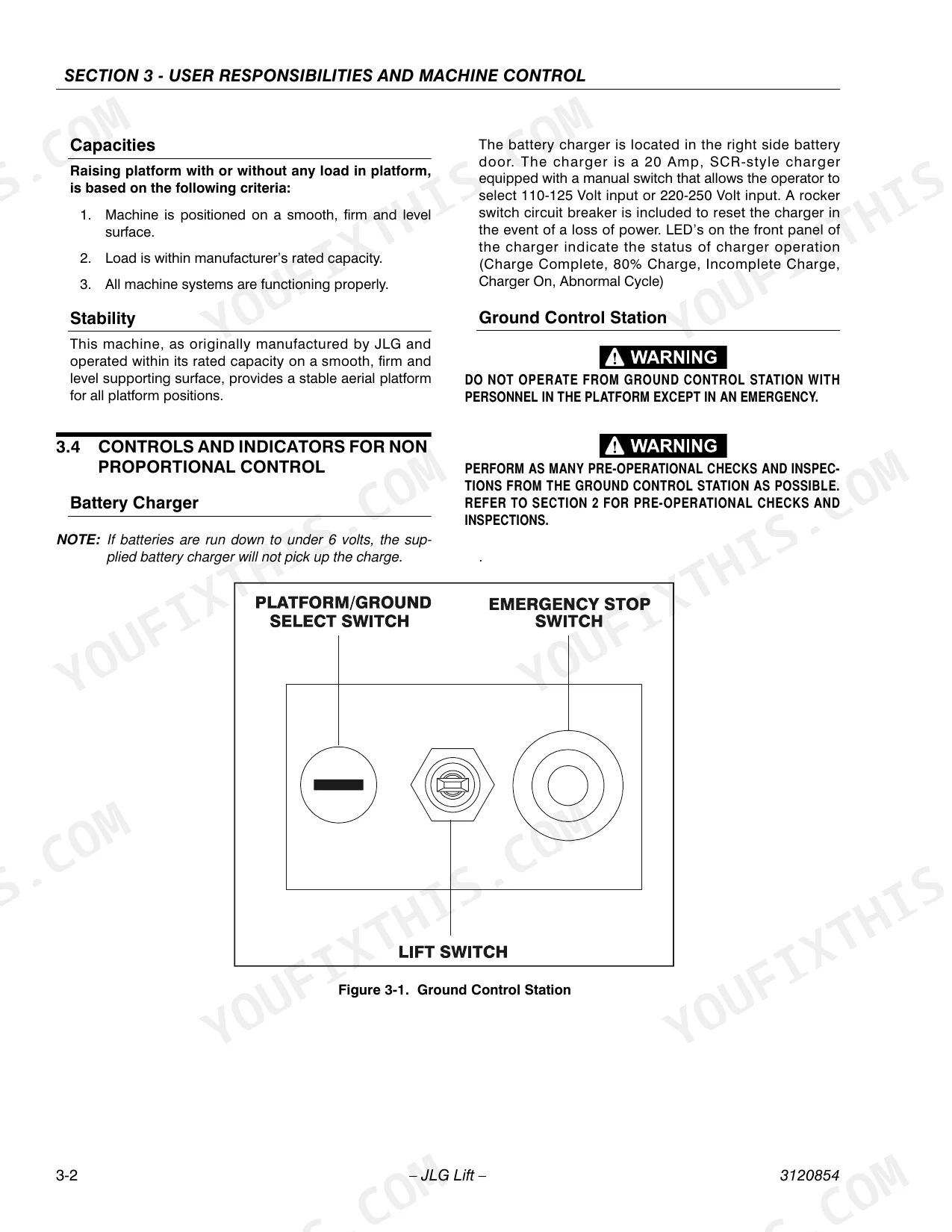

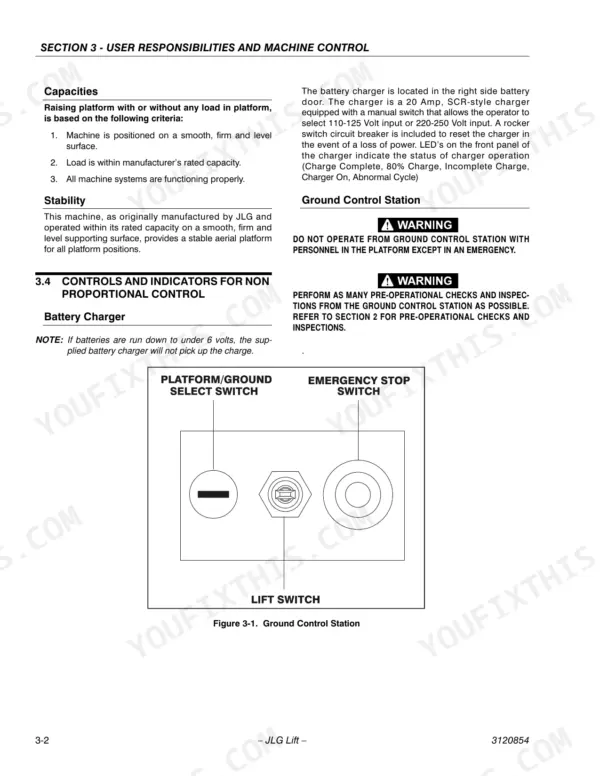

Manual Section: Controls and Indicators (Non Proportional) p. 22Battery charger not charging after plug-in, no functions available at ground control station
Inspect the battery charger following the controls and indicators layout on page 22. Verify the charger is matched to the 24 Volt electrical system listed on page 37, then allow a full charge cycle. Run the pre-start function check on page 14 from both ground and platform controls before anyone goes up.
Manual Section: Controls and Indicators (Non Proportional) p. 22Joystick controller not responding to drive commands at platform control station on proportional models
Check the joystick controller, high drive speed switch, and positive traction switch positions following the proportional platform control station layout on page 25. Verify whether the JLG SMART system controls apply to your machine, then repeat the function check on page 14 from ground and platform controls. Remove the lift from service if drive still fails.
Manual Section: Controls and Indicators (Proportional) p. 25Disabled machine will not roll during emergency towing, drive wheels held by parking brake

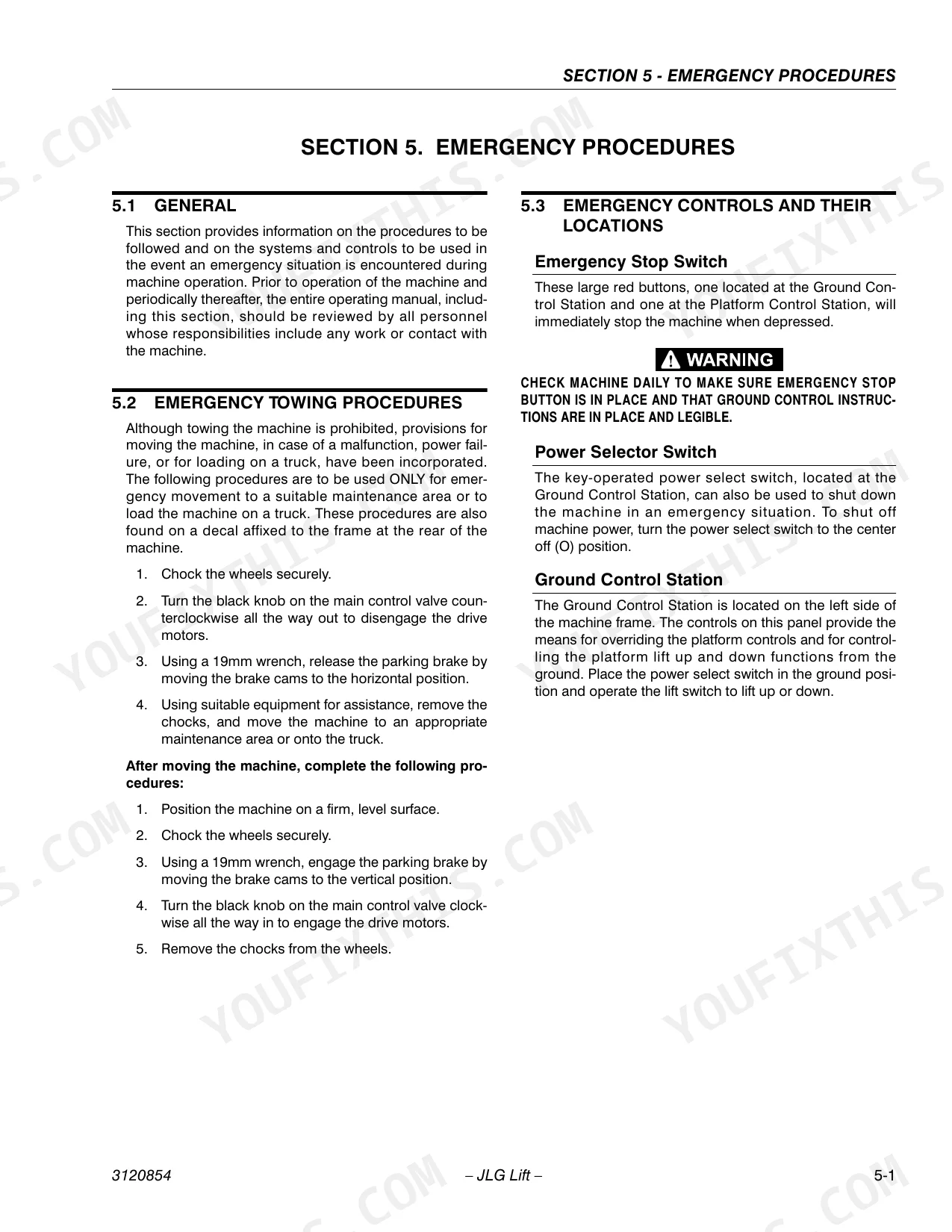

Verify the platform is fully stowed, then disengage the drive motors and release the parking brake following the emergency towing procedure on page 43. Move the machine only as far as needed to clear the hazard. Re-engage the drive motors and brake before leaving it, and run the function check on page 14 before returning to service.
Manual Section: Emergency Towing Procedures p. 43Frequently Asked Questions
How do you reset the JLG E2 scissor lift after an emergency stop or fault?
To reset the system after a fault or emergency stop, turn the emergency stop switch off and then on again. This action will reset the smart system if a system fault has occurred and the machine has shut down. p. 26
What is the procedure for resetting the battery charger on a JLG E2 scissor lift?
The battery charger is equipped with a rocker switch circuit breaker that is used to reset the charger in the event of a loss of power. p. 22
What is the maximum wind speed allowed for operating the JLG E2 series machines?
The machine must not be operated when wind conditions exceed 28 mph (12.5 m/s). p. 9
What is the required frequency for performing a frequent inspection on the JLG E2 series?
A frequent inspection is required when the machine has been in service for 3 months or 150 hours, whichever comes first, or if it has been out of service for more than 3 months or purchased used. p. 14
What is the maximum pressure for pressure-washing electrical components on JLG E2 scissor lifts?
When pressure-washing areas containing electrical or electronic components, JLG recommends a maximum pressure of 750 PSI (52 BAR) at a minimum distance of 12 inches (30.5 cm) from the components. p. 25
How quickly can I access this JLG 1932E2 manual after buying?
Delivery is instant: a 46-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Does this JLG 1932E2 manual allow printing?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
