Stabil-TRAK trips up more wrenches than any other system on these telehandlers, and this JLG 6042 service manual PDF (OEM ID 31200353) closes its 230 pages with a full chapter on circuit operation, system tests, and boom interlock troubleshooting, after working through five models from the 6036 to the 10054. Electrical schematics trace the start circuit, charging circuit, and every solenoid and sender back to the fuse and relay panel. Hydraulic circuit drawings carry your pressure diagnosis from reservoir to cylinder, and boom service, three-section and four-section systems, extend chains, and wear pads, fills the largest chapter. Verify charging output against the rated 12V, 120 amp alternator on a 6042, then set size 6 ORFS fittings to 23 lb-ft (31 Nm). Sunday night, one machine down, nobody answering the phone. This bookmarked, text-searchable PDF is built for that hour, and the component terminology sections mean the part you order Monday is the right one.
What's Inside This JLG Skytrak 6036-10054 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Practices | 9-12 | Introduction, Disclaimer, Operation & Safety Manual, Do Not Operate Tags, Safety Information, Safety Instructions, Safety Decals |
| General Information and Specifications | 13-38 | Replacement Parts and Warranty Information, Torque Charts, Specifications, Fluid and Lubricant Capacities, Service and Maintenance Schedules, Lubrication Schedules |

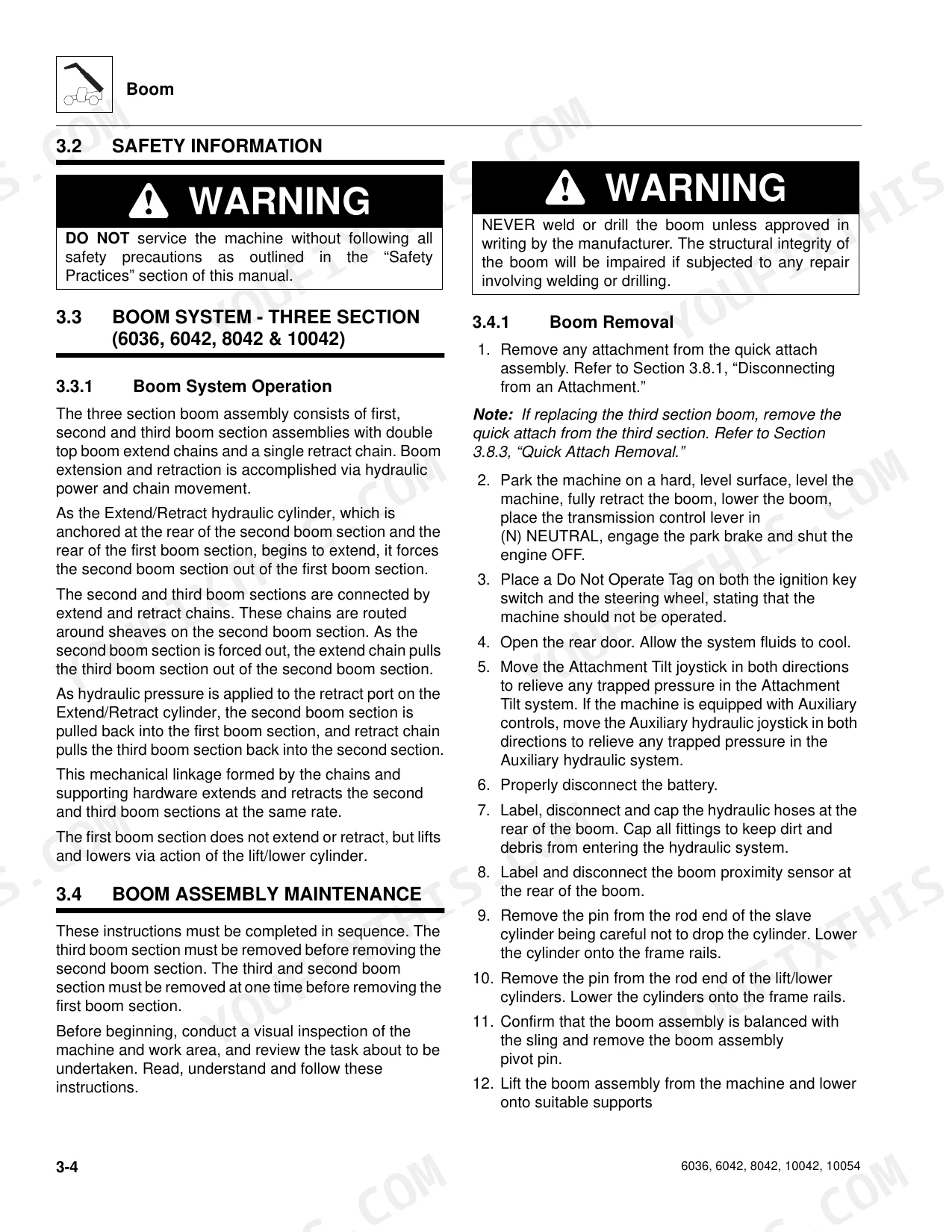

| Boom | 39-94 | Boom System Component Terminology, Safety Information, Boom System - Three Section, Boom Assembly Maintenance, Boom System - Four Section, Boom Extend and Retract Chains |
| Cab and Covers | 95-104 | Operator Cab and Covers Component Terminology, Operator Cab, Cab Components, Cab Removal, Cab Installation |
| Axles, Drive Shafts, Wheels and Tires | 105-122 | Axle, Drive Shaft and Wheel Component Terminology, Axle Assemblies, Axle Assembly and Drive Shaft Troubleshooting, Drive Shafts, Wheels and Tires, Brakes, Towing a Disabled Machine |
| Transmission | 123-132 | Transmission Assembly Component Terminology, Transmission Serial Number, Transmission Specifications and Maintenance Information, Transmission Replacement |
| Engine - Cummins QSB3.3T/QSB4.5T | 133-144 | Introduction, Engine Serial Number, Specifications and Maintenance Information, Engine Cooling System, Engine Electrical System, Fuel System, Engine Exhaust System |
| Hydraulic System | 145-182 | Hydraulic Component Terminology, Safety Information, Hydraulic Pressure Diagnosis, Hydraulic Circuits, Hydraulic Reservoir, Hydraulic System Pump, Valves and Manifolds |
| Electrical System | 183-214 | Electrical Component Terminology, Specifications, Safety Information, Fuses and Relays, Electrical System Schematics, Engine Start Circuit, Charging Circuit |
| Stabil-TRAK System and Boom Interlock System | 215-230 | Stabil-TRAK System Component Terminology, Boom Extend Interlock System Component Terminology, Stabil-TRAK Description, Stabil-TRAK Electrical Circuit Operation and Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Alternator (6036 & 6042) | 12V, 120 Amps | p. 24 |
| Alternator (8042, 10042 & 10054) | 12V, 100 Amps | p. 24 |
| Size 4 Orfs Torque | 13 lb-ft (18 Nm) | p. 22 |
| Size 4 JIC Torque | 13 lb-ft (18 Nm) | p. 22 |
| Transmission oil filter installation torque | 20-25 lb-ft (27-34 Nm) | p. 128 |
| Return filter bypass pressure | 25 psi (1,7 bar) | p. 165 |
| Outrigger pressure switch torque | 25-38 lb-ft (34-41 Nm) | p. 204 |
| Fuel Tank Capacity | 37 gallon (140 liter) | p. 28 |
| 6036, 6042 | ||
| Engine Crankcase Oil Capacity (Cummins QSB3.3) | 7.6 quart (7,2 liter) | p. 28 |
| Hydraulic System Capacity | 57 gallon (216 liter) | p. 28 |
| 8042, 10042, 10054 | ||
| Engine Crankcase Oil Capacity (Cummins QSB4.5) | 11.0 quart (10,4 liter) | p. 28 |
| 8042 | ||
| Hydraulic System Capacity | 58 gallon (218 liter) | p. 28 |
JLG Skytrak 6036-10054 Series Common Problems This Manual Covers
JLG telehandler boom extend and retract slow, hydraulic functions weak or dead under load
Check hydraulic oil level first; a low tank starves the pump under load. Test main relief pressure, 2900-3100 psi (200-214 bar), using page 152 for the 6036 or page 158 for the 8042, 10042, and 10054. Replace a plugged return filter; it bypasses dirty oil at 25 psi (1,7 bar). Then run the boom troubleshooting chart.

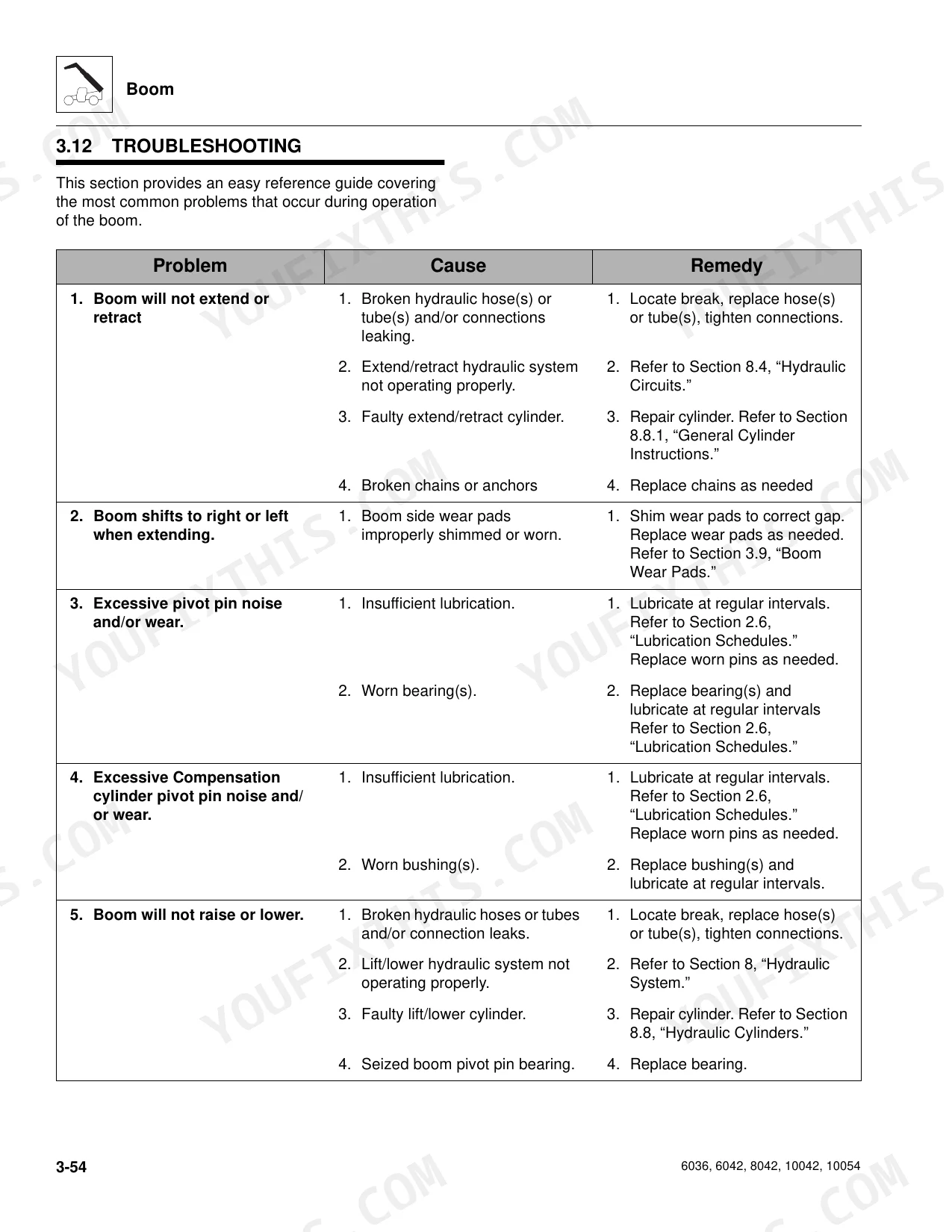

Manual Section: Boom TroubleshootingEngine shuts down or flags false coolant level fault soon after startup

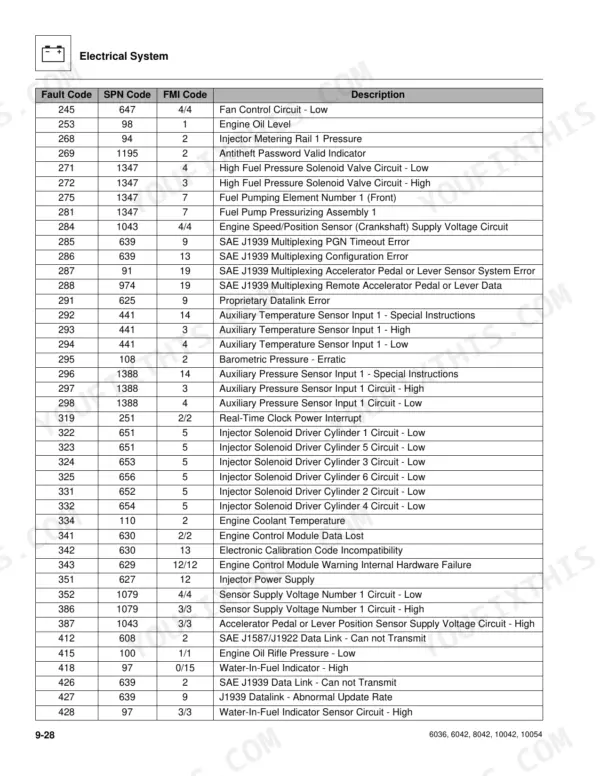

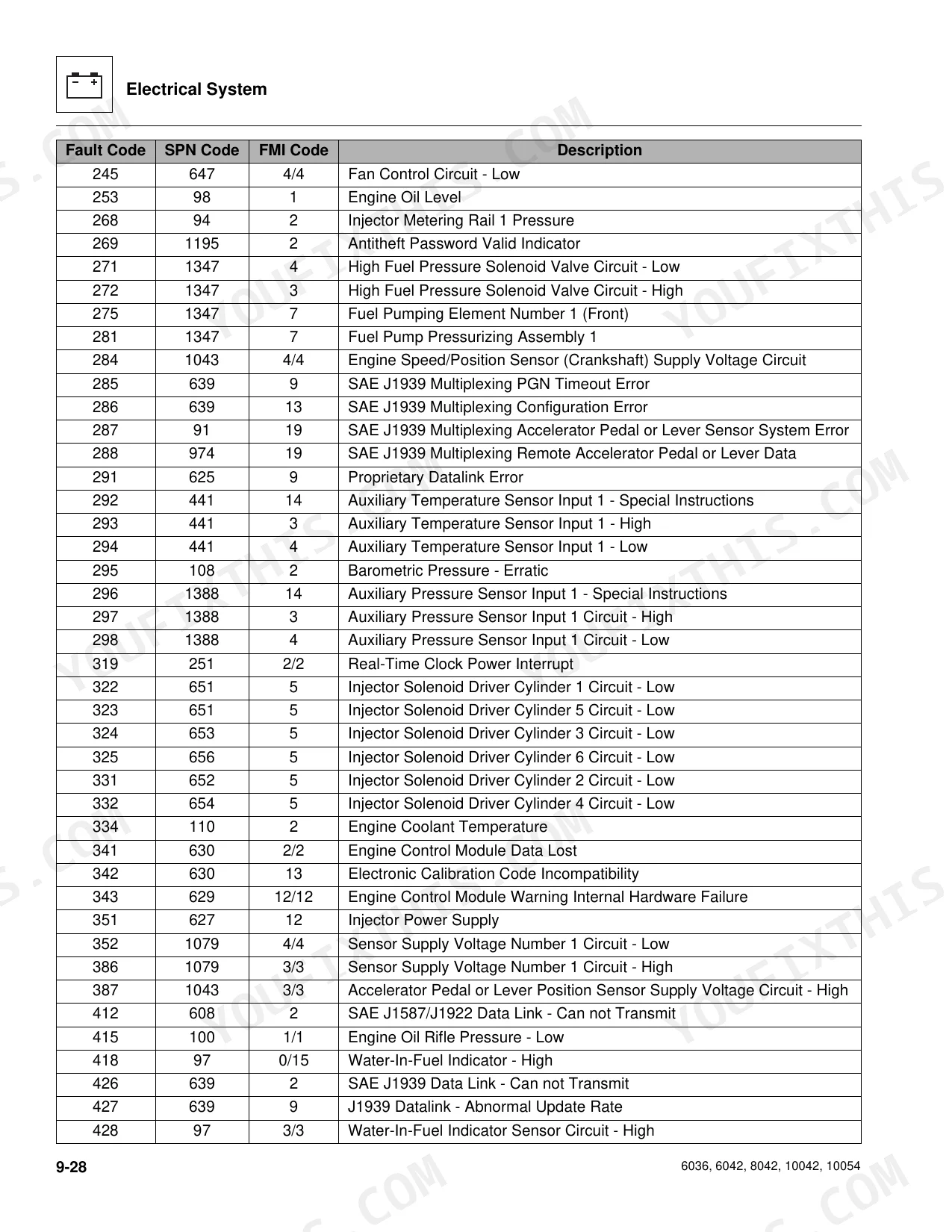

Read stored codes with the flash-out procedure on page 209 before swapping parts. For a false coolant level fault on Tier 4F engines, remove the de-aeration tank level sensor and reinstall snug; over-torquing it is a known trigger. For low oil pressure shutdowns, check level: the QSB3.3 in the 6036 and 6042 holds 7.6 quarts (7,2 liters), page 28.
Manual Section: Engine - Cummins QSB3.3T/QSB4.5T p. 133Engine cranks slowly or won't start in cold weather, batteries seem weak
Test the battery under load and clean both terminals before condemning the starter; corrosion alone will set low battery code 1. Check the 250 amp starter relay fuse and the 200 amp cold start grid heater relay, both covered on page 185. On the 6036 and 6042, verify charging from the 12V, 120 amp alternator, spec on page 24.
Manual Section: Electrical System p. 185Hydraulic hoses weep oil at the fittings, fresh drips under boom overnight
Wipe the fitting dry and run the machine to pinpoint the true source before pulling hoses. Retorque suspect fittings to the chart on page 22: size 8 ORFS takes 40 lb-ft (54 Nm), size 12 takes 74 lb-ft (100 Nm). Replace the face seal O-ring on any fitting that ran loose; retorquing a damaged seal only slows the leak.
Manual Section: Hydraulic System p. 145Wheel wobble or clunking from one corner, lug nuts keep working loose
Torque all lug nuts to 430-470 lb-ft (583-637 Nm) in a star pattern; the spec sits on page 25. Inspect stud holes for elongation and replace any wheel that has wallowed out. If the clunk continues, follow the axle and drive shaft troubleshooting procedures in the section starting on page 105.
Manual Section: Axles, Drive Shafts, Wheels and Tires p. 105Frequently Asked Questions
What is the wheel lug nut torque for a JLG SkyTrak 8042?
The standard wheel lug nut torque for the 8042 model is 430 - 470 lb-ft (583 - 637 Nm). p. 25
What is the engine crankcase oil capacity on a JLG Skytrak 6036 with the Cummins QSB3.3 engine?
The engine crankcase oil capacity for the Cummins QSB3.3 engine, including a filter change, is 7.6 quarts (7,2 liters). p. 28
What is the hydraulic reservoir capacity to the full mark on the JLG Skytrak 6036-10054 Series?
The hydraulic reservoir capacity to the full mark is 32 gallons (122 liters). p. 28
What is the torque spec for the main control valve tie rod top nut on a JLG Skytrak 6036-10054 Series telehandler?
When assembling the main control valve, the top nut on the tie rods should be torqued to 66-82 lb-ft (89-111 Nm). p. 168
Is this JLG 6036 Service Manual a digital download?
Instant PDF download. You get the full 230-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is printing allowed for this JLG 6036 Service Manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
Does this JLG 6036 manual show the hydraulic circuits?
Yes. Complete hydraulic schematics are included, with circuit layouts, valve positions, and pressure specifications. You can see one on page 151.
