Before you climb into the cab of your 2009-2012 telehandler, make sure you have this 414-page JCB 515-40 operator manual pdf (OEM #9821/0600) ready to go. You get complete daily walkaround checklists, detailed instrument panel explanations, and the actual load charts required for safe lifting. Open the file to find factory maintenance interval schedules, cold weather operating practices, fluid capacity tables, and step-by-step instructions for the Longitudinal Load Moment Indicator (LLMI). Verify your fuel tank holds exactly 50 liters and tighten the front and rear wheel nuts to 200 Nm (147.5 lbf ft) before your shift begins. A blinking warning light shouldn't stall your entire crew. Grab this bookmarked download, pull it up on your tablet right in the cab, and get back to work.
What's Inside This JCB 515-40 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 17-18 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 19-64 | About This Manual, Safety Check List, Safety Labels, Identifying Your Machine |

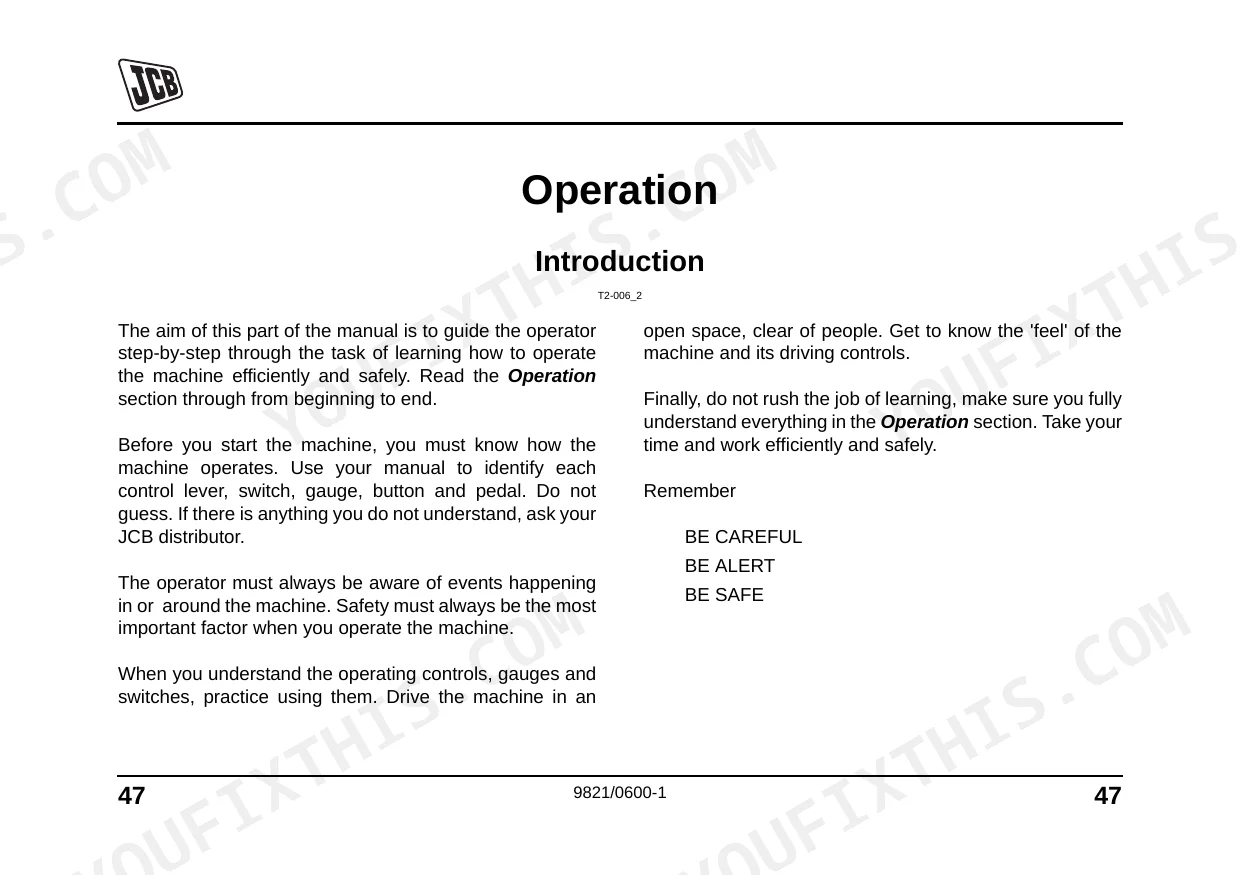

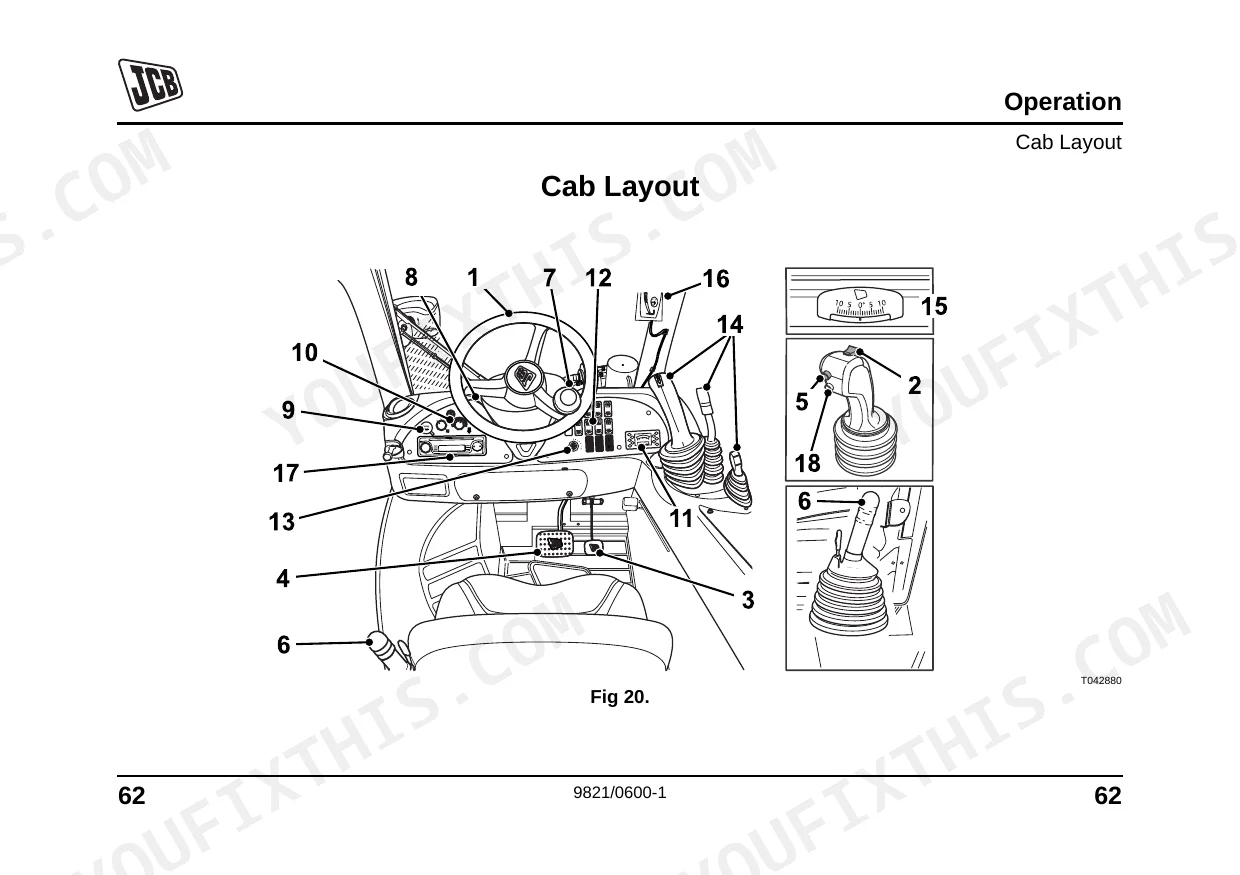

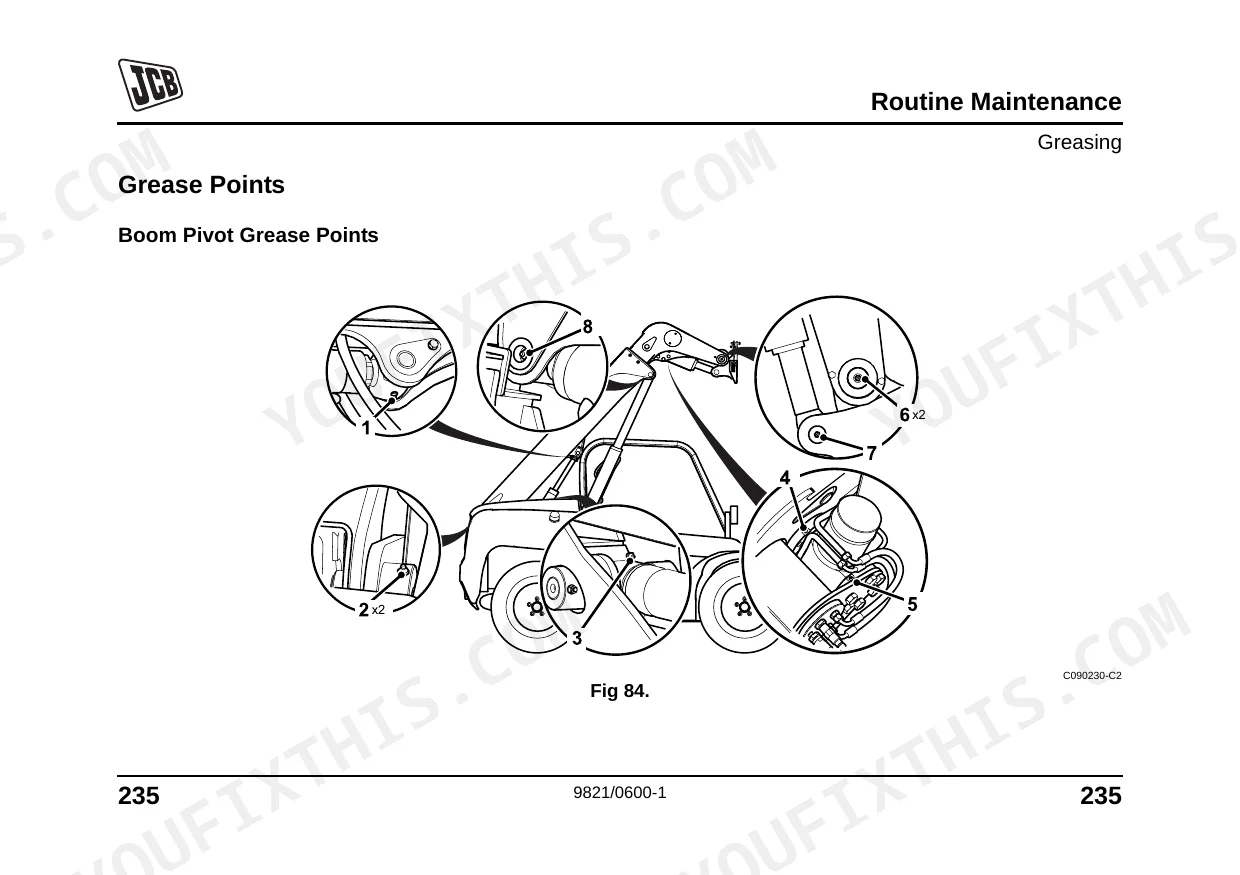

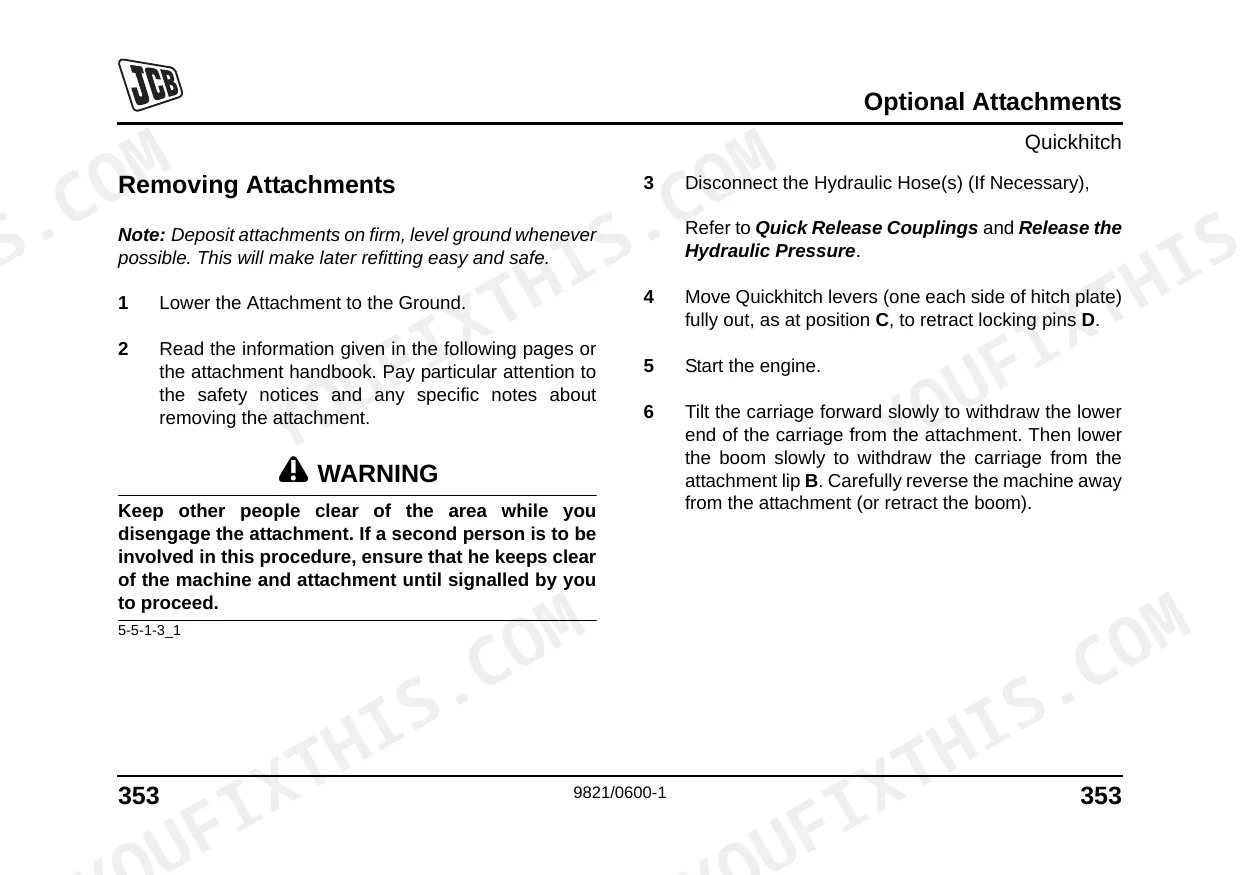

| Operation | 65-196 | Before Entering the Cab, Entering and Leaving the Cab (Emergency Exit), Doors and Windows (Opening Closing: Door Upper Section), Seat Controls (Introduction, Operators Seat) |
| Routine Maintenance | 197-414 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Fit for Purpose Tests for Lifting Equipment, Obtaining Replacement Parts) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torques (Front and Rear) | 200 Nm (147.5 lbf ft) | p. 348 |
| Fuel Tank Capacity | 50 Litres (11 Gal) | p. 221 |
| Engine Oil Capacity | 8.0 Litres (1.76 Gal) | p. 221 |
| Engine Coolant Capacity | 22 Litres (4.8 Gal) | p. 221 |
| Hydraulic System Capacity | 80 Litres (17.6 Gal) | p. 221 |
| Engine Oil and Filter Service Interval | 250 hours | p. 210 |
| Engine Coolant Drain and Refill Interval | 2000 hours | p. 210 |
| Tyre Pressure (Front, As Dumper) | 3.6 Bar (52 PSI) | p. 396 |
| Maximum Wading Depth | 400mm (16in) | p. 392 |
| Maximum Lift Height | 4045 mm (13-3) | p. 391 |
| Unladen Mass | 3480 kg (7672 lb) | p. 390 |
JCB 515-40 Common Problems This Manual Covers
JCB 515-40 telehandler will not start or turns over hard after heavy rain exposure p. 221
Inspect the fluid height sensor area for water ingress. Check the fuel system components for contamination. Drain and refill the engine coolant if contaminated, noting the capacity is 22 Litres (4.8 Gal) as listed on page 221. Verify the fuel tank holds 50 Litres (11 Gal) of clean fuel.
Manual Section: Routine MaintenanceEngine loses power or runs rough under load after thousands of operating hours p. 210
Verify the engine oil and filter service interval of 250 hours on page 210 has not been exceeded. Check the indicator meaning table for active error codes. Inspect the fuel system components and bleed air from the lines to prevent misfiring. Drain the 8.0 Litres (1.76 Gal) of engine oil.
Manual Section: Routine MaintenanceDashboard warning light flashes and machine becomes completely disabled requiring towing assistance

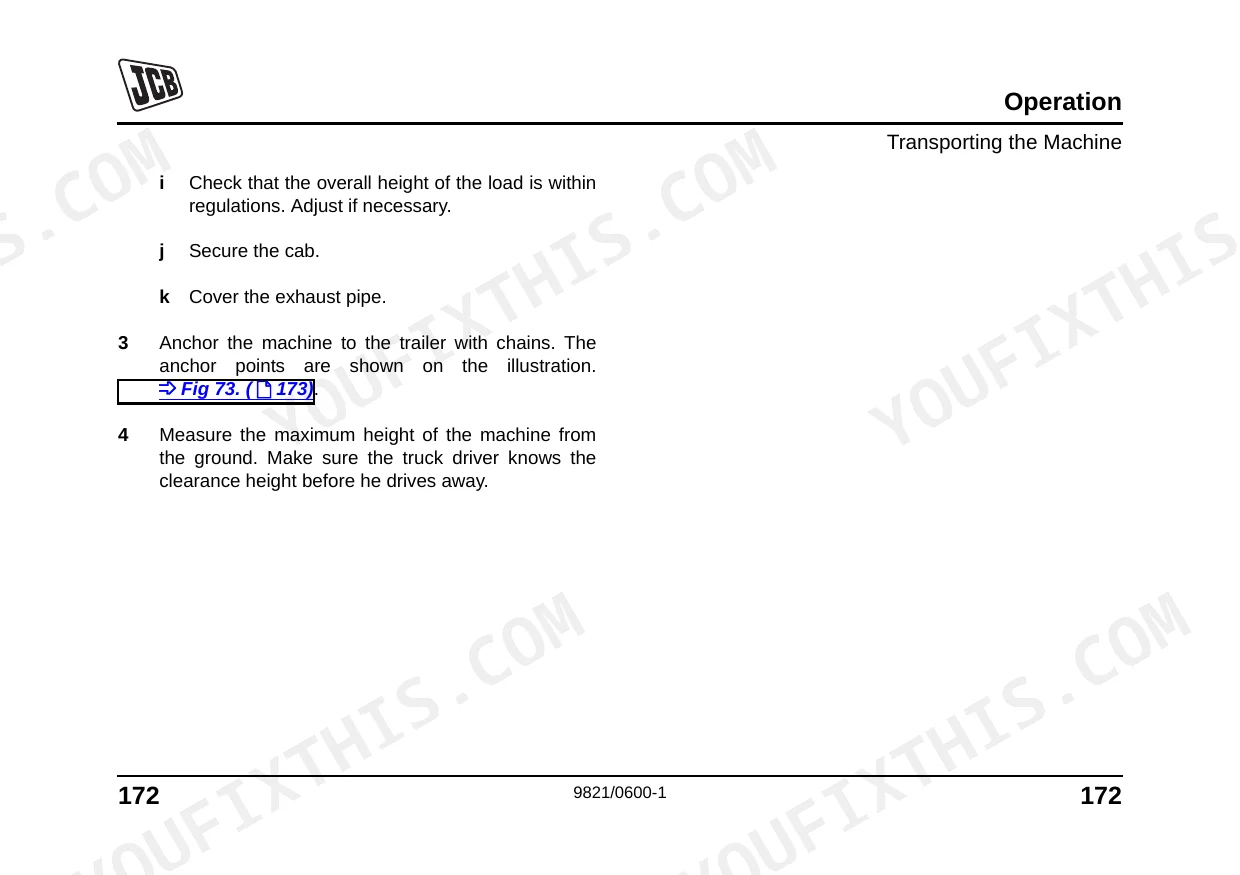

Check the LLMI diagnostic fault codes to identify the exact warning. Inspect the machine structure and hydraulic hoses for damage. Review the transport guidelines before attempting to move the 3480 kg (7672 lb) unladen mass. Verify the park brake is secure before attaching tow chains.
Manual Section: OperationTyres look visibly low on air and machine feels unstable during load transport p. 396
Check the front tyre pressure with a reliable gauge. Inflate the front tyres to 3.6 Bar (52 PSI) as specified on page 396 for operation as a dumper. Inspect the tyre treads for cuts or excessive wear. Verify the machine does not exceed the maximum lift height of 4045 mm (13-3).
Manual Section: Routine MaintenanceWheel nuts appear loose or backing off during the daily walk-around inspection p. 348
Torque the front and rear wheel nuts to exactly 200 Nm (147.5 lbf ft) using a calibrated wrench. Review the torque specifications on page 348 to confirm proper seating. Inspect the wheel studs for thread damage or stretching. Verify the nuts hold their torque after a short test drive.
Manual Section: Routine MaintenanceFrequently Asked Questions
What do the JCB 515-40 stability or LCS warning lights mean?
The Longitudinal Load Moment Indicator (LLMI) uses LEDs to indicate machine stability. Three green LEDs (A) mean the machine is safe. An amber LED (B) indicates the machine is approaching stability limits, and the hydraulic lower function has slowed down. A flashing amber LED (B) means the extend/lower functions are disabled. A red LED (C) signifies that the machine is at the limit of stability, accompanied by an audible warning.
How do I clear JCB 515-40 fault or error codes?
Fault codes on the display will cancel after 10 seconds if the fault clears, and all LEDs will flash continuously as long as the fault remains. To show the fault code again for a further 10 seconds, press and release display button E. If fault codes persist, switch the starter key off and on again. If the fault still does not clear, contact your JCB distributor.
What causes a JCB 515-40 hard start or fuel sensor issue?
A hard start can be caused by air entering the fuel system, which may occur if the machine operates on very low fuel levels or if any part of the fuel system has been drained or disconnected. Running the engine with air in the system can cause misfiring or failure to start. A fuel sensor issue is indicated by the flashing of all fuel level bars and the filler pump symbol on the Digital LCD Fuel Gauge, which signals a fault in the fuel sender circuit.
How do I troubleshoot hydraulic function lockout on a JCB 515-40?
Hydraulic function lockout, specifically for lower/extend functions, occurs when the machine approaches or exceeds its maximum working limit, indicated by a flashing amber LED (B) on the Longitudinal Load Moment Indicator (LLMI). To troubleshoot, you can use the Emergency Override Function by pushing and holding the bottom of switch F on the console for 10 seconds, allowing temporary operation to return the load to a safe position. However, do not use this override to handle excessively heavy loads.
How to reset JCB 515-40 warning lights
Warning lights and their accompanying alarms will sound when a fault condition is detected. The only way to cancel the alarm is to set the starter key to 'off'. Warning lights should go off automatically once the underlying fault condition is rectified. If any warning lights remain on after the engine has started, stop the machine immediately and safely.
How quickly can I access this manual after buying?
This is a 414-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, enabling you to search and copy the text. The text is generally crisp and easy to read throughout, with no noticeable blurriness or fading. Diagrams and illustrations are clear, appearing to be vector graphics, which means labels remain readable even when zoomed in significantly. The pages are clean, showing no significant scan artifacts, stains, or skewed content. Be aware that several pages are intentionally left blank, such as pages 196, 370, 388, 396, and 414, serving as filler pages within the document.
