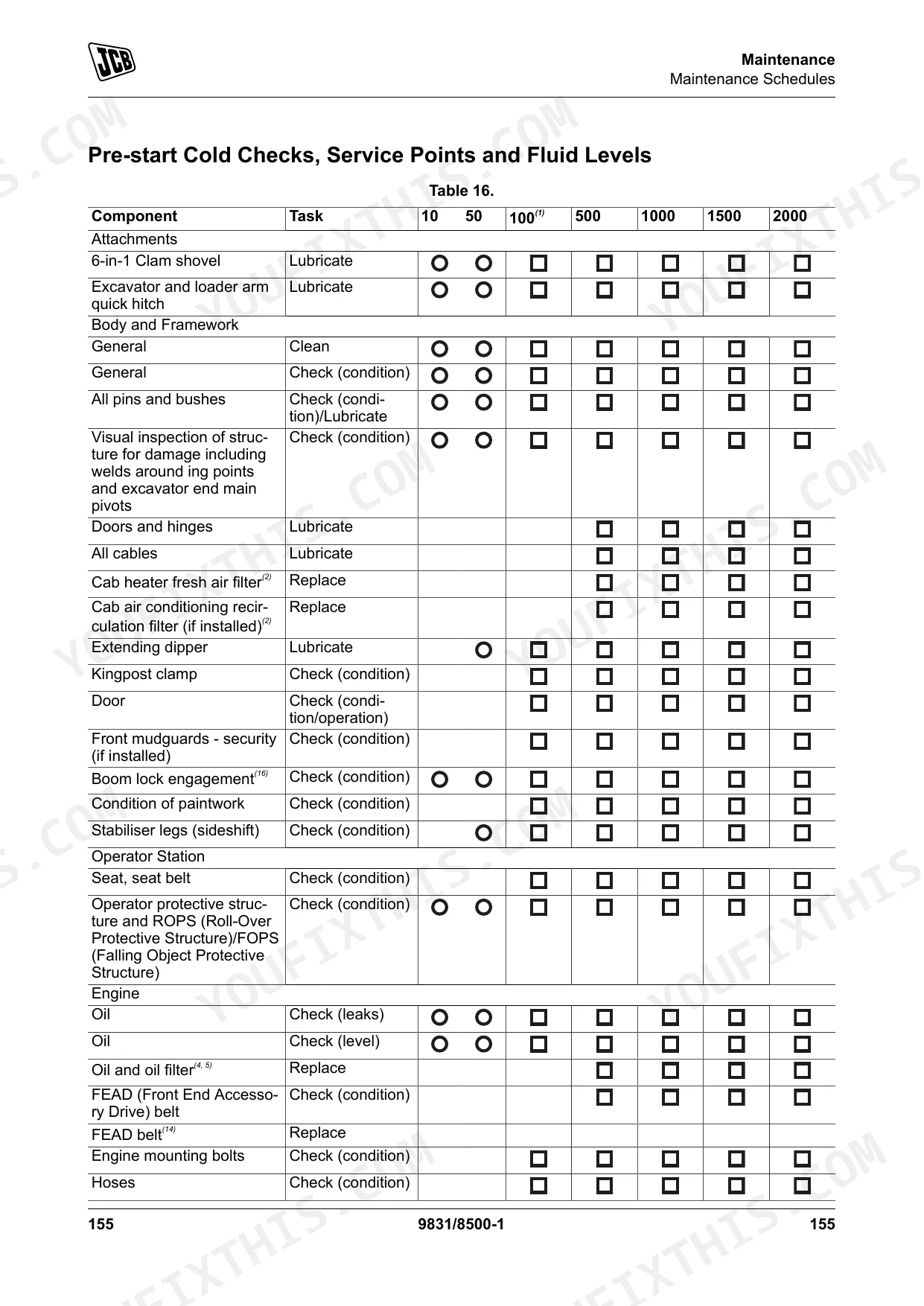

Before you fire up the engine, grab this 264-page JCB 3CXG operator manual PDF (OEM #9831/8500) to master every dashboard control and routine service interval. Inside, you get complete walk-around inspection checklists, detailed cab layouts, and step-by-step daily maintenance schedules to keep the machine running right. Open to the technical data section to find exact fluid capacities, safe working load charts for the loader arm, and a full breakdown of your warning indicators. Verify the auxiliary circuit feed pressure is hitting 270 bar on gear pump machines, and torque the engine sump drain plug to 40-60 N-m during your next oil change. Ignoring dashboard warnings or missing a service interval costs serious money. Download this bookmarked file straight to your phone or tablet, find the exact specification you need, and keep your backhoe pushing dirt.
What's Inside This JCB 3CXG, Excavator-Loader (Wheeled) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator's Manual | 1-2 | Cover, Issue 1 - 02/2018, Publication 9831/8500 |
| Acronyms Glossary | 12 | Acronyms Glossary Table, Two Wheel Drive, Two Wheel Steer |
| Introduction | 13-18 | General, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Obtaining Spare Parts |

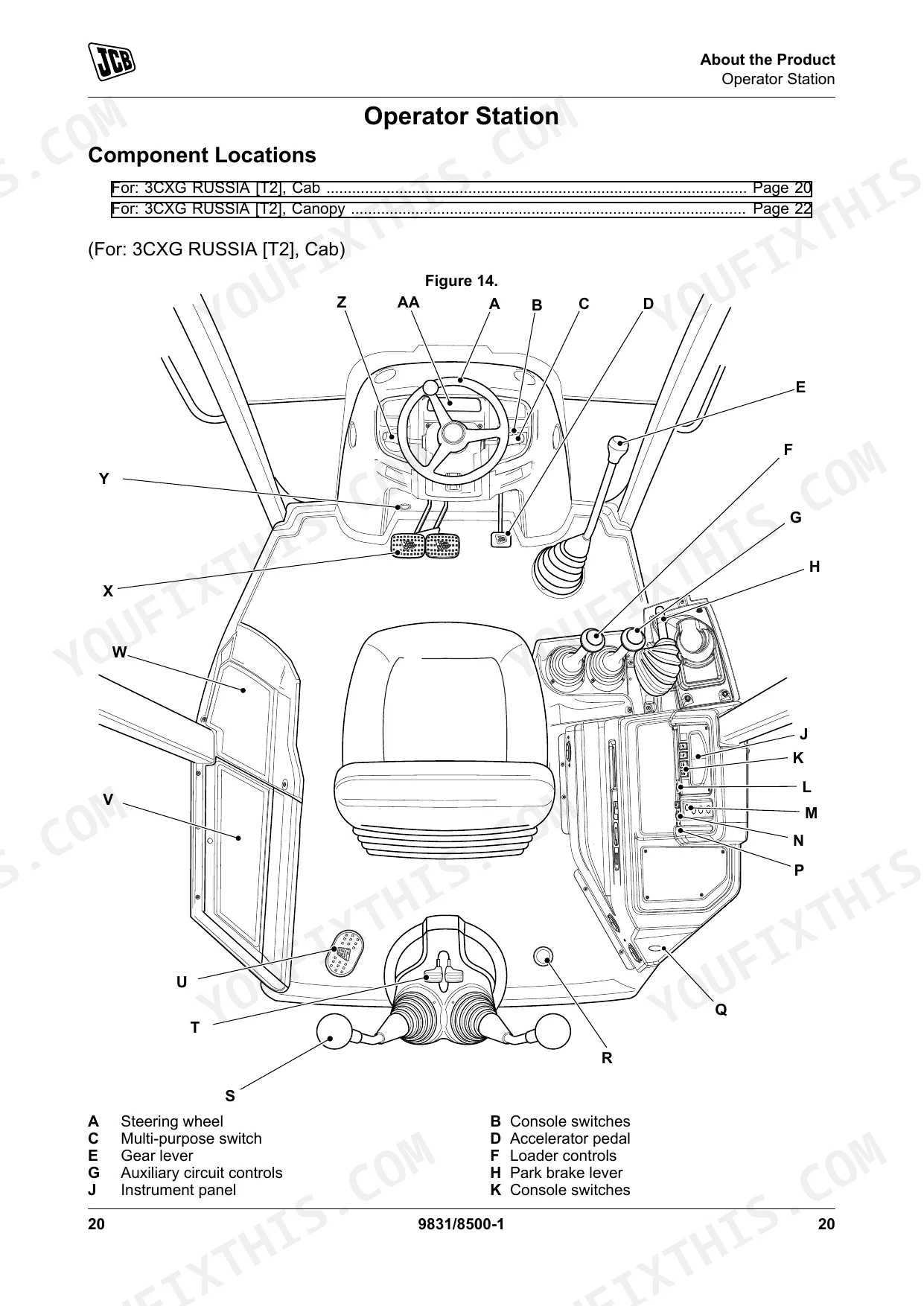

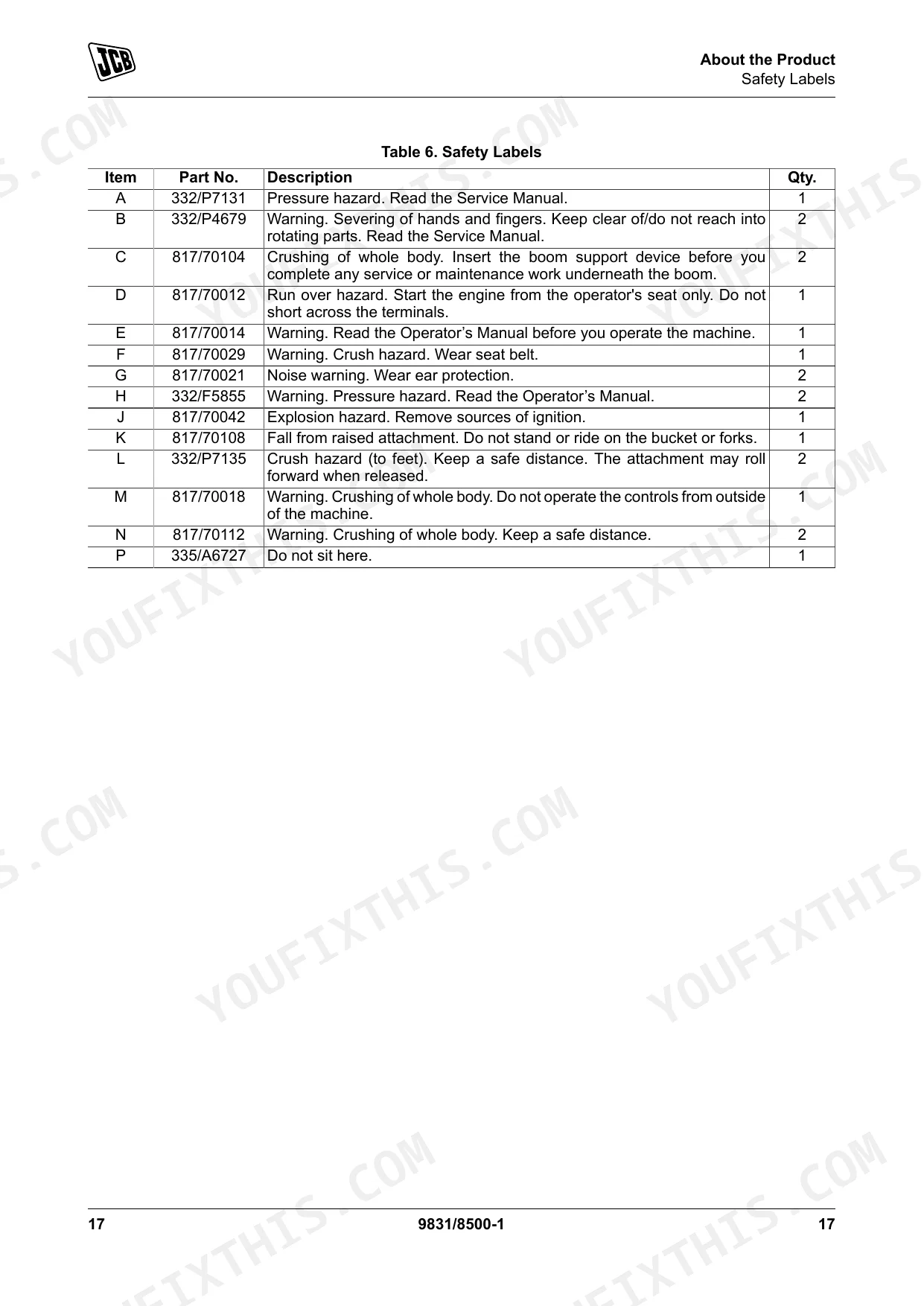

| About the Product | 19-40 | Description (General, Intended Use, Log Moving/Object Handling, Optional Equipment and Attachments, Danger Zone, Main Component Locations) |
| Operation | 41-124 | Operating Safety (General, Training, Fuel, Machine Condition, Machine Limits, Engine/Steering Failure, Exhaust Gases, Worksites, Communications, Parking, Banks and Trenches, Safety Barriers, Sparks, Hazardous Atmospheres, Regulations, Electrical Power Cables, Working Platform, Machine Safety, Hot Components, Travelling at High Speeds, Hillsides, Visibility, Hands and Feet, Controls, Passengers, Fires, Roll Over Protection, Confined Areas, Safe Working Loads, Lightning, Worksite Safety, Risk Assessment) |
| Transporting the Machine | 125-126 | General, Loading the Machine Onto Trailer, Securing Procedures |
| Operating Environment | 127-128 | General, Operating in Low Temperatures, Operating in High Temperatures, Operating in Dusty or Sandy Areas, Operating in Coastal Regions, Operating on Wet or Soft Ground |
| Refuelling | 129-130 | General, Low Fuel Levels, Filling the Tank, Removing the Cap |
| Attachments | 131-152 | Working with Attachments, Direct-Mounted Attachments, Quickhitch, Auxiliary Circuits, Side-Shift Carriage, Hose Reel, Work Platforms, Hammer |

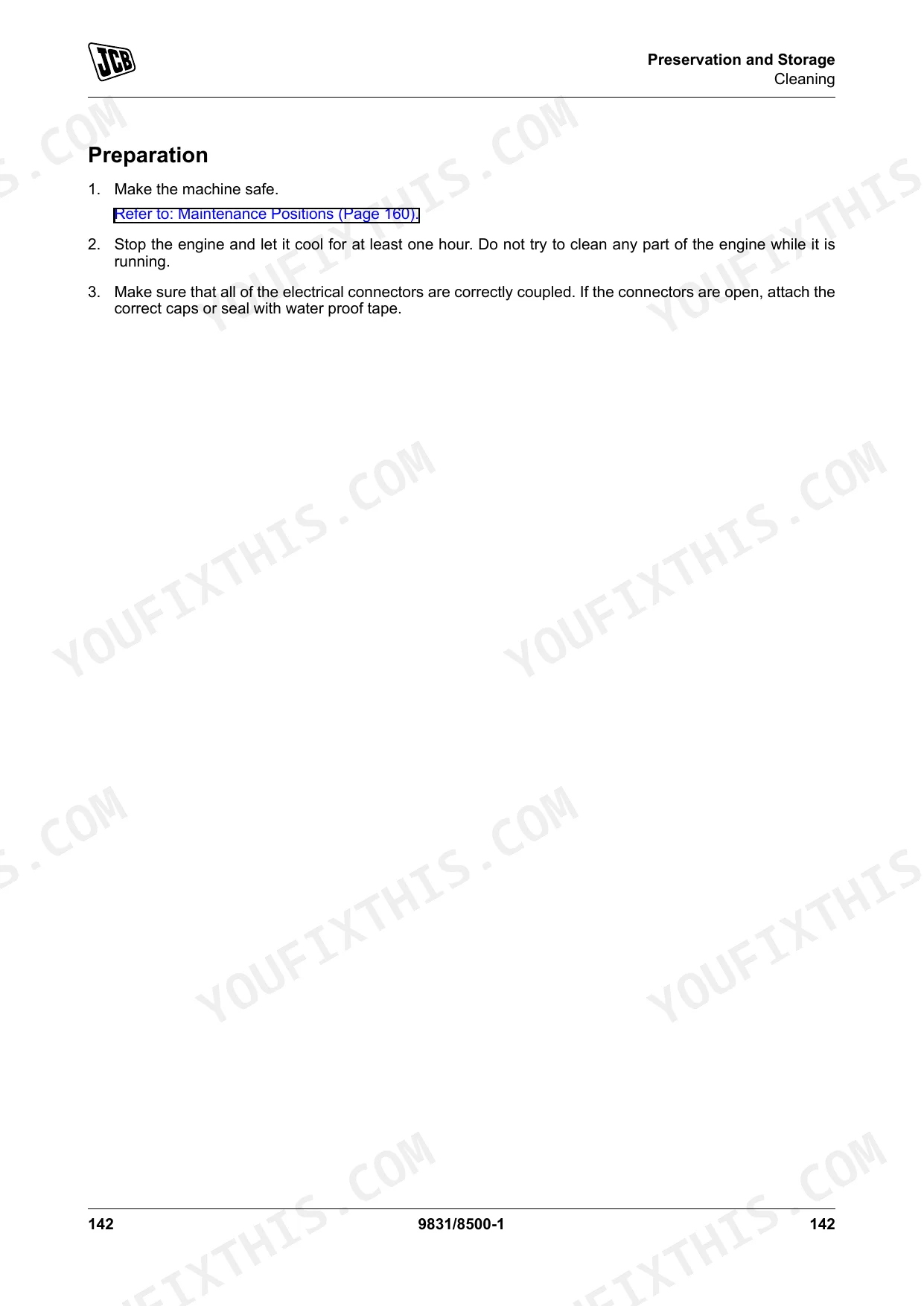

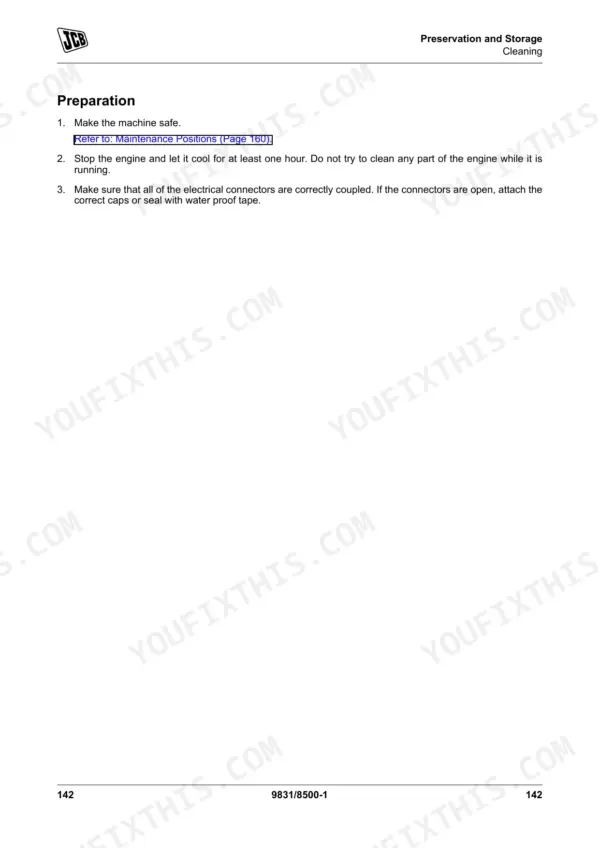

| Preservation and Storage | 153-158 | Cleaning (General, Detergents, Pressure Washing and Steam Cleaning), Preparation, Checking for Damage (General) |
| Technical Data | 233-256 | Static Dimensions (Turning Circle, Weights), Performance Dimensions (Loader Arm Dimensions and Performance, Excavator End Dimensions and Performance, Driving Performance) |
| Warranty Information | 257-264 | Service Record Sheet (Table 44, Installation Checklist), 1000h/12 Month, 1500h/18 Month, 2000h/24 Month, 2500h/30 Month, 3000h/36 Month, 3500h/42 Month, 4000h/48 Month |
Quick Reference Specifications

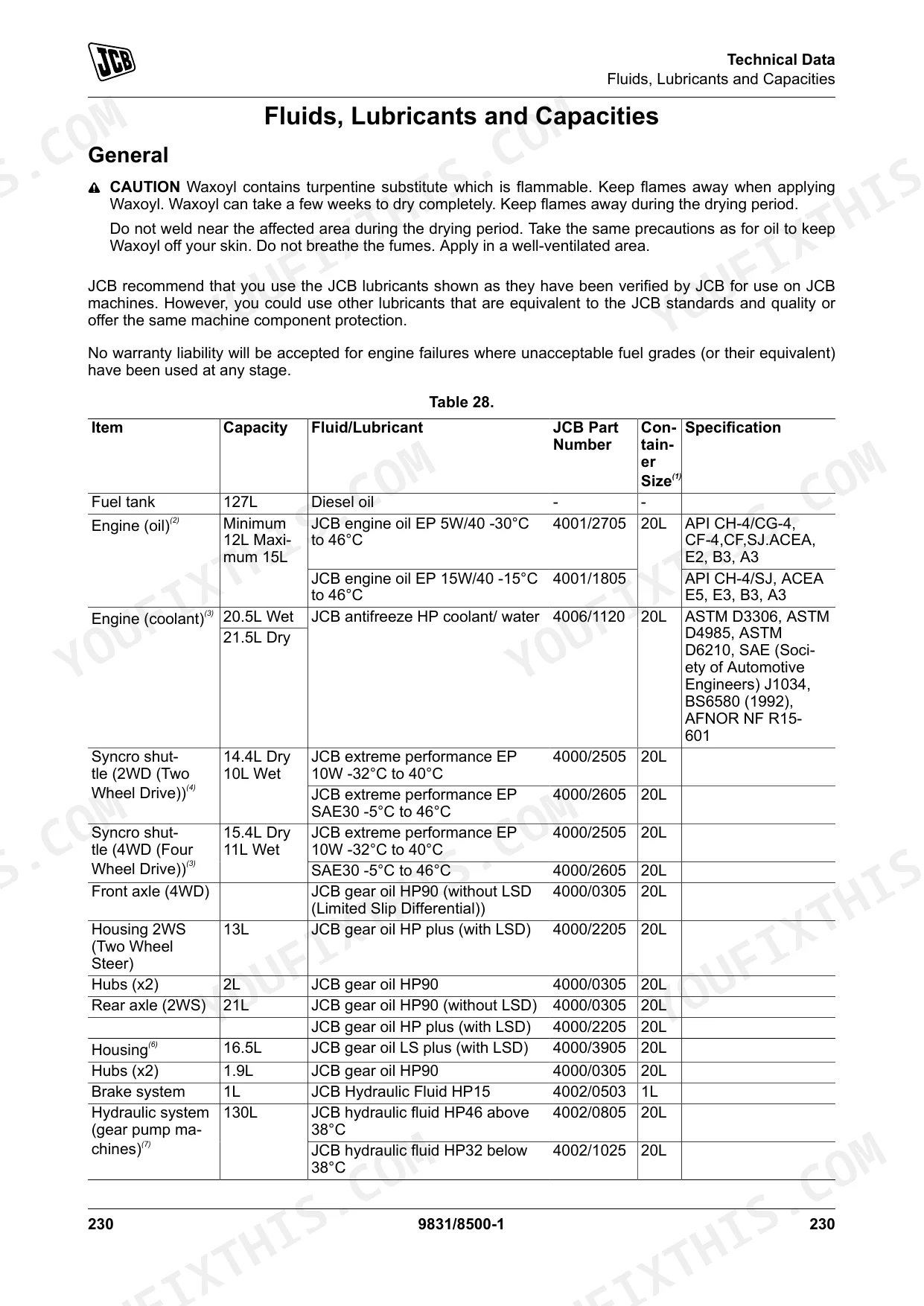

| Specification | Value | Page |
|---|---|---|
| Auxiliary Circuit Feed Pressure (Gear Pump Machines) | 270bar | p. 145 |
| Auxiliary Circuit Feed Pressure (Variable Pump Machines) | 210bar | p. 145 |
| ROPS/FOPS Mounting bolts torque | 205N·m | p. 247 |
| Engine Sump Drain Plug torque | 40–60N·m | p. 247 |
| Standard battery specification | 12V, 900 cold crank amperes | p. 248 |
| Heavy duty battery specification | 12V, 1000 cold crank amperes | p. 248 |
| Engine Filter Housing Drain Plug torque | 40–60N·m | p. 247 |
| Hydraulic system capacity (gear pump machines) | 130L | p. 242 |
| Hydraulic system fluid/lubricant | JCB Hydraulic Fluid HP15 | p. 242 |
| Transmission fuse rating | 10A | p. 249 |
| Gear select - forward/reverse - lock up torque converter speed sensors fuse rating | 3A | p. 249 |
| Maximum up slope | 15% | p. 105 |
JCB 3CXG, Excavator-Loader (Wheeled) Common Problems This Manual Covers
JCB 3CXG engine cranks over but will not start in cold weather, dash lights dim or flash p. 248
Inspect the battery terminals for tight connections and clean off any corrosion. Verify the standard battery voltage reads a minimum of 12V as listed on page 248. If the machine requires a jump, follow the correct booster cable sequence to avoid electrical spikes.
Manual Section: Technical DataMachine starts normally but refuses to move in forward or reverse and transmission feels completely unresponsive p. 249
Check the main transmission fuse in the cab electrical panel. Verify the 10A fuse on page 249 is not blown. Inspect the transmission dump switch on the loader control to ensure it is fully released before attempting to shift gears.
Manual Section: Technical DataLoader and backhoe functions respond poorly, move slowly, or shudder violently immediately after morning start-up p. 242
Review the fluid capacities on page 242 and check the sight glass. Fill the reservoir with JCB Hydraulic Fluid HP15 if the level drops below the 130L total system capacity. Inspect the main feed lines for kinks before running the pump.
Manual Section: Technical DataFront end feels spongy and machine bounces excessively during road travel at higher speeds p. 254
Measure the front tire pressure with a calibrated gauge before roading. Inflate the tires to the pressure specified in the Technical Data section on page 254. Check the wheel nuts while the machine is parked and verify they are tightened to the torque value given in the specifications.
Manual Section: Technical DataFrequently Asked Questions
How do I reset the backhoe transport lock on a JCB 3CXG?
To disengage the boom lock, first raise the boom a little to release the lock. Then, lift the pull knob (for cab models) or lever (for canopy models) to raise the boom lock. For the slew lock, stop the engine and remove the lock pin from its stowage position.
What causes hydraulic pressure issues on a JCB 3CXG?
Hydraulic pressure issues can be caused by using an attachment that cannot accept the hydraulic flow or back pressure, which may damage the attachment or reduce performance. Damaged, worn, kinked, or crushed hydraulic hoses, as well as loose connections, can also lead to problems. Additionally, if the hydraulic fluid is cloudy, it indicates water or air contamination, which can damage the hydraulic pump.
What are the replacement specifications for battery?
The replacement specifications for the battery are 12V, 900 cold crank amperes for a standard battery, and 12V, 1000 cold crank amperes for a heavy duty battery.
How do you fix JCB 3CXG engine cranks over but will not start in cold weather, dash lights dim or flash?
Inspect the battery terminals for tight connections and clean off any corrosion. Verify the standard battery voltage reads a minimum of 12V as listed on page 248. If the machine requires a jump, follow the correct booster cable sequence to avoid electrical spikes.
How quickly can I access this manual?
A 264-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a native digital PDF document, allowing you to search and copy text effortlessly. The text is consistently crisp and very easy to read on every page. Diagrams and illustrations are primarily vector-based, remaining sharp and clear even when zoomed in, with all labels perfectly legible. The pages are clean, free from any scan artifacts, stains, or skewed content. You will find several "Notes:" pages and a few completely blank pages interspersed throughout the document.
