Need the exact factory operating guidelines for your Loadall? All 232 pages of this JCB 515-40 Operator Manual PDF (OEM #9821/0950-5) focus on keeping your machine running safely and efficiently. Inside, you get complete routine maintenance schedules, exact fluid capacities, and step-by-step operating procedures for attachments like the tool carrier hitch and pallet forks. Open straight to the safety section to find clear daily inspection checklists, dashboard indicator guides, and detailed cab control layouts that operators rely on. Confirm your hydraulic oil warm-up temperature reaches 10°C (50°F) before lifting, and never exceed a 15 percent maximum slope during transport. Stop guessing at your daily limits. Grab this bookmarked file right now, pull it up on your phone in the cab, and get your morning checks done right.
What's Inside This JCB 515-40 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator Manual | 1-7 | Operation, Routine Maintenance, Electrical System, Engine, Hydraulic System, Specifications |
| Safety Notices | 8 | Important Information, Safety Warnings |
| Introduction | 9-10 | About This Manual, Left Side, Right Side |

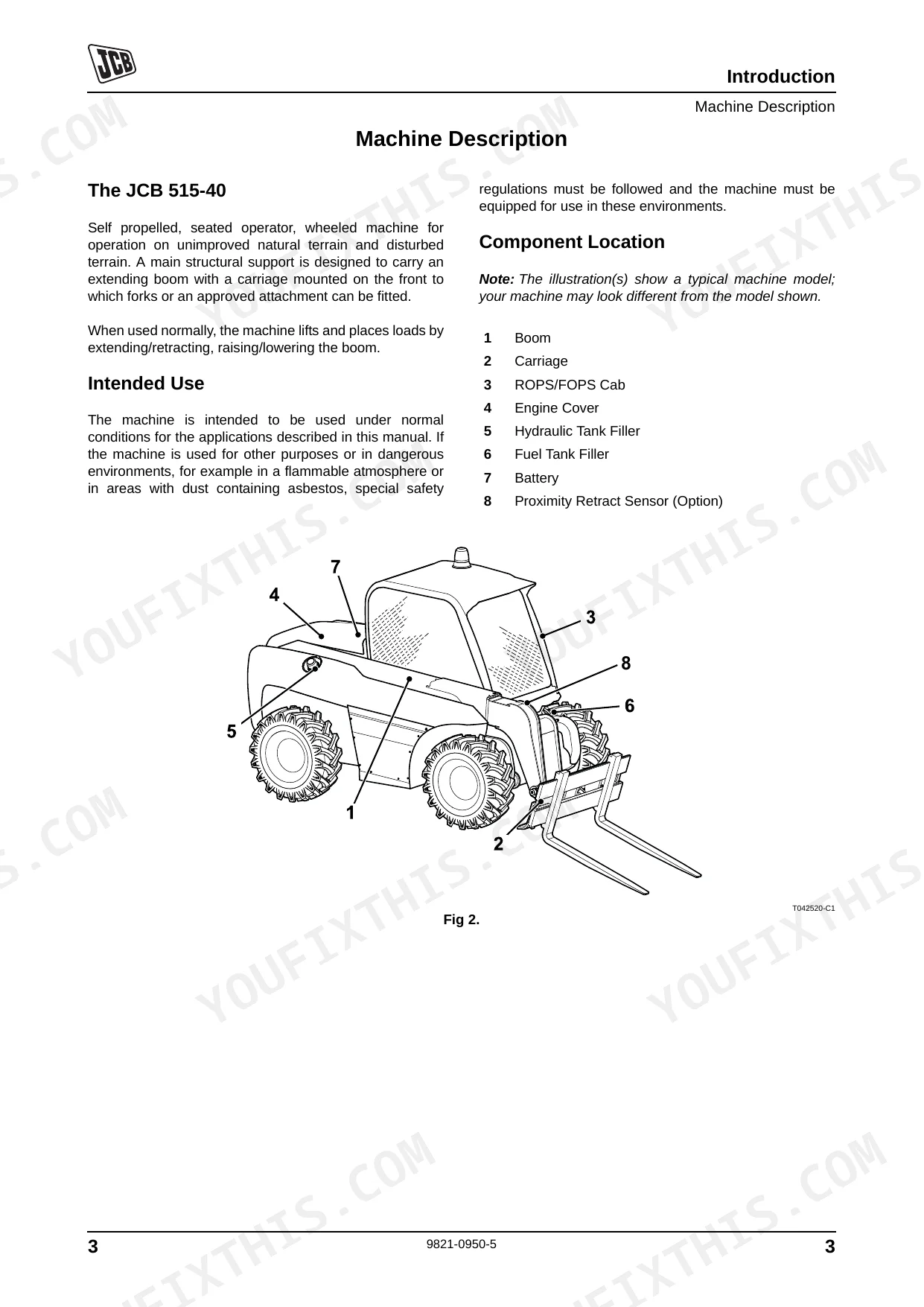

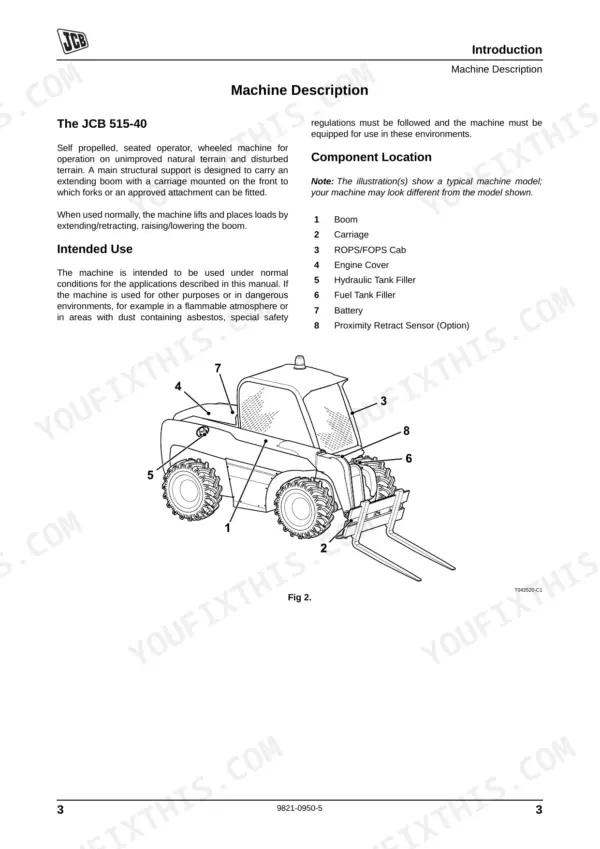

| Machine Description | 11 | The JCB 515-40 |
| Safety Check List | 12-22 | Safety - Yours and Others, Operating Safety, Maintenance Safety |
| Safety Labels | 23-26 | Safety Label Identification |
| Identifying Your Machine | 27-30 | Machine Identification Plate, Component Identification Plates |
| Machine Security | 31-32 | JCB Plantguard, Construction Equipment Security and Registration Scheme (Cesar), Vandal Proof Covers, Window Etching, Immobiliser, Battery Isolator |

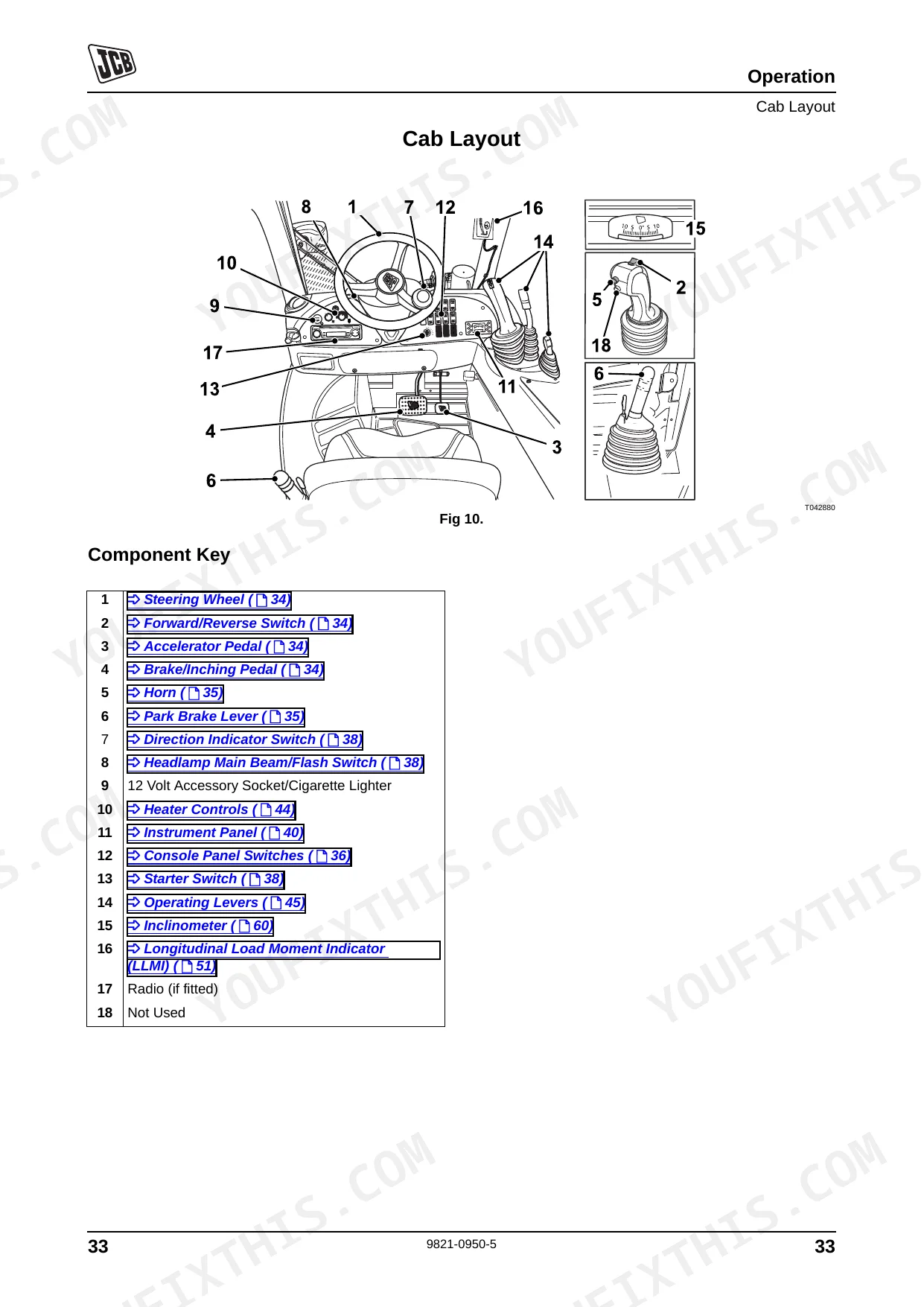

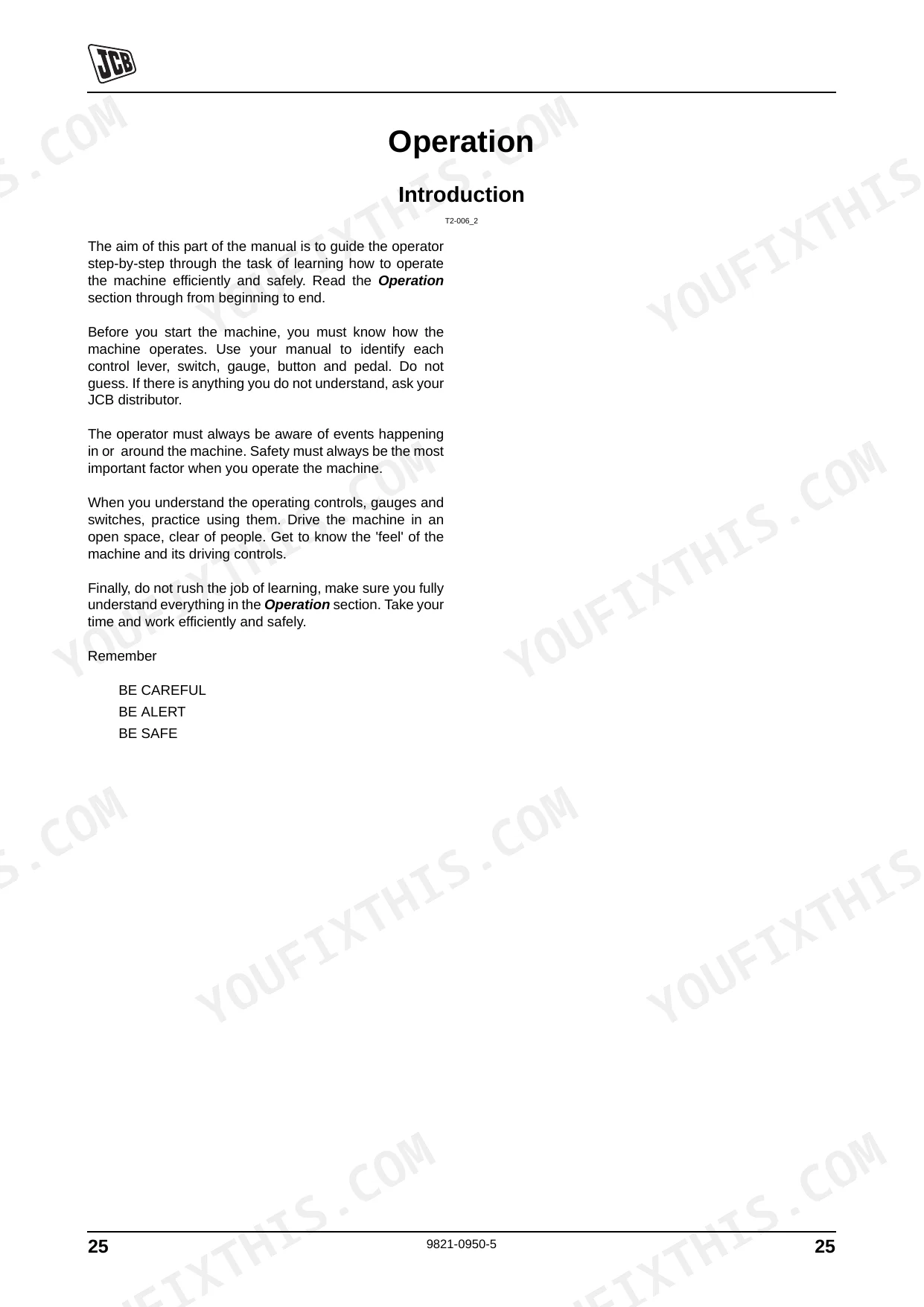

| Operation | 33-104 | Before Entering the Cab, Entering and Leaving the Cab, Emergency Exit, Doors and Windows, Seat Controls, Seat Belt, Cab Layout |
| Routine Maintenance | 105-196 | Service Requirements, Obtaining Replacement Parts, Health and Safety, Battery, Service Schedules, Functional Test and Final Inspection, Fluids, Lubricants and Capacities |
| Optional Attachments | 197-216 | Attachments for Your Machine, Connecting/Disconnecting Hydraulic Hoses, Quick Release Couplings, Quickhitch, Tool Carrier Hitch, Pallet Forks, In-1 Shovel |
| Specifications | 217-226 | Static Dimensions, Performance Dimensions, Loader Performance, Maximum Wading Depth, Tyre Sizes and Pressures, Noise Data, Vibration Data |
| Warranty Information | 227-230 | Machine Service Record Sheet, Registration Information |
| European Community Standards | 231-232 | Ec Declaration of Conformity |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| D-shackles safe working load | five tonnes | p. 100 |
| ROPS/FOPS Maximum Unladen Mass | 5000kg | p. 29 |
| Seat Belt Replacement Interval | 3 years | p. 40 |
| Hydraulic Oil Warm-up Temperature | 10°C (50°F) | p. 66 |
| Maximum Up/Down/Lateral Slope | 15% (1 in 7) | p. 83 |
| Engine Oil Capacity (with filter) | 9.5 litres | p. 117 |
| Wheel Nut Torque | 200 Nm | p. 192 |
| Wear Pad Minimum Thickness | 11mm (0.43in.) | p. 194 |
| Maximum Wading Depth | 400mm (16in) | p. 220 |
| Whole-body Vibration Emission | 0.42 m/s2 | p. 226 |
JCB 515-40 Common Problems This Manual Covers
JCB 515-40 Loadall will not move and requires safe transport tie-down procedures for a disabled unit p. 100
Secure the disabled machine using designated transport tie-down points detailed on page 100. Verify your rigging hardware and D-shackles safe working load are rated for at least five tonnes. Inspect all chains for damage before applying tension, and bypass the transmission exactly as instructed before winching.
Manual Section: OperationSluggish hydraulic response or trapped pressure in lines during cold weather start-up procedures p. 66
Warm the system until the hydraulic oil warm-up temperature reaches 10°C (50°F) as outlined on page 66. Cycle the boom controls slowly to circulate the fluid. Relieve all residual system pressure by cycling the joystick with the engine off before disconnecting any quick release couplings.
Manual Section: OperationExcessive boom section play or chattering noise during telescopic extension and retraction movements p. 194
Measure the boom slide components during routine maintenance checks. Replace the inserts if the wear pad minimum thickness drops below 11mm (0.43in.) as specified on page 194. Lubricate the boom sections thoroughly and cycle the extension cylinder to verify smooth operation without binding.
Manual Section: Routine MaintenanceLoose wheel fasteners or vibration from the axles after performing routine tire replacement p. 192
Inspect the wheel studs for thread damage and clean all mating surfaces. Tighten the fasteners in a star pattern and verify the wheel nut torque is exactly 200 Nm using a calibrated wrench. Recheck the torque values on page 192 after the first ten hours of operation.
Manual Section: Routine MaintenanceFrequently Asked Questions
How do I reset the JCB 515-40 load control system?
The load control system resets to its default settings when the starter key is switched to the off position. There is no separate procedure for a full system reset described in the manual, but fault codes clear when the fault is resolved or by cycling the starter key.
What do the JCB 515-40 stability / load control lights mean?

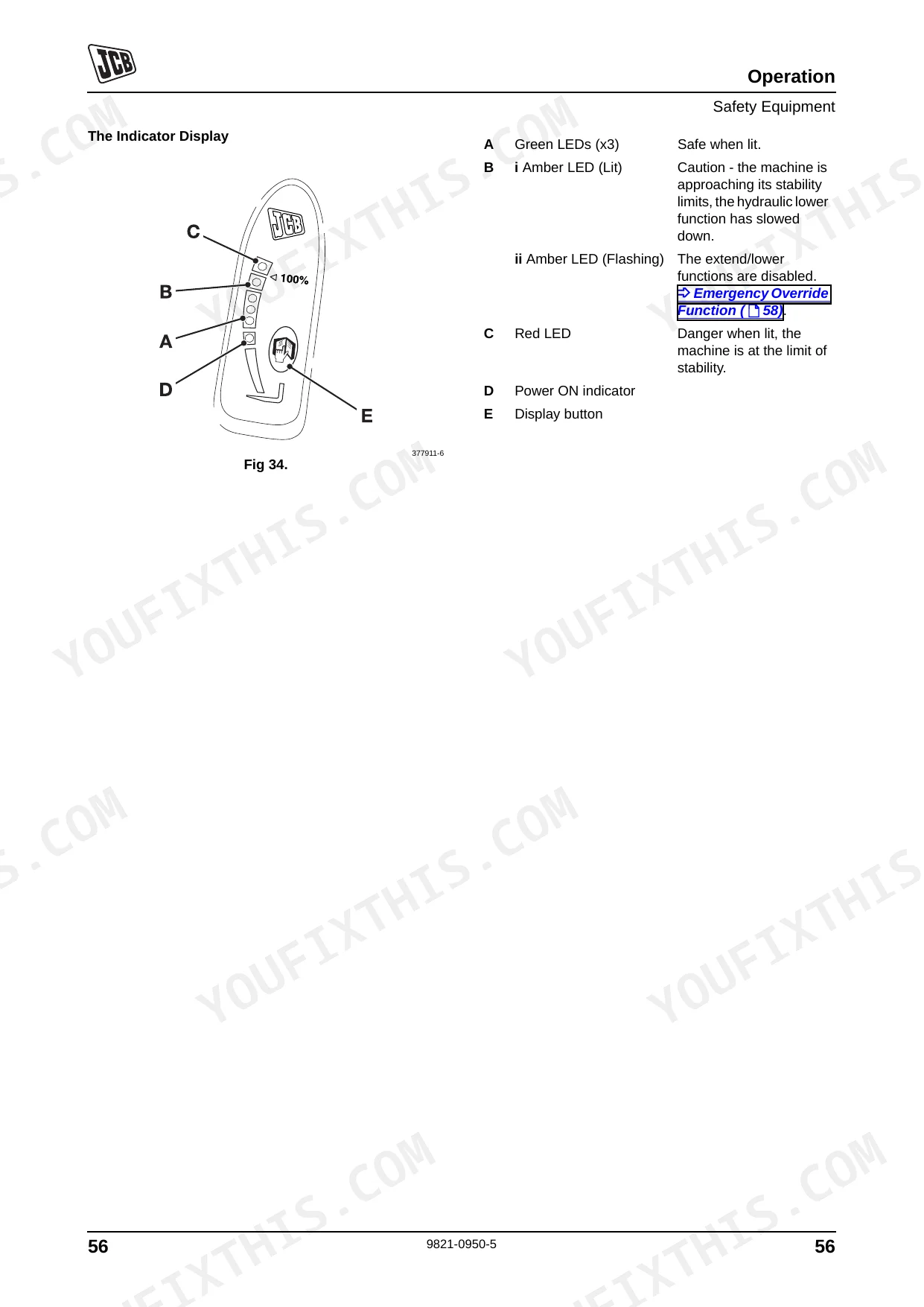

The indicator display uses LEDs to show stability status: three green LEDs mean 'Safe when lit', an amber LED (lit) means 'Caution - the machine is approaching its stability limits, the hydraulic lower function has slowed down', and a flashing amber LED means 'The extend/lower functions are disabled'. A red LED indicates 'Danger when lit, the machine is at the limit of stability'.
How do I clear JCB 515-40 fault or warning codes?
When the system detects a fault, the audible alarm will sound and various combinations of lights on the display will indicate a fault code for approximately 10 seconds. The display will return to normal when the fault clears. If fault codes are displayed, switch the starter key off and on again; if the fault does not clear, contact your JCB Distributor.
What causes a JCB 515-40 to have hard start or fuel issues?
Operating the machine on very low fuel levels can cause air to enter the fuel system, leading to dramatically varied engine speed and low power. Additionally, using incorrect battery and oils can result in poor engine starting performance and eventual starter motor failure. If the engine does not start after two attempts, check the fuel level and battery.
How do I troubleshoot JCB 515-40 hydraulic boom or lift problems?

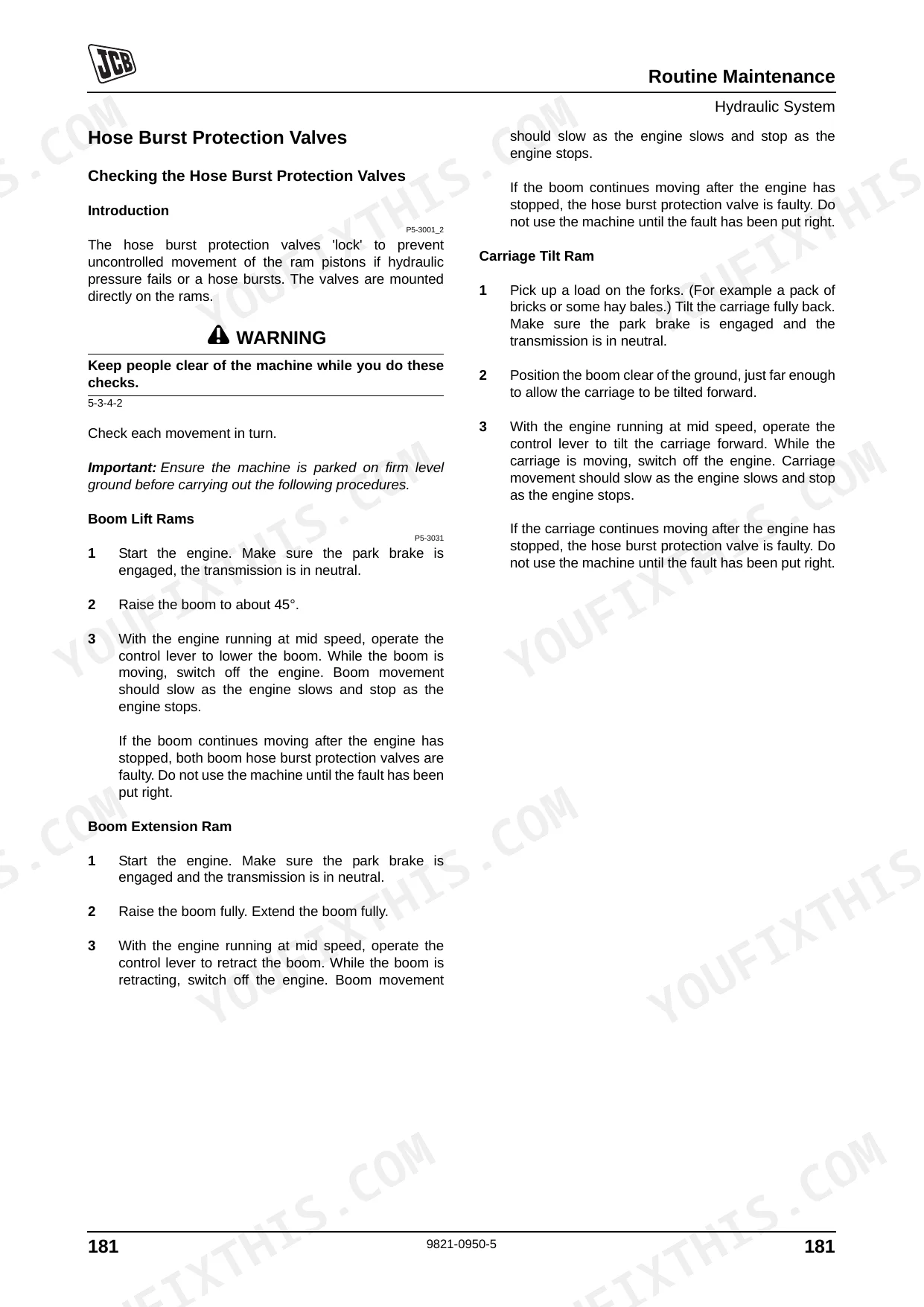

If the load exceeds the maximum working limit, the amber LED B flashes and an audible warning activates, disabling the lower/extend functions of the boom. If the boom continues moving after the engine has stopped, both boom hose burst protection valves are faulty, and the machine should not be used until the fault is corrected. Always operate within the machine's load charts and limits.
How quickly can I access this manual after buying?
This is a 232-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text is consistently crisp and easy to read throughout all pages. Diagrams and illustrations are raster images, but they are clear, and all labels are readable. Pages are clean with no noticeable scan artifacts, stains, marks, or skewed content, though some pages are intentionally left blank as filler.
