Keeping your vibratory single drum roller on the jobsite starts with this 200-page JCB VM 46D/PD, VM 75D/PD, VM 115D/PD, VM 115HD/HPD, VM 132D/PD, VM 146D/PD, VM 166D/PD, VM 200D/PD Operator Manual (OEM #9821/0250). Inside, you get a complete breakdown of daily maintenance intervals, dashboard error codes, and strict safety guidelines. Open up the routine maintenance chapter to find exact fluid capacities, pre-start cold checks, and operating procedures for compacting on steep gradients. Check the model-specific wheel nut torque specs on page 177 and the rear axle drivehead filler plug torques on page 173 before heading to the jobsite. An idle roller means the whole paving crew waits. Download this bookmarked file right to your phone, check the daily service specs, and get back to work.
What's Inside This JCB VM 46D/PD to VM 200D/PD Operator Manual

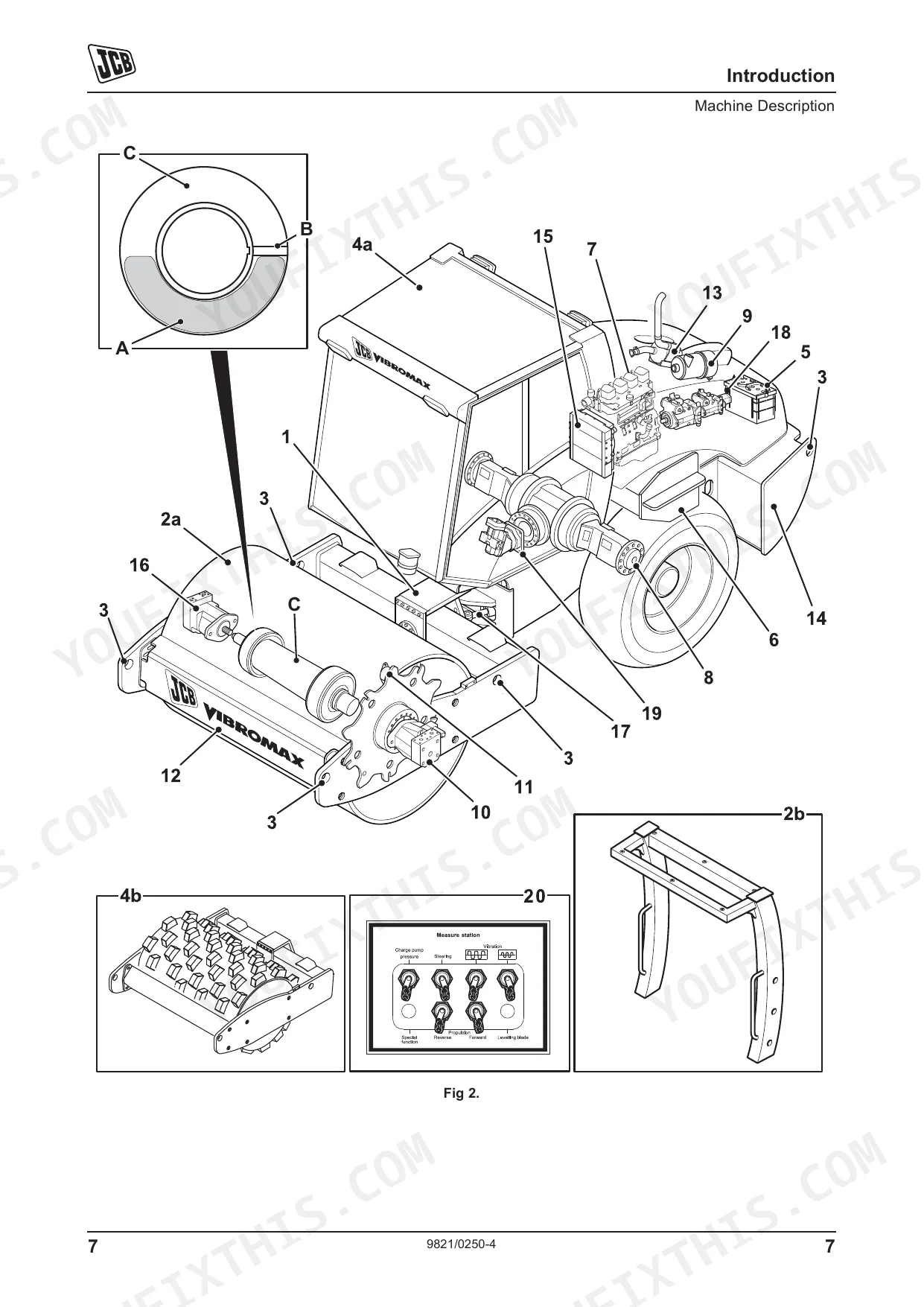

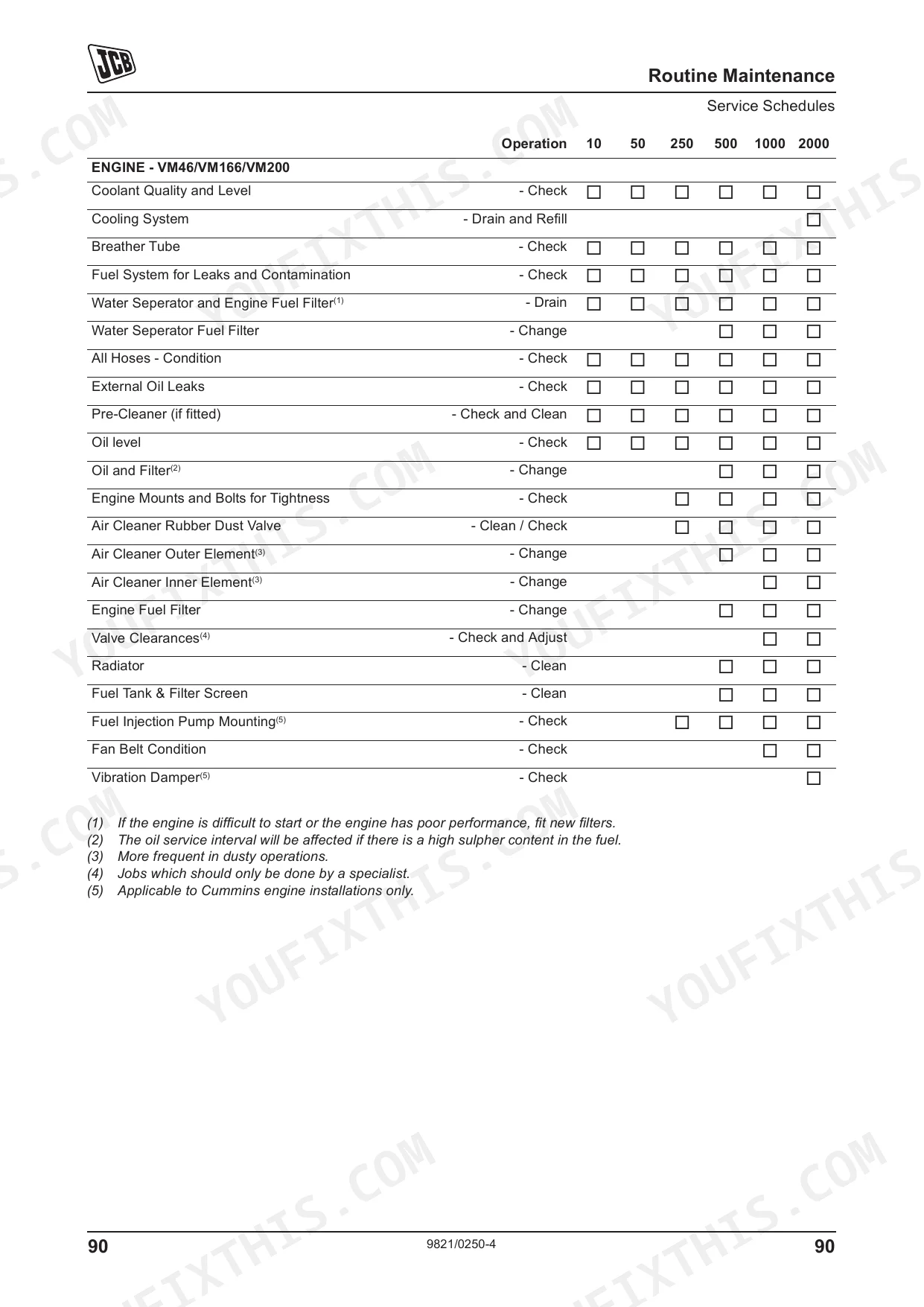

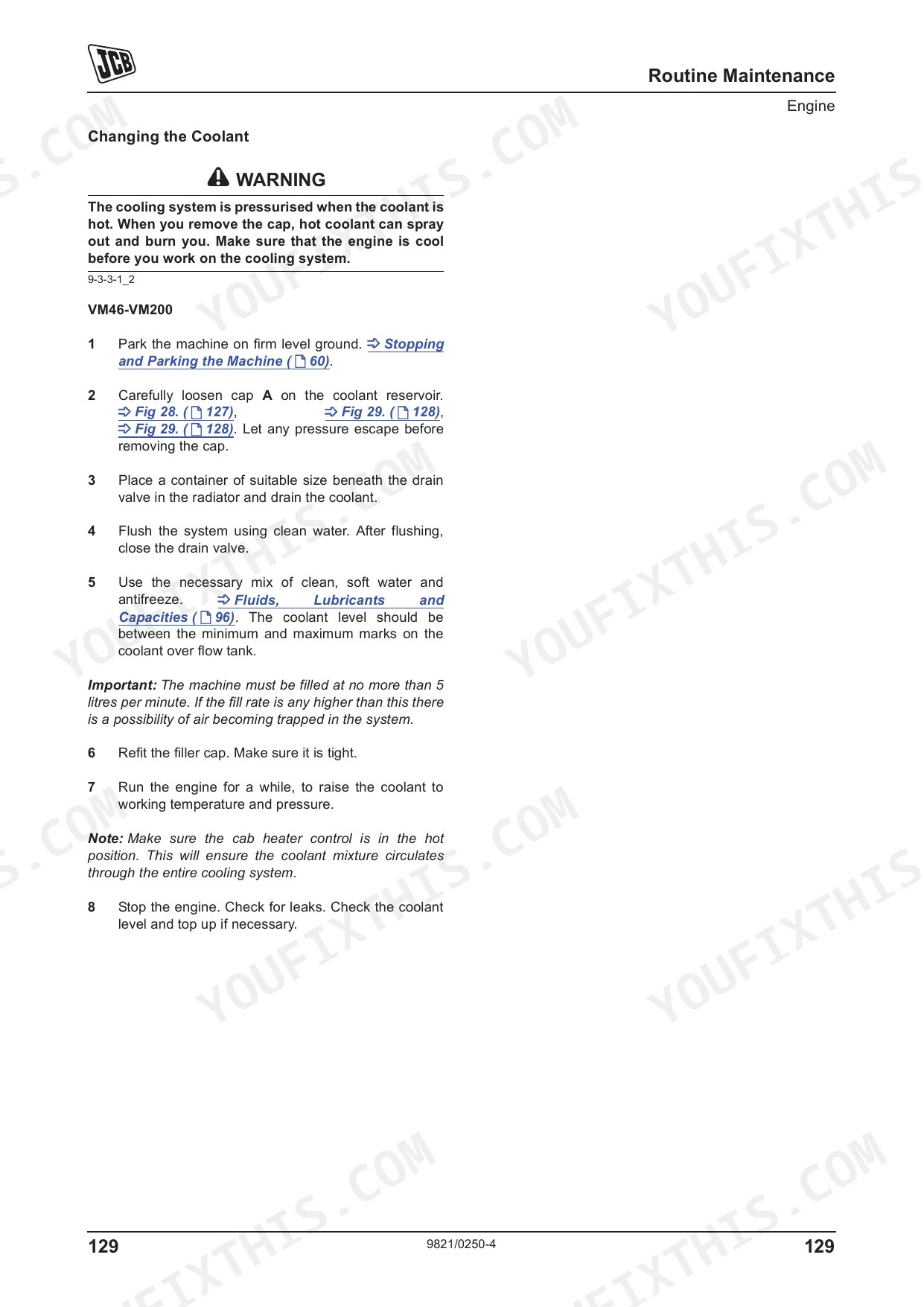

| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 7-8 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 9-30 | Safety Check List, Safety Labels |
| Operation | 31-86 | Before Entering the Cab/Canopy, Entering and Leaving the Cab, Emergency Exit, Doors and Windows, Seat Controls |
| Routine Maintenance | 87-200 | Service Requirements, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Obtaining Replacement Parts, Health and Safety |
Quick Reference Specifications

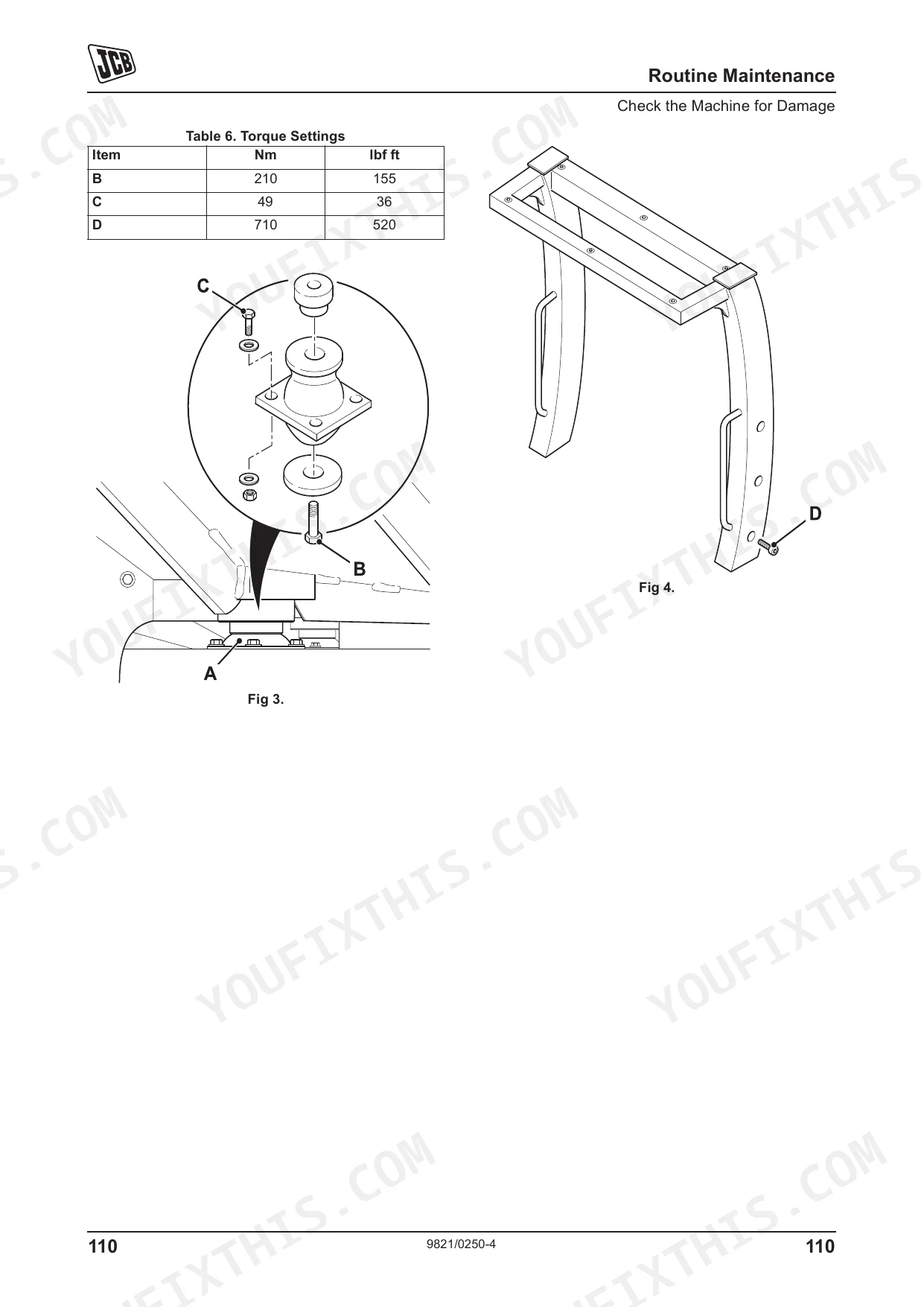

| Specification | Value | Page |
|---|---|---|
| VM46, VM75 | ||
| Wheel Nut Torques | 366 - 413 Nm (270 - 304 lbf ft) | p. 177 |
| models with DANA/ZF axle | ||
| Rear Axle Drivehead Filler(s) and Drain Plug (DANA/ZF Axle/Hub) | 150 Nm (111 lbf ft) | p. 173 |
| Rear Axle Hub Drain/Filler Plug (DANA/ZF Axle/Hub) | 150 Nm (111 lbf ft) | p. 173 |
| models with JCB axle | ||
| Rear Axle Drivehead Filler and Drain Plugs (JCB Axle/Hub) | 80-100 Nm (59-74 lbf ft) | p. 173 |
| VM115 - VM200 | ||
| Wheel Nut Torques | 560 - 600 Nm (413 - 443 lbf ft) | p. 177 |
| VM115 (JCB Axle/Hub) | ||
| Rear Axle Hub Drain/Filler Plug (JCB Axle/Hub) | 50 Nm (37 lbf ft) | p. 173 |
| all models with smooth drum | ||
| Smooth Drum Scraper (nuts C) | 366-390 Nm (270-288 lbf ft) | p. 178 |
| Smooth Drum Scraper (Vulcollan scraper screws) | 185-197 Nm (136-145 lbf ft) | p. 178 |
| VM132 (JCB Axle/Hub) | ||
| Rear Axle Hub Drain/Filler Plug (JCB Axle/Hub) | 35-40 Nm (26-30 lbf ft) | p. 173 |
| all models with pad foot scraper | ||
| Pad Foot Scraper (individual scraper nuts F) | 187-197 Nm (136-145 lbf ft) | p. 178 |
| Pad Foot Scraper (cross-member nuts G) | 366-390 Nm (270-288 lbf ft) | p. 178 |
| All Models | ||
| ROPS Structure (Item B) | 210 Nm (155 lbf ft) | p. 116 |
JCB VM 46D/PD to VM 200D/PD Common Problems This Manual Covers
JCB VM 46D engine cranks but fails to start after cold soak or extended storage. p. 102
Verify the fuel tank is filled to its 180 Litres (47.5 Gal) capacity as noted on page 102. Bleed air from the mechanical or electronic fuel injection system. Inspect the water separator pre-filter and replace the engine fuel filter element if restricted or heavily contaminated.
Manual Section: Fuel System BleedingRoller drives weakly, struggles on steep inclines, or completely loses forward hydrostatic propulsion. p. 177
Check the tyre pressure for 46D models on page 192 and inflate to 13 - 20 Psi (0.9 - 1.4 bar). Inspect the hydrostatic drive components and wheel assembly for obvious damage. Torque the wheel nuts to the model-specific specification on page 177 (VM46/VM75: 366-413 Nm; VM115-VM200: 560-600 Nm).
Manual Section: Routine MaintenanceFrequently Asked Questions
What are the torque specs for VM 132D/PD wheel bolts?
For VM 132D/PD, which falls under the VM115 - VM200 model range, the wheel nut torque specifications are 560 - 600 Nm (413 - 443 lbf ft). Before starting work each day, check that the wheel nuts are tight and tighten them in the sequence given (page 171).
How to reset JCB VM 46D/PD alarm
When a warning light comes on and an alarm sounds for the VM 46D/PD, the only way to cancel the alarm is to set the starter to 'OFF'. This procedure is applicable to VM46/VM75 models.
How do you fix JCB VM 46D engine cranks but fails to start after cold soak or extended storage?
Verify the fuel tank is filled to its 180 Litres (47.5 Gal) capacity as noted on page 102. Bleed air from the mechanical or electronic fuel injection system. Inspect the water separator pre-filter and replace the engine fuel filter element if restricted or heavily contaminated.
How do you fix roller drives weakly, struggles on steep inclines, or completely loses forward hydrostatic propulsion?
Check the tyre pressure for 46D models on page 192 and inflate to 13 - 20 Psi (0.9 - 1.4 bar). Inspect the hydrostatic drive components and wheel assembly for obvious damage. Torque the wheel nuts to 366 - 413 Nm (270 - 304 lbf ft) using the specifications on page 177.
Is this JCB VM 115D/PD & variants Operator Manual a digital download?
Immediate download of the complete 200-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a scanned document that includes an OCR layer, enabling you to search and copy the full text content effectively. The text quality is consistently crisp and easy to read throughout, with no blurry or faded sections observed. Diagrams and illustrations are clear raster images, and all labels within them are fully readable, maintaining good clarity even when zoomed. The pages themselves are clean, showing no visible scan artifacts, stains, marks, or skewed orientations. You will find several pages intentionally left blank, which serve as filler pages within the document.
