Six JLG E2-series electric scissor lifts, from the 1532E2 through the 3246E2, run on the same 86-page factory book: this JLG 1932E2 service manual PDF, OEM document 3120737. Wiring diagrams and hydraulic schematics close out the book, tracing drive, lift, and steer circuits so you can follow a dead connector or a stuck valve back to its source. Cylinder repair coverage takes lift, brake, and steer cylinders from teardown through reassembly, while the JLG SMART System chapter decodes flash codes and lays out the analyzer's machine personality settings menu by menu. Set the tilt alarm to 1.5 degrees on a 1932E2, then bring wheel lugs to 105-120 ft lb before the platform goes up. Guess at a pressure setting on a scissor lift and you learn the truth at full height. Bookmarked and text-searchable, this download puts the machine back under load properly.
What's Inside This JLG 1532E2-3246E2 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction - Maintenance Safety Precautions | 3-6 | General, Hydraulic System Safety, Maintenance |
| Specifications | 7-14 | Capacities, Component Data, Performance Data, Torque Requirements, Lubrication, Serial Number Locations, Limit Switches, Cylinder Specifications |
| General Servicing and Maintenance Guidelines | 15-17 | Safety and Workmanship, Cleanliness, Pressure Washing, Hydraulic System Maintenance, Lubrication |
| Cylinder Theory and Checking Procedures | 18-19 | Cylinder Theory of Operation, Relief Valves, Cylinder Checking Procedures, Lift Cylinder Removal and Installation |
| Cylinder Repair Procedures | 20-26 | Lift Cylinder Repair, Brake Cylinder Repair, Steer Cylinder Repair, Disassembly and Assembly |
| Drive Motor Maintenance | 27-43 | Sauer Danfoss Drive Motor, Rexroth Drive Motor, Parker Drive Motor, Disassembly and Assembly |
| Tilt Switch and Control Valve Adjustments | 44-49 | Tilt Switch Adjustment, Voltmeter Adjustment, Pressure Setting Procedures, Limit Switch Adjustment, Door Adjustment |
| Jlg Smart System Analyzer and Configuration | 50-66 | Analyzer Kit Instructions, Machine Personality Settings, Machine Configuration Information, Help Messages and Flash Codes |
| Preventive Maintenance and Inspection Schedule | 67-68 | Annual Inspection, Inspection Codes, Preventive Maintenance Schedule |
| Troubleshooting | 69-86 | General, Troubleshooting Information, Hydraulic Circuit Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Lugs | 105-120 ft lb (122 Nm) | p. 9 |
| Wheel Hub To Drive Motor | 125-150 ft lb (169-203 Nm) | p. 9 |
| Battery Charger Output | 24 Volts DC - 20 Amp | p. 7 |
| Tilt Alarm (1532E2/1932E2/2032E2) | 1.5° | p. 10 |
| Tilt Alarm (2632E2/2646E2/3246E2) | 2° | p. 10 |
| Main Relief Max (Non Proportional Control) | 3200 psi (207 bar) | p. 11 |
| Main Relief Max (Proportional Control) | 3000 psi (207 bar) | p. 11 |
| Wheel Lugs Torque | 105-120 ft lb | p. 9 |
| Wheel Hub To Drive Motor Torque | 125-150 ft lb | p. 9 |
| Main Relief Max Pressure (Non Proportional) | 3200 psi | p. 11 |
| 1532E2/1932E2 | ||
| Hydraulic Oil Tank Capacity (1532E2/1932E2) | 3.0 gallons | p. 7 |
| 2032E2/2632E2/2646E2/3246E2 | ||
| Hydraulic Oil Tank Capacity (2032E2/2632E2/2646E2/3246E2) | 3.9 gallons | p. 7 |
JLG 1532E2-3246E2 Series Common Problems This Manual Covers
JLG 2032E2 completely dead or powers up only when platform cord is wiggled

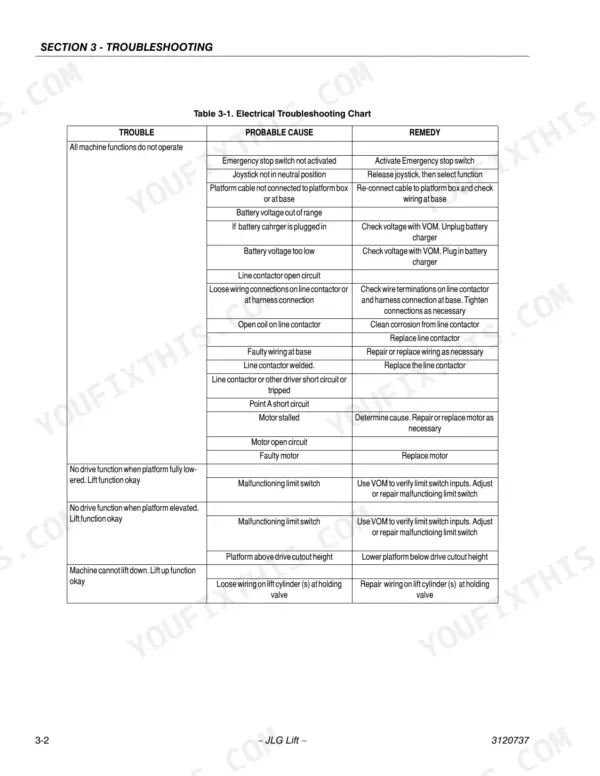

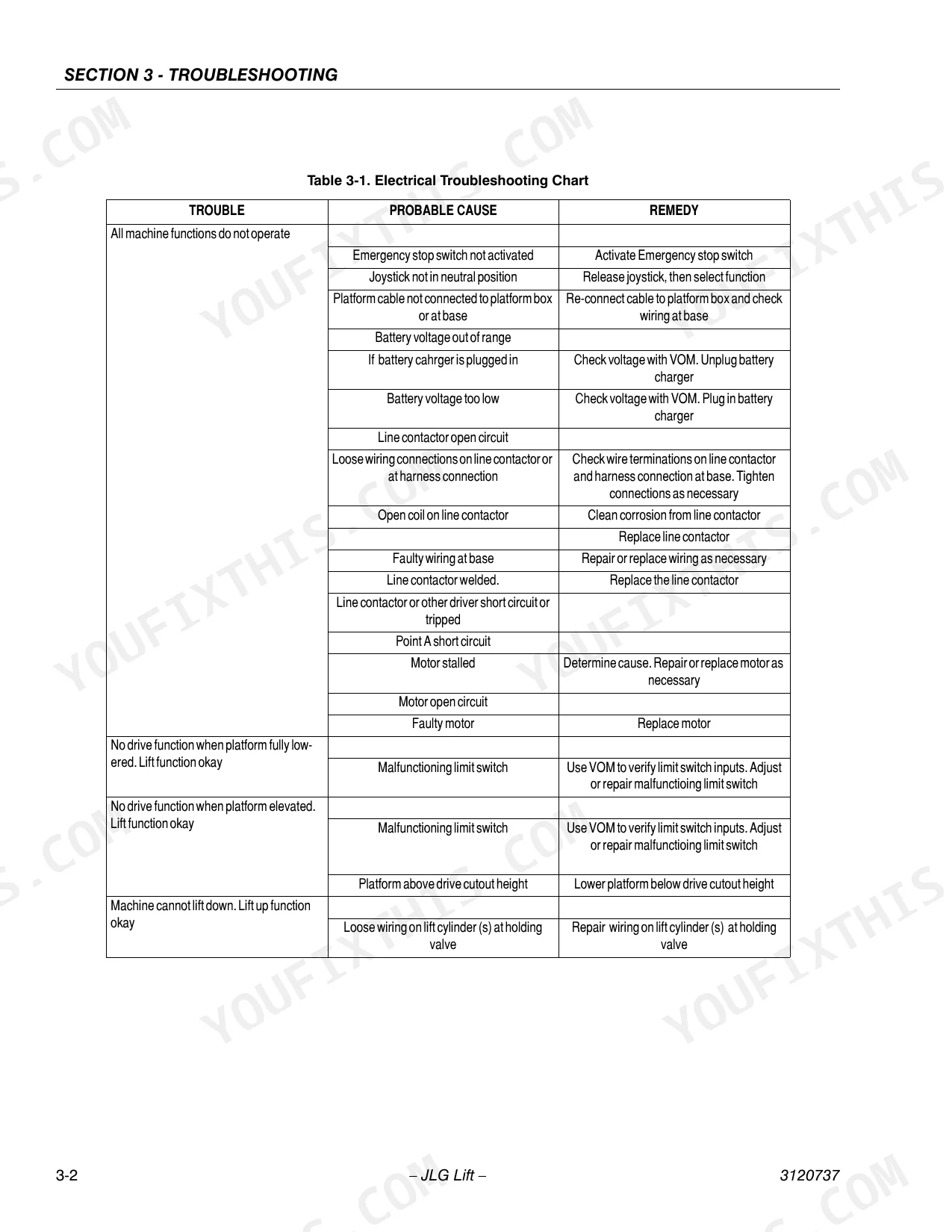

Check battery connections and verify the charger delivers its rated 24 volts DC at 20 amps before condemning the cable. Flex the platform cord along the scissor arms while a helper watches for power dropout; any flicker means broken conductors. Follow the electrical troubleshooting chart on page 70 and replace the cable, not tape it.
Manual Section: Electrical Troubleshooting p. 70Machine raises and steers fine but will not drive forward or reverse
Check the line contactor and drive controller connections at the harness first; corroded pins kill drive while lift still works. Test battery voltage under load, since low packs cut drive before lift. Work through the no-drive procedure on page 70, and if the drive valve cartridge needs reseating, torque it to 35-40 ft lb.
Manual Section: Electrical Troubleshooting p. 70Lift stops near full height with tilt alarm sounding on level ground
Verify the machine sits on a truly level surface, then adjust the tilt switch using the voltmeter method on page 44. Adjust the leveling nuts until the sensor reads between 4.0 and 4.3 volts. Check that the pothole protection devices stroke fully; a hung-up bar throws leveling faults at height. Replace the sensor if voltage will not settle.
Manual Section: Tilt Switch Adjustment p. 44Lift pressure reads high but platform raises slowly or stalls under load
Test main relief pressure with a gauge; non-proportional machines should max out at 3200 psi, listed on page 11. If pressure holds but the platform stalls, suspect the lift relief cartridge or a pressure transducer with crushed wiring. Trace the circuit against the hydraulic schematic on page 78, and torque any reseated relief cartridge to 25-30 ft lb.
Manual Section: Troubleshooting p. 78Lift and drive functions disabled with battery fault codes after overnight charging

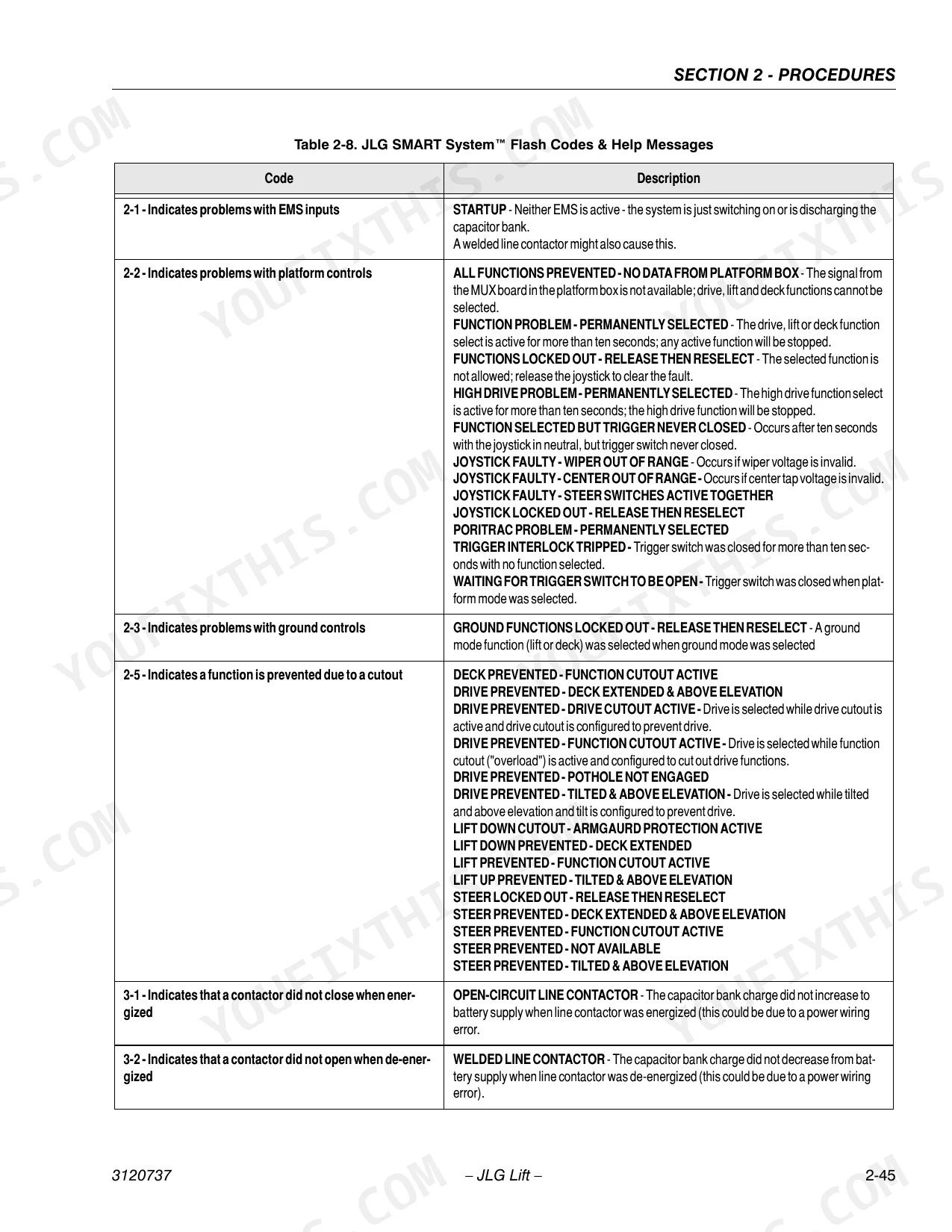

Disconnect the charger before operating; the interlock kills lift and drive while it is plugged in. Verify charger output at 24 volts DC and 20 amps, per the spec on page 7. Pull fault codes with the analyzer using the error code reference on page 59; code 442 means battery voltage too high and forces shutdown.
Manual Section: Jlg Smart System Analyzer and Configuration p. 59Frequently Asked Questions
What are the torque specifications for the wheel lugs on the JLG E2 scissor lift?
The wheel lugs on the JLG E2 scissor lift should be torqued to 105-120 ft lb (122 Nm). This maintenance task is required every 50 hours of operation. p. 9
What is the hydraulic oil capacity for the 1532E2 and 1932E2 models?
The hydraulic oil tank capacity for the 1532E2 and 1932E2 models is 3.0 gallons (11.4 liters) at the full mark on the tank, and 2.5 gallons (9.5 liters) at the add mark. p. 7

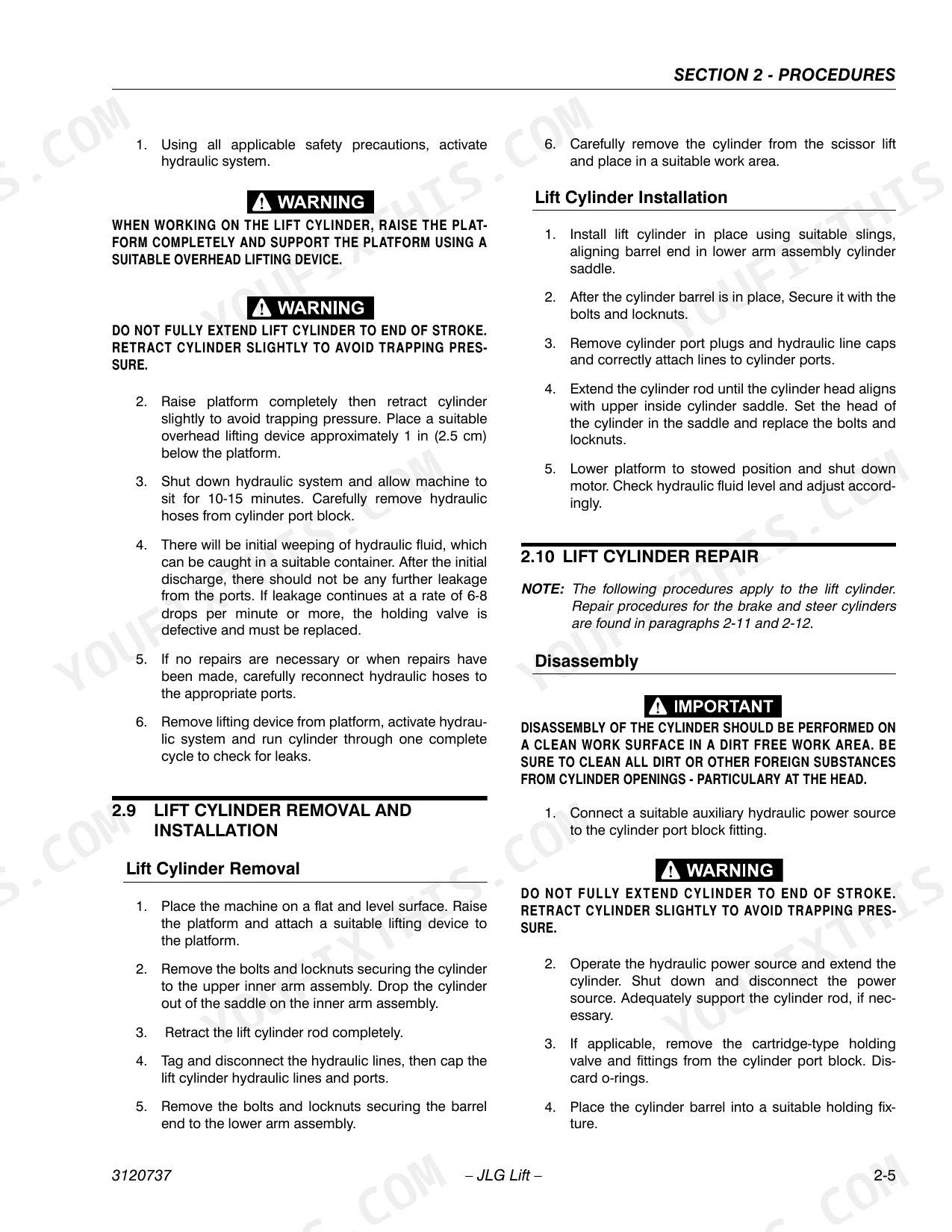

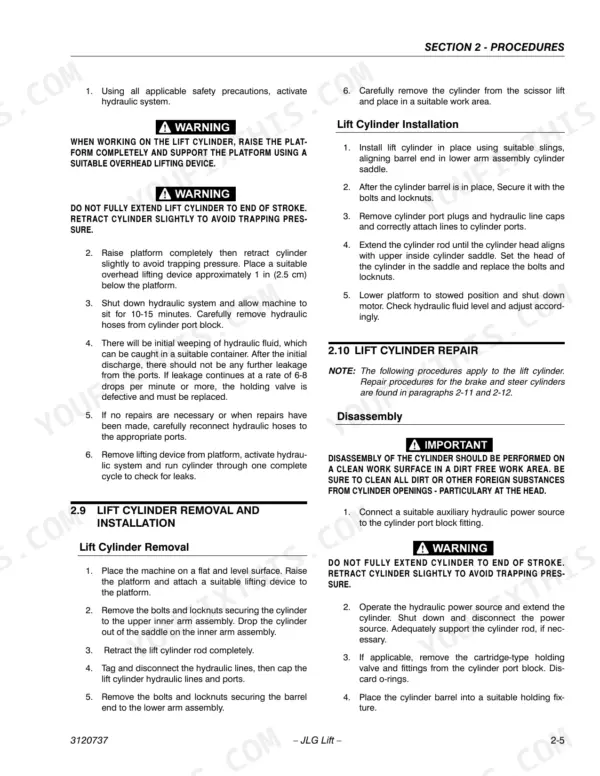

What is the procedure for checking cylinder leakage on cylinders without holding valves?
To check for leakage, fully extend the cylinder, disconnect the hydraulic hose from the retract port, and activate the extend function. If leakage is 6-8 drops per minute or more, the piston seals are defective and must be replaced. p. 18
What is the required torque for the lift cylinder piston nut on 2032E2/2632E2/2646E2/3246E2 models?
The piston nut for the lift cylinder on these specific models must be torqued to 800-1000 ft lb (1085-1356 Nm) using Loctite. p. 22
What is the maximum pressure for the main relief valve on a JLG 1532E2-3246E2 Series with non-proportional controls?
The main relief valve for non-proportional control machines is set to a maximum of 3200 psi (207 bar). p. 11
How will I receive this JLG 1532E2 Service Manual?
You get a 86-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this JLG 1532E2 Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
