Tilt sensor faults on a mast lift that cuts out at height are exactly what this JLG 1230ES service manual PDF was written for: 198 factory pages, OEM document 3121222, covering the electric aerial platform from base frame to platform controls. DTC check tables carry each fault code through to pin-level tests at the X-connectors, so a flashing display turns into a specific wire you can put a meter on. Electrical schematics, connector loading diagrams, and the hydraulic circuit for pump, lift, and steer fill the back of the book, with component locations mapped on the machine itself. Each standard battery weighs 62 lb (28 kg); torque the wheel bolts to 120 ft lb (163 Nm) after any drive service. A platform stranded at half height helps nobody. This bookmarked, text-searchable PDF puts the specs in front of you and the 1230ES back in service.
What's Inside This JLG 1230ES Manual

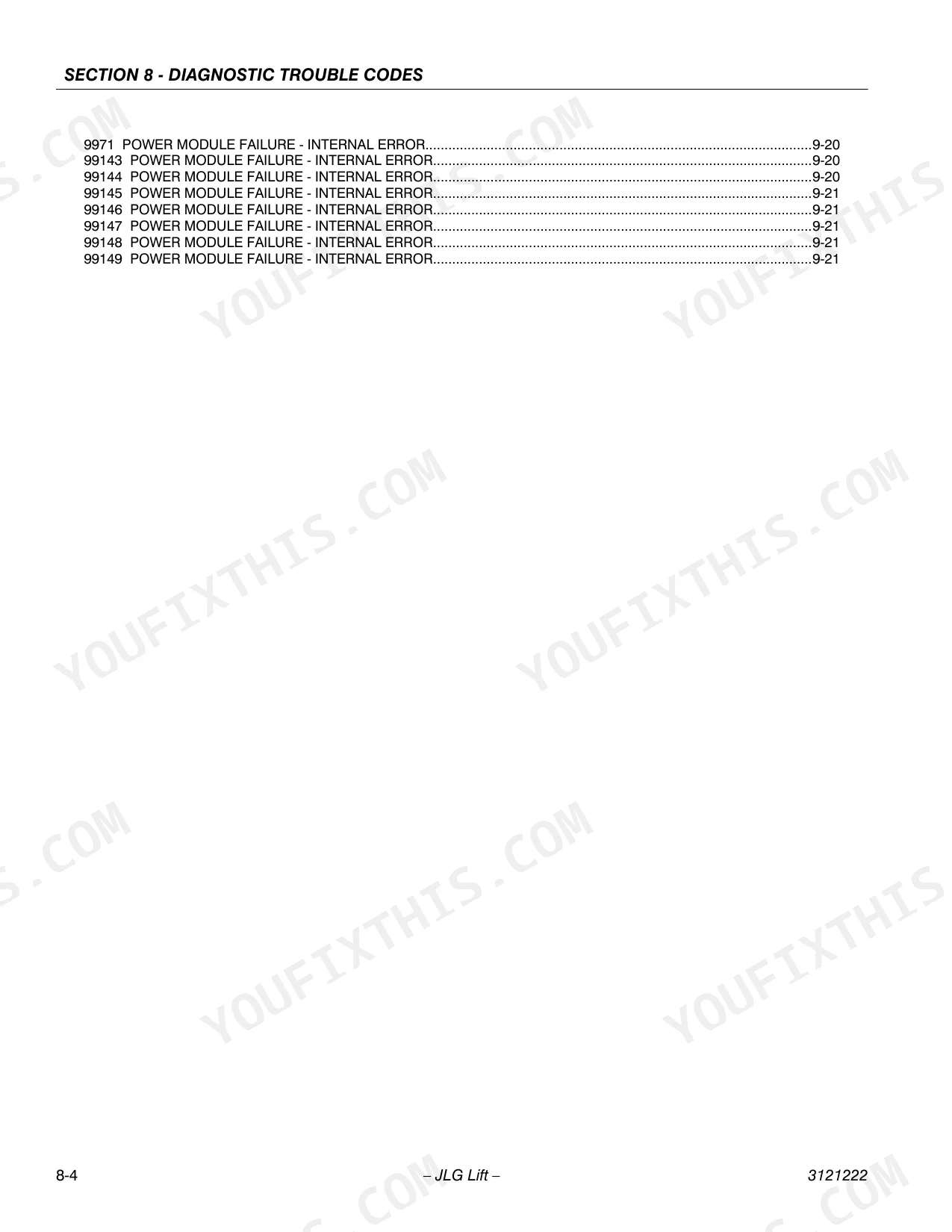

| System | Pages | Key Topics |
|---|---|---|
| Maintenance Safety Precautions | 3 | General, Hydraulic System Safety, Maintenance |
| Revision Log | 4 | - |
| Machine Specifications | 5-22 | Operating Specifications, Lubrication, Cylinder Specifications, Torque Requirements, Serial Number Locations |
| General Service Information | 23-30 | Machine Preparation, Inspection, And Maintenance, Preventive Maintenance and Inspection Schedule, Servicing and Maintenance Guidelines |
| Theory of Operation - 1230ES | 31-36 | Overview, Modes of Operation, CAN Communications, Controls & Sensors, Traction, Pump/Lift/Mast, Steer |
| Base Components | 37-76 | Base Assembly Components, Base Frame Covers, Wheels and Tires - Drive and Rear, Rear Wheel Hub - Installation, Steering Linkage Assembly - Installation, Steer Cylinder - Servicing |
| Control Components | 77-100 | Control Components Overview, Control Components - Service, Traction System, Power Module - P/N-1600346, Power Module - P/N-1001092456, Ground Control Module - Service Procedure |
| Mast Components | 101-118 | Mast Components Overview, Platform Tool Tray - Installation, Mast Cover Plate - Installation, Platform AC Receptacle Box - Installation, Mast Assembly - Components |
| Jlg Control System | 119-132 | Electronic Control System, Machine Configuration Programming Information, Machine Personality - Adjustment Settings, Tilt Sensor Calibration, Tilt Sensor Electrical Evaluation |
| Diagnostic Trouble Codes | 133-154 | Introduction, X-Connector References, DTC Index, DTC Check Tables |
| General Electrical Information & Schematics | 155-198 | General, Multimeter Basics, Electrical Switch Testing, Applying Silicone Dielectric Compound to Amp Connectors, Working with Deutsch Connectors, X-Connector References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Bolt Torque | 120 ft lb (163 Nm) | p. 13 |
| Batteries - Standard - Combined | 248 lb. (112 kg) | p. 13 |
| Batteries - Standard (each) | 62 lb. (28 kg) | p. 13 |
| 1st Stage Wheel Torque | 20-30 ft lbs (28 - 42 Nm) | p. 39 |
| Nominal DC Output Voltage | 24V | p. 97 |
| Maximum DC Output Voltage | 33.6V | p. 97 |
| Tilt sensor electrical failure reporting angle | +20.0° | p. 130 |
| Tilt sensor level surface tolerance | ±0.5° | p. 132 |
| Contactor solenoid resistance | 52 Ohms | p. 142 |
| Maximum Platform Height | 12 ft. (3.66 m) | p. 13 |
| Maximum Hydraulic System Pressure (Lift) | 1600 psi (110 bar) | p. 13 |
| Maximum Hydraulic System Pressure (Steer) | 1250 psi (86 bar) | p. 13 |
JLG 1230ES Common Problems This Manual Covers
JLG 1230ES shows code 003 alarm, machine locked out and won't drive when elevated
Park on level ground and check tilt readings through the analyzer; both axes should read within ±0.5° on a level surface, per the calibration procedure on page 132. Verify the ANSI/CSA side-to-side trip setting is 1.5°. Clean corroded sensor and ground board connections, recalibrate, then replace the tilt sensor if the fault stays.
Manual Section: Jlg Control System p. 132Displays code 311 open line contactor, no drive or lift from either control station
Disconnect the battery, then measure the line contactor solenoid coil with a multimeter; expect about 52 Ohms resistance, per the DTC check table on page 142. Check the contactor wiring back to the power module for open circuits and loose terminals. Replace the contactor if the coil reads open; if the driver failed, replace the power module.
Manual Section: Diagnostic Trouble Codes p. 142Battery charger fault LED flashing, batteries won't take a full charge, machine dies mid-shift
Check electrolyte in every cell first; fluid should sit 1/8 inch below the vent tubes when fully charged, as shown on page 95. Count the fault LED flashes against the charger troubleshooting table, then verify output holds 24V nominal and never exceeds 33.6V. Replace batteries that won't hold voltage under load before condemning the charger.
Manual Section: Battery Charger Troubleshooting p. 97Lift cuts out partway up, display shows elevation or load sense fault
Test the elevation angle sensor at the ground board: terminal J1-14 supply should read 4.7V, and the output at J1-15 should read 0.1V to 1.2V with the mast stowed, per the DTC table on page 140. Repair chafed wiring between the sensor and board, then replace the sensor if voltages fall outside range.
Manual Section: Diagnostic Trouble Codes p. 140Machine powers up but every function is locked out, display flashes a fault code
Read the flash code from the MDI or plug in the analyzer, then match it against the DTC index starting on page 137. Codes 001 and 002 are normal help messages; anything in the function-prevented group points to interlocks. Check battery voltage first; a pack sagging below the 24V nominal rating triggers lockouts before anything mechanical fails.
Manual Section: Diagnostic Trouble Codes p. 137Frequently Asked Questions
What is the torque specification for the JLG 1230ES wheel lug nuts?
The wheel lug nuts must be torqued in three stages. The first stage is 20-30 ft lbs (28-42 Nm), the second stage is 65-80 ft lbs (91-112 Nm), and the final third stage is 105-120 ft lbs (142-163 Nm). p. 39
How do I read diagnostic trouble codes on the JLG 1230ES?
Diagnostic trouble codes are indicated on the face of the platform control box as a 'SYSTEM FAULT'. These codes are also displayed on the handheld analyzer. For detailed descriptions of these codes, refer to Section 8, Diagnostic Trouble Codes. p. 121
What is the hydraulic oil capacity for the JLG 1230ES?
The hydraulic tank capacity is 0.80 gallons (3 liters), and the total hydraulic system capacity, including the tank, is 1.75 gallons (4.1 liters). p. 14
What is the torque specification for the steer cylinder head (gland) on a JLG 1230ES?
On final assembly, the steer cylinder head (gland) must be torqued to 500 Nm (112 ft. lb.). p. 42
What is the torque specification for the lift cylinder piston on a JLG 1230ES?
On final assembly, the lift cylinder piston must be torqued to 260 Nm (55 ft. lb.). p. 44
Is this JLG 1230ES manual a PDF I download?
One searchable PDF covering 198 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I able to print pages from this JLG 1230ES manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
